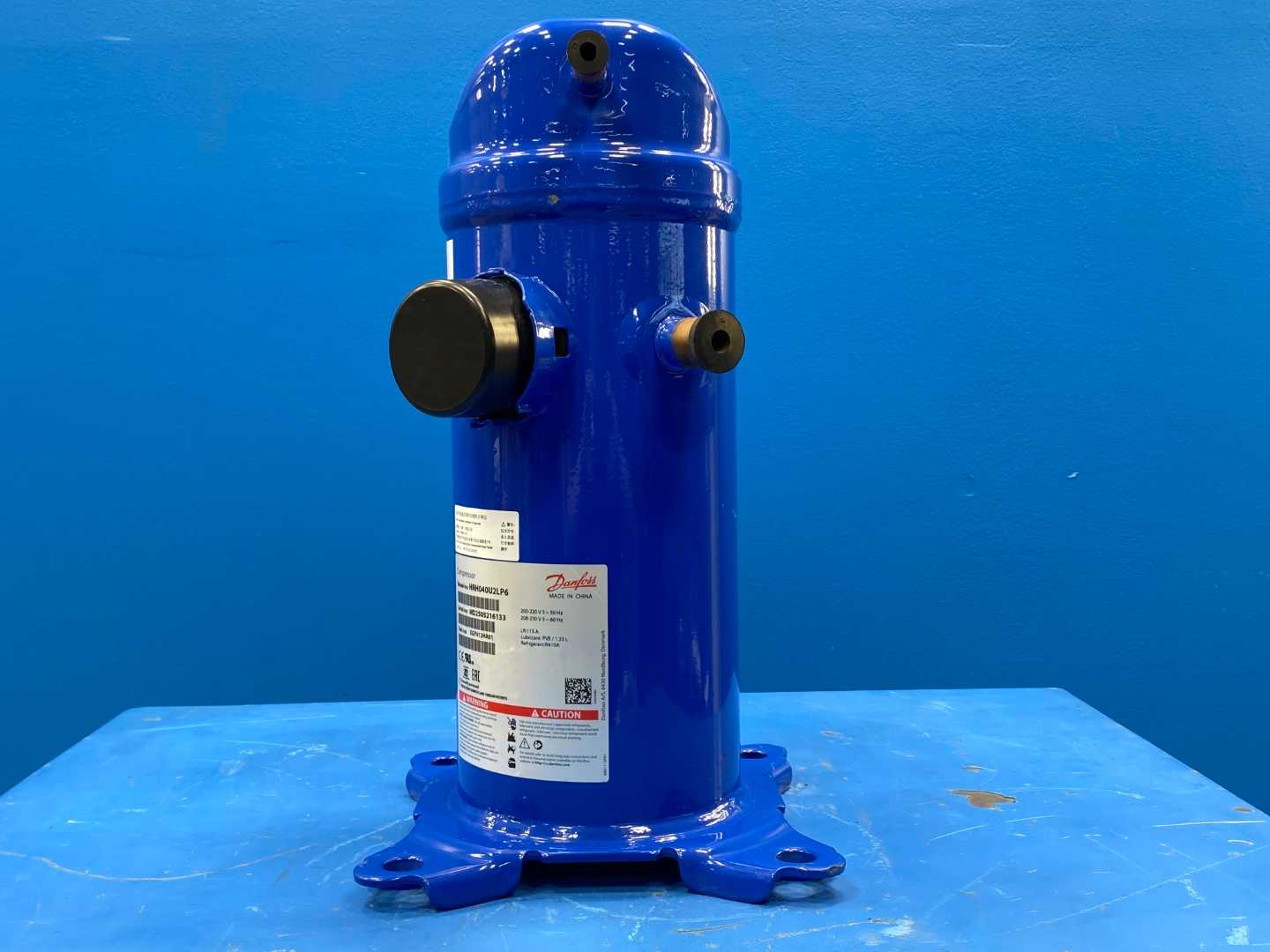

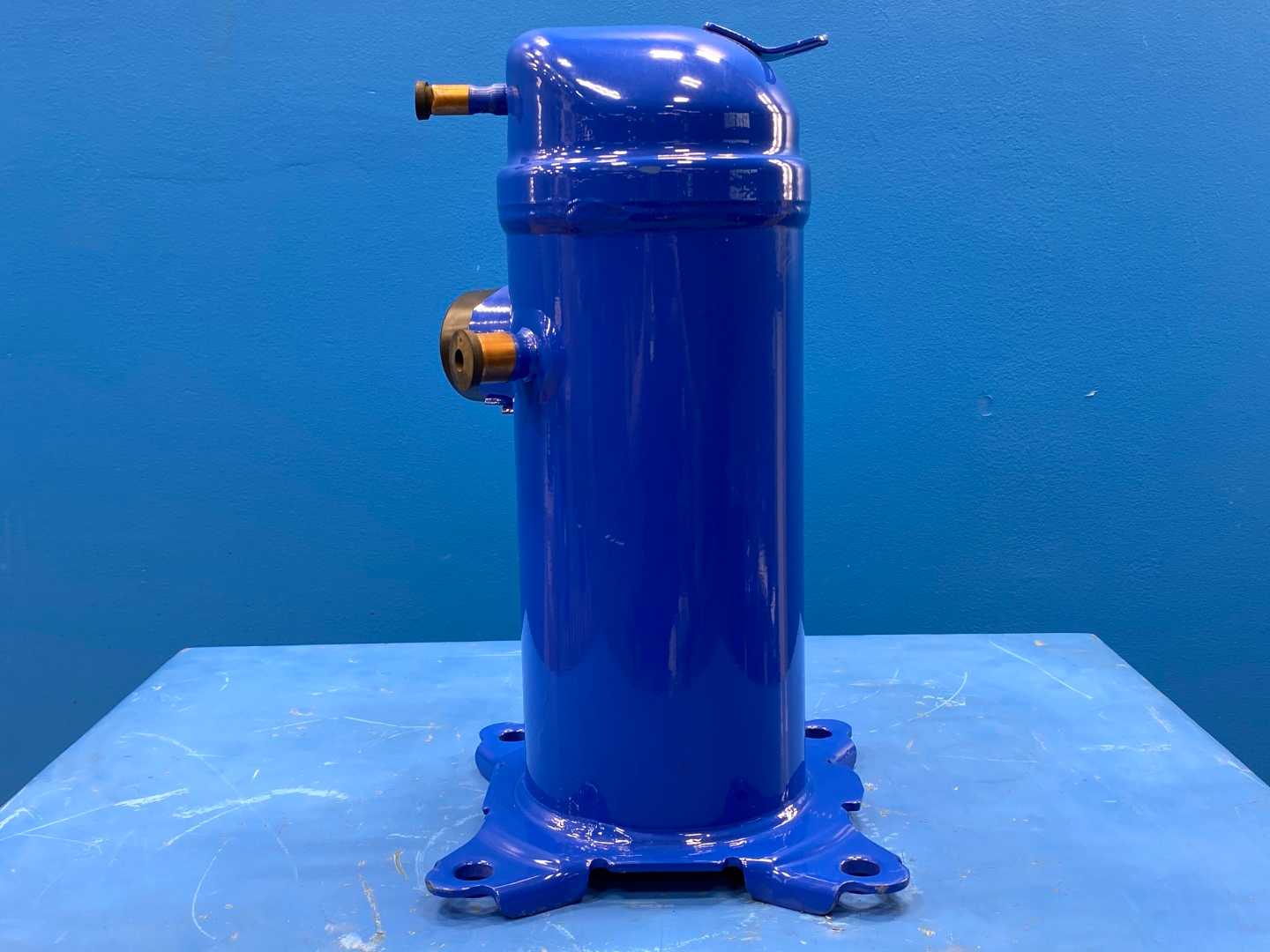

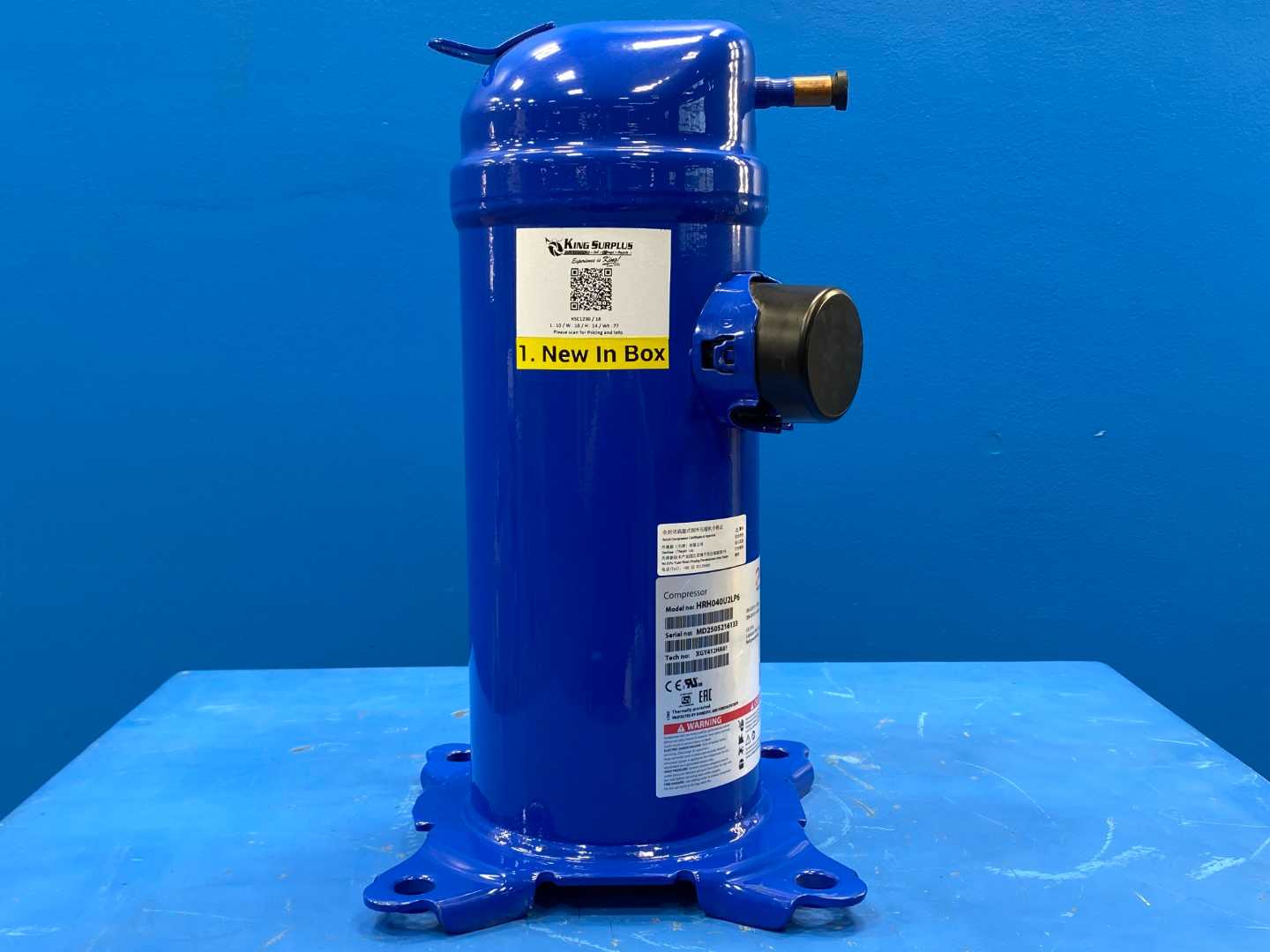

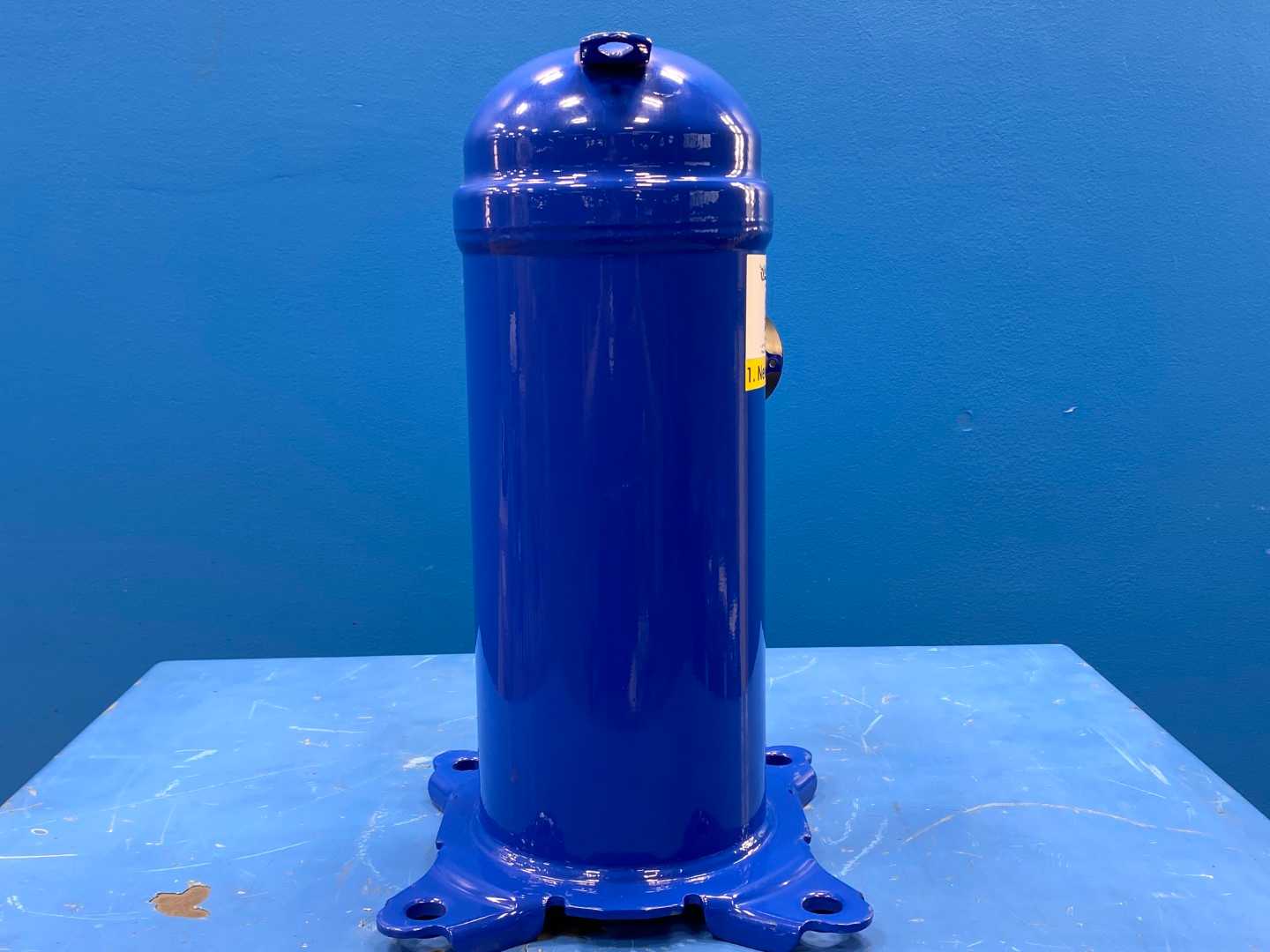

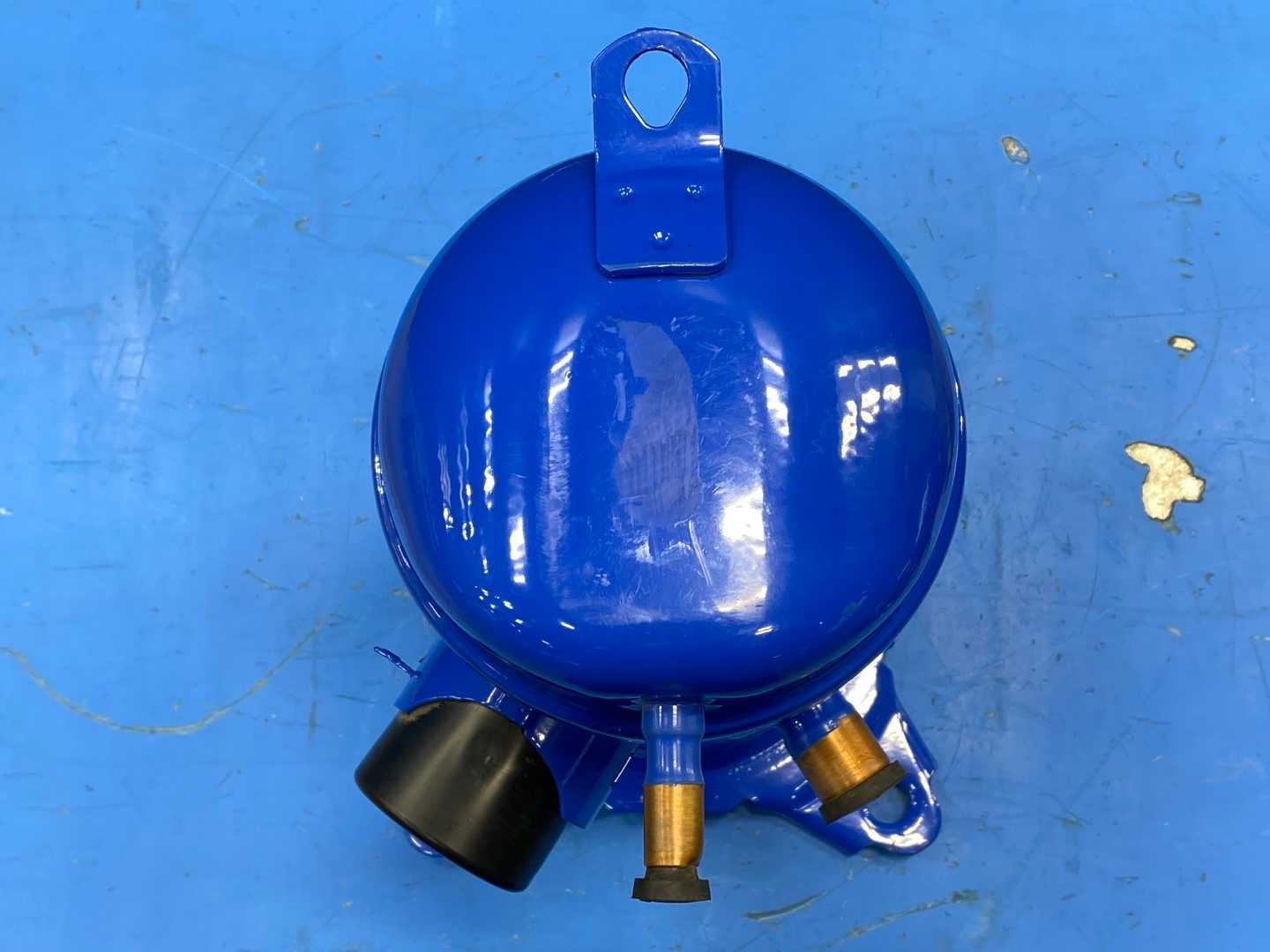

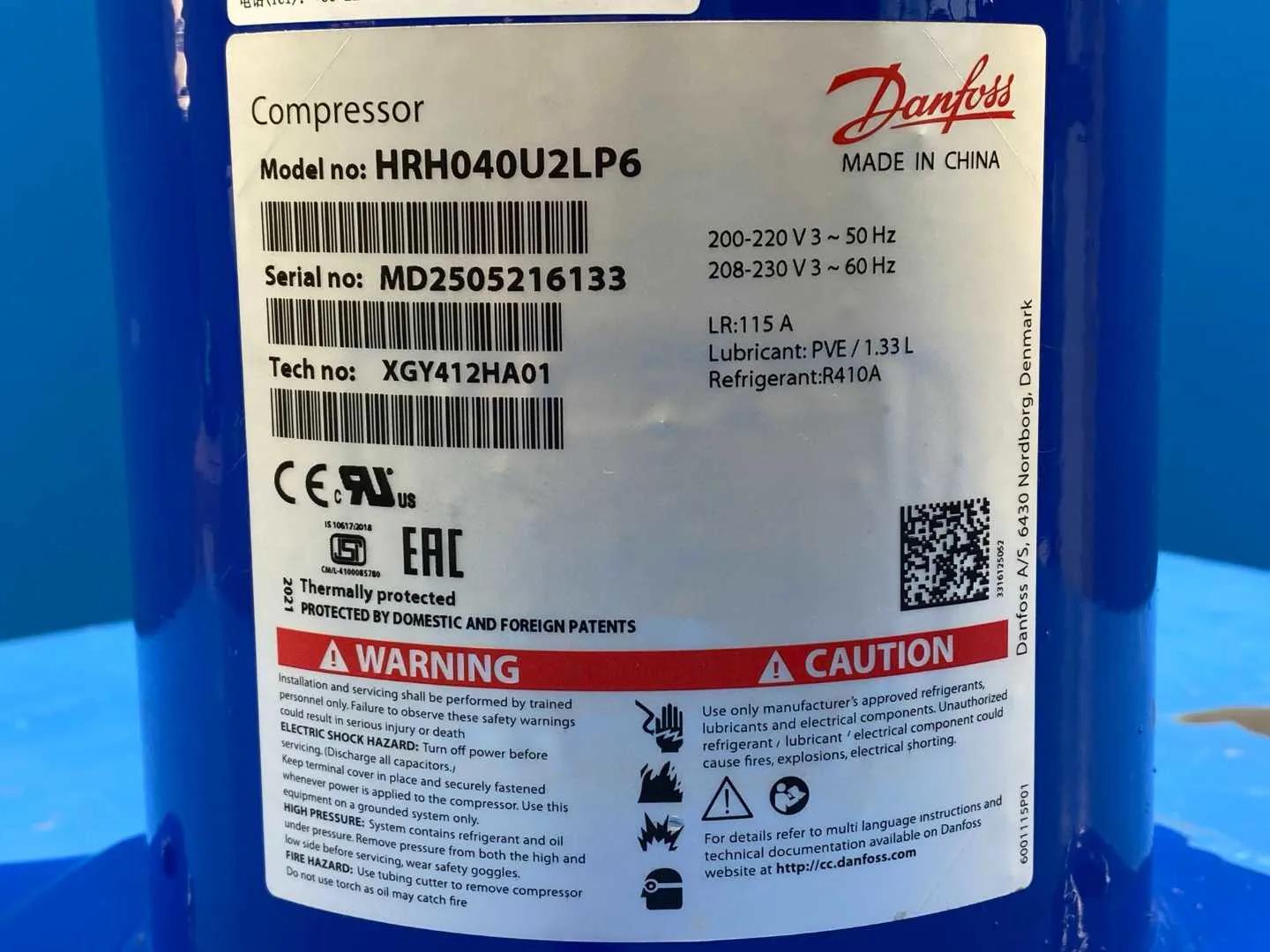

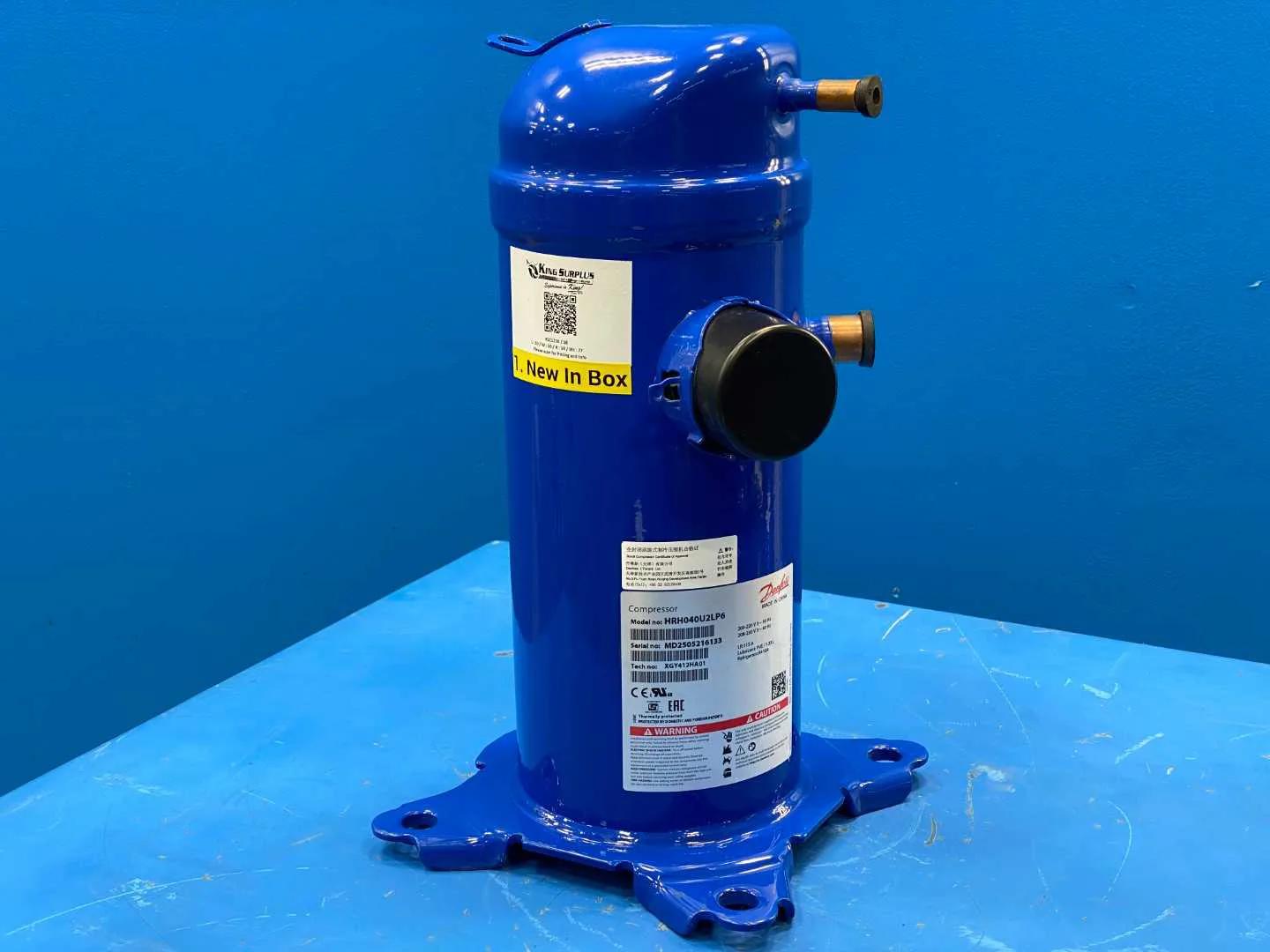

Danfoss Inverter Scroll Compressor HRH040U2LP6 121L1276 (4 tons / 48K BTU)
$995.00
| Description | Details |
|---|---|
| Available Quantity | 11 |
| Model | HRH040U2LP6 |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 18 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
$995.00
Basic Information
Inspection Report
Item Description
Basic Information
Asset # : KSC1230 / 18
Available Qty: 11
Inspections - Yellow Tag : 1. New in Box
Condition : New
Guarantee or ASIS : 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Payment Details
Appraised Value: $995.00
Payment Types Accepted : Visa , Mastercard , Check (14 Day Hold Before Release) , Cash
Shipping Options
Packaging Cost : 1.1 Cardboard $10
Basic Information
Inspection Report
Item Description
Basic Information
Asset # :
KSC1230 / 18
Available Qty :
11
Inspections - Yellow Tag :
1. New in Box
Shipping Options
Packaging Cost :
1.1 Cardboard $10
Factory Information
Product details
| Gross weight | 35.12 Kilogram |
| Net weight | 31.17 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702424065867 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 200-220/3/50 208-230/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HRH040U2 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 405 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-3 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | HRH |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 220 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| High value of voltage range at 50Hz [V] | 242 V |
| High value of voltage range at 60Hz [V] | 253 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 200 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| Low value of voltage range at 50Hz [V] | 180 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| LRA | 115 A |
| Max pressure (PS) - high side | 46.1 bar |
| Max pressure (PS) - low side | 31.1 bar |
| MCC | 25 A |
| Model number | HRH040U2LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 200-230/3/50 208-230/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.33 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |

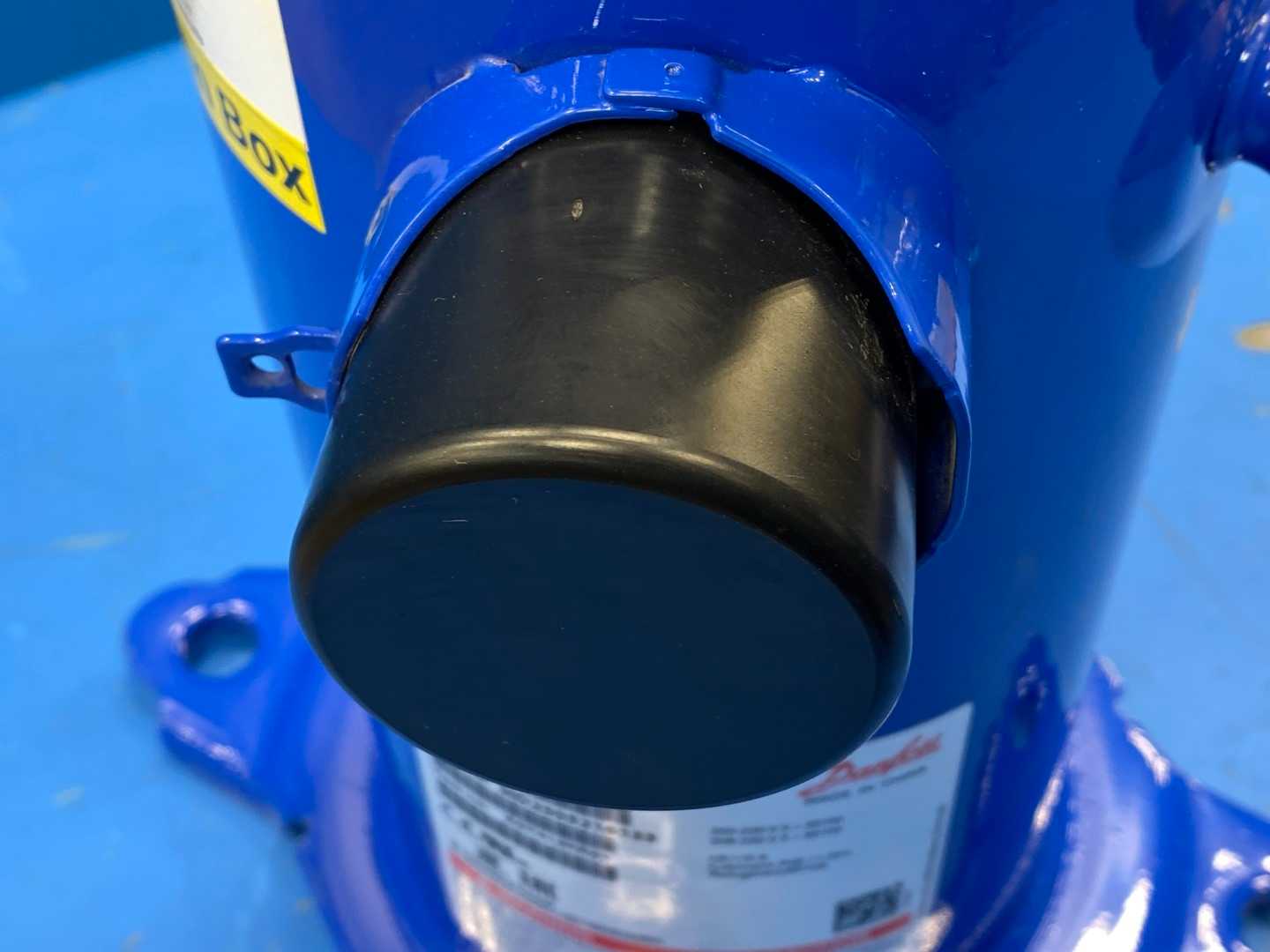

| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HRH |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R410A |
| RLA | 16 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 275 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 39.64 cm³ |
| Technology | Scroll |
| Total height [mm] | 439 mm |
| Type | HRH040 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
| Winding resistance 1-2 [Ohm] | 0.98 |
| Winding resistance 1-3 [Ohm] | 0.98 |
| Winding resistance 2-3 [Ohm] | 0.73 |
