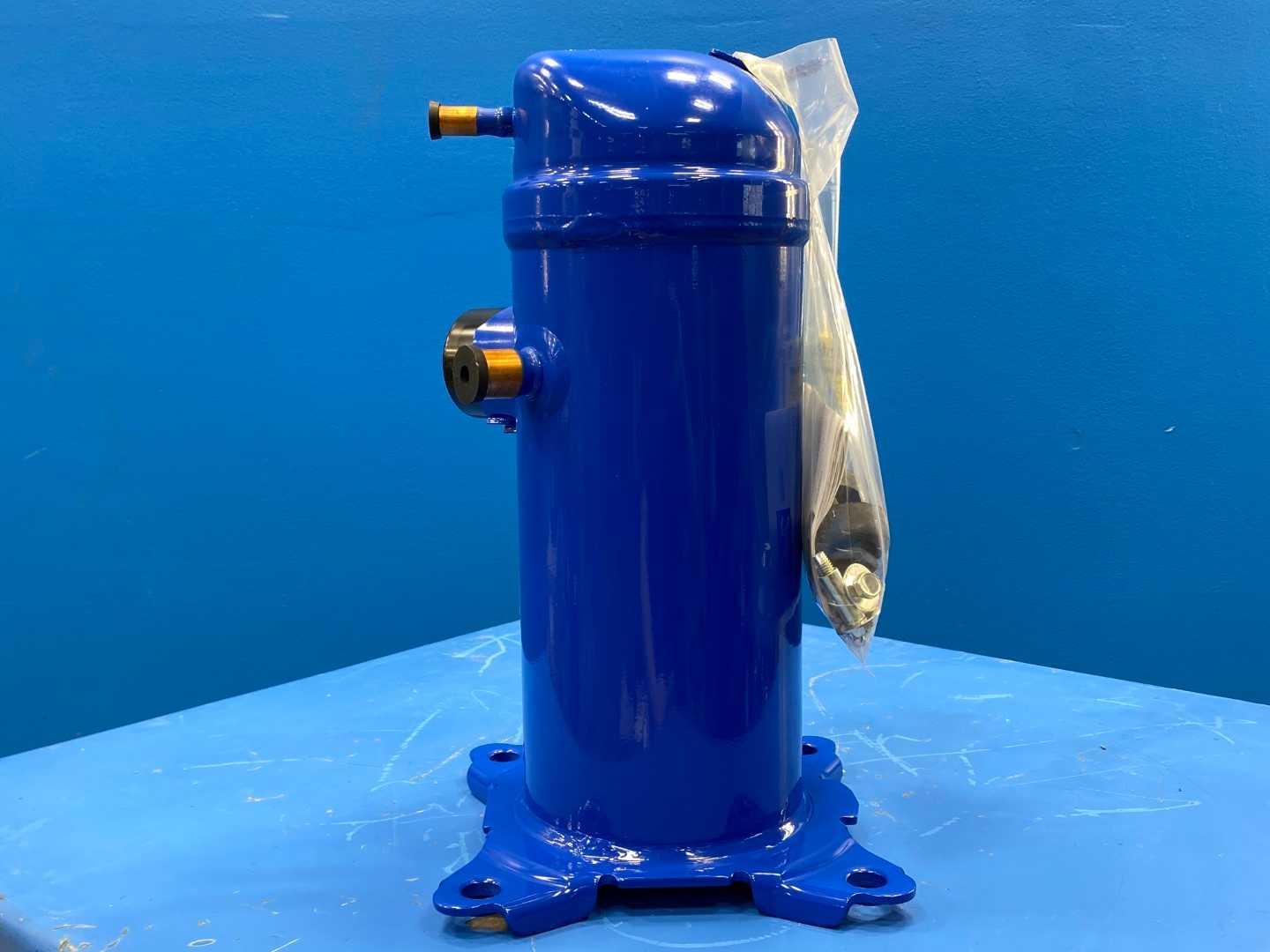

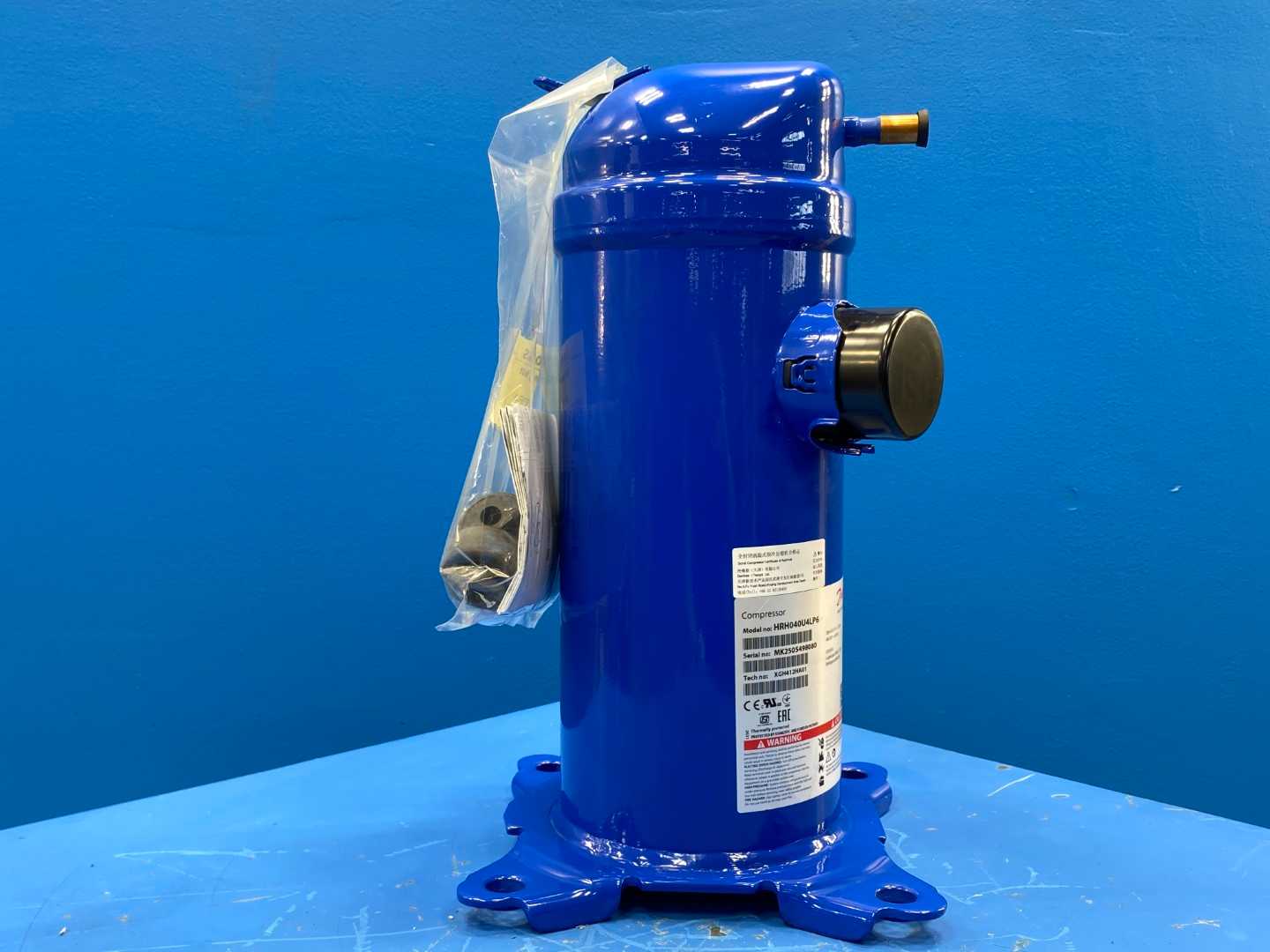

Danfoss Inverter Scroll Compressor HRH040U4LP6 121L1211 (3.3 Ton / 40K BTU)
$895.00
Save for later
Basic Information
Asset # : KSC1230 / 17
Available Qty: 34
Inspections - Yellow Tag : 1. New in Box
Condition : New
Guarantee or ASIS : 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Payment Details
Appraised Value: $895.00
Payment Types Accepted : Visa , Mastercard , Check (14 Day Hold Before Release) , Cash
Shipping Options
Packaging Cost : 1.1 Cardboard $10
ITEM DESCRIPTION
Introducing the Danfoss Inverter Scroll Compressor HRH040U4LP6 121L1211. This marvel of engineering stands at unmatched capacity of 3.3 Ton or 40K BTU. Imagine the power and efficiency of your HVAC optimized leading to significant energy savings and a comfortable environment all year round. The inverter scroll technology allows for consistent, more precise temperature control minimizing energy consumption. It's not just a compressor, it's a smart unit. Low noise and vibration levels eliminate the obtrusive hummings of regular compressors, while its compact and lightweight design simplifies installation and handling. Plus, with the trusted Danfoss brand, quality and longevity is guaranteed. This prudently designed compressor brings your HVAC system into the 21st Century. With this compressor, you don't just buy equipment, you invest in efficiency, reliability, and peace of mind. Upgrade your HVAC system with the Danfoss Inverter Scroll Compressor today and experience the difference. It's more than just a compressor, it's smart, it's efficient, it's the future.
Read More ▼
INSPECTION REPORT
Specifications
DESCRIPTION
DETAILS
Manufacturer :
Danfoss

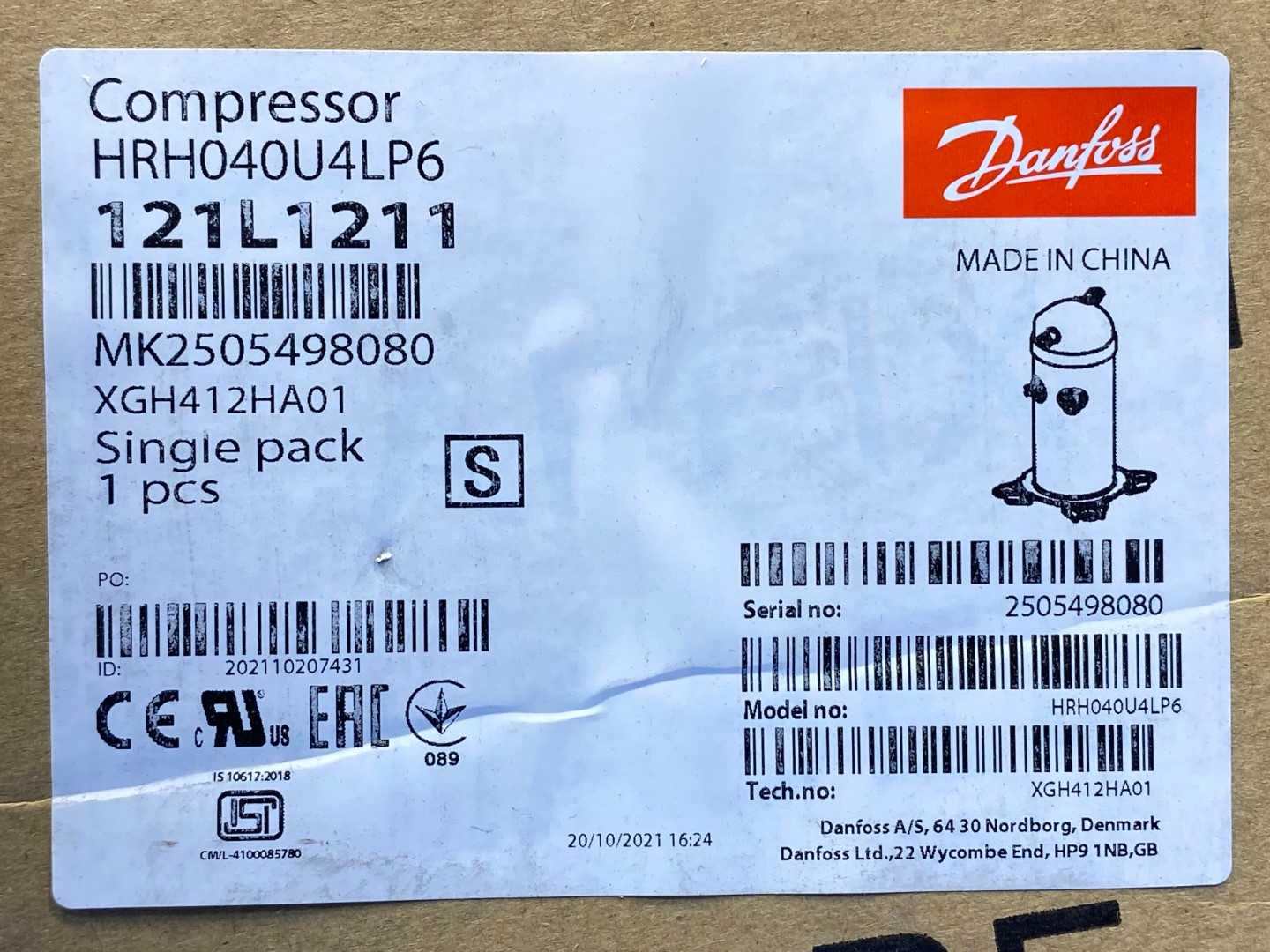

Serial #:
MK2505498080
HP / AMP / KW / KVA :
60Hz
Length (Inches):
10
Estimated Packaging Weight:
N/A
Estimated Total Weight:
77
DESCRIPTION
DETAILS
Model :
HRH032U4LP6
Year :
2020
Amps :
N/A
Phase :
3
Width (Inches):
10
Height (Inches):
14
Factory Information
Product details
| Gross weight | 35.08 Kilogram |
| Net weight | 31.08 Kilogram |
| Volume | 0.1 Cubic meter |
| EAN | 5702424065966 |
| Approval | CE UL UKCA |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| China RoHS compliance | Out of scope |
| Colour | Blue |
| Compressor power supply [V] | 380-415/3/50 460/3/60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | HRH040U4 |
| Diameter [mm] | 165 mm |
| Discharge connection height [mm] | 405 mm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0XC6301B-3 |
| Economizer | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
| Family | HRH |
| Fitting standard | ODF |
| Frequency [Hz] | 50/60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Gaz equalization | None |
| Glass mounting | None |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP22 |
| Length [mm] | 239 mm |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| LRA | 50 A |
| Max pressure (PS) - high side | 46.1 bar |
| Max pressure (PS) - low side | 31.1 bar |
| MCC | 12 A |
| Model number | HRH040U4LP6 |
| Motor protection | Internal overload protector |
| Network power supply [V/Ph/Hz] | 380-415/3/50 460/3/60 |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.33 L |
| Oil equalization | None |
| Oil reference | 320HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Spade |
| Product group | Hermetic compressors |
| Product Name Description | Scroll compressor HRH |
| Refrigerant charge [kg] [Max] | 3.63 kg |
| Refrigerants | R410A |
| RLA | 7.7 A |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |

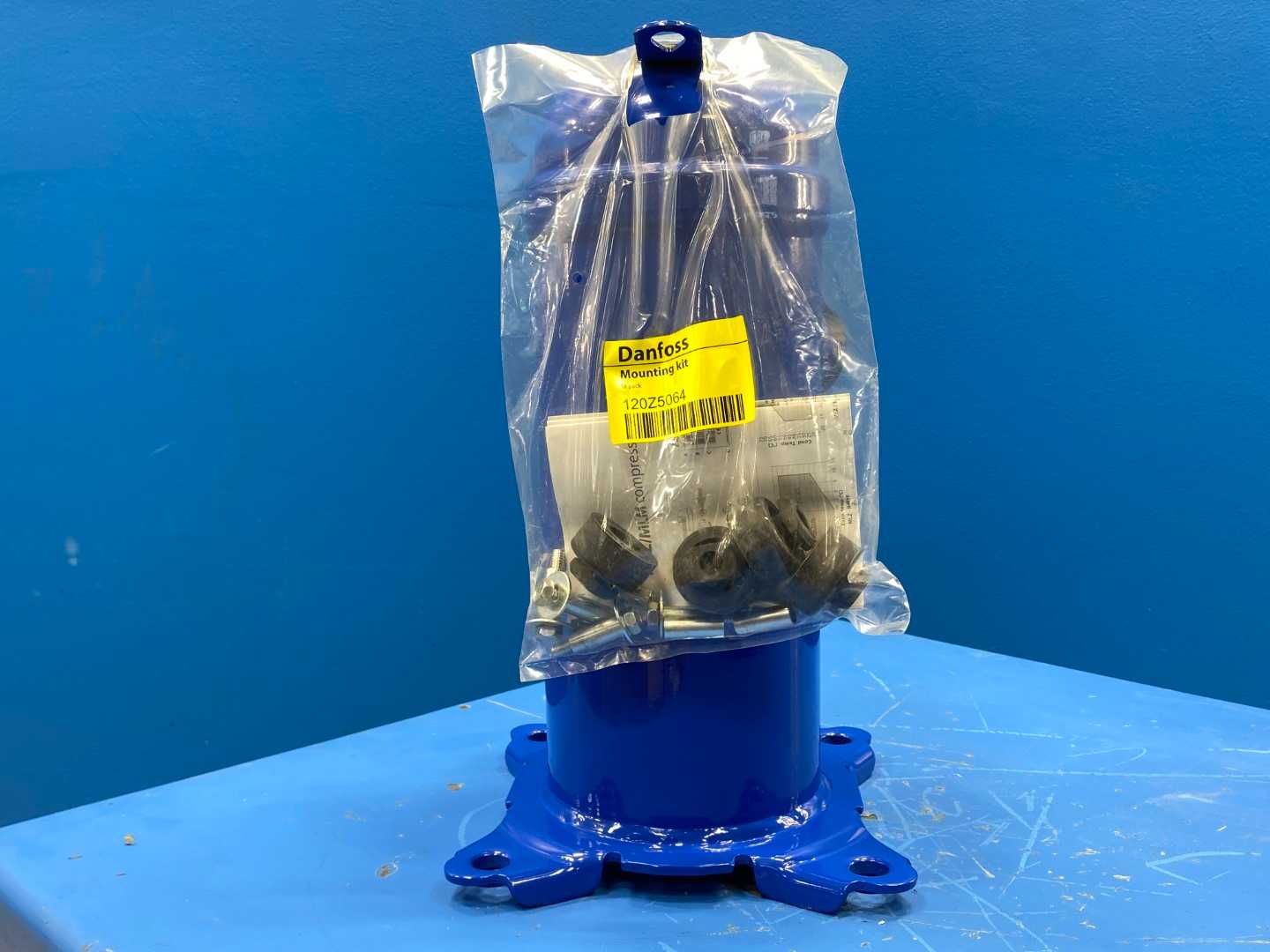

| Shipped mounting | Mounting kit with grommets and sleeves |
| Shipped oil | Initial oil charge |
| Suction connection height [mm] | 275 mm |
| Suction connection material | - |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection size [in] | 7/8 in |
| Swept volume [cm3] | 39.64 cm³ |
| Technology | Scroll |
| Total height [mm] | 439 mm |
| Type | HRH040 |
| UK RoHS compliance | Out of scope |
| Viscosity [cP] | 68 cP |
| Width [mm] | 239 mm |
| Winding resistance 1-2 [Ohm] | 3.87 |
| Winding resistance 1-3 [Ohm] | 3.87 |
| Winding resistance 2-3 [Ohm] | 2.85 |
