Danfoss Scroll Compressor 3.3 Ton 40,000 BTU HRH040U1LP6 208-230V 1 Phase R410A
Danfoss Scroll Compressor 3.3 Ton 40,000 BTU HRH040U1LP6 208-230V 1 Phase R410A
Danfoss Scroll Compressor 3.3 Ton 40,000 BTU HRH040U1LP6 208-230V 1 Phase R410A
Danfoss Scroll Compressor 3.3 Ton 40,000 BTU HRH040U1LP6 208-230V 1 Phase R410A
| Description | Details |
|---|---|
| Available Quantity | 11 |
| Model | HRH040U1LP6 |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 1111 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |

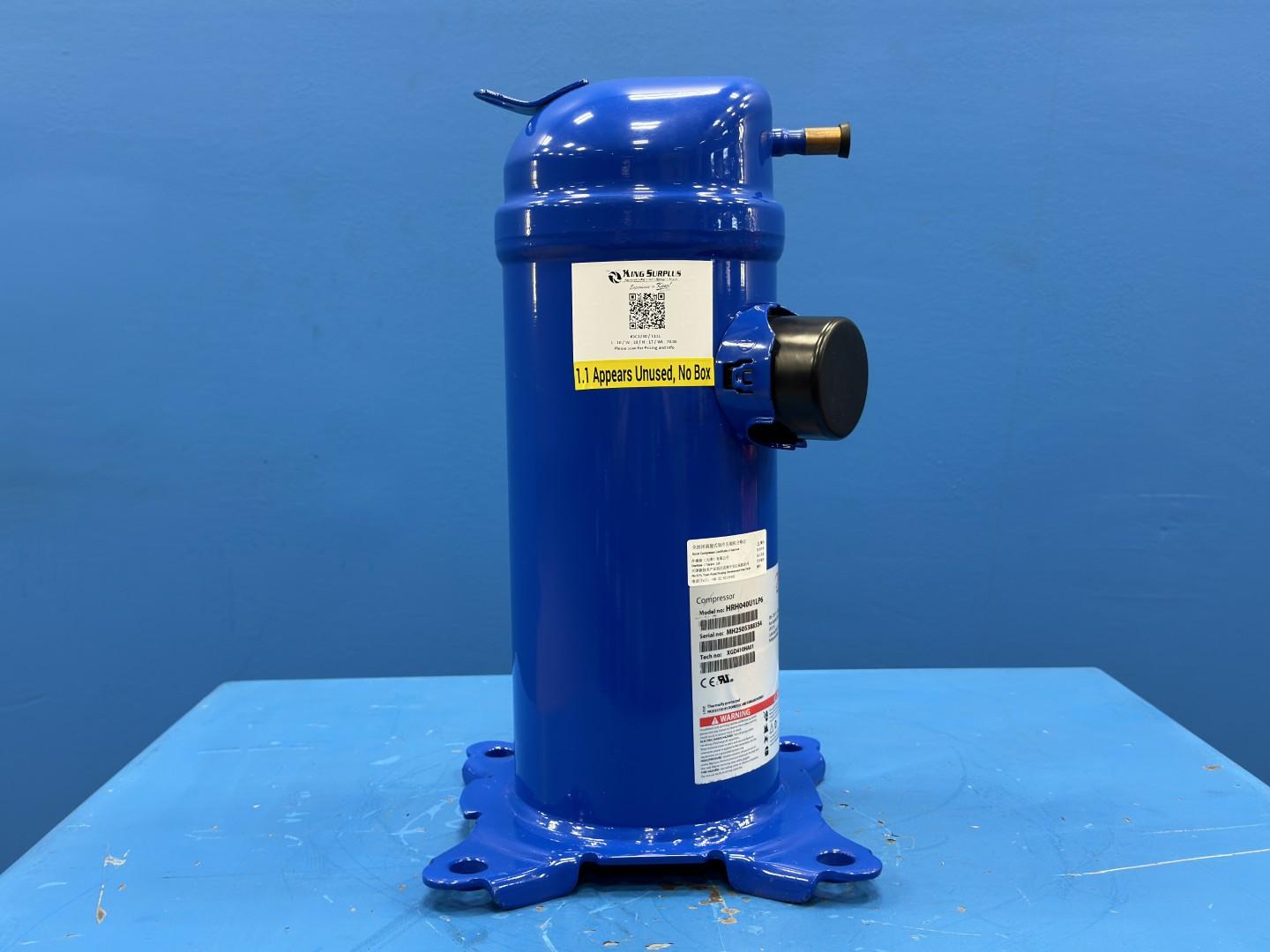

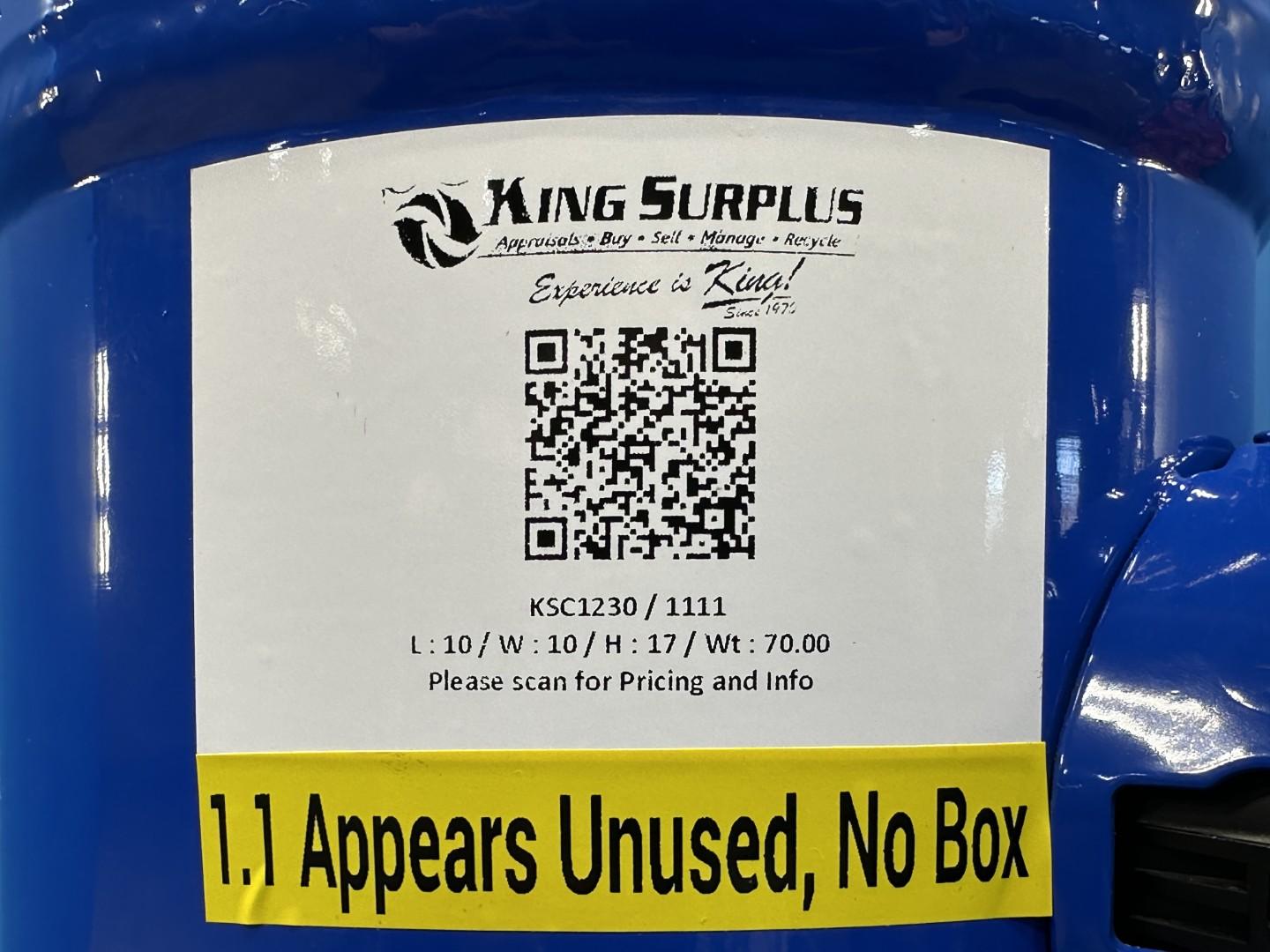

| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.1 Cardboard $10 |
$606.95
Basic Information
Asset #
KSC1230 / 1111
Available Quantity
11
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

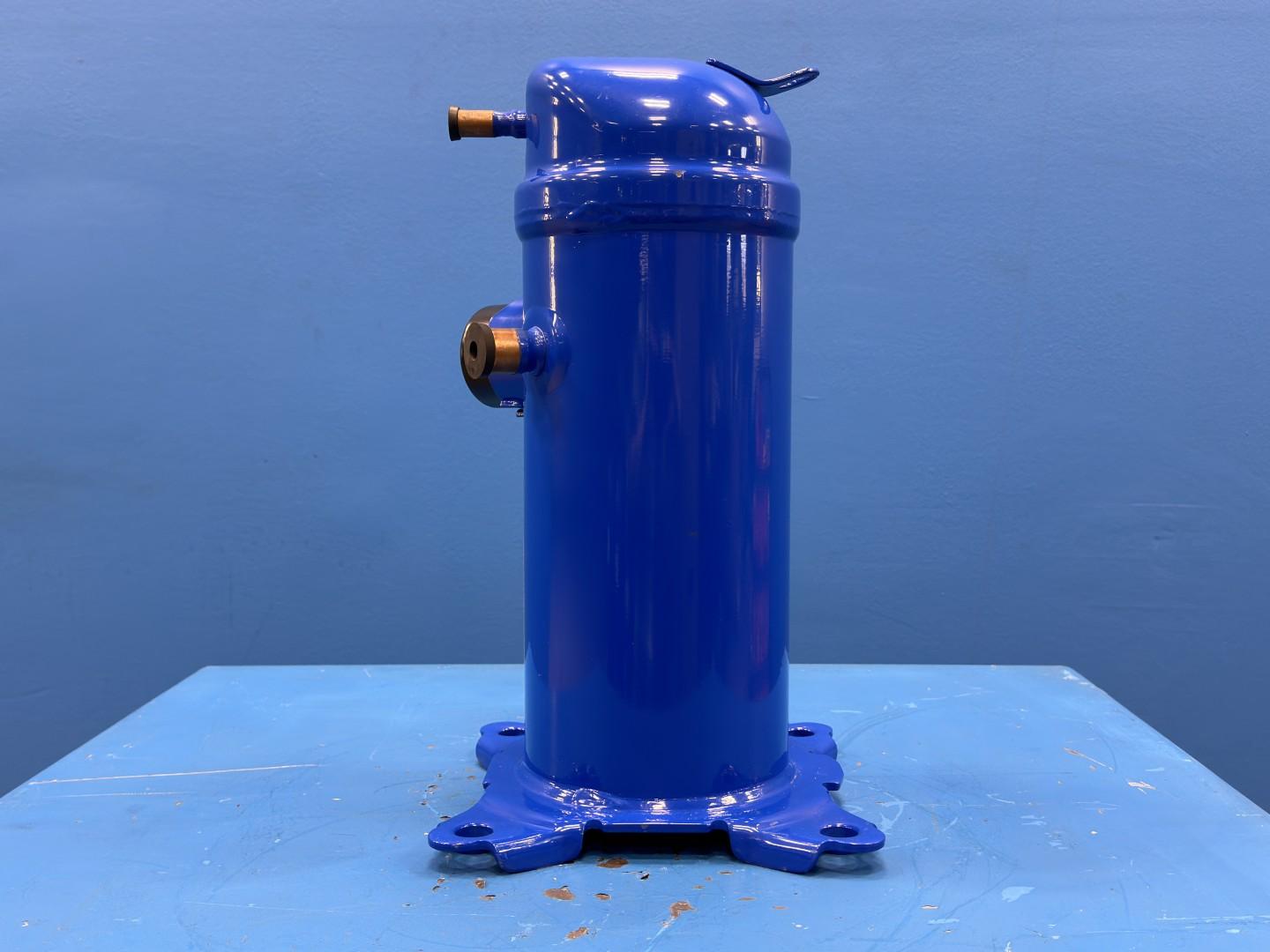

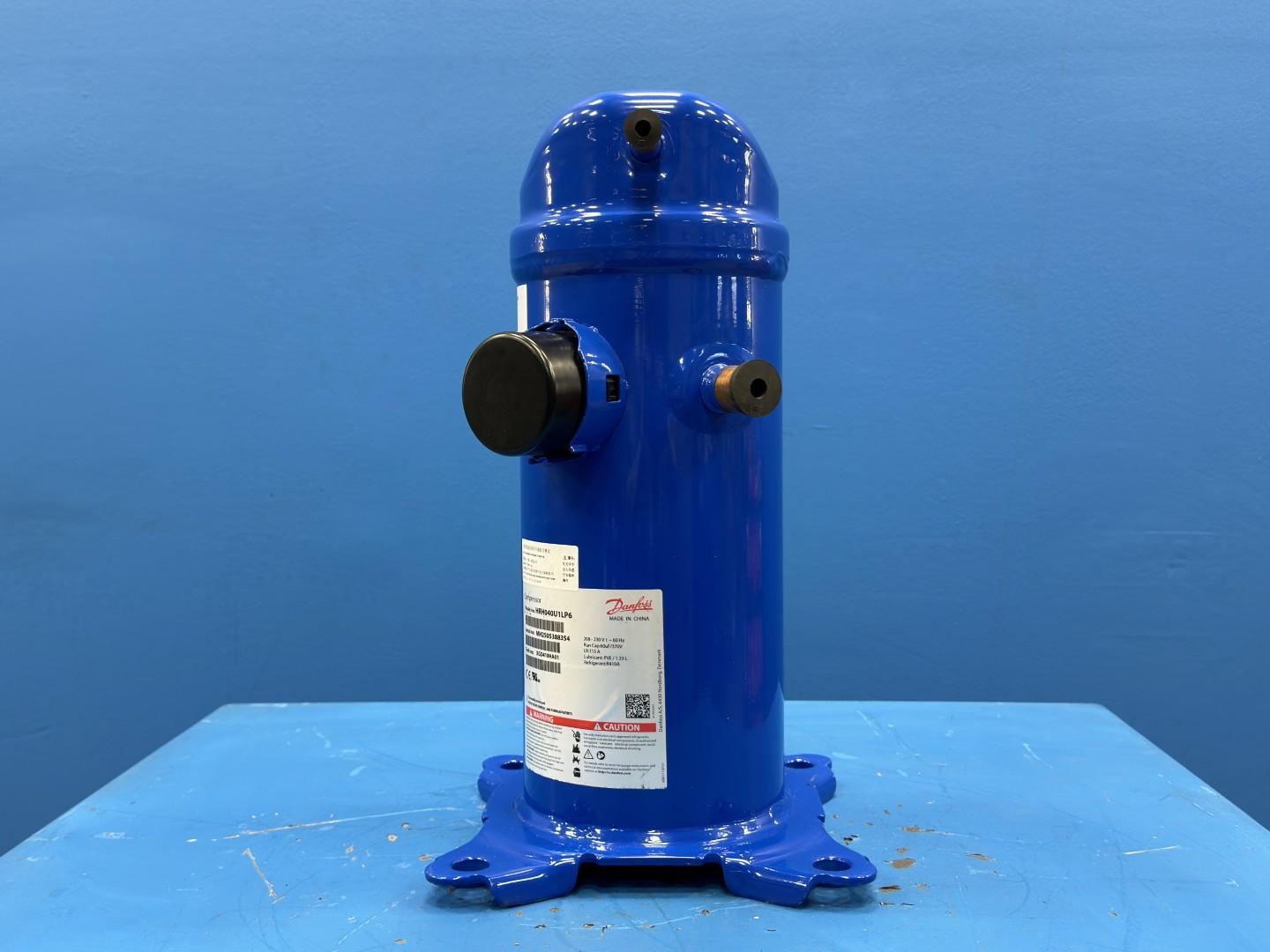

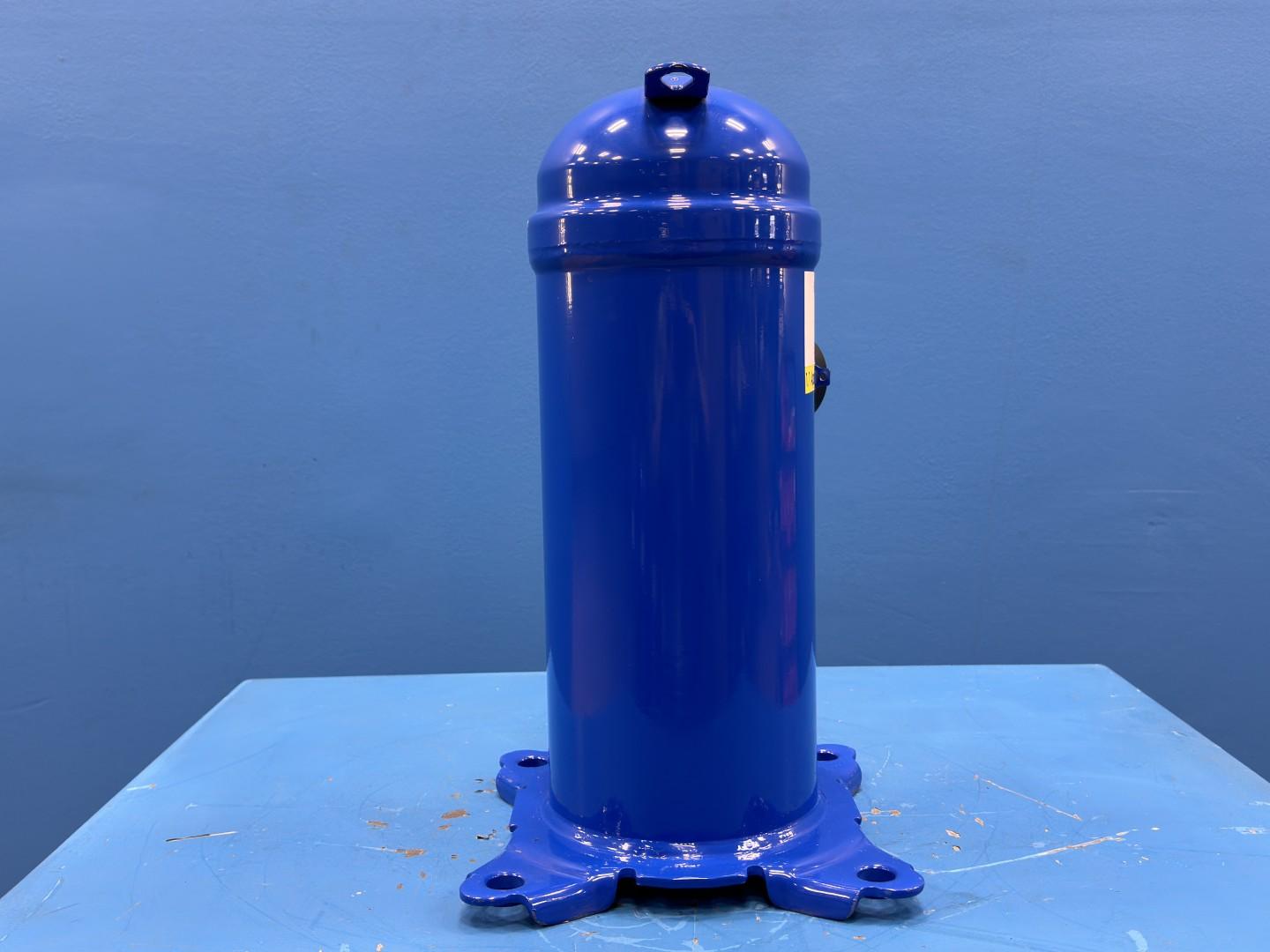

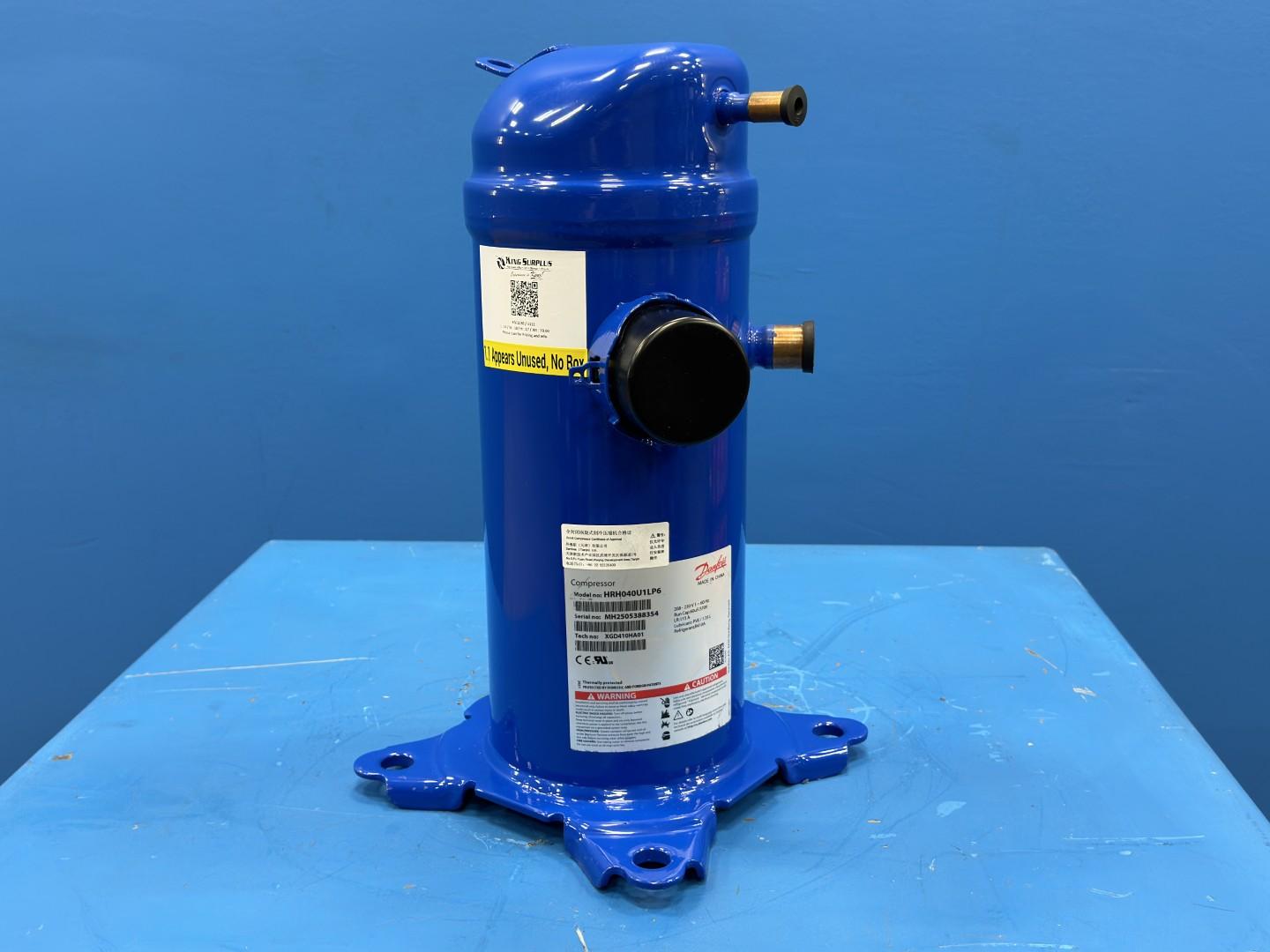

The HRH040U1LP6 is a hermetic, fixed-speed scroll compressor for air conditioning and heat pump systems, identical in specification to the black unit listed earlier; this one is the blue shell built at a different Danfoss plant, where color reflects the build site only. It compresses refrigerant with a fixed-and-orbiting scroll pair sealed in a welded shell, runs at one speed, and cycles on and off to control capacity.
This model is built for R410A refrigerant with PVE lubricant and rated at about 3.3 tons (41,490 BTU/hr at 60 Hz). It runs on 208-230 V single-phase, 60 Hz power and is one of the most widely fitted replacement sizes in residential and light commercial condensing units and heat pumps. The code decodes as H (air conditioning), R (residential-platform scroll), H (R410A, PVE oil), 040 (capacity class), U (optimized for 45/100°F), 1 (208-230 V single-phase), L (internal protection), P6 (brazed, spade terminals).
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Danfoss (Performer H-series) |
| Model | HRH040U1LP6 |
| Ordering code | 120U1161 (single pack) / 121L1158 (industrial pack) |
| Compressor type | Hermetic scroll, fixed speed |
| Refrigerant | R410A |
| Lubricant | PVE |
| Nominal cooling capacity | 3.3 Ton (41,490 BTU/hr at 60 Hz, ARI) |
| Power supply | 208-230 V / 1-phase / 60 Hz |
| Swept volume | 39.7 cm3 |
| Oil charge | 1.33 L (45 oz) |
| Motor protection | Internal line-break protector |
| Connection type | Brazed, spade terminals |
| IP rating (terminal box) | IP22 |
| Approvals | UL, CE |
| Net weight | 39.0 kg (86 lb) |
Specifications

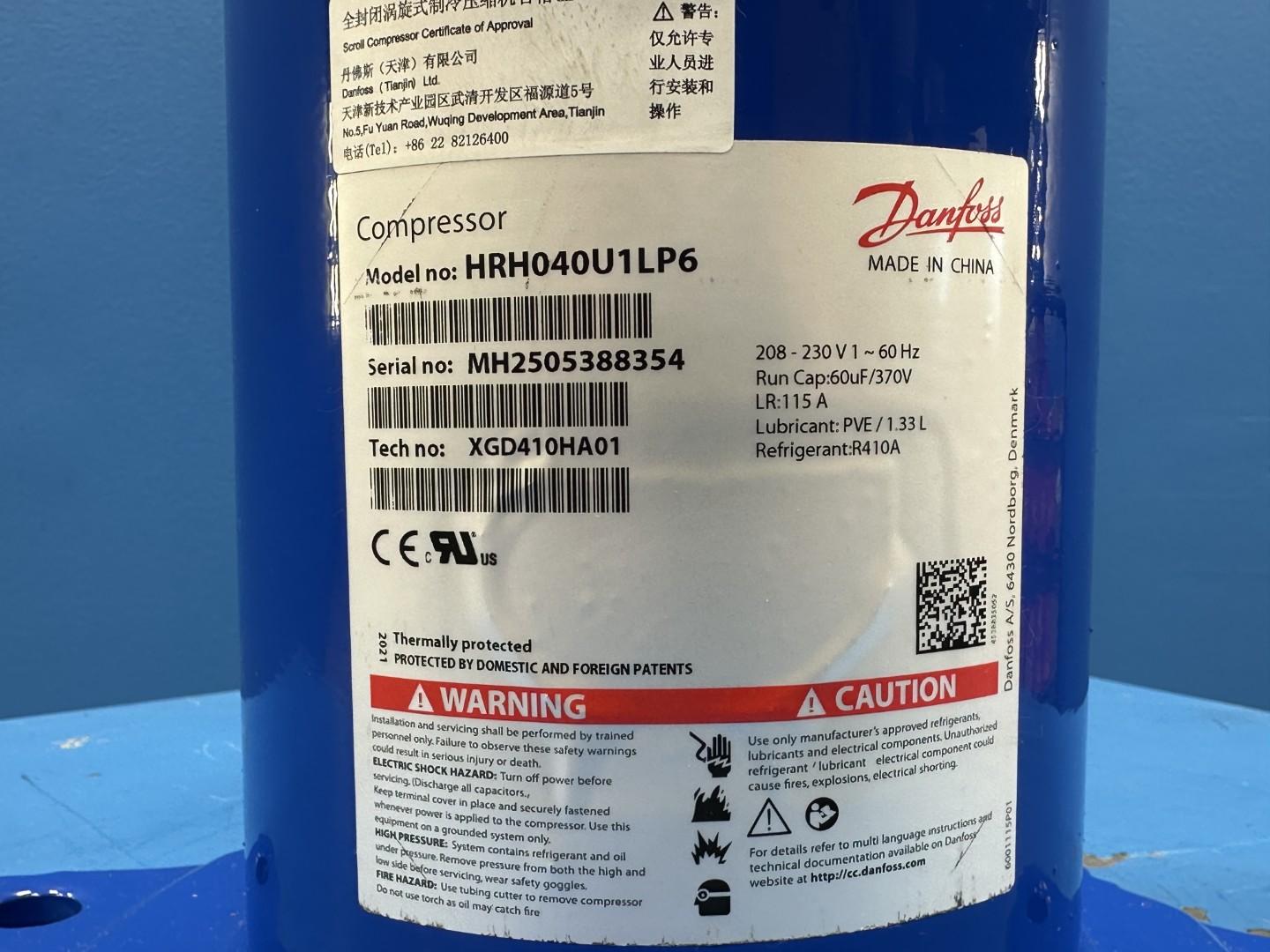

Danfoss
HRH040U1LP6
MH2505388354
2021
60Hz
115
10
10
17
1
N/A
70
KSC1230 / 1111
Packaging fees
1.1 Cardboard $10
