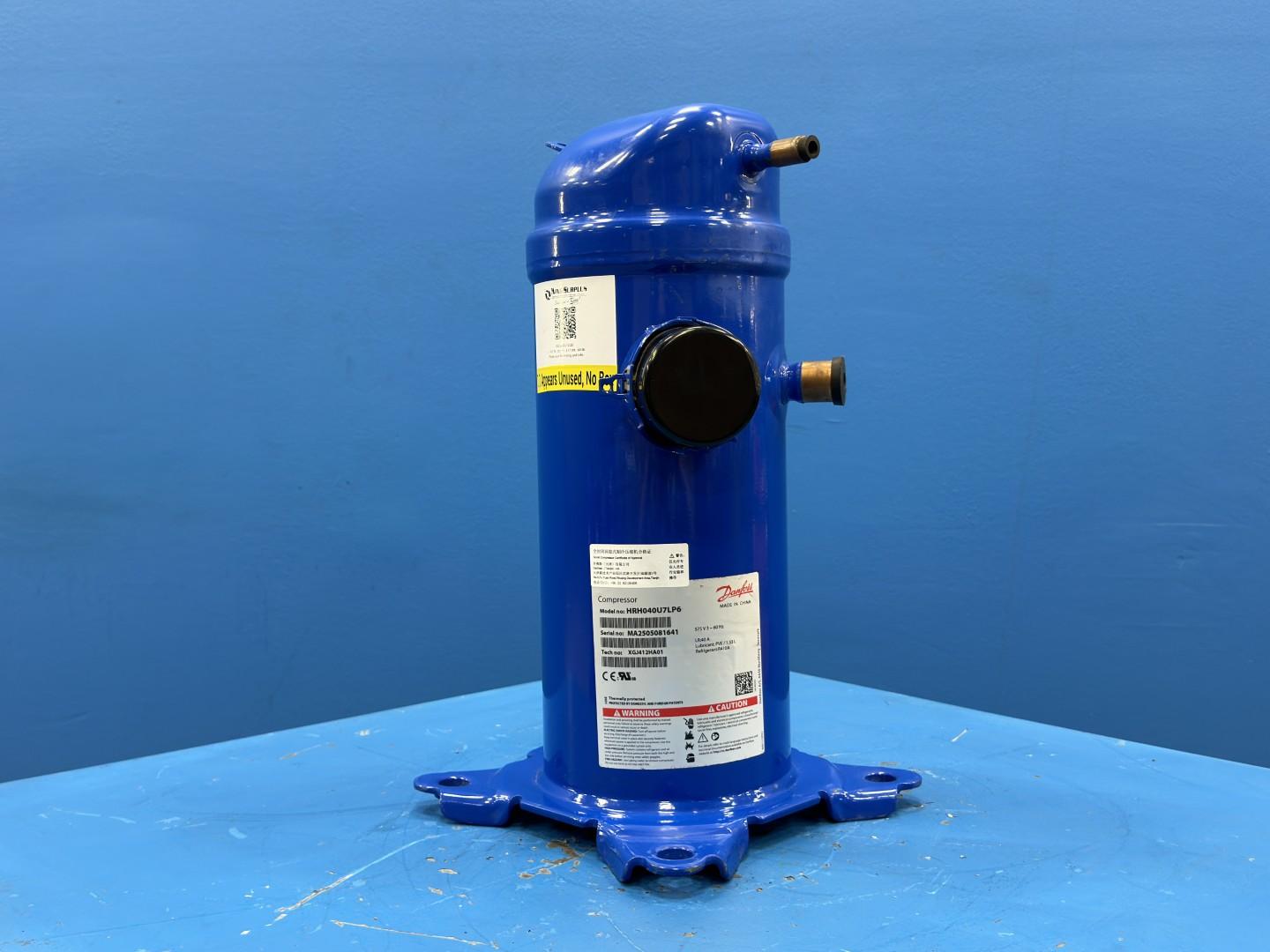

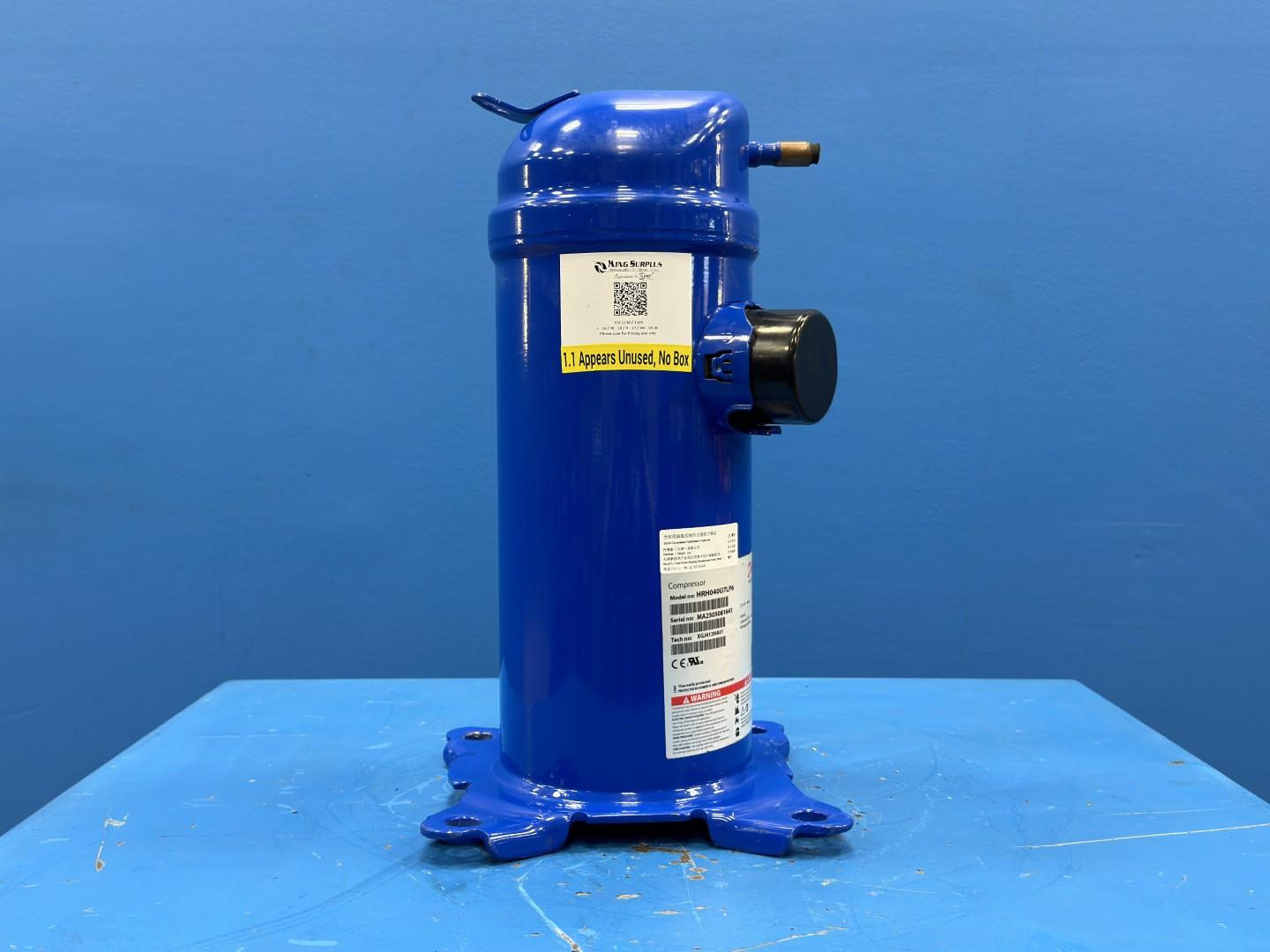

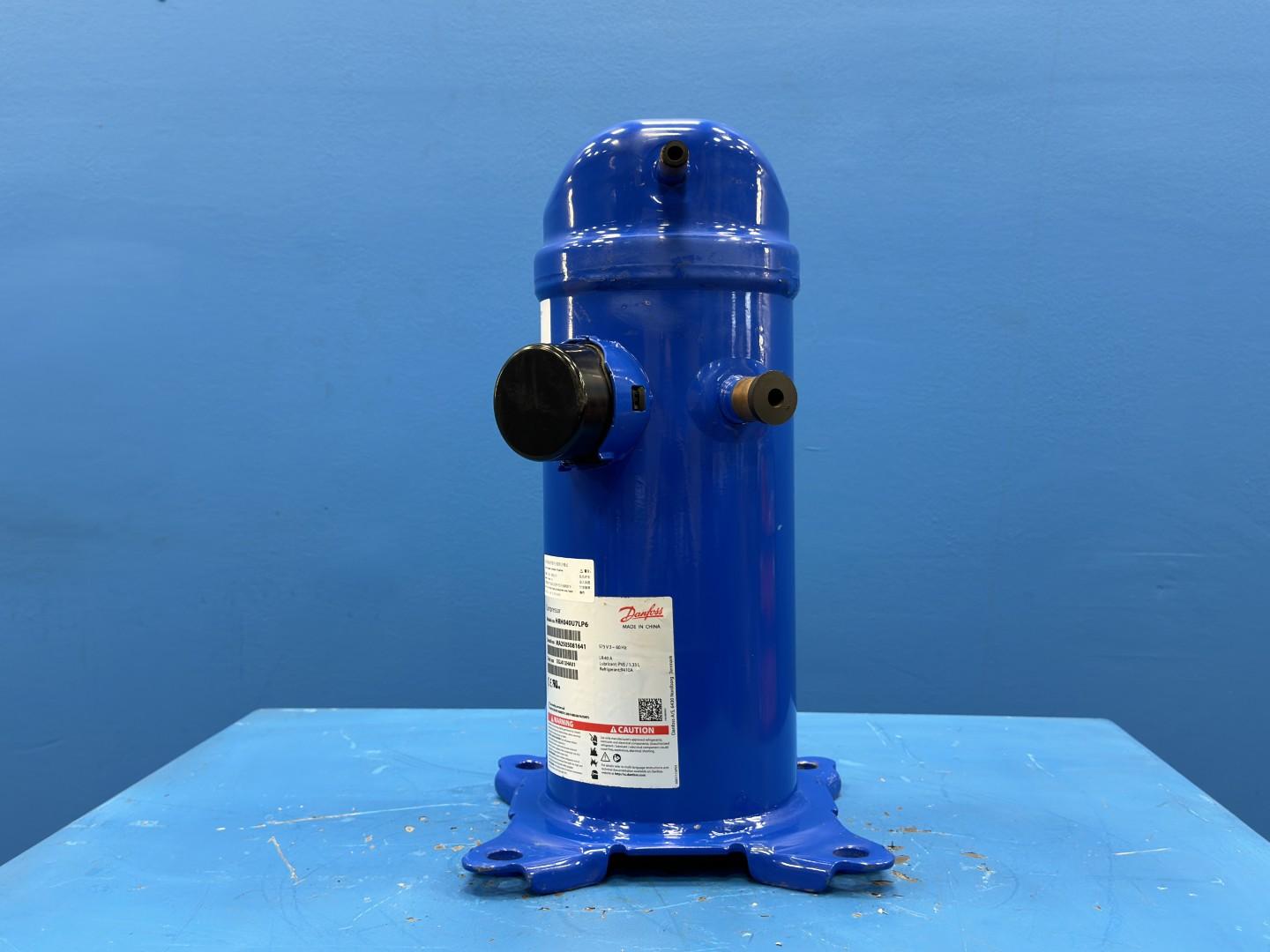

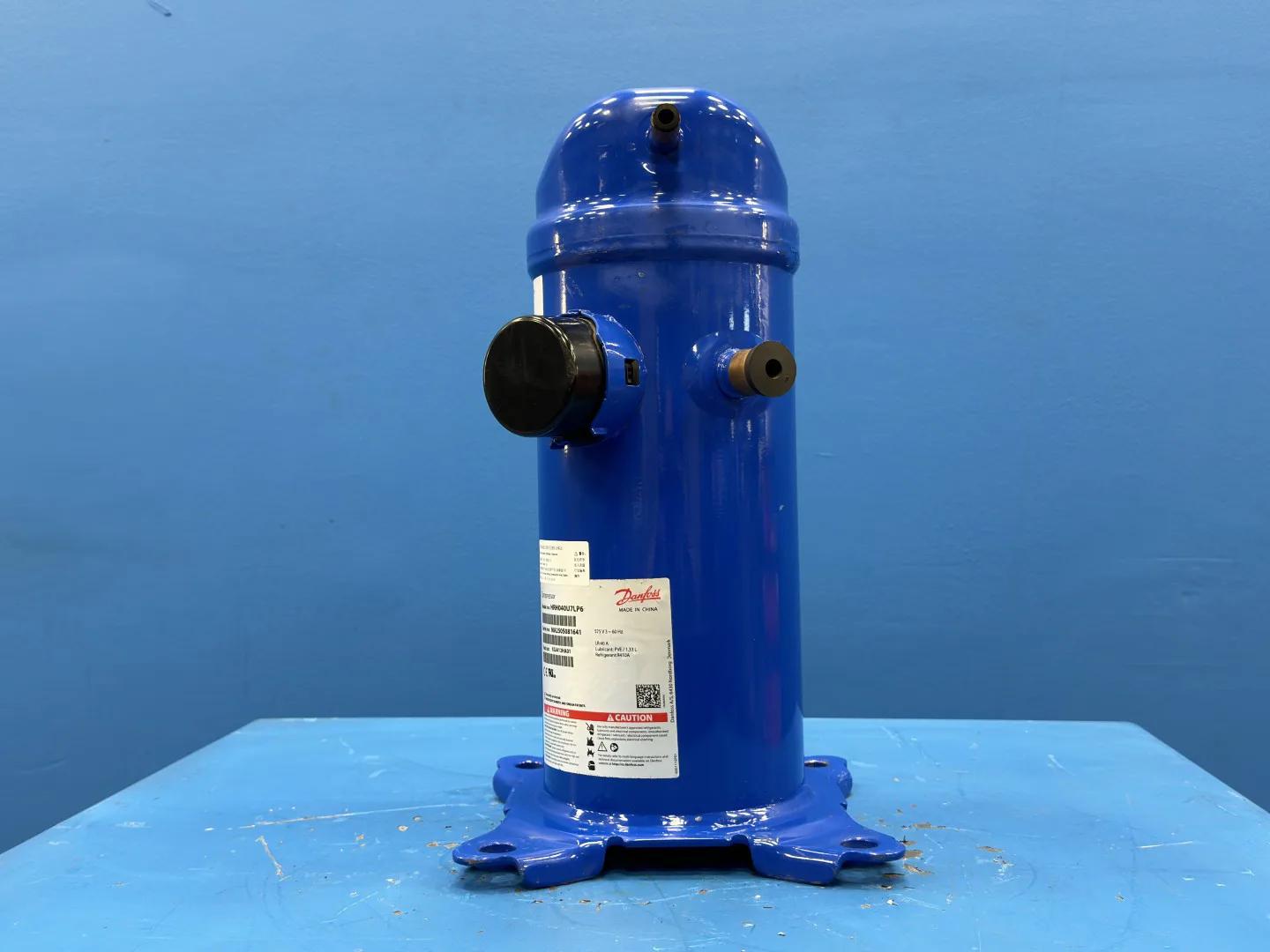

Danfoss Scroll Compressor 3.3 Ton 40,000 BTU HRH040U7LP6 575V 3 Phase R410A
HRH040U7LP6 Compressor Specifications: HP, CFM & Pressure
Applications & Compatible Systems for Danfoss HRH040U7LP6
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | HRH040U7LP6 |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 1105 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.1 Cardboard $10 |
$639.95
Basic Information
Asset #
KSC1230 / 1105
Available Quantity
2

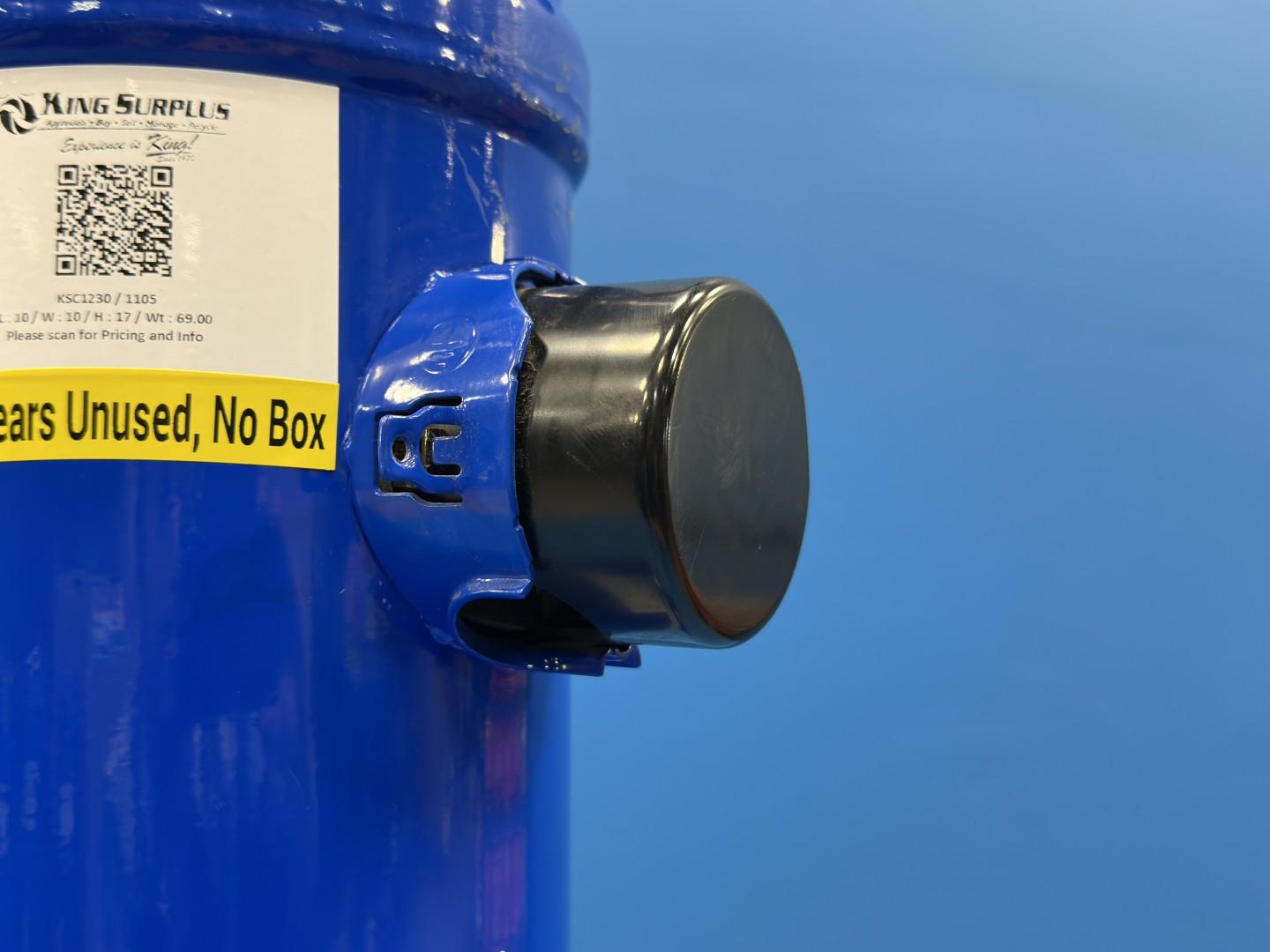

Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
The HRH040U7LP6 is a hermetic, fixed-speed scroll compressor for air conditioning and heat pump systems. A fixed and an orbiting spiral compress refrigerant toward the center of the scroll set, with the motor and scroll sealed in a welded shell and replaced as a complete unit; it runs at one speed and cycles on and off to regulate capacity. Mechanically it is the same 040 frame as your other HRH040 units; only the motor winding differs.

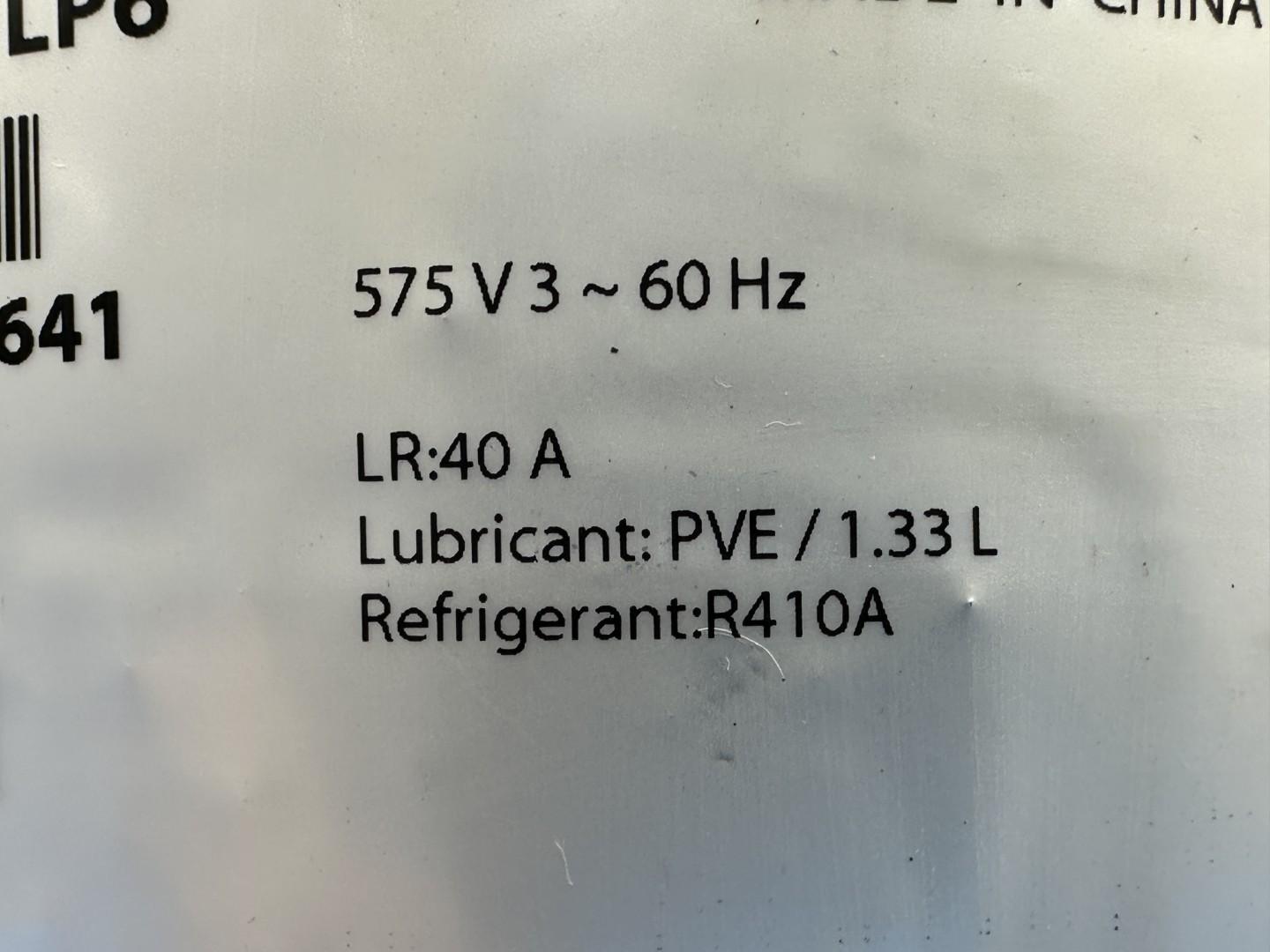

This model is built for R410A refrigerant with PVE lubricant and rated at about 3.3 tons (41,490 BTU/hr at 60 Hz). It runs on 575 V three-phase, 60 Hz power, the high-voltage configuration used in commercial and light industrial buildings with 575 V service (common in larger facilities and in Canada), which makes it a less common variant than the 460 V or 208-230 V versions. The code decodes as H (air conditioning), R (residential-platform scroll), H (R410A, PVE oil), 040 (capacity class), U (optimized for 45/100°F), 7 (575 V three-phase, 60 Hz), L (internal protection), P6 (brazed, spade terminals).
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Danfoss (Performer H-series) |
| Model (as written) | HRH040U7LP6 |
| Likely frame | HRH040 (R410A, 40,000 BTU/hr class) |
| Compressor type | Hermetic scroll, fixed speed |
| Refrigerant | R410A |
| Lubricant | PVE |
| Nominal cooling capacity | 3.3 Ton (41,490 BTU/hr at 60 Hz, ARI) |
| Swept volume | 39.7 cm3 |
| Oil charge | 1.33 L (45 oz) |
| Motor protection | Internal line-break protector |

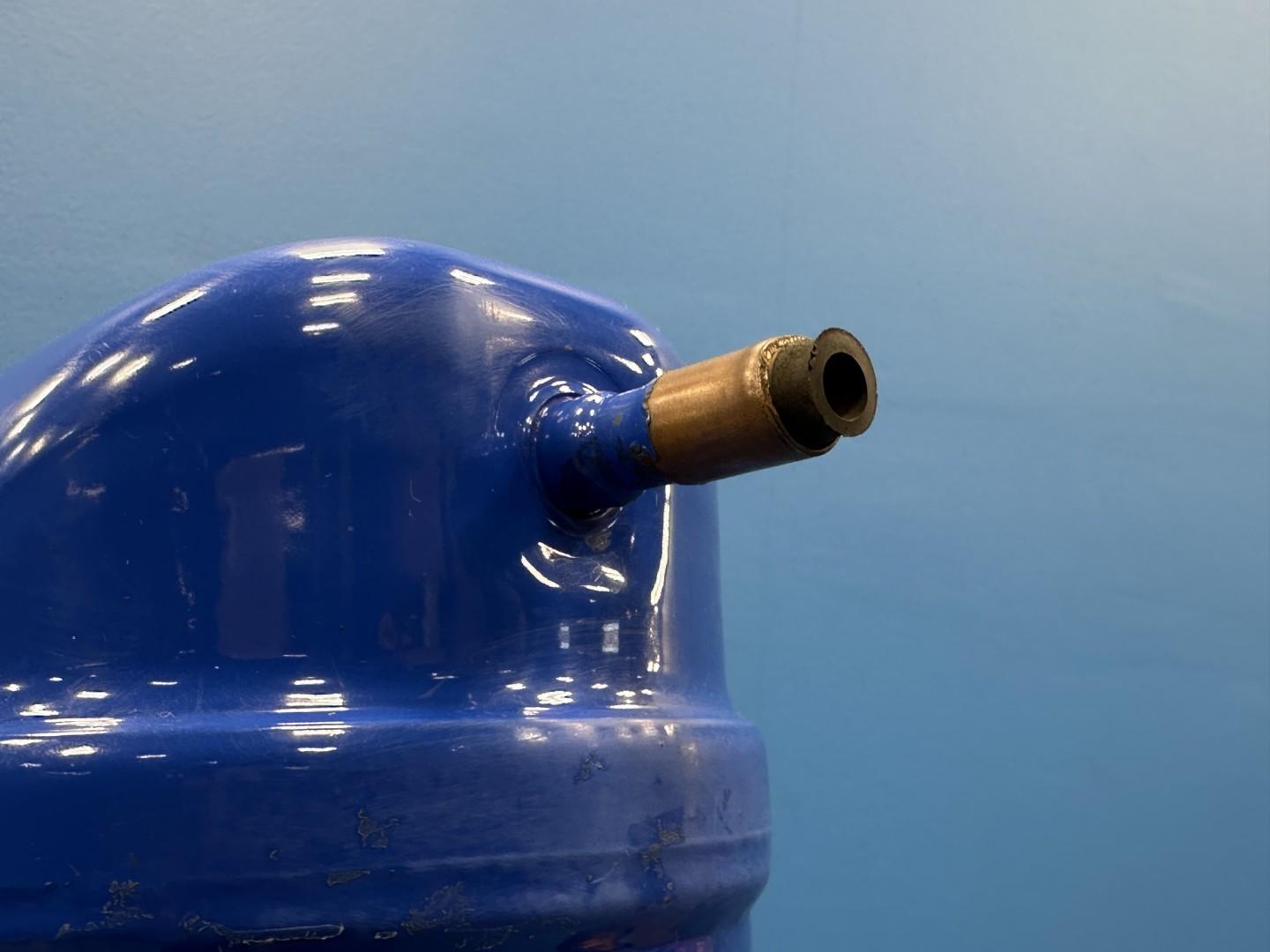

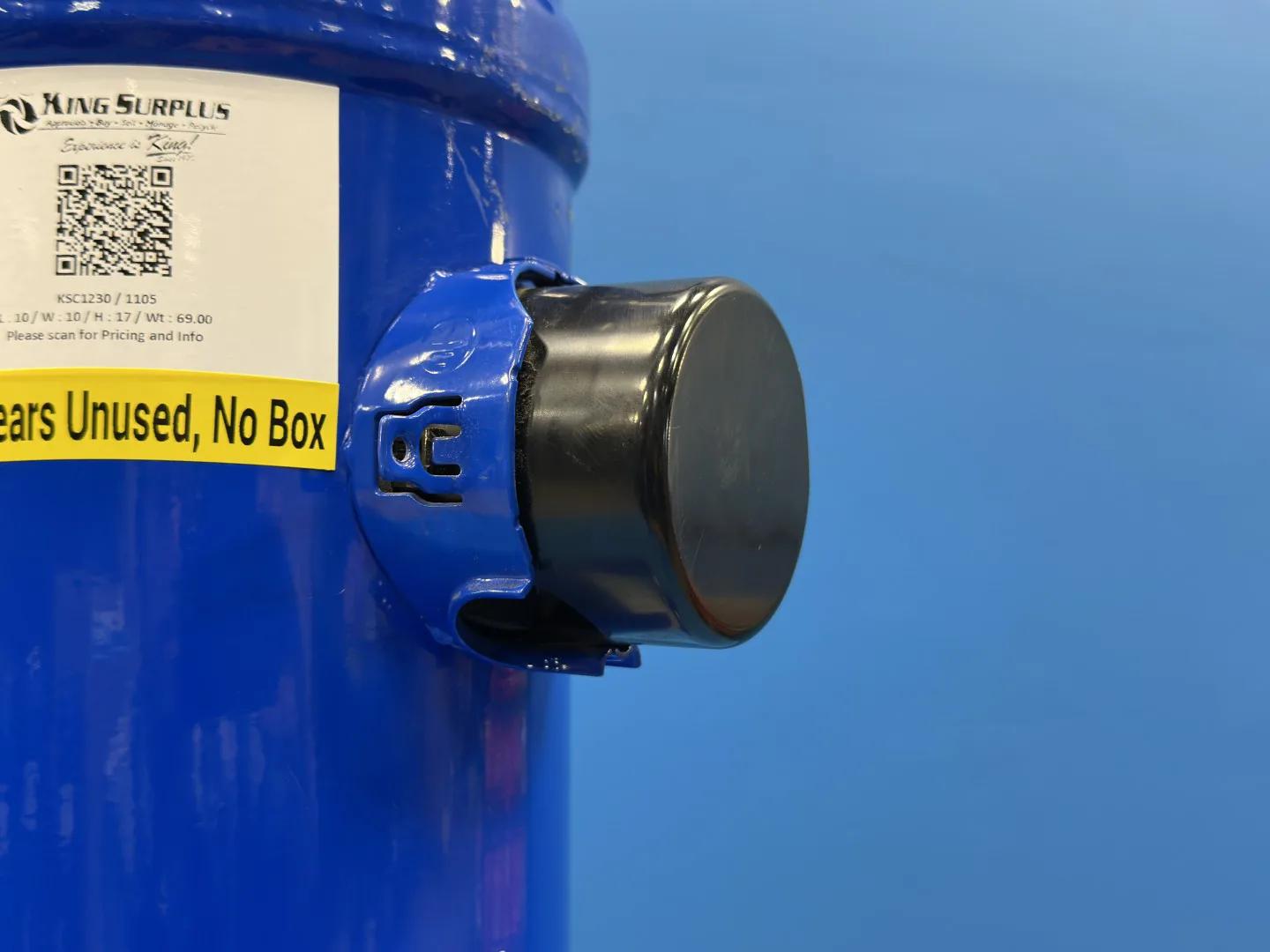

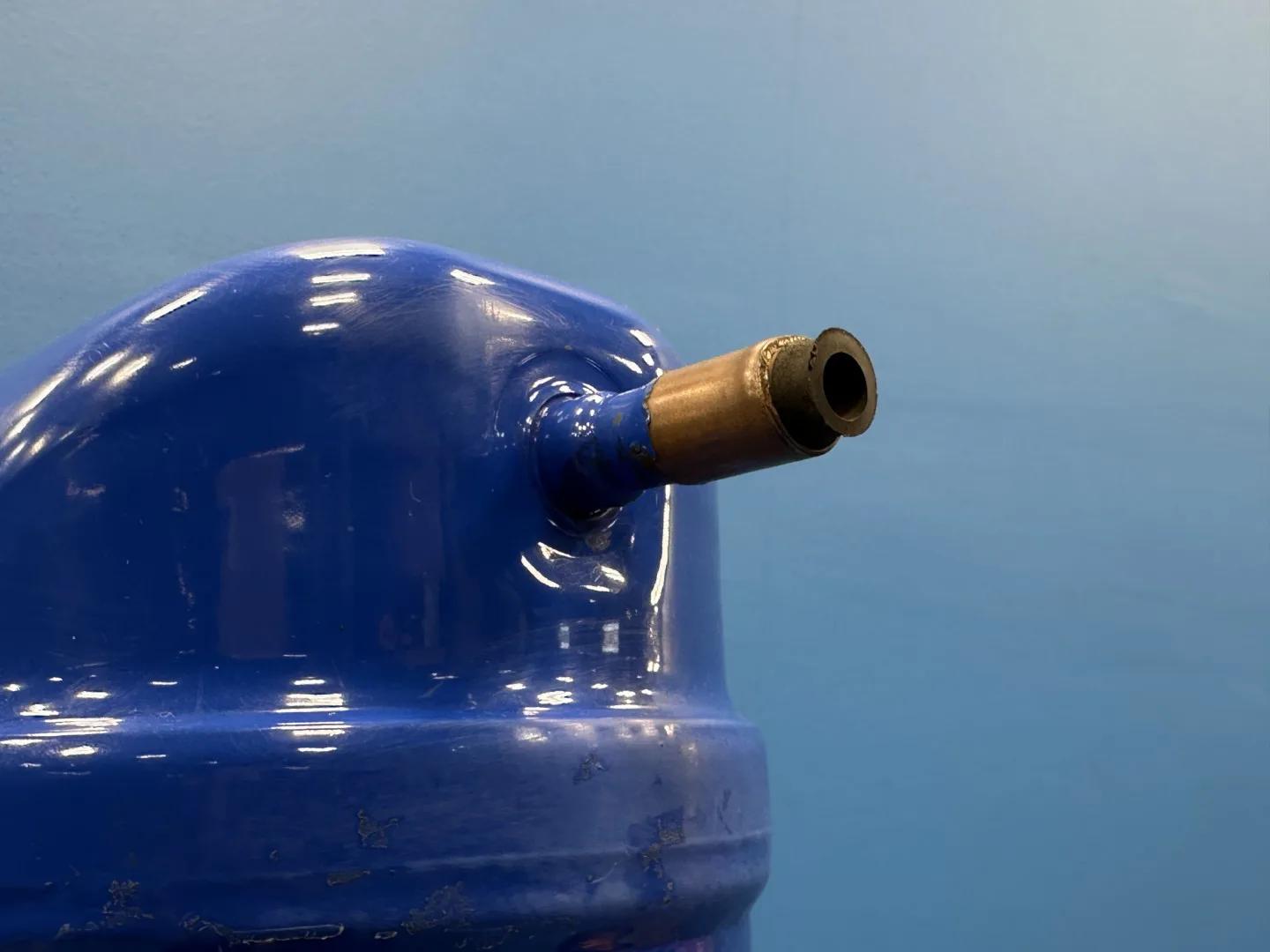

| Connection type | Brazed, spade terminals |
| Net weight | 39.0 kg (86 lb) |

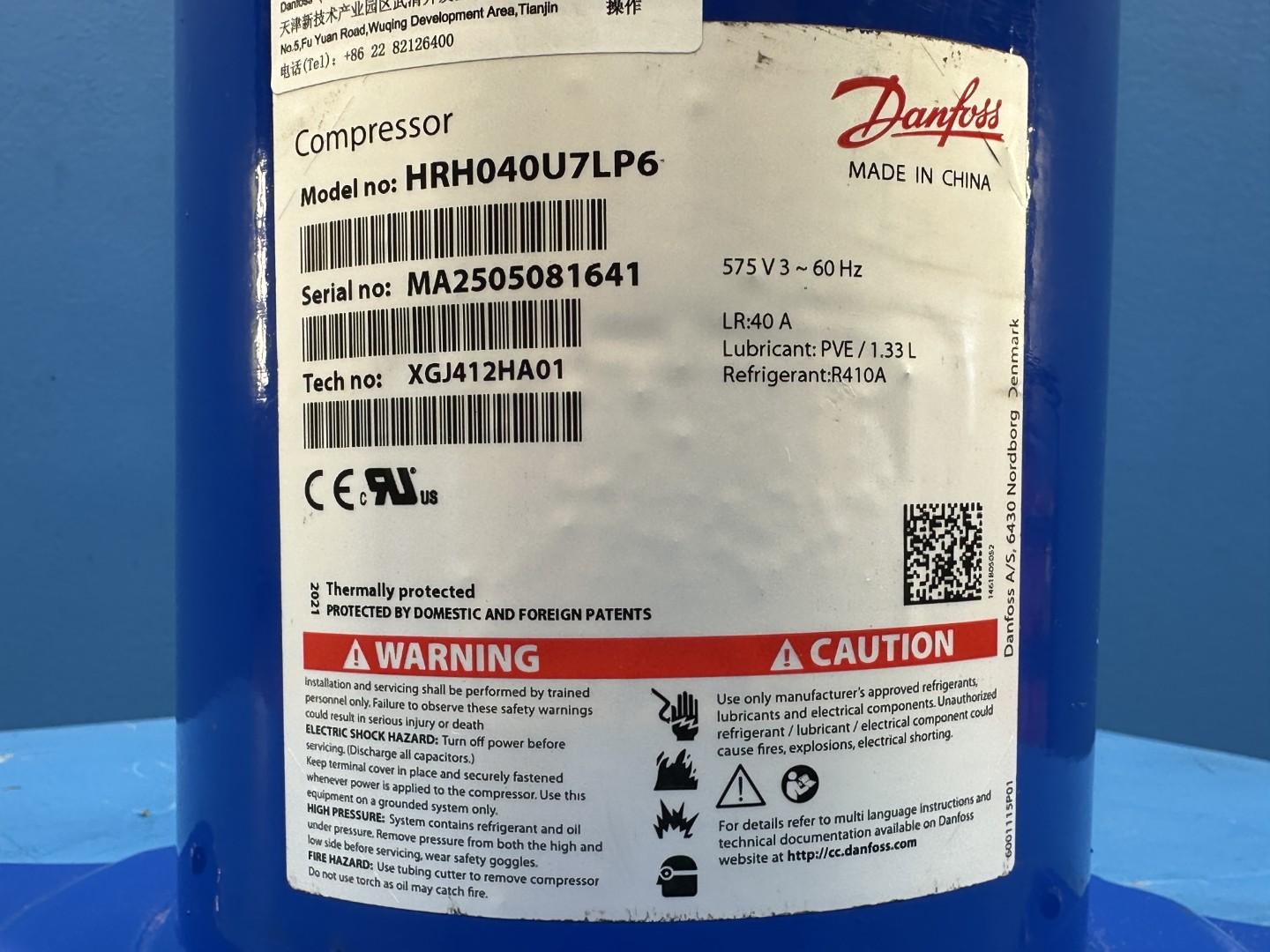

Specifications
Danfoss
HRH040U7LP6
MA2505081641
2021
60Hz
40
10
10
17
3
N/A
69
KSC1230 / 1105
Packaging fees
1.1 Cardboard $10
