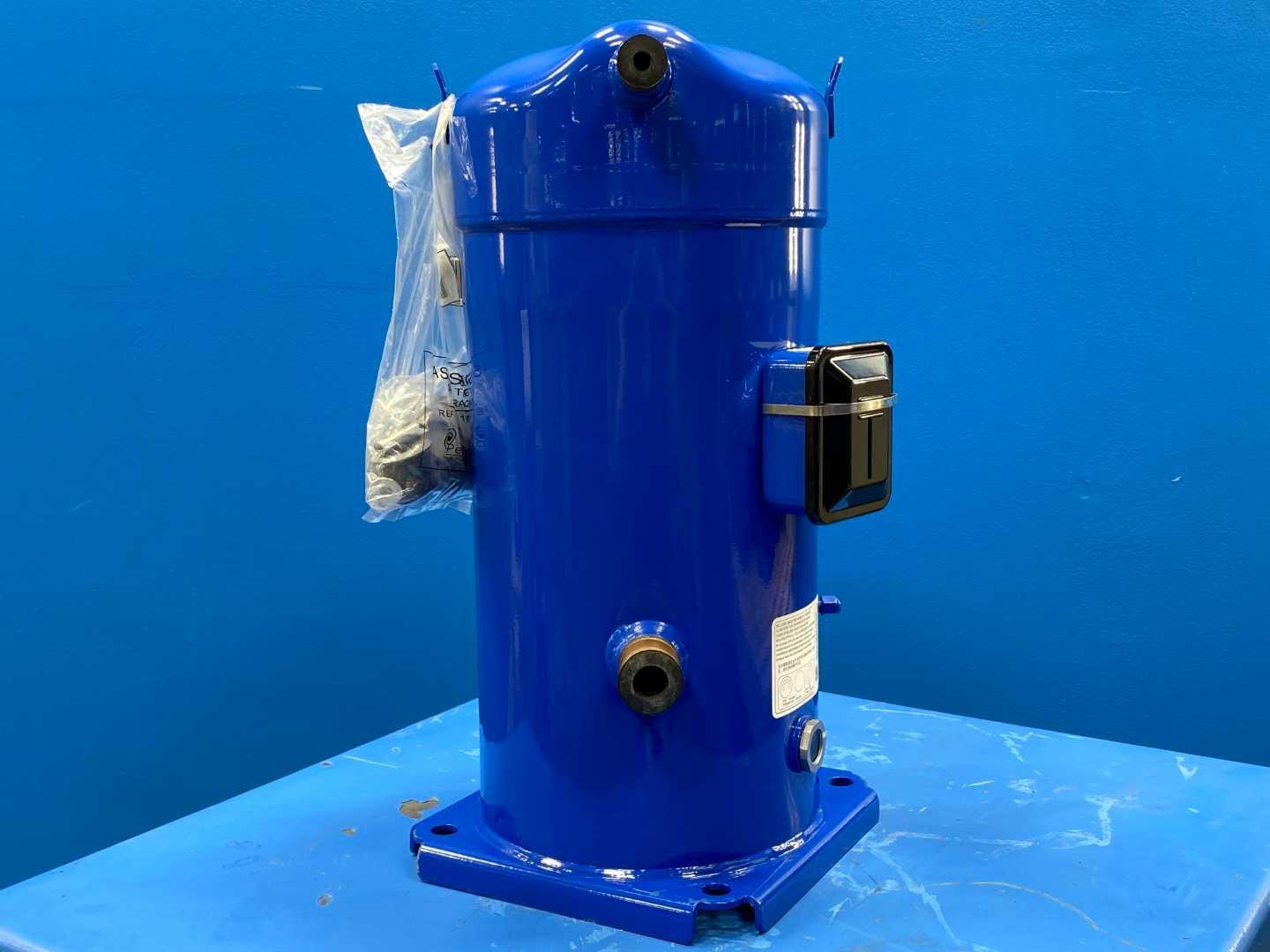

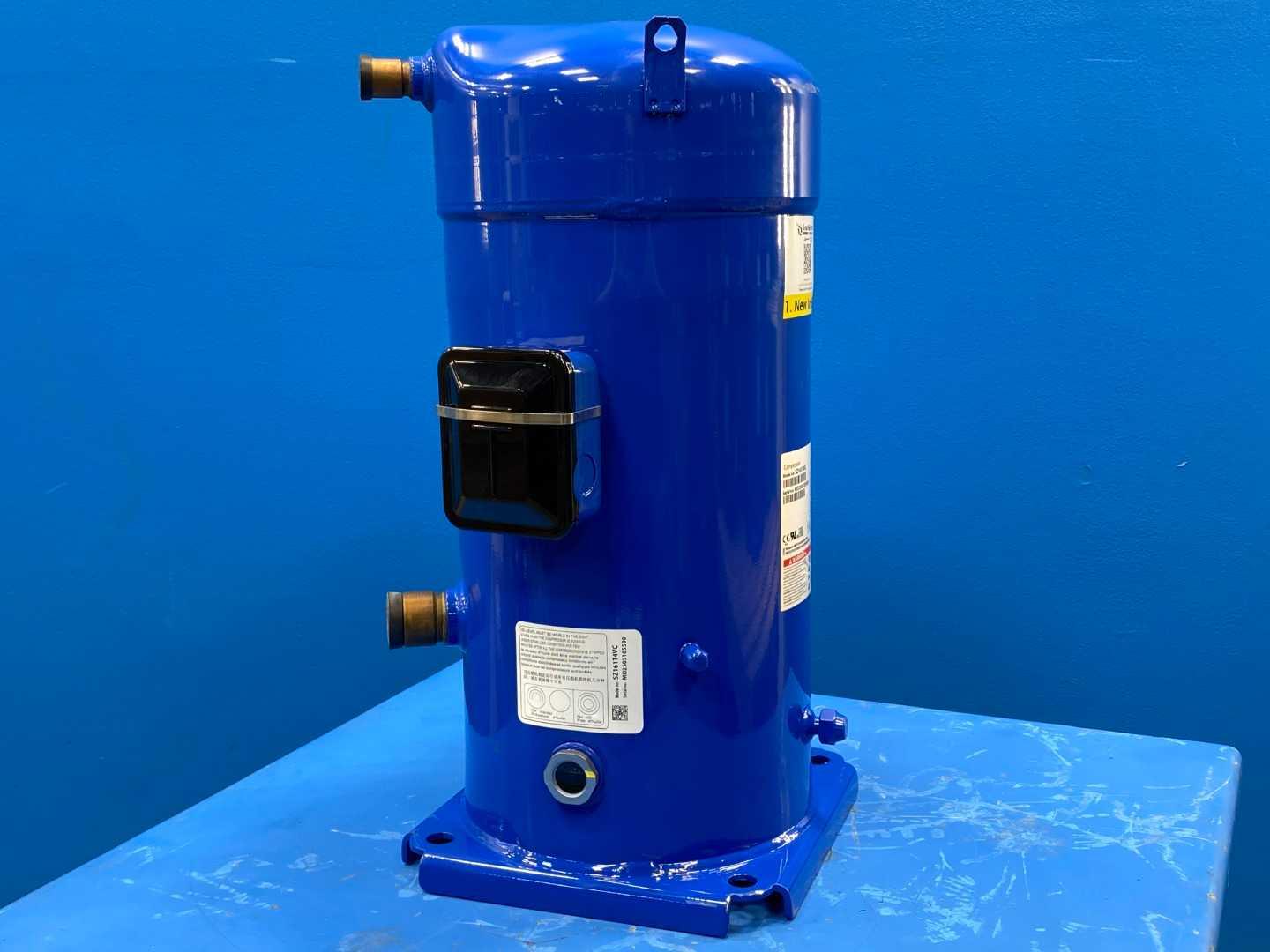

Danfoss SZ161T4VC SZ161-4VA Scroll Compressor 13 Tons (161,000 BTU/hr) 380-400/460V 3Ph 50/60Hz Refrigerant 407C, R134a, R404A, R507, R513A
Danfoss SZ161T4VC SZ161-4VA Scroll Compressor 13 Tons (161,000 BTU/hr) 380-400/460V 3Ph 50/60Hz Refrigerant 407C, R134a, R404A, R507, R513A
Key Features of the Danfoss SZ161-4VA Compressor
Compatible Refrigerants and Performance Specs
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | SZ161T4VC |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 13 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$2,890.00
Basic Information
Asset #
KSC1230 / 13
Available Quantity
2
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
The Danfoss Inverter Scroll Compressor SZ161T4VC SZ161-4VAI is a high-efficiency compressor designed for a variety of heating, ventilation, and air conditioning (HVAC) applications. This particular model has a cooling capacity of 16 tons, equivalent to 192,000 BTU, making it capable of meeting the needs of large commercial and industrial spaces. Danfoss has a long history of innovation in the field of refrigeration and air conditioning technologies, known for their commitment to energy efficiency and sustainable solutions. The SZ161T4VC features advanced inverter technology, allowing for precise control of the compressor speed. This leads to improved energy efficiency, reduced operating costs, and enhanced temperature control. Key applications include large commercial air conditioning systems, industrial chillers, and other cooling solutions where high efficiency and reliability are essential. Unique features of this compressor include: - Inverter-driven operation for variable speed control - Compact design suitable for space-constrained environments - Low noise levels, providing a quieter operation - High reliability and durability, suitable for demanding applications.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Danfoss |
| Model | SZ161T4VC |
| Compressor type | Hermetic scroll (Performer SZ) |
| Lubricant | Polyolester (POE) 160SZ |
| Compatible refrigerants | R407C, R134a, R404A, R507A, R513A |
| Nominal capacity | 13 Ton (TR) |
| Cooling capacity (60 Hz, R407C) | 46,000 W (157,000 Btu/hr) |
| Cooling capacity (50 Hz, R407C) | 38,000 W (129,700 Btu/hr) |
| Power input (60 Hz, R407C) | 14.30 kW |
| Power input (50 Hz, R407C) | 11.84 kW |
| COP (R407C) | 3.21 |
| EER (R407C) | 11.0 |
| Oil charge | 3.6 L (122 oz) |
| Power supply | 380-400 V / 3 ph / 50 Hz, 460 V / 3 ph / 60 Hz (motor code 4) |
| MCC (max continuous current) | 32 A |
| MOC (max operating current) | 31 A |
| LRA (locked rotor amps) | 145 A |
| Winding resistance | 0.94 Ω |
| Swept volume (displacement) | 216.6 cm3/rev |
| Displacement (60 Hz, 3500 rpm) | 45.5 m3/h |
| Displacement (50 Hz, 2900 rpm) | 37.7 m3/h |

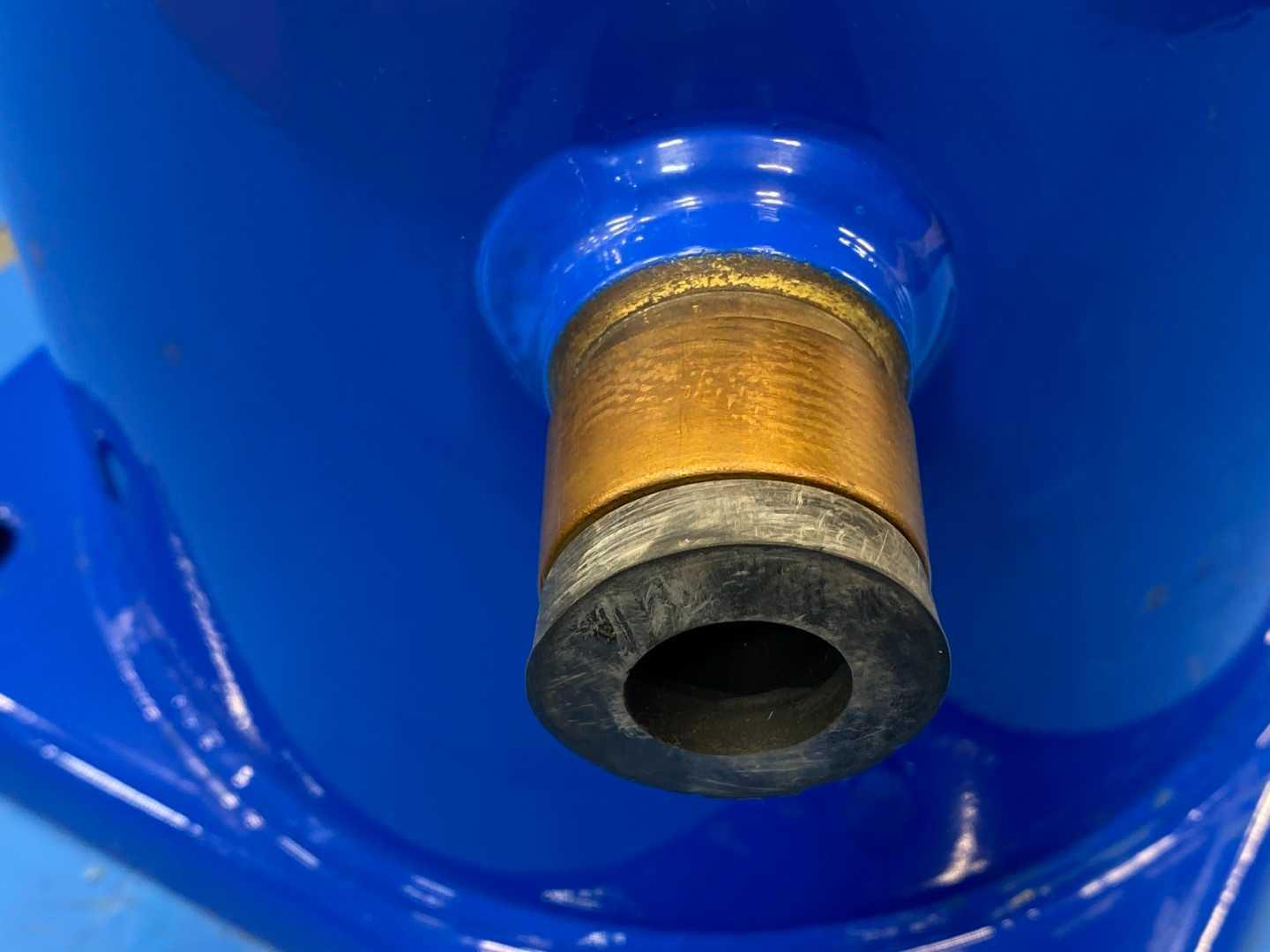

| Suction connection | 1-3/8 in ODF, brazed (148/161 frame) |

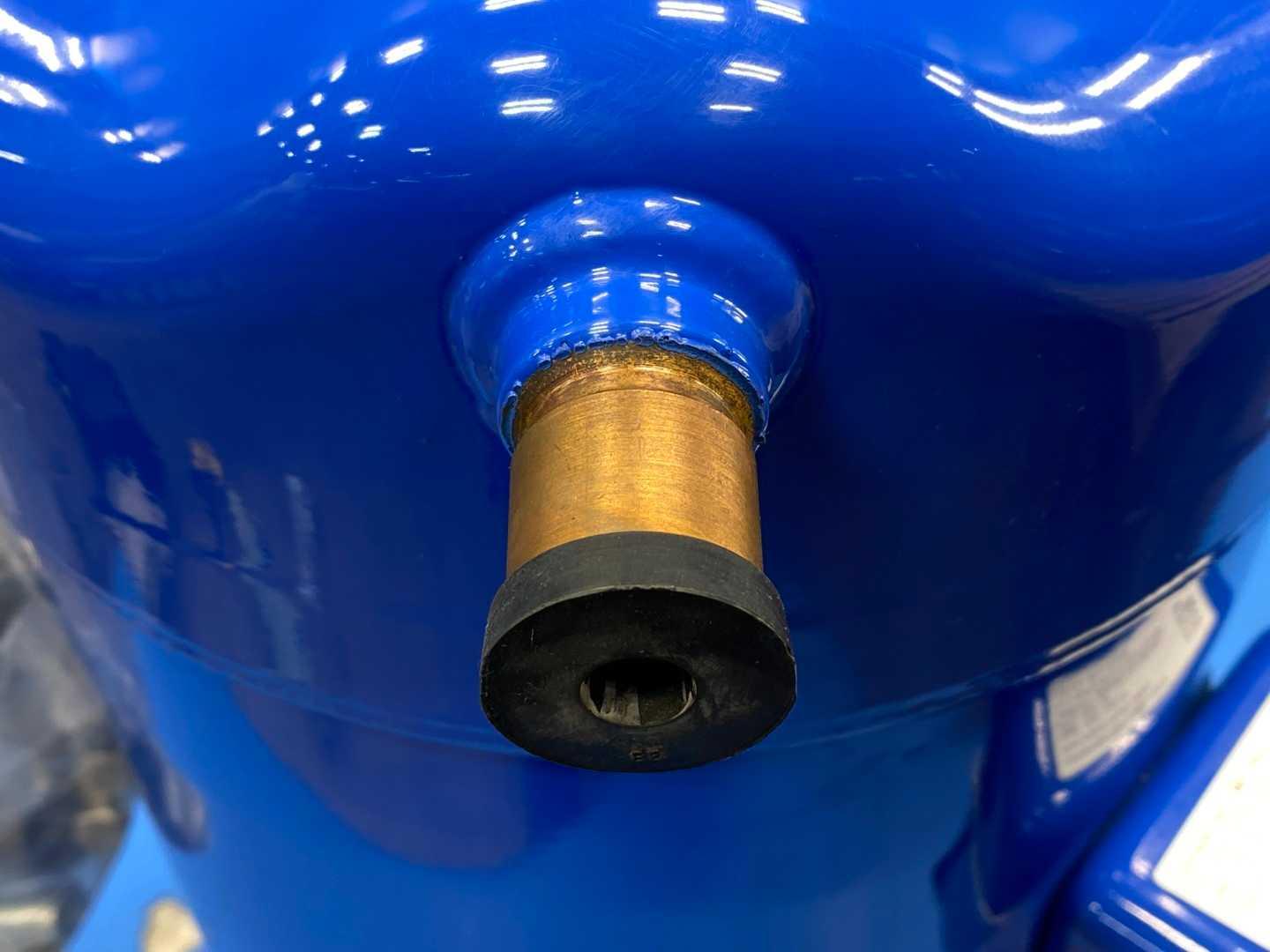

| Discharge connection | 7/8 in ODF, brazed (148/161 frame) |
| IP rating | IP54 (with cable gland) |
| Approvals | CE, UL, PED 2014/68/EU |
| Net weight (with oil) | 88 kg (194 lb) |
| Overall height | approx. 440 mm (17.3 in) |
Specifications
Danfoss
SZ161T4VC
MD2505185500
2020
60Hz
31
18
18
26
3
35
266
KSC1230 / 13
Packaging fees
2.2 Pine Pallet $35
Payment Details
$2,890.00
Payment MethodsPayment Types Accepted : Visa, Mastercard, Check (14 Day Hold Before Release), Cash
