Danfoss VZH088CGANA (120G0189) Scroll Compressor 7.3 Tons (86,000 BTU/hr) 380-480V 3Ph 50/60Hz R410A Refrigerant
Danfoss VZH088CGANA (120G0189) Scroll Compressor 7.3 Tons (86,000 BTU/hr) 380-480V 3Ph 50/60Hz R410A Refrigerant
7.3 Tons Cooling Capacity
Specifications and Features
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | VZH088CGANA |
| Condition | New |
| Manufacturer | Danfoss |
| Asset Number | KSC1230 / 15 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |

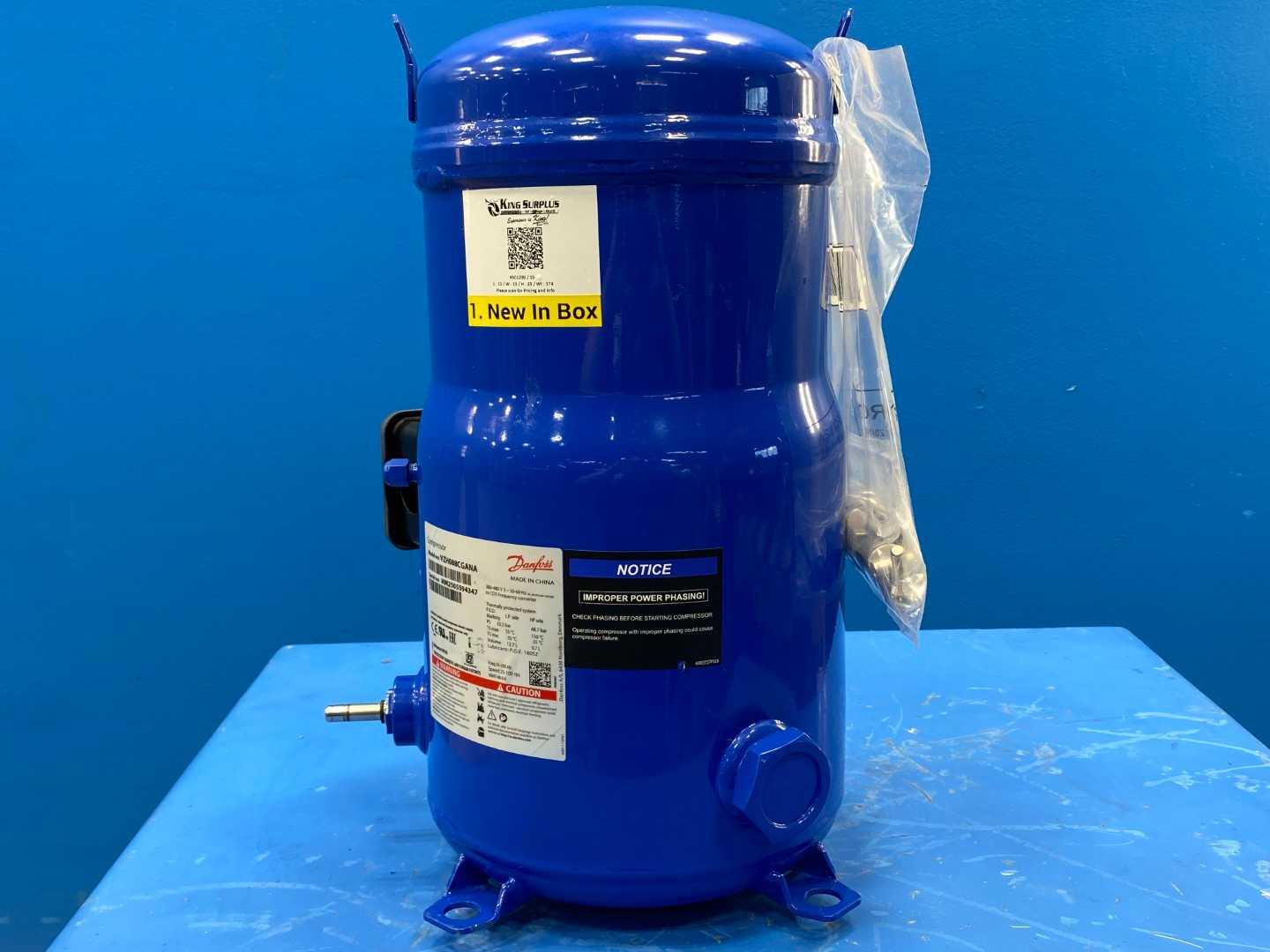

| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 2.2 Pine Pallet $35 |
$1,659.95
Basic Information
Asset #
KSC1230 / 15
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

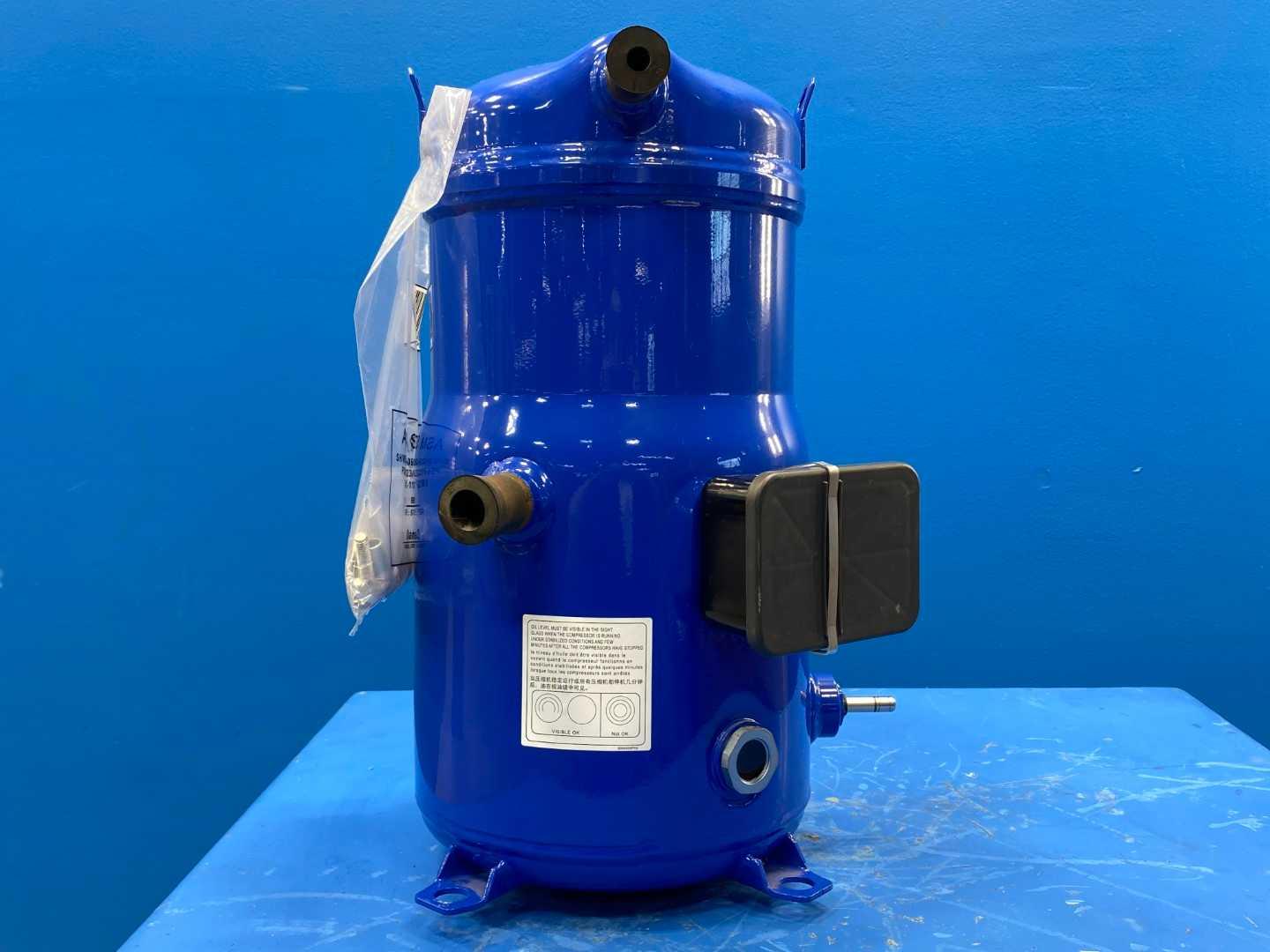

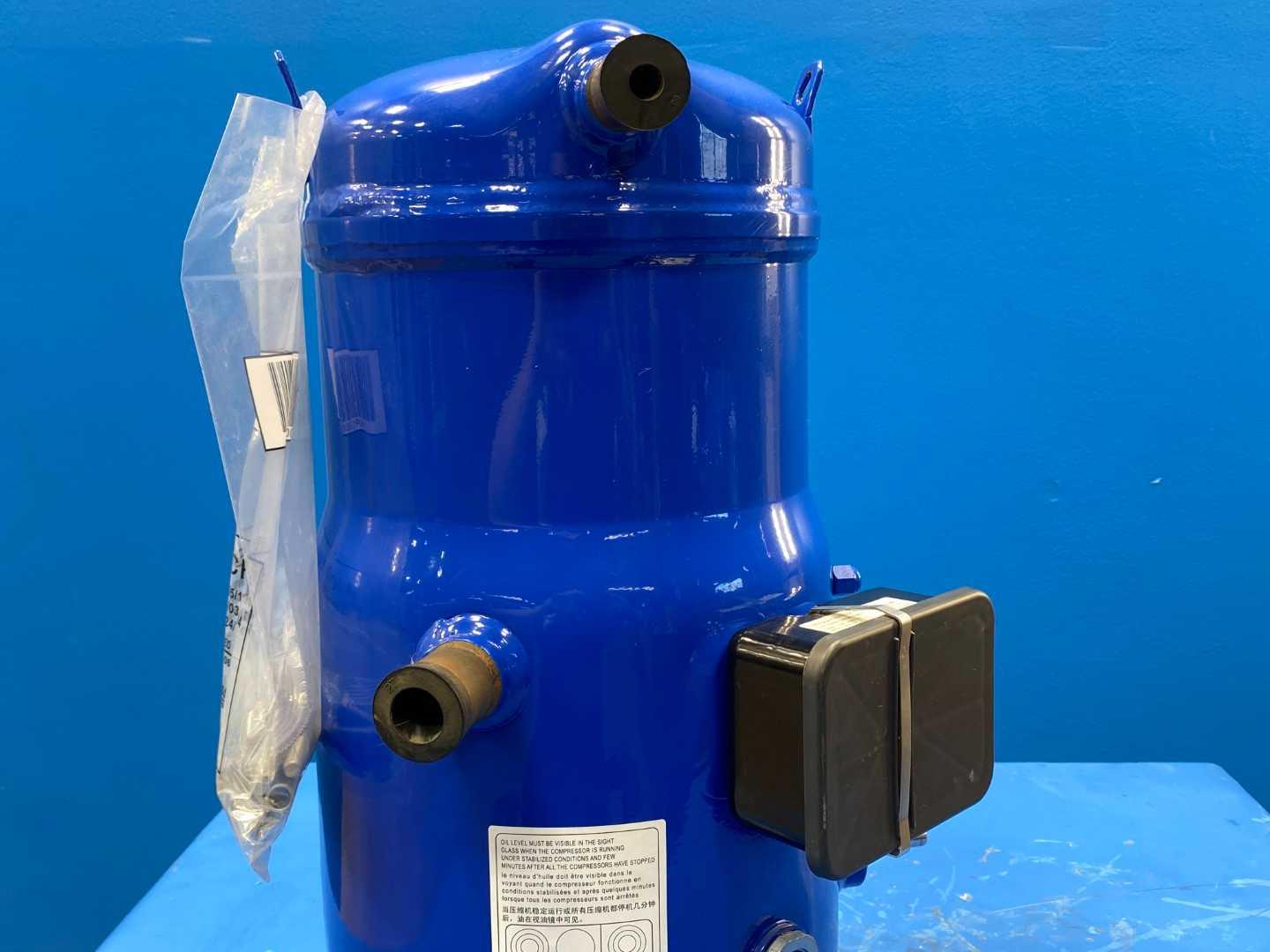

The Danfoss Inverter Scroll Compressor VZH088CGANA represents a significant evolution in compressor technology, specifically designed for commercial heating, ventilation, and air conditioning (HVAC) applications. This particular model has a capacity of 7.3 tons or 86,000 BTUs, making it suitable for medium to large buildings requiring reliable climate control. Danfoss, a leading global provider of climate and energy solutions, developed this compressor to enhance energy efficiency and reduce operational costs. One of the key features of the VZH088CGANA is its inverter technology, which allows for variable speed operation. This means the compressor can adjust its power and capacity based on real-time cooling or heating demands, leading to improved energy performance and comfort levels in indoor environments. The design includes a scroll mechanism, which is known for its durability, quieter operation, and lower vibration compared to traditional reciprocating compressors. The application of this compressor spans across various industries, including commercial refrigeration, air conditioning systems, and industrial refrigeration systems. Overall, the Danfoss VZH088CGANA is engineered to provide long-lasting, efficient performance while meeting the growing demand for sustainable energy solutions in HVAC systems.
Factory Information
| Specification | Value |
|---|---|
| Manufacturer | Danfoss |
| Model | VZH088CGANA |
| Compressor type | Variable-speed (inverter) hermetic scroll, single version |
| Family / series | VZH Gen3 inverter scroll, permanent-magnet motor |
| Capacity control | Inverter / variable speed via Danfoss CDS303 frequency converter |
| Cooling capacity (max speed) | 7.3 Ton (87,100 BTU/hr), 25.52 kW at R410A nominal (-10 °C / 45 °C dew, SH 10 K, SC 0 K) |
| Refrigerant | R410A (also approved for R452B, R454B) |
| Oil type | POE (Danfoss 160SZ) |
| Oil charge | 3.8 L |
| Swept volume | 88.4 cm³/rev |
| Displacement (max speed) | 31.8 m³/h at 6,000 rpm (100 rps) |
| Maximum speed | 6,000 rpm (100 rps) |
| Power supply | 380 to 480 V / 3-phase / 50 and 60 Hz (voltage code G); tested at 400 V/3/50 Hz |
| Matched frequency converter | Danfoss CDS303, 15.0 kW (380 to 480 V) |
| Motor | Permanent-magnet, no internal motor protection (protection by drive) |
| Rated drive current | approx 31 A (matched 15 kW, 380 to 480 V 3-phase drive) |
| Internal free volume (suction) | 12.7 dm³ |
| Internal free volume (discharge) | 0.7 dm³ |

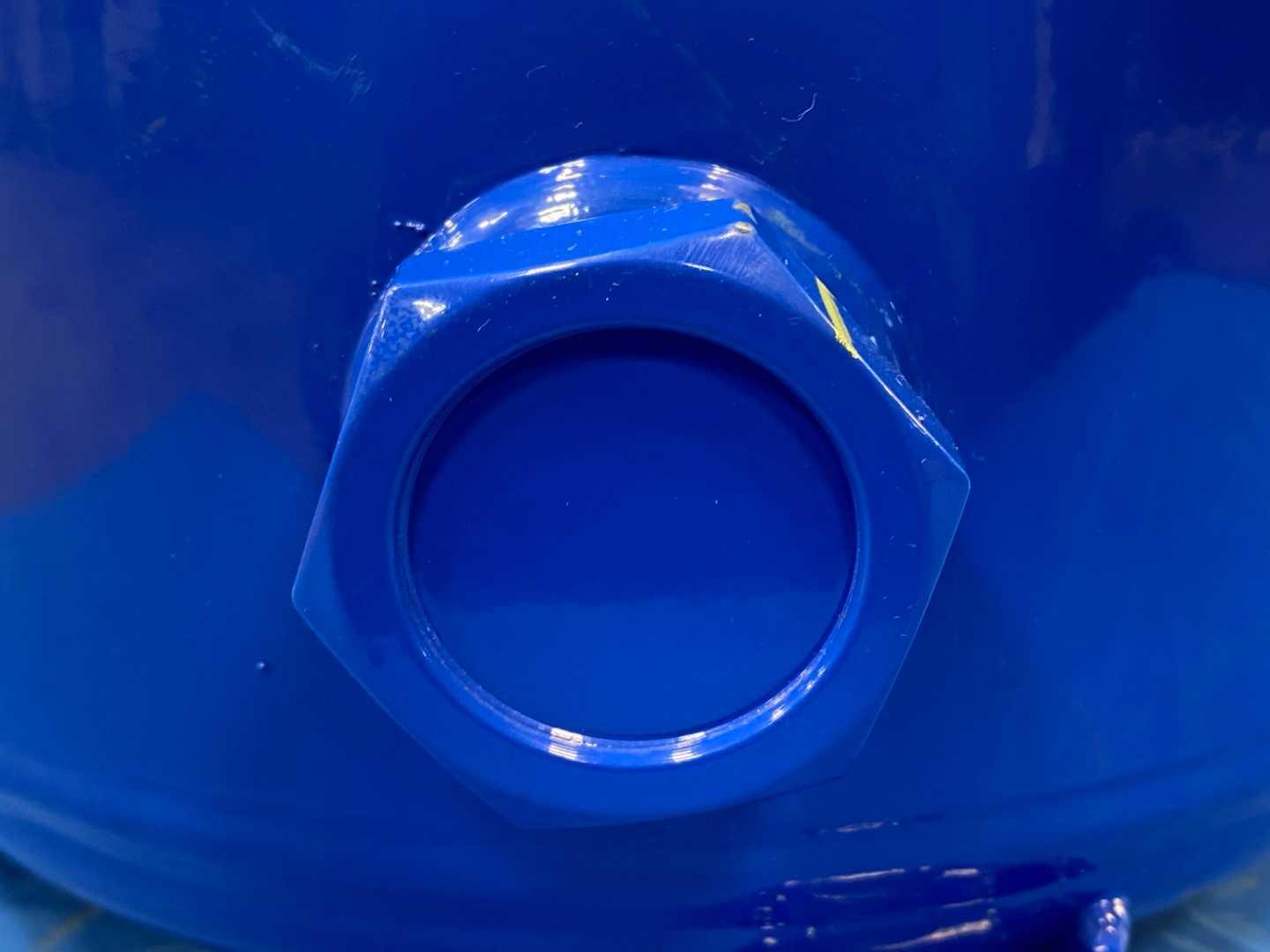

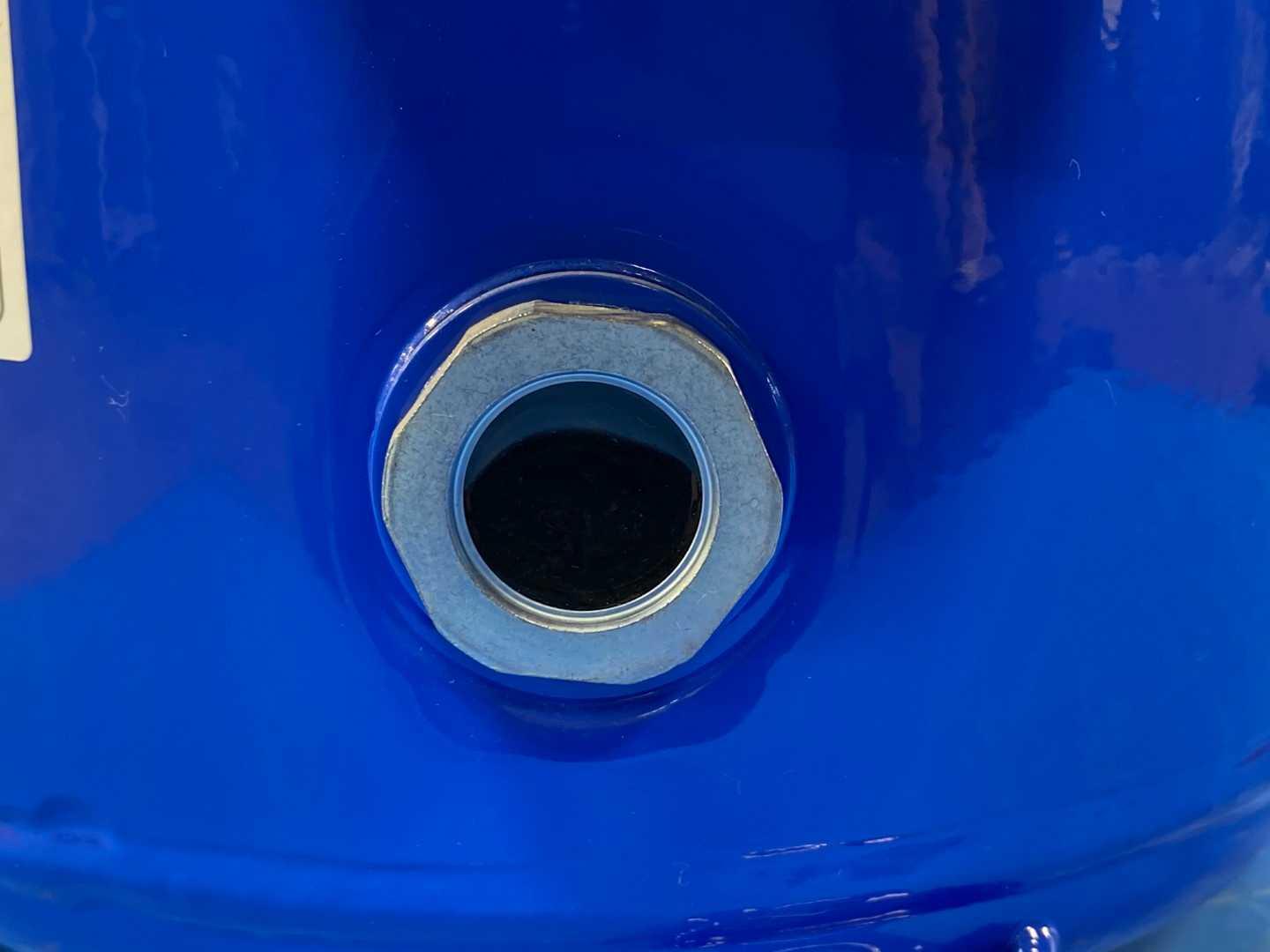

| Suction / discharge connection | Rotolock 1"3/4 |
| Mounting | HM8-40 bolts, 15 Nm (11 ft-lb), with flexible grommets and steel sleeves |
| Max inclination (operation) | 3 degrees from vertical |
| Approvals | EN12900 rated; EMC Class A Group 1 (with drive); CE, UL (confirm from nameplate) |
| Net weight | 59.0 kg (130.1 lb) |
| Gross weight | 79.0 kg |
Specifications
Danfoss
VZH088CGANA

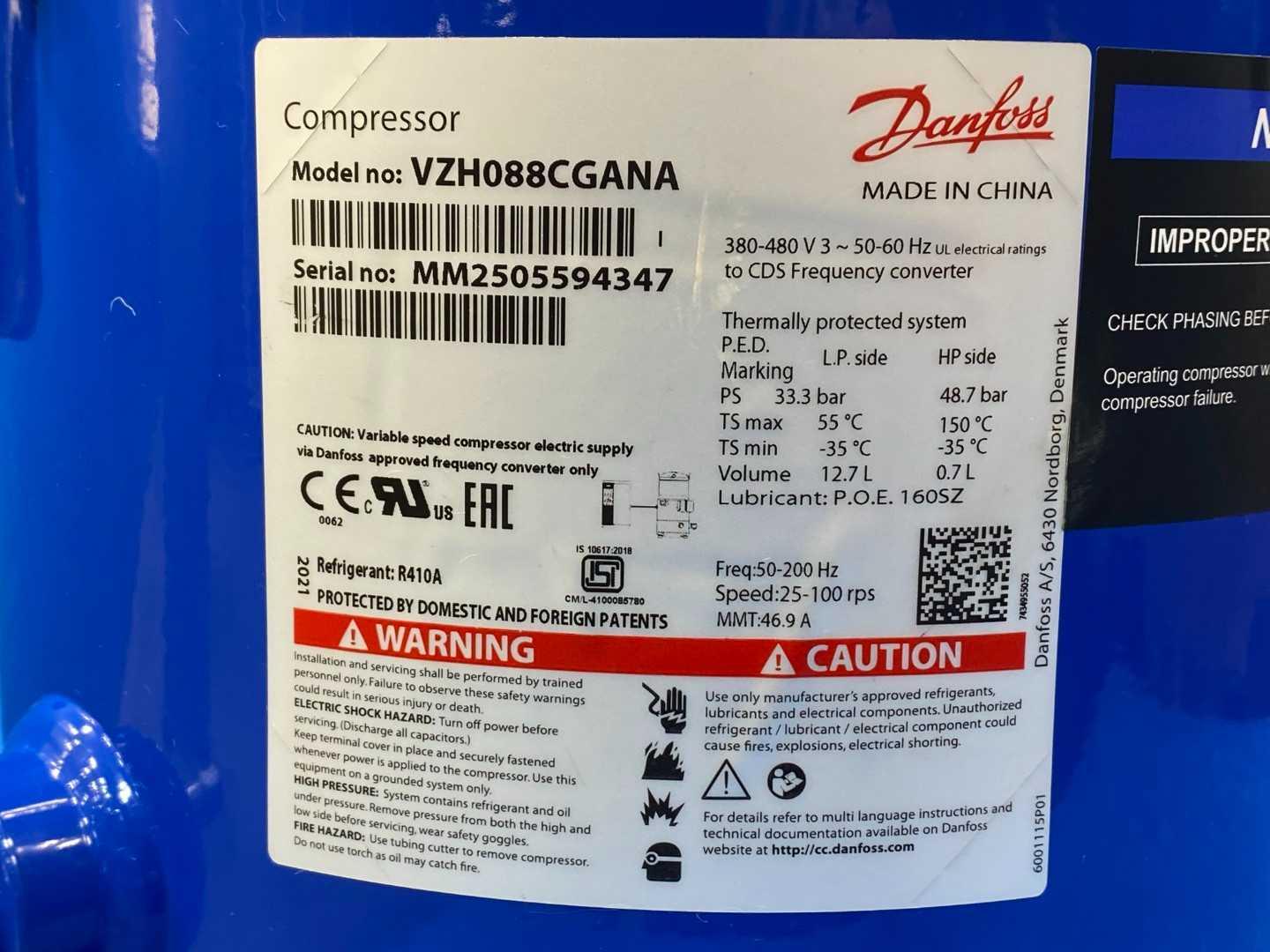

MM2505594347
2020
60Hz
46.9
13
13
23
3
35
209
KSC1230 / 15
Packaging fees
2.2 Pine Pallet $35
Payment Details
$1,659.95
Payment MethodsPayment Types Accepted : Visa, Mastercard, Check (14 Day Hold Before Release), Cash
