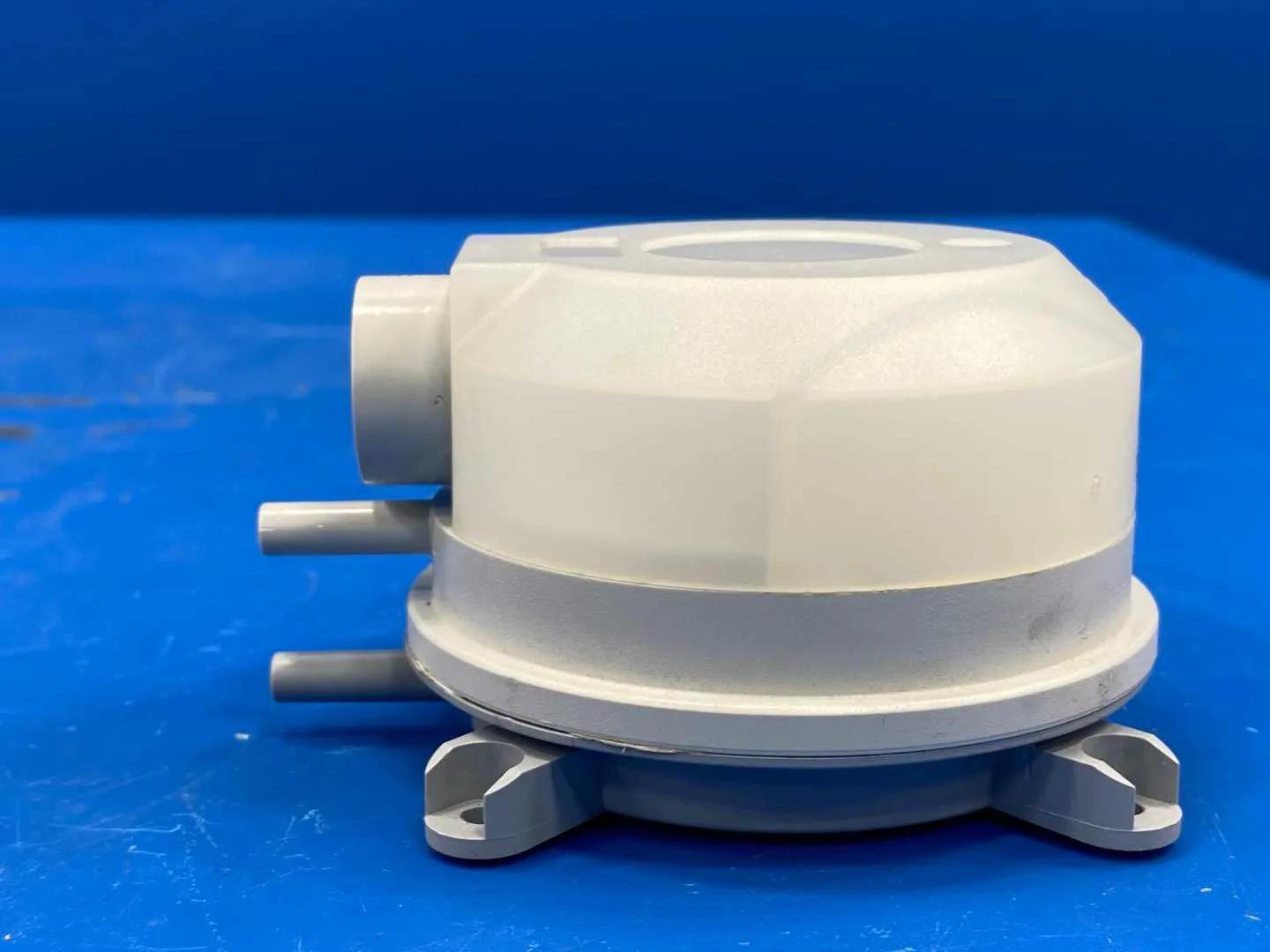

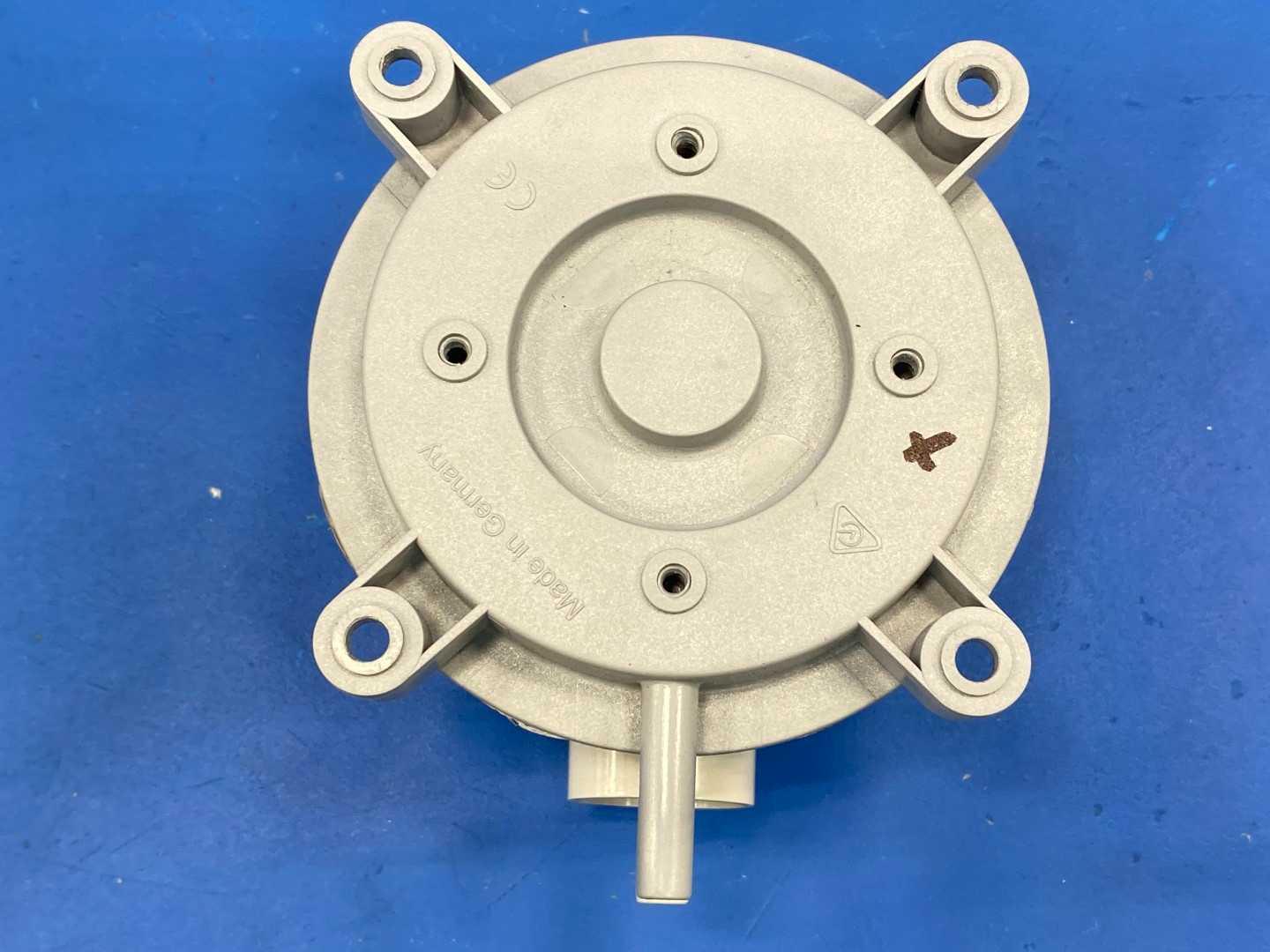

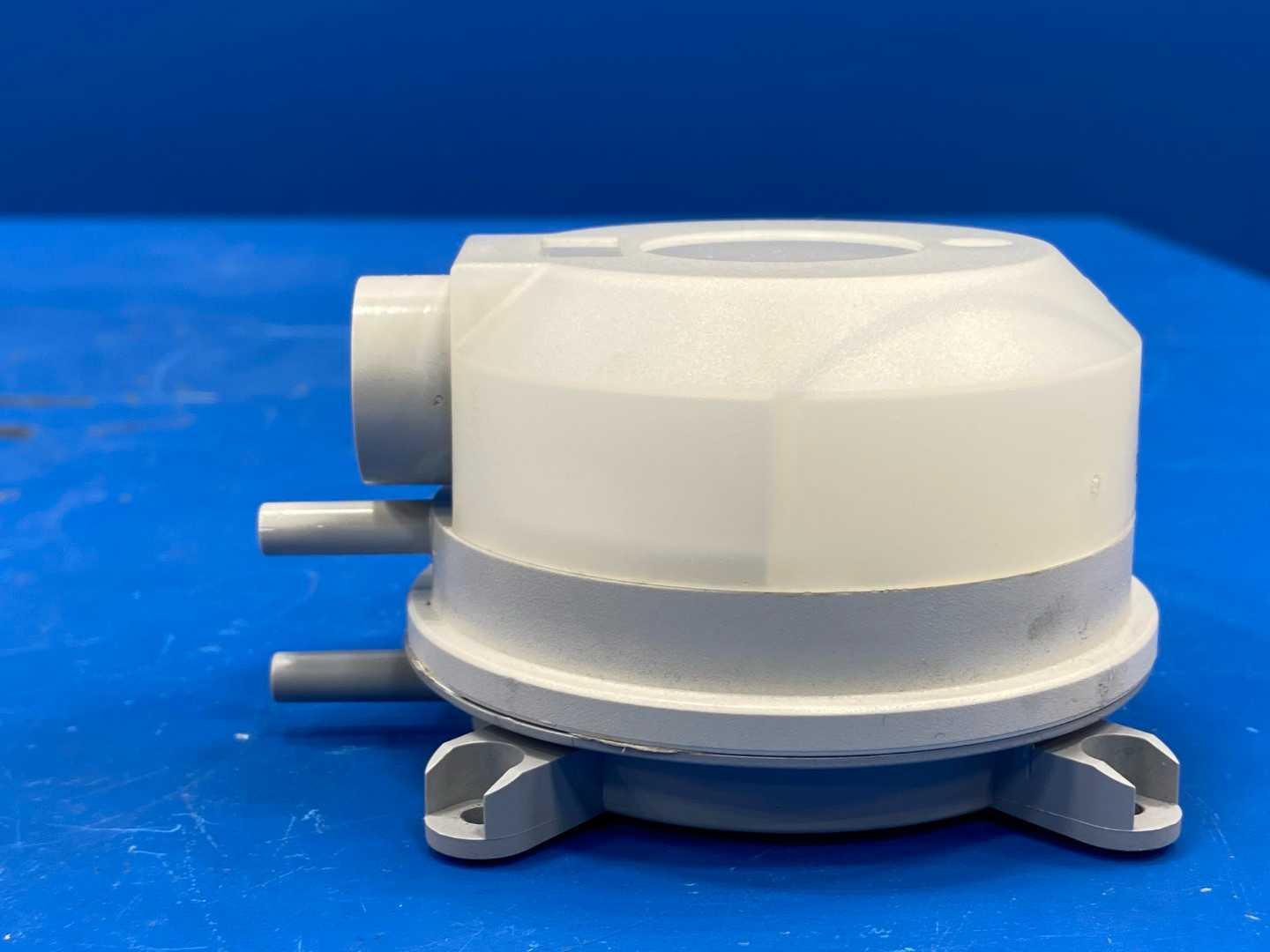

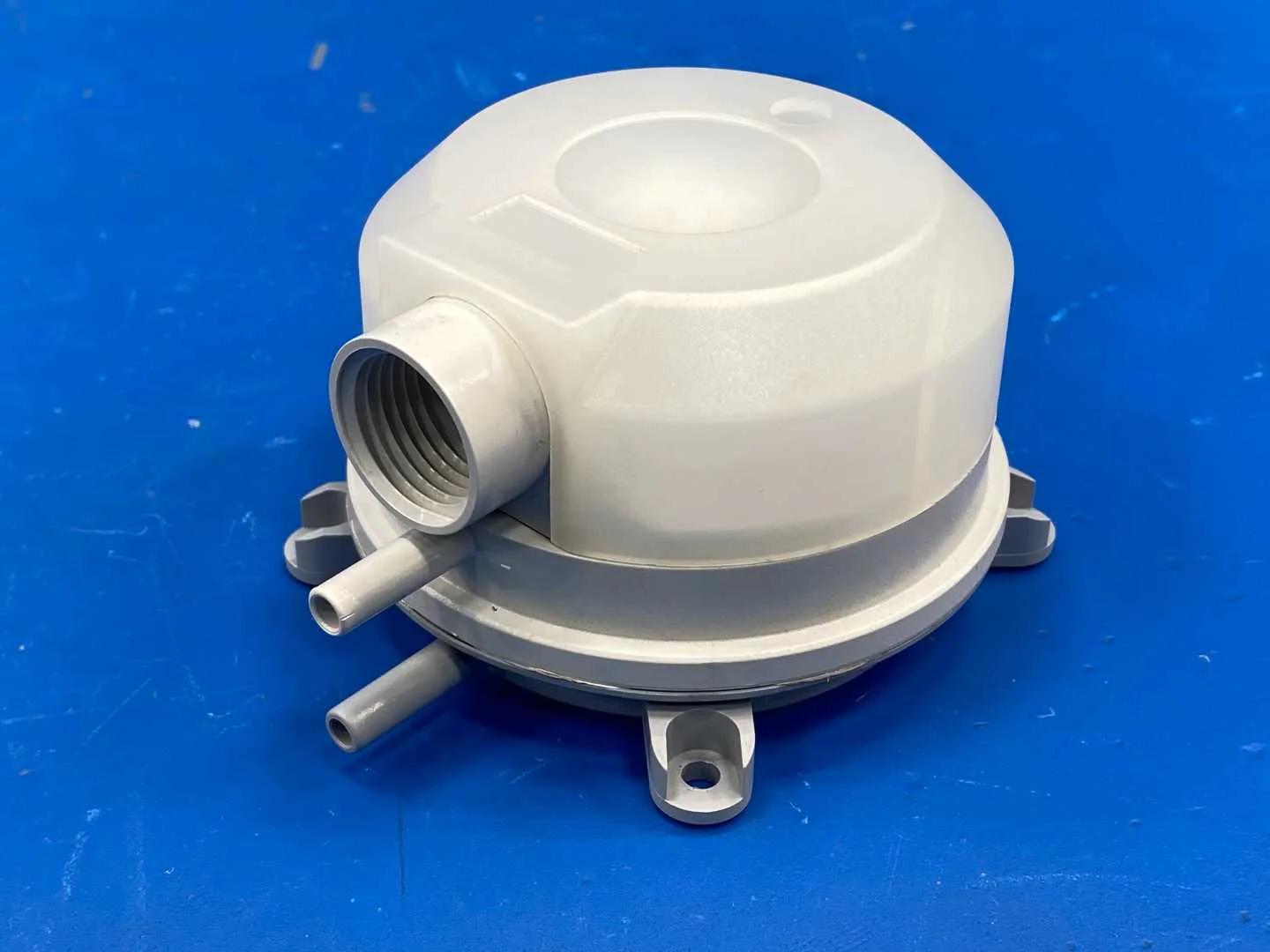

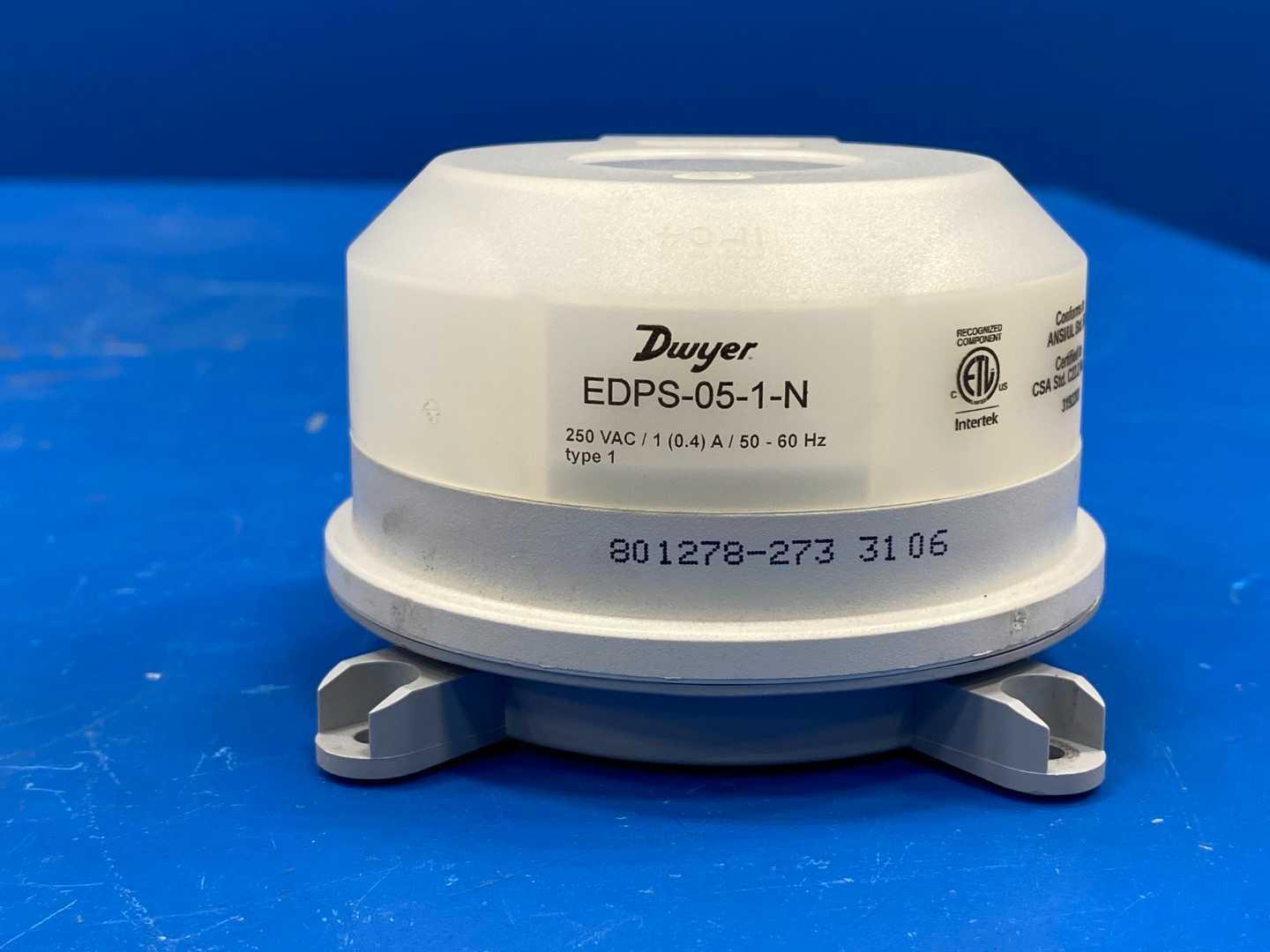

The Dwyer EDPS-05-1-N is an adjustable differential pressure switch specifically designed to monitor and control pressure in various applications. Historically, Dwyer Instruments has been a leader in the measurement and control of pressure, flow, and temperature since its founding in 1931. The EDPS series provides reliable performance in critical environments, ensuring optimal operation within HVAC and industrial applications. This product is mainly used in HVAC systems, pneumatic applications, and other environments where precise pressure control is essential. It helps in maintaining safety standards by providing an interface for alarm and control functions based on pressure differences. One unique feature of the Dwyer EDPS-05-1-N is its adjustable setpoint, which allows users to customize the activation threshold to meet specific operational requirements. Additionally, the switch provides high electrical ratings of up to 250VAC, which ensures compatibility with a broad range of control systems. The robust construction also guarantees durability and reliability under various environmental conditions.

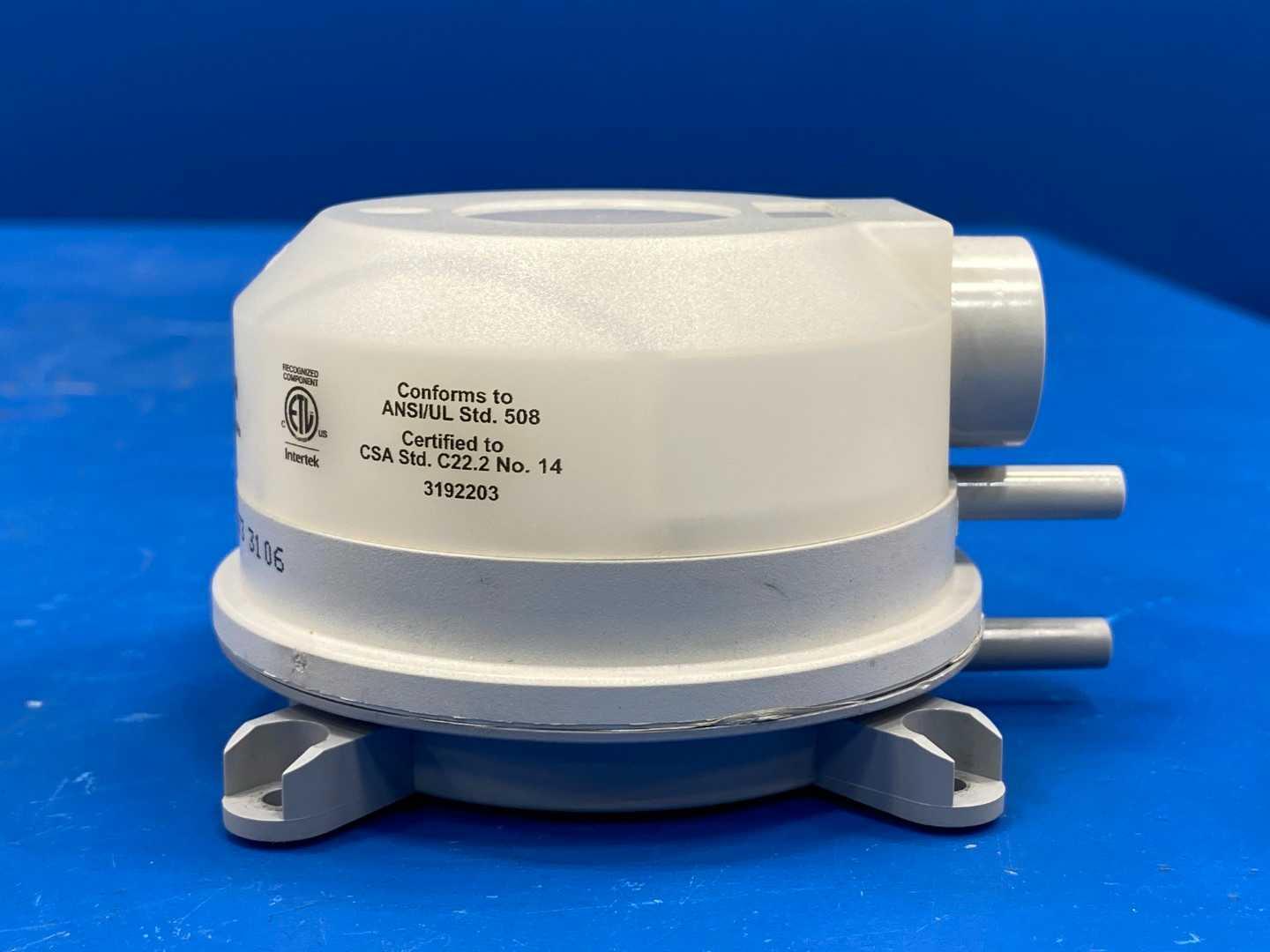

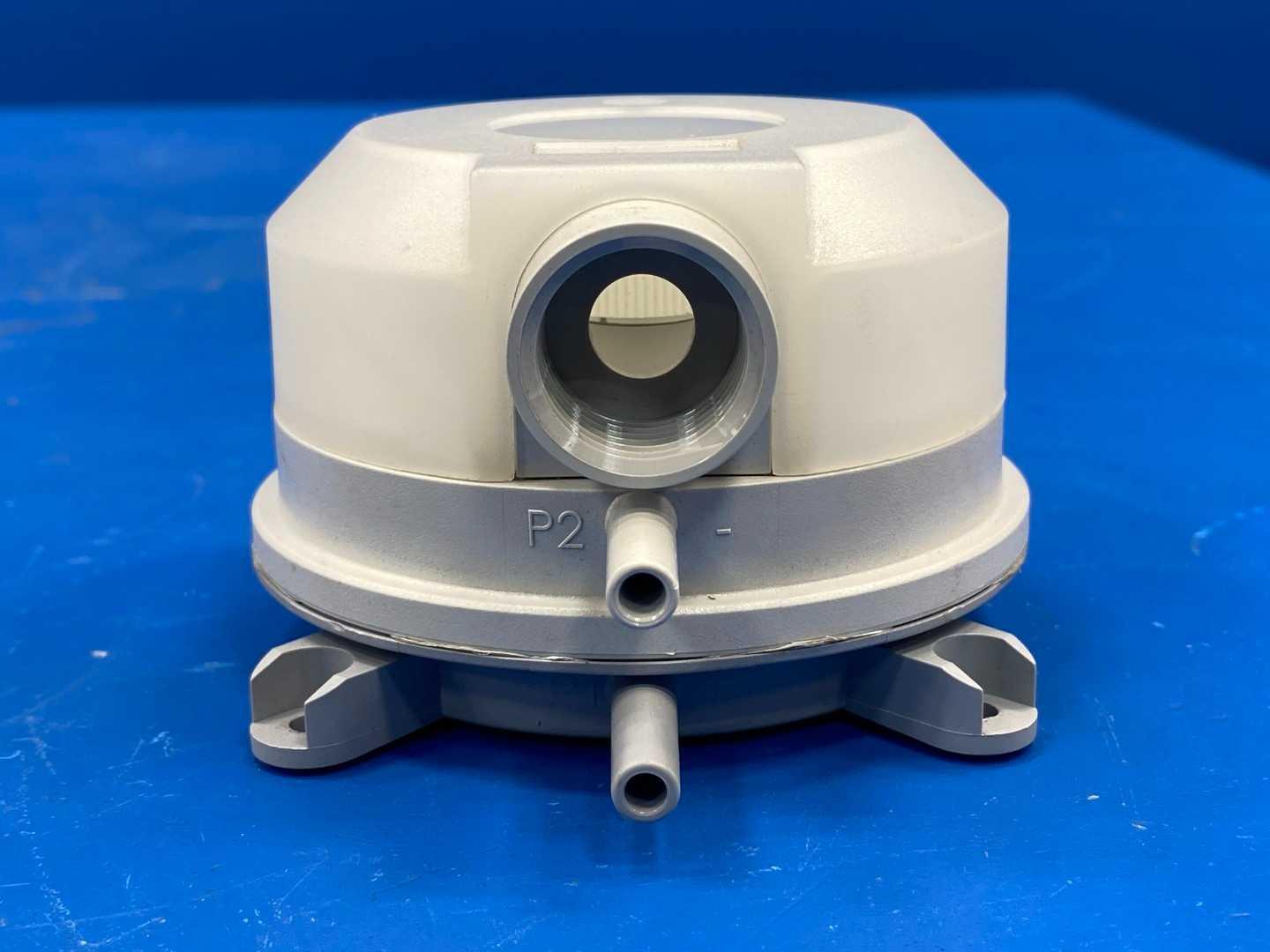

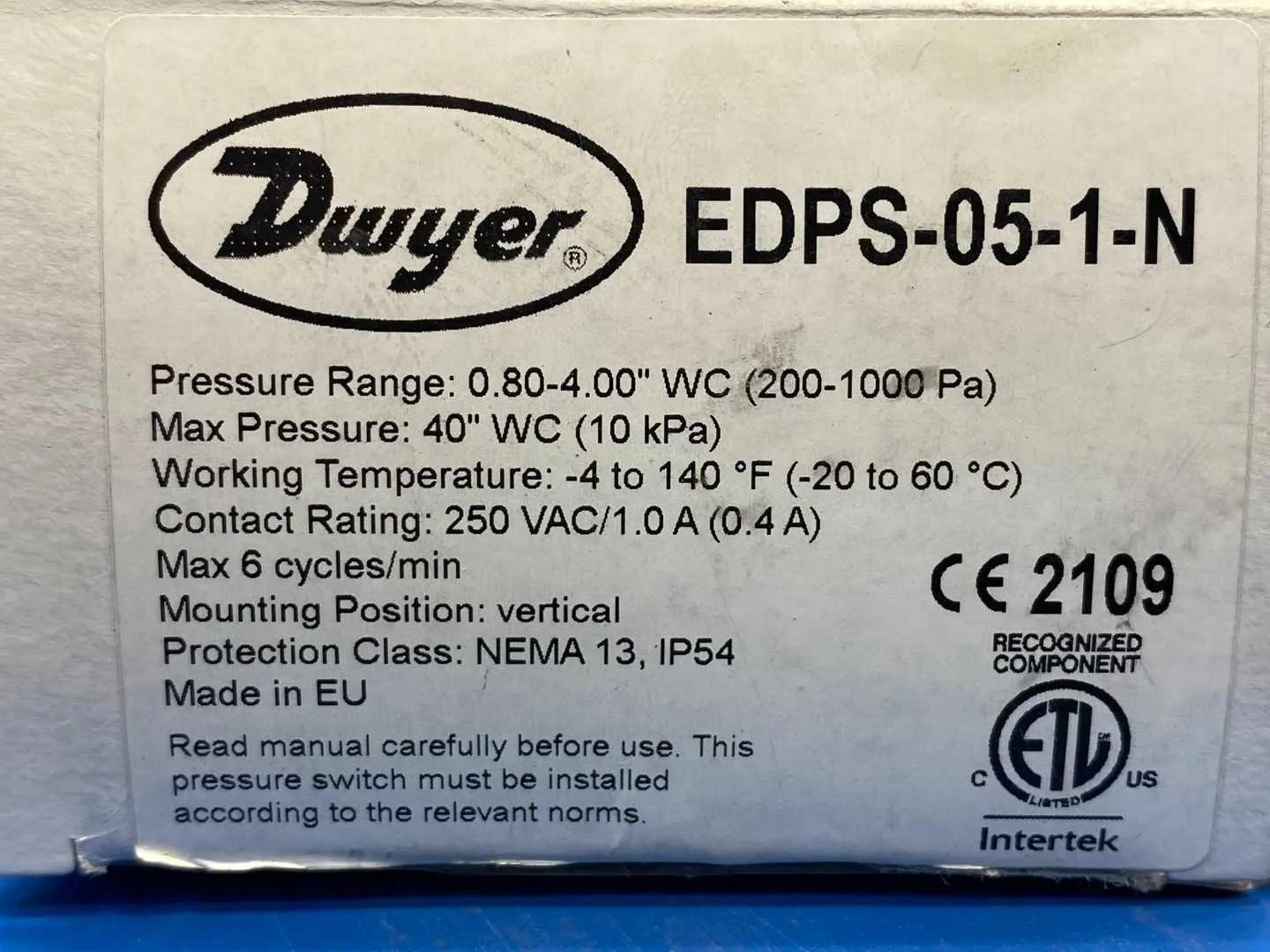

Series: ADPS/EDPS Adjustable Differential Pressure Switch Pressure Range (this model): 0.80-4.00" WC (200-1000 Pa) Max Operating Pressure: 40" WC (10 kPa) Switch Type: SPDT (single-pole double-throw) Electrical Rating: 250 VAC, 1.0 A resistive (0.4 A inductive), 50/60 Hz Max Switching Rate: 6 cycles/min Process/Ambient Temperature: -4 to 140 F (-20 to 60 C) Enclosure: NEMA 13, IP54 Process Connection: 1/2" NPT; 1/4" ID tubing Diaphragm: Silicone; Body: PA 6.6; Cover: Polystyrene; UL94 V-0 rated Mounting: Vertical, pressure ports downward Approvals: CE, ETL to UL508, CSA C22.2 No. 14; RoHS Country of Origin: Germany (EU)
