Head Pressure Control Valve Sporlan LAC-5-295HP 5/8" ODF 295 PSI 903104 903107P

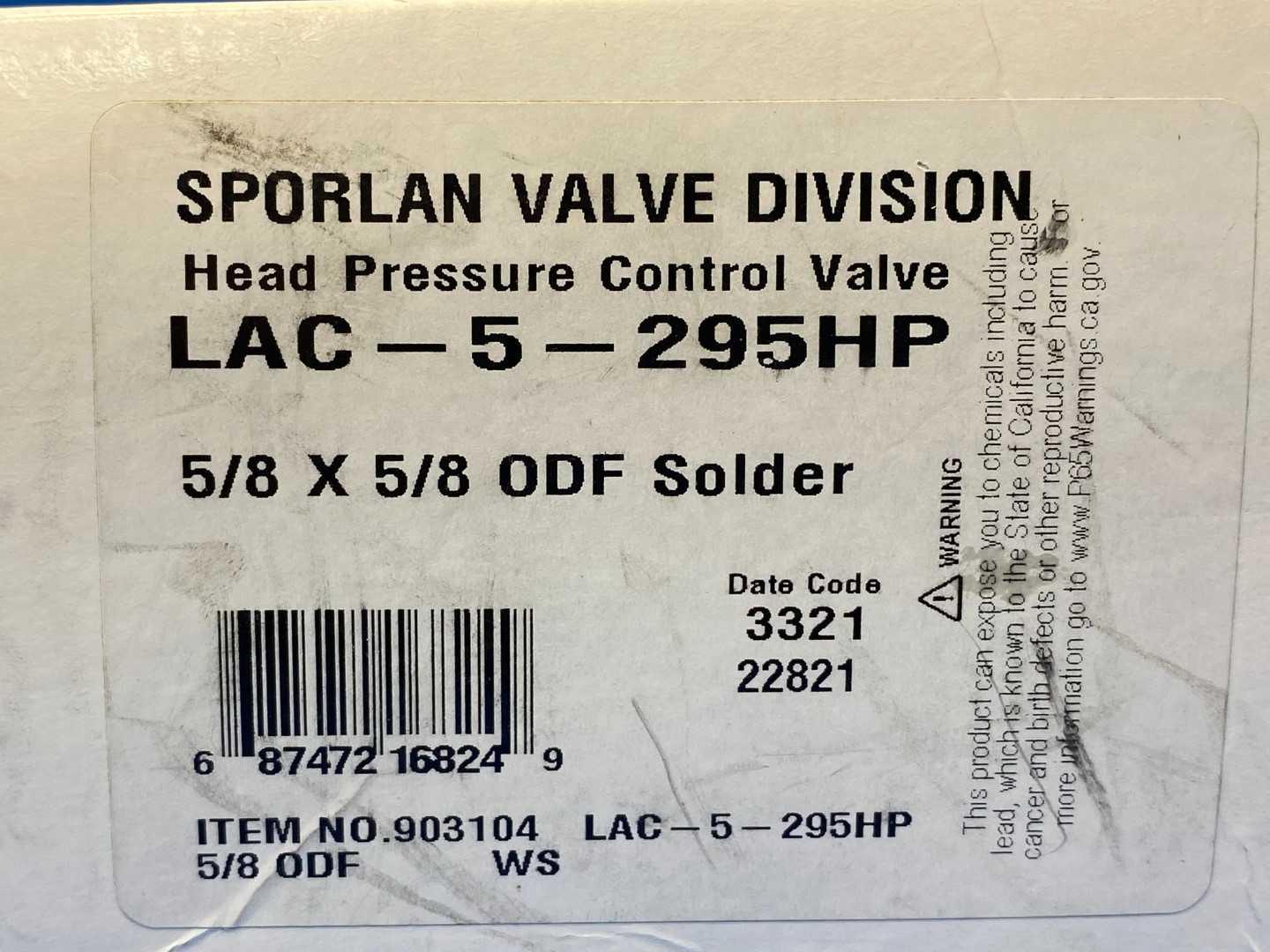

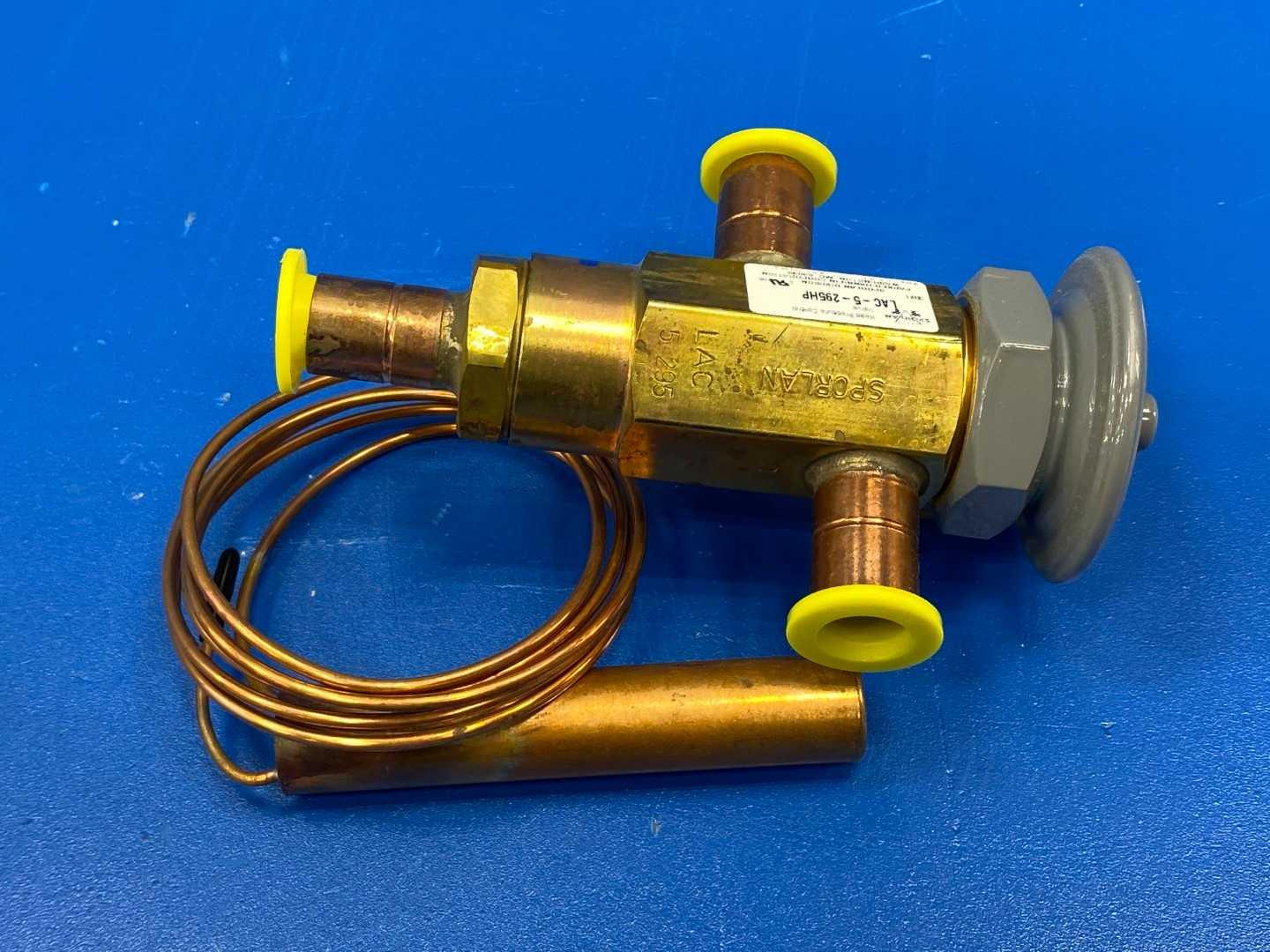

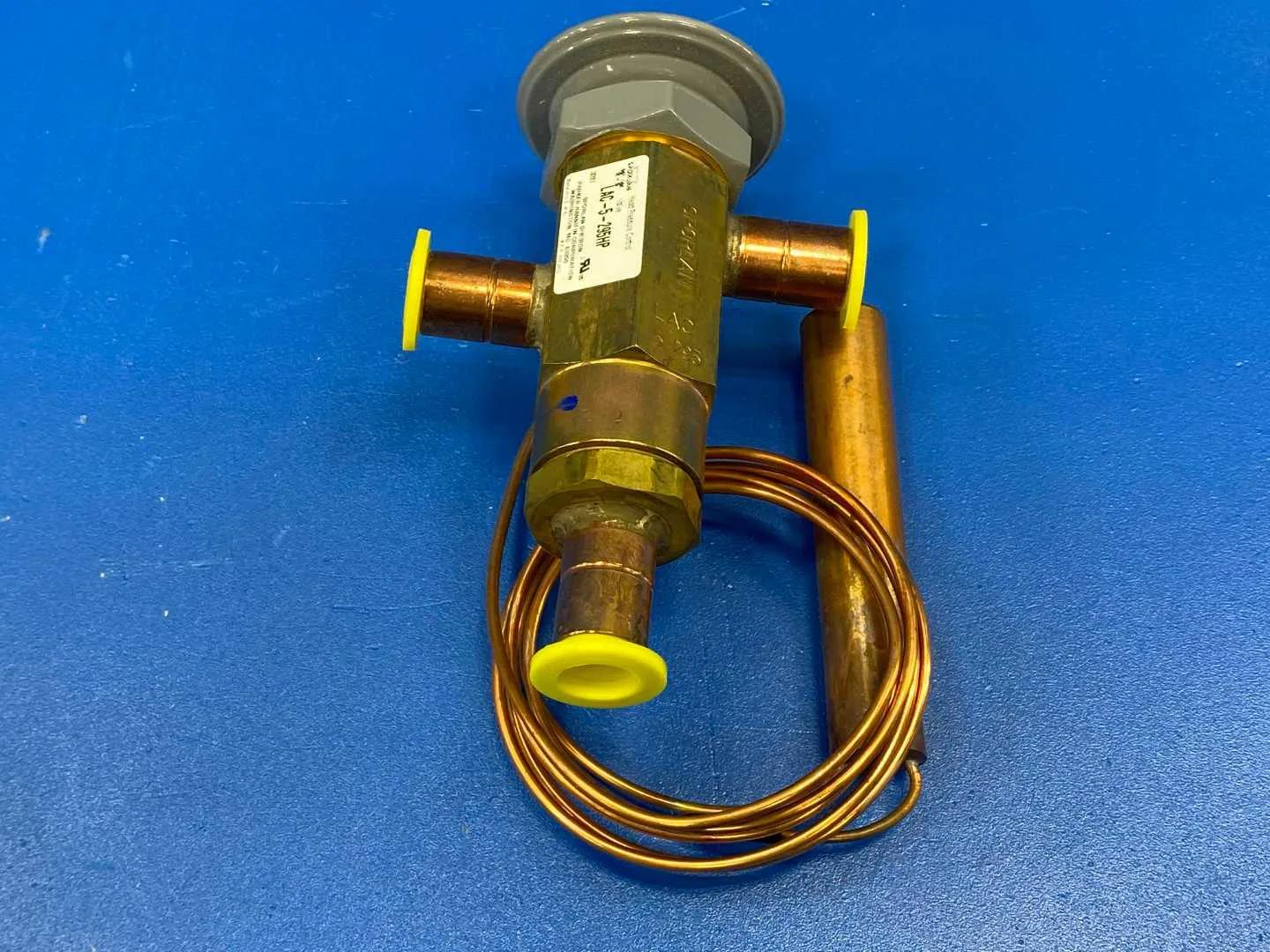

The Sporlan LAC-5-295HP is a three-way modulating head pressure control valve manufactured by Sporlan Valve Division, Parker Hannifin Corporation, Washington, MO. It maintains adequate head pressure in refrigeration systems during low ambient conditions by modulating between two simultaneous control functions: restricting liquid flow from the condenser to the receiver while bypassing hot discharge gas directly to the receiver inlet. This prevents compressor starvation and low-pressure trips common in cold-weather operation. This unit was manufactured under the original Sporlan part number 903104, later superseded by Parker catalog number 903107P. Date code 3321 indicates manufacture in week 33 of 2021. Maximum operating pressure is 880 psig. The valve is listed as New in Box with King Surplus's 14-day 100% money-back guarantee. Primary applications include commercial refrigeration rack systems, supermarket condensing units, cold storage facilities, and rooftop condensing units operating in variable ambient conditions. Compatible with HFC refrigerants including R-410A. Made in the U.S.A.

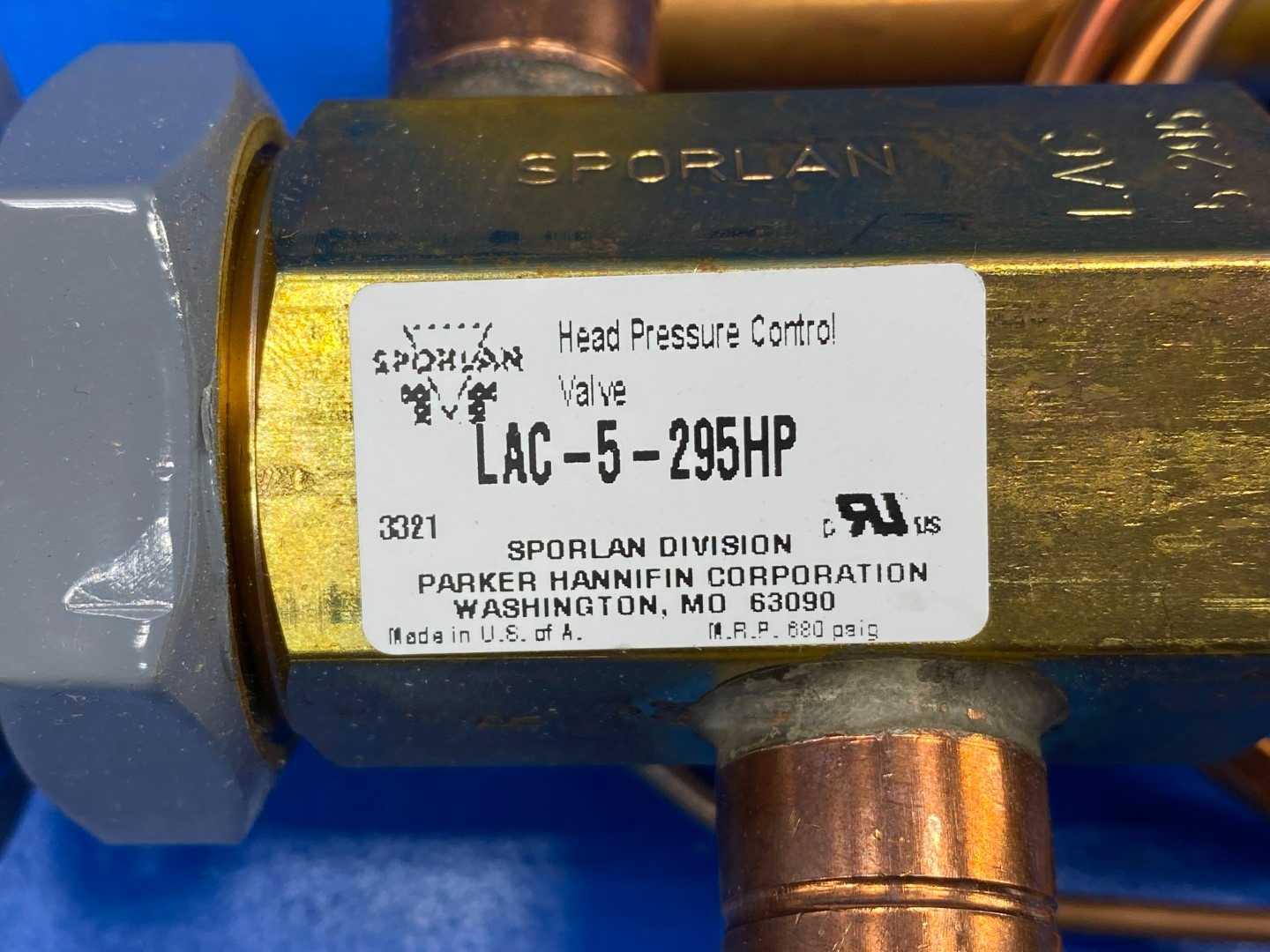

REFRIGERANT: determined by the PRESSURE SETTING, which on this valve is 295 psig. Sporlan's three published standard LAC settings are 100 psig for R-134a, 180 psig for R-22, R-407C and R-502, and 210 psig for R-402A, R-404A and R-507. A 295 psig setting is far above every one of those, and the HP suffix denotes the high-pressure build, so this valve is built for a high-pressure refrigerant, in practice R-410A and the HFC high-pressure group. It is NOT a substitute for an R-22 or R-404A valve: on those refrigerants a 295 psig receiver setting sits well outside the condensing range Sporlan specifies, which is a receiver pressure equivalent to roughly 80 to 90 F (27 to 32 C) saturation. The valve designation and setting are stamped on the valve body. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Country of origin: Made in U.S.A. Model: LAC-5-295HP Sporlan legacy part number: 903104 Current Parker part number: 903107P Date code on this unit: 3321, being week 33 of 2021 What LAC stands for: Low Ambient Control Function: head pressure control for low ambient operation. This is a THREE-WAY MODULATING valve. The LAC-5 responds to RECEIVER pressure, not discharge pressure. As receiver pressure falls below the valve setting, the seat moves away from the discharge port and lets discharge gas bypass the condenser. That gas warms the liquid in the receiver and raises its pressure back to setting. At the same time liquid flow out of the condenser is restricted, backing liquid up into the condenser, reducing active condensing surface and raising condensing pressure. In summer the high receiver pressure closes the discharge port and full liquid flow resumes. Why you need it: without head pressure control in low ambient, the differential across the expansion valve port collapses and the evaporator is underfed. Systems using hot gas defrost or hot gas capacity control will not work without normal head pressure. Off cycle, refrigerant can migrate to the condenser and the compressor may not be able to restart. Adjustable: NO. The LAC uses a non-adjustable dome element. If the setting is wrong for your system, the valve must be replaced, not adjusted. Port size: 5/8 in (15.88 mm) CONNECTIONS, all three ODF solder: 5/8 in discharge inlet x 5/8 in condenser inlet x 5/8 in receiver outlet Maximum rated pressure: Sporlan publishes 450 psig for the standard LAC-5. The HP designation indicates a higher-pressure build. We are not publishing an MRP figure for the HP variant that we cannot source to Parker literature. Read it off the valve body. Replacement element: non-adjustable dome element D3L, specify setting. A non-adjustable remote bulb element R3L is also published, indicated by an R following the valve setting in the model number. Materials: brass body, domed steel element, copper solder connections, metal to metal seating, knife edge metal to metal joints Installation note: during the off cycle refrigerant can migrate from the warm receiver to the cold condenser. Sporlan calls for an auxiliary check valve in the liquid line between the LAC and the receiver to prevent this. Caution: the valve setting makes no difference if the system is short of refrigerant. Head pressure control by condenser flooding requires enough charge to flood with. Approvals: the LAC valves are UL Recognized components under UL file SA-5460 Model designation format: LAC, valve size, setting in psig, R if remote bulb, then discharge x condenser x receiver connections, then ODF. CALIFORNIA PROPOSITION 65 WARNING: this product contains lead. Source: Parker Sporlan Bulletin 90-30, January 2004, pages 2, 3, 6, 7, 10 and 11, for operation, settings, specifications and nomenclature. Part numbers, date code, country of origin and the Proposition 65 notice are from the unit and its packaging as previously recorded on this asset.
