Henry Technologies S-8640L-HP Horizontal Liquid Refrigerant Receiver, 700 PSI, 460V, 3PH
Henry S-8640L-HP Specifications & Fitment
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | S-8640L-HP |
| Condition | Used |
| Manufacturer | Henry |

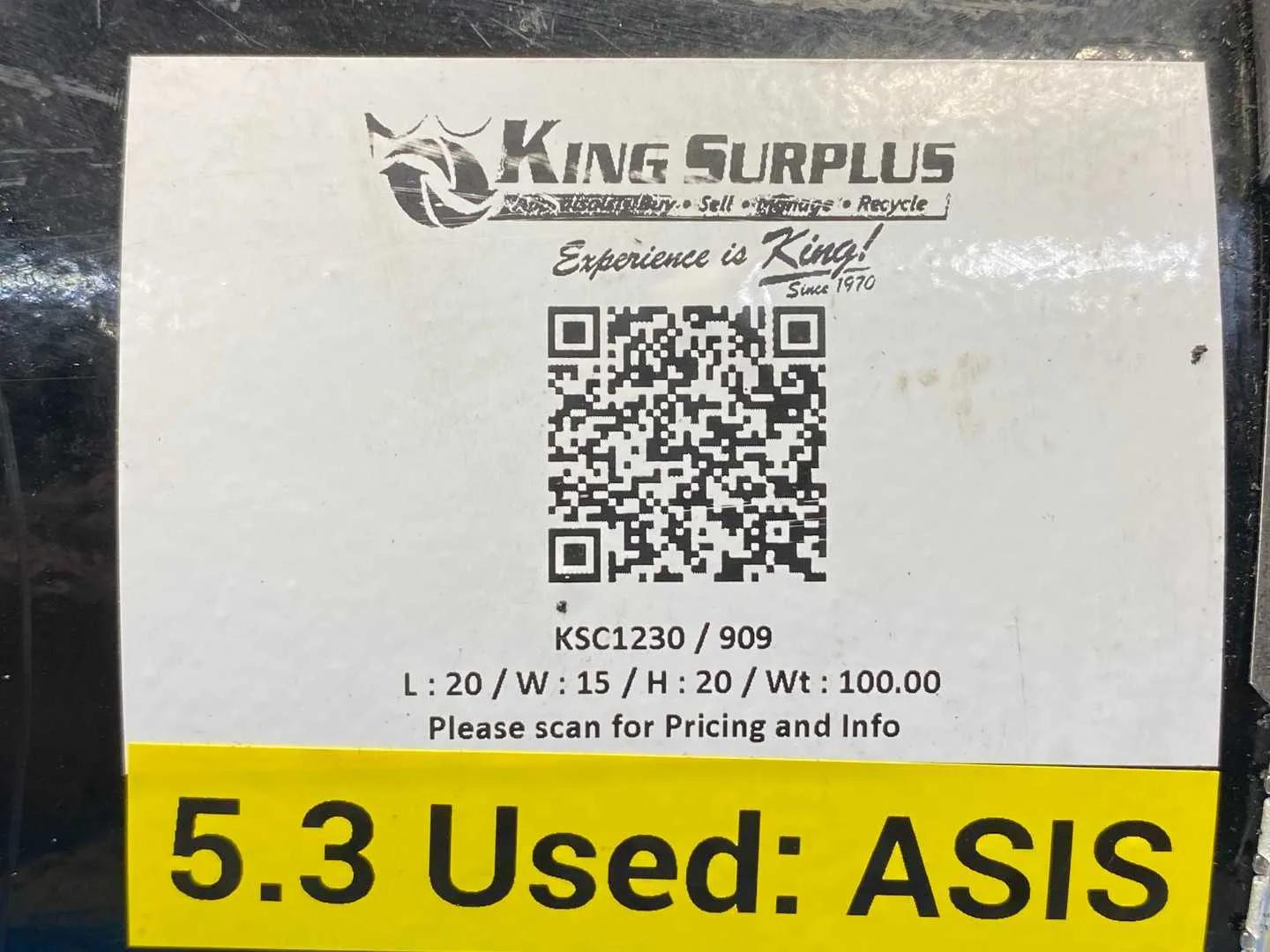

| Asset Number | KSC1230 / 909 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$439.95
Basic Information
Asset #
KSC1230 / 909
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

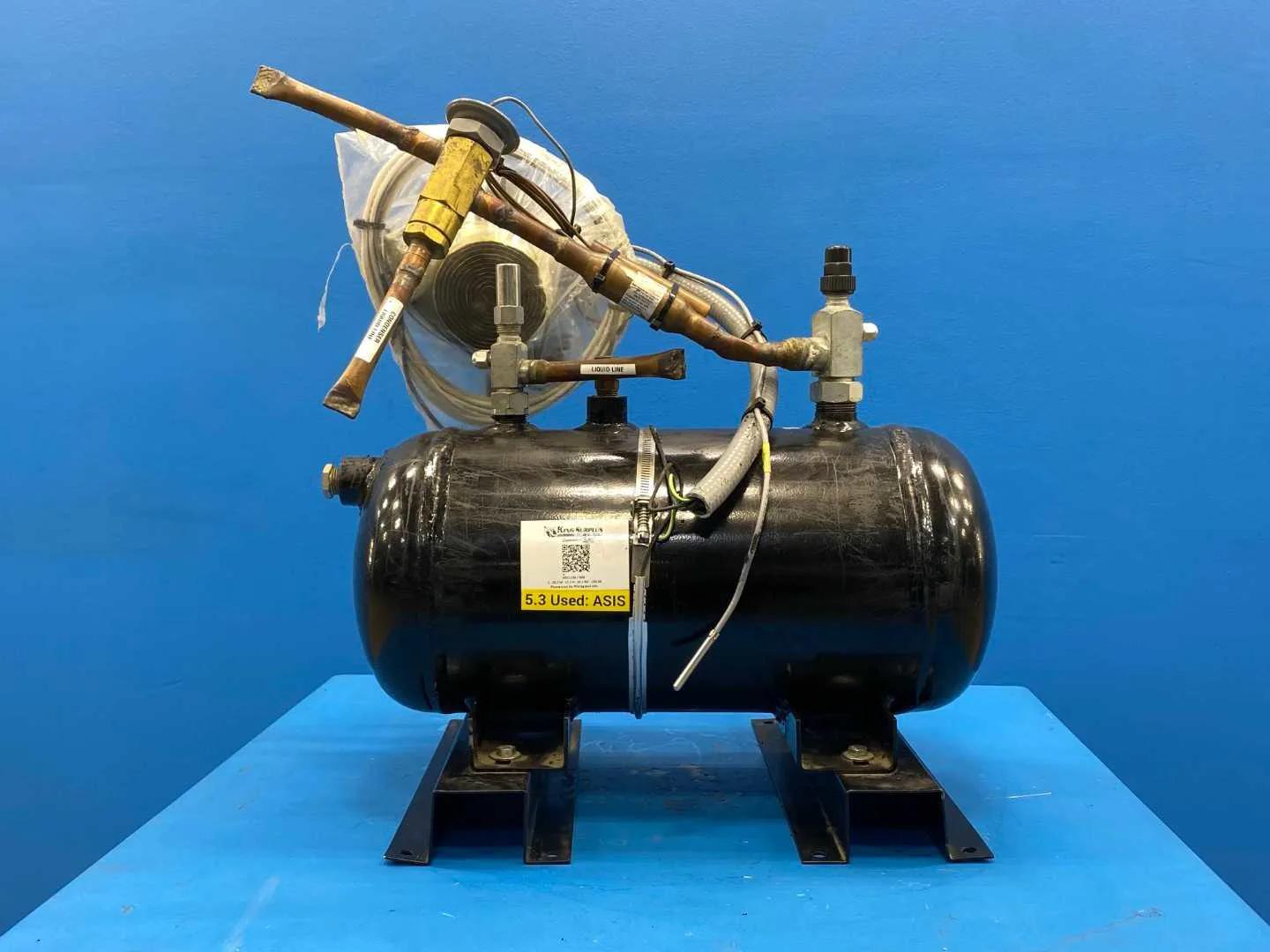

The Henry Technologies S-8640L-HP is an ASME horizontal liquid refrigerant receiver built in Chatham, Illinois. A liquid receiver sits after the condenser in a refrigeration or air conditioning system. It collects condensed refrigerant so the expansion device gets a steady liquid supply, and it holds the refrigerant charge when the system is pumped down for service or maintenance.
The S-8640 is part of the Henry horizontal receiver series. The HP suffix denotes a high pressure build: this unit is nameplated for a maximum allowable working pressure of 700 PSI, compared with 450 PSI for the standard S-8640 in the Henry catalog. It carries ASME and CRN markings, Rotolock inlet and outlet connections, tagged hot gas and liquid lines, and a 460V 3 phase field connection. The nameplate lists refrigerants including R22, R404A and R507.
Receivers of this type are used by refrigeration contractors and HVAC service technicians on commercial condensing units, supermarket and cold storage systems, and packaged industrial refrigeration equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Henry Technologies, Chatham, Illinois
- Model: S-8640L-HP
- Product Type: ASME horizontal liquid refrigerant receiver

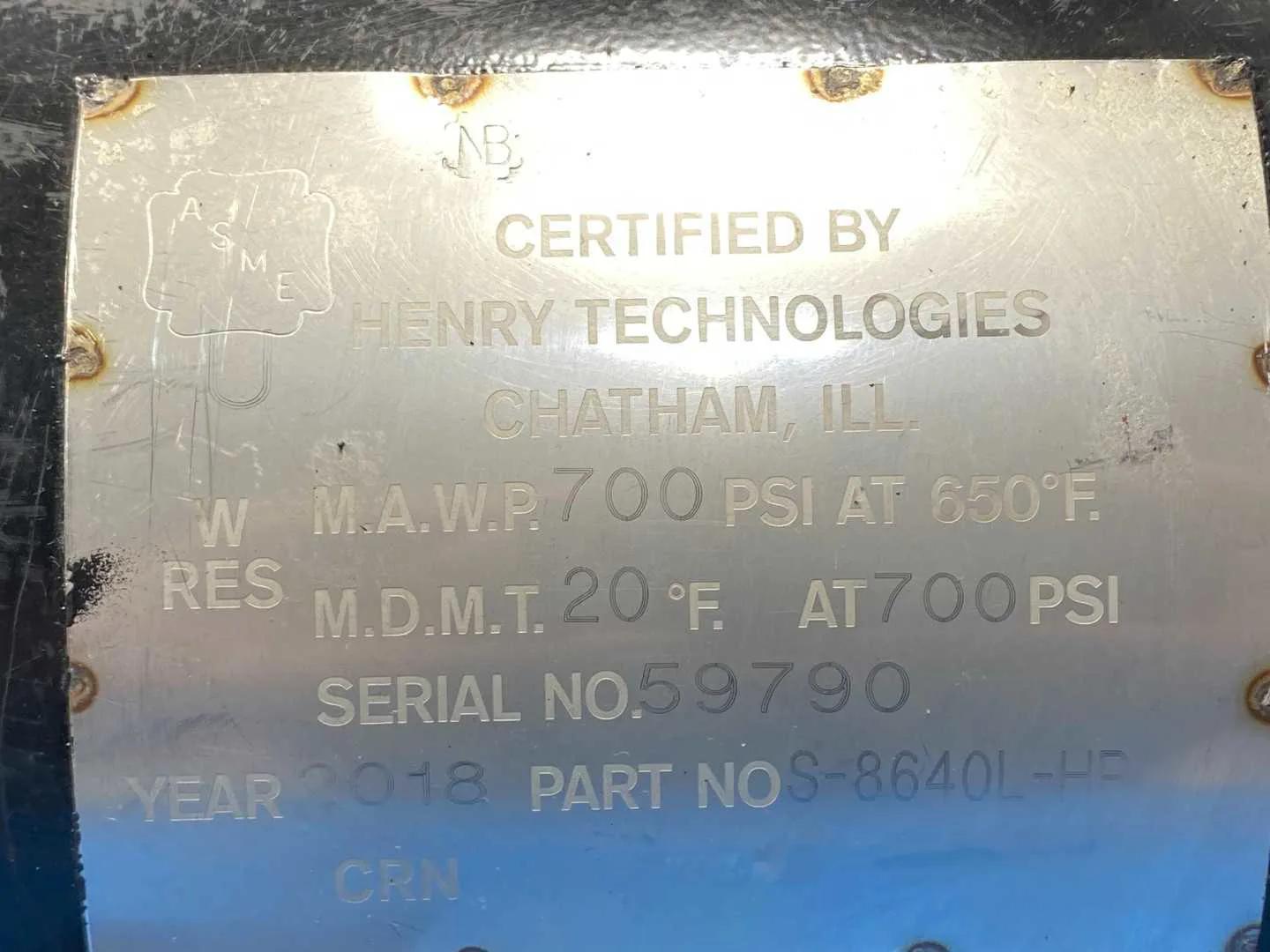

- Maximum Allowable Working Pressure: 700 PSI at 650 F (nameplate)
- Minimum Design Metal Temperature: 20 F at 700 PSI (nameplate)
- Code: ASME, CRN registered (nameplate)

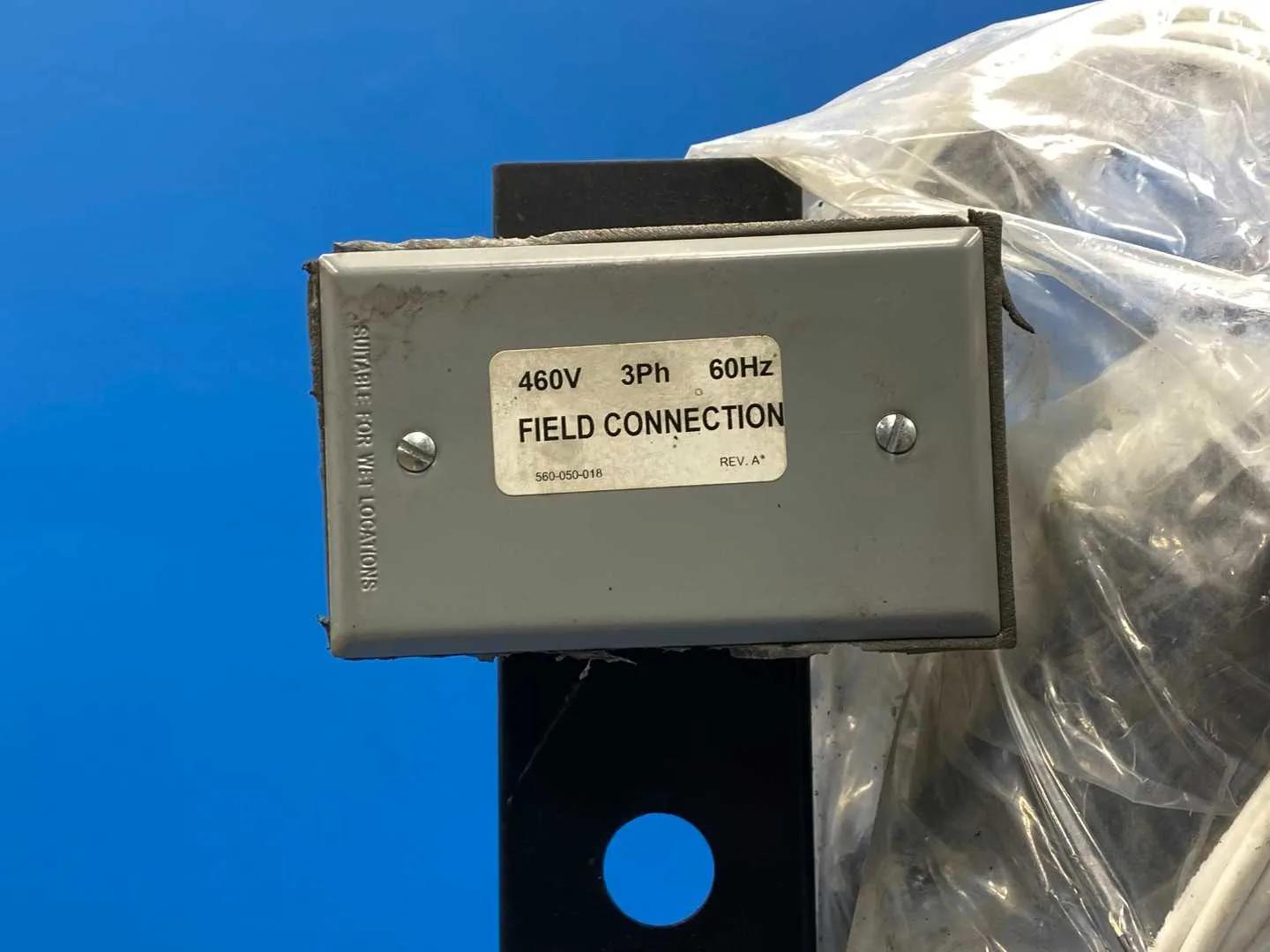

- Electrical Field Connection: 460V, 3 phase, 60 Hz (nameplate)

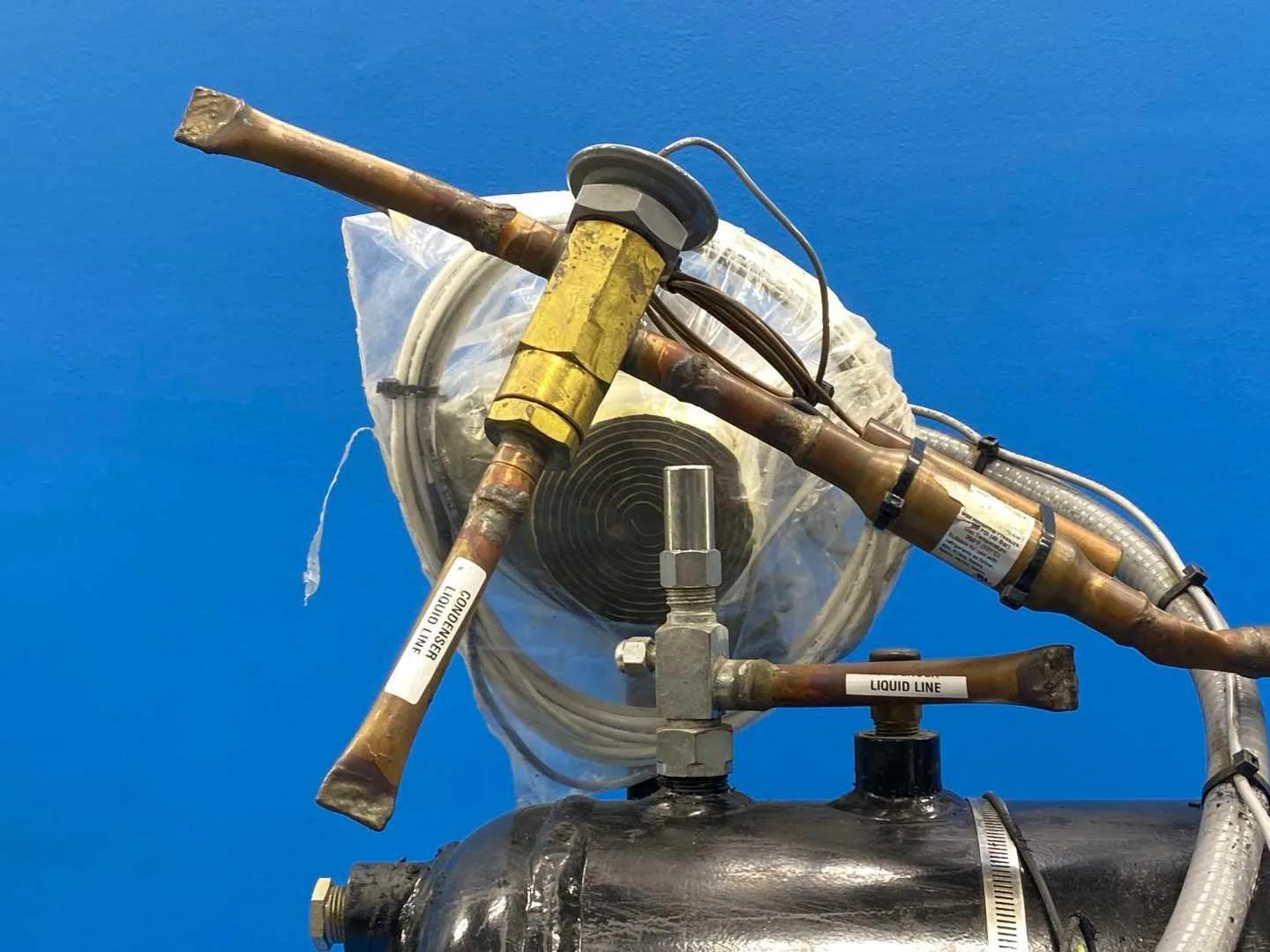

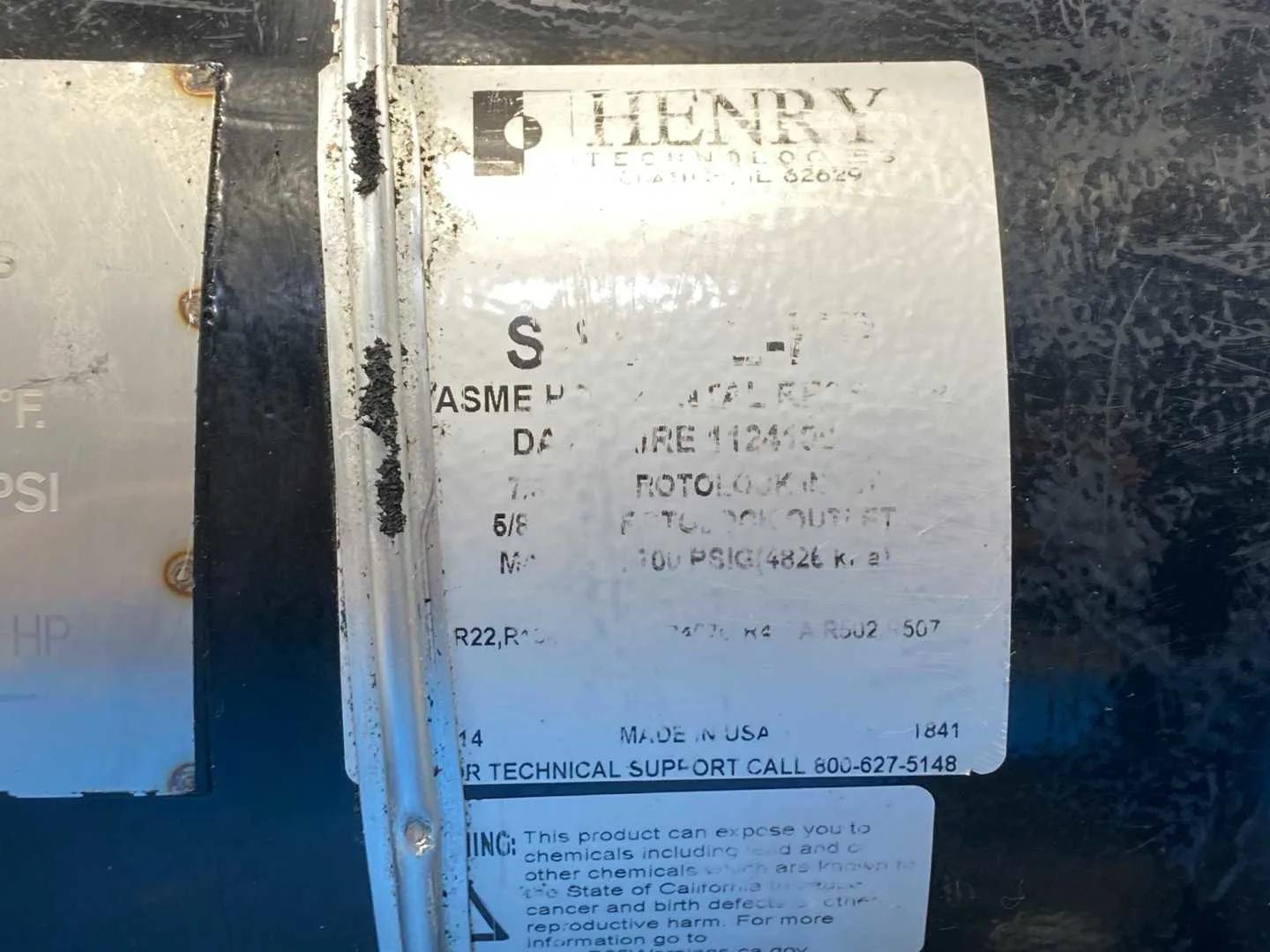

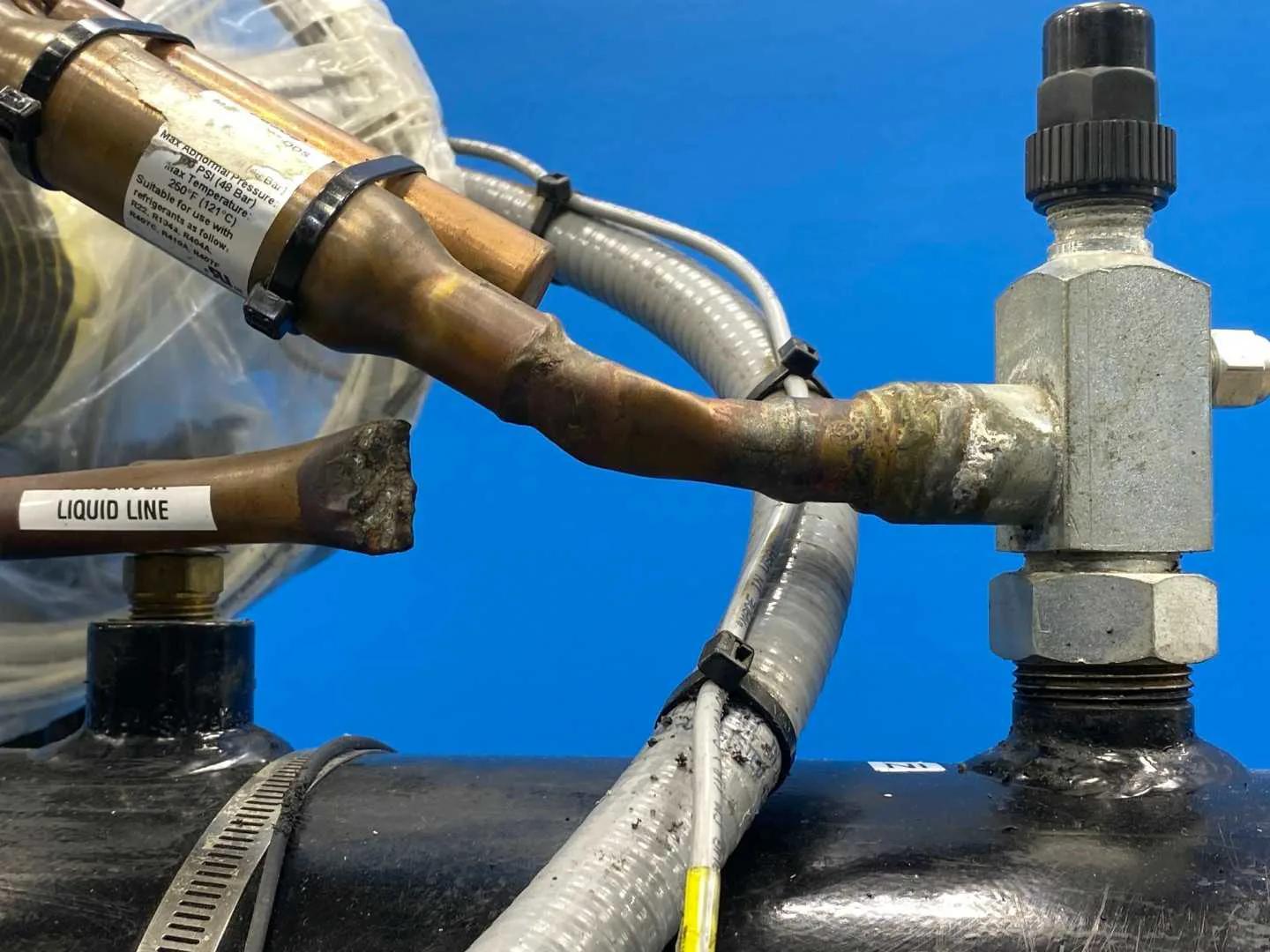

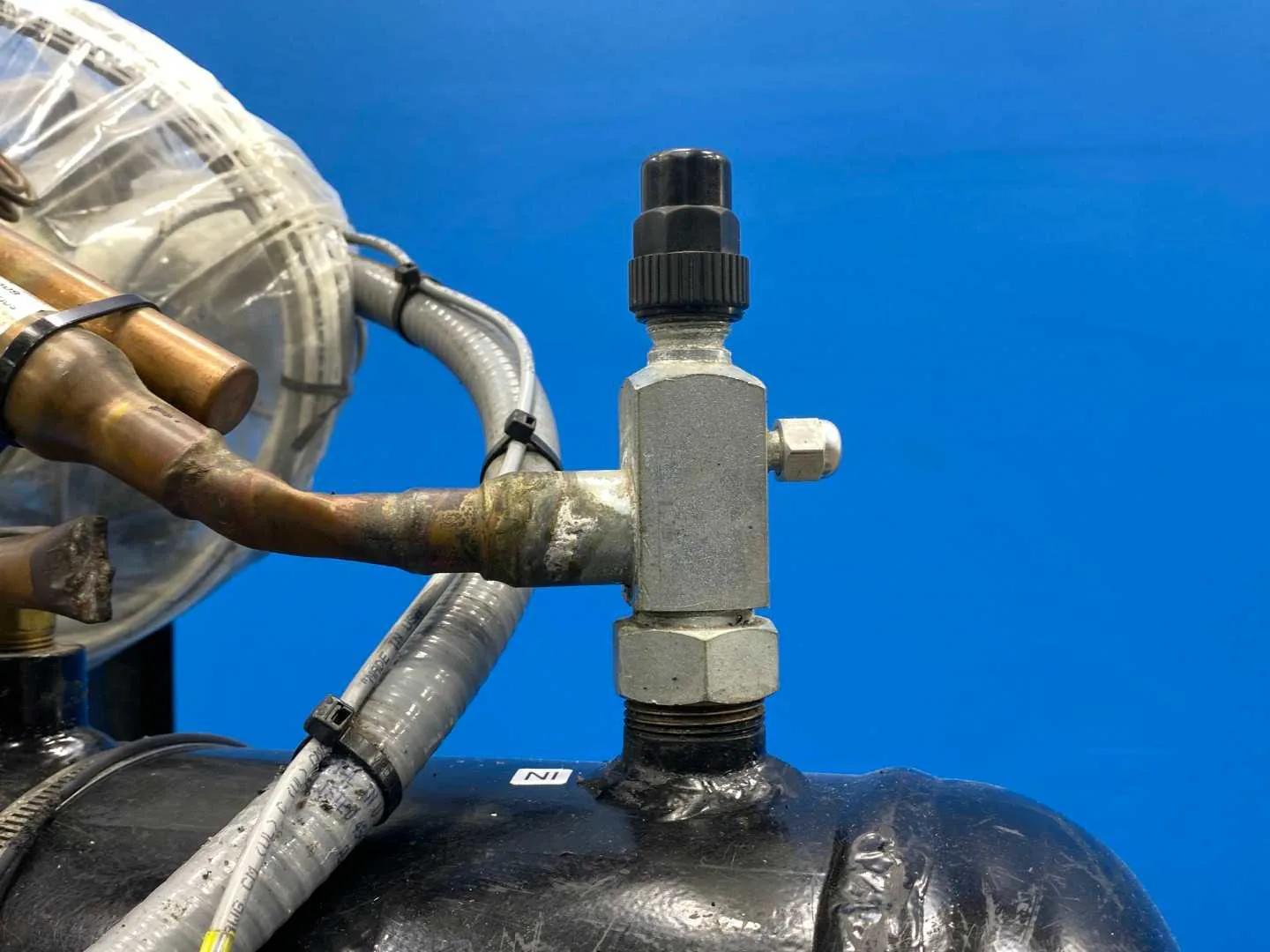

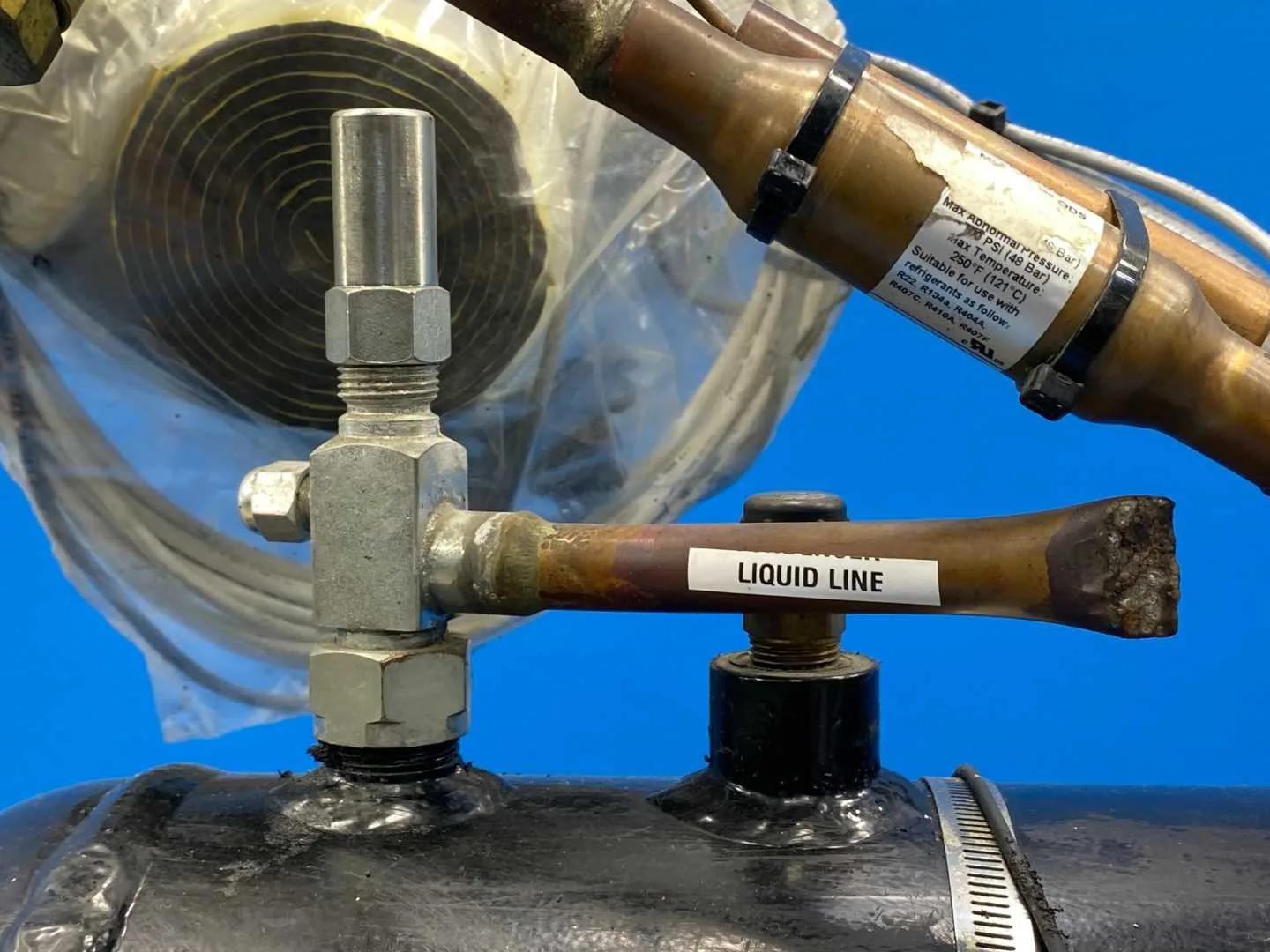

- Connections: Rotolock inlet and Rotolock outlet (second nameplate); tagged hot gas line and liquid line tubes
- Refrigerants listed: R22, R404A, R507 and others (second nameplate, partly illegible)

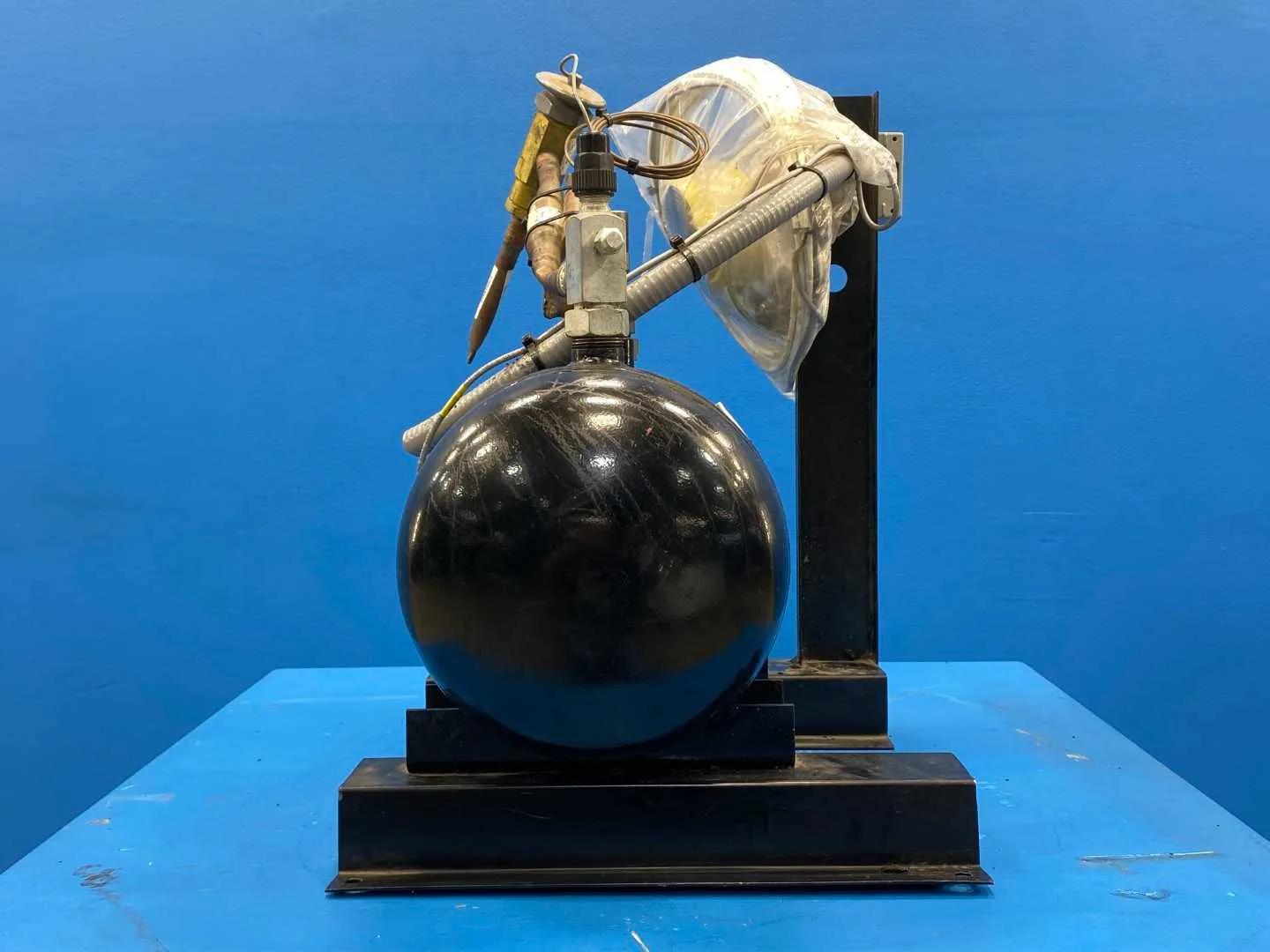

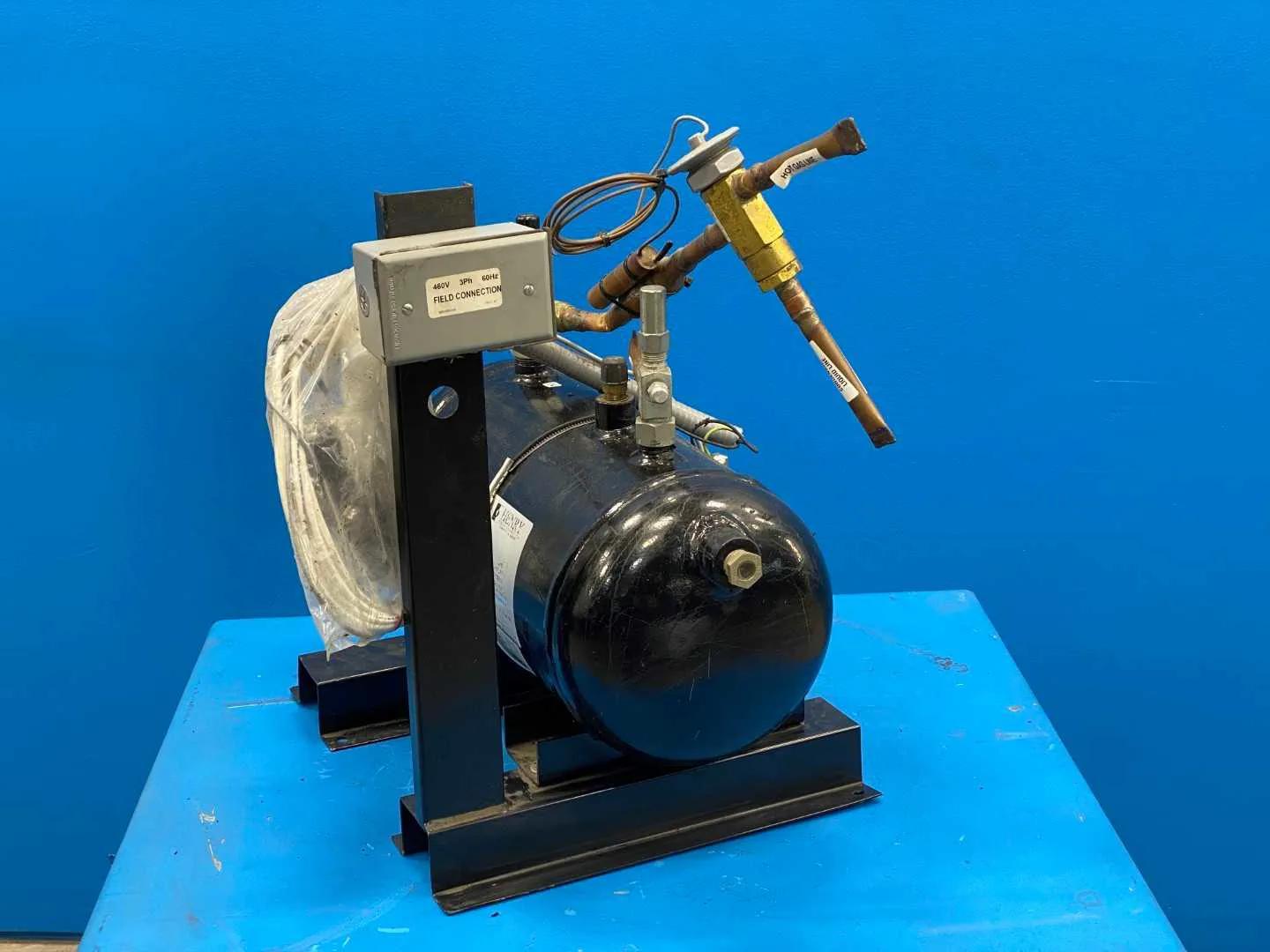

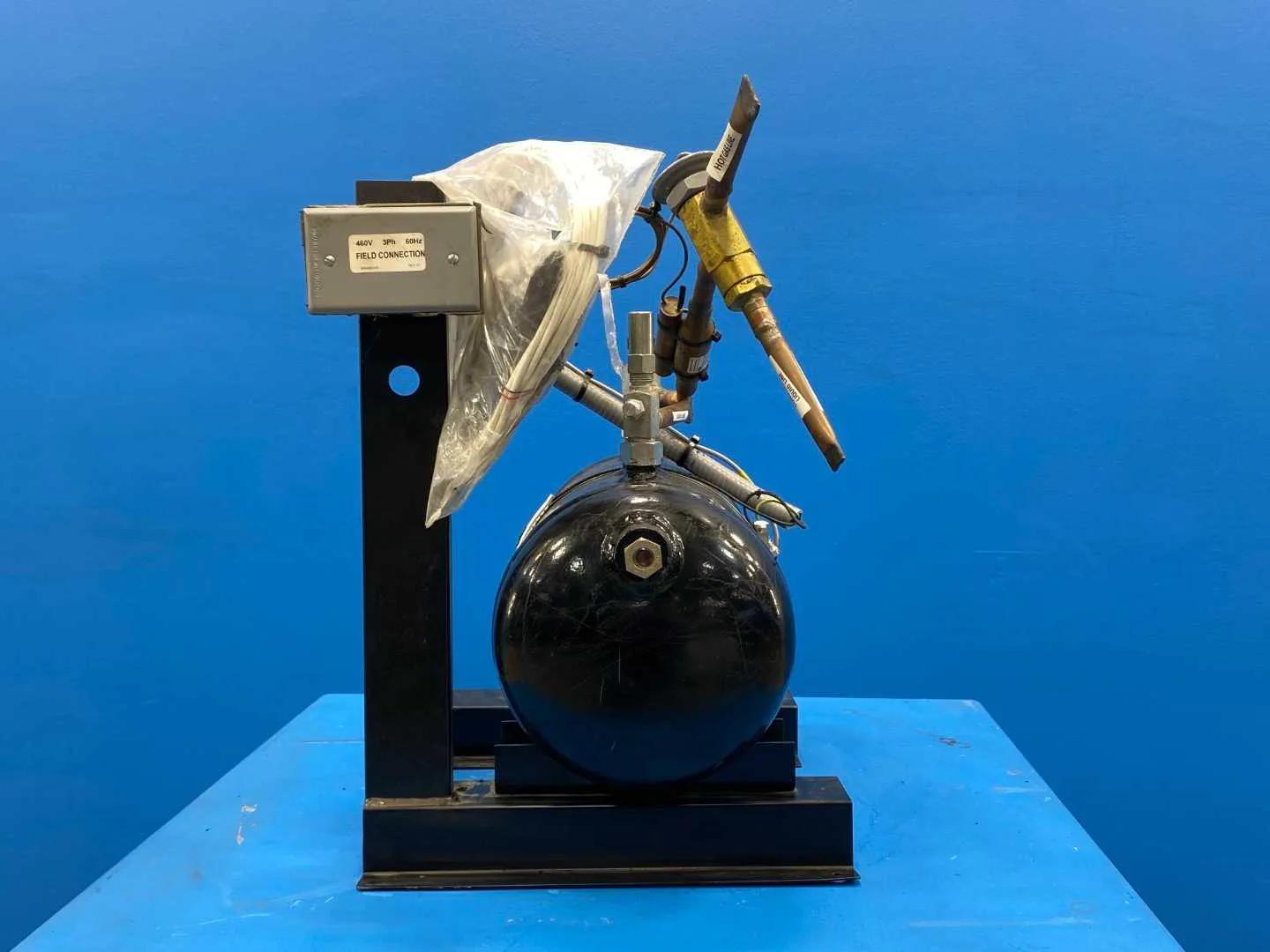

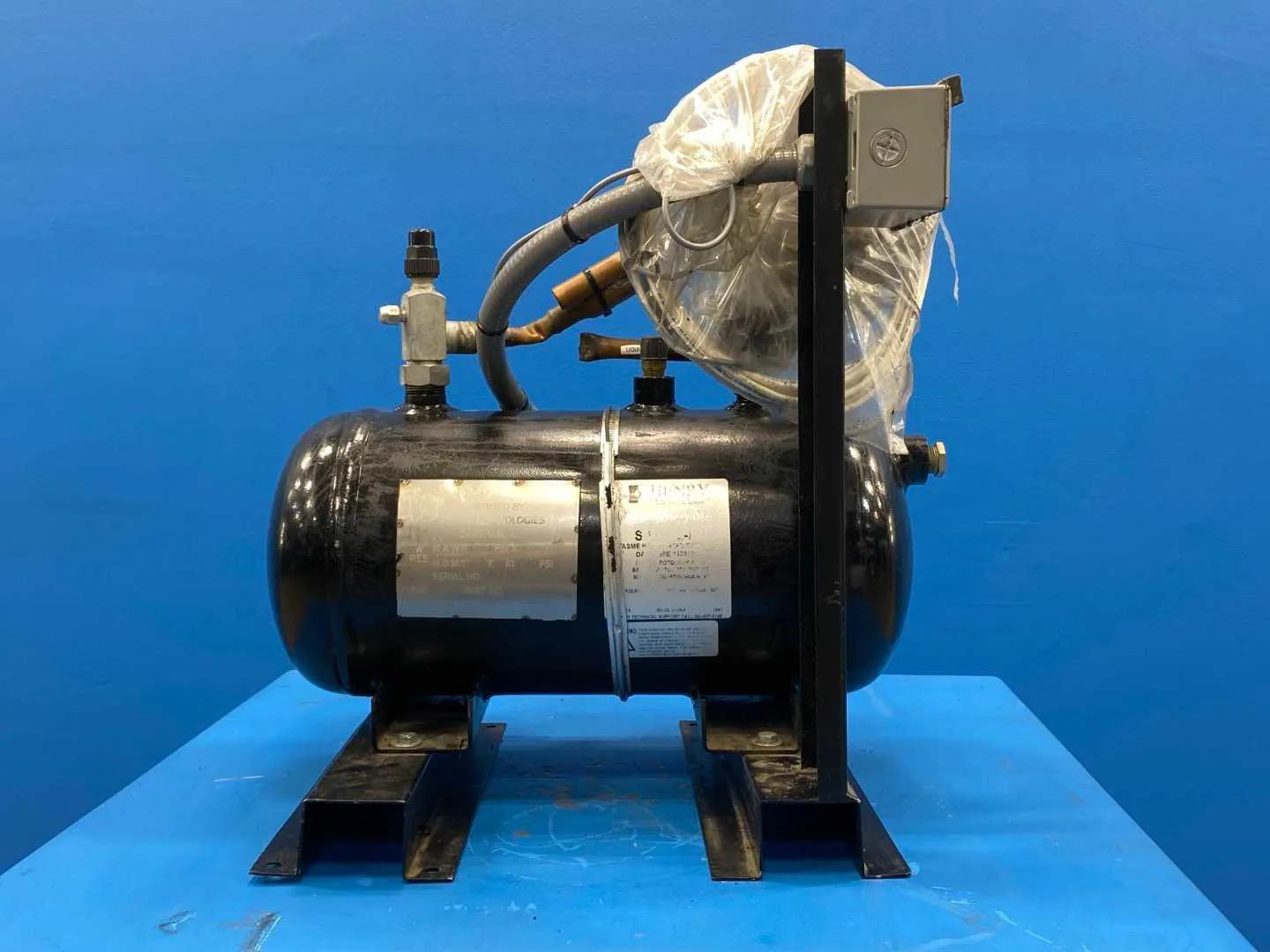

- Mounting: Receiver on mounting frame (photo)
- Year of Manufacture: 2018 (nameplate)
- Country of Manufacture: USA (nameplate)
- Catalog note: the standard S-8640 in the Henry horizontal receiver datasheet is rated 450 PSI with ODS connections; this HP variant is nameplated 700 PSI
- Spec Basis: nameplate photos (Henry Technologies S-8640L-HP, S/N 59790); Henry Technologies Liquid Refrigerant Receivers Horizontal ASME datasheet https://www.industrialstores.com/media/industrialstores/product/attachments/Henry-S-8640-Liquid-Refrigerant-Receiver-Technical-Datasheet.pdf
Specifications
Henry
S-8640L-HP
59790
2018
N/A
1
20
15
20
3
2
102
KSC1230 / 909
Packaging fees
1.6 6x10 CH $3.00
