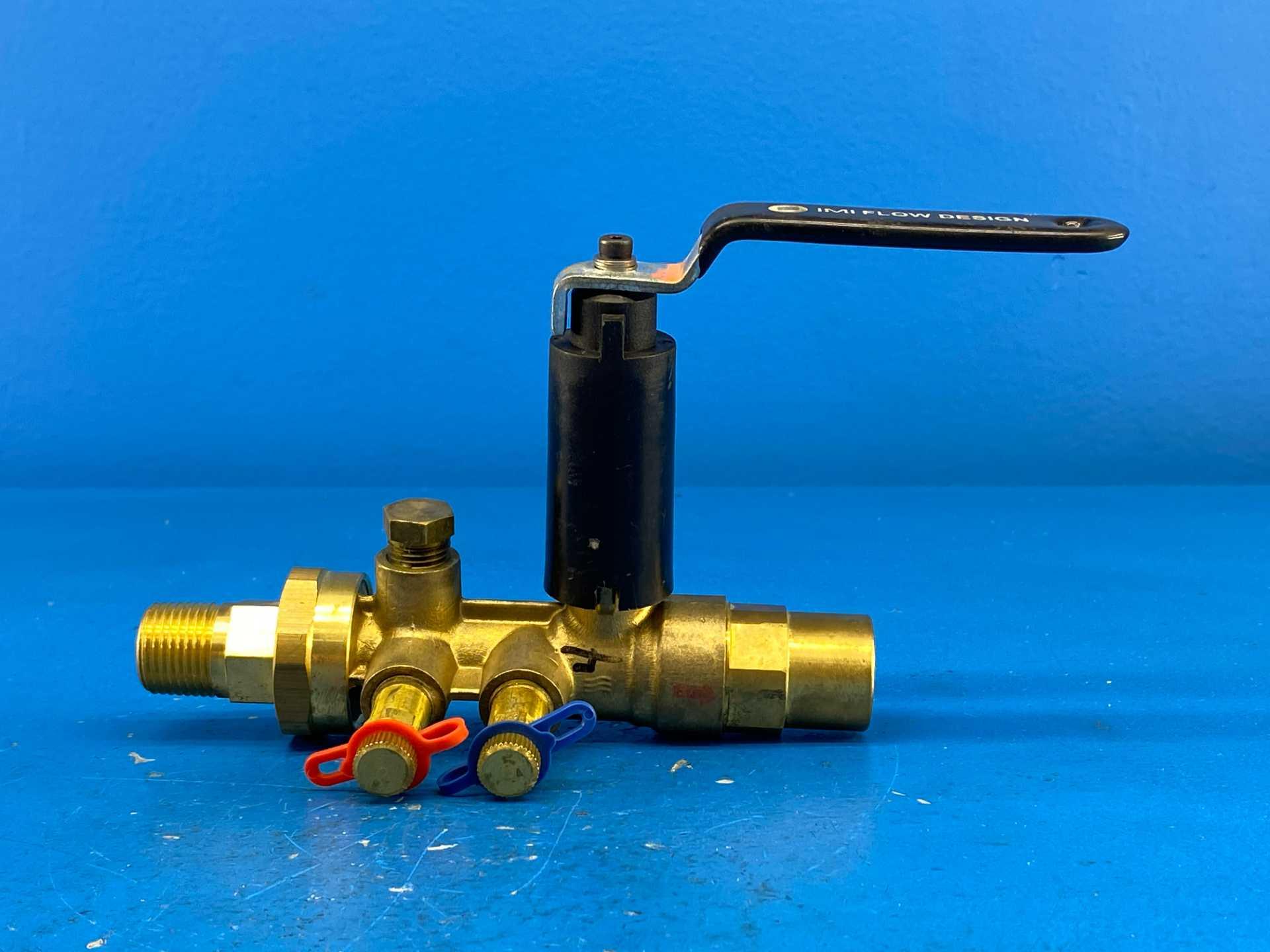

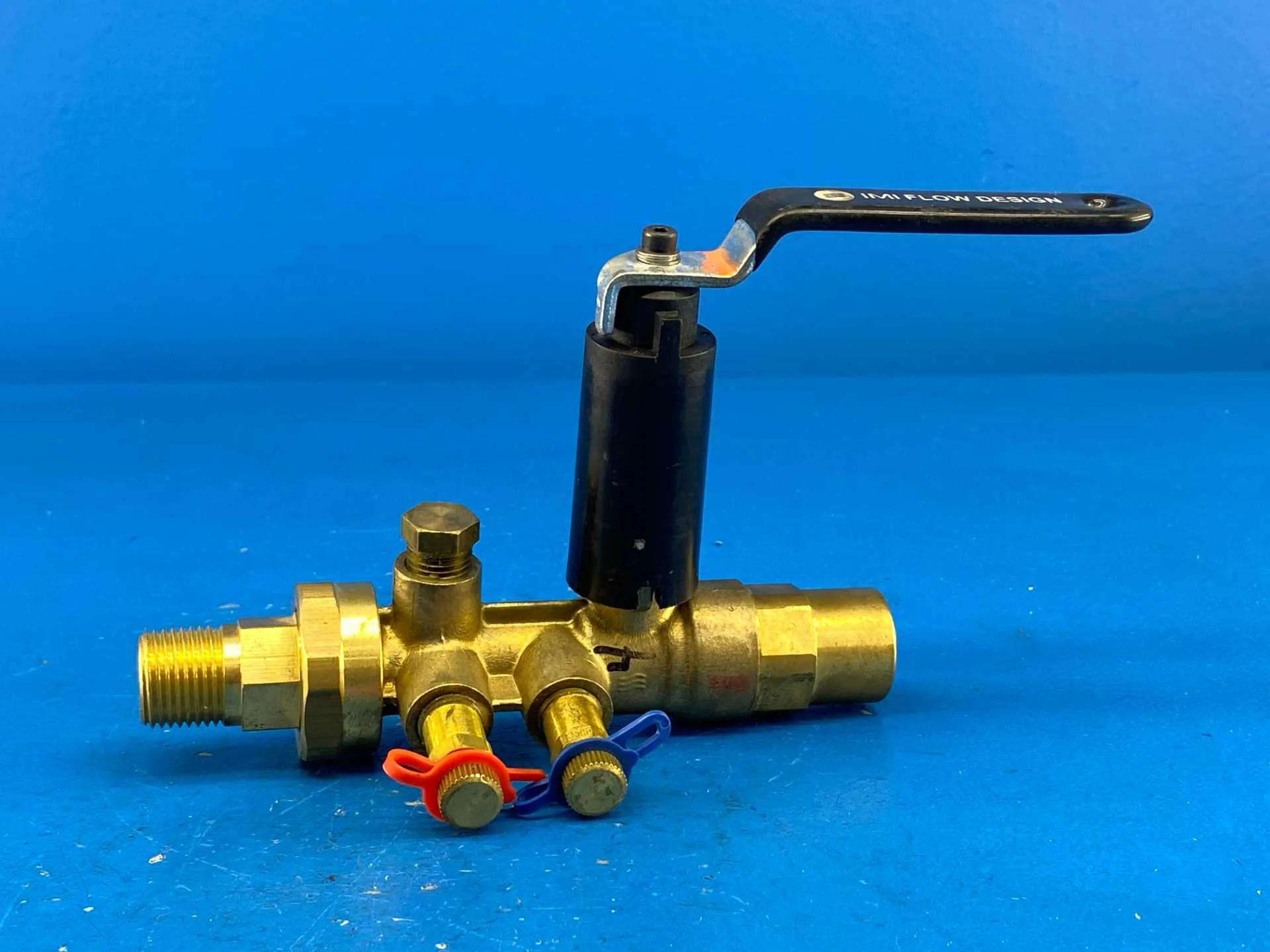

IMI Flow Design Venturi Balancing Ball Valve Overview

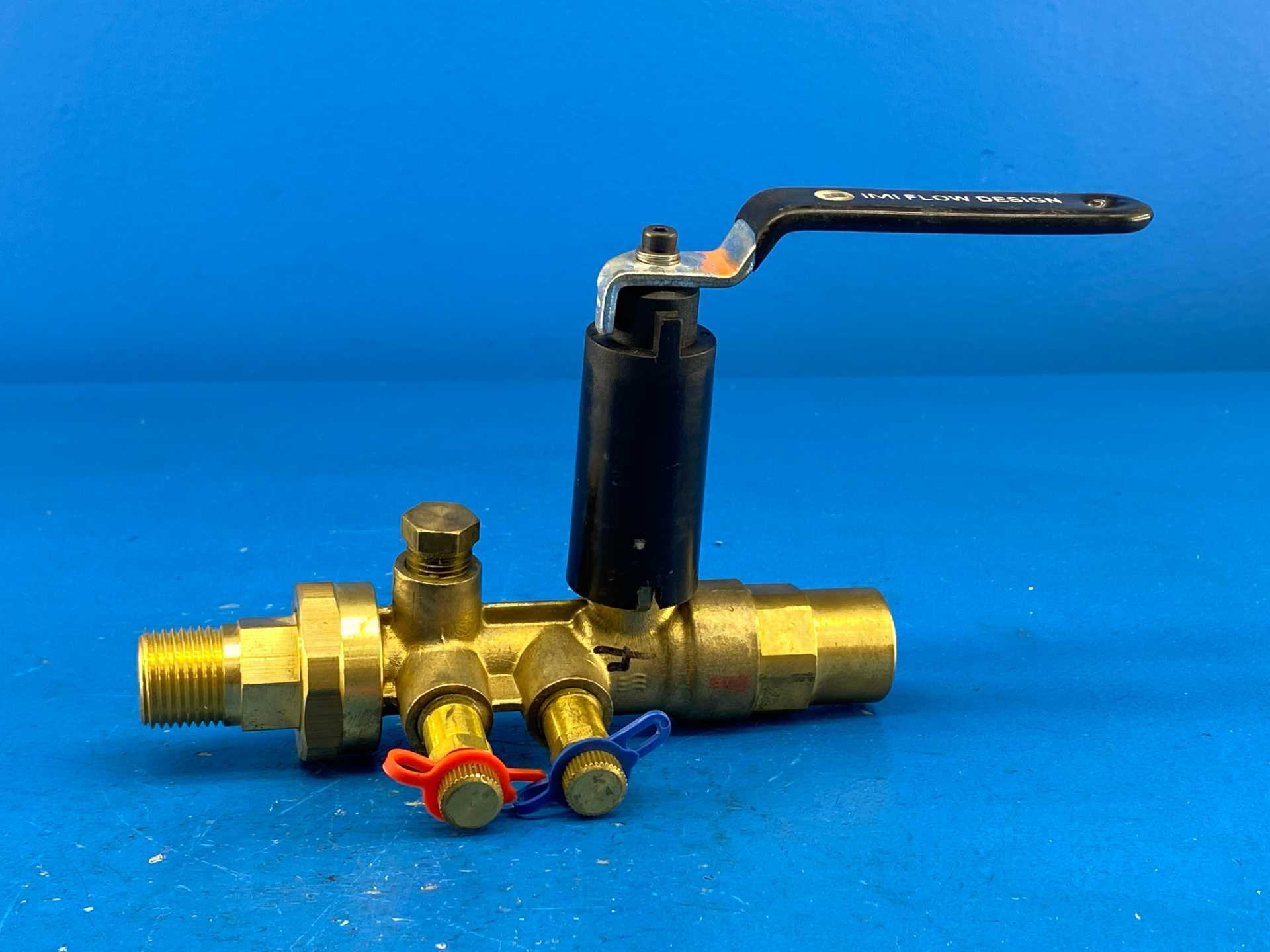

The IMI Hydronics UASBS-A-075S-050M-V4-EH is a high-performance manual Venturi valve designed for precise flow control in various fluid systems. Originally developed by IMI Hydronics, a leader in the field of HVAC solutions, this product has roots in the need for effective flow regulation in hydronic heating and cooling processes. The valve operates using the principle of the Venturi effect, enabling a reduction in fluid pressure when the fluid flows through a constricted section of pipe, which allows for efficient control of fluid flow rates. This valve is primarily used in heating, ventilation, and air conditioning networks, as well as in industrial applications that require reliable fluid control. Unique features include: - Compact design with a connection size of 3/4" female to 1/2" male. - Capable of withstanding pressures up to 600 pounds per square inch gauge (PSIG) and temperatures suitable for various fluid types. - Manual operation allows for straightforward adjustments, ensuring operational flexibility as system demands change. - The design is compliant with pressure nominal PN40 standards, putting emphasis on durability and performance under high-pressure conditions.

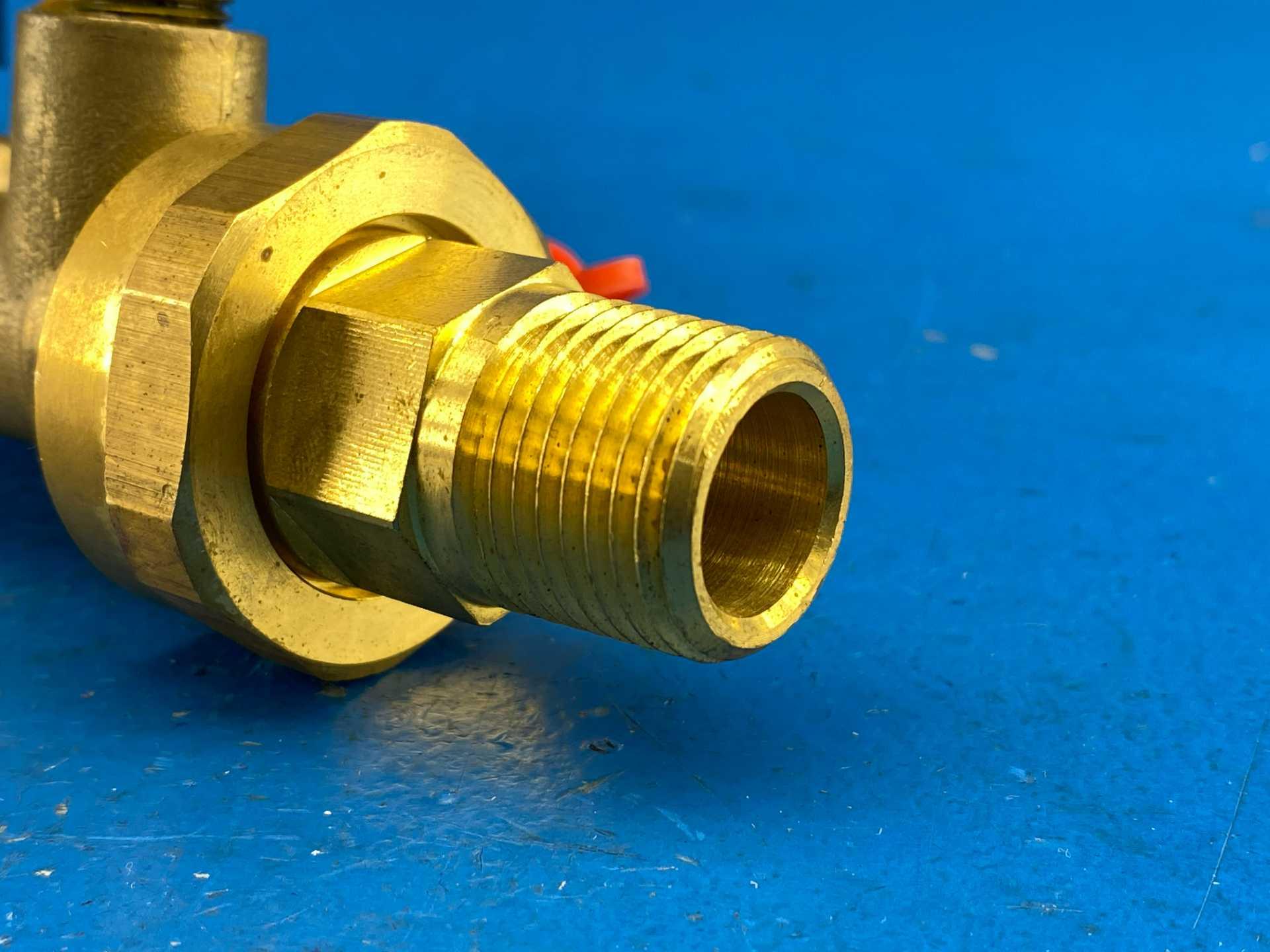

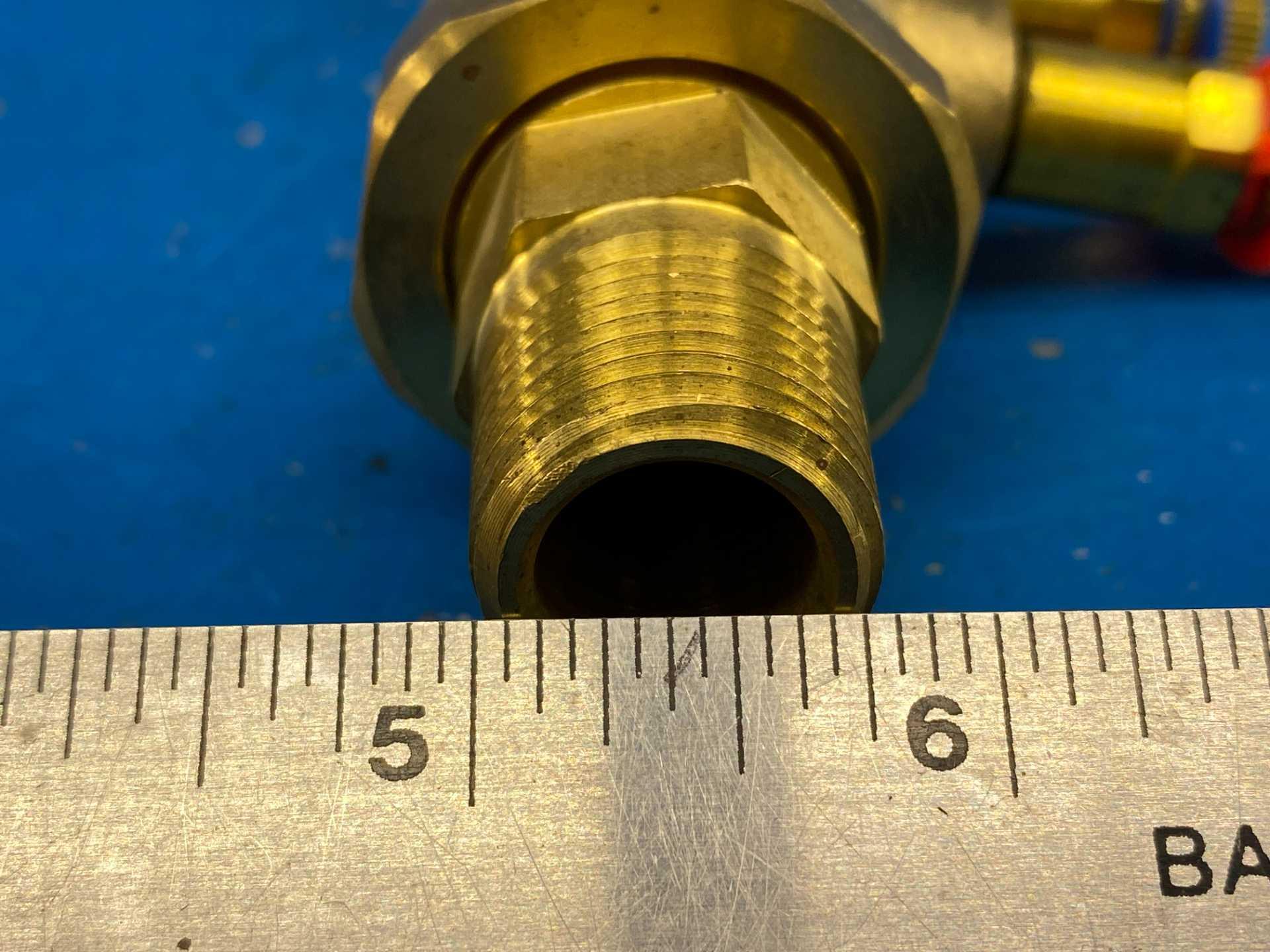

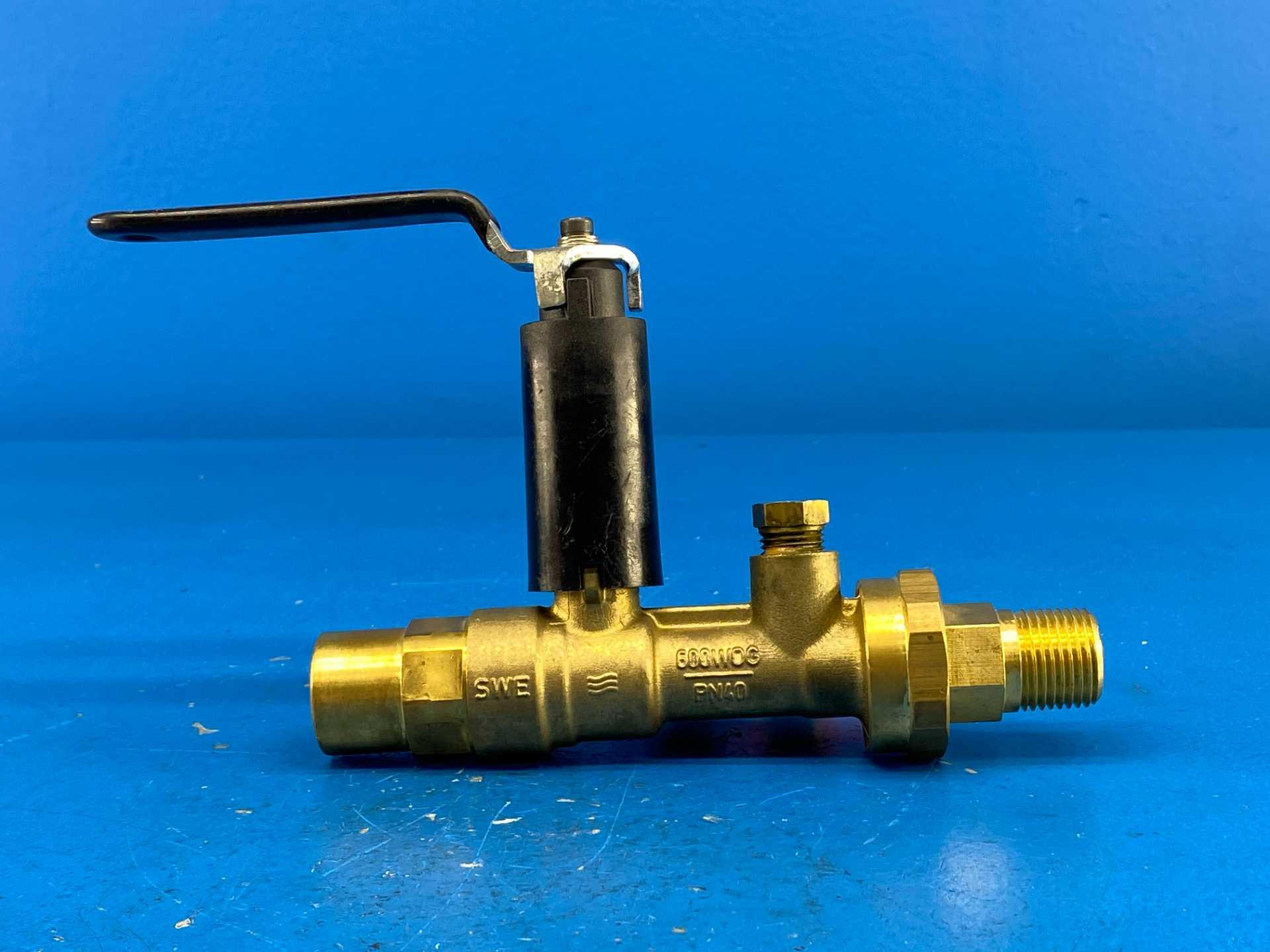

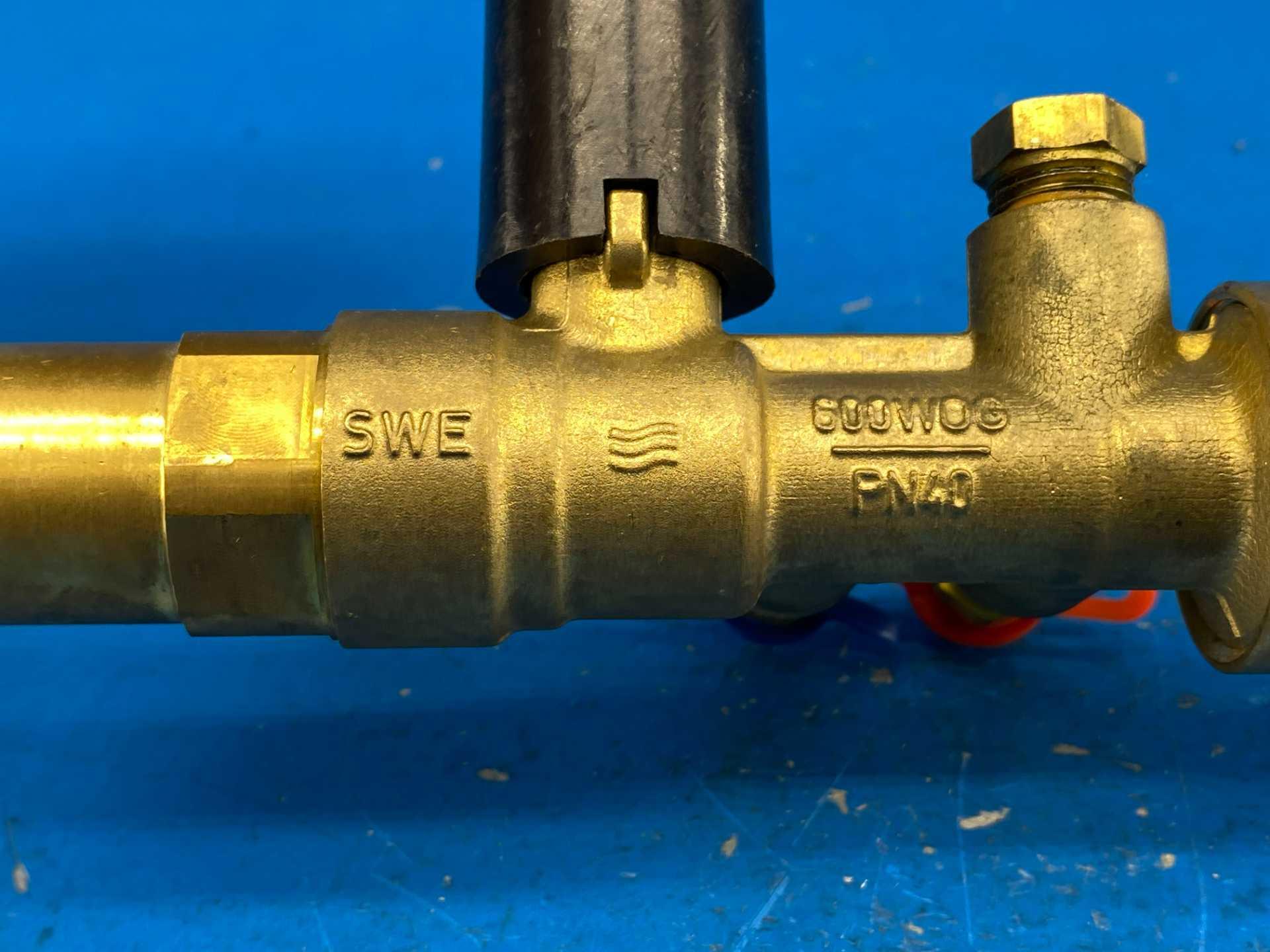

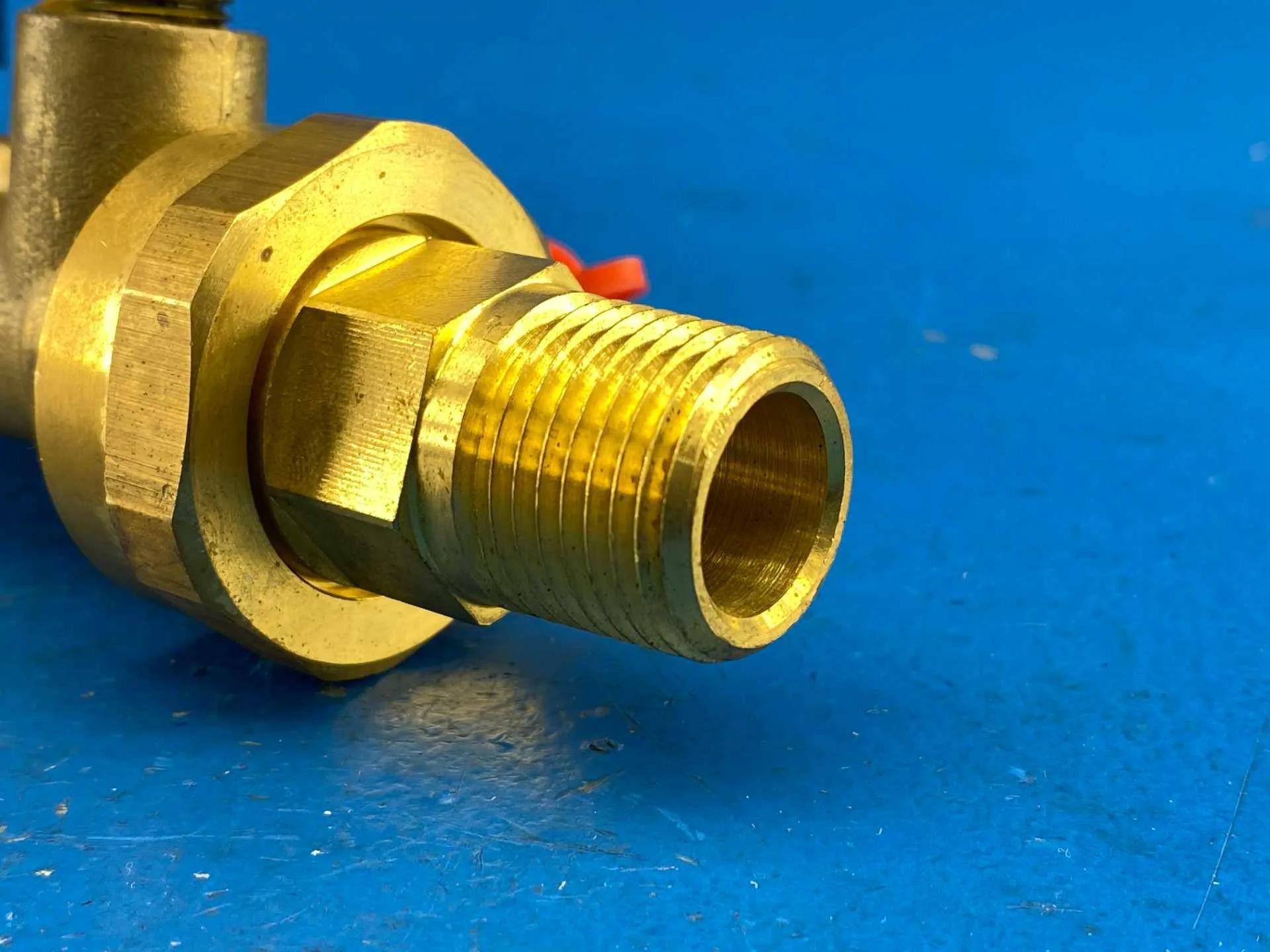

Connection Size: 3/4" S x 1/2" M Product Type: Manual Venturi Valve Maximum Working Pressure: 600 PSIG Rating: 600 WOG | PN40 Venturi Type: No. 4
