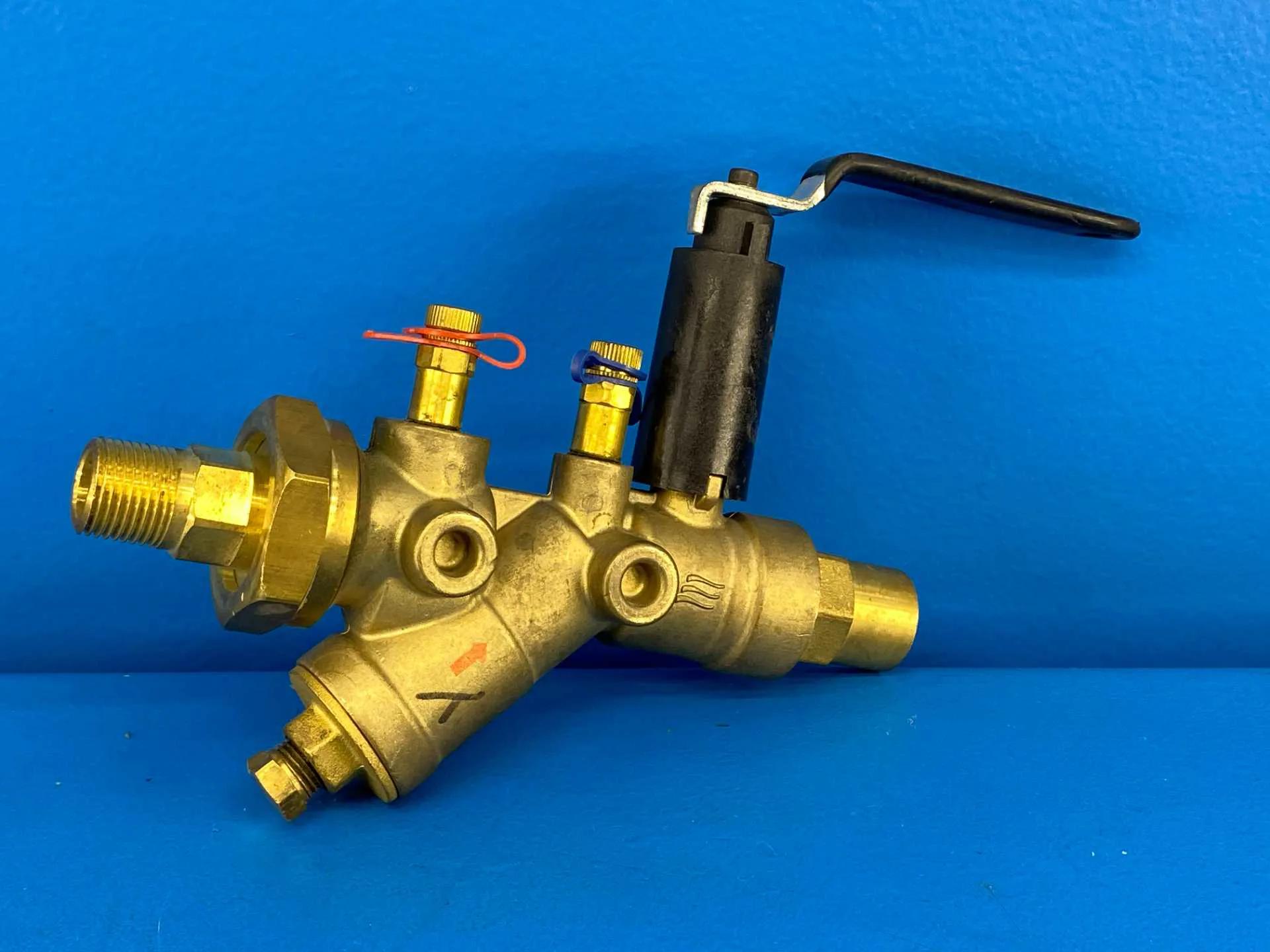

IMI Hydronics ACSBS075L Automatic Balancing Valve
Key Features of the IMI Hydronics ACSBS075L-050M-EH-0.50GPM
Technical Specifications and Performance Ratings
$85.00
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | ACSBS075L-050M-EH-0.50GPM |
| Condition | New |
| Manufacturer | IMI Hydronics |
| Asset Number | KSC1283 / 36 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$85.00
Item Description
`Key features > Flow Limiting No wasted pumping > Combination Valve Union, regulator and shut-off in one > Accuracy +/-5% > Tamper Resistant > Stainless Steel Ball and Stem Cv(Kv) - 8.8 (7.6) L= psid Range 2-32 EH= Extended Handle
Read More ▼
Factory Information

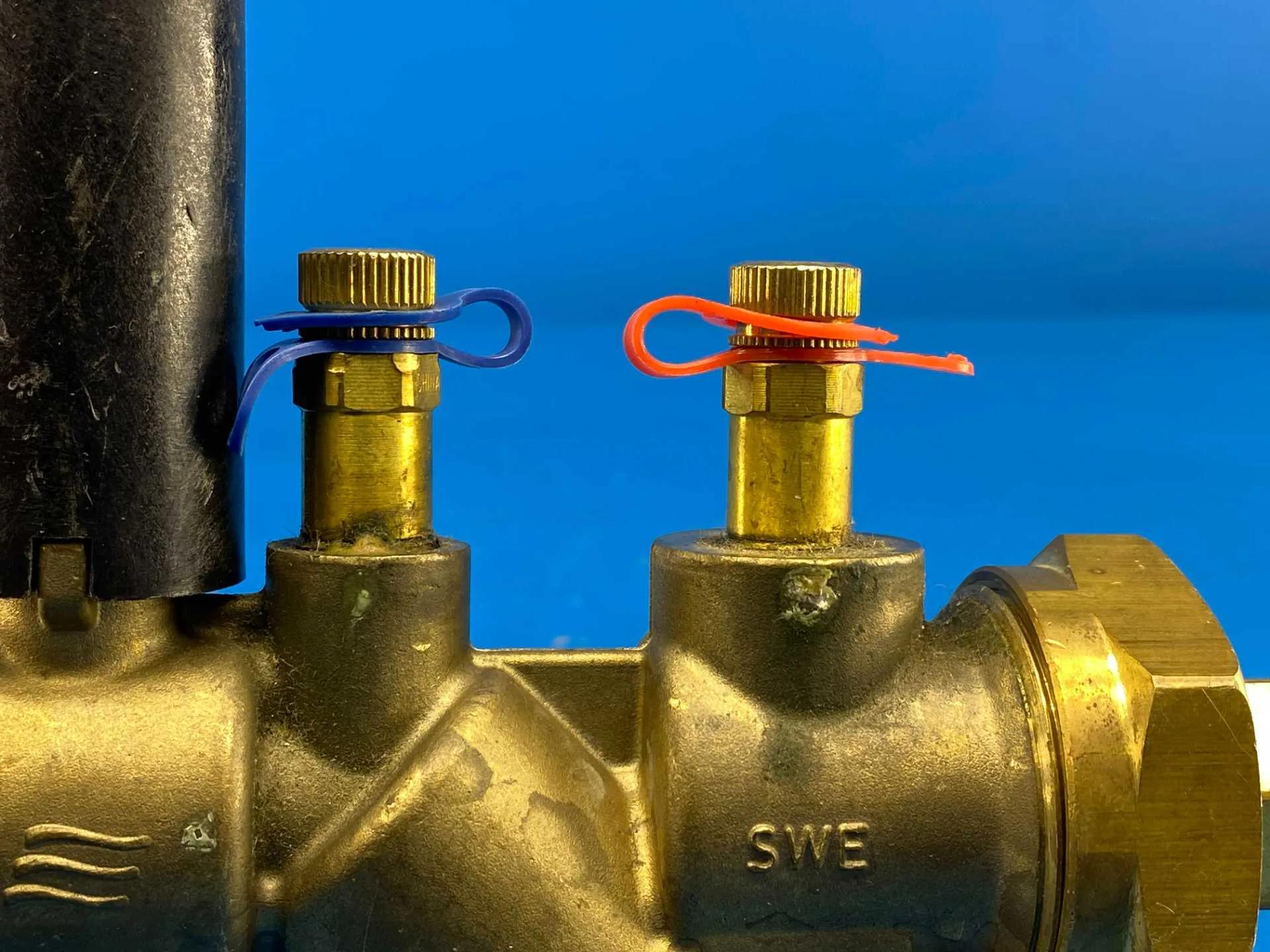

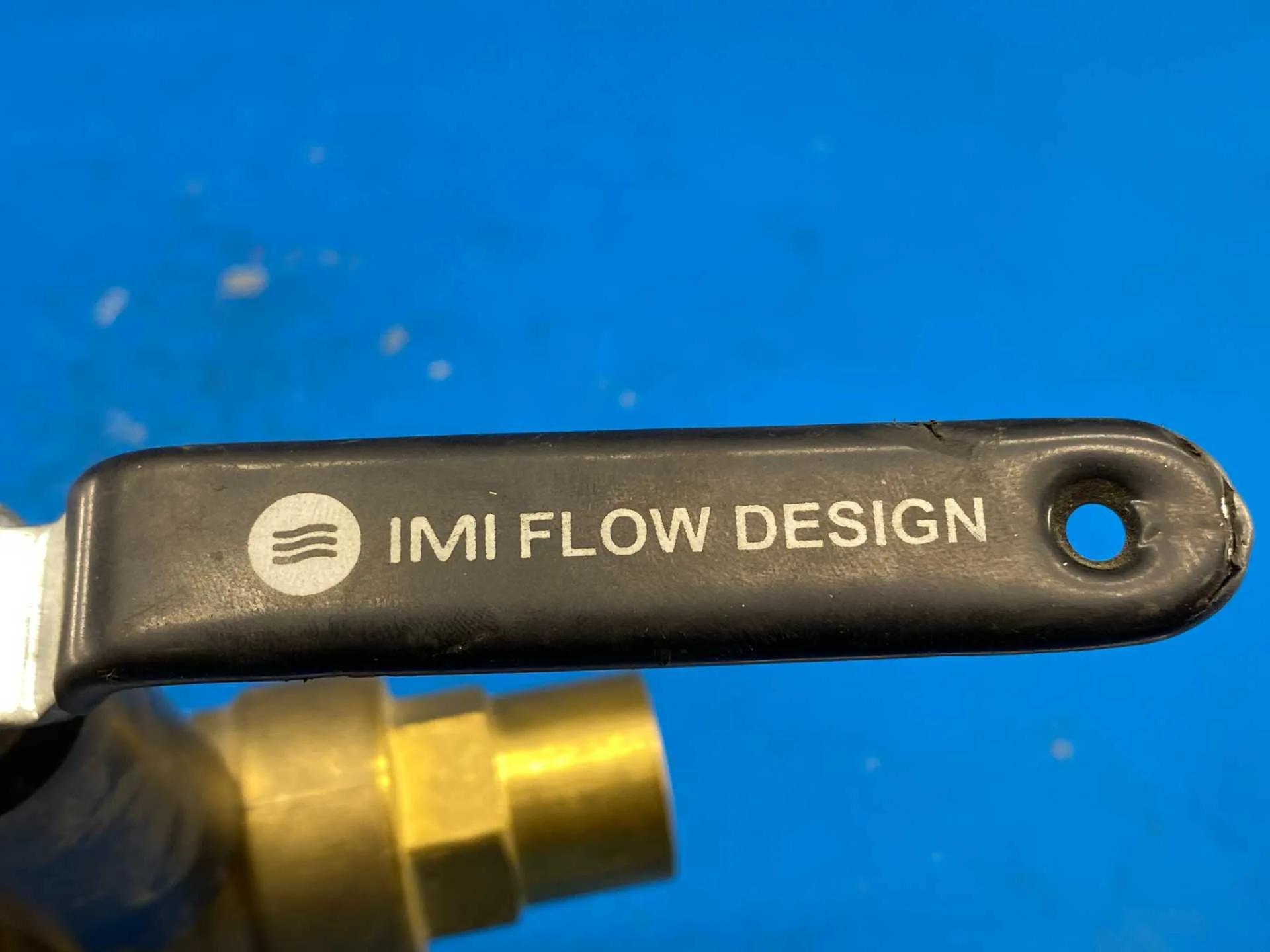

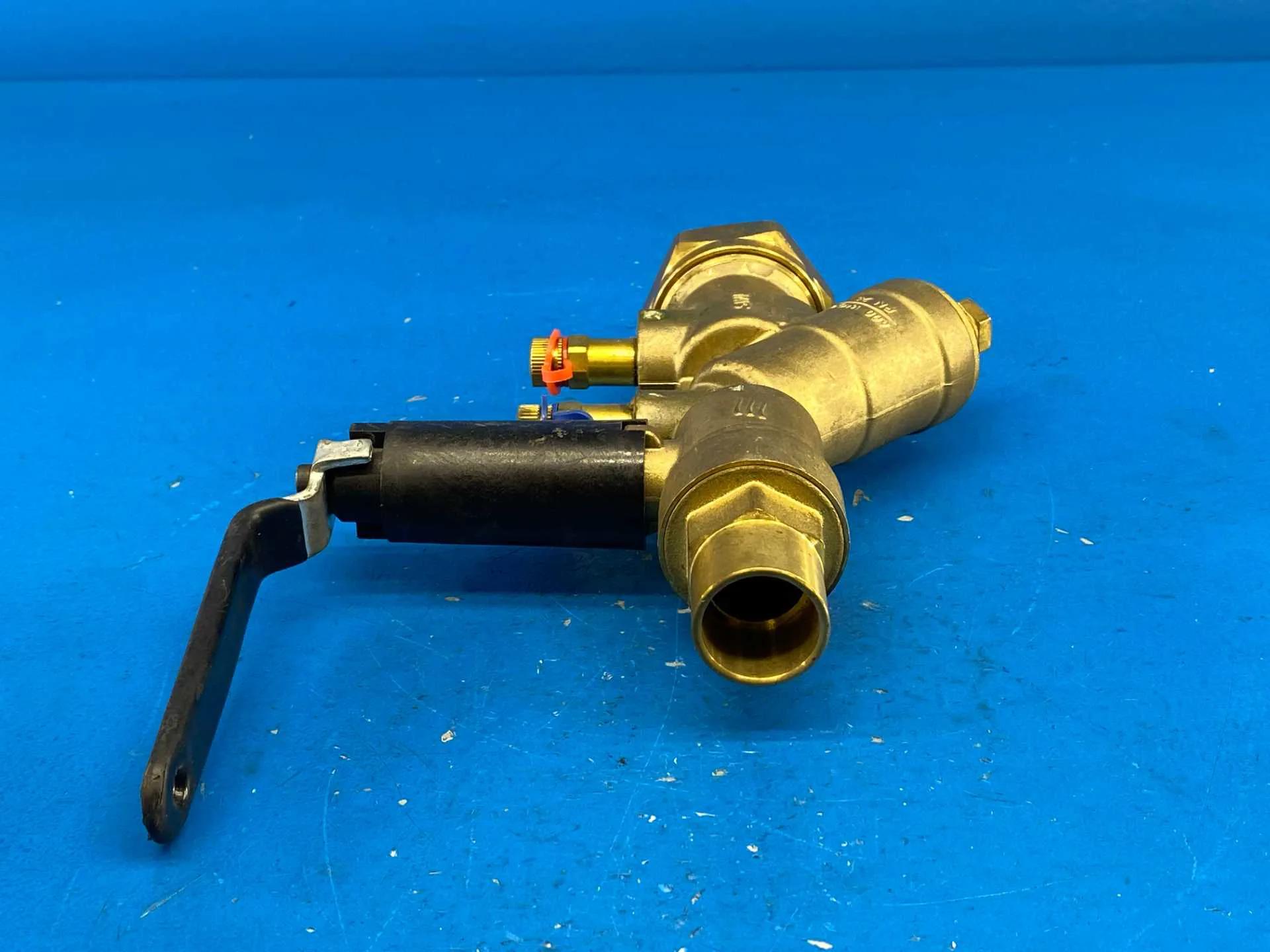

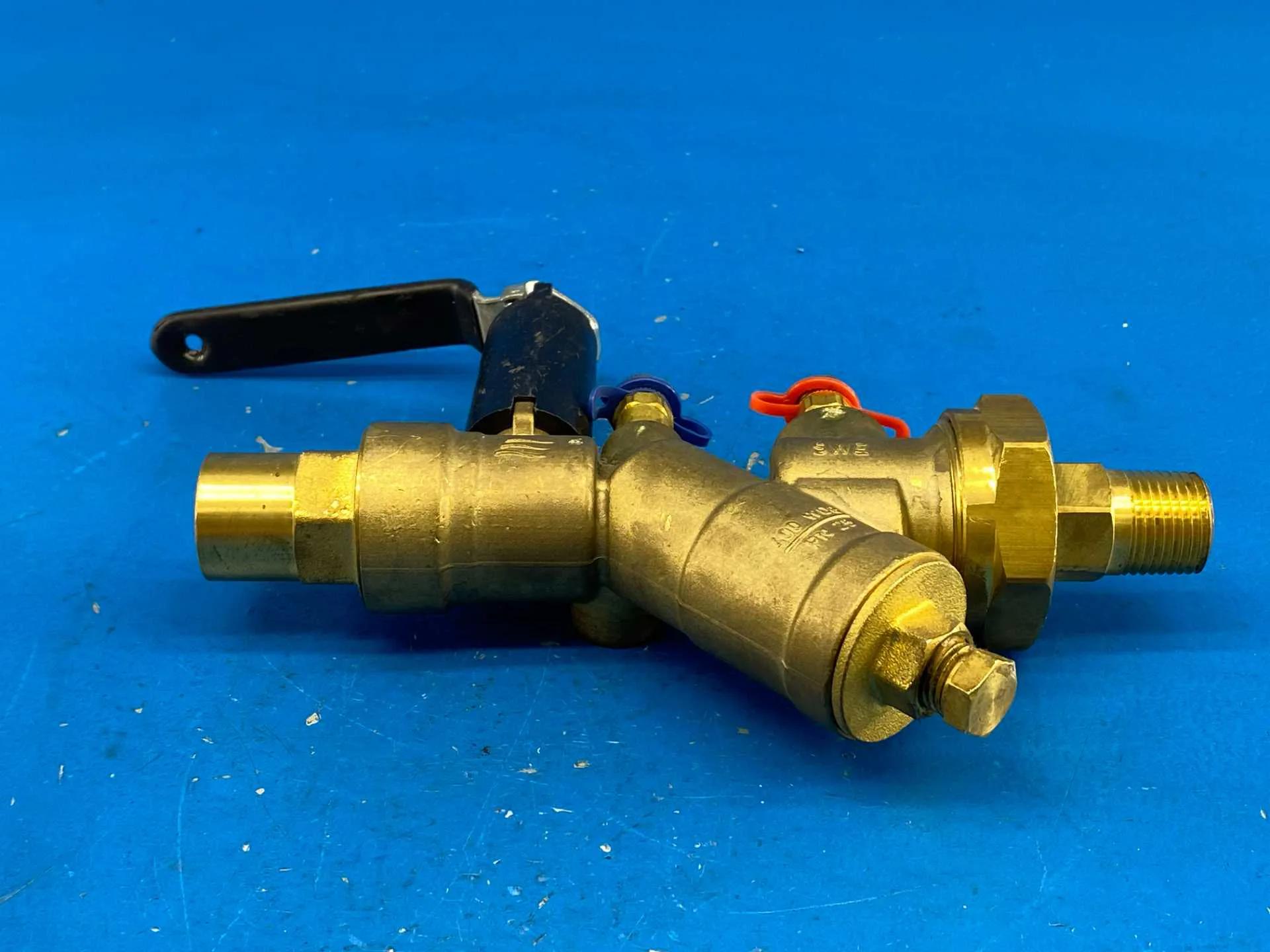

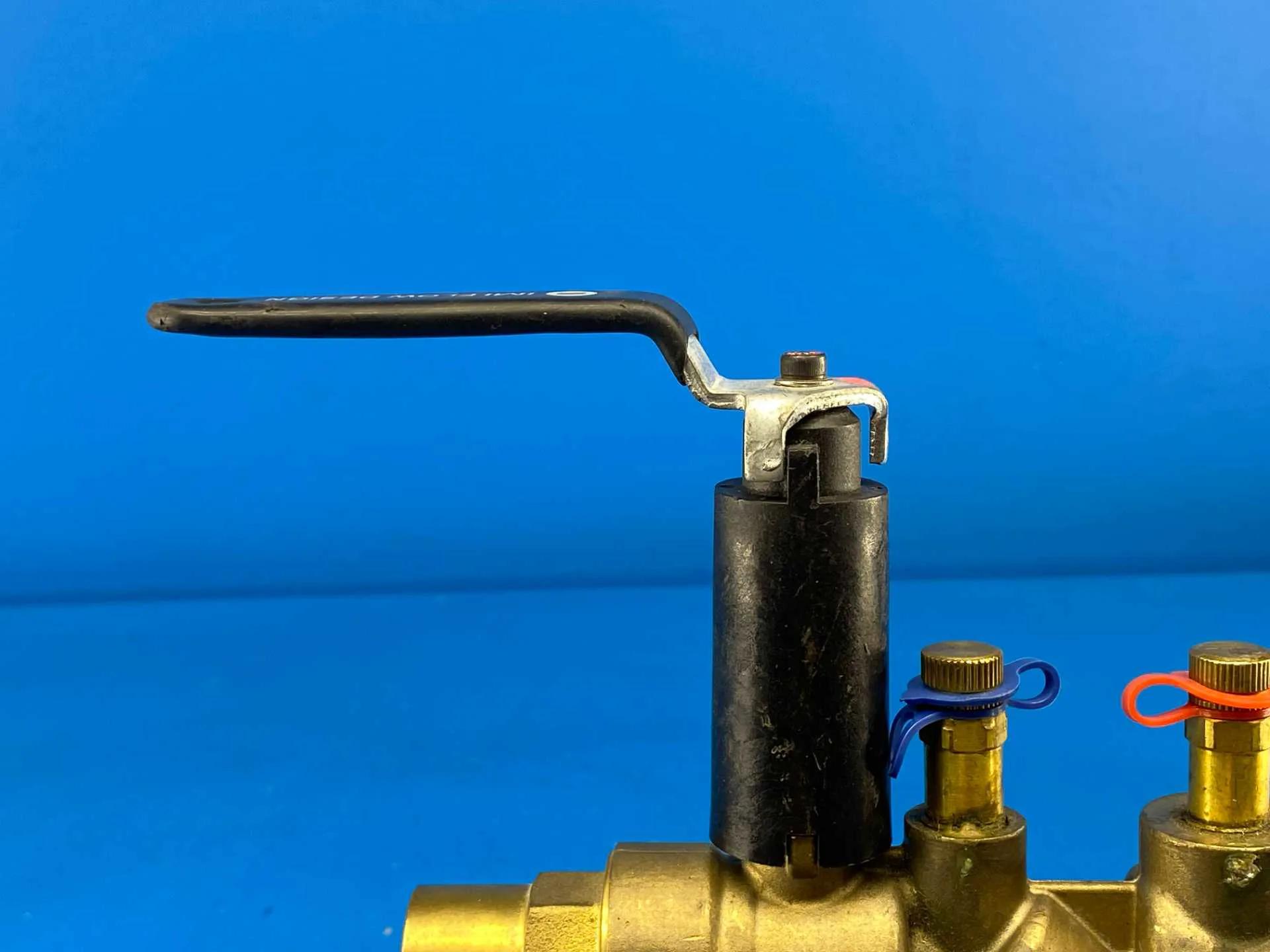

AutoFlow combination ball valve, AutoFlow regulator and union with up to five (5) accessory port locations. Unit is factory set to automatically limit the flow rate to within 5% of the specified amount. The flow cartridge is removable from the valve body to provide access for flow rate changes, inspection, and cleaning without breaking the main piping. The ball valve has PTFE packing, brass packing nut and blowout-proof stainless steel stem, large diameter stainless steel ball and a full size steel handle with vinyl grip. The union has an EPDM “O”-ring and tailpiece available in M, F and S connections. Ball valve end is available only in FPT or SWT. Pressure / Temperature ports are standard.
