IMI Hydronics YCRSBS-075S Y-Strainer Ball Valve
Features of the IMI Hydronics YCRSBS-075S Y-Strainer
Specifications and Benefits of the Y-Strainer Ball Valve
$63.73
| Description | Details |
|---|---|
| Available Quantity | 160 |
| Model | YCRSBS-075S-075S-PT1-PL3-HN2-EH |
| Condition | New |
| Manufacturer | IMI Hydronics |
| Asset Number | KSC1283 / 46 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$63.73
Item Description
Inspection Report
Basic Information
Item Description
Key features > Combination Valve Reduces field connections and total installed size > Removable Strainer Ease of inspection/cleaning > Multiple Ports Configure exactly what you need Application: Coil Isolation and Protection Functions: Union, strainer, ball valve Dimensions: 1/2” - 2” Pressure class: 400 psig at 250° F (25 Bar at 120° C) Material: Body: DZR Brass Strainer: 20 mesh stainless steel Cv (Kv) - 5.7 (4.9) PT1= Port 1 PL3 = Plug 3 HN2 = Hose End Drain Valve with Cap 2 EH = Extended Handle
Item Description
Inspection Report
Key features
> Combination Valve
Reduces field connections and total
installed size
> Removable Strainer
Ease of inspection/cleaning
> Multiple Ports
Configure exactly what you need
Application:
Coil Isolation and Protection
Functions:
Union, strainer, ball valve
Dimensions:
1/2” - 2”
Pressure class:

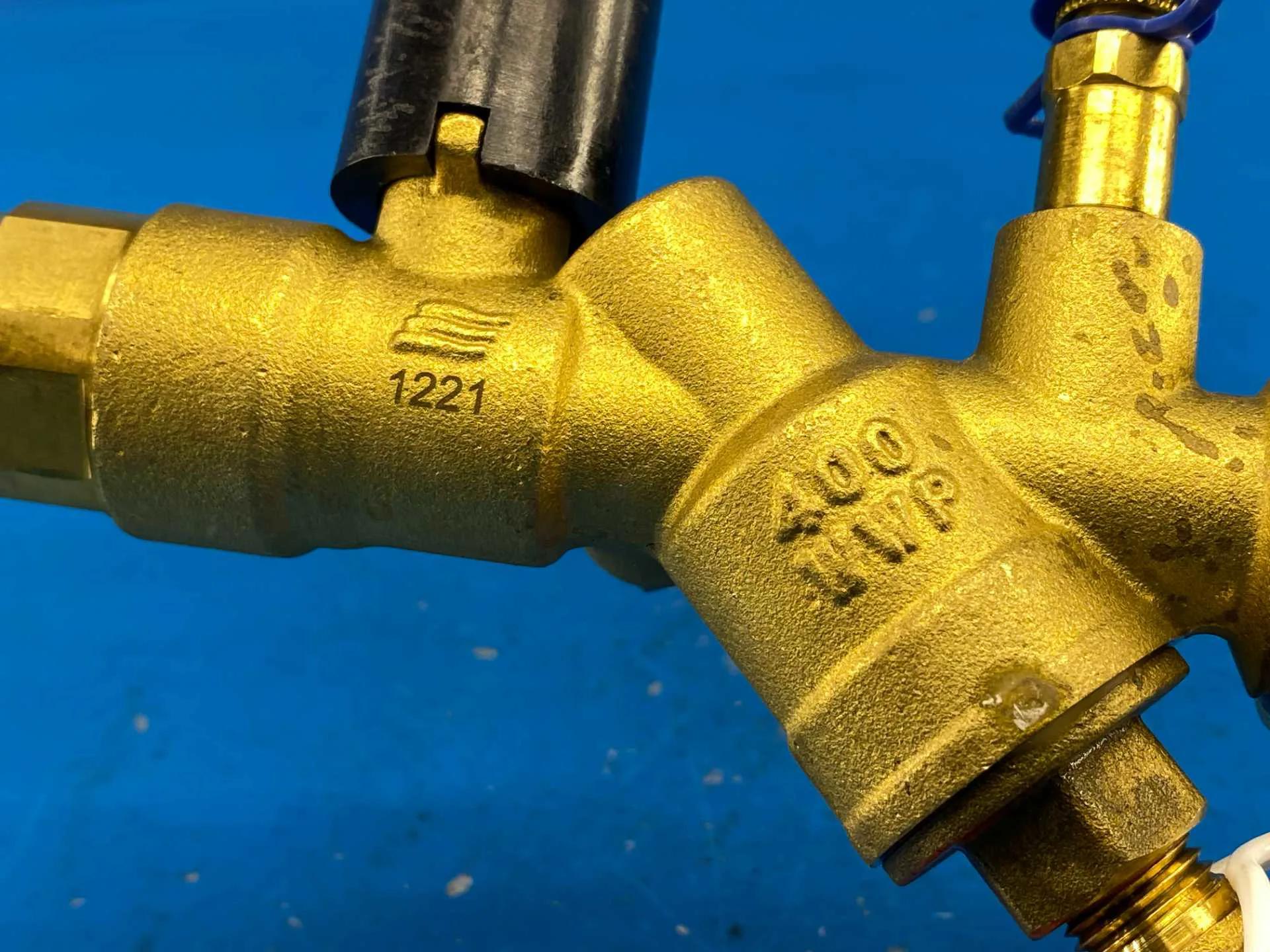

400 psig at 250° F (25 Bar at 120° C)
Material:
Body: DZR Brass
Strainer: 20 mesh stainless steel
Cv (Kv) - 5.7 (4.9)
PT1= Port 1
PL3 = Plug 3

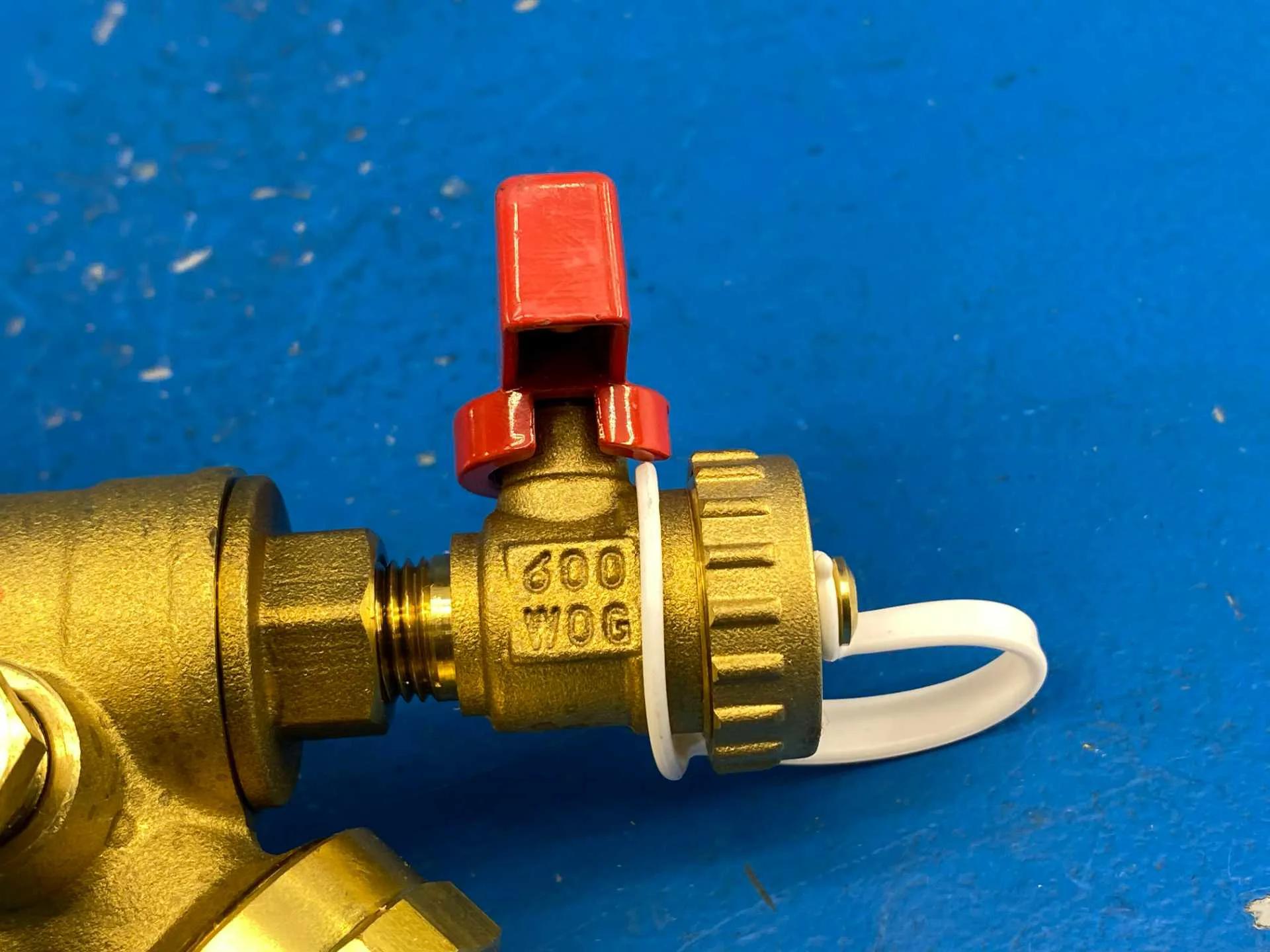

HN2 = Hose End Drain Valve with Cap 2

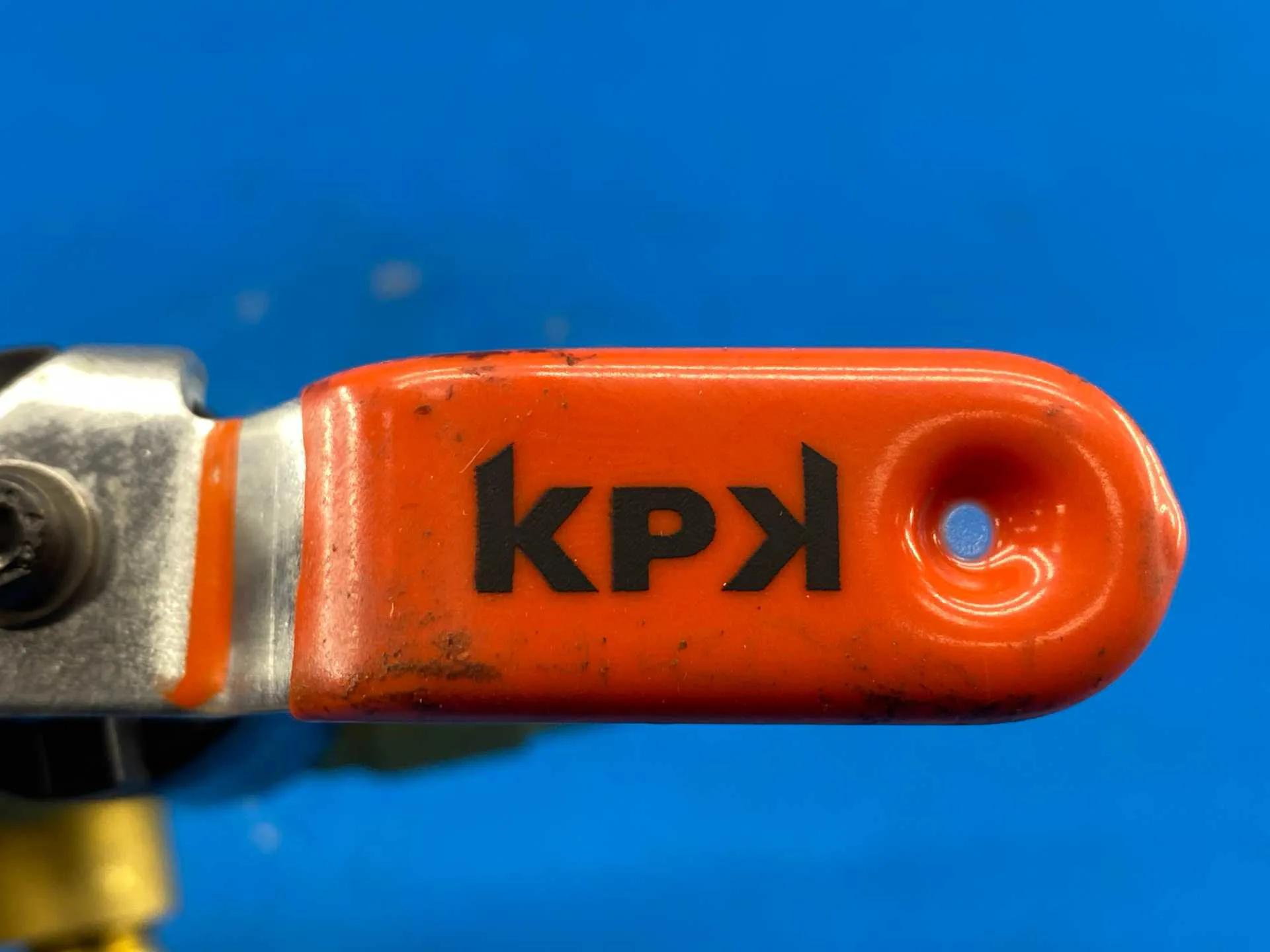

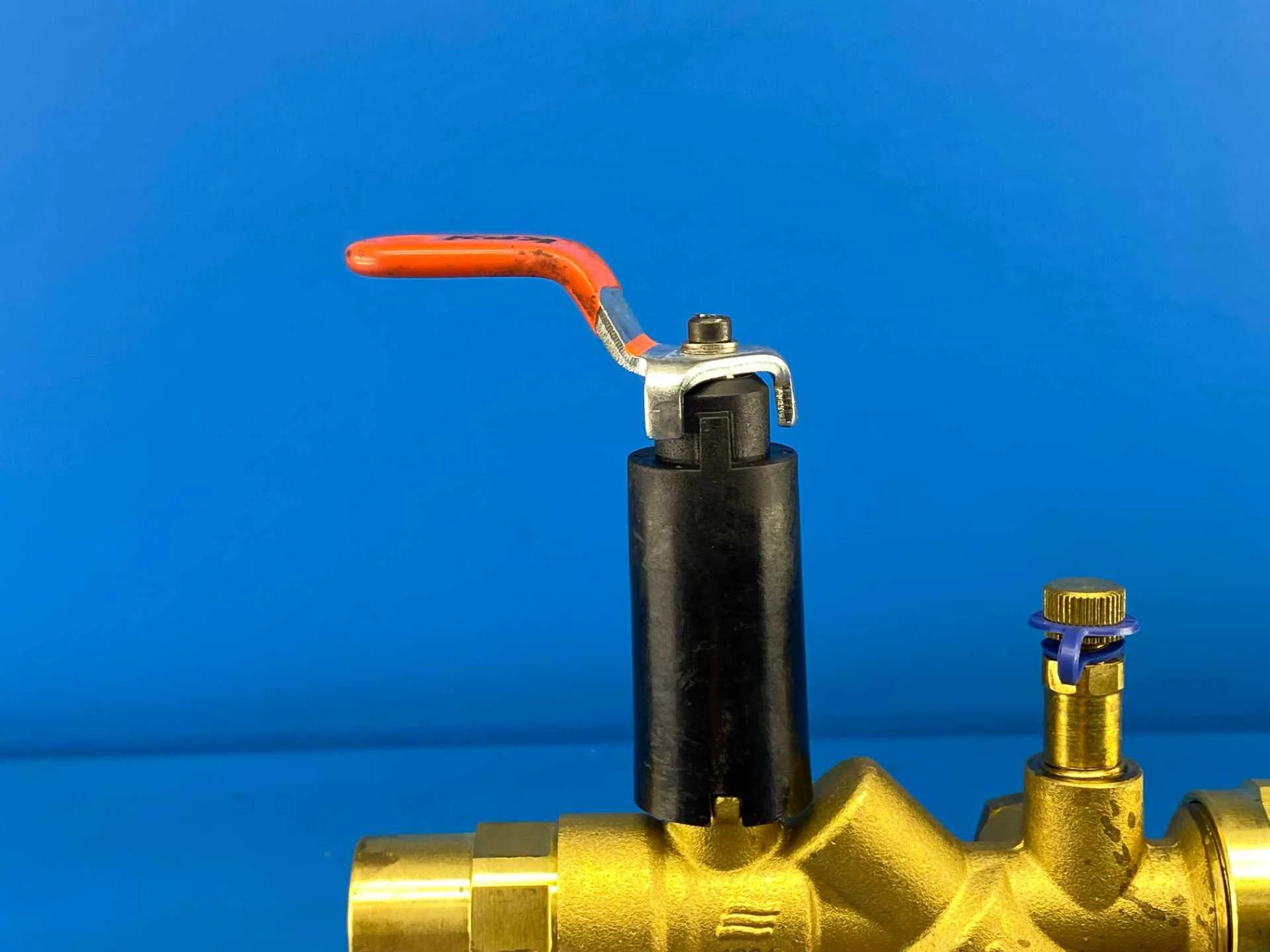

EH = Extended Handle
Read More ▼
Factory Information

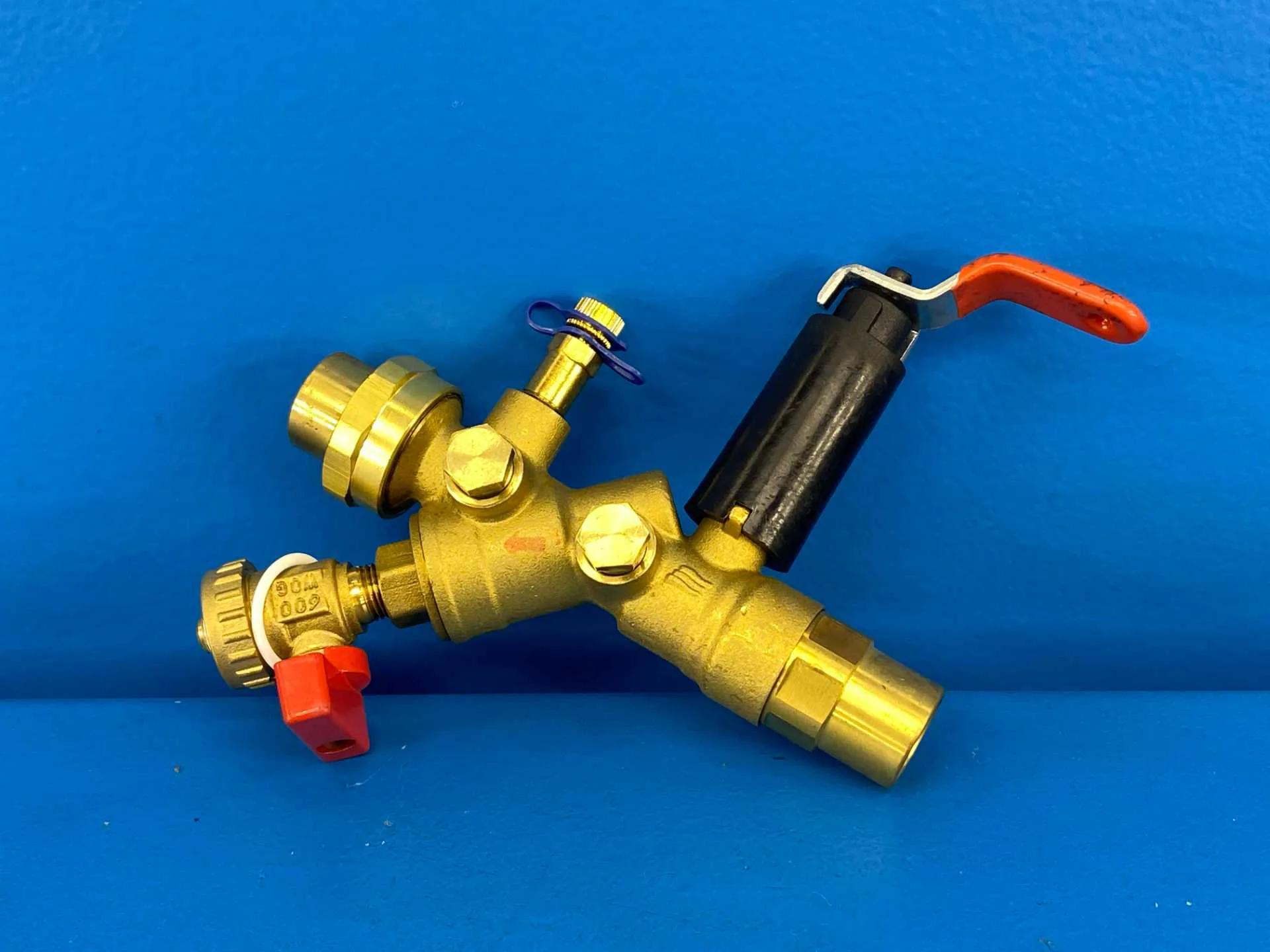

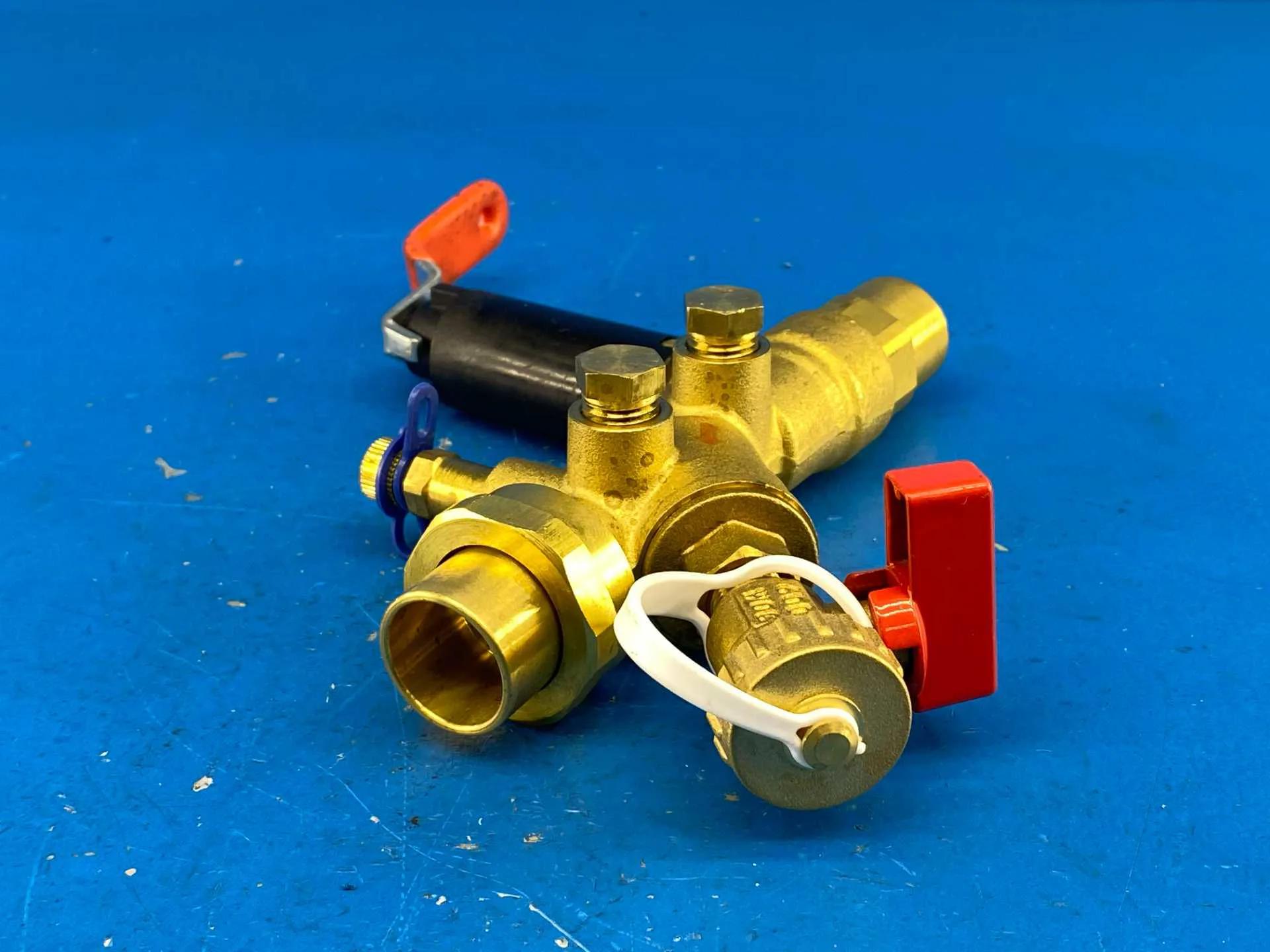

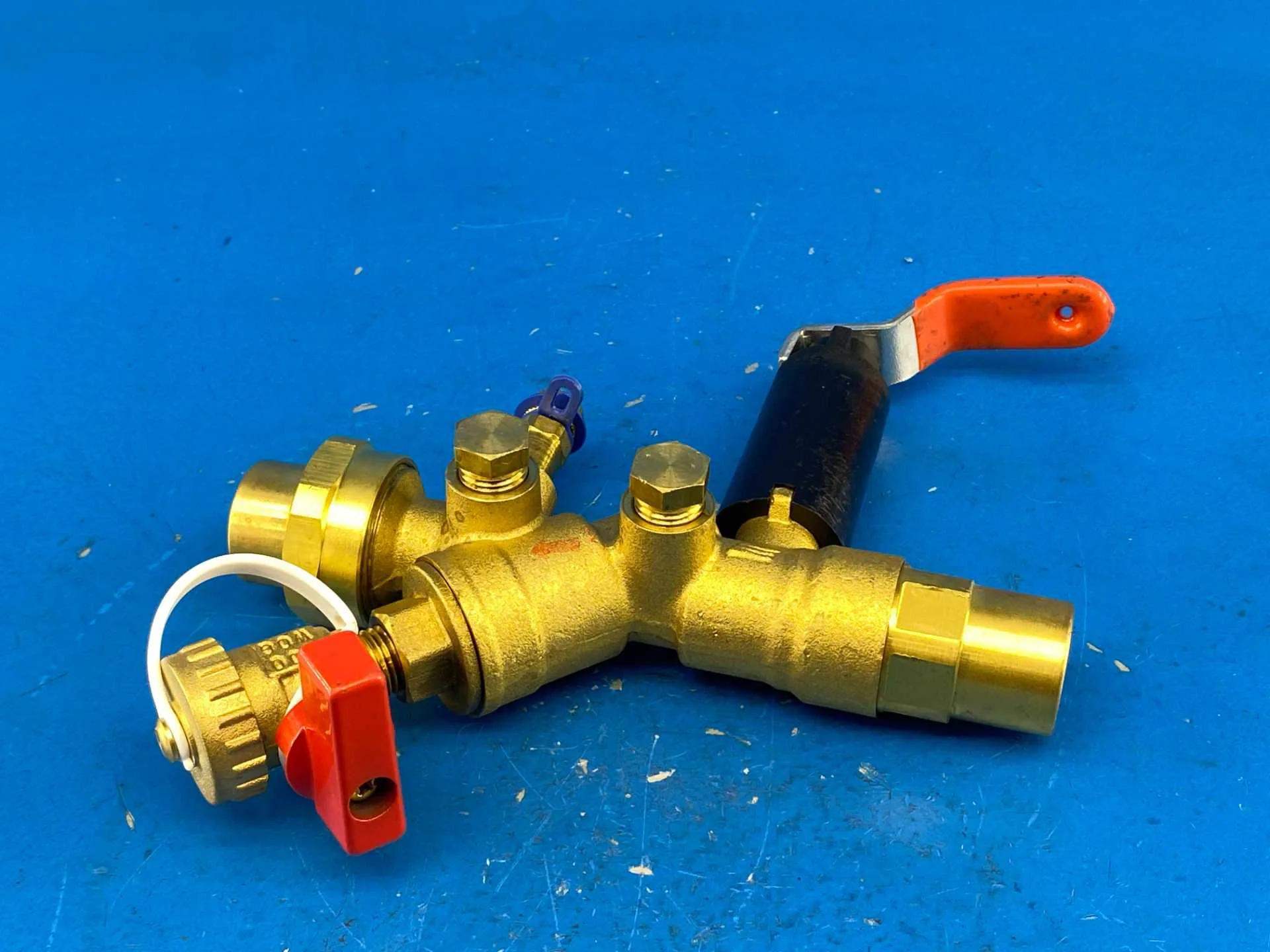

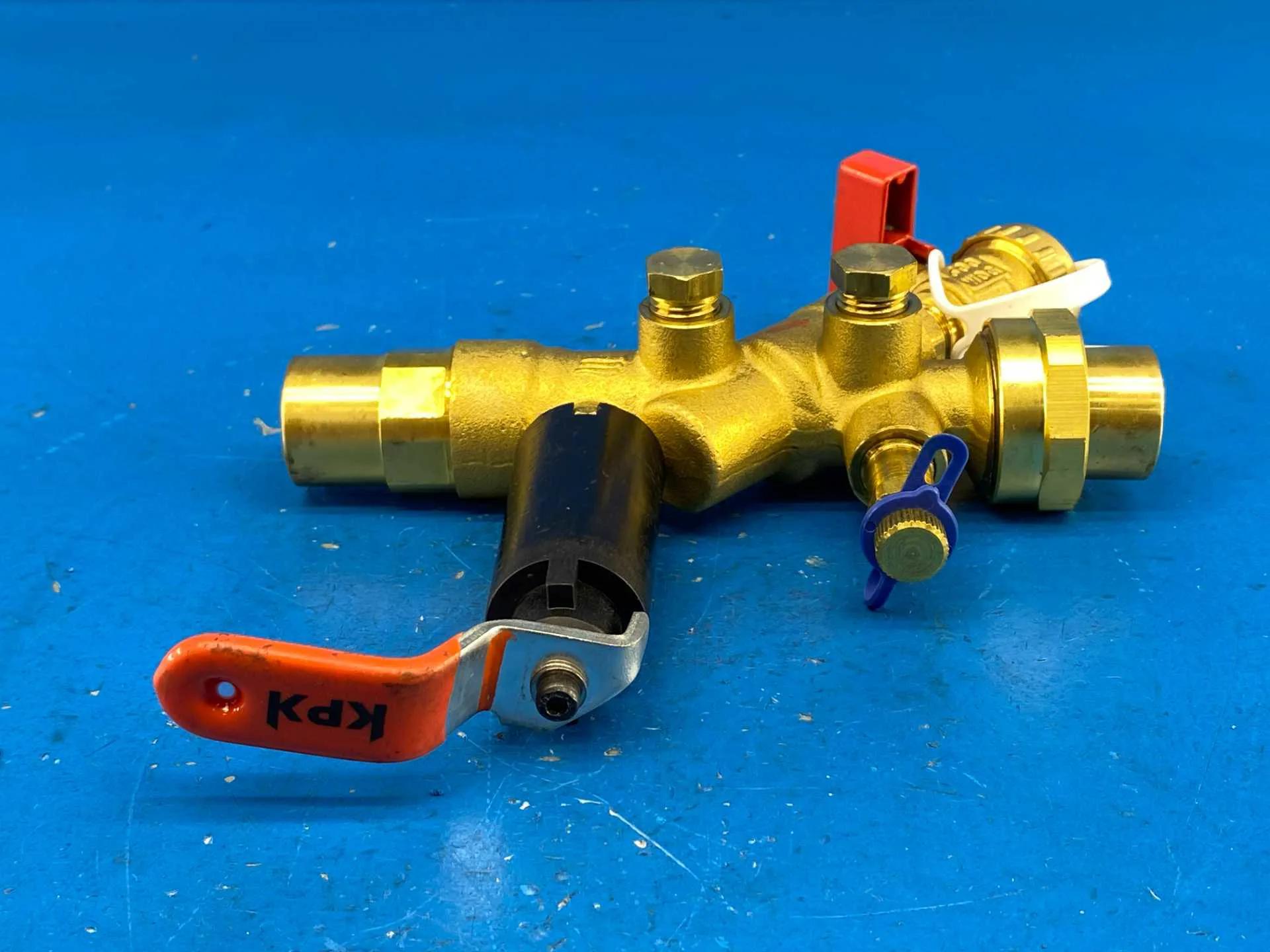

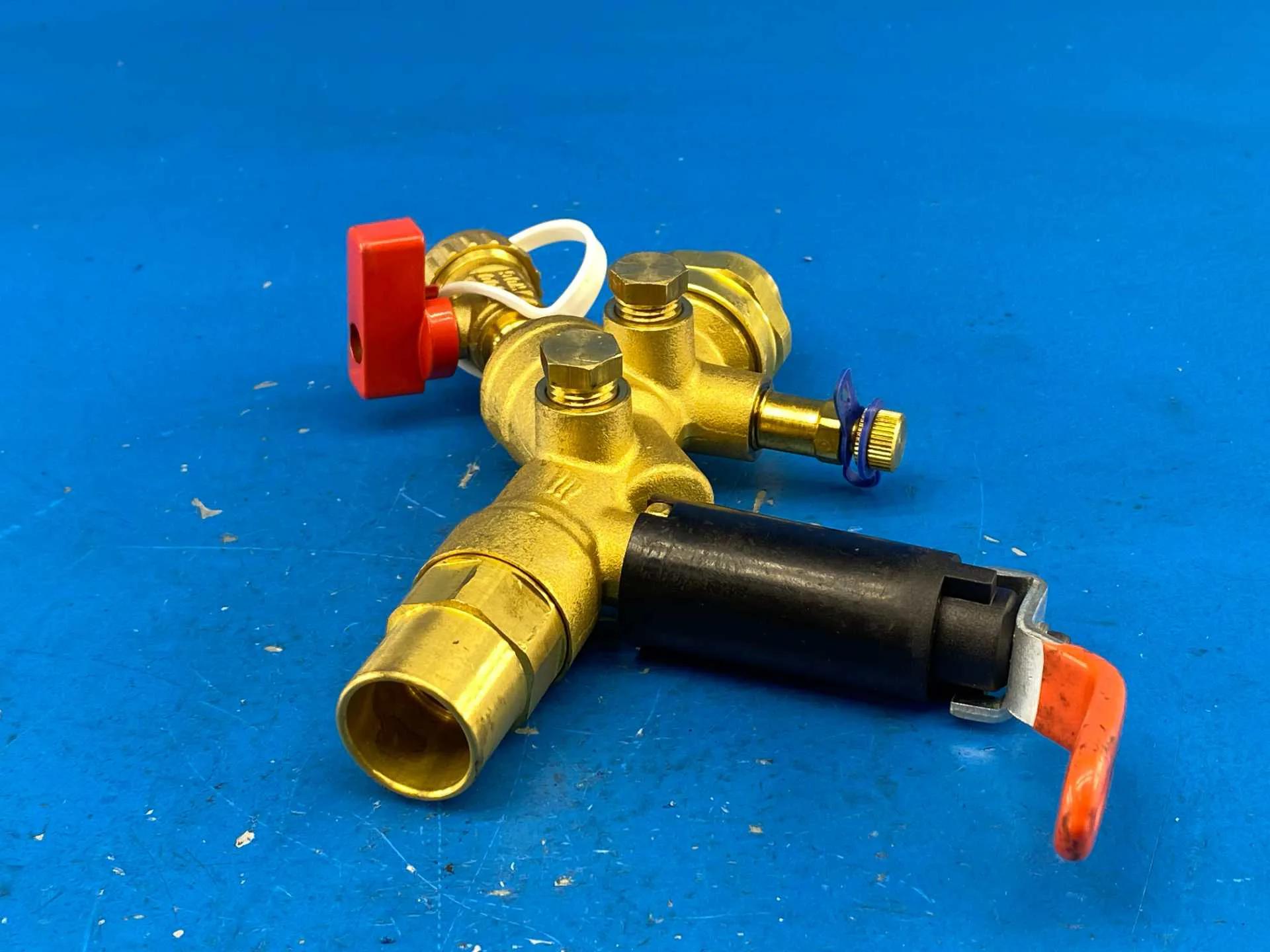

Compact, Y-shaped combination ball valve, strainer and union with four accessory port locations.
With Port 1(PT1), Plug 3 (PL3), and Hose end Drain Valve with Cap 2 (HN2) and Extended Handle (EH)
