Johnson Controls P100AP-356 Pressure Switch, 240VAC, 6A, 45 PISG Cut-In
P100AP-356 Pressure Switch Specifications: Range & Contacts
Process Fitment for Johnson Controls P100AP-356
1 / 5
+5
+5
1 / 5
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | P100AP-356 |
| Condition | New |
| Manufacturer | Johnson Controls |
| Asset Number | KSC1230 / 1173 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$19.95
Basic Information
Asset #
KSC1230 / 1173
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
N/A
Factory Information
- Manufacturer: Johnson Controls (PENN)

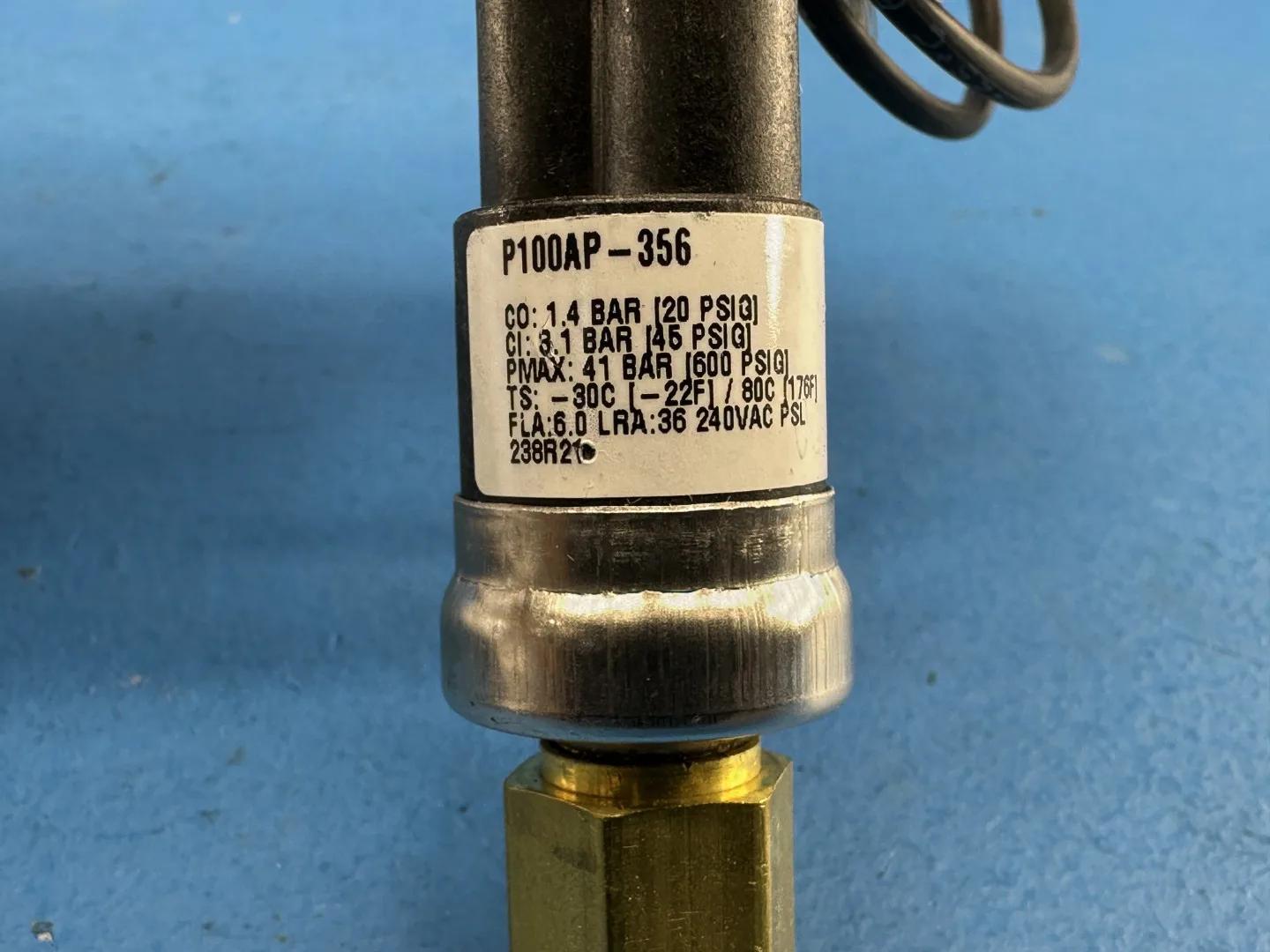

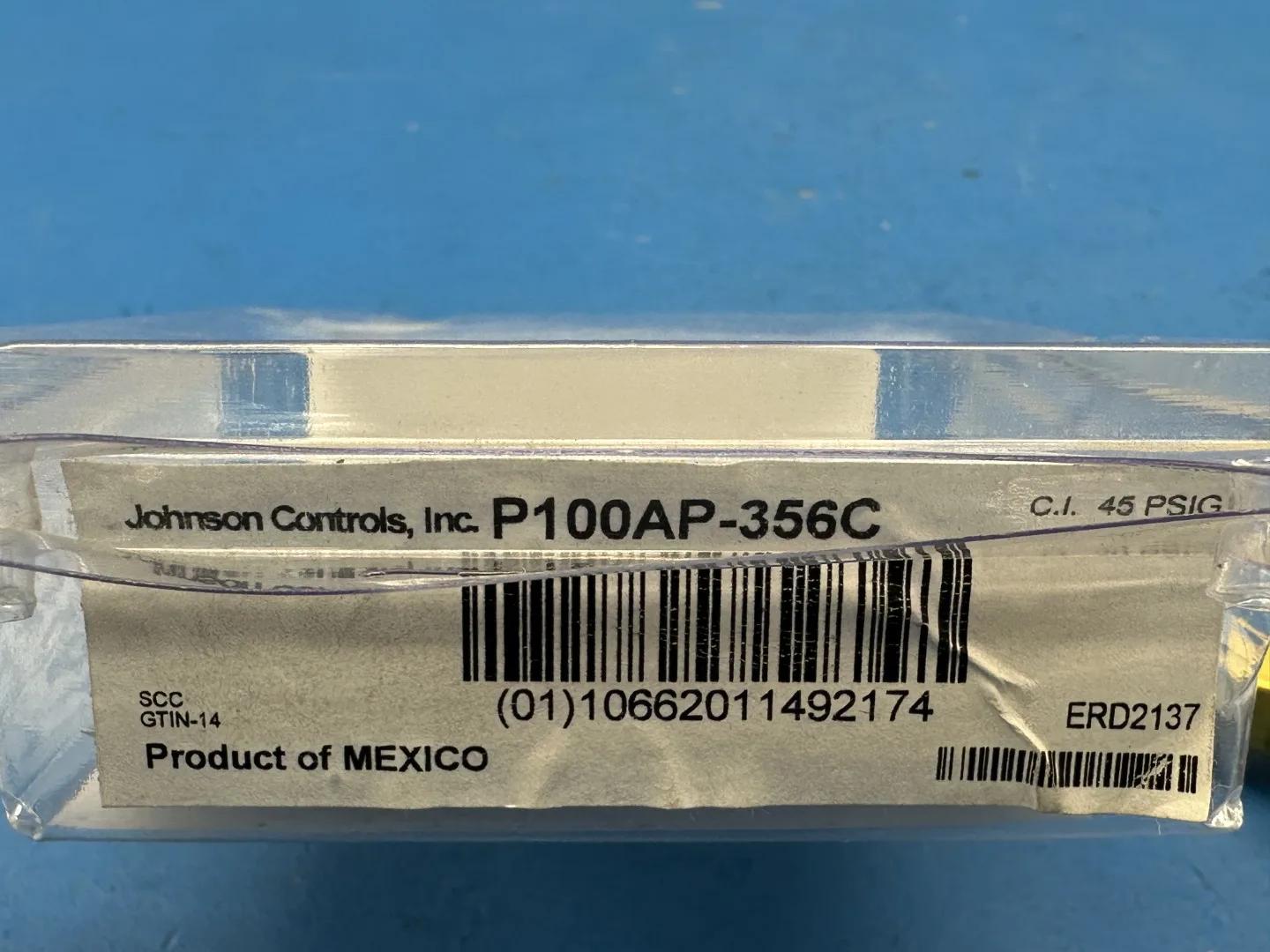

- Model: P100AP-356 (catalogued as P100AP-356C)
- Series: P100 Encapsulated Pressure Switches
- Type: Encapsulated, nonadjustable, direct-mount pressure switch
- Switch Configuration: SPST
- Switch Action: Open low (contacts open on falling pressure)
- Cut-Out (Opens): 20 psig (138 kPa)
- Cut-In (Closes): 45 psig (310 kPa)
- Reset: Automatic
- Connection: 1/4 in internal flare fitting with built-in Schrader type depressor
- Electrical Leads: 48 in (122 cm)
- Motor Rating, AC Full Load: 6.0 A at 120 V, 6.0 A at 240 V
- Motor Rating, AC Locked Rotor: 36.0 A at 120 V, 36.0 A at 240 V
- Pilot Duty: 375 VA
- Enclosure: Dust-tight encapsulated switch
- Media: For use with all non-corrosive refrigerants
- Cross Reference (per manufacturer chart): Robertshaw 3100-003, Saginomiya ACB-2UA40W, Supco SLP2045
- Spec Basis: Johnson Controls P100 Series Encapsulated Pressure Switches Catalog Page, LIT-1927275, selection chart and electrical ratings tables
Specifications
Manufacturer
Johnson Controls
Model
P100AP-356
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
6.0
Length (Inches)
6
Width (Inches)
5
Height (Inches)
2
Phase
1
Estimated Packaging Weight
0.2
Estimated Total Weight
1.2
Asset Number
KSC1230 / 1173
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
