Johnson Controls VG1241FS+948GGA 2" 2-Way Brass Ball Valve 46.8 Cv with VA9208-GGA-2 24VAC Actuator

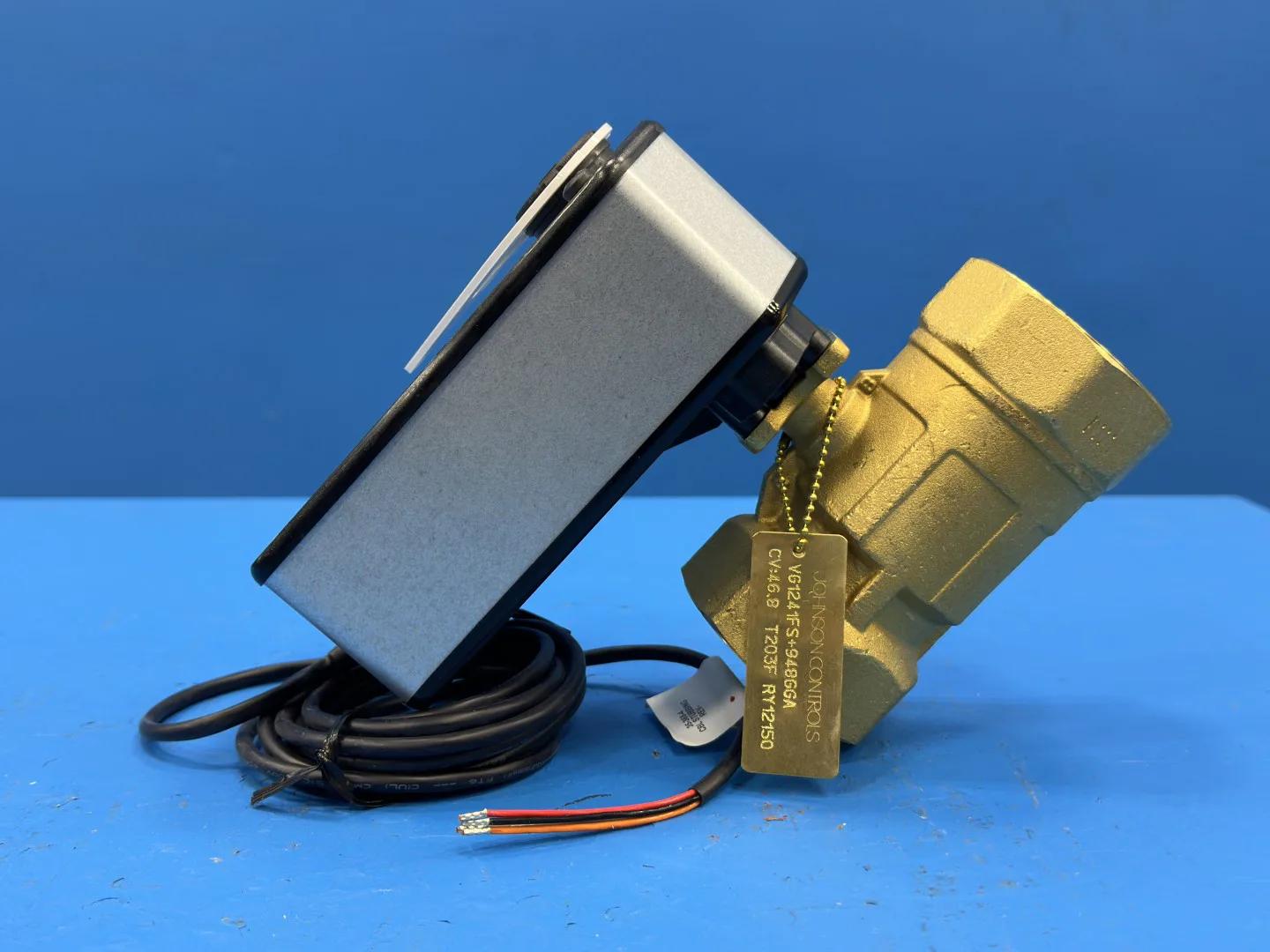

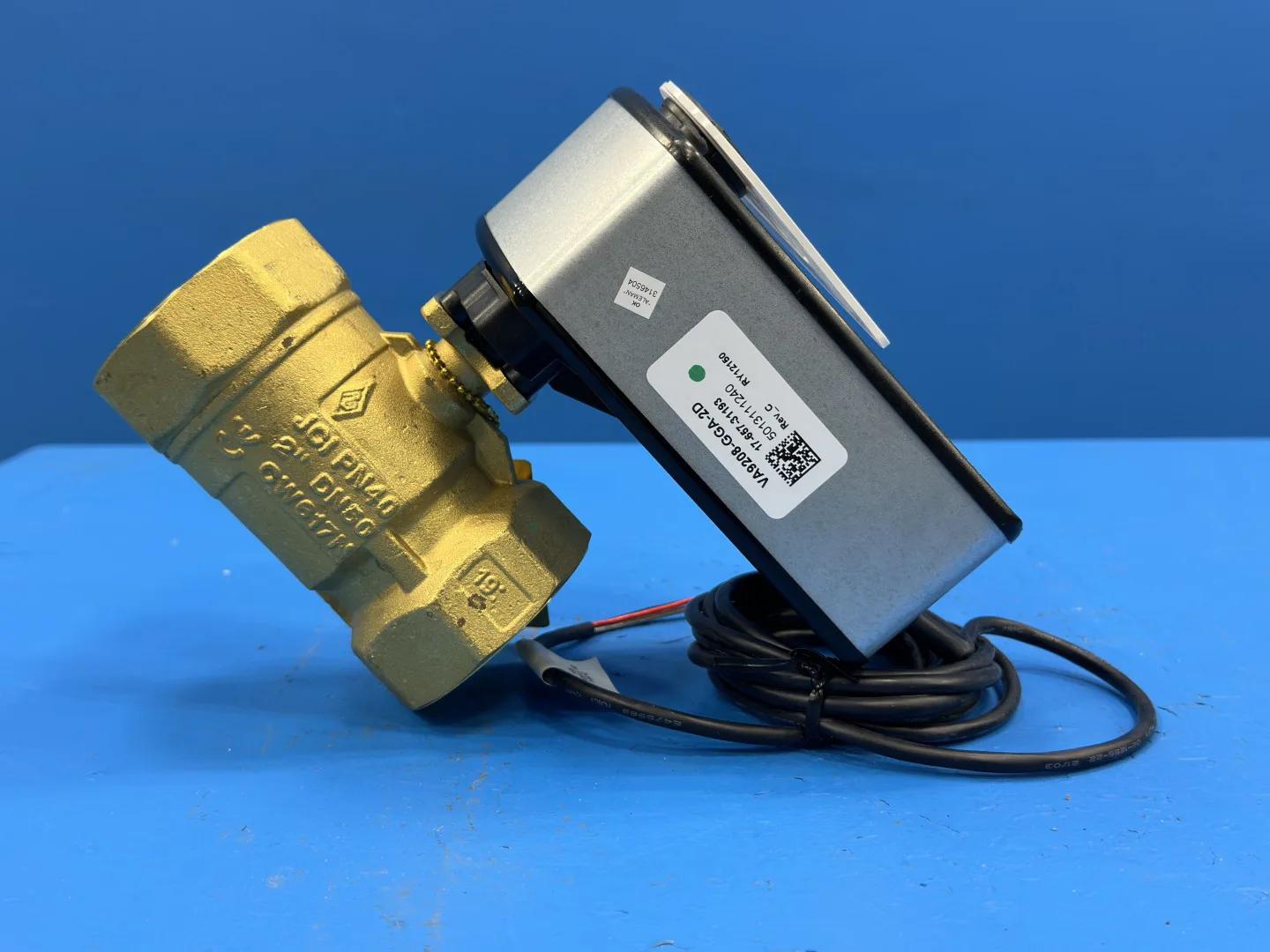

This is a Johnson Controls VG1241FS+948GGA control valve assembly: a 2 inch VG1000 series two-way ball valve with NPT ends and a 46.8 Cv equal percentage flow characteristic, factory mounted to a VA9208-GGA-2 proportional spring return electric actuator. In the catalog number, VG1241FS identifies the 2 inch, 46.8 Cv brass trim valve and the +948GGA suffix identifies the normally closed spring return proportional actuator package.

The forged brass valve body carries a 580 psig static rating and closes off against 200 psid, for water service from 23 to 203 deg F. The VA9208-GGA-2 runs on 24 VAC (7.9 VA running) or 24 VDC (3.5 W running), accepts a 0 to 10 VDC signal, or 2 to 10 VDC or 4 to 20 mA with a 500 ohm resistor, and returns a 0 to 10 VDC position feedback. It develops 70 lb-in of torque, strokes 90 degrees in 150 seconds, and springs closed in about 22 seconds on power loss. The -2 model has a plenum rated cable.

HVAC contractors and building automation technicians use this assembly to modulate hot or chilled water to air handler coils, fan coils and heat exchangers under control of a building management system.

Available from King Surplus inventory in Del Rio, Texas.

• Product: 2-way electric ball valve assembly, spring return, normally closed

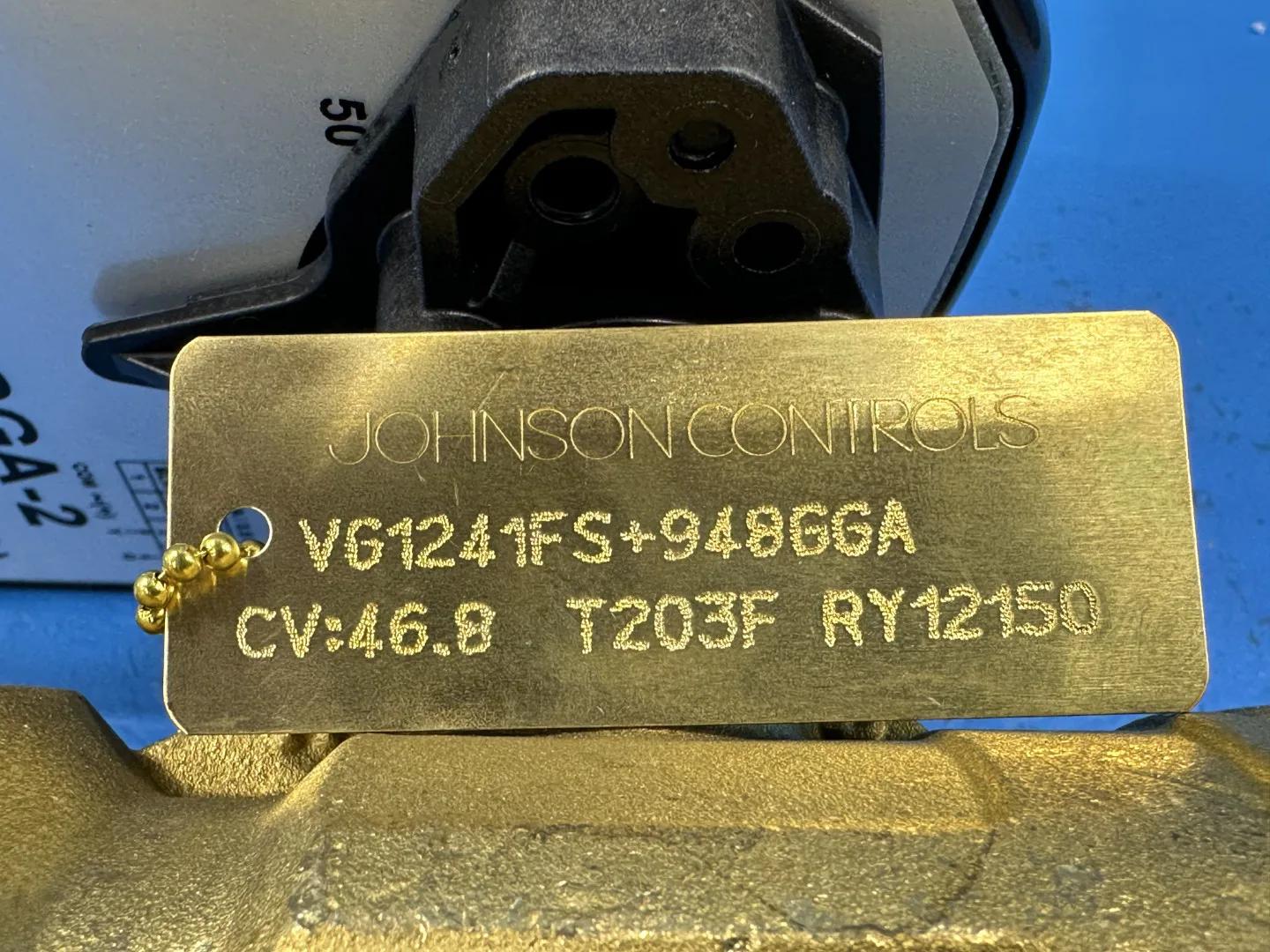

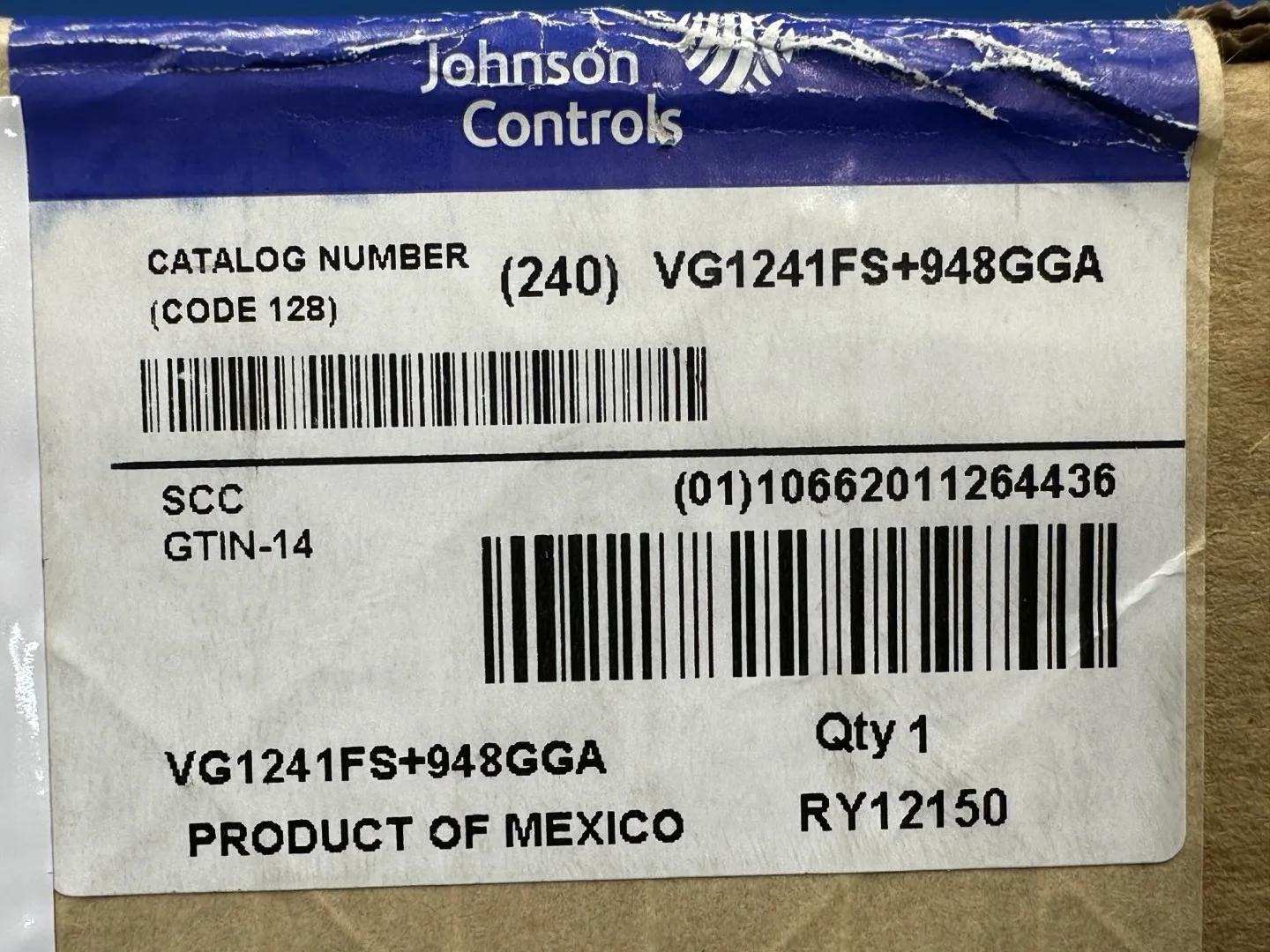

• Catalog Number: VG1241FS+948GGA

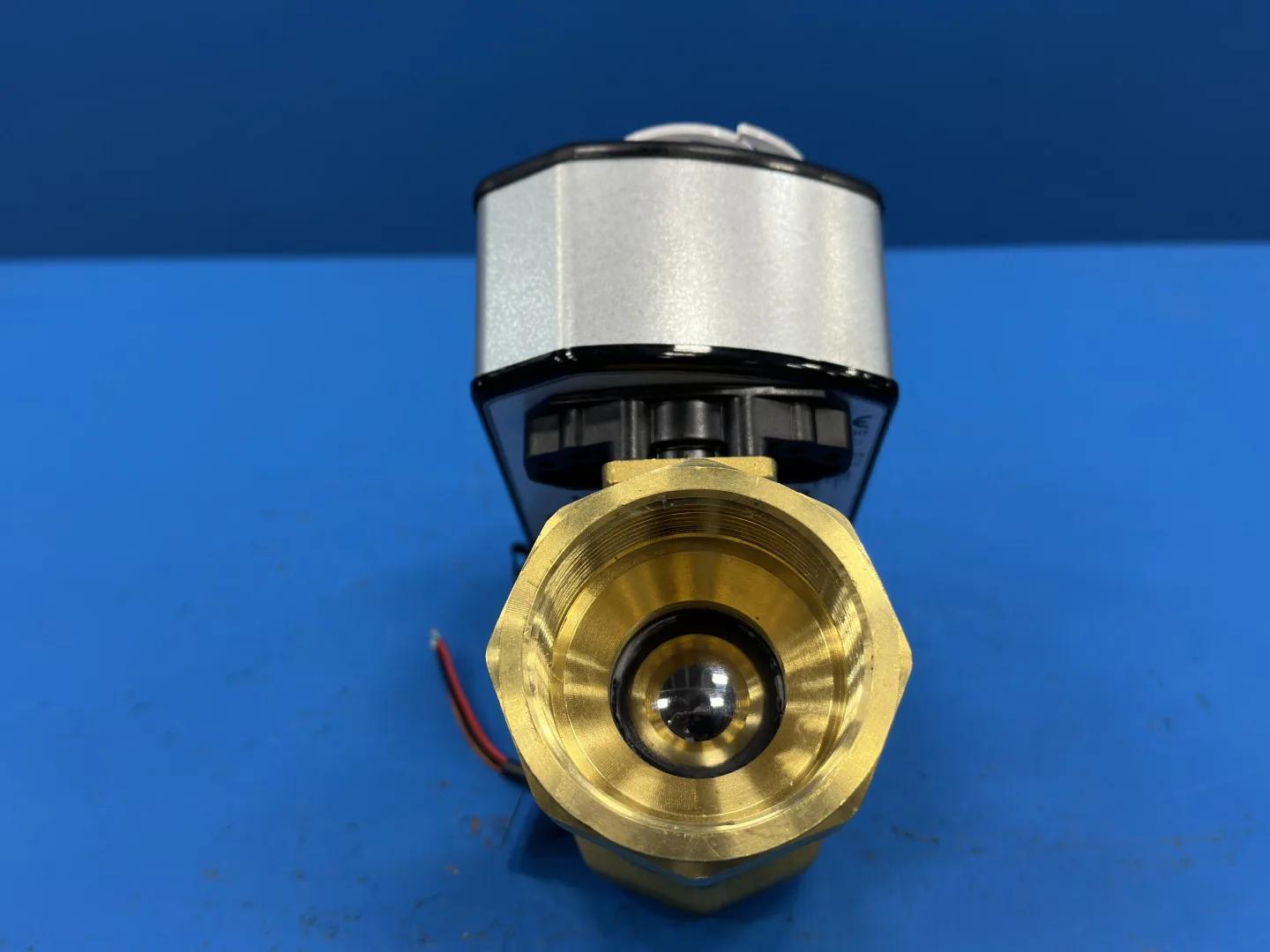

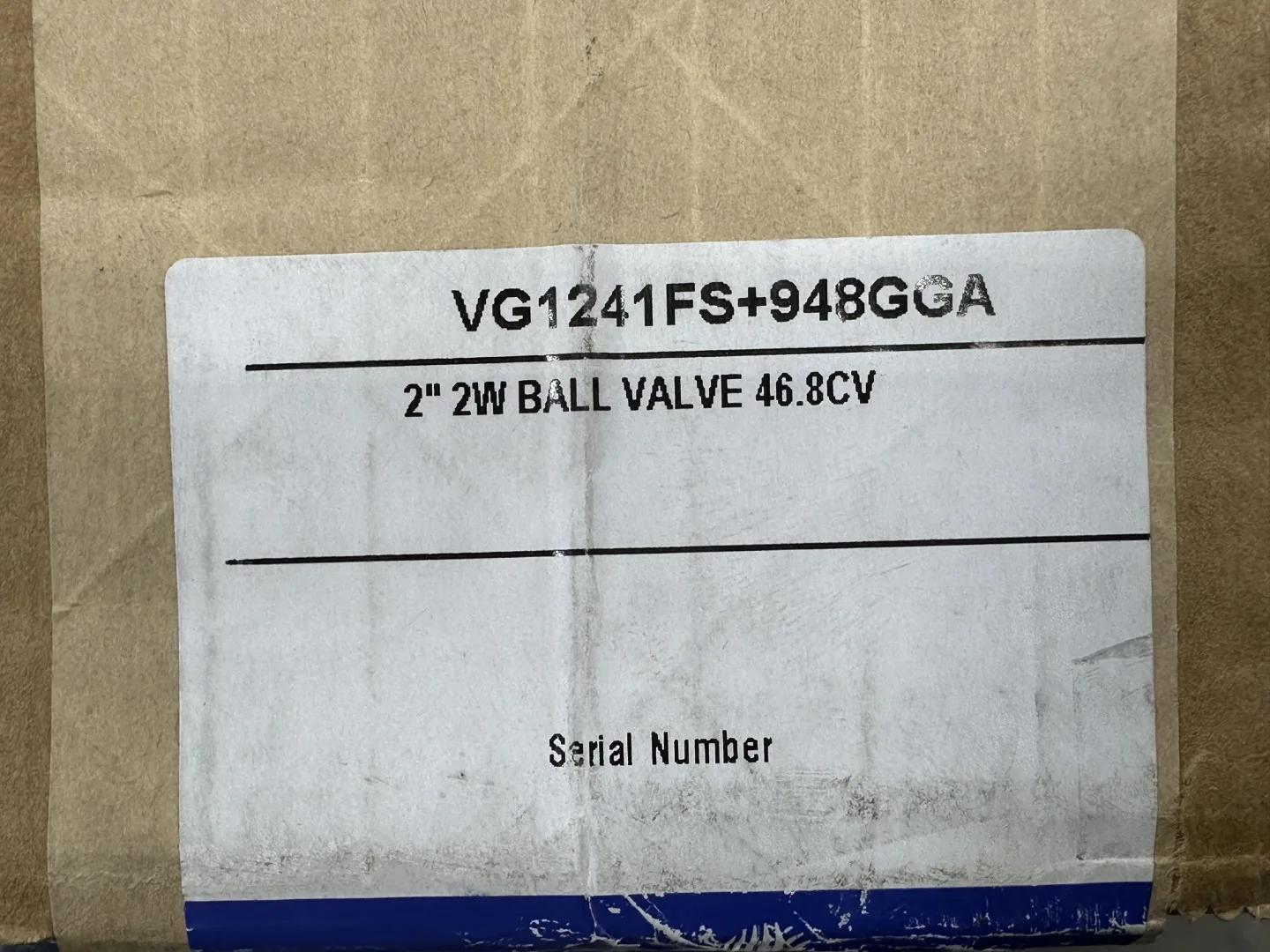

• Valve: VG1241FS, 2 in NPT, 2-way, 46.8 Cv, equal percentage flow

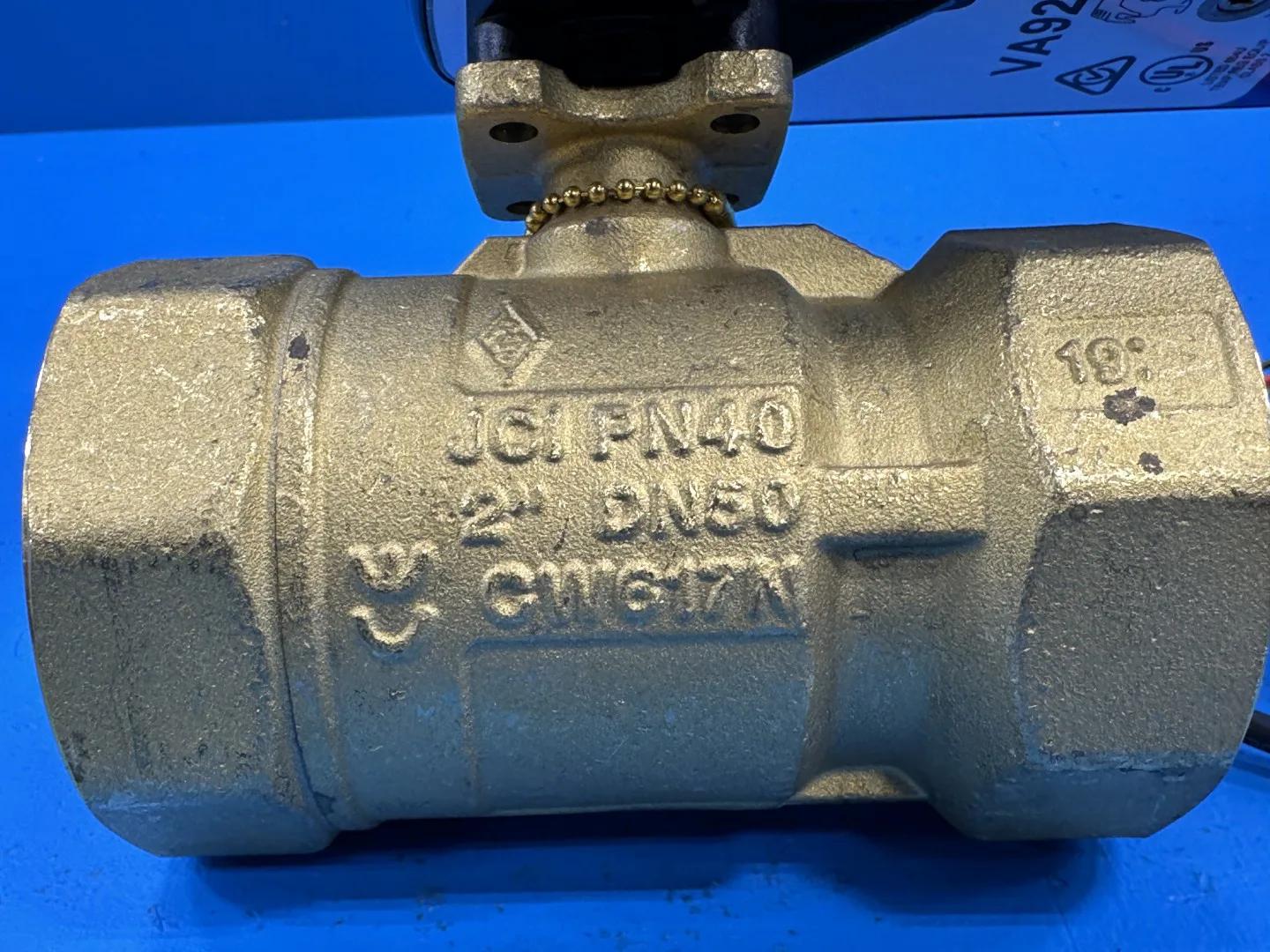

• Valve Body: Forged brass, brass trim
• Static Pressure Rating: 580 psig (PN40)
• Maximum Close-off: 200 psid
• Fluid Temperature (VG12x1 series): 23 to 203 deg F, not rated for steam
• Leakage: ANSI Class IV (0.01% of Cv)

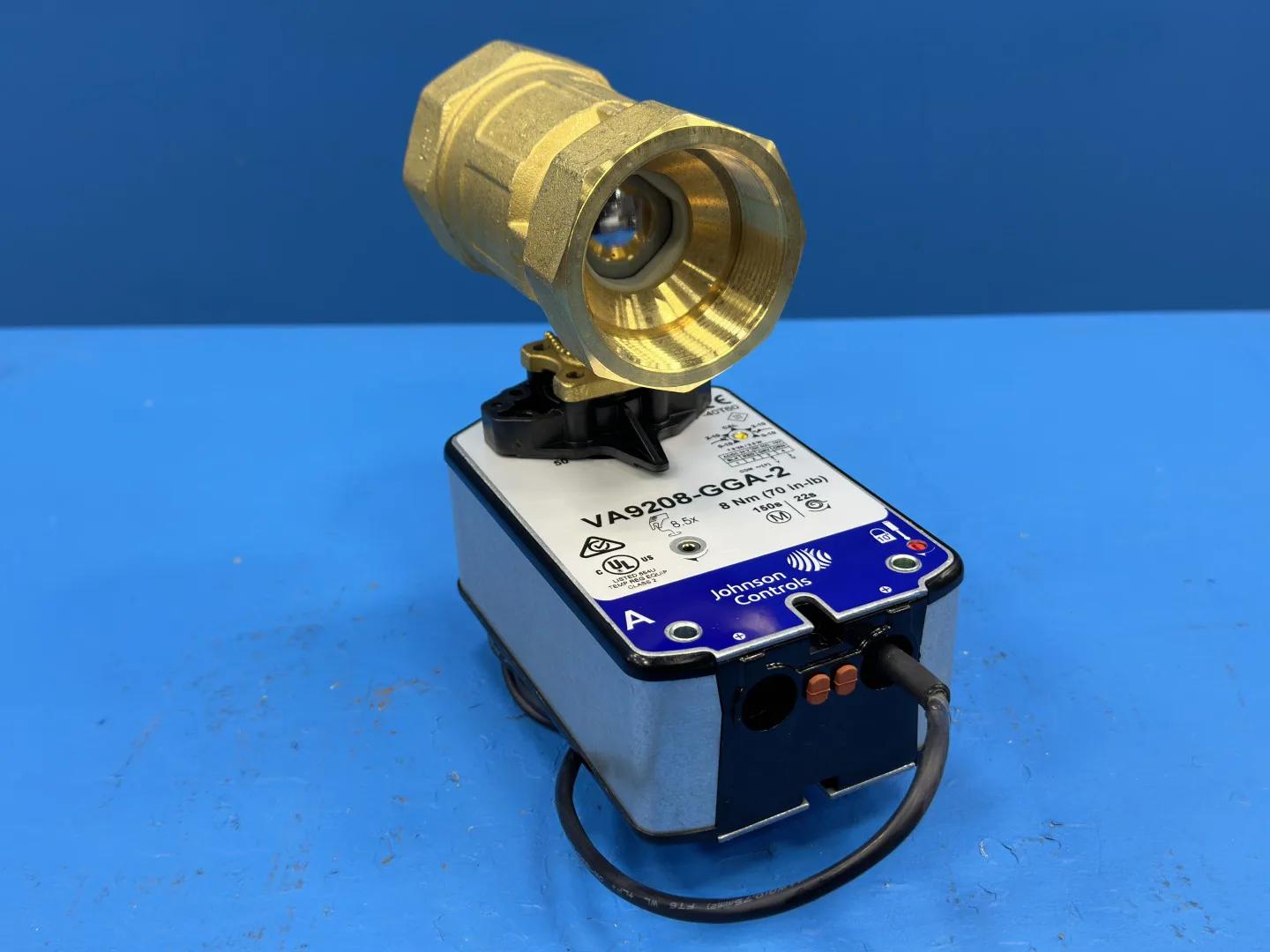

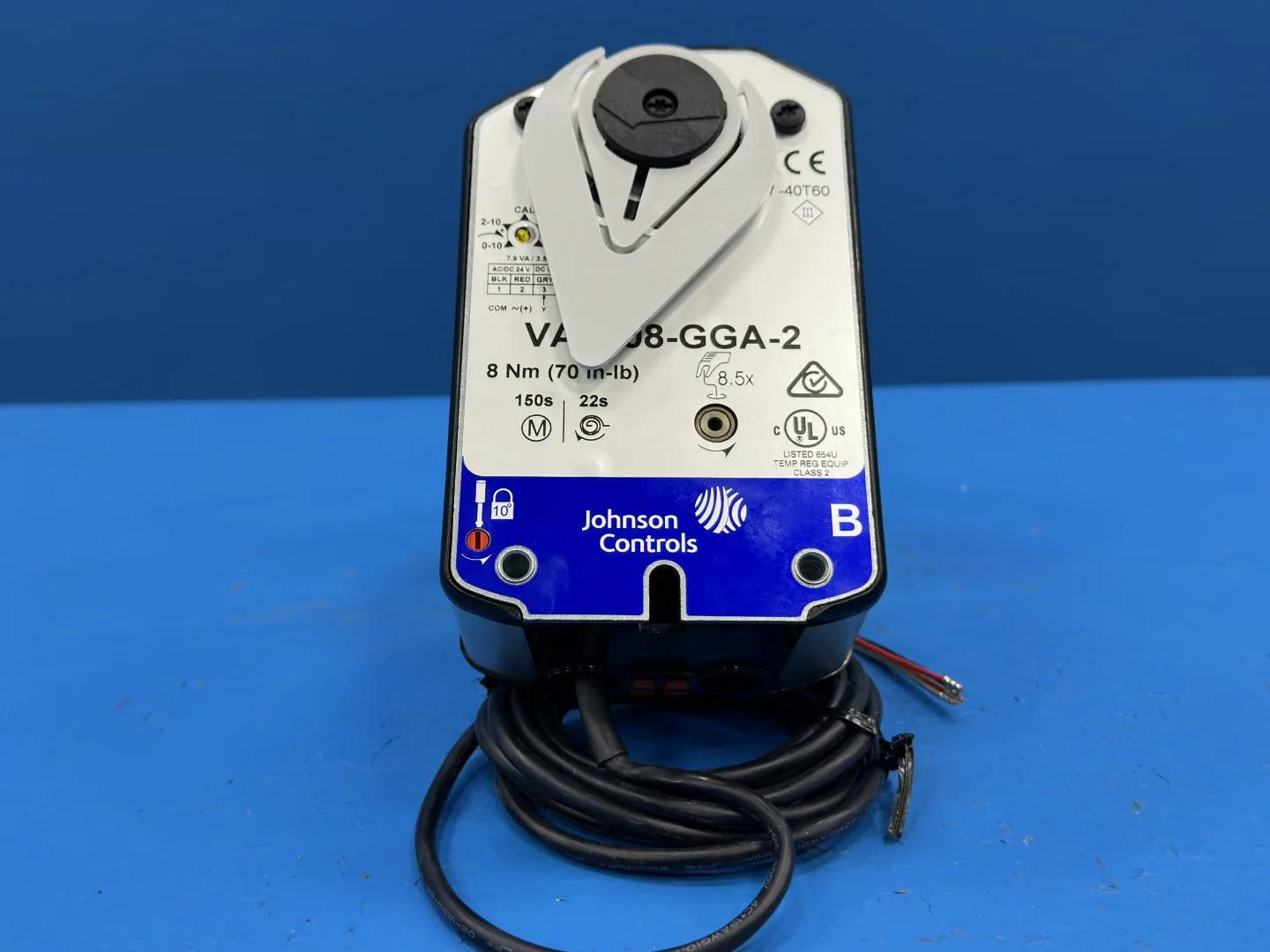

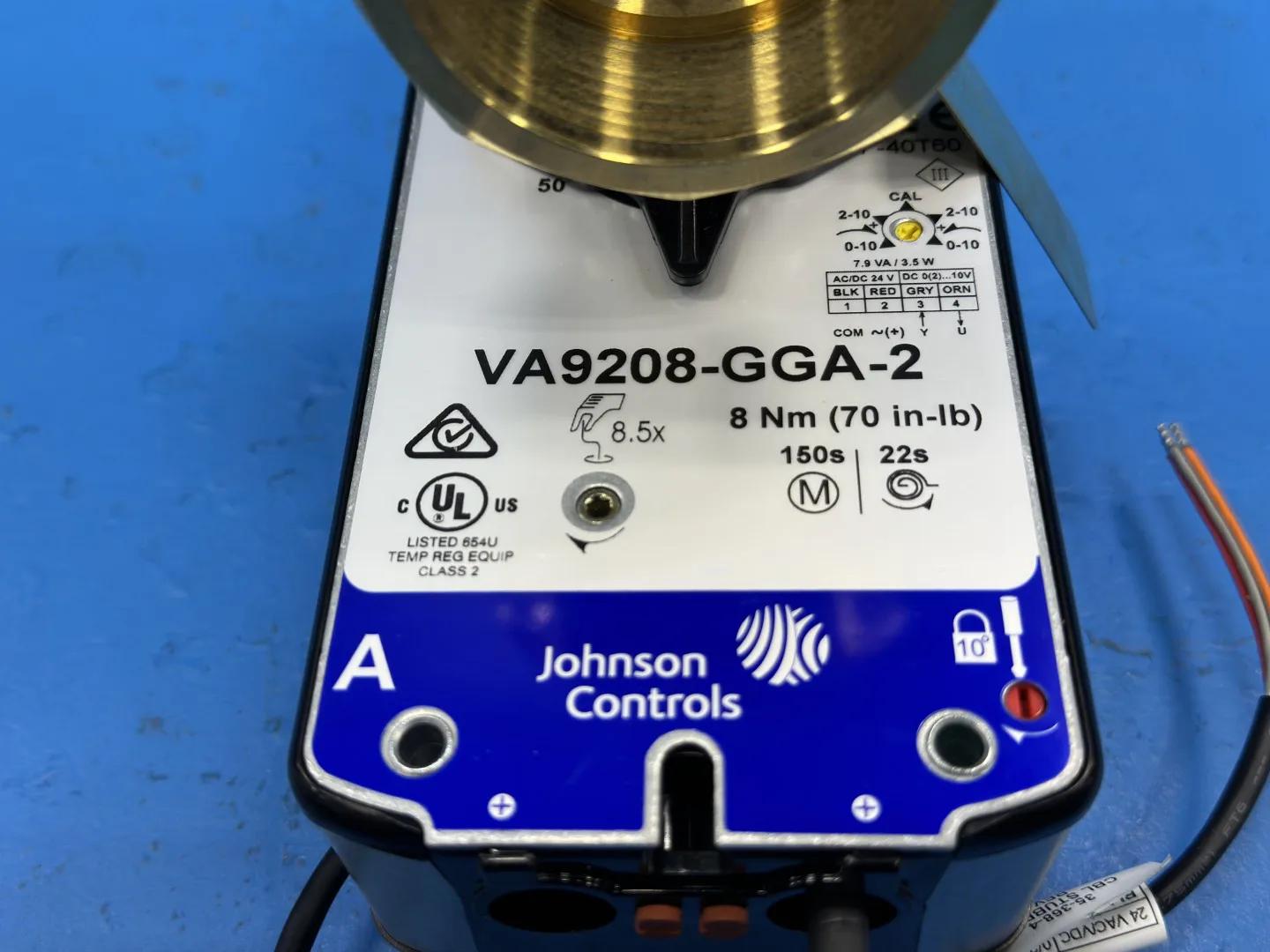

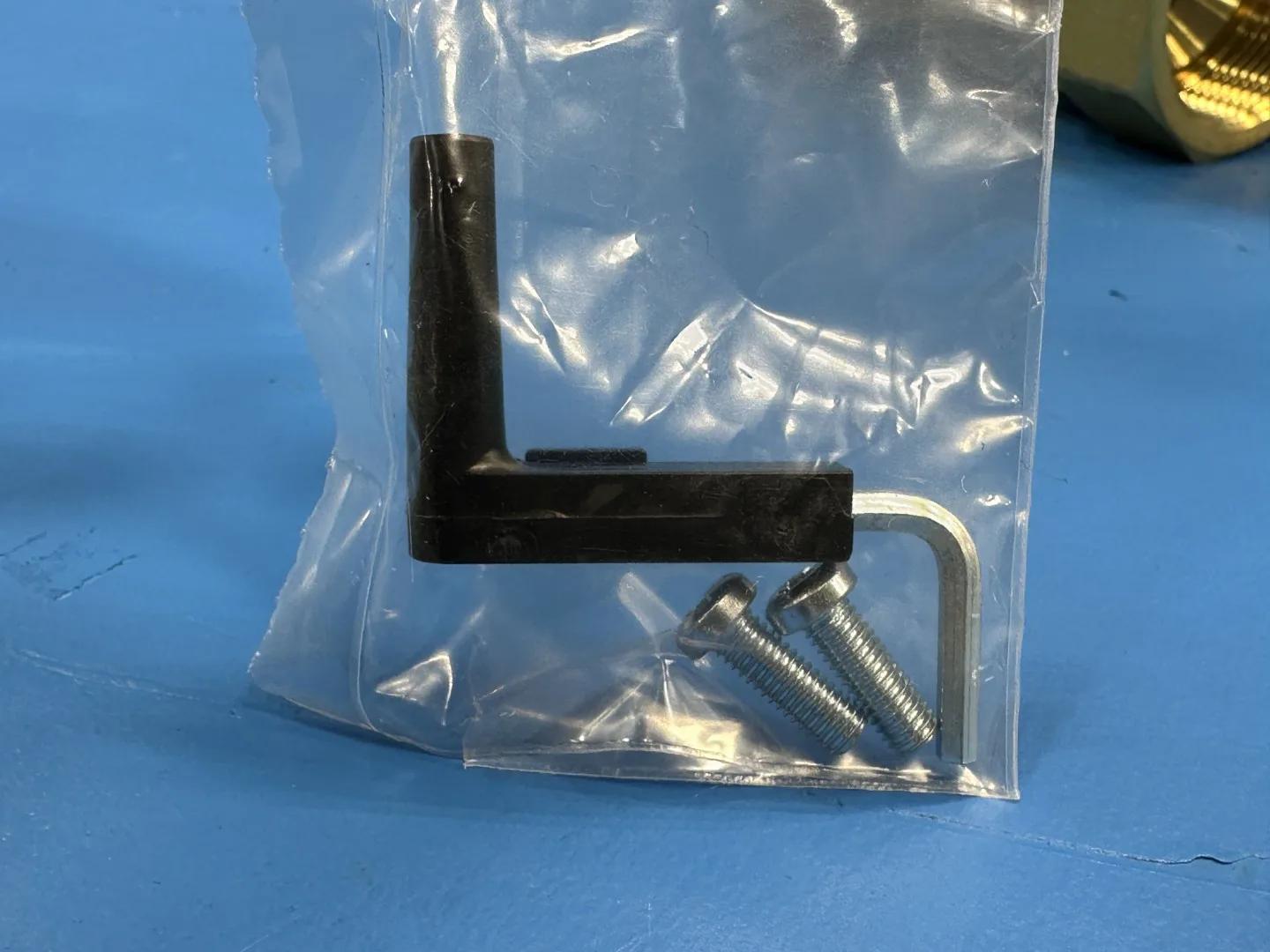

• Actuator: VA9208-GGA-2 proportional electric spring return
• Actuator Power: 24 VAC (19.2 to 28.8 V) 50/60 Hz Class 2, 7.9 VA running, 5.5 VA holding; 24 VDC 3.5 W running, 1.9 W holding; minimum transformer 8 VA
• Control Input: 0 to 10 VDC factory set; 2 to 10 VDC or 4 to 20 mA with field-furnished 500 ohm resistor
• Feedback: 0(2) to 10 VDC
• Rated Torque: 70 lb-in (8 Nm), power on and spring return
• Timing: 150 s power-on for 90 deg; 22 s nominal spring return at rated load
• Rotation: 95 deg maximum, adjustable stop 35 to 95 deg
• Enclosure: NEMA 2 (IP54)
• Ambient Operating: -40 to 140 deg F
• Cable (-2 models): 120 in UL 444 Type CMP plenum rated, 19 AWG
• Listing: UL Listed File E27734 (actuator); label marks cUL US LISTED, Class 2
• Country of Origin: Mexico (carton label: PRODUCT OF MEXICO)

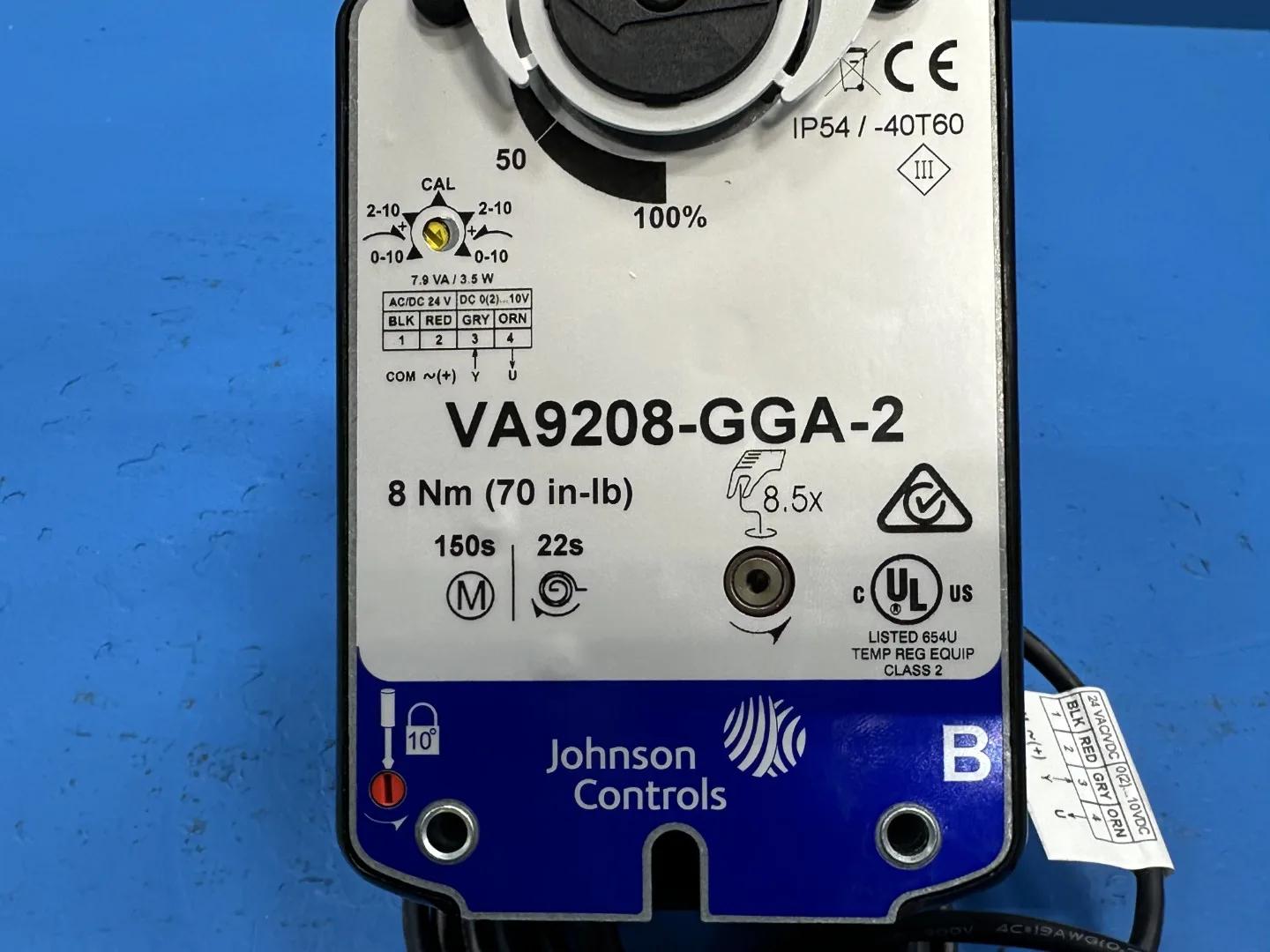

• Spec Basis: Carton and actuator label photos (VG1241FS+948GGA, VA9208-GGA-2, 8 Nm (70 in-lb), 160s / 22s, 2" 2W BALL VALVE 46.8CV, PRODUCT OF MEXICO); Johnson Controls VA9208-xxx-x Series Product Bulletin LIT-12011622 (https://docs.johnsoncontrols.com/bas/api/khub/documents/mSKDtMFXJanR8L8VisjHzA/content); Kele VG1241FS+948GGA listing (https://www.kele.com/product/control-valves/ball-valves/johnson-controls/vg1241fs+948gga). Label timing reads 160s; bulletin states 150 s.
