Water Cooled Condensing Unit 3 HP Bohn Heatcraft HWN030X6C 208-230V 3 Phase Indoor R-404A

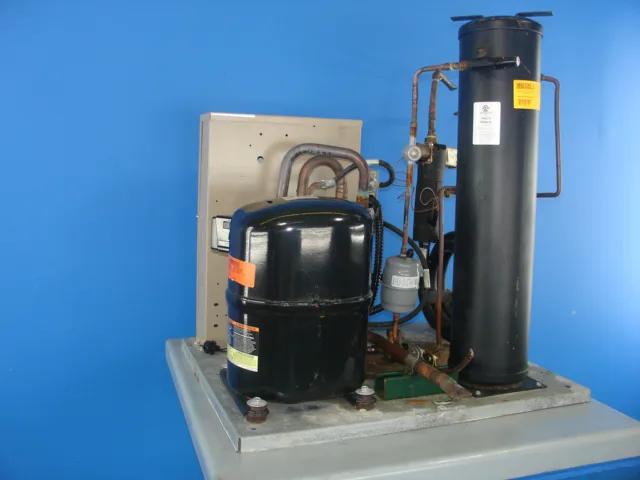

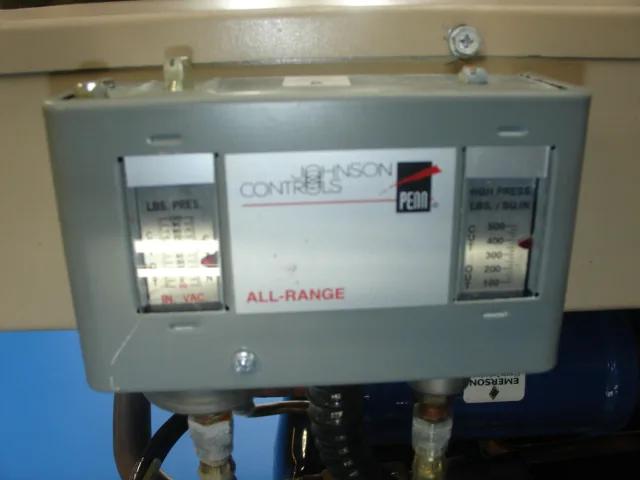

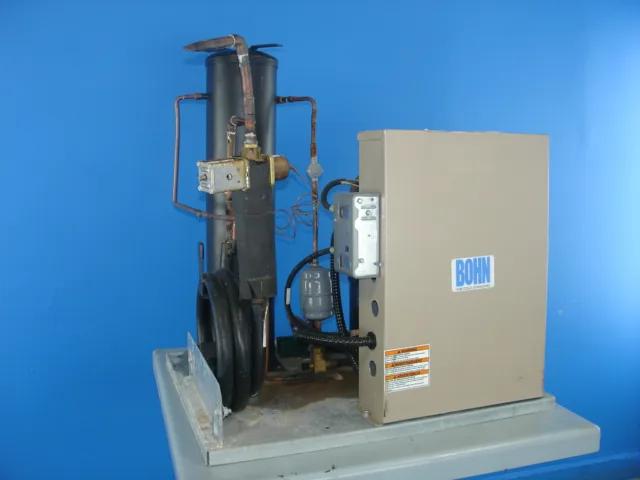

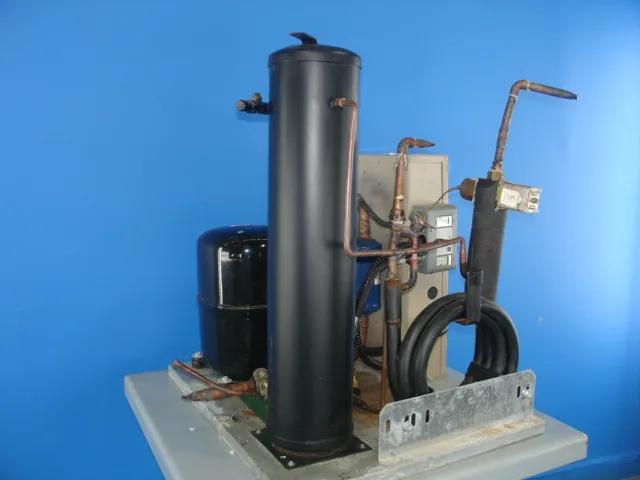

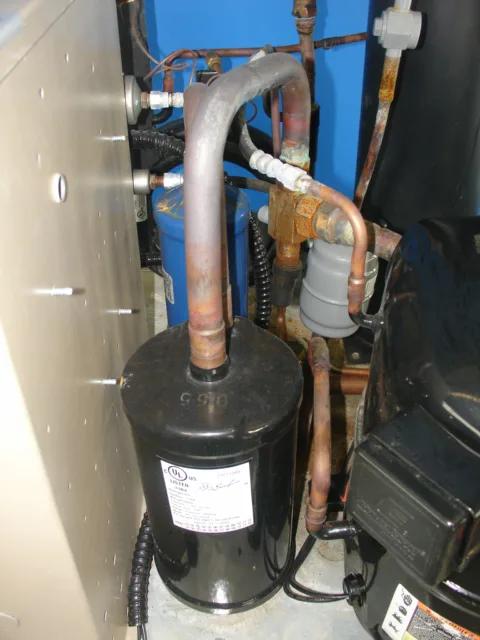

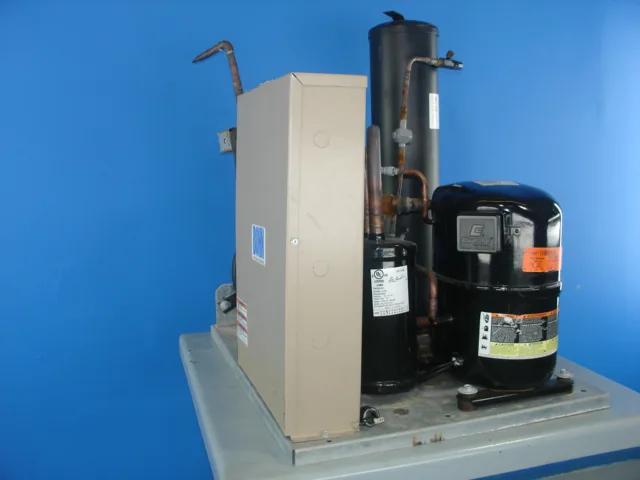

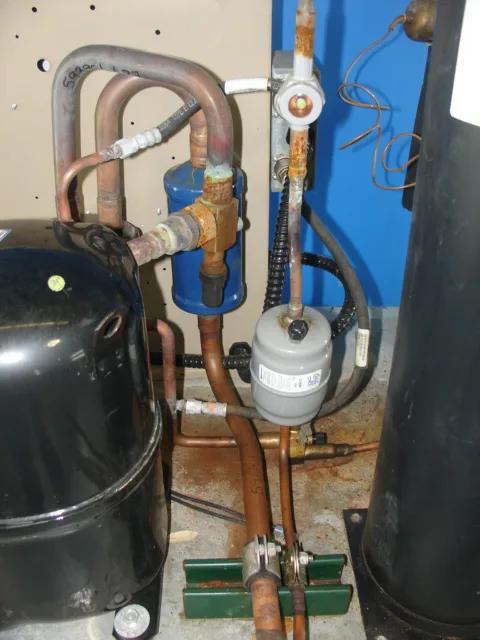

The Bohn Heatcraft HWN030X6C is a water-cooled hermetic condensing unit rated at 3 HP nominal, operating on 208-230V 3-phase, 60 Hz power and charged for R-404A refrigerant. The compact indoor design fits installations where space is limited and an outdoor air-cooled condenser is impractical. Heatcraft markets this water-cooled line under the Bohn brand for commercial and industrial refrigeration. Typical applications include walk-in coolers, supermarket refrigeration, cold storage rooms, and process cooling where condenser water is available. The unit includes an oversized liquid receiver with compressor isolation valves for service pump-down, and a Johnson Controls dual-pressure control. This unit shows used condition: copper line oxidation and minor surface rust on the base. It was powered up in our shop and appears functional. Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.

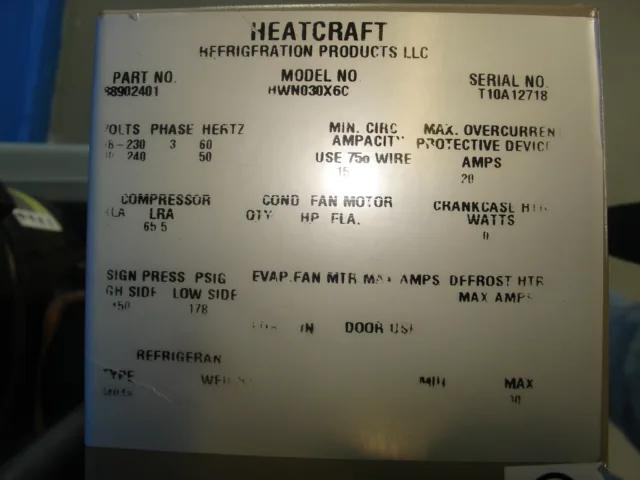

Manufacturer: Heatcraft Refrigeration Products LLC (Bohn) Model / Catalog #: HWN030X6C Part No: 88902401 Serial No: T10A12718 Type: Hermetic water-cooled condensing unit (indoor) Nominal: 3 HP Refrigerant: R-404A Phase: 3 Voltage: 208-230V, 60 Hz per record identity fields; the voltage line on the data plate is cut off in the photographs and could not be read directly. Min Circuit Ampacity: 15 A (75 C wire) Max Overcurrent Protective Device: 20 A Compressor LRA: 65.5 A Crankcase Heater: 0 W Design Pressure: 450 PSIG high side / 178 PSIG low side Condenser: Water-cooled Compressor: Hermetic Factory overall dimensions and factory net weight are not published on the data plate and are not stated here. Spec Basis: Verified 2026-09-16 against this unit's own nameplate photographs (Heatcraft data plate, KSC record 2362), cross-checked against Manufacturer (FID 56) and Model (FID 57). The prior entry's part number 38902401, 16 A minimum circuit ampacity, 190 lb weight and 27 x 22 x 21 in dimensions were not supported by the nameplate and have been rewritten; those dimensions were a copy of our own shipping measurements, not a factory specification.
