Allen-Bradley 872C-D3NP12-D4 Inductive Proximity Sensor, Bulletin 872C, 10-30V DC, Shielded, Sn=3mm

Allen-Bradley 872C-D3NP12-D4 inductive proximity sensor, Bulletin 872C: 10-30V DC, 200 mA output, shielded barrel, 3 mm sensing distance, source (PNP) output. Rockwell Automation part PN-319785, series E.

Inductive proximity sensors detect metal without contact, which is why they replace mechanical limit switches anywhere a moving part must be sensed reliably millions of cycles: end-of-travel on cylinders, part-present checks on conveyors and indexers, and speed or rotation sensing on shafts. The shielded barrel lets the sensor mount flush in metal.

Bulletin 872C is Allen-Bradley's standard general-purpose line, so this is a direct replacement on any machine already specifying it.

New in box, still sealed in the original packaging.

New surplus, available from King Surplus inventory in Del Rio, Texas.

• Manufacturer: Allen-Bradley / Rockwell Automation, 1201 S 2nd St, Milwaukee, WI 53204, USA
• Catalogue number: 872C-D3NP12-D4
• Bulletin: 872C, General Purpose
• Series: E
• Rockwell part number printed on the label: PN-319785
• Type: Inductive proximity sensor, shielded
• Shape: cylindrical, threaded barrel
• Diameter: 12 mm
• Length: 64.3 mm
• Housing material: nickel-plated brass
• Sensing distance (Sn): 3 mm
• Switching mode: NORMALLY OPEN (N.O.)
• Output type: Source, PNP
• Wiring: 3-wire DC
• Rated operational voltage: 10 to 30 V DC
• Output current: 200 mA (nameplate reads I= 200mA)
• Switching frequency: 1300 Hz
• Connection: M12 x 1, DC Micro, 4-pin quick disconnect
• Operating temperature: -25 deg C to 70 deg C
• Enclosure rating: IP67

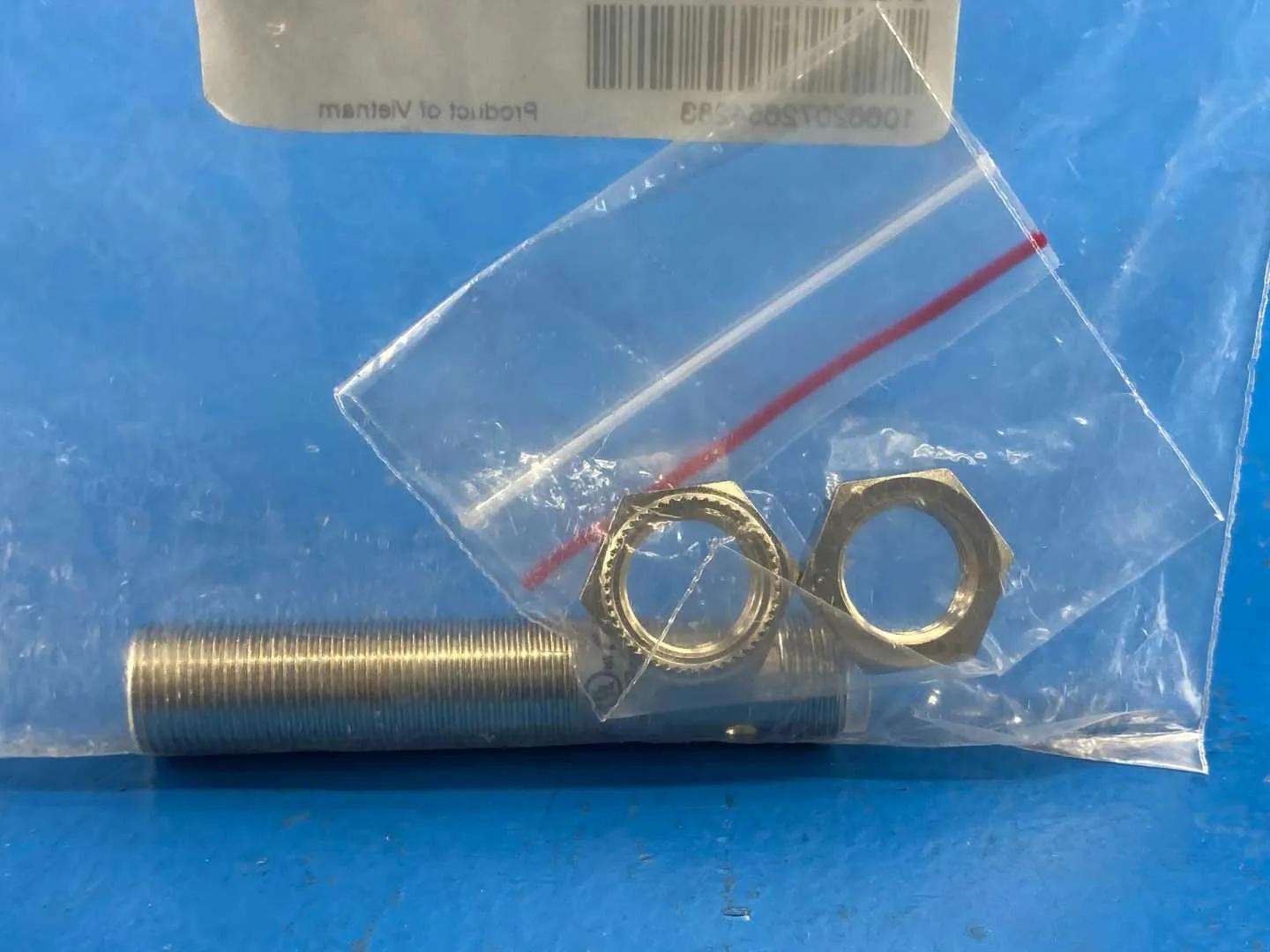

• Mounting: mounting nuts included; mounting bracket ordered separately
• Supply requirement, from the nameplate: CLASS 2, SOURCE RQD - a Class 2 power source is required
• Country of manufacture: Vietnam (label reads Product of Vietnam)
• Other label markings, verbatim: 14159 | 10662072654283

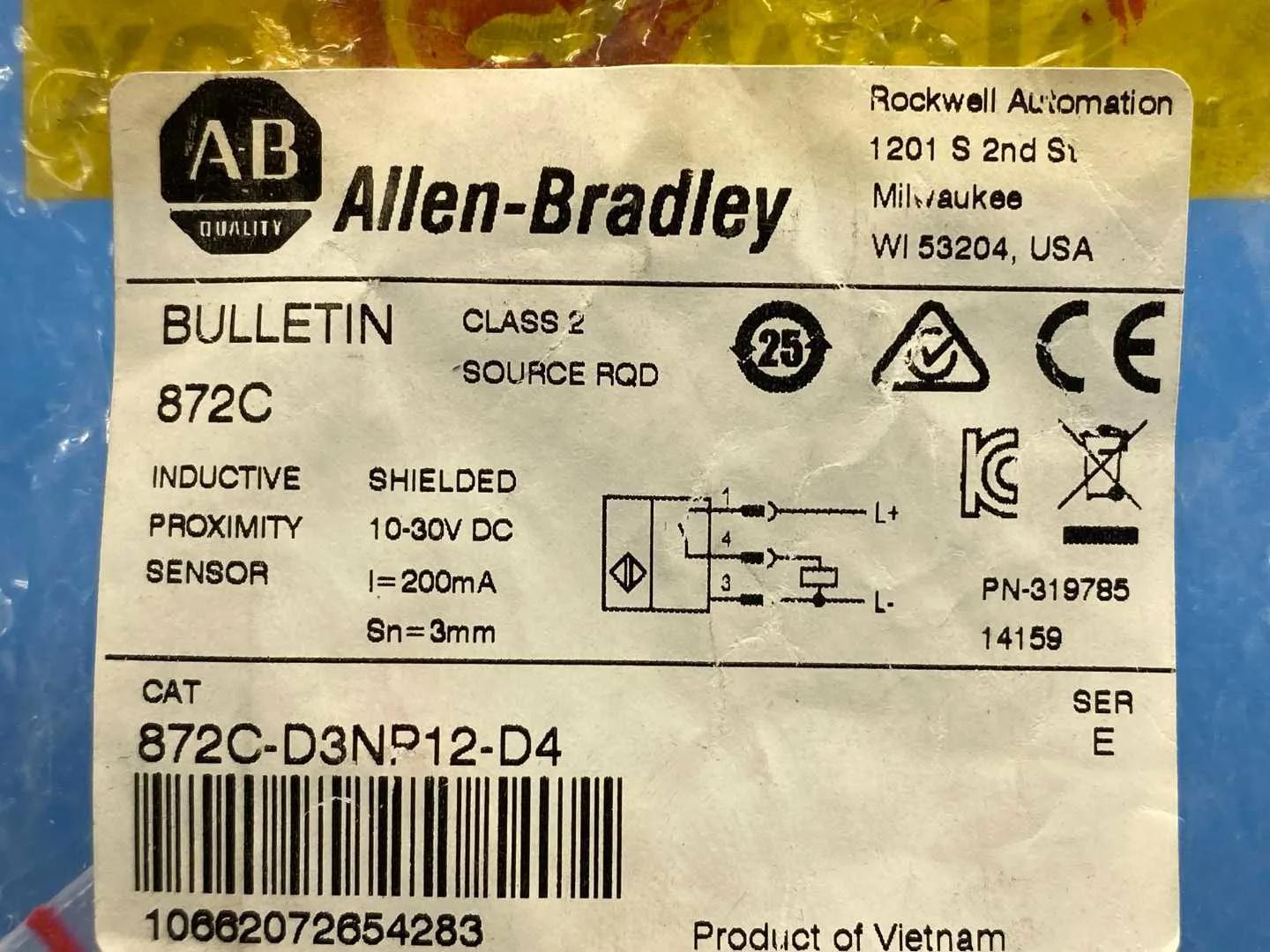

• Spec Basis: verified 2026-09-16 against the sensor's own label as transcribed from all 3 record photographs (manufacturer, address, catalogue number, bulletin, series, PN-319785, 10-30V DC, I=200mA, CLASS 2 SOURCE RQD, SHIELDED, Sn=3mm, country of manufacture), and against Rockwell Automation's published datasheet for catalogue number 872C-D3NP12-D4, headed "PROX 12mm 10-30VDC 3mm SHLD NO PNP 3WIRE DC-MICRO-4", for the figures the label does not carry. Record manufacturer (FID 56 Allen-Bradley) and model (FID 57 872C-D3NP12-D4) agree with the label. CORRECTED, and this one would have misled a buyer: the previous entry gave the output as "Source (PNP), NC". The sensor is NORMALLY OPEN. Rockwell's own datasheet gives Switching Mode N/O and prints NO in the catalogue description; the PNP half of the claim was right, the NC half was wrong and is the opposite of the product. Barrel diameter, length, housing material, switching frequency, connection type, operating temperature range and IP rating were absent from the previous entry and have been added from the same datasheet.
