ARGCO 501 2" x 1" Threaded Mechanical U Bolt Tee, Ductile Iron
501 Fitting Specifications: Size, Material & Connection Type
Thread & Pipe Compatibility for ARGCO 501
1 / 9
+9
+9
1 / 9
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 501 |
| Condition | Used |
| Manufacturer | ARGCO |
| Asset Number | KSCU / 1005 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 1
$6.35
Basic Information
Asset #
KSCU / 1005
Available Quantity
1
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
N/A
Factory Information
- Manufacturer: ARGCO

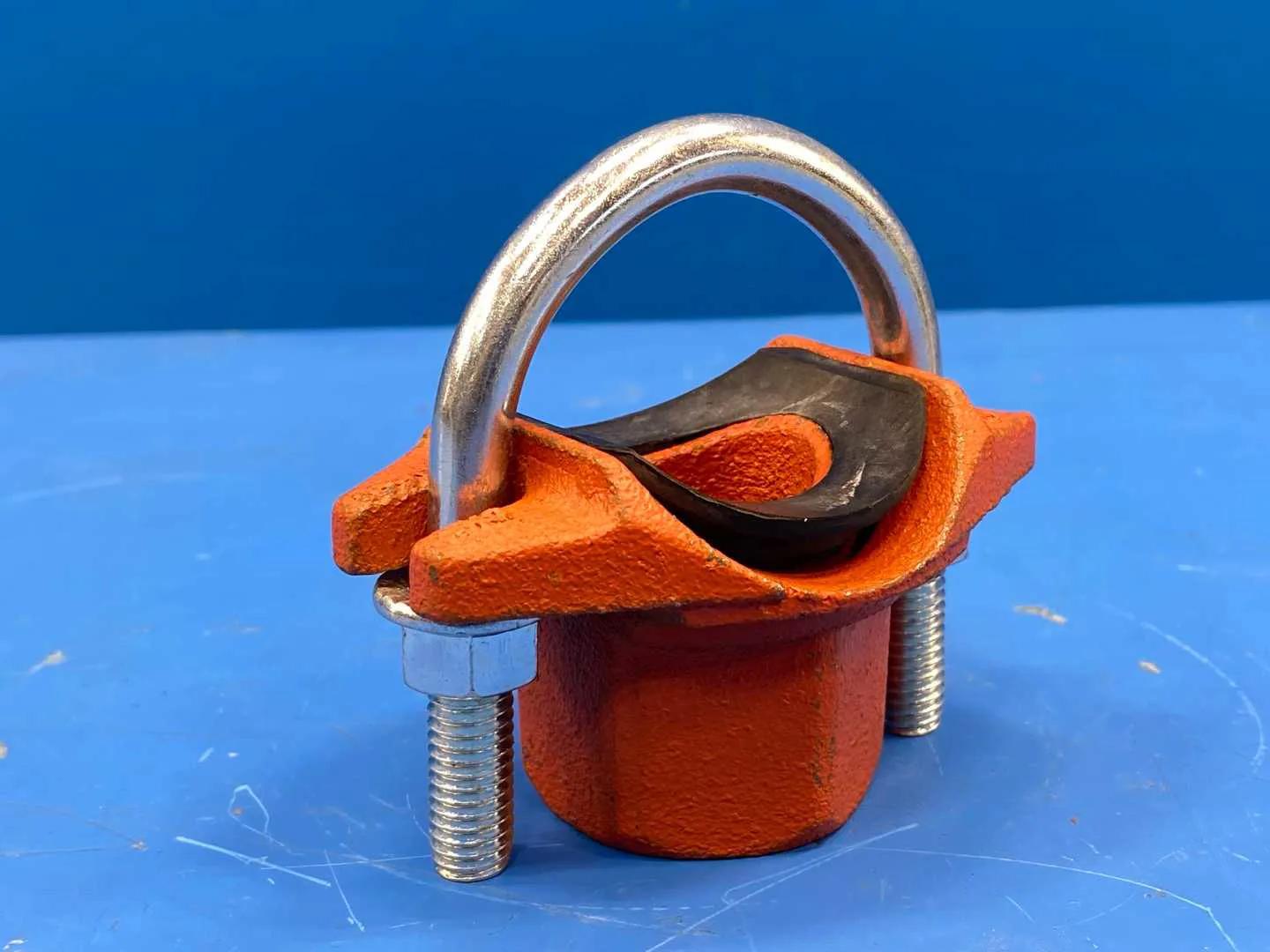

- Model: 501 U-Bolt Mechanical Tee (Saddle-Let), catalogue item 7010293
- Size: 2 in run x 1 in threaded outlet (50 x 25 mm)
- Type: U-bolt mechanical outlet tee for carbon steel sprinkler pipe; installs into a cut or drilled hole with no welding
- Housing Material: Ductile iron conforming to ASTM A536 Grade 65-45-12
- Housing Coating: Orange enamel standard; hot dipped galvanised available

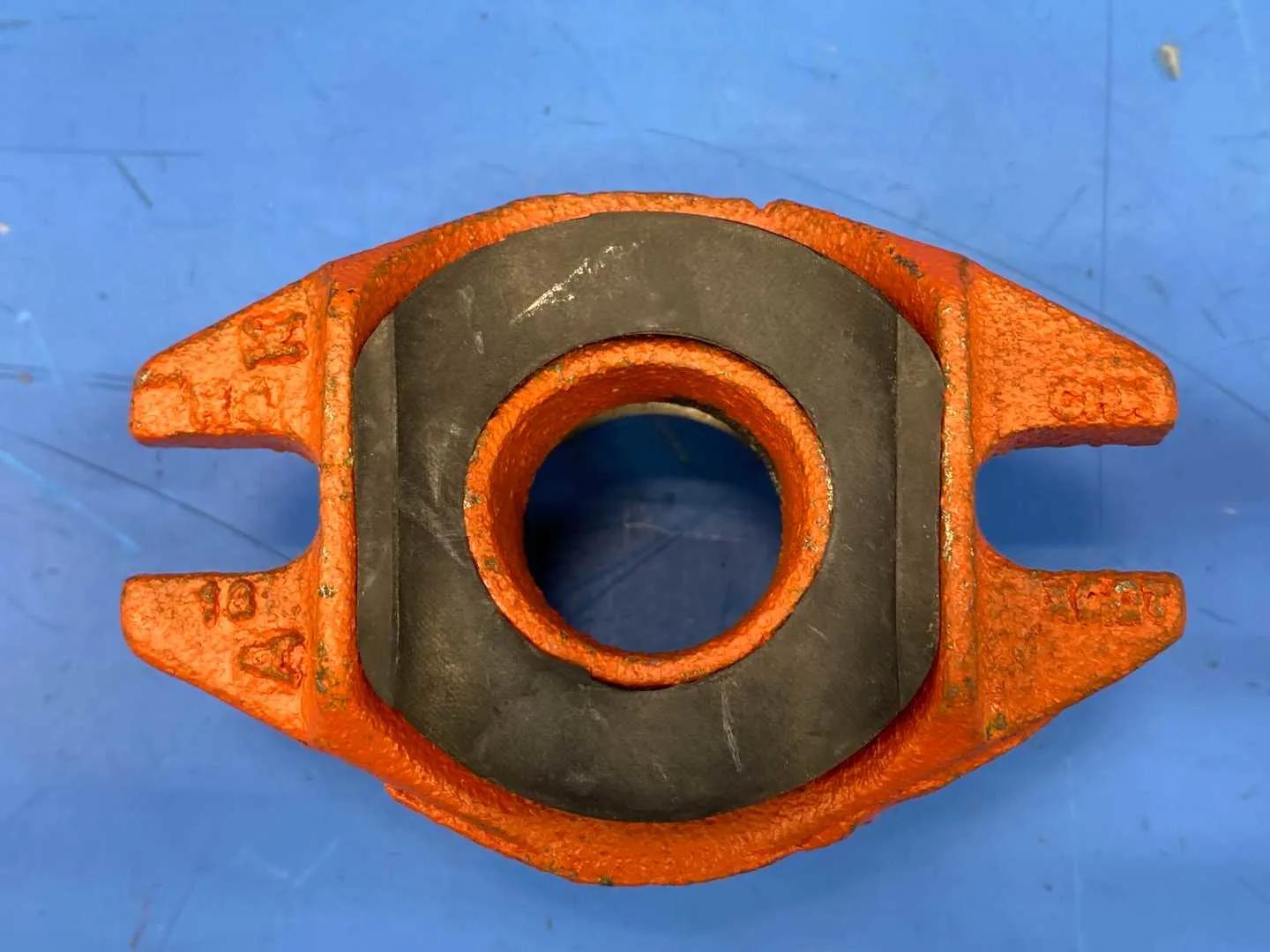

- Gasket: Grade E EPDM (Type A) standard
- Bolts and Nuts: Carbon steel oval neck track bolts to ASTM A449 / ISO 898-1; hex nuts to ASTM A563 Grade B; zinc electroplated to ASTM B633 NZ/FE5 Type III. Stainless option meets ASTM F593 / F594 Group 2 (316).

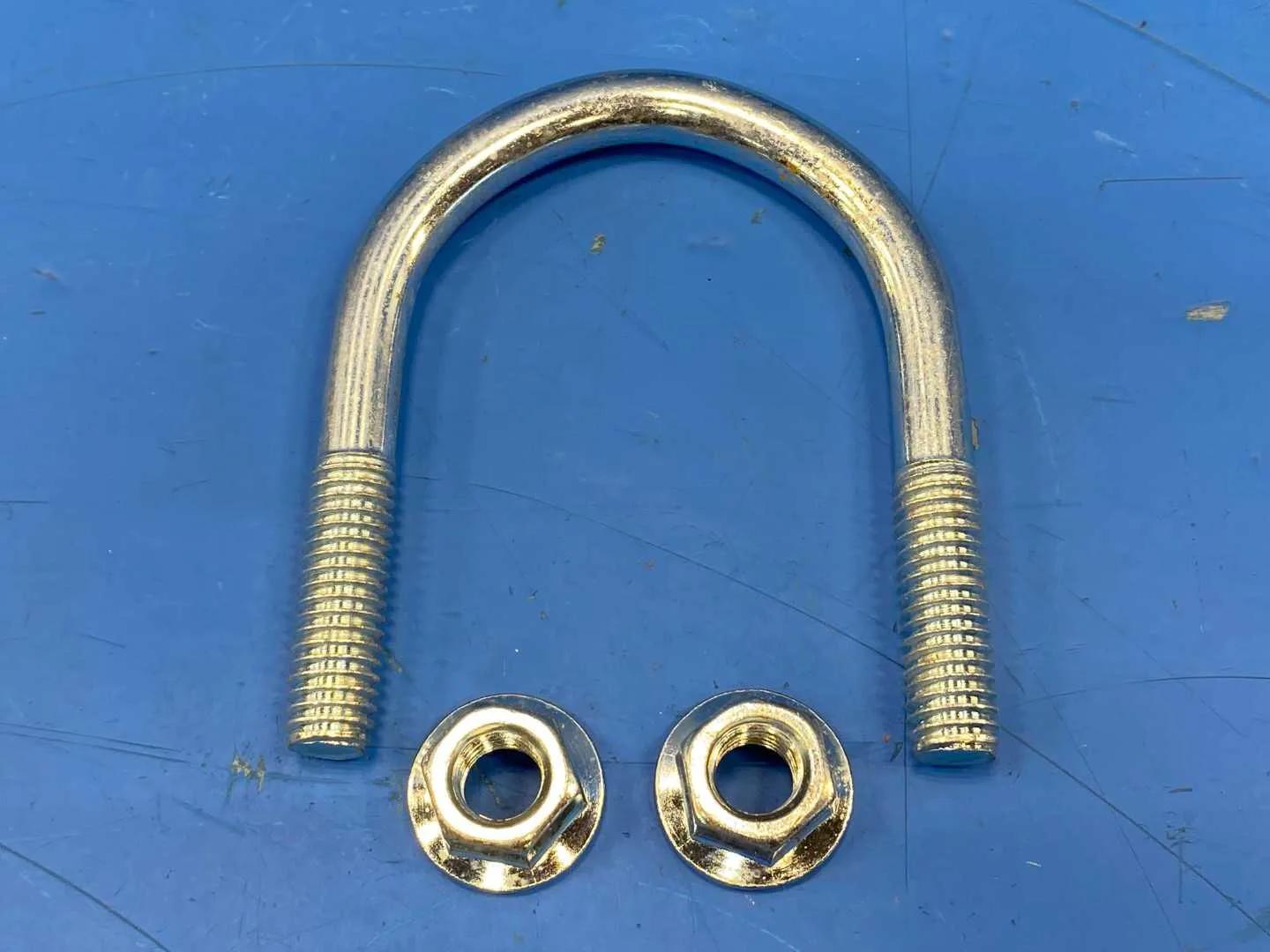

- Bolt Size: 3/8 in U-bolt
- Bolt Torque: 30-40 lb-ft (22-29 N-m)
- Maximum Working Pressure: Up to 365 psi (2,517 kPa). The same data sheet's product description states the Saddle-Let is pressure rated to 300 psi (20 bar); confirm the rating required for the intended service.
- Required Hole Diameter: 1.18 in +0.04 / -0 (30 mm +1 / -0); hole saw size 1-3/16 in
- Dimensions: A 2.64 in (67 mm), B 3.86 in (98 mm), C 2.20 in (56 mm); take-out 2.20 in (56 mm)
- Pipe Compatibility: Carbon steel, Schedule 10 or Schedule 40
- Approvals: Underwriters Laboratories, UL Canada, Factory Mutual - wet and dry (oil-free air) sprinkler service
- Spec Basis: ARGCO Model 501 U-Bolt Mechanical Tee published technical data sheet, 2 x 1 row (item 7010293)
Specifications
Manufacturer
ARGCO
Model
501
Serial
N/A
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
4
Width (Inches)
3
Height (Inches)
3
Phase
N/A
Estimated Packaging Weight
2
Estimated Total Weight
3
Asset Number
KSCU / 1005
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
