Asco 54100316 Joucomatic Pneumatic Control Valve

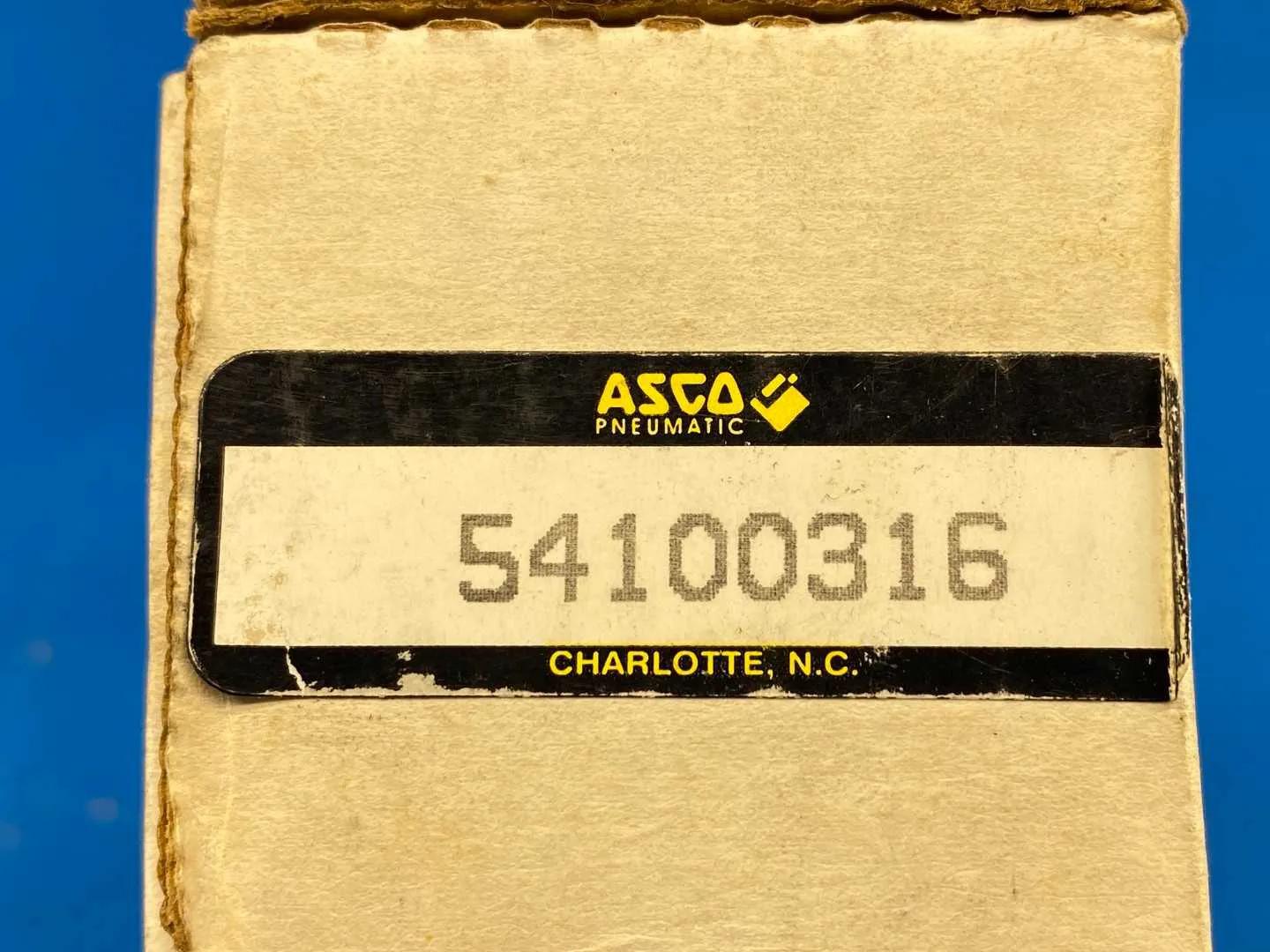

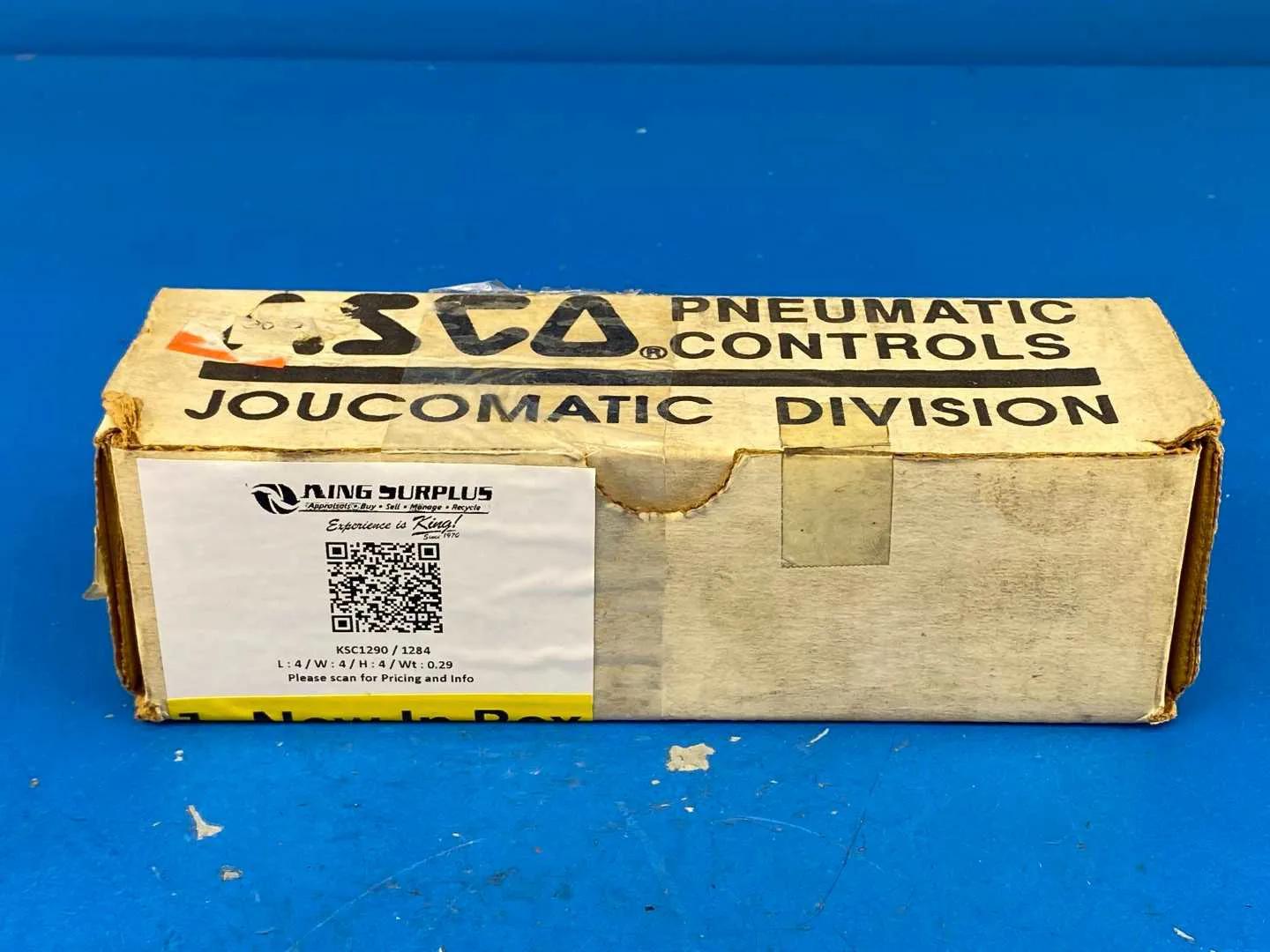

Manufacturer: ASCO Pneumatic, Joucomatic Division. Box marked PNEUMATIC CONTROLS, JOUCOMATIC DIVISION, CHARLOTTE, N.C. Joucomatic was ASCO's pneumatics division; the combined business is now ASCO, part of Emerson, and the range has been catalogued over time as ASCO Joucomatic and ASCO Numatics. Part Number: 54100316 Type: pneumatic control valve BOX MARKINGS TRANSCRIBED FROM THIS ITEM ASCO PNEUMATIC PNEUMATIC CONTROLS JOUCOMATIC DIVISION CHARLOTTE, N.C. Part Number: 54100316 OBSERVATION ABOUT THE PART NUMBER, NOT A CONFIRMED IDENTIFICATION: ASCO publishes a catalogue for Series 541 / 542 / 543 multifunction pneumatic spool valves, and the leading digits of this part number correspond to that 541 series numbering. That is an observation about the number only. It has NOT been confirmed against an ASCO catalogue entry, and it is recorded here as a lead for whoever researches the part rather than as a specification. Nothing in this entry should be read as asserting that this item is a Series 541 valve. NO PUBLISHED SPECIFICATION IS AVAILABLE FOR THIS PART NUMBER. Searches of ASCO and Emerson documentation and of pneumatics distributor catalogues returned no datasheet, catalogue entry or specification sheet for 54100316. The following are therefore NOT stated here, because no manufacturer figure could be obtained and none has been invented: valve function and port configuration (3/2, 5/2 or other), port sizes and thread form, operating pressure range, flow rate or Cv, actuation method and pilot pressure, coil voltage if solenoid piloted, operating temperature range, body and seal materials, mounting interface, and dimensions and weight. HOW TO RESOLVE IT: the part number should be taken to ASCO / Emerson technical support or an authorised ASCO Joucomatic distributor for a catalogue cross-reference. The box markings above are the full extent of what the item itself carries. Spec Basis: Factory box markings transcribed from this item's own photographs (ASCO PNEUMATIC, PNEUMATIC CONTROLS, JOUCOMATIC DIVISION, CHARLOTTE, N.C., part number 54100316). Company and division identity per ASCO / Emerson published brand information. No specification has been adopted from another ASCO series or from a reseller listing.
