Banner MGE1816A Beam Array, Machine Guard System
Banner MGE1816A Safety Barrier Specifications: Type & Range
Machine Guard Fitment for MGE1816A
1 / 10
+10
+10
1 / 10
| Description | Details |
|---|---|
| Available Quantity | 18 |
| Model | MGE1816A |
| Condition | Used |
| Manufacturer | Banner |
| Asset Number | KSCU / 110 / 60 / 5 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.1 Cardboard $10 |
Available Qty: 18
$95.00
Basic Information
Asset #
KSCU / 110 / 60 / 5
Available Quantity
18
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

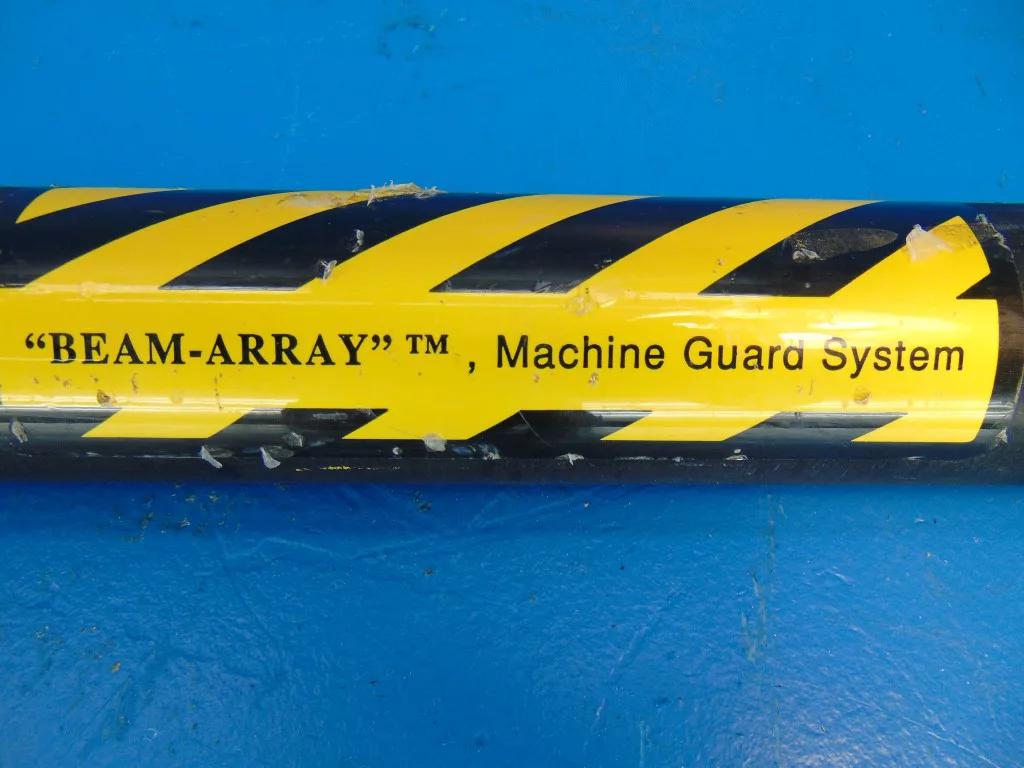

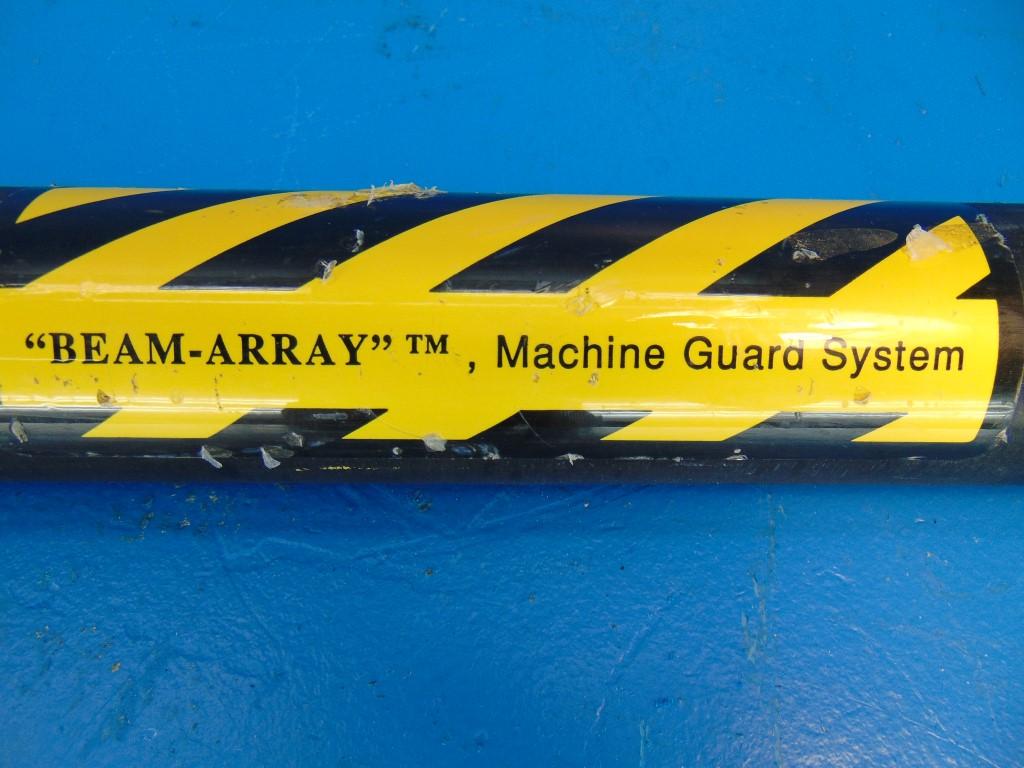

The Banner Beam Array Machine Guard System MGE1816A is a sophisticated safety solution developed by Banner Engineering Corporation, a leader in industrial automation and safety technologies.
This product is designed to provide protection in hazardous areas within industrial environments, ensuring worker safety and compliance with safety regulations.
The history of the MGE1816A model is rooted in the increasing need for effective machine guarding solutions as industries evolve. With the rise of automation, machines have become more powerful and potentially dangerous, necessitating advanced safety mechanisms to protect workers.
The MGE1816A features an array of photoelectric sensors that create an invisible safety curtain around machinery. When an object or person interrupts this safety curtain, the system immediately stops machine operation, reducing the risk of accidents.
Commonly used in manufacturing, packaging, and processing plants, this machine guard system is critical in safeguarding workers from machine-related injuries. Its robust construction ensures durability in harsh industrial settings, while its versatility allows it to be deployed in a wide range of applications.
One of the unique features of the Banner Beam Array System is its high-speed response time, which is essential for dynamic environments where machines operate at high speeds. Additionally, the modular design facilitates easy installation and maintenance, allowing companies to integrate this safety system into existing workflows without extensive downtime.
Factory Information
- Manufacturer: Banner Engineering Corporation
- Model: MGE1816A
- System: MACHINE-GUARD System
- Type: Safety light curtain EMITTER unit (beam array). Pairs with the matching MGR1816A receiver of equal length and an MGCA-4A (115V AC) or MGCB-4A (230V AC) control box.
- Height of Defined Area: 18 in (457 mm)
- Beam Spacing: 0.75 in center-to-center between adjacent sensing beams
- Separation Distance (emitter to receiver): 6 in to 45 ft (14 m)
- Width of Defined Area: 6 in (15 cm) minimum; 3x excess gain at 45 ft (14 m), somewhat less when lens shields or corner mirrors are used
- Emitter Elements: infrared LEDs, 880 nm peak emission
- Minimum Object Sensitivity (system): 1.50 in (38.1 mm), assuming no floating blanking in use
- Response Time (system): less than 40 ms for emitter and receiver up to 48 in in length
- Self-Checking Interval: 20 ms
- Ambient Light Immunity: greater than 10,000 lux at 5 degree angle of incidence
- Strobe Light Immunity: highly immune to Federal Signal Corp. Fireball model FB2PST strobe

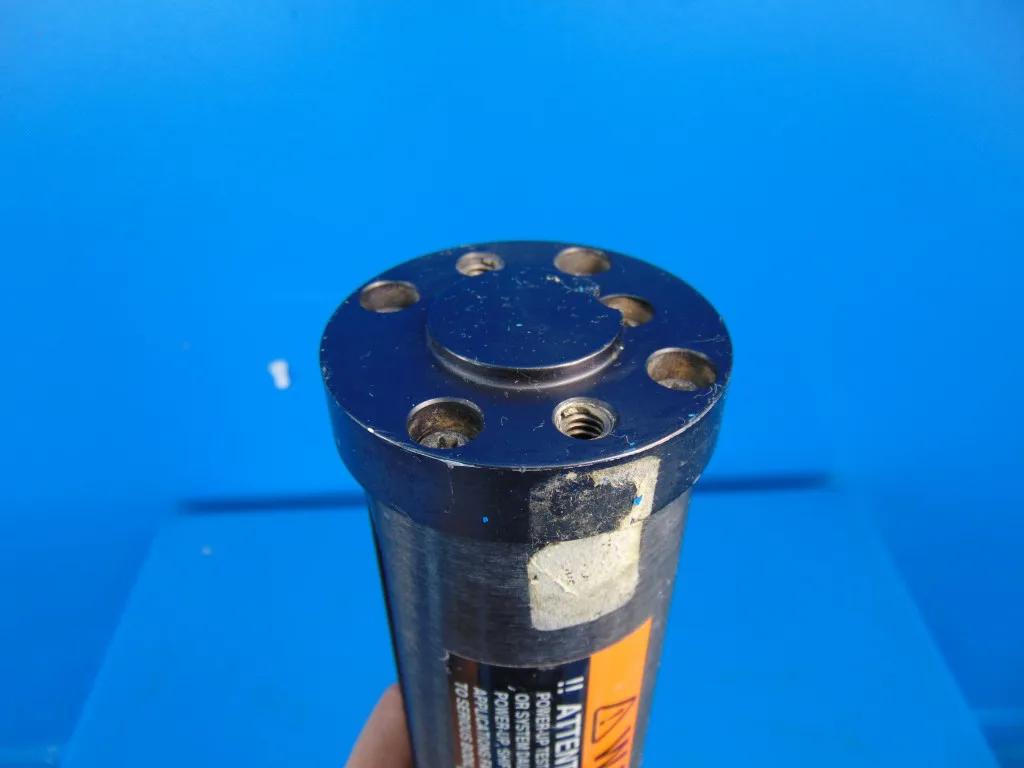

- Mounting Dimensions: L1 = 23.7 in (602 mm), L2 = 21.6 in (549 mm)
- Housing Material: aluminum with black anodized finish; acrylic lens cover

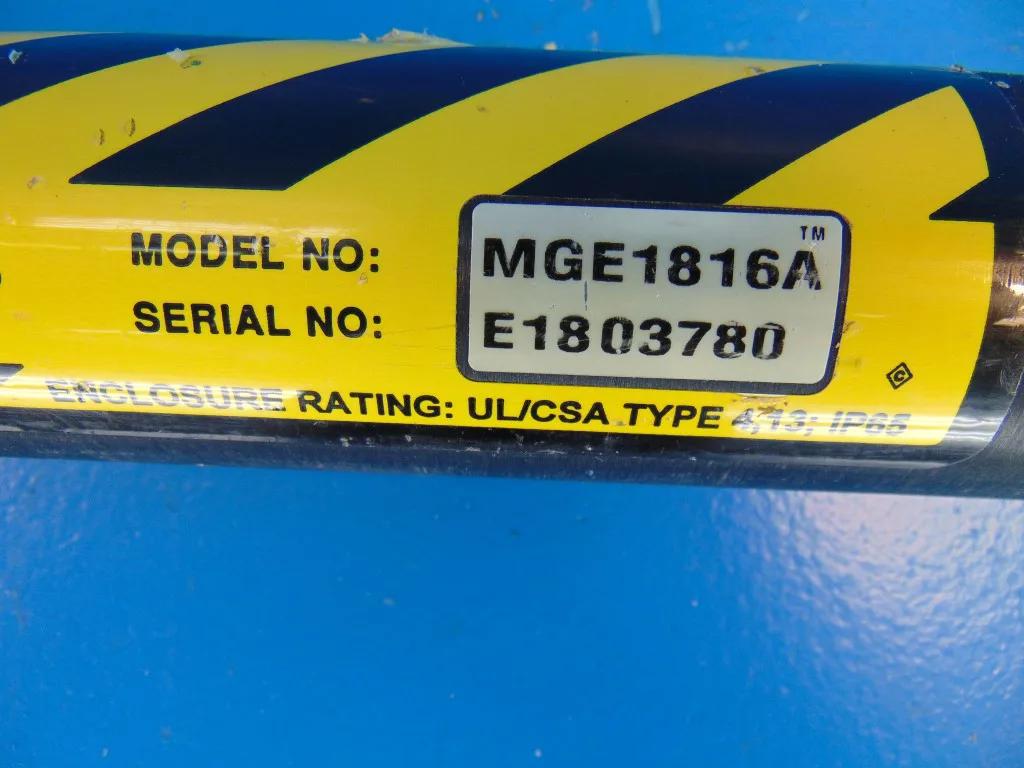

- Enclosure Rating: NEMA 4, 13 (IP 65)
- Operating Temperature: 0 to +50 C (+32 to +122 F)
- Relative Humidity: 95% maximum, non-condensing
- Outputs: none. The emitter has no switching output of its own. It is powered and controlled from the MACHINE-GUARD control box over the sensor cable; all output relays live in the control box.
- Mounting Hardware: supplied with a pair of mounting brackets in 11-gauge cold-rolled black zinc chromate finished steel, plus a set of four vibration dampening mounts

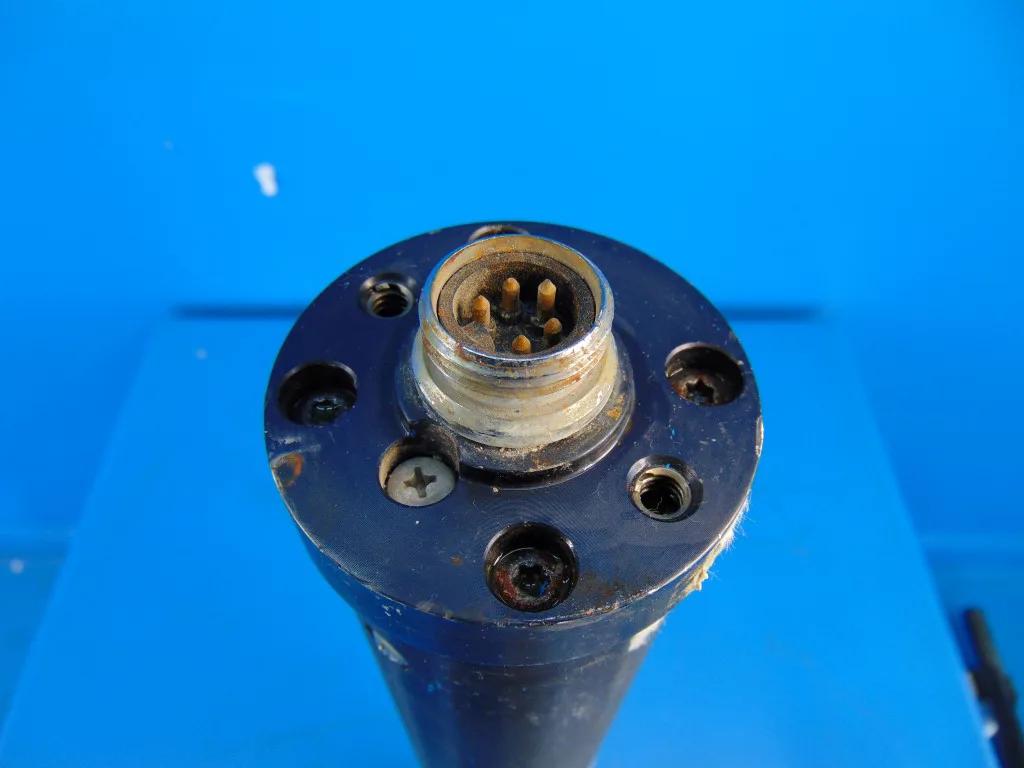

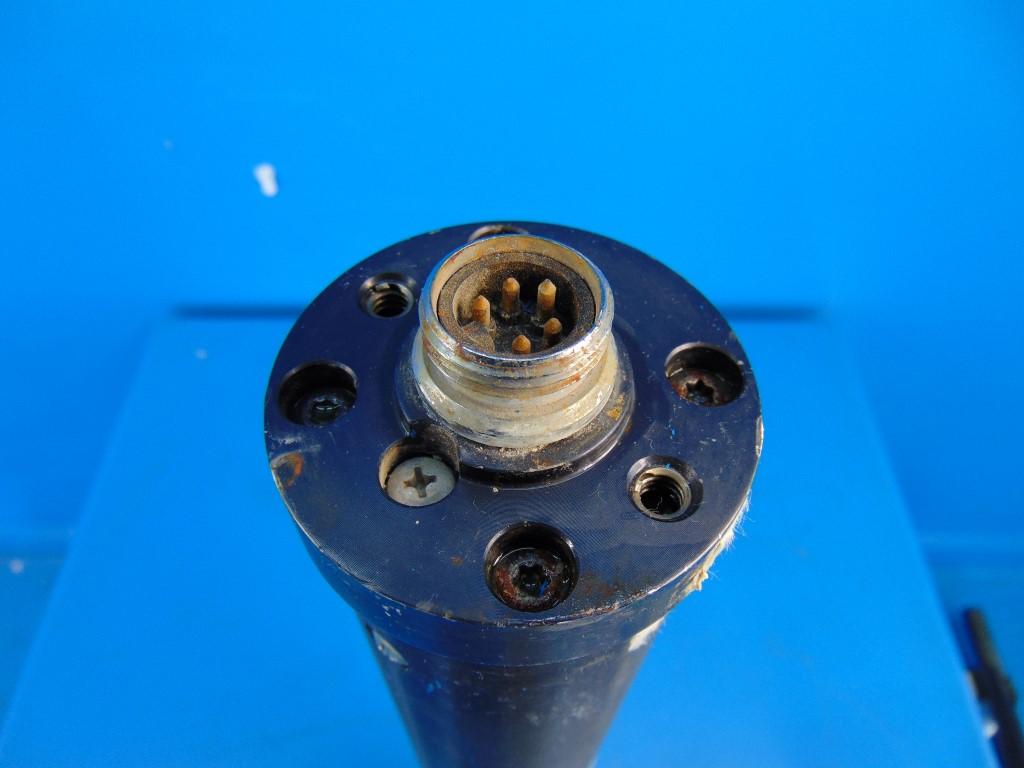

- Cabling: Banner twisted-pair cable only, ordered separately; straight quick-disconnect connector molded on the sensor end; 0.5 in diameter, PVC jacketed, 16-gauge conductors; available in 25, 50, 100 and 150 ft; total emitter plus receiver cable length must not exceed 175 ft
- Compatible Corner Mirror: MGM18A, 24 in (610 mm) reflective area, for use with MGE/MGR1816A
- Safety Qualification: FMEA (Failure Mode and Effects Analysis) tested per the requirements of the proposed first edition of UL 491 Standards, Section SA4. Listed Presence Sensing Device LR 41887, 10Y8 SA8959.
- Application Restriction (per the manual): MACHINE-GUARD Systems may not be used as tripping devices to initiate machine motion (PSDI applications) on mechanical power presses, per OSHA regulation
- Spec Basis: Banner Engineering MACHINE-GUARD System Instruction Manual P/N 33130
Specifications
Manufacturer
Banner
Model
MGE1816A
Serial
E1803780
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
26
Width (Inches)
5
Height (Inches)
4
Phase
N/A
Estimated Packaging Weight
4
Estimated Total Weight
10
Asset Number
KSCU / 110 / 60 / 5
