Banner MGR 1816A Beam Array, Machine Guard System MGR1816A
Banner MGR 1816A Safety Barrier Specifications: Type & Range
Machine Guard Fitment for MGR 1816A
1 / 19
+19
+19
1 / 19
| Description | Details |
|---|---|
| Available Quantity | 16 |
| Model | MGR 1816A |
| Condition | Used |
| Manufacturer | Banner |

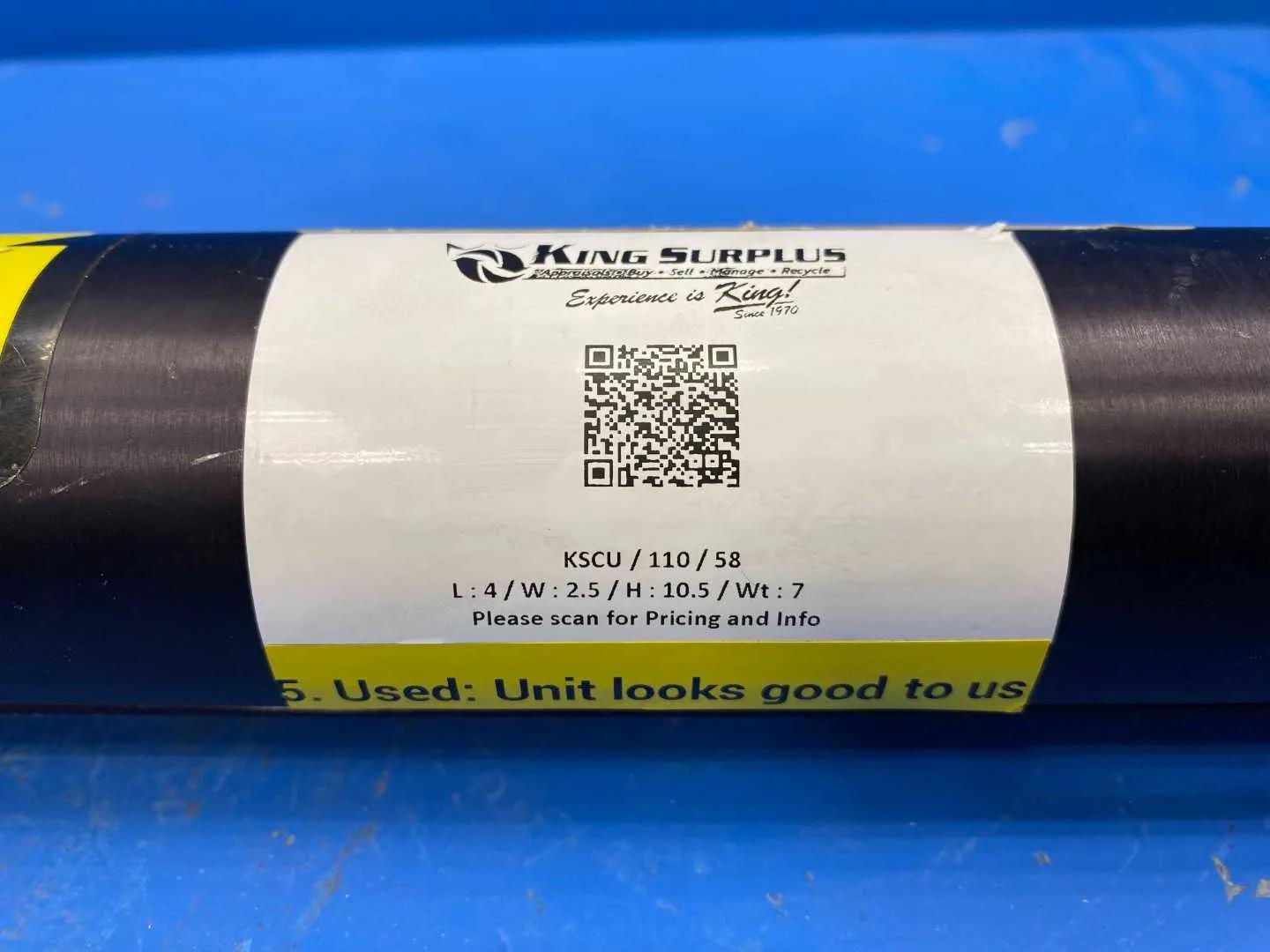

| Asset Number | KSCU / 110 / 58 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.1 Cardboard $10 |
Available Qty: 16
Free Shipping
$99.00
Basic Information
Asset #
KSCU / 110 / 58
Available Quantity
16
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

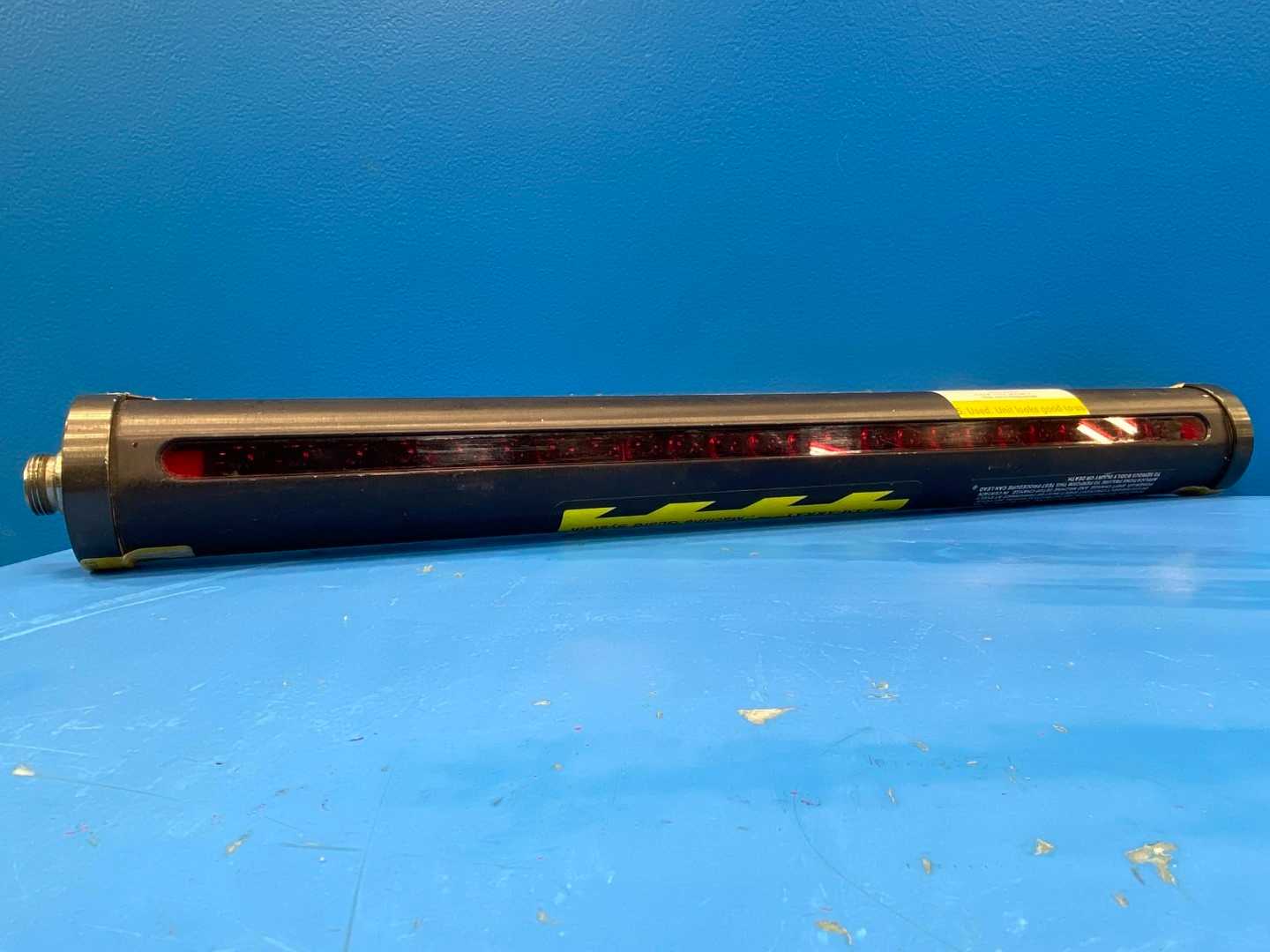

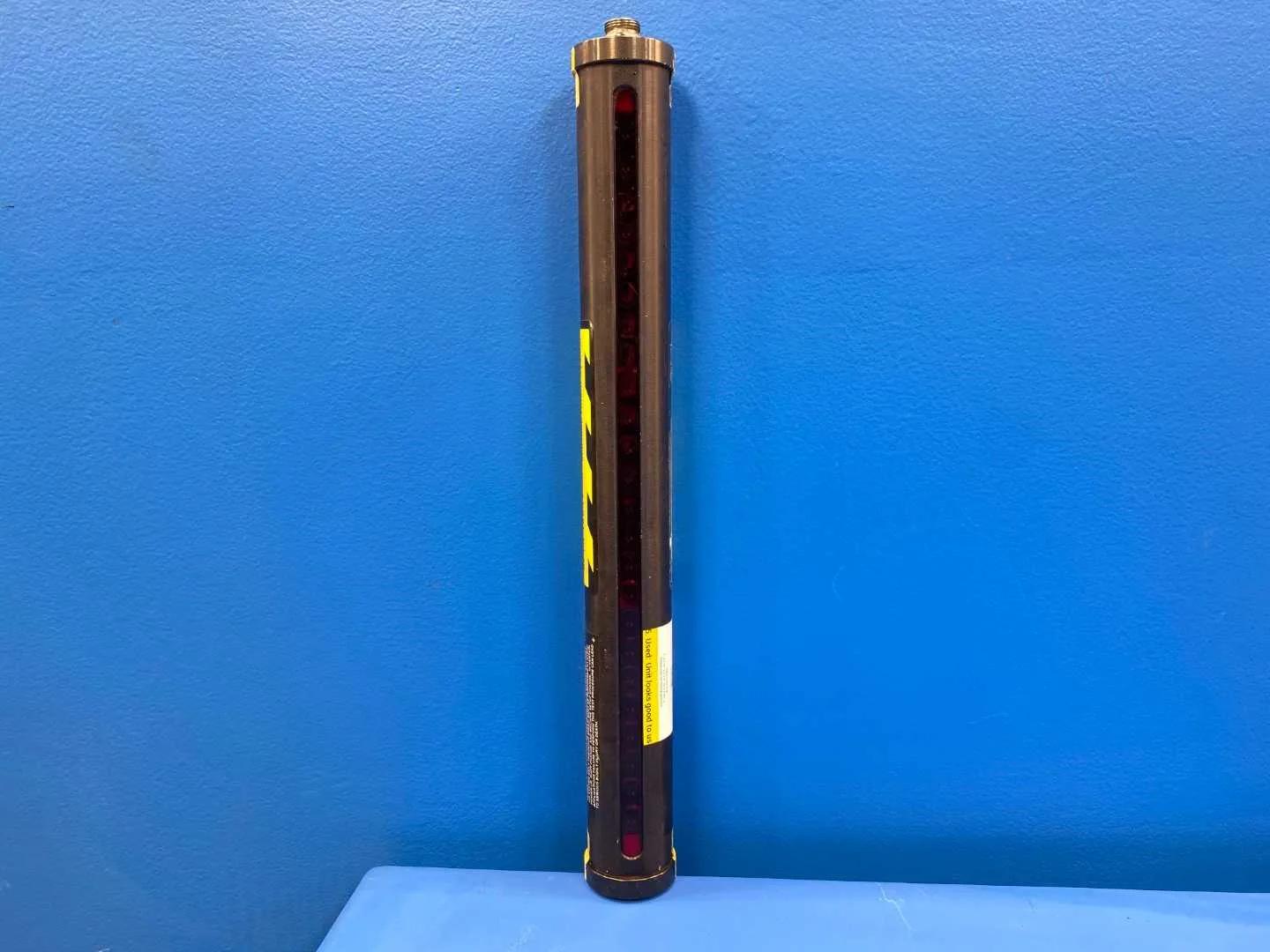

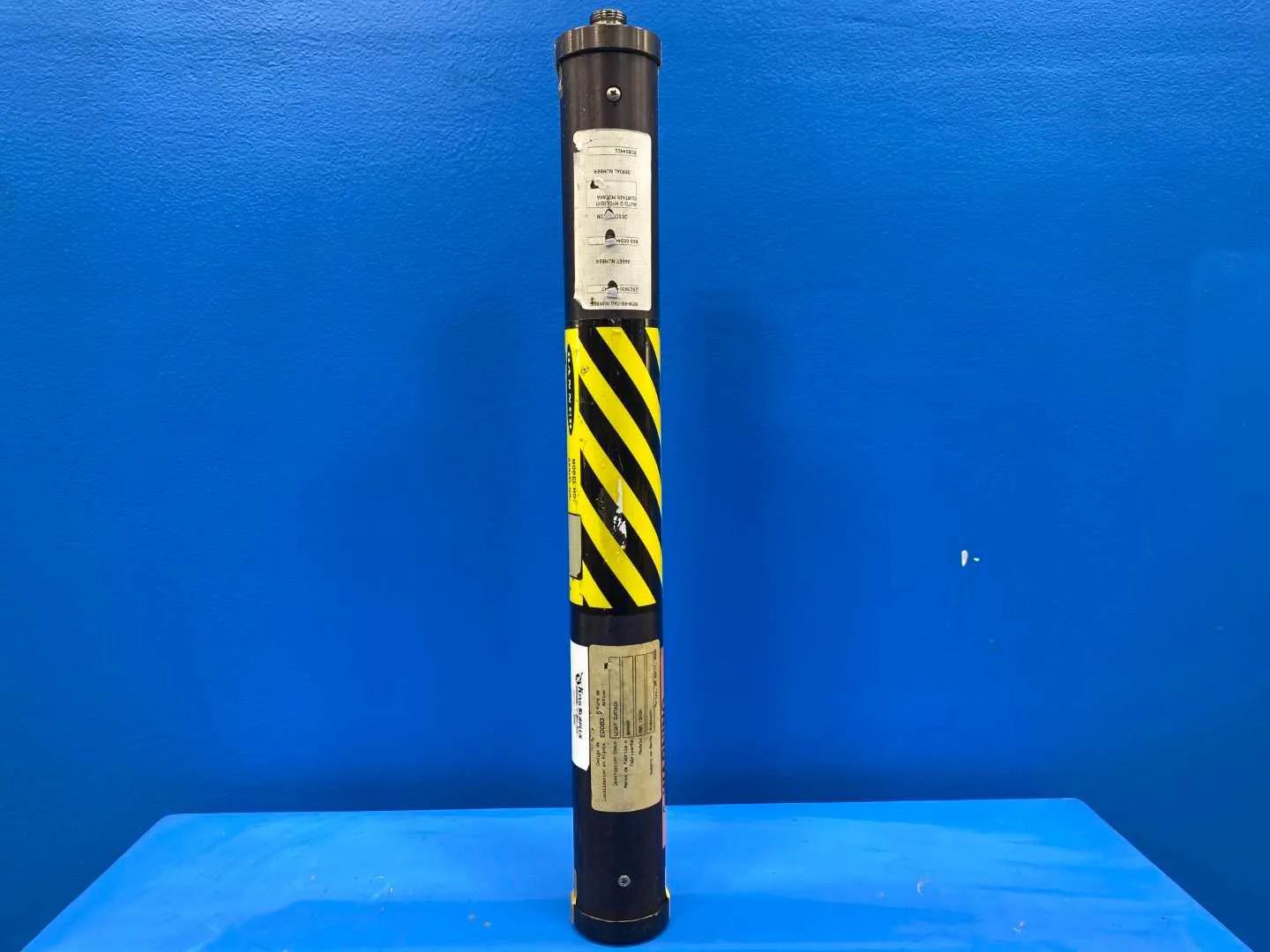

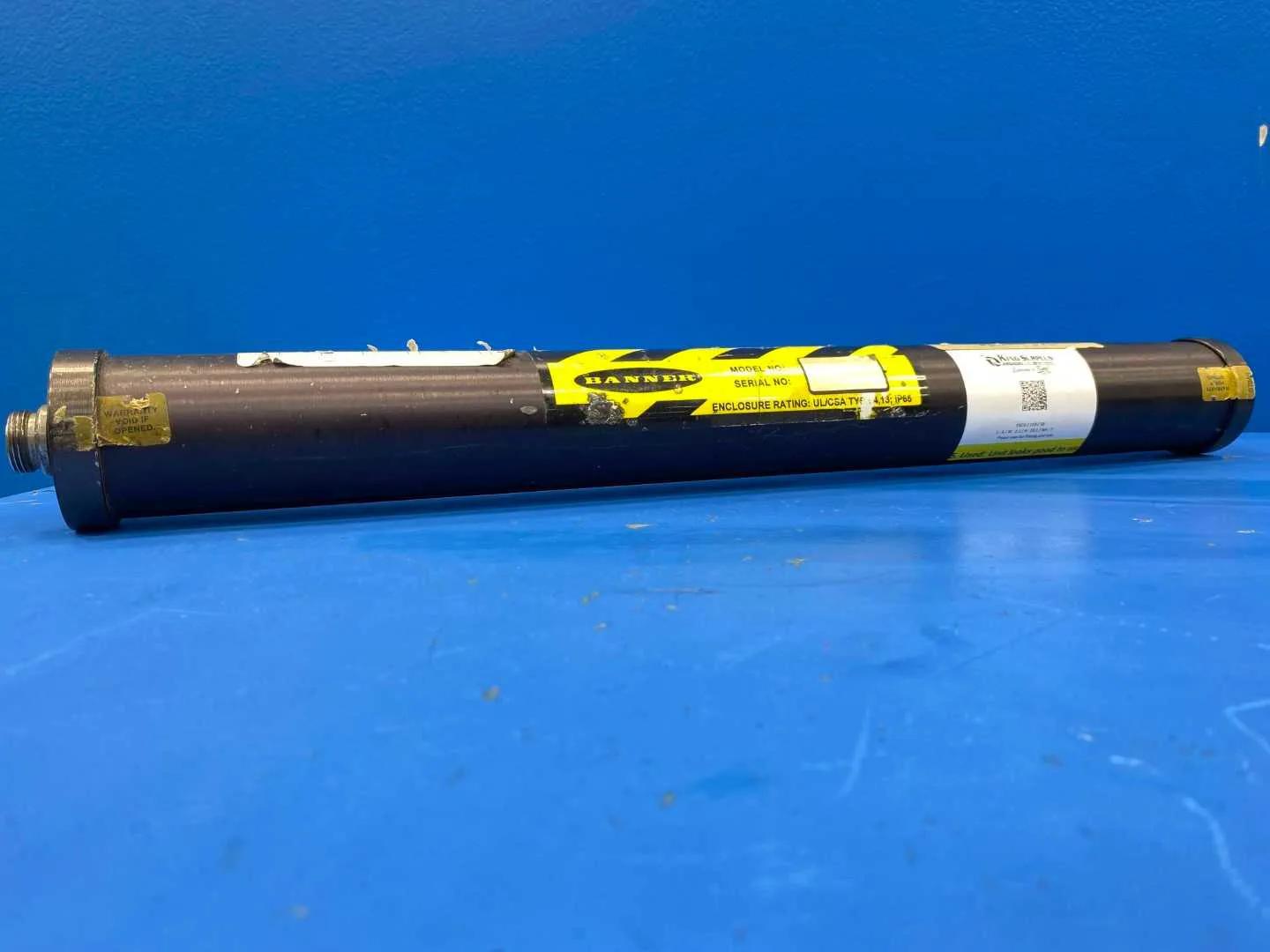

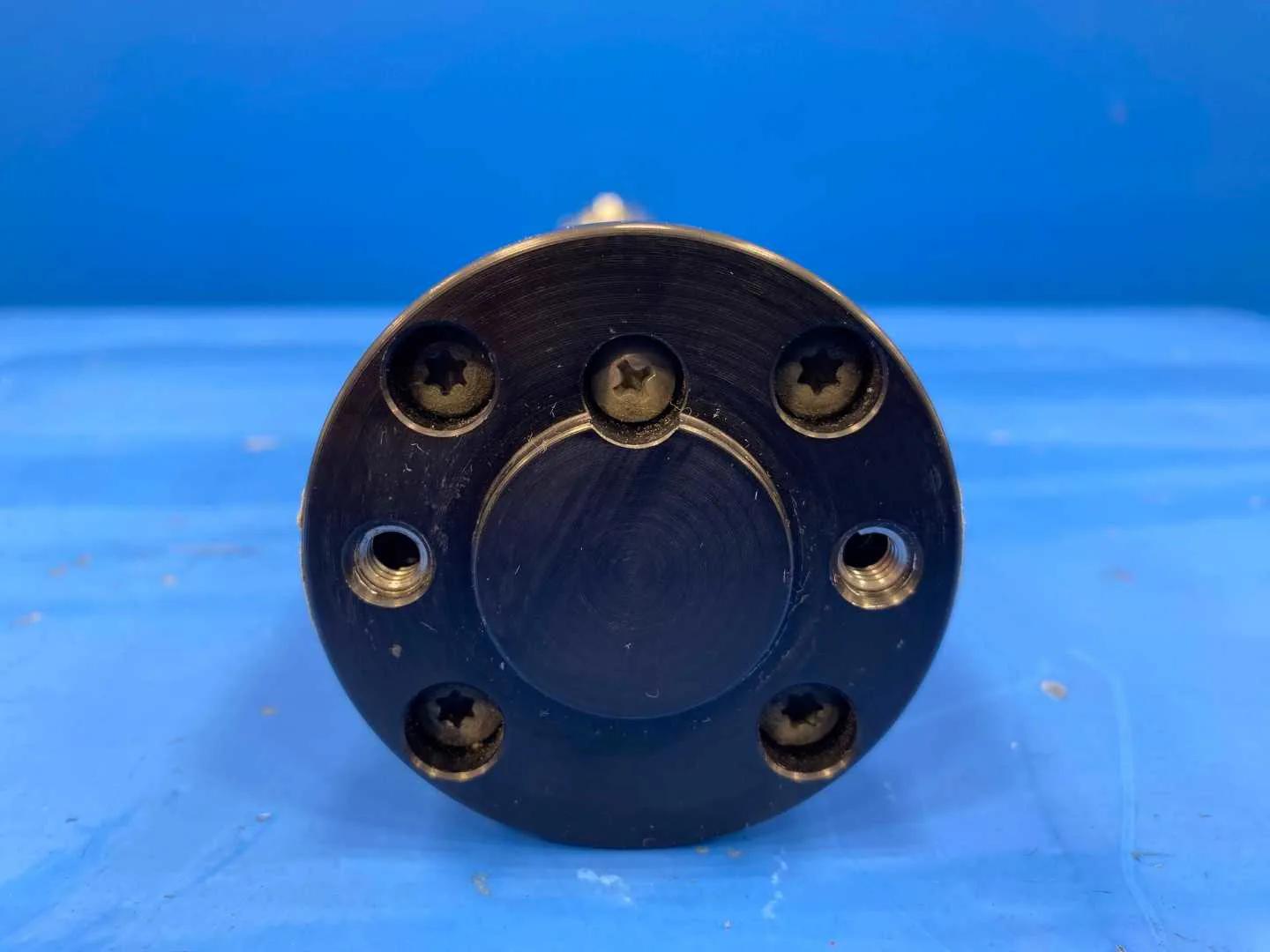

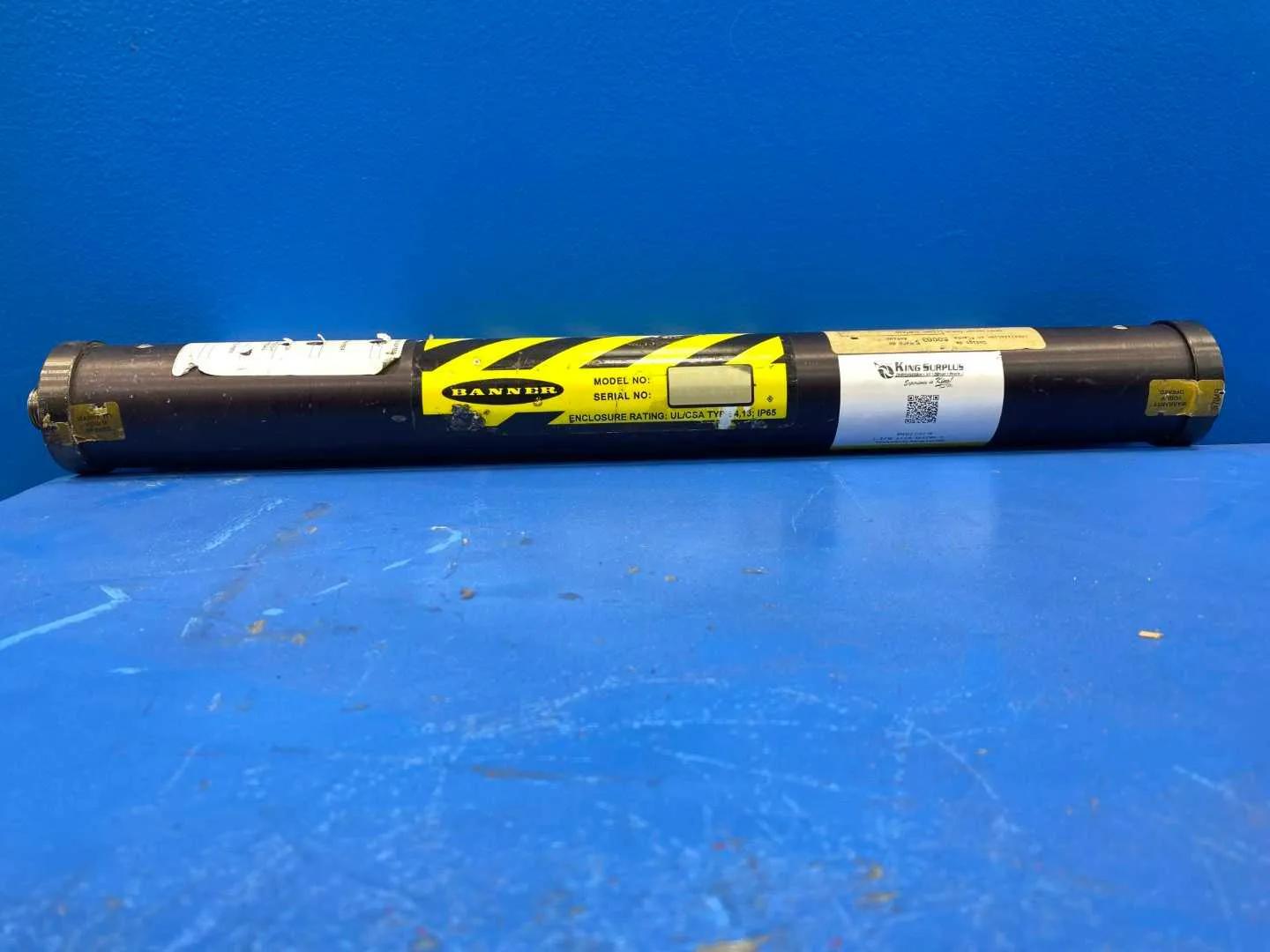

The BANNER Beam Array, Machine Guard System MGR1816A, developed by Banner Engineering Corporation, is a state-of-the-art safety device designed to enhance industrial safety measures.
This product is primarily used in manufacturing and automation industries, safeguarding workers from potential hazards around machinery.
The MGR1816A acts as a protective barrier, utilizing a series of infrared beams to detect the presence of individuals or objects in a designated area. When the beam is interrupted, the system triggers an immediate response, such as stopping machinery to prevent accidents.
One of its standout features is its adjustable sensing range, making it suitable for various applications and environments. Its robust design ensures reliability even in tough industrial settings. The device is easy to install and configure, providing flexibility for different machine layouts and workflows.
Overall, the BANNER Beam Array stands out for its commitment to enhancing workplace safety while maintaining operational efficiency. Its integration into machine systems is crucial for promoting a safer work environment and complying with safety regulations.
Factory Information
- Manufacturer: Banner Engineering Corporation
- Model: MGR1816A
- System: MACHINE-GUARD System
- Type: Safety light curtain RECEIVER unit (beam array). Pairs with the matching MGE1816A emitter of equal length and an MGCA-4A (115V AC) or MGCB-4A (230V AC) control box.
- Height of Defined Area: 18 in (457 mm)
- Beam Spacing: 0.75 in center-to-center between adjacent sensing beams
- Separation Distance (emitter to receiver): 6 in to 45 ft (14 m)
- Width of Defined Area: 6 in (15 cm) minimum; 3x excess gain at 45 ft (14 m), somewhat less when lens shields or corner mirrors are used
- Minimum Object Sensitivity: 1.50 in (38.1 mm), assuming no floating blanking in use
- Light Source: infrared LEDs, 880 nm peak emission (in the paired emitter)
- Response Time: less than 40 ms for emitter and receiver up to 48 in in length
- Self-Checking Interval: 20 ms
- Ambient Light Immunity: greater than 10,000 lux at 5 degree angle of incidence
- Strobe Light Immunity: highly immune to Federal Signal Corp. Fireball model FB2PST strobe
- Mounting Dimensions: L1 = 23.7 in (602 mm), L2 = 21.6 in (549 mm)
- Housing Material: aluminum with black anodized finish; acrylic lens cover

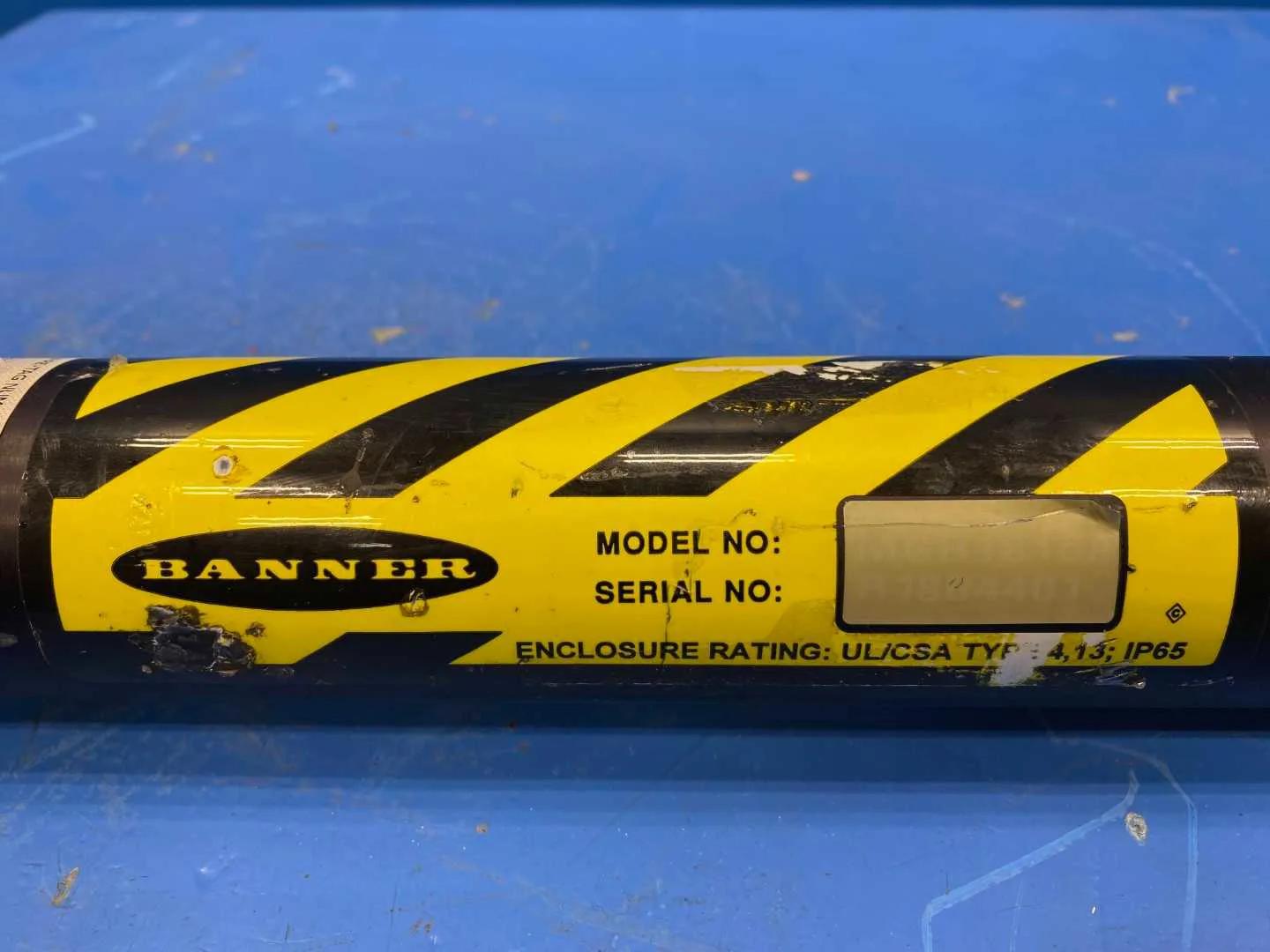

- Enclosure Rating: NEMA 4, 13 (IP 65)
- Operating Temperature: 0 to +50 C (+32 to +122 F)
- Relative Humidity: 95% maximum, non-condensing
- Power: the sensor is powered from the MACHINE-GUARD control box over the sensor cable. It is not a standalone 24V DC device and has no independent supply connection.

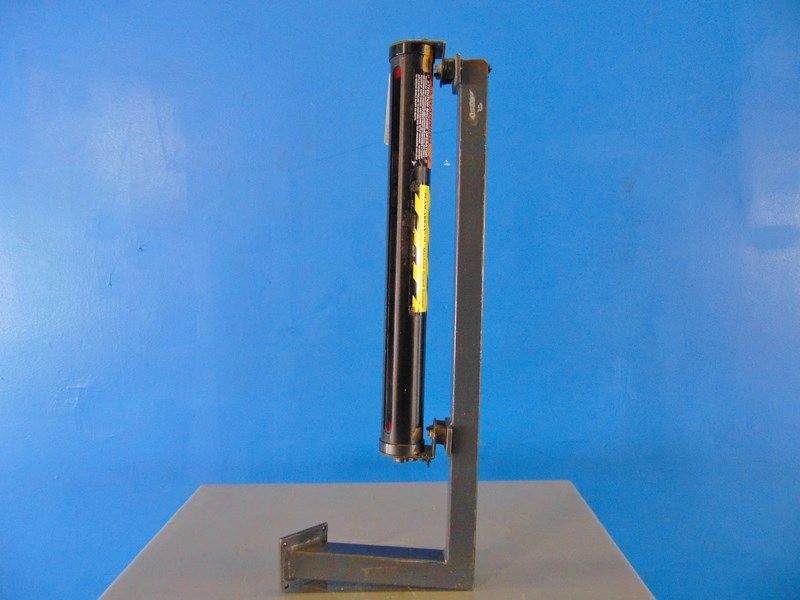

- Mounting Hardware: supplied with a pair of mounting brackets in 11-gauge cold-rolled black zinc chromate finished steel, plus a set of four vibration dampening mounts

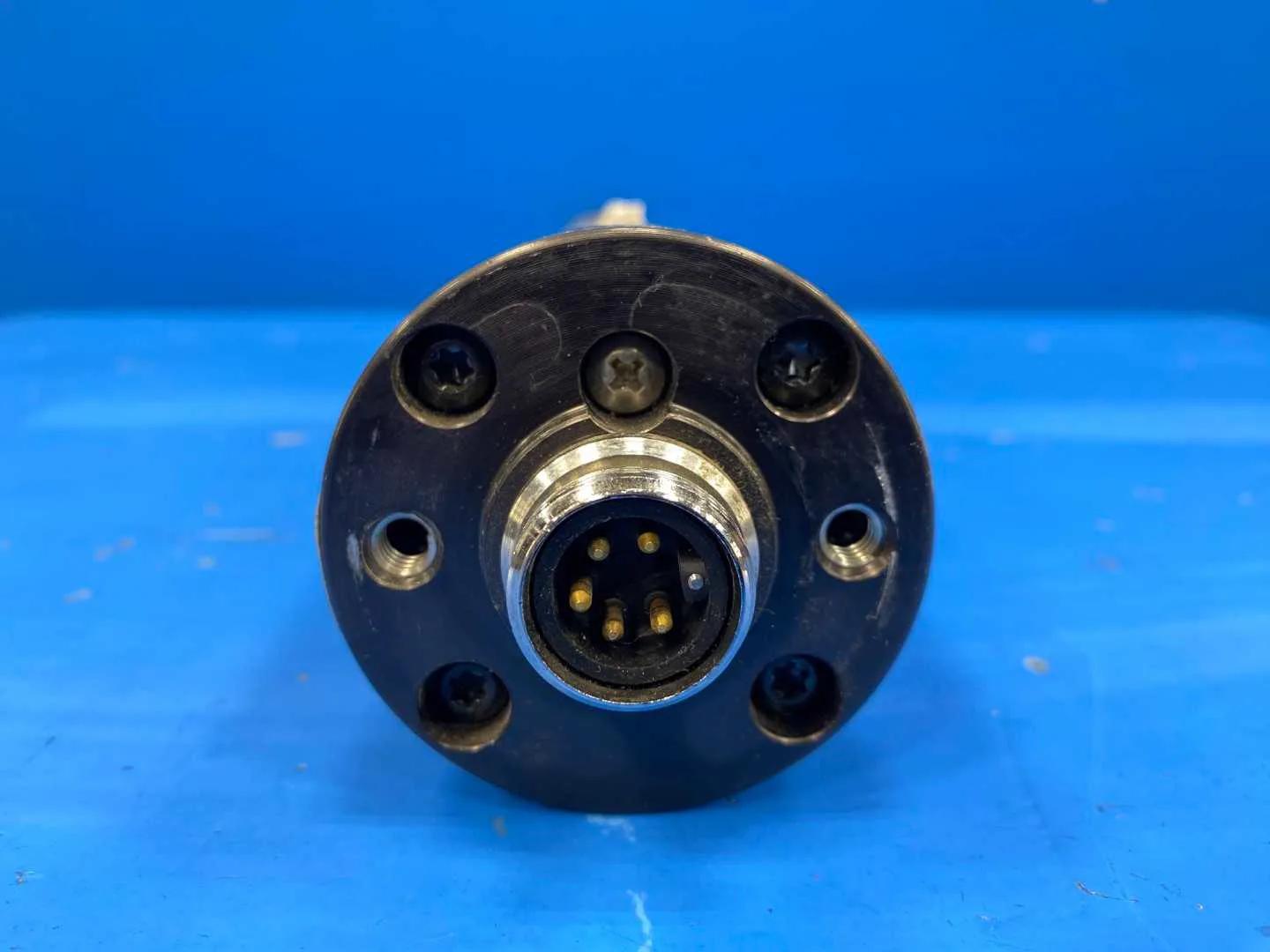

- Cabling: Banner twisted-pair cable only, ordered separately; straight quick-disconnect connector molded on the sensor end; 0.5 in diameter, PVC jacketed, 16-gauge conductors; available in 25, 50, 100 and 150 ft; total emitter plus receiver cable length must not exceed 175 ft
- Safety Qualification: FMEA (Failure Mode and Effects Analysis) tested per the requirements of the proposed first edition of UL 491 Standards, Section SA4. Listed Presence Sensing Device LR 41887, 10Y8 SA8959. This is a legacy system and Banner does not publish an EN ISO 13849 Category or Performance Level rating for it.
- Application Restriction (per the manual): MACHINE-GUARD Systems may not be used as tripping devices to initiate machine motion (PSDI applications) on mechanical power presses, per OSHA regulation
- Spec Basis: Banner Engineering MACHINE-GUARD System Instruction Manual P/N 33130
Specifications
Manufacturer
Banner
Model
MGR 1816A
Serial
301864
Year
N/A
HP / AMP / KW / KVA
N/A
Amps
N/A
Length (Inches)
26
Width (Inches)
5
Height (Inches)
4
Phase
N/A
Estimated Packaging Weight
4
Estimated Total Weight
9
Asset Number
KSCU / 110 / 58
Packaging fees
Packaging Cost
1.1 Cardboard $10
