Chicago Blower 90916-02 Cast Aluminum Centrifugal Blower Wheel, Backward Inclined Blades
Chicago Blower 90916-02 Wheel Specifications: Diameter & Type
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 90916-02 |
| Condition | New |
| Manufacturer | Chicago Blower |
| Asset Number | KSC1290 / 1581 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$359.95
Basic Information
Asset #
KSC1290 / 1581
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

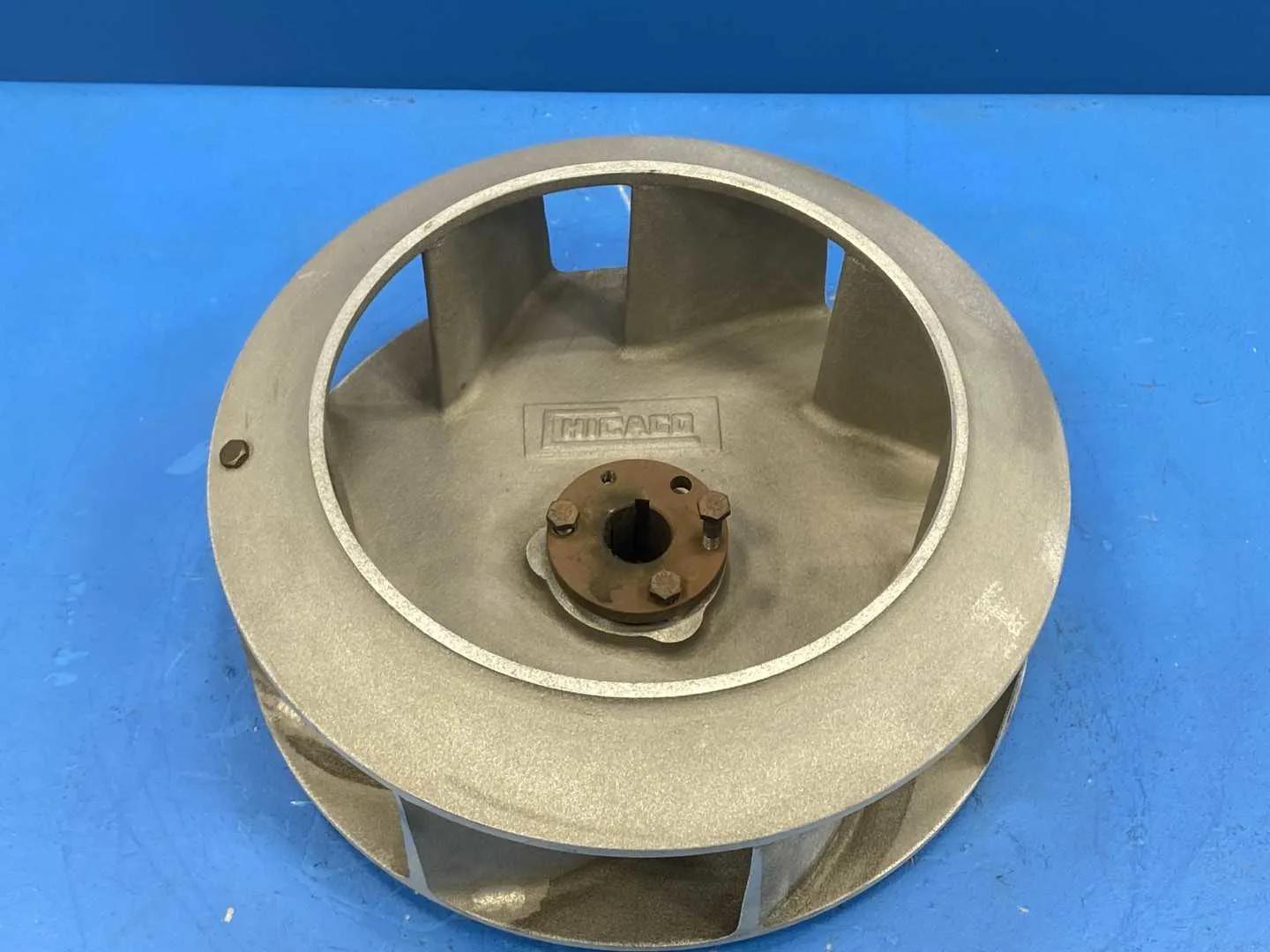

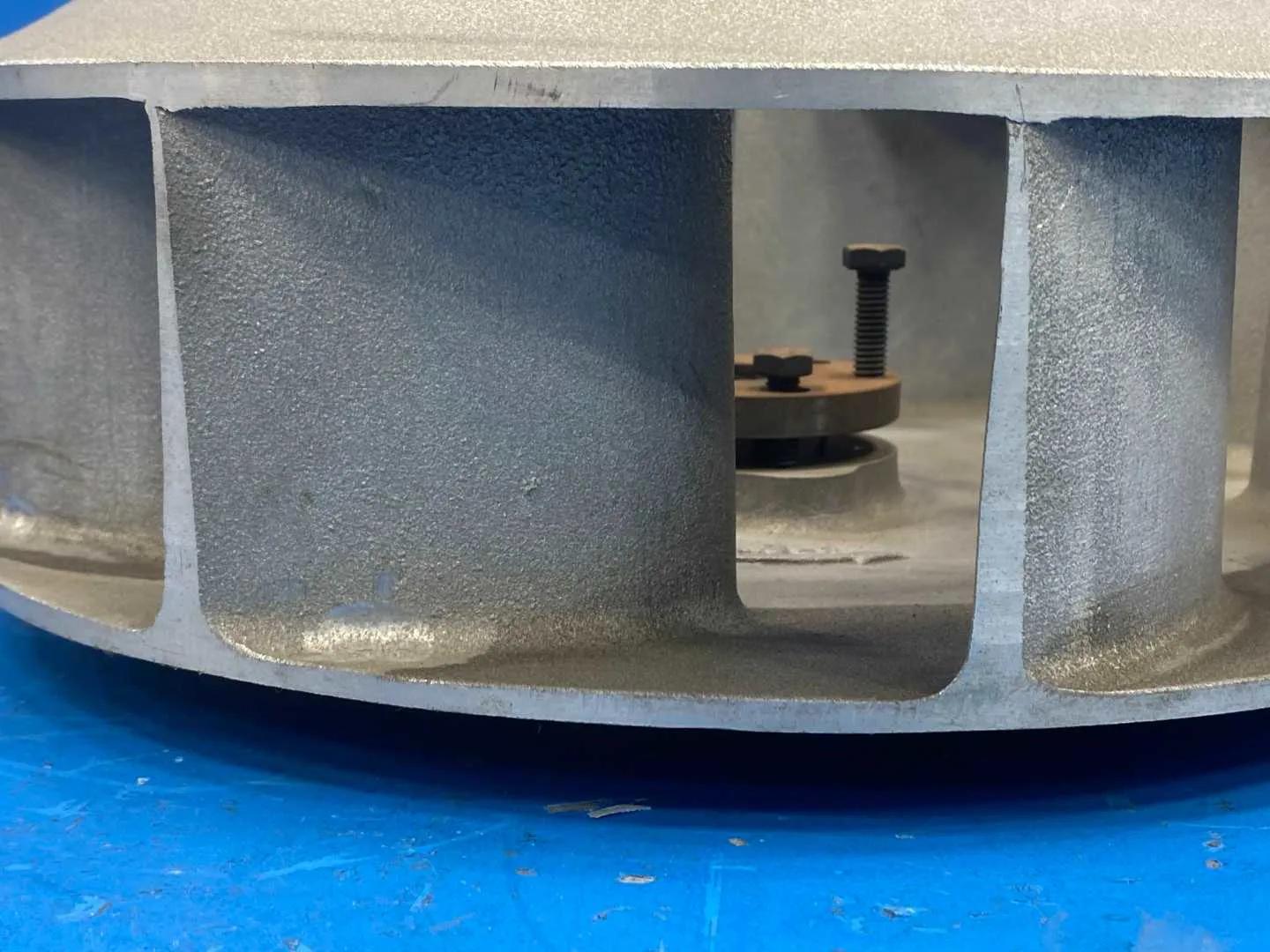

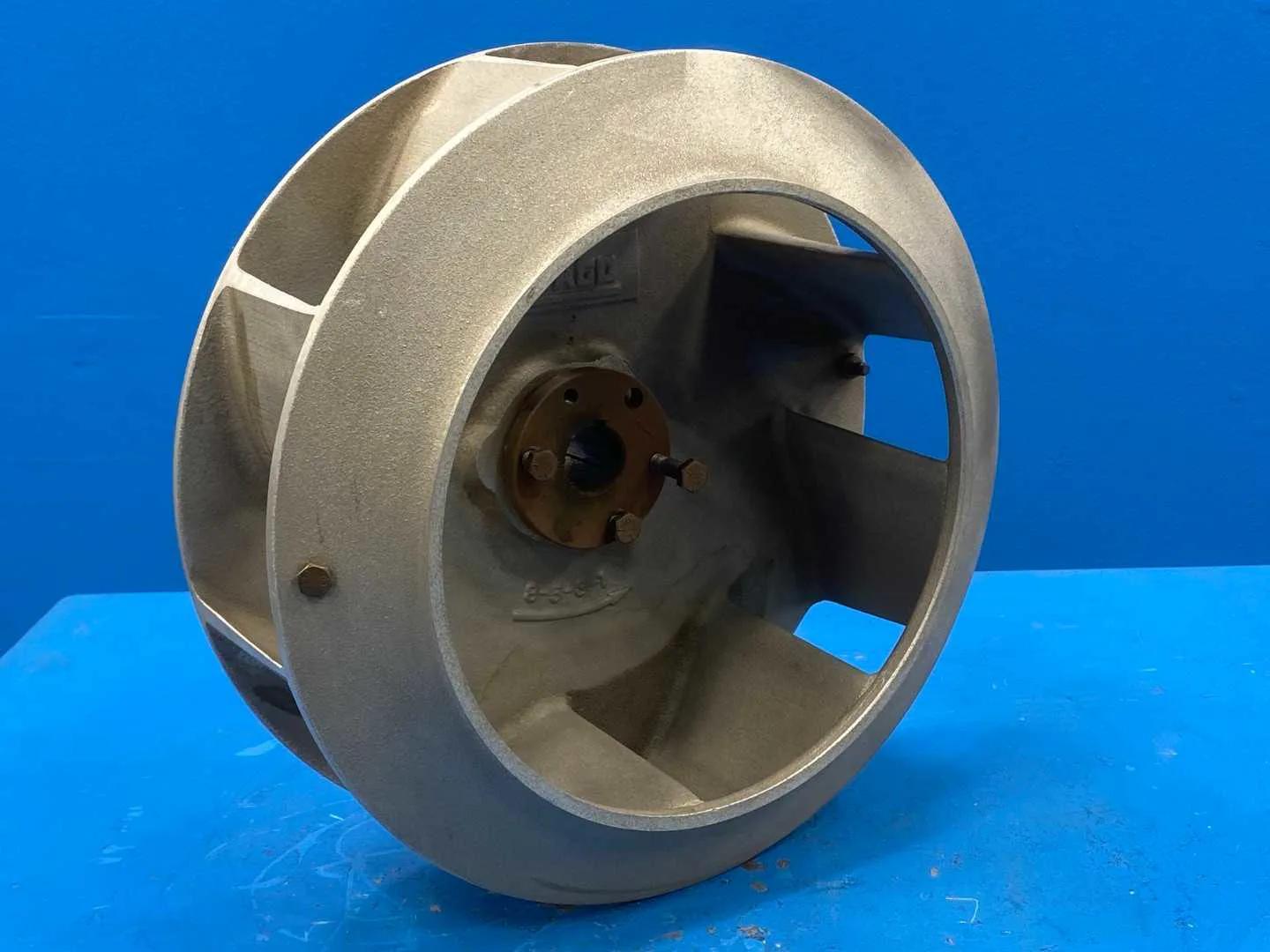

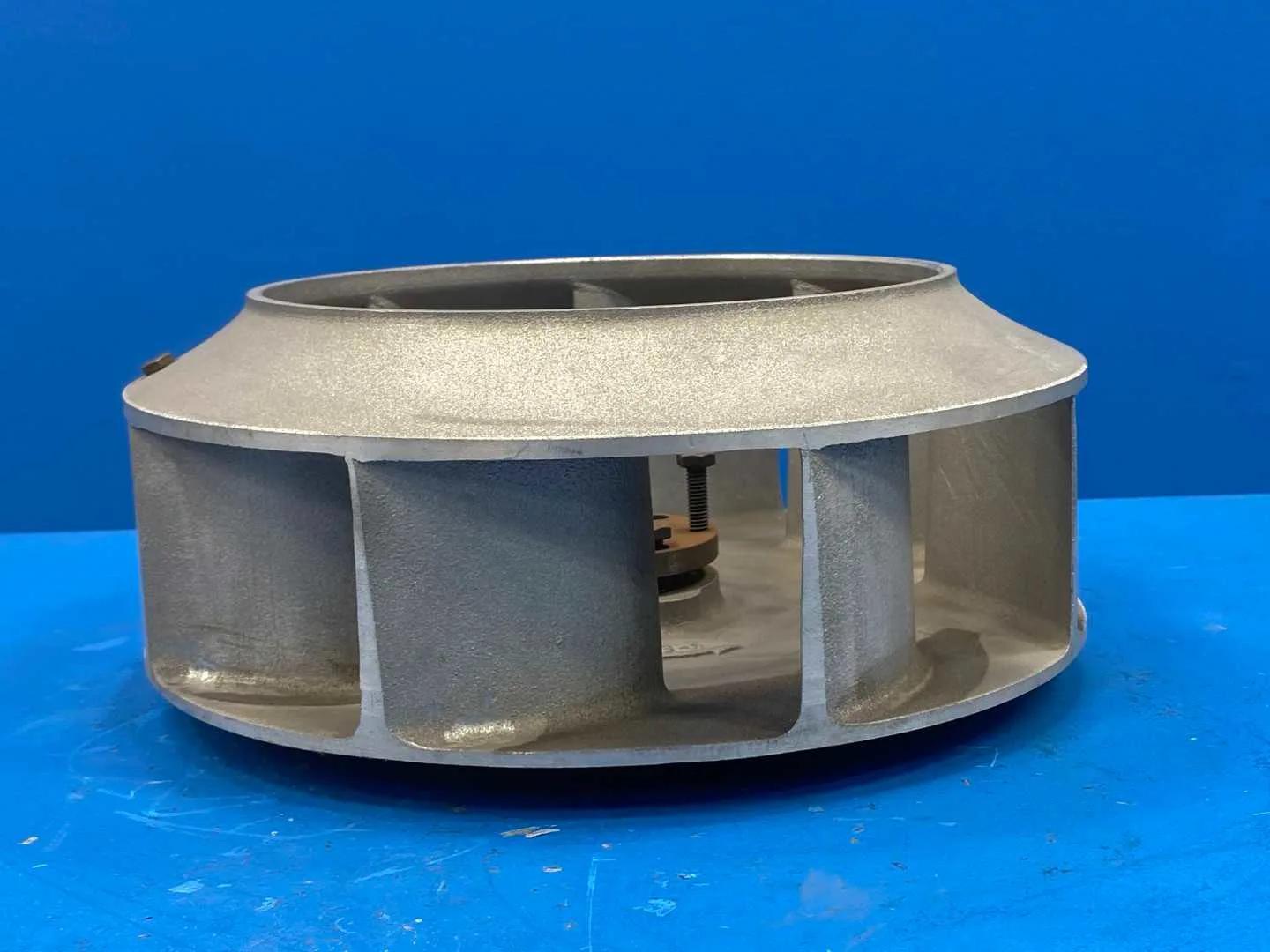

This is a Chicago Blower Corporation replacement fan wheel, part number 90916-02, a cast aluminum centrifugal wheel with backward curved blades. The wheel carries the cast marks CHICAGO and 8-5-3-1. It is listed for the Chicago Blower SQAD series, the company's direct drive version of its Square fan line.
In a direct drive SQAD or SQBD fan the wheel mounts straight onto the motor shaft, with no belts or bearings of its own, which keeps the fan compact. Chicago Blower builds the series in sizes from 8-3/4 to 30, with the SQAD using airfoil blades and the SQBD using backward inclined blades, and it publishes performance to 27,386 CFM and 22 inches water gauge at temperatures up to 180 F. Cast aluminum wheels are offered as an option in the line.
Chicago Blower lists typical SQAD applications as packaged forced air and dust collection systems, pneumatic conveying, pressurizing and aeration installations. OEM equipment builders and plant maintenance departments buy replacement wheels to restore a fan after wheel damage, imbalance or corrosion. Buyers should match the part number, wheel diameter, bore and rotation to their existing fan before ordering.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer Part No.: 90916-02 (record; not marked on part)

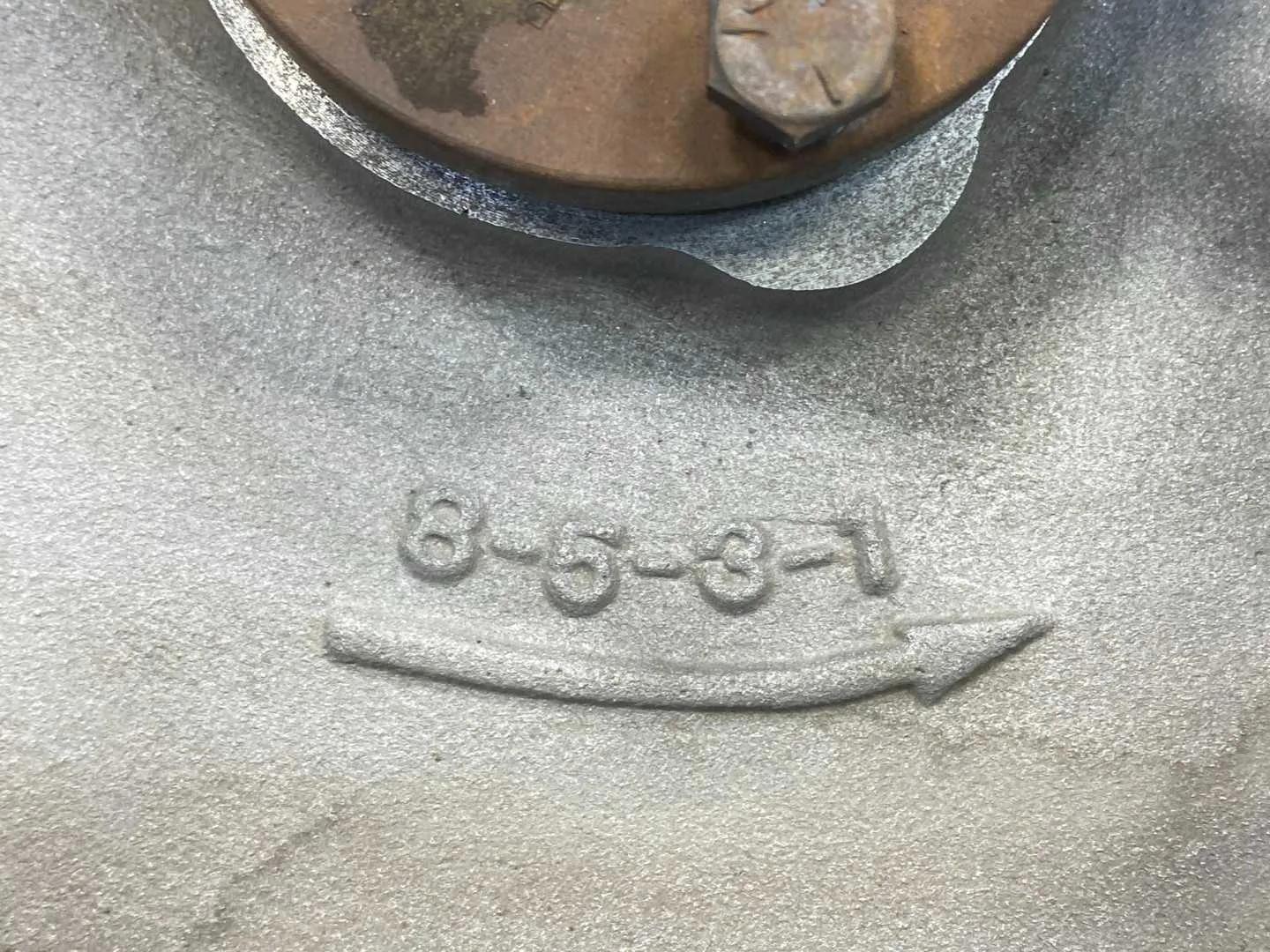

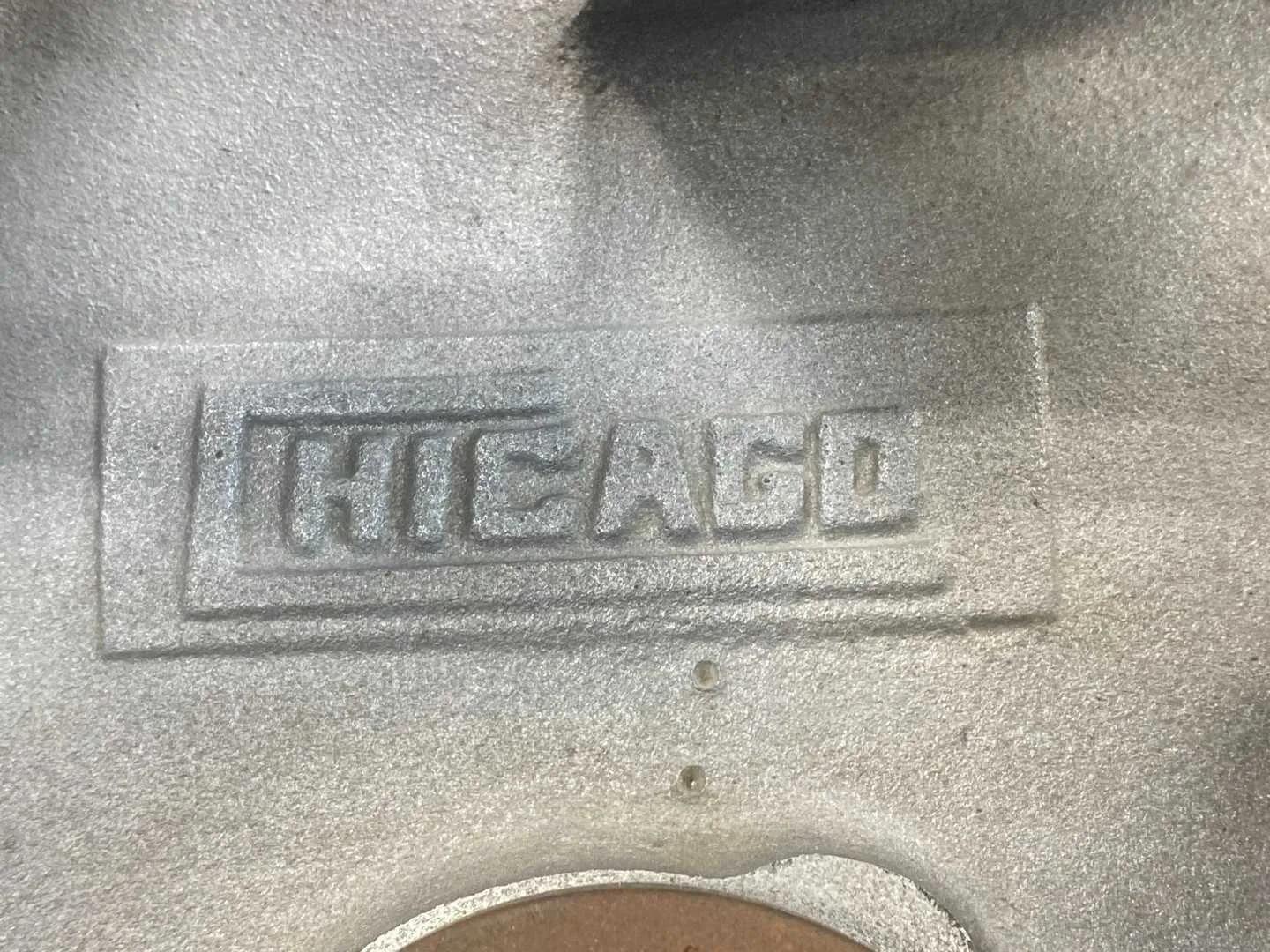

- Part Markings: CHICAGO, 8-5-3-1 (cast or stamped marks on wheel)
- Product: Centrifugal fan wheel, cast aluminum, backward curved blades (per photos and title)
- Series (per title): Chicago Blower SQAD direct drive fan
- SQAD Series Wheel Design: Airfoil blades (SQBD uses backward inclined blades)
- SQAD/SQBD Series Sizes: 8-3/4 to 30
- SQAD/SQBD Series Performance: Volumes to 27,386 CFM, pressures to 22 in wg, maximum temperature 180 F
- SQAD/SQBD Series Arrangement: Wheel mounted directly on motor shaft; cast aluminum wheel offered as an option
- FLAG for review: 90916-02 fit to SQAD not confirmed by a Chicago Blower document; SQAD is listed as airfoil while title says backward curved.
- Spec Basis: part photos; Chicago Blower SQAD/SQBD Direct Drive Fans page https://www.chicagoblower.com/Products/Airfoil-Fans/SQAD-SQBD-Direct-Drive-Fans. No published datasheet found for 90916-02 itself.
Specifications
Chicago Blower
90916-02
N/A
N/A
N/A
N/A
14
14
6
N/A
2
14
KSC1290 / 1581
Packaging fees
1.6 6x10 CH $3.00
