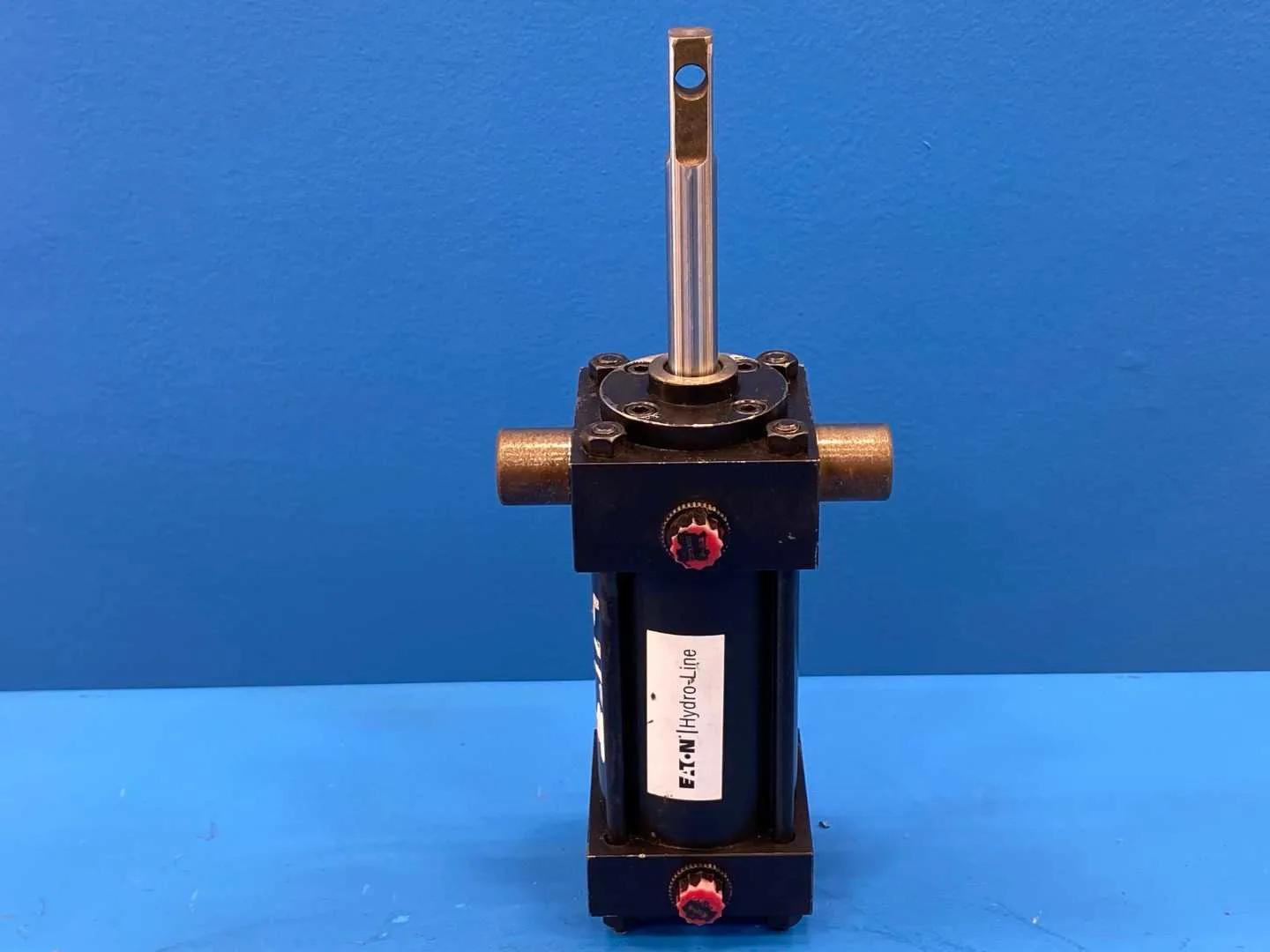

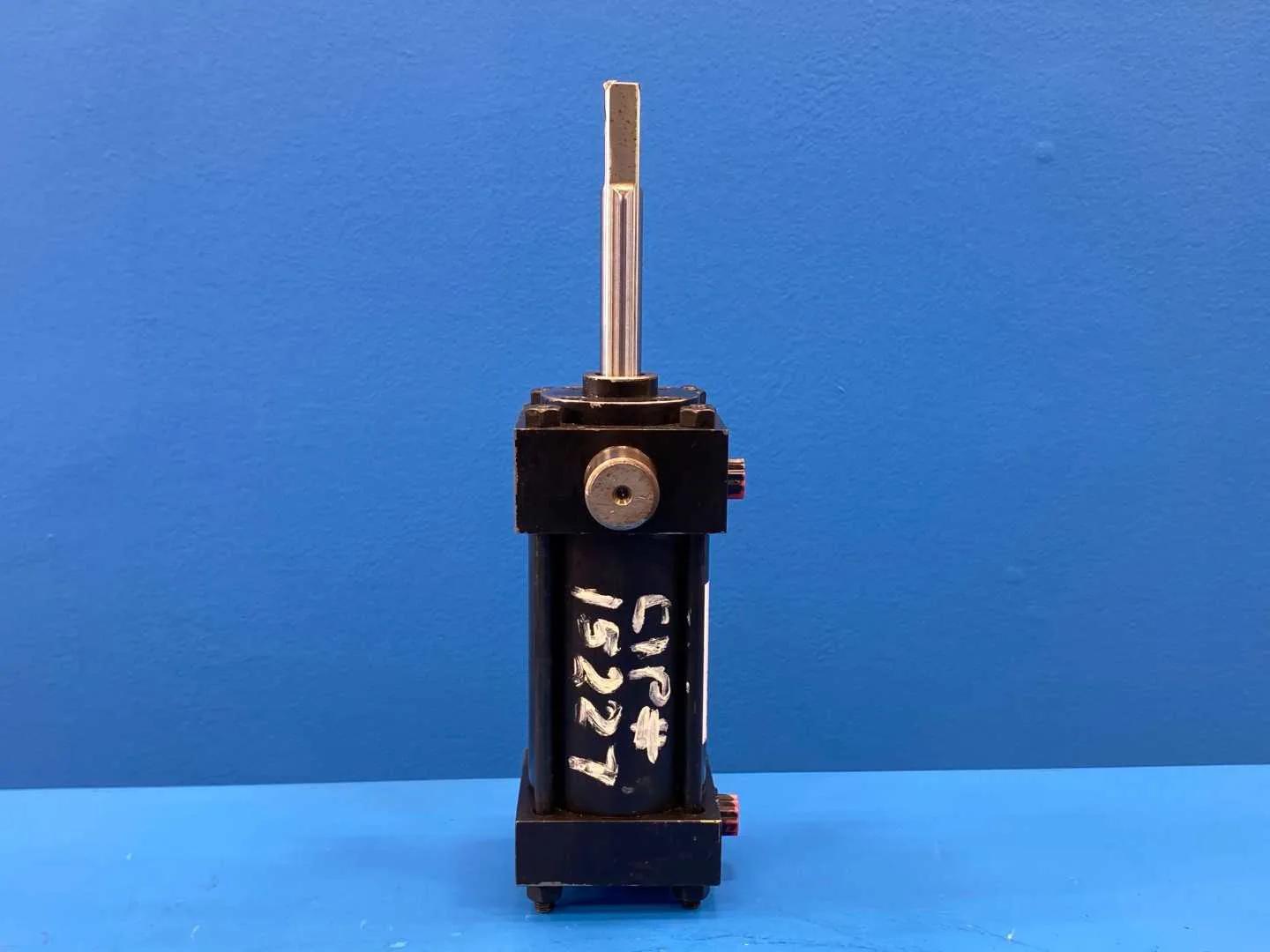

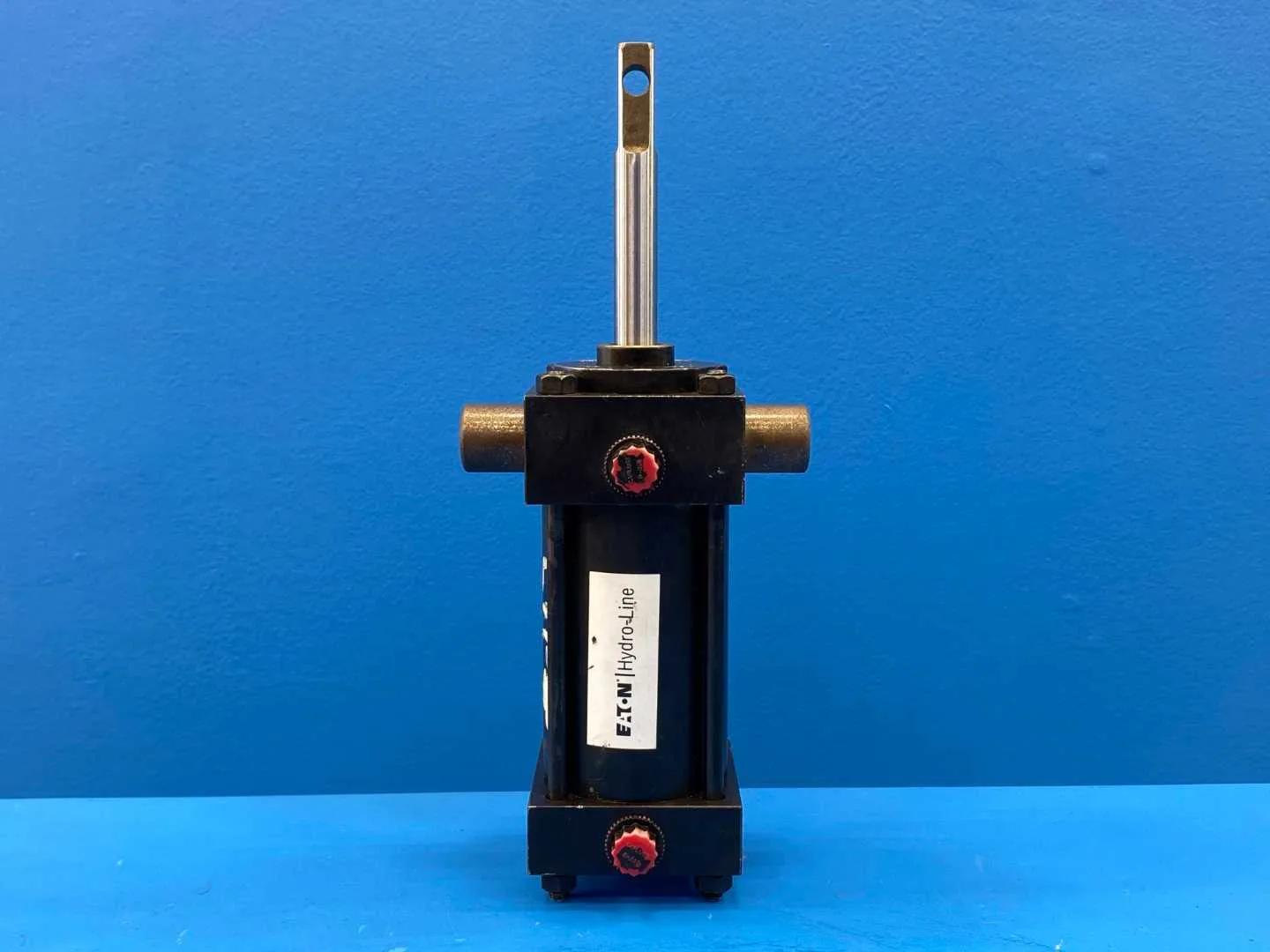

Eaton Hydro-Line HB100Z0 R5U-2.5X3 Pneumatic Tie Rod Cylinder, 2.5 in Bore x 3 in Stroke, Trunnion Mount, 250 PSI
HB100Z0 Cylinder Specifications: Bore, Stroke & Mounting
Air System Fitment for Eaton HB100Z0
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | HB100Z0 |
| Condition | New |
| Manufacturer | Eaton |
| Asset Number | KSC1290 / 1395 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$39.95
Basic Information
Asset #
KSC1290 / 1395
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
This is a Hydro-Line R5 series tie rod cylinder, nameplate model HB100Z0 with the full model code R5U-2.5X3-N-0.63-5-N-N-N-1-1 and a 250 PSI rating. Hydro-Line was an Eaton brand and is now part of Danfoss Power Solutions.

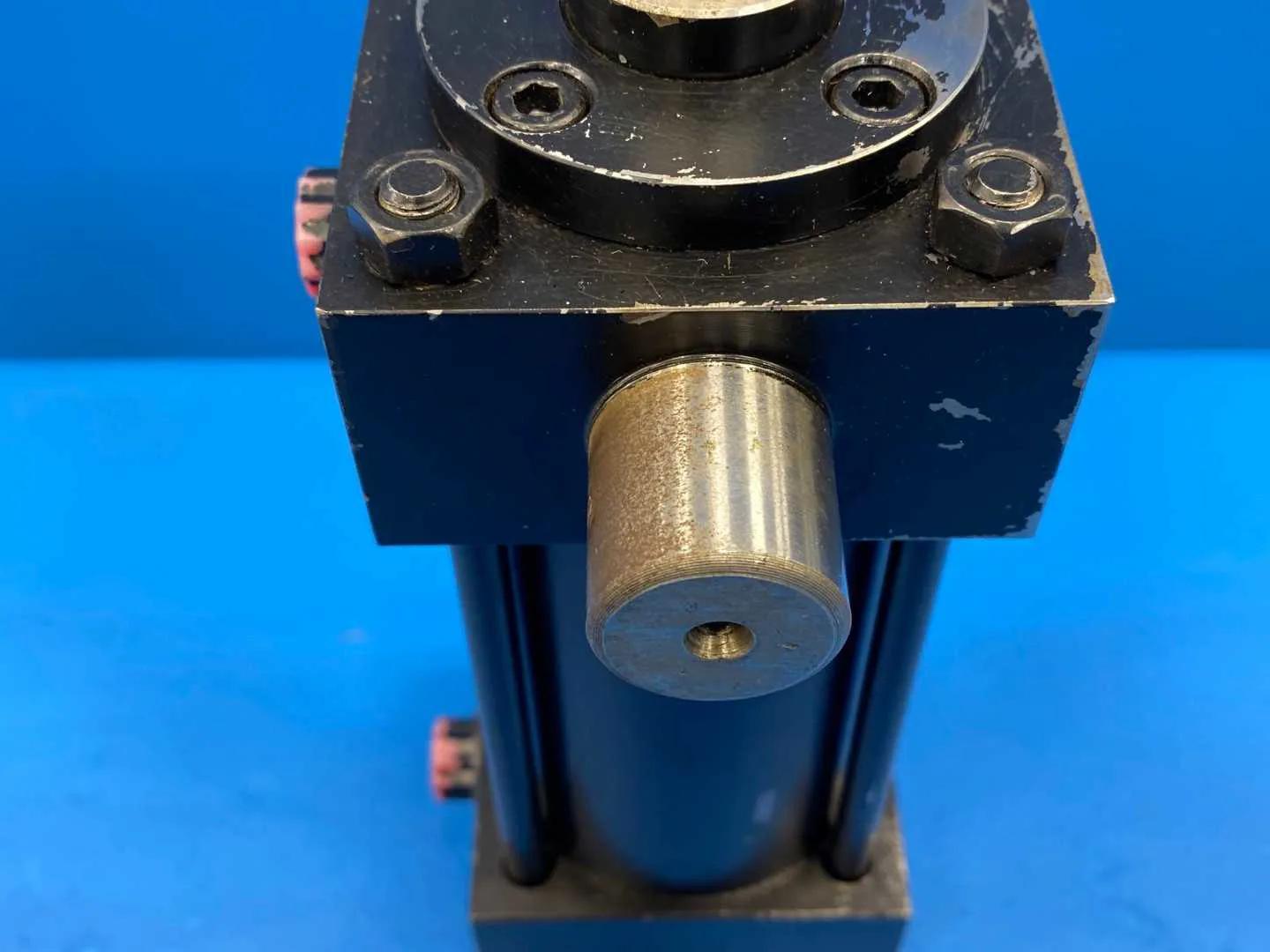

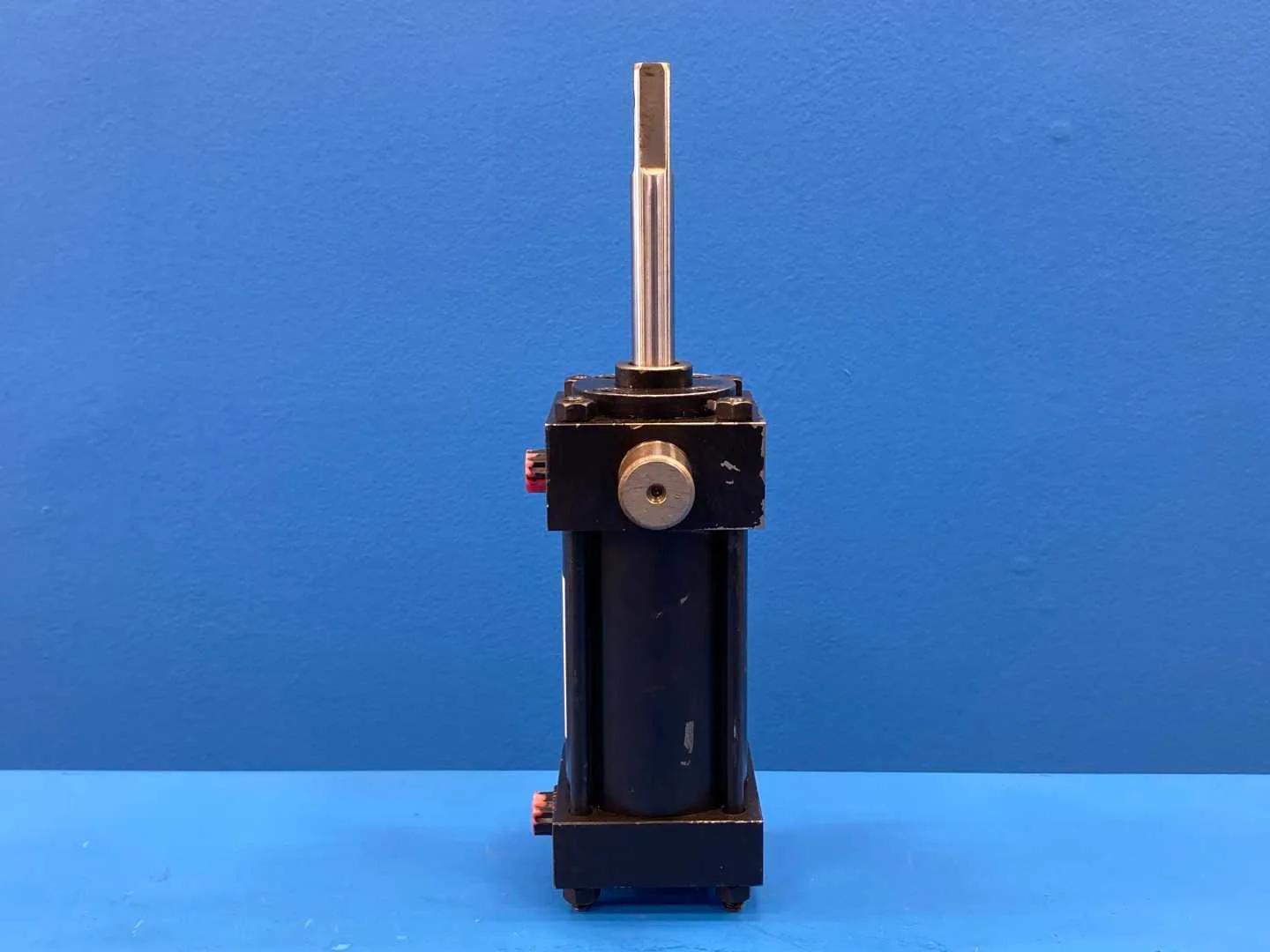

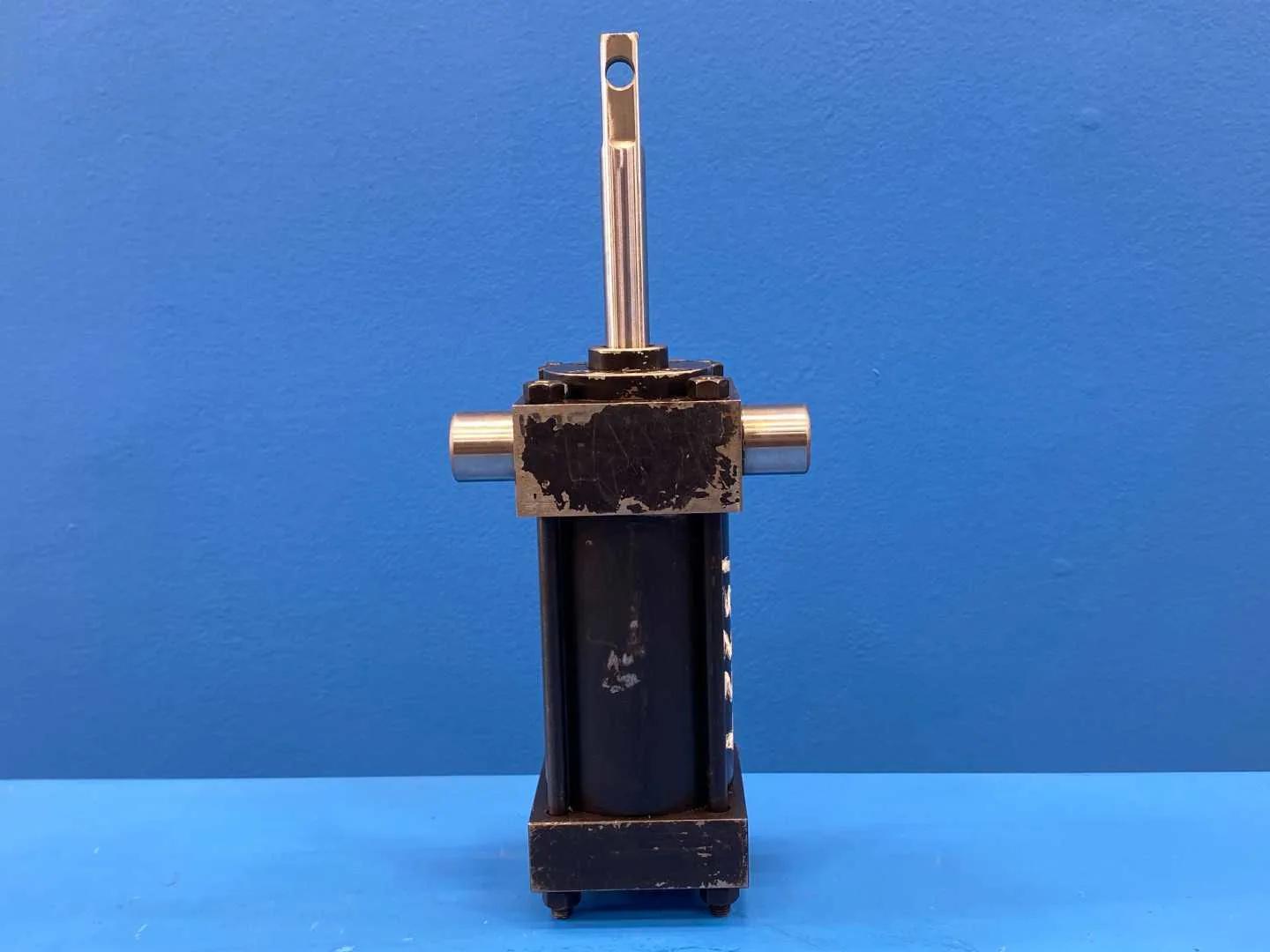

The R5 series is an NFPA interchangeable tie rod cylinder line. In the Hydro-Line catalog, R5 designates the 250 psi pneumatic version, while HR5 is the hydraulic version. The model code describes this unit: U is the head trunnion mount (NFPA style MT1), 2.5X3 is a 2.5 inch bore with a 3 inch stroke, and 0.63 is the rod diameter code. A head trunnion mount lets the cylinder pivot at the rod end, so it suits loads that travel in an arc, such as clamps, doors, gates and lever arms.
NFPA interchangeable mounting dimensions mean an R5 cylinder can generally replace another manufacturer's NFPA cylinder of the same bore, stroke and mount. Machine builders and plant maintenance departments use these cylinders on packaging, material handling and automation equipment.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Model (nameplate): HB100Z0

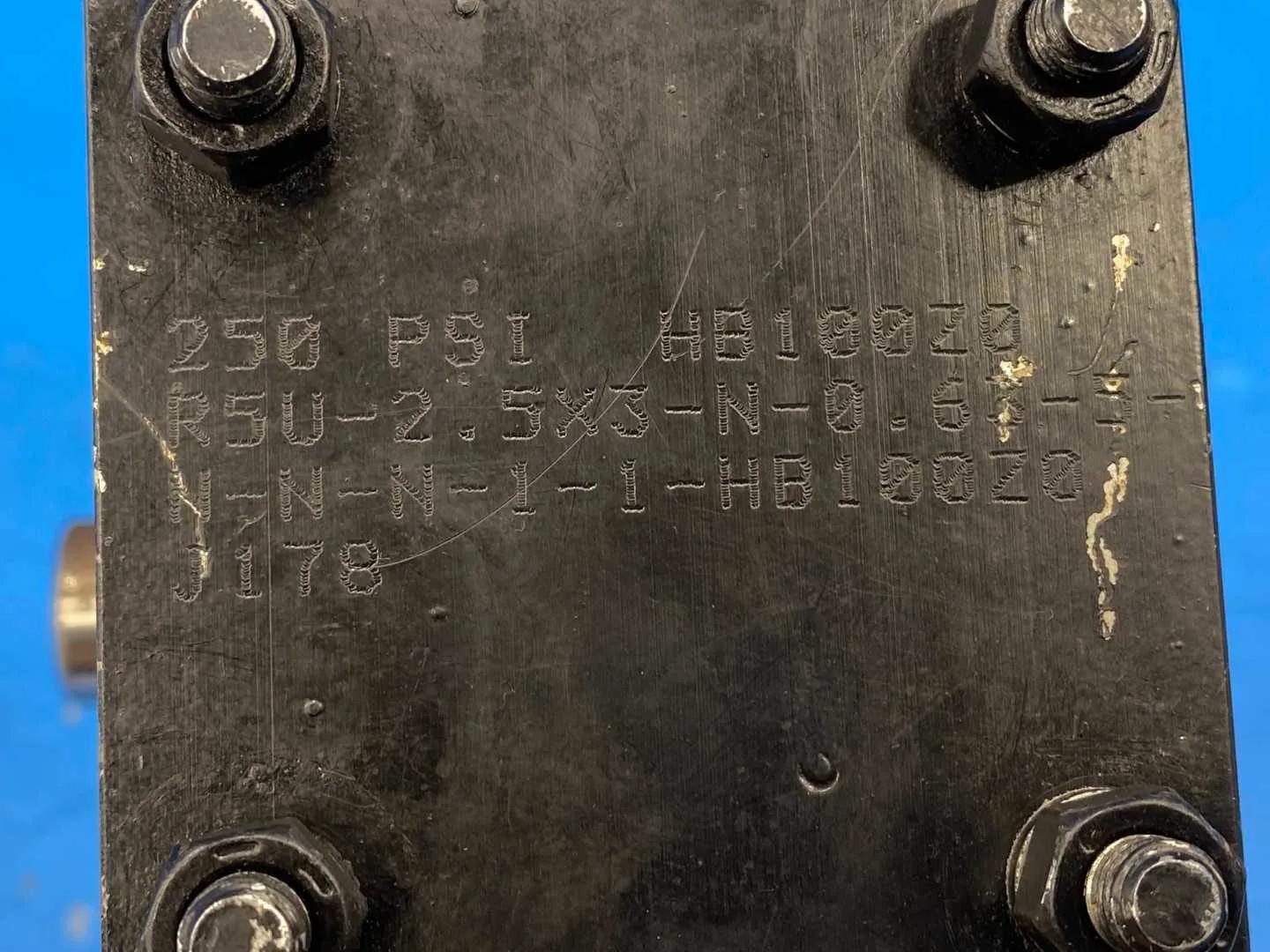

- Model code: R5U-2.5X3-N-0.63-5-N-N-N-1-1-HB100Z0 J178 (nameplate partly obscured; full code per record)
- Series: Hydro-Line R5, NFPA interchangeable tie rod cylinder

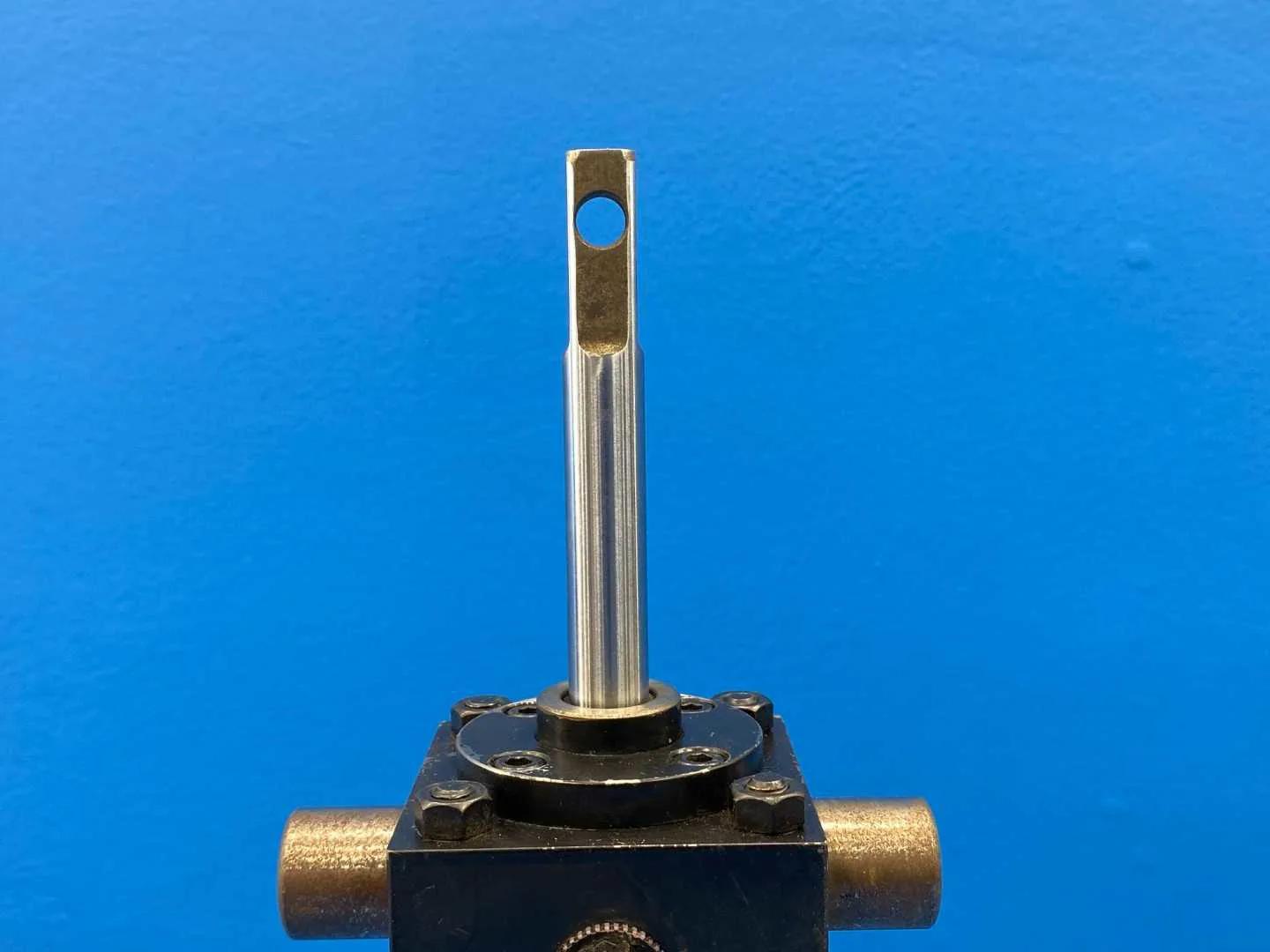

- Mounting: U = Head Trunnion Mount (NFPA Style MT1)
- Bore: 2.5 in (model code)
- Stroke: 3 in (model code)

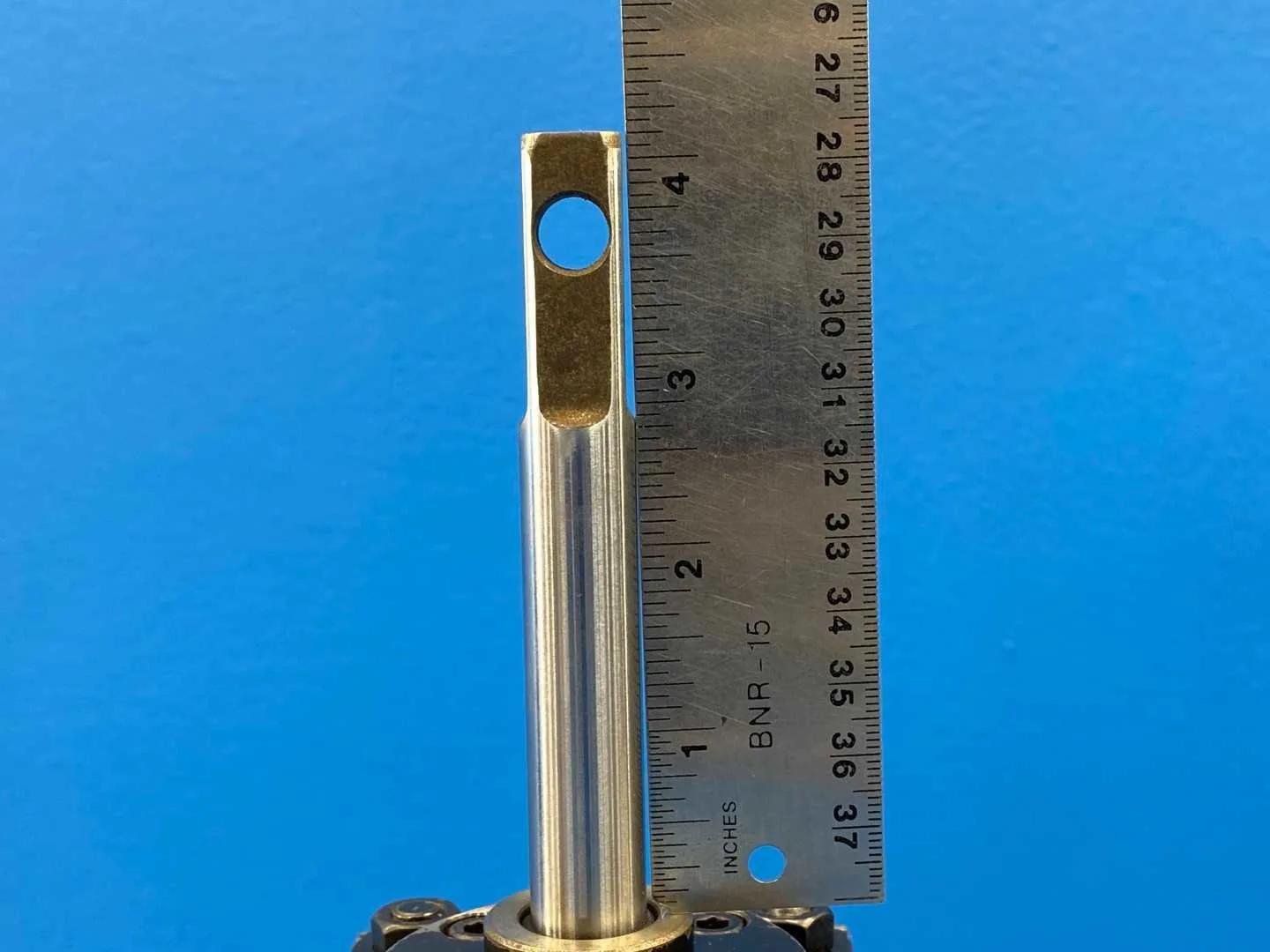

- Rod diameter code: 0.63 in
- Pressure (nameplate): 250 PSI
- R5 catalog rating: 250 psi pneumatic, nominal
- Standard temperature range (R5 catalog): -40 F to 200 F
- R5 standard construction (catalog): nitrile lip type rod seal, nitrile double lipped rod wiper, nitrile lip type piston seals, chrome plated tube I.D., NPTF ports
- Spec Basis: nameplate photo; Danfoss Hydro-Line R5/A5 Series Cylinder Catalog, R5 Specifications and Mounting Application Data, https://assets.danfoss.com/documents/latest/484344/BC458077111658en-000102.pdf. FLAG for review: catalog defines R5 as pneumatic (HR5 is hydraulic); record category is Hydraulic Cylinder
