Flexline 316 Stainless Steel Braided Metal Hose Assembly with 316 SS Female Swivel Fittings
X6 Series Hose Specifications: Diameter & Pressure
System Fitment for Flexline X6 Series
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | X6 Series |
| Condition | New |
| Manufacturer | Flexline |
| Asset Number | KSC1290 / 2058 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$99.95
Basic Information
Asset #
KSC1290 / 2058
Available Quantity
1
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

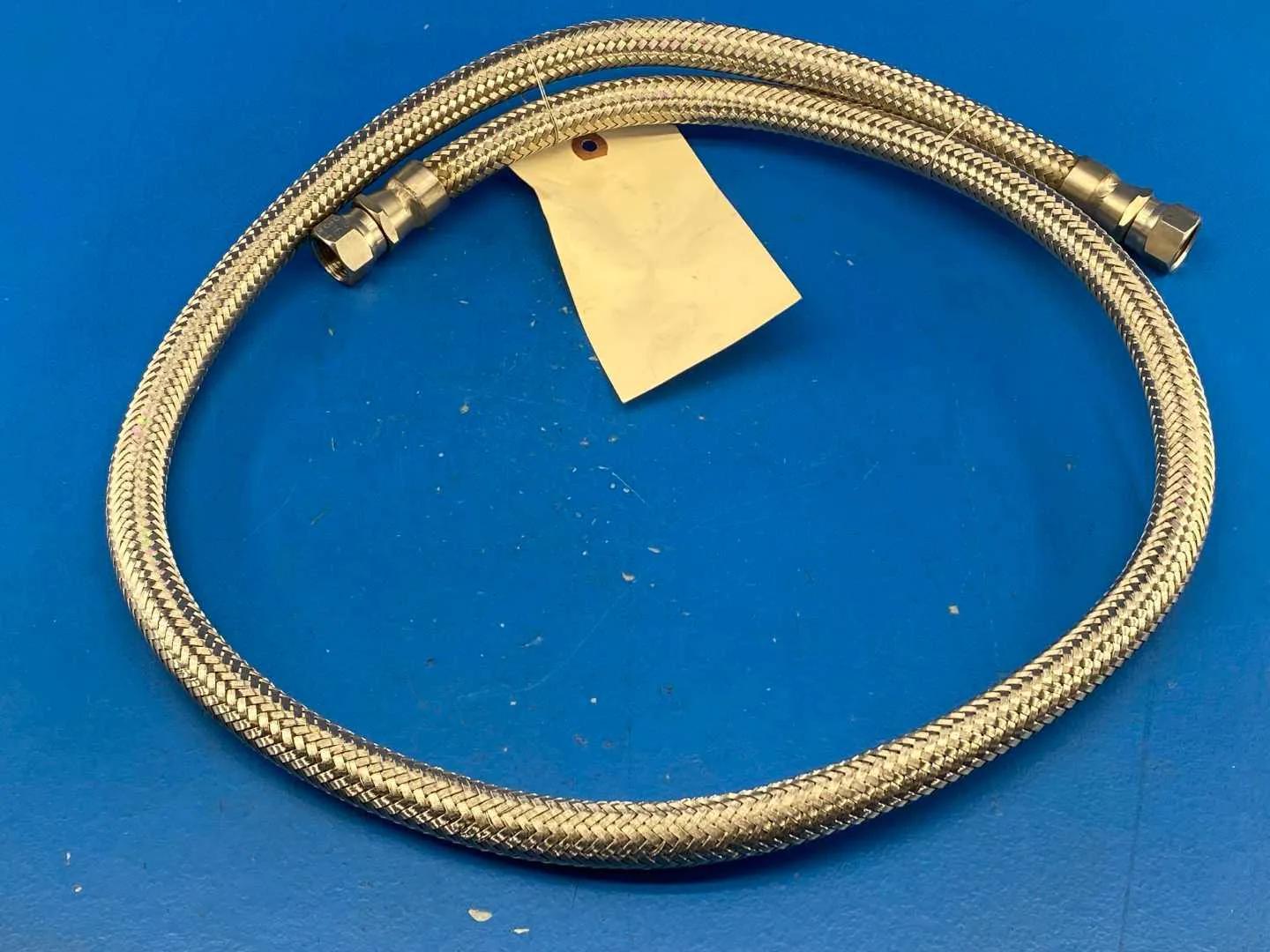

This is a Flexline corrugated stainless steel braided metal hose assembly recorded as X6 series, Flexline's ultra high pressure 316 hose. Flexline builds specialty hose assemblies in stainless steel, PTFE, silicone and rubber for OEM, aerospace, distribution and industrial customers.
Flexline describes the X6 series as 316 stainless hose with 316 braid, using a heavy wall core and triple braid for 6000 psi working pressure applications. Published X6 sizes run from 1/4 inch ID, rated 6000 psi with 24000 psi burst, to 3/4 inch ID, rated 5000 psi with 20000 psi burst, and all sizes are rated for full vacuum. Flexline states the pressure ratings from cryogenic -320 F to +90 F.
Hose of this class is used where elastomer or single braid hose cannot hold the pressure or temperature, such as high pressure gas and hydrogen lines, cryogenic transfer, hydraulic test stands, gas cylinder and manifold connections, and high pressure process equipment. The 316 stainless construction also suits corrosive and high purity service. The size and end fittings on this assembly should be confirmed against the system it will serve.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Corrugated stainless steel metal hose assembly, ultra high pressure
- Series: Flexline X6 (per record; series not marked in photos)
- X6 Construction: 316 stainless hose and 316 braid, heavy wall, triple braid, for 6000 psi working pressure applications
- X6-4: 1/4 in ID, 0.681 in OD, 6000 psi MAWP, 24000 psi burst, 4.5 in minimum bend radius
- X6-8: 1/2 in ID, 1.045 in OD, 6000 psi MAWP, 25000 psi burst, 14 in minimum bend radius
- X6-12: 3/4 in ID, 1.65 in OD, 5000 psi MAWP, 20000 psi burst, 15 in minimum bend radius
- Vacuum Rating: 29.90 in Hg
- Pressure Rating Temperature Basis: rated from cryogenic -320 F to +90 F

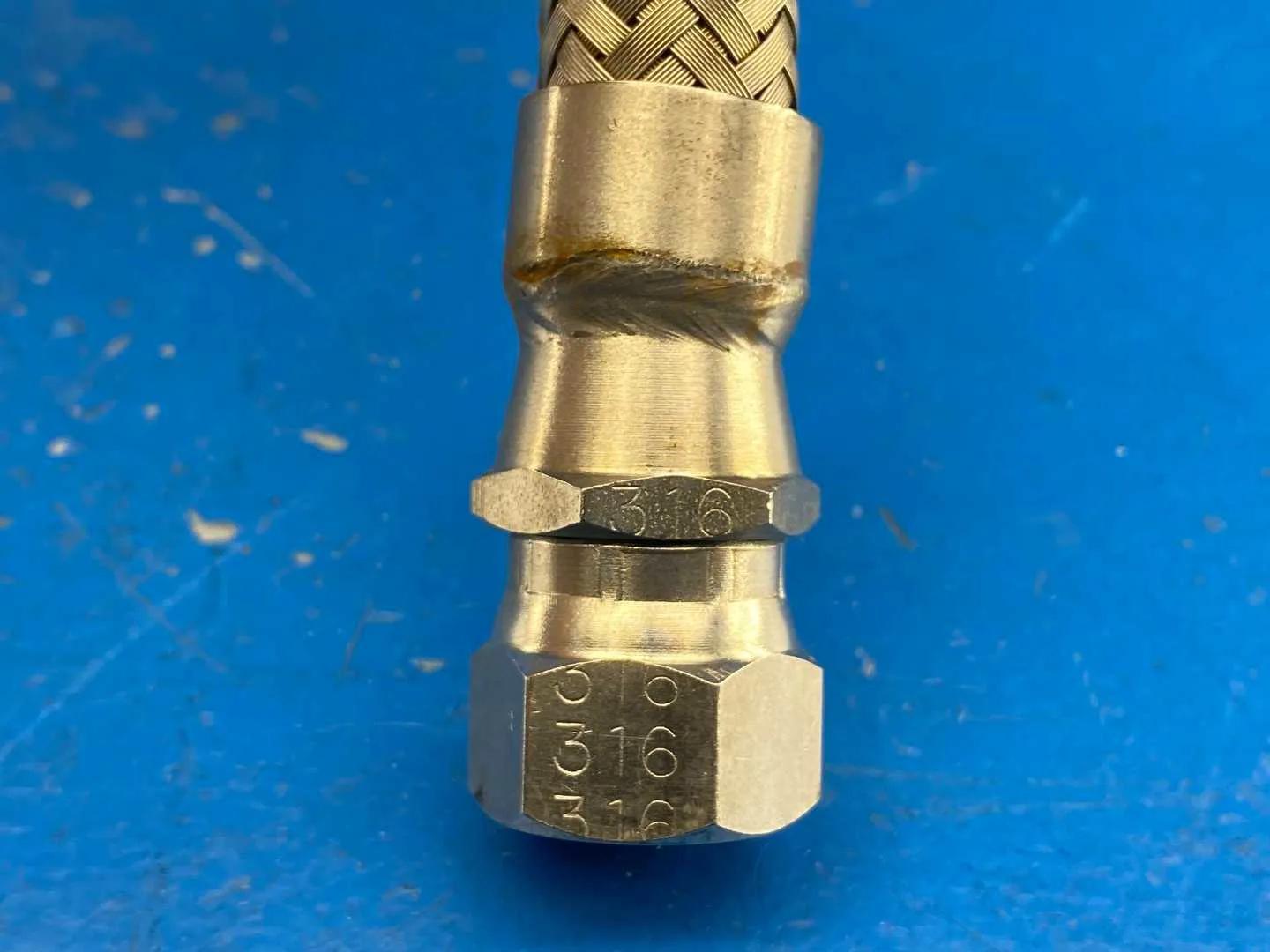

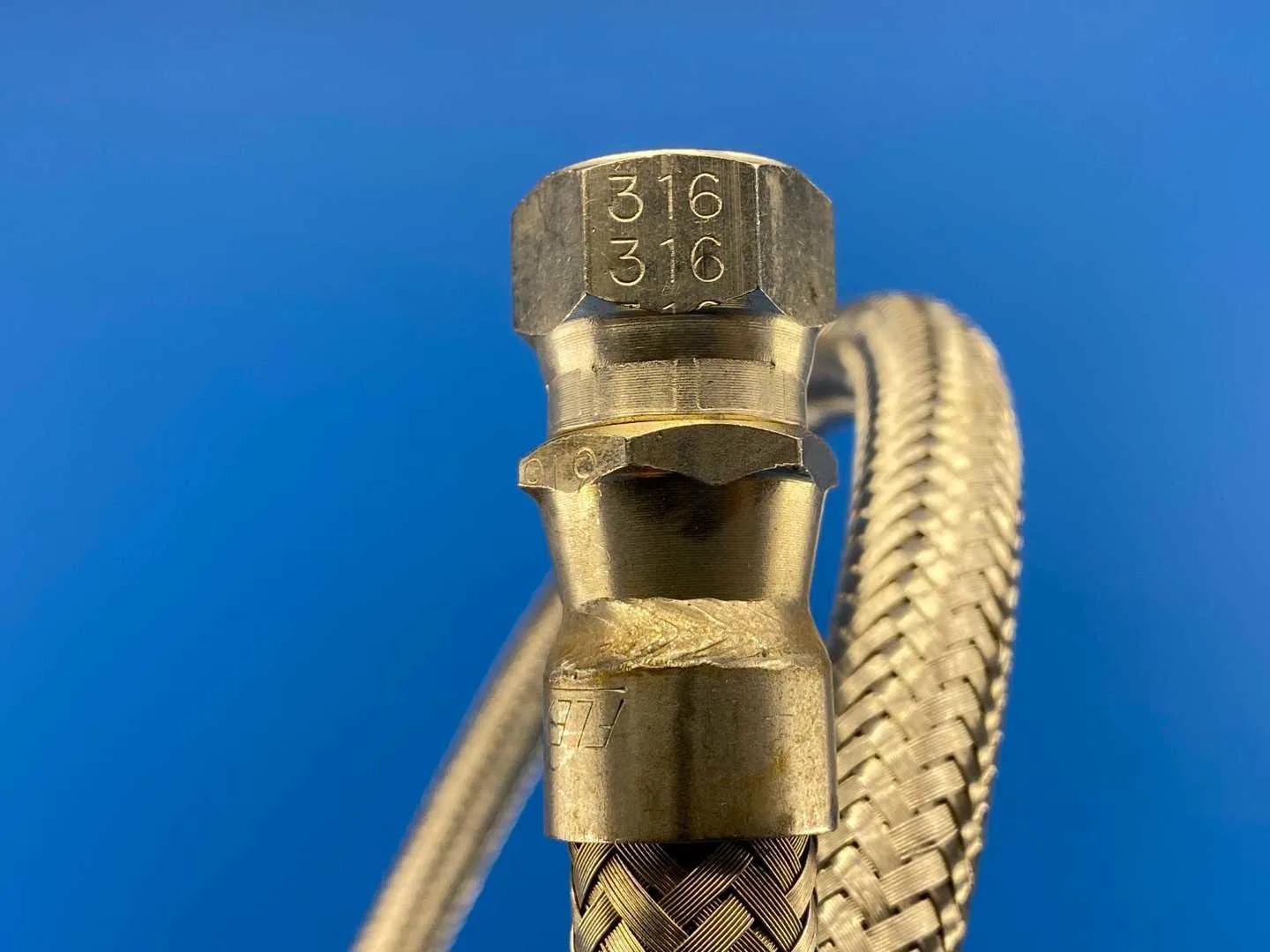

- FLAG for review: X6 series and hose size not visible on the part (photos show FLEXLINE and 316 markings only); photo reader describes brass compression type end fittings, confirm fittings and size before listing

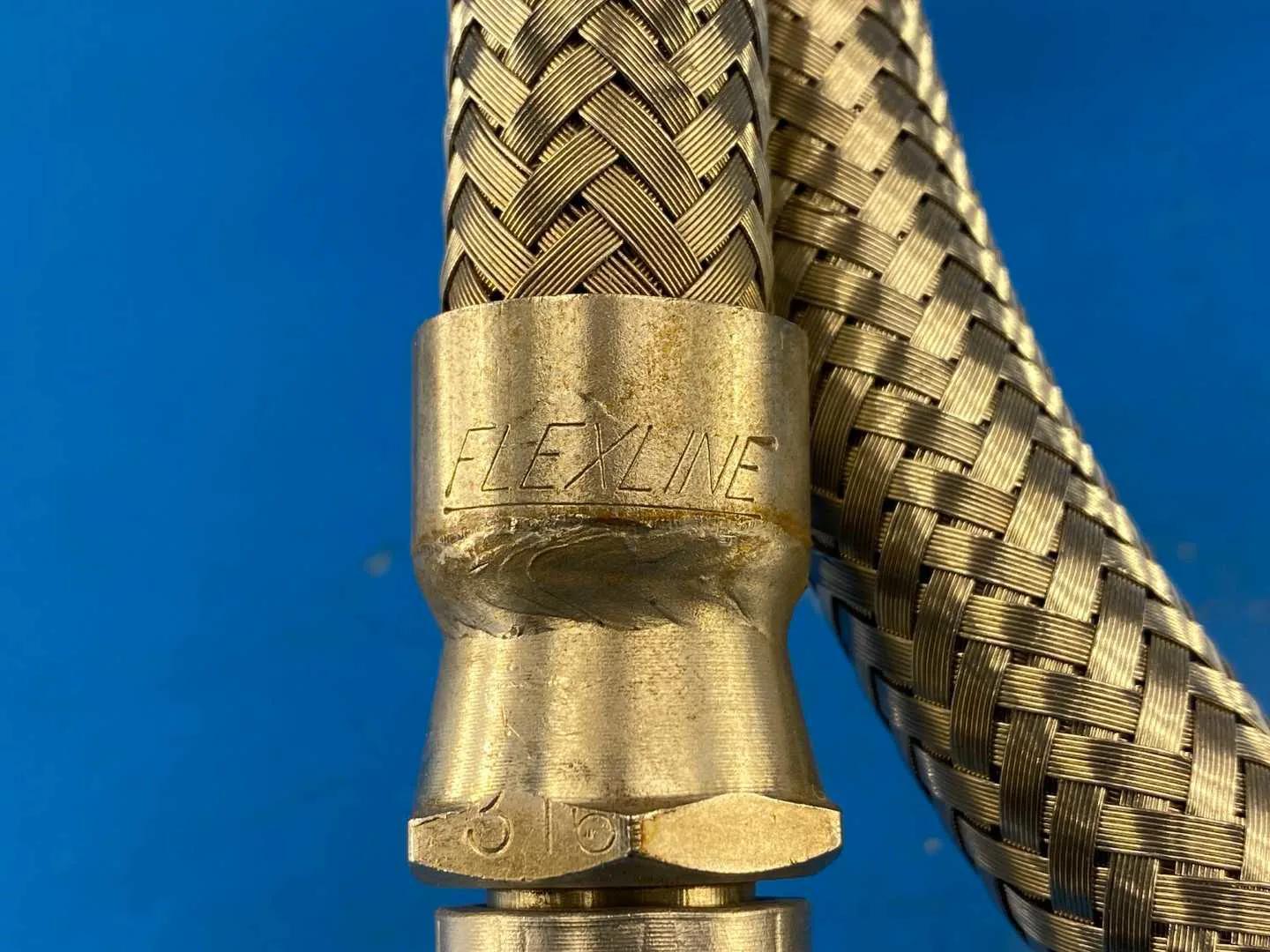

- Spec Basis: Flexline corrugated stainless steel hose page, X6 Series Ultra High Pressure 316 Hose table (flexline.com/metal-hose/corrugated-stainless-steel-hose); photos (FLEXLINE, 316)
Specifications
Flexline
X6 Series
N/A
N/A
N/A
N/A
8
8
1
N/A
0.2
1.96
KSC1290 / 2058
Packaging fees
1.6 6x10 CH $3.00
