Flexline JIC-08 304 Stainless Steel Braided Hose Assembly, 3/4-16 JIC Female, 90 Degree Elbow End
JIC-08 304 Hose Specifications: Diameter & Pressure
System Fitment for Flexline JIC-08 304
| Description | Details |
|---|---|
| Available Quantity | 7 |
| Model | JIC-08 304 |
| Condition | New |
| Manufacturer | Flexline |
| Asset Number | KSC1290 / 1965 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$34.95
Basic Information
Asset #
KSC1290 / 1965
Available Quantity
7
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

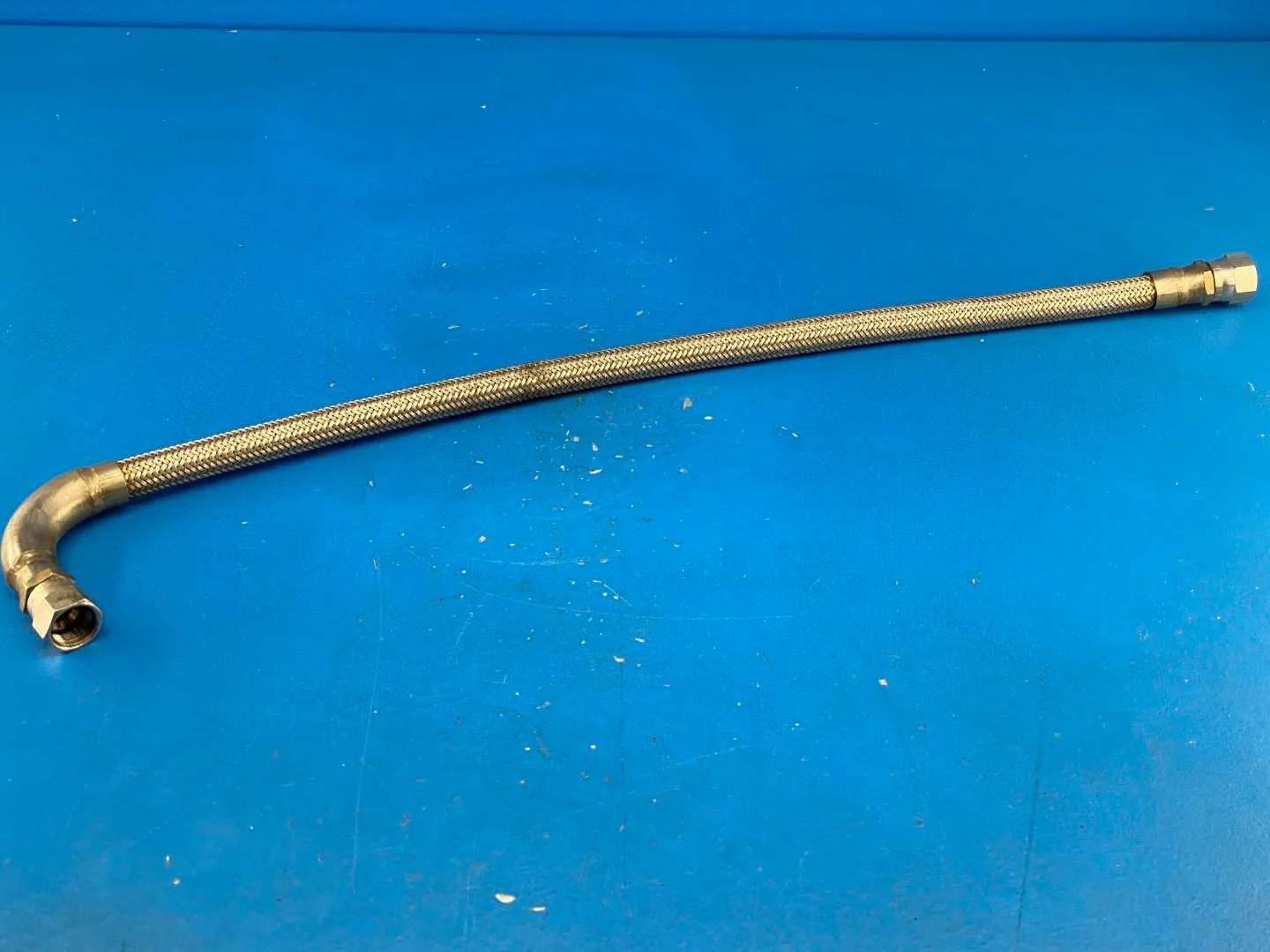

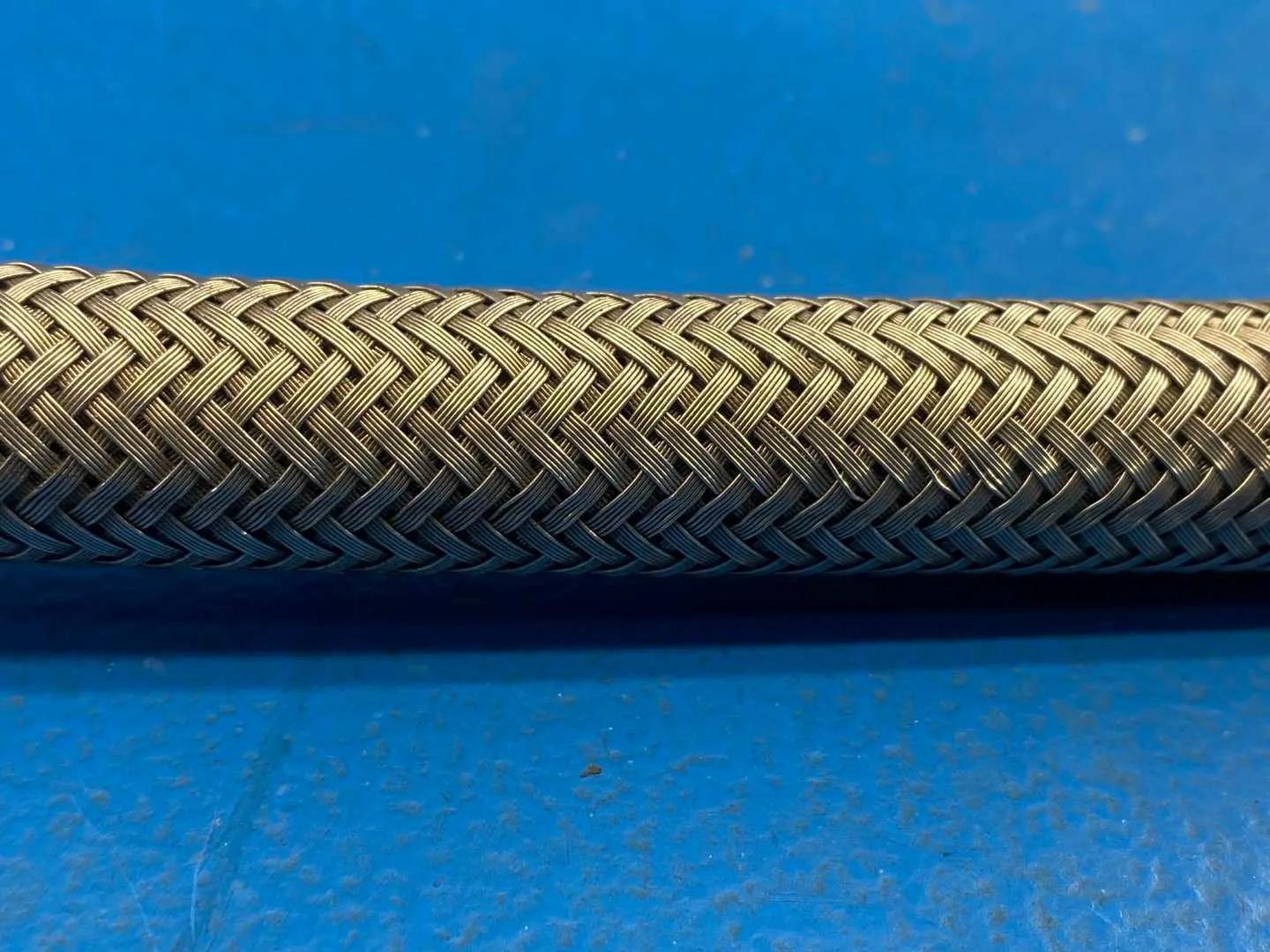

This is a stainless steel braided hose assembly tagged JIC-08 304, with a 90 degree elbow end fitting. Braided metal hose assemblies carry fluids and gases where a rigid pipe cannot absorb movement, vibration, thermal growth or misalignment between two connection points. The stainless braid protects the inner hose and holds pressure, and 304 on the tag identifies the braid alloy.
JIC-08 refers to a 37 degree flare JIC connection in dash size 8. In the SAE J514 dash numbering, a -08 JIC fitting uses a 3/4-16 UNF thread and corresponds to 1/2 inch nominal tube, so the 3/4 inch in the listing reflects the thread size. JIC fittings seal on the flare seat rather than on the threads, and the 90 degree end lets the hose leave a port at a right angle in tight spaces.
Hose assemblies like this are used by hydraulic and process piping technicians, compressor and pump service crews and plant maintenance departments on hydraulic lines, fuel and oil transfer, and steam or gas connections to machinery.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Hose Marking: JIC-08 304 (tag)
- Product Type: Stainless steel braided hose assembly with 90 degree end fitting (photo)
- Braid Alloy: 304 stainless steel (tag marking)
- End Connection: JIC 37 degree flare, dash size -08 (tag marking)
- JIC -08 dash size: 3/4-16 UNF thread, 1/2 in nominal tube size per SAE J514 dash convention
- FLAG for review: no manufacturer name visible on the hose; title states 3/4 in, which matches the -08 JIC thread size (3/4-16), not a 3/4 in hose bore
- Spec Basis: tag photo (JIC-08, 304); SAE J514 37 degree flare dash size convention; Flexline metal hose overview https://flexline.com/metal-hose/
