Flexline Stainless Steel Braided Hose Assembly, JIC-08 (3/4-16) Female Swivel Ends, 304SS, 36 in
3/4" 36" Hose Specifications: Diameter & Pressure
System Fitment for Flexline 3/4" 36"
| Description | Details |
|---|---|
| Available Quantity | 6 |
| Model | 3/4" 36" |
| Condition | New |
| Manufacturer | Flexline |
| Asset Number | KSC1290 / 1963 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$94.95
Basic Information
Asset #
KSC1290 / 1963
Available Quantity
6
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

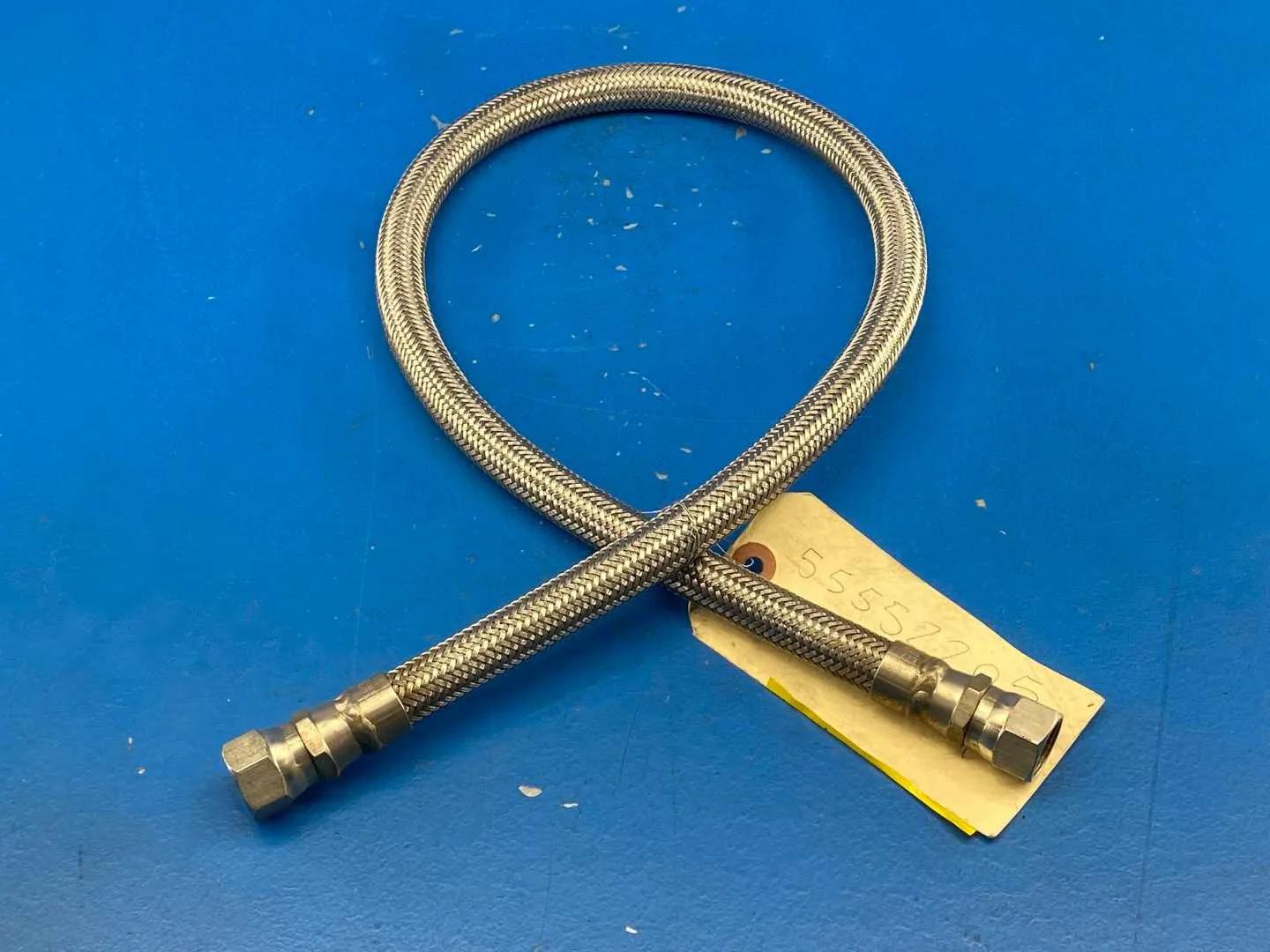

This is a Flexline stainless steel braided metal hose assembly with JIC -08 37 degree flare end fittings and a 304 stainless steel braid, as marked on its tag. Flexline builds specialty hose assemblies in corrugated stainless steel, PTFE, silicone and rubber for OEM, aerospace, distribution and industrial users.
A corrugated metal hose carries the fluid through a flexible stainless core, and the outer 304 braid holds the core against pressure elongation and protects it from abrasion. JIC 37 degree flare fittings seal metal to metal on the flare seat, so the assembly connects directly to standard SAE J514 JIC male adapters found on hydraulic, pneumatic, fuel and instrument lines. The -08 dash size uses a 3/4-16 UNF thread.
Braided metal hose is chosen over rubber where temperature, chemical attack, vibration or permeation rule out elastomer hose. Typical uses include pump and compressor connections, steam and hot oil lines, cryogenic and gas service, test stands, and flexible connectors that absorb vibration and misalignment between equipment and rigid piping. Buyers should confirm the pressure rating needed for their system.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Stainless steel braided metal hose assembly

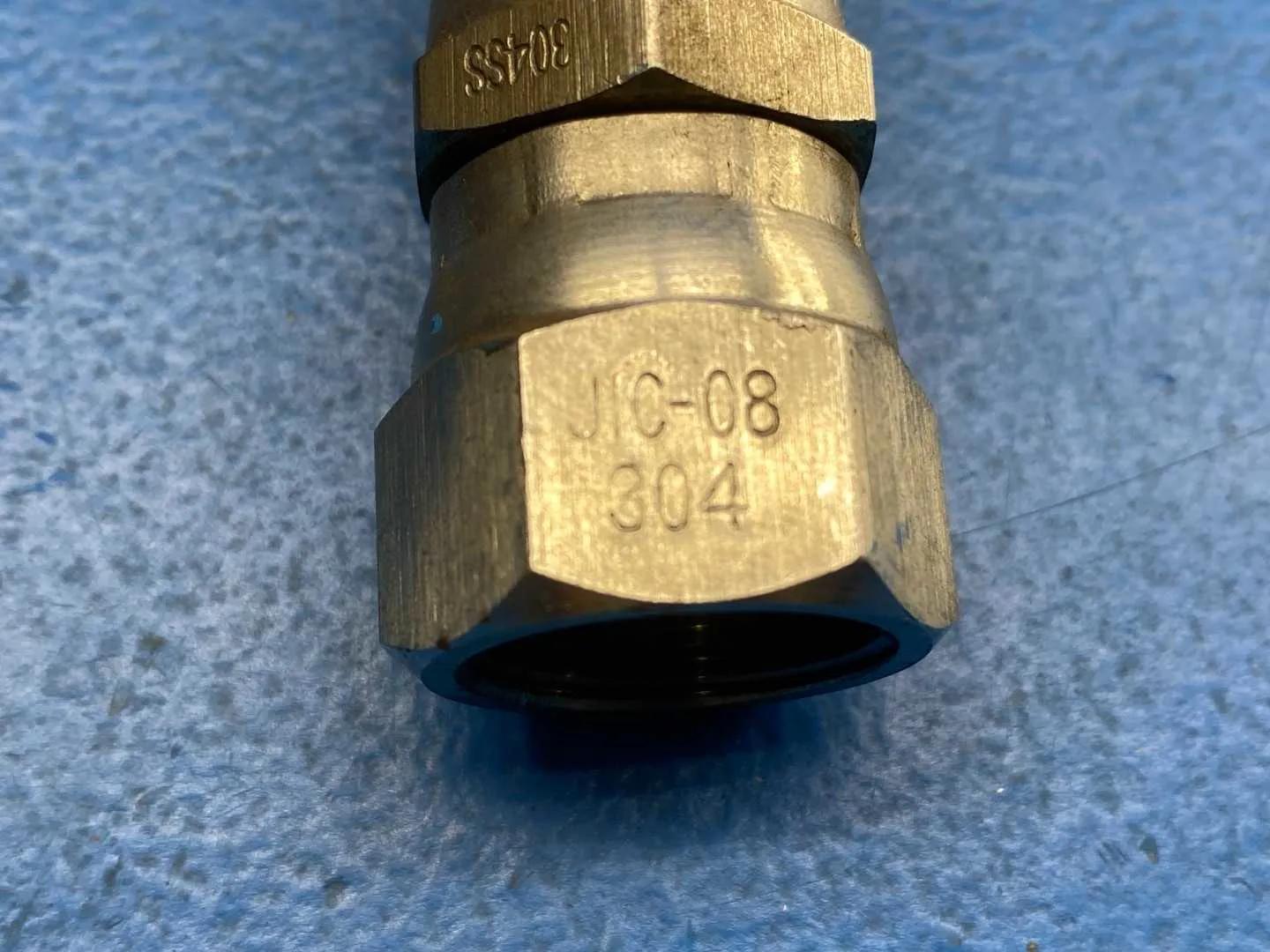

- End Fittings: JIC 37 degree flare, dash size -08 (tag marking JIC-08)
- JIC -08 Thread: 3/4-16 UNF (SAE J514 37 degree flare, -08 dash size)

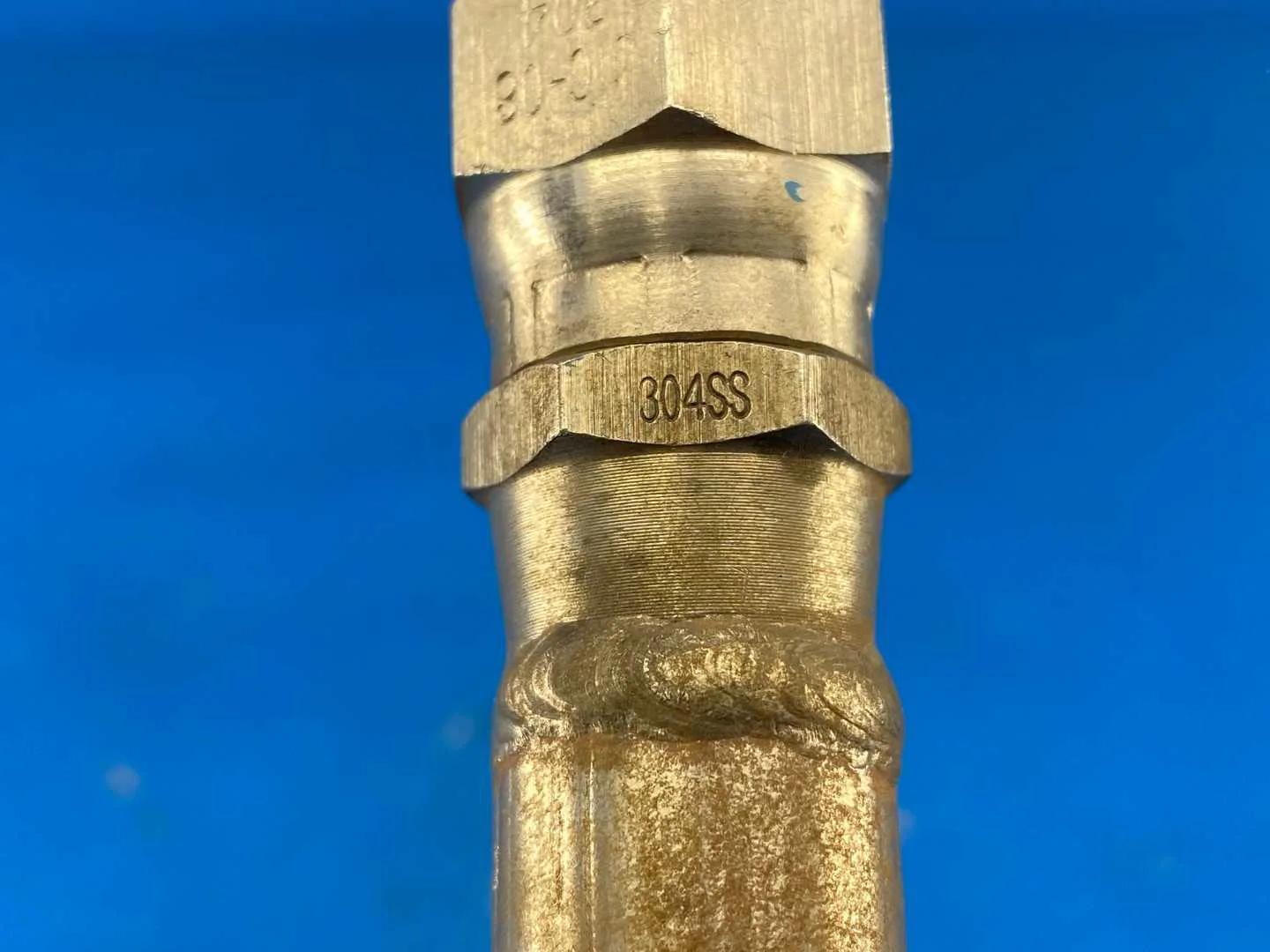

- Braid: 304 stainless steel (tag marking 304SS; Flexline standard braid is CRES 304)
- Hose Maker: Flexline specialty hose assemblies, corrugated stainless steel hose line
- FLAG for review: JIC -08 is a 1/2 in dash size whose thread is 3/4-16, so the 3/4 in in the title may be the thread size rather than the hose ID; the hose series, working pressure and 36 in length are not marked in the photos
- Spec Basis: tag photo (JIC-08 304, 304SS); Flexline metal hose overview flexline.com/layout-elements (304 braid standard, JIC 37 degree fittings) and flexline.com/metal-hose/corrugated-stainless-steel-hose; SAE J514 JIC dash size thread table
Specifications
Flexline
3/4" 36"
N/A
N/A
N/A
N/A
7
9
1
N/A
2
3.02
KSC1290 / 1963
Packaging fees
1.6 6x10 CH $3.00
