Graco G3000 Gear Flow Meter 239-719 4000 PSI 180F Informer 243312 Display
G3000 Flow Meter Specifications: Range, Size & Output
Process Fitment for Graco G3000
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | G3000 |
| Condition | Used |
| Manufacturer | Graco |
| Asset Number | KSCU / 051 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.1 Cardboard $10 |
$2,399.95
Basic Information
Asset #
KSCU / 051
Available Quantity
1
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

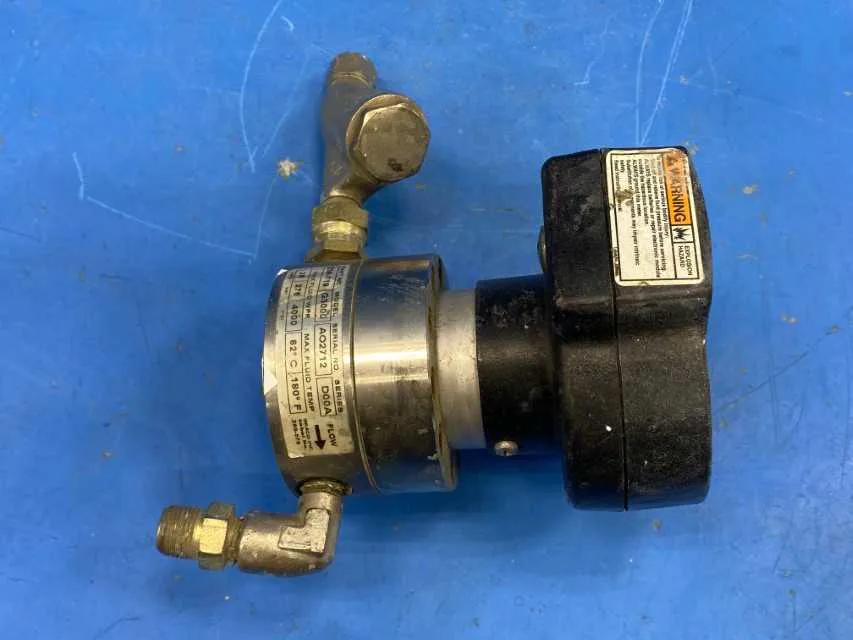

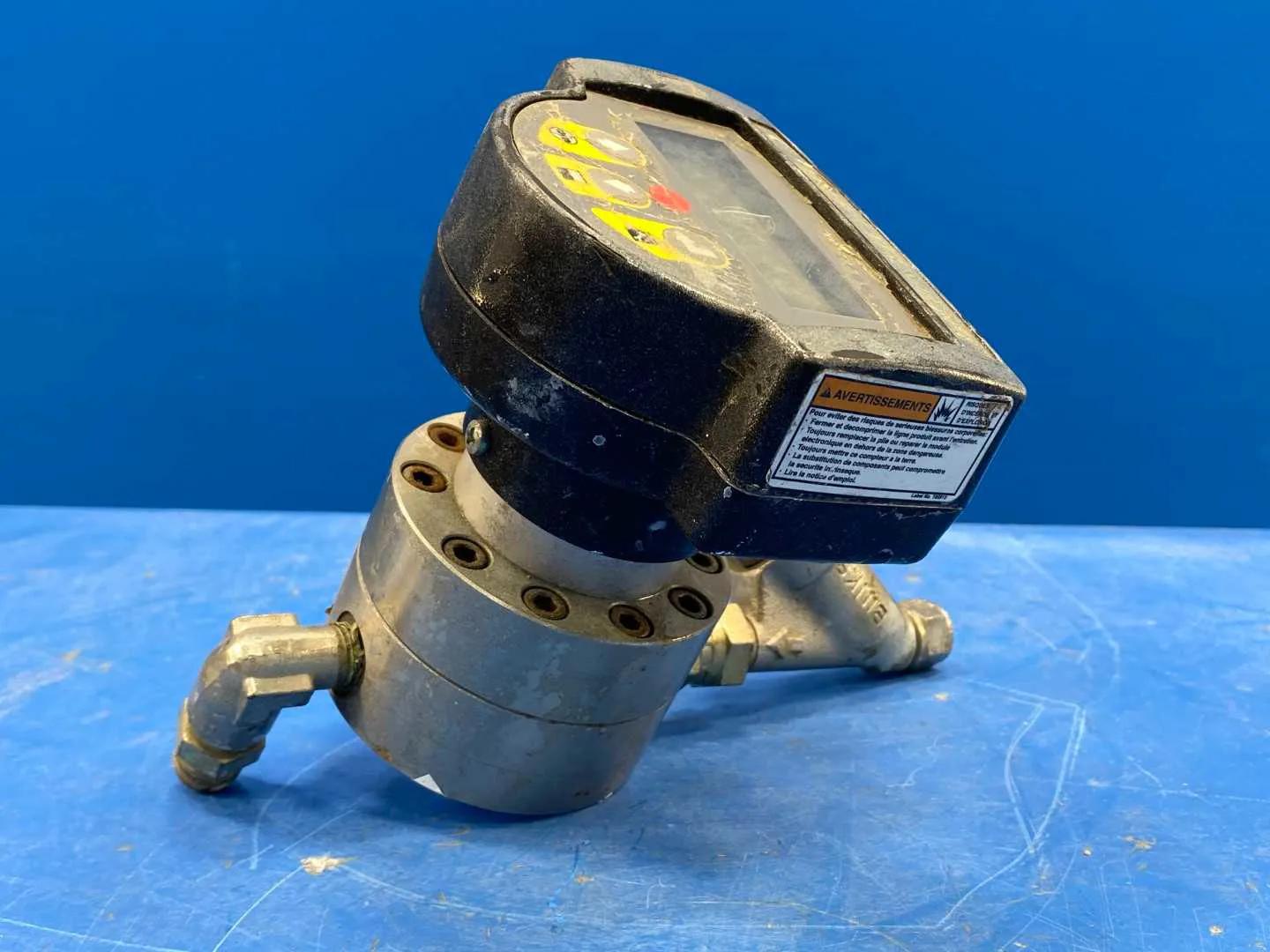

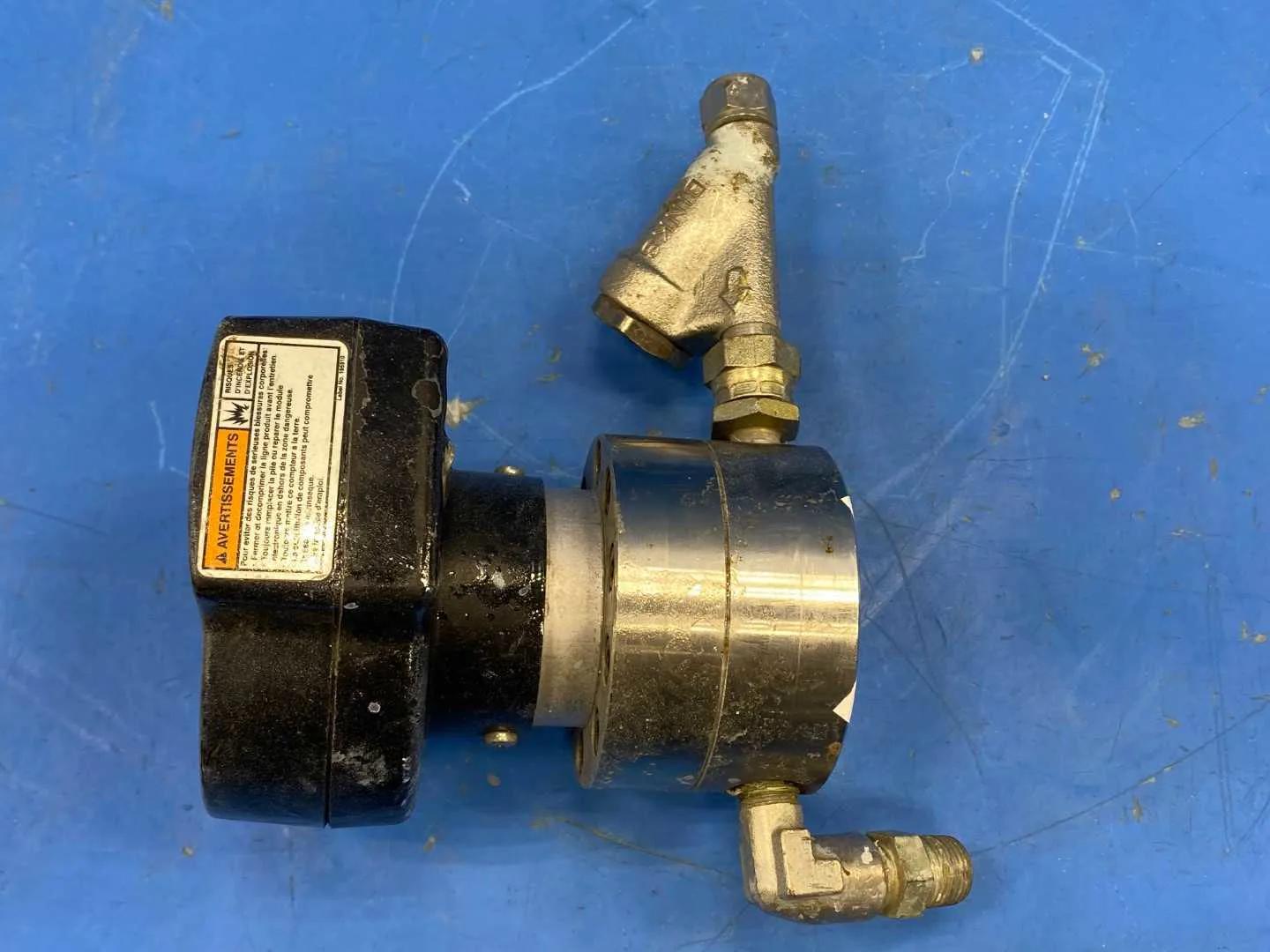

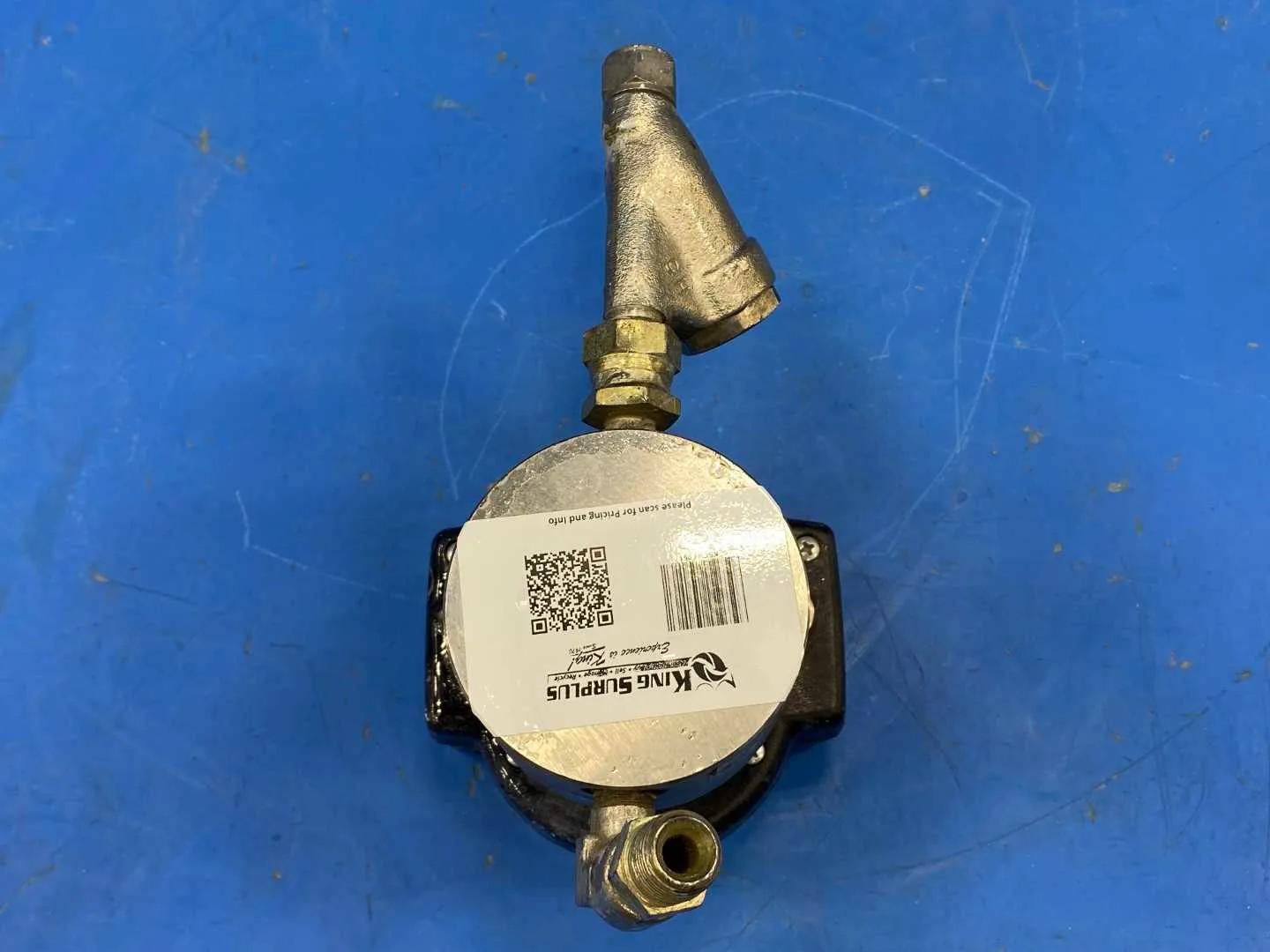

This is a Graco fluid metering set made up of a G3000 gear flow meter and a Graco Informer 243312 display. The G3000 is a positive displacement volumetric meter built for paints, coatings, sealants and other finishing fluids on high pressure lines, and it is rated to 4000 psi. Graco part 239719 is the gear meter assembly used inside G3000 meter 289813. As fluid passes through the meter, a pair of gears turns and an electronic sensor produces a pulse for each gear tooth, giving a resolution of 0.119 cc per pulse across a flow range of 0.02 to 1.0 gallons per minute.

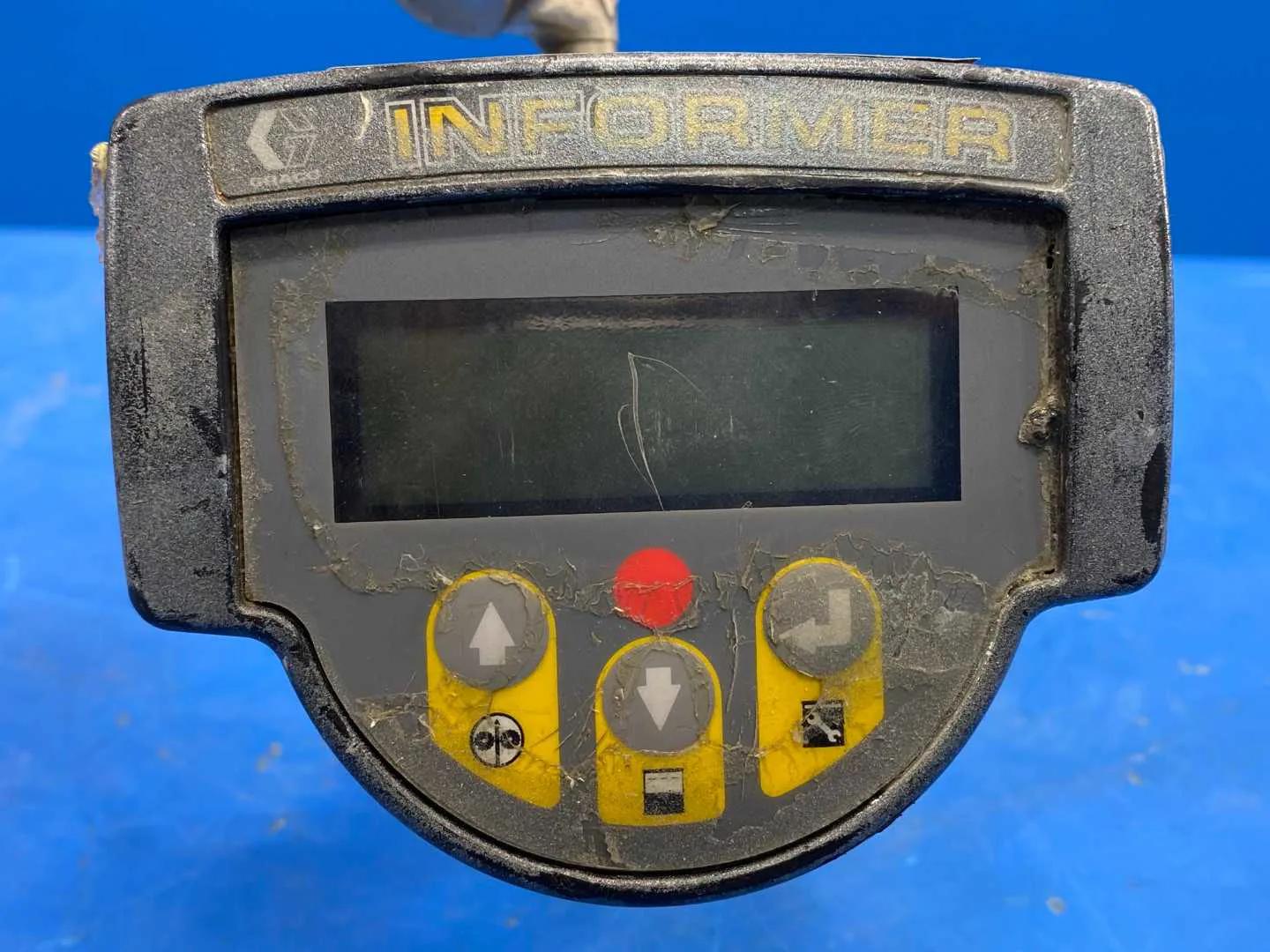

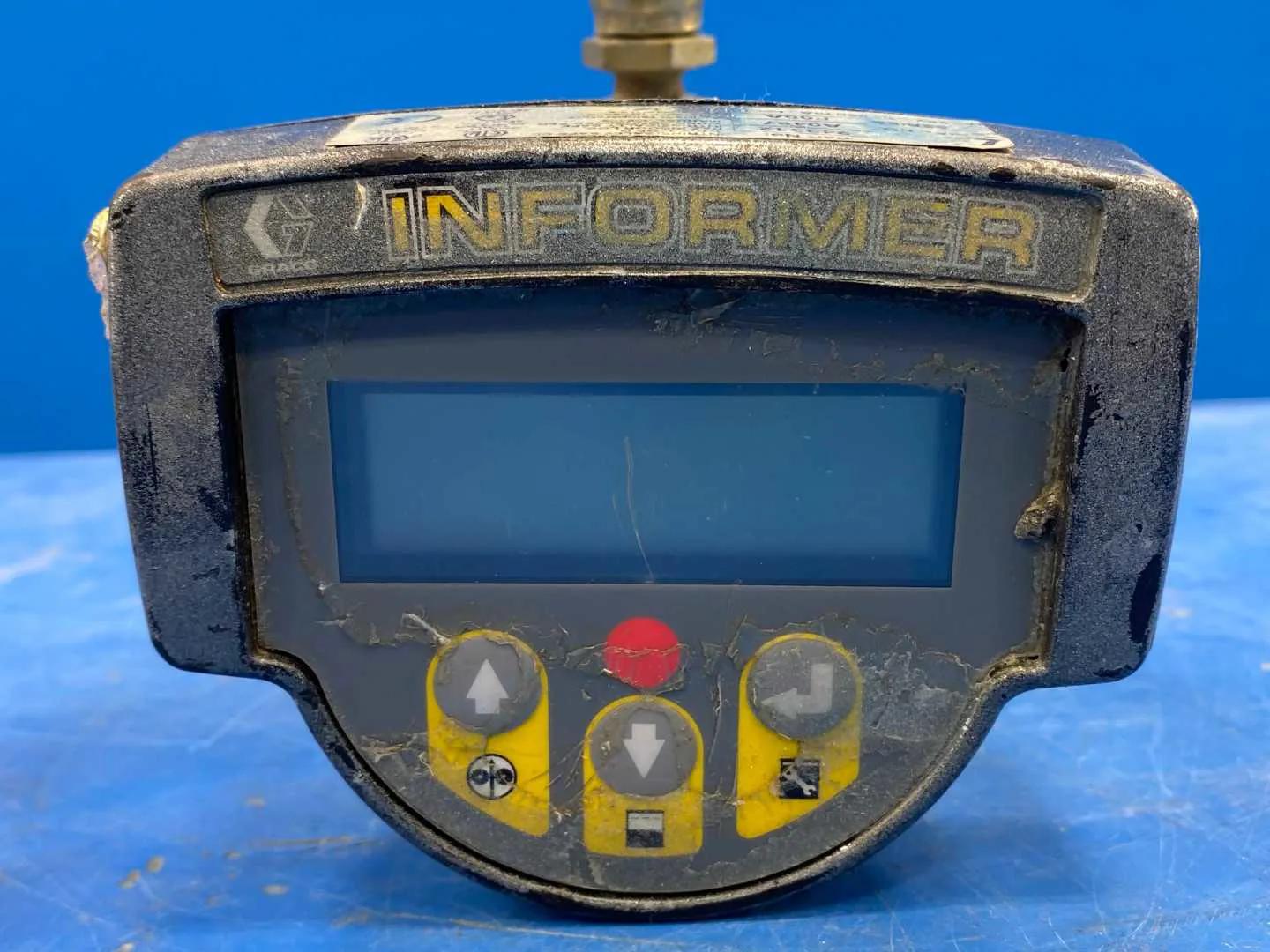

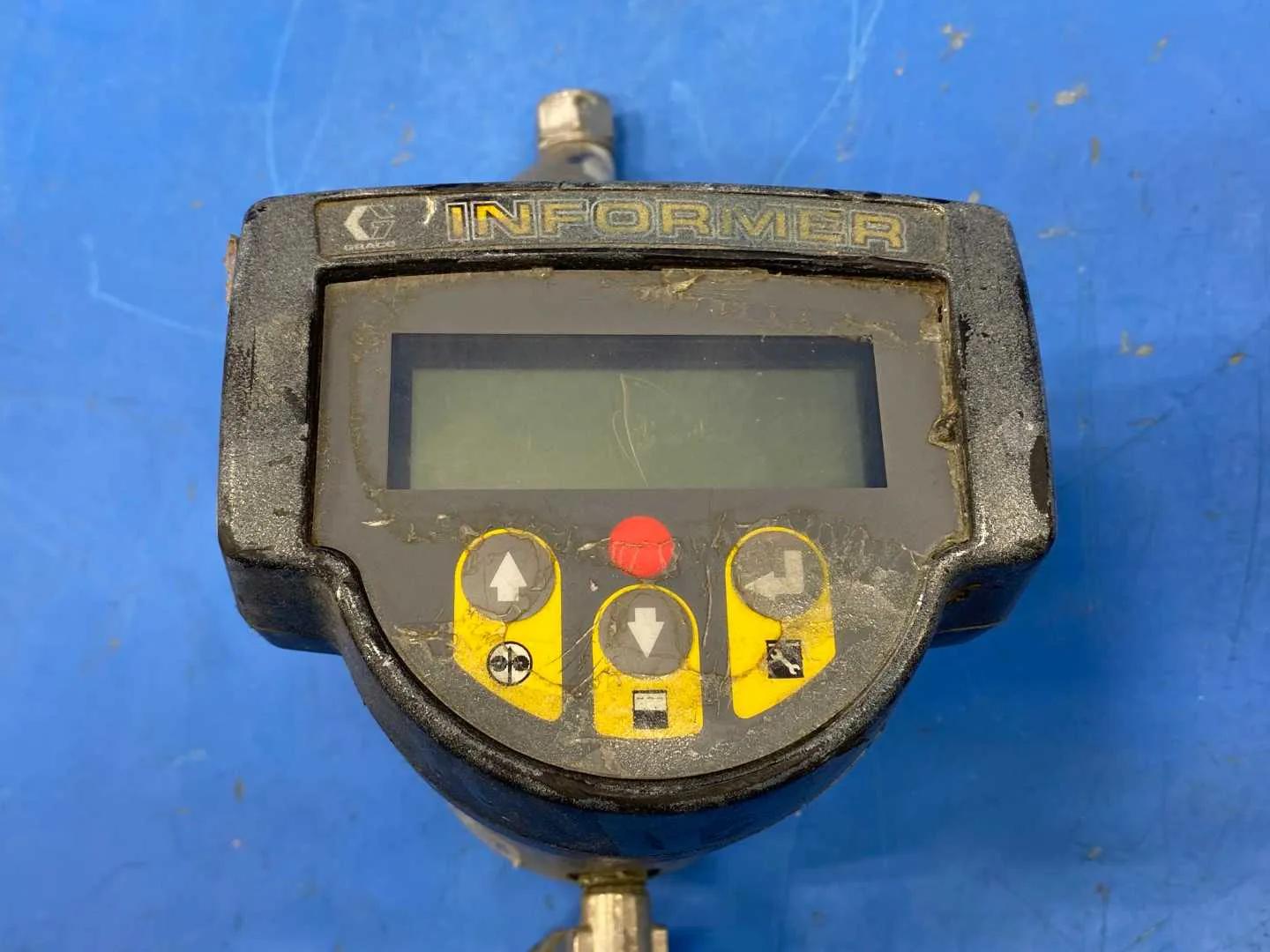

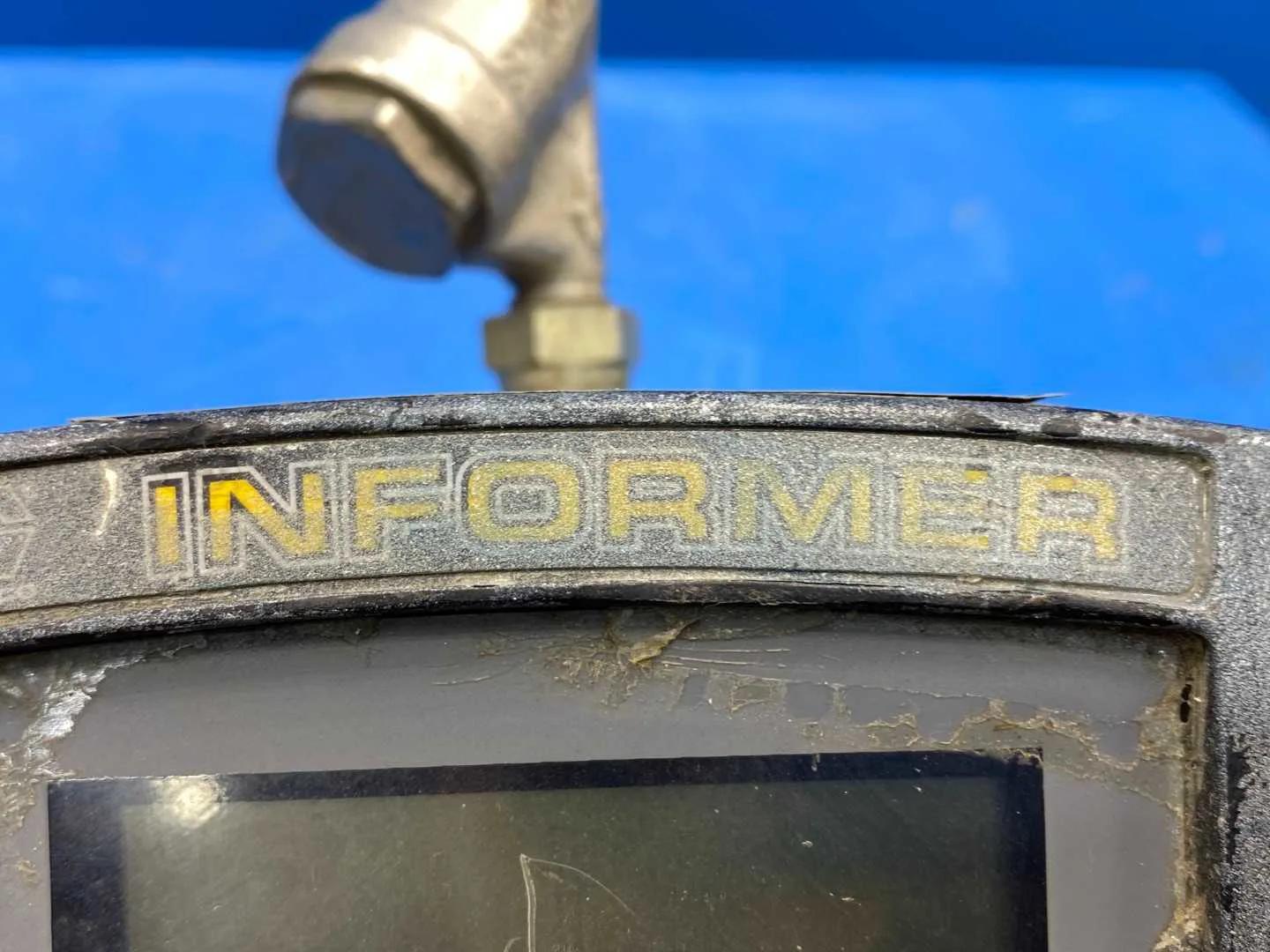

The Informer display reads those pulses and shows flow rate and totalized volume at the point of application. Its nameplate carries intrinsic safety markings for Class I, Division 1, Group D hazardous indoor locations when installed per Graco manual 309102.

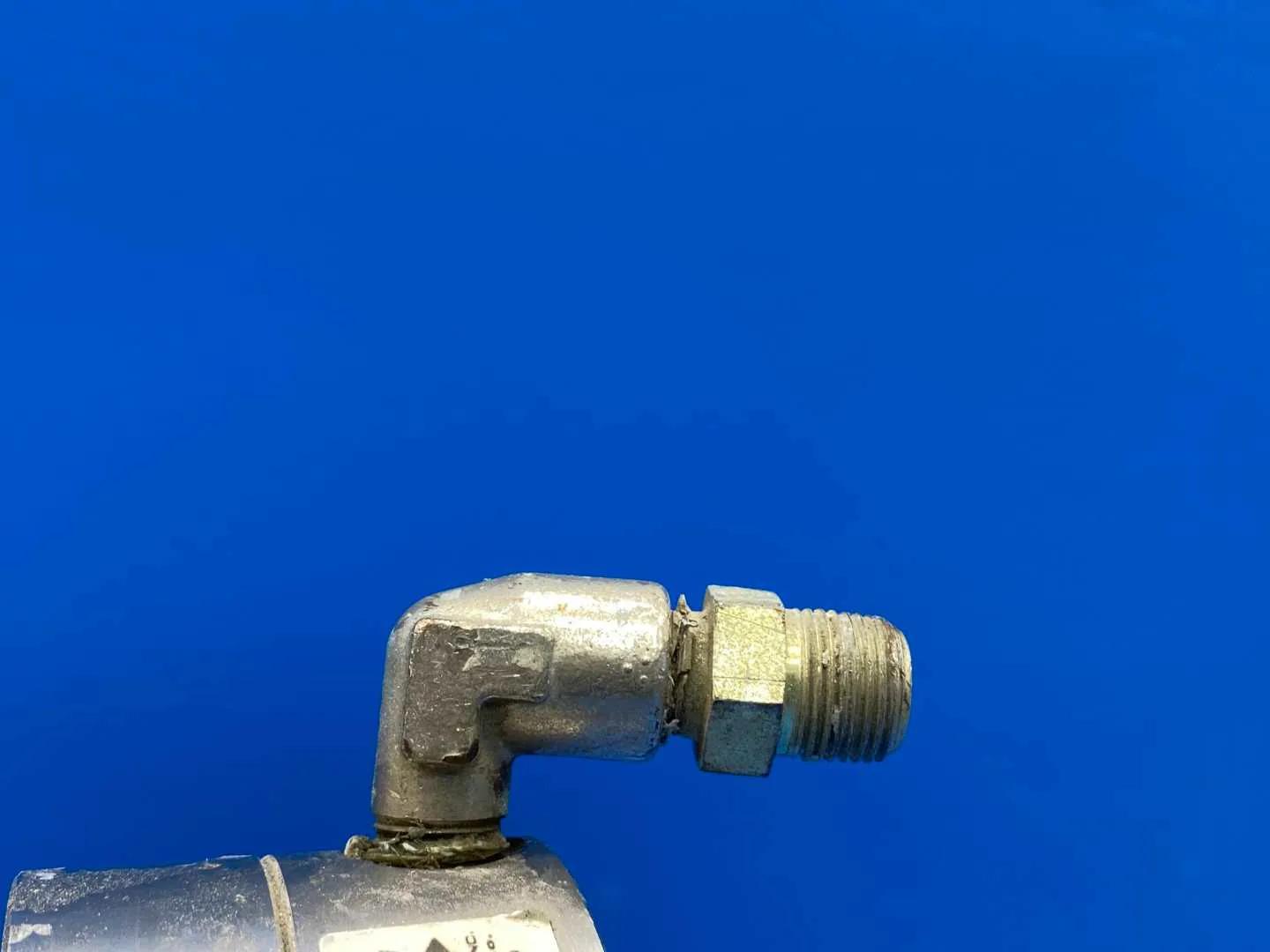

Paint finishing shops, OEM coating lines, plural component and adhesive dispensing operations use this pairing to monitor material usage, verify mix and application rates, and track consumption by part or shift. The meter connects with 1/4 npt female ports and has 303 stainless steel, tungsten carbide and PTFE wetted parts.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

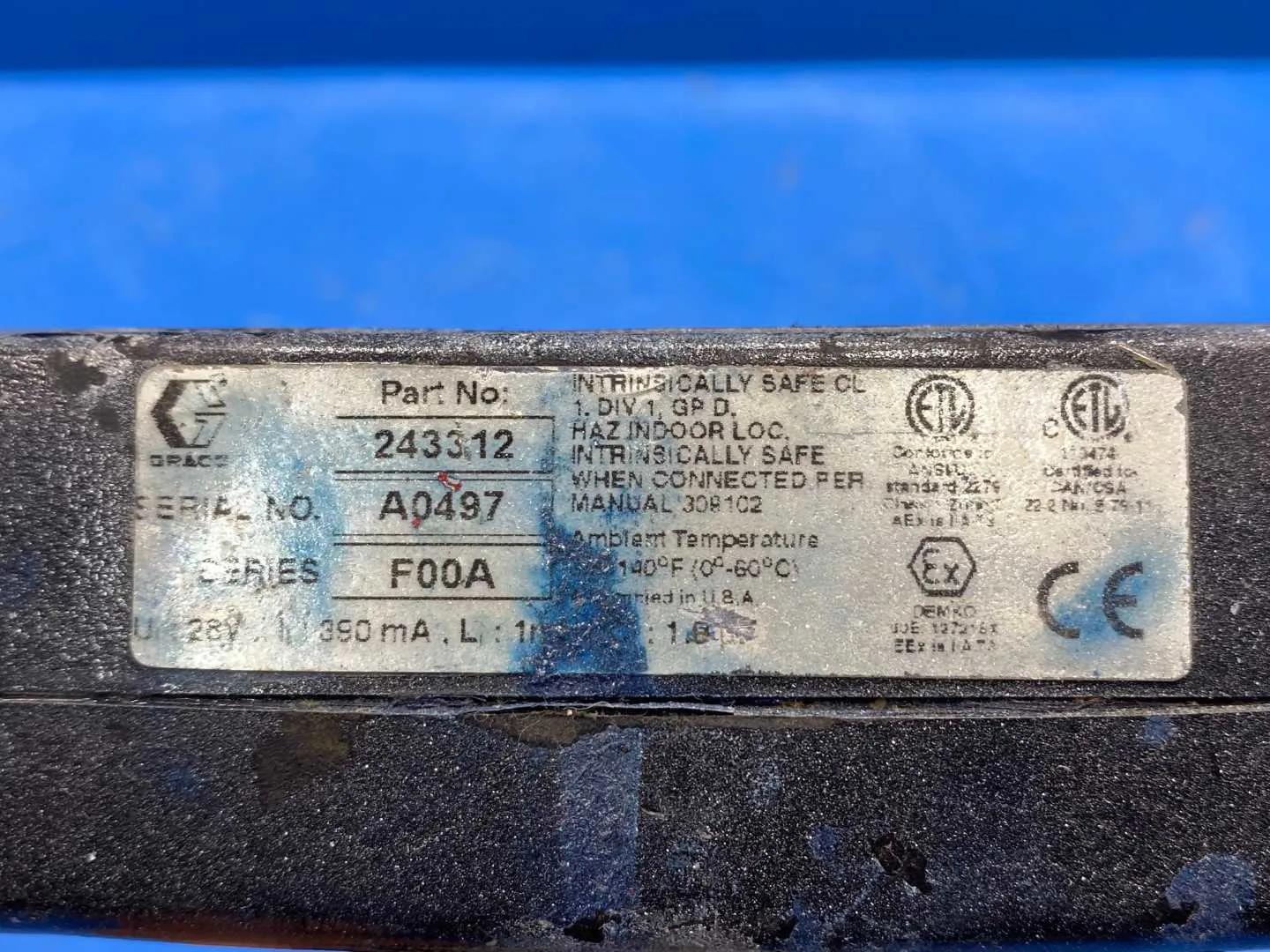

- Display Module: Graco Informer, Part No. 243312, Series F00A (nameplate)
- Display Nameplate Rating: 28V, 390 mA
- Display Approval Marking: Intrinsically safe Class I, Div 1, Group D, hazardous indoor locations, when connected per manual 309102; ETL, cETL, CE, DEMKO, EEx ia marked (nameplate)
- Display Ambient Temperature: 140 F (0 to 60 C) (nameplate)

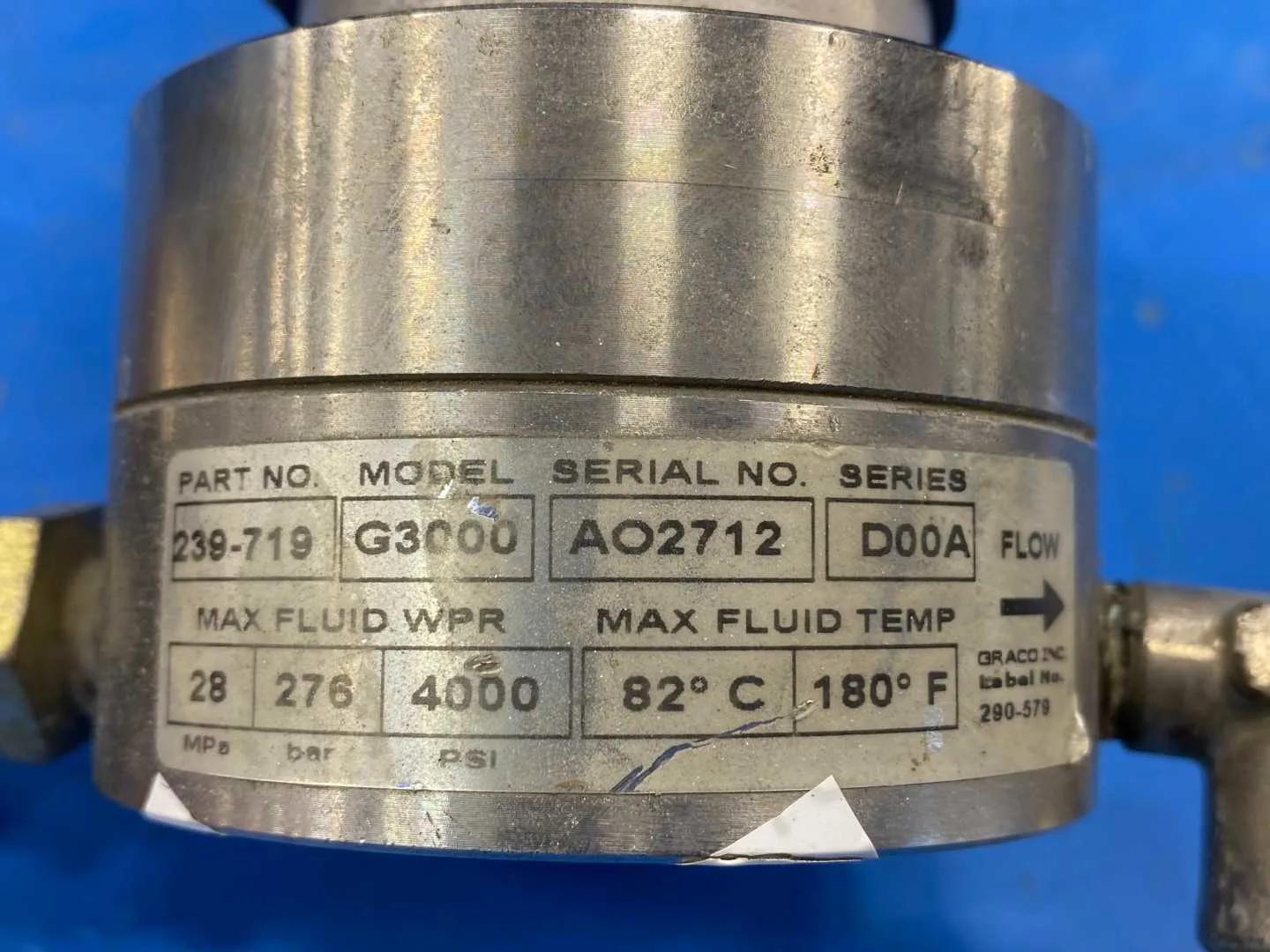

- Meter: Graco G3000 volumetric gear flow meter; 239719 is the gear meter assembly used on G3000 meter 289813
- Maximum Fluid Working Pressure: 4000 psi (28 MPa, 276 bar)
- Flow Range: 0.02 to 1.0 gal/min (75 to 3800 cc/min)
- Fluid Temperature Range: 40 to 180 F (4 to 82 C)
- Fluid Viscosity Range: 20 to 3000 cps
- Resolution: 0.119 cc/pulse
- Accuracy: +/- 0.5% through communicated flow range for most commonly used coatings

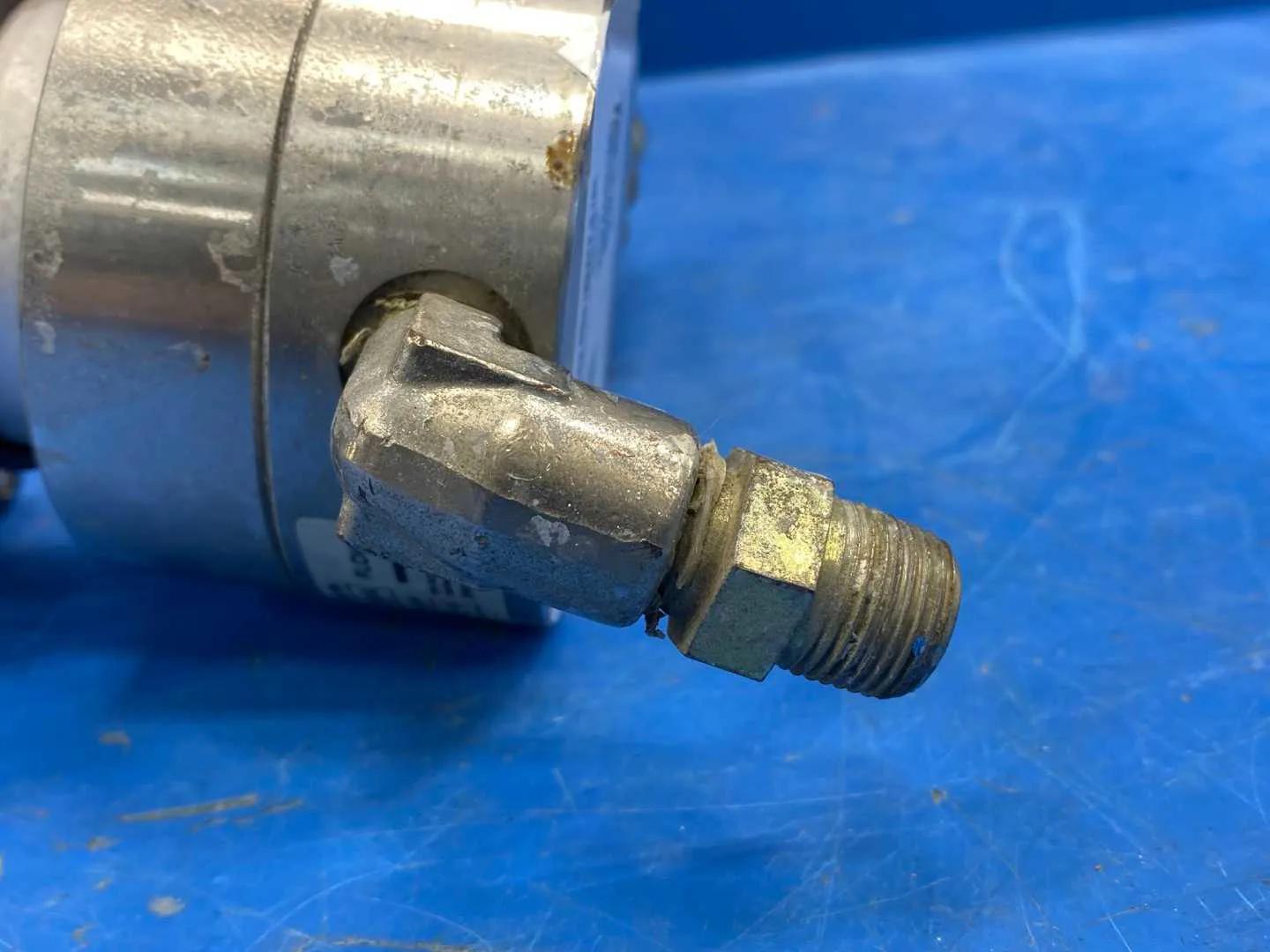

- Inlet/Outlet: 1/4 npt(f)
- Wetted Parts: 303 stainless steel, tungsten carbide, PTFE
- Meter Sensor Supply Voltage: 10 to 30 Vdc
- Meter Weight (published): 6 lb (2.7 kg)
- Country of Manufacture: U.S.A. (display nameplate, partially legible)
- Spec Basis: nameplate photo of Informer 243312 display; Graco manual 308778 Volumetric Fluid Flow Meter, Technical Specifications and Bare Meter Assemblies parts list https://www.graco.com/bin/findManual?manual=308778
