High Pressure Solenoid Valve 1/2" NPT 1500 PSI 2-Way NC ASCO 8223G003 12VAC 60Hz
8223G003 Valve Specifications: Size, Pressure Rating & Body Material
Service Applications & Connection Fitment for Asco 8223G003
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 8223G003 |
| Condition | New |
| Manufacturer | Asco |
| Asset Number | KSC1290 / 1004 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$79.95
Basic Information
Asset #
KSC1290 / 1004
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

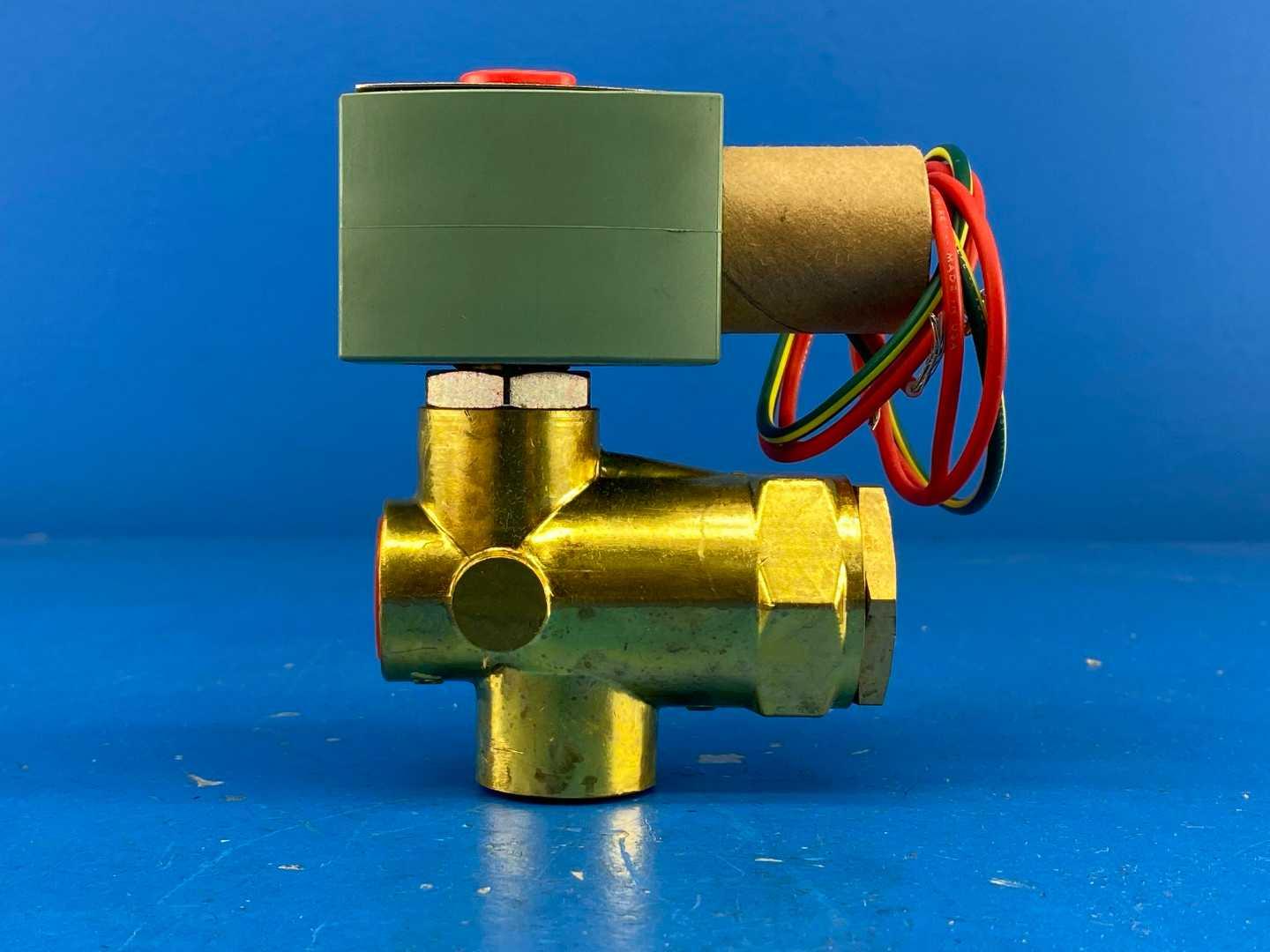

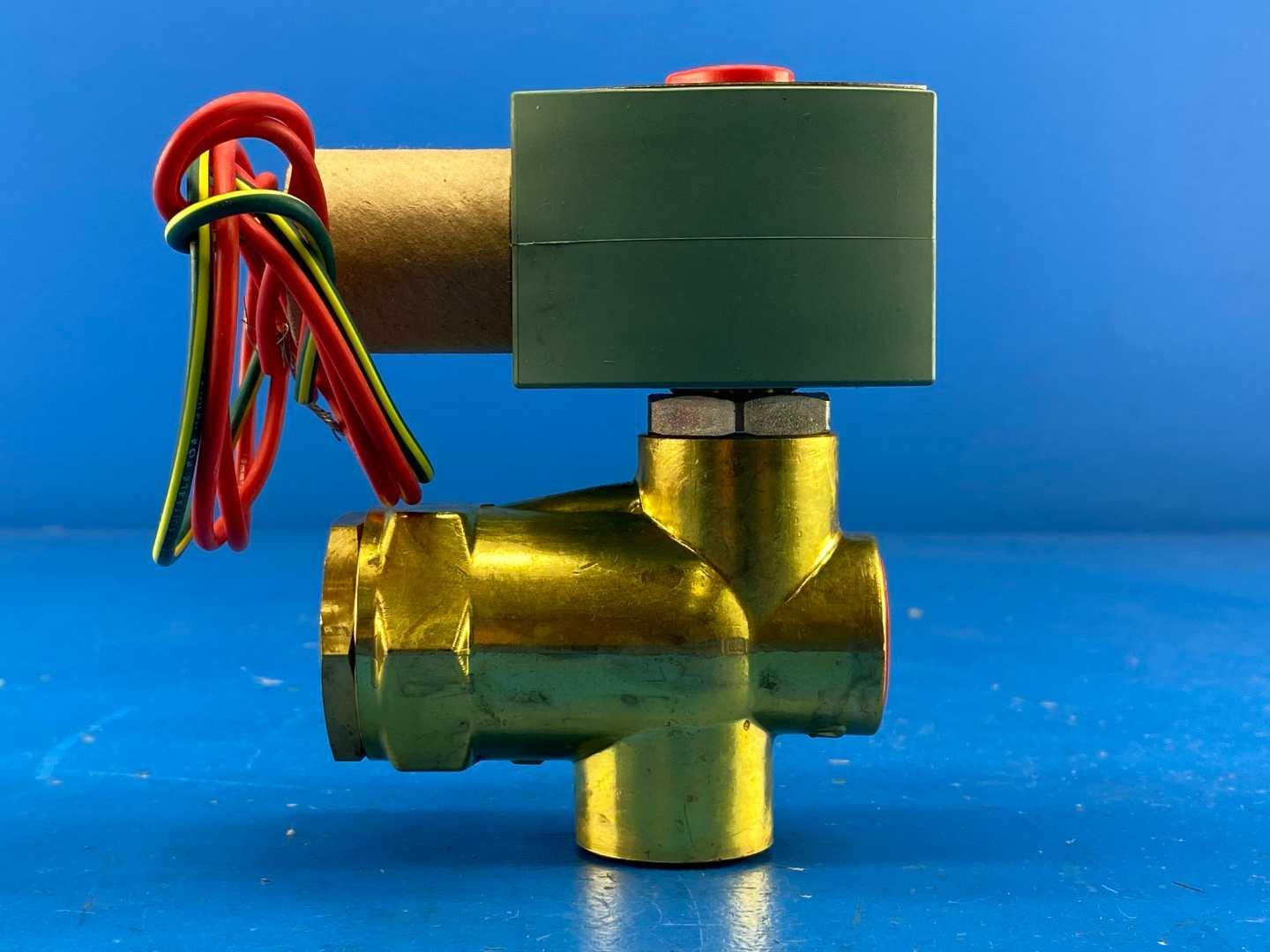

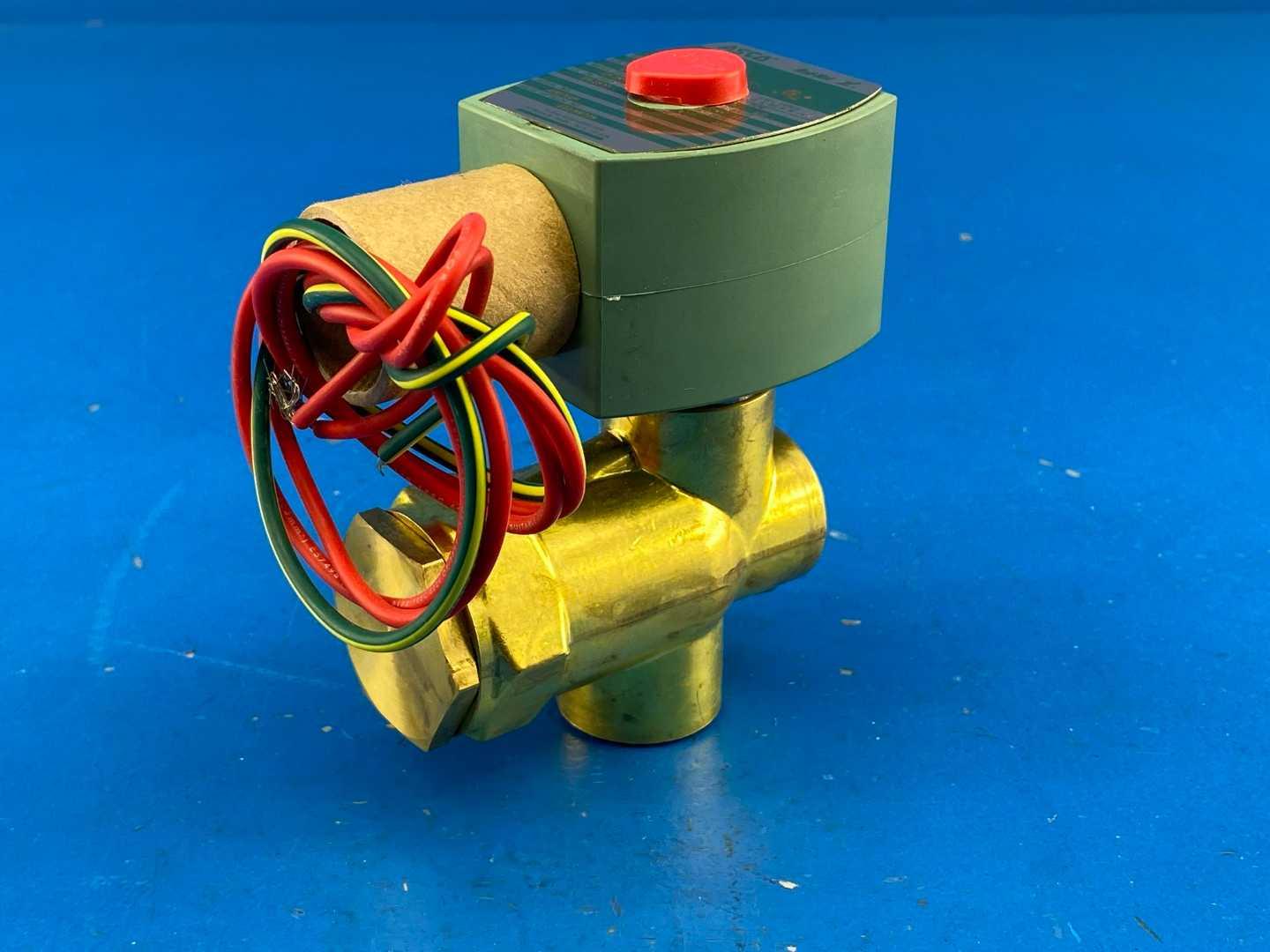

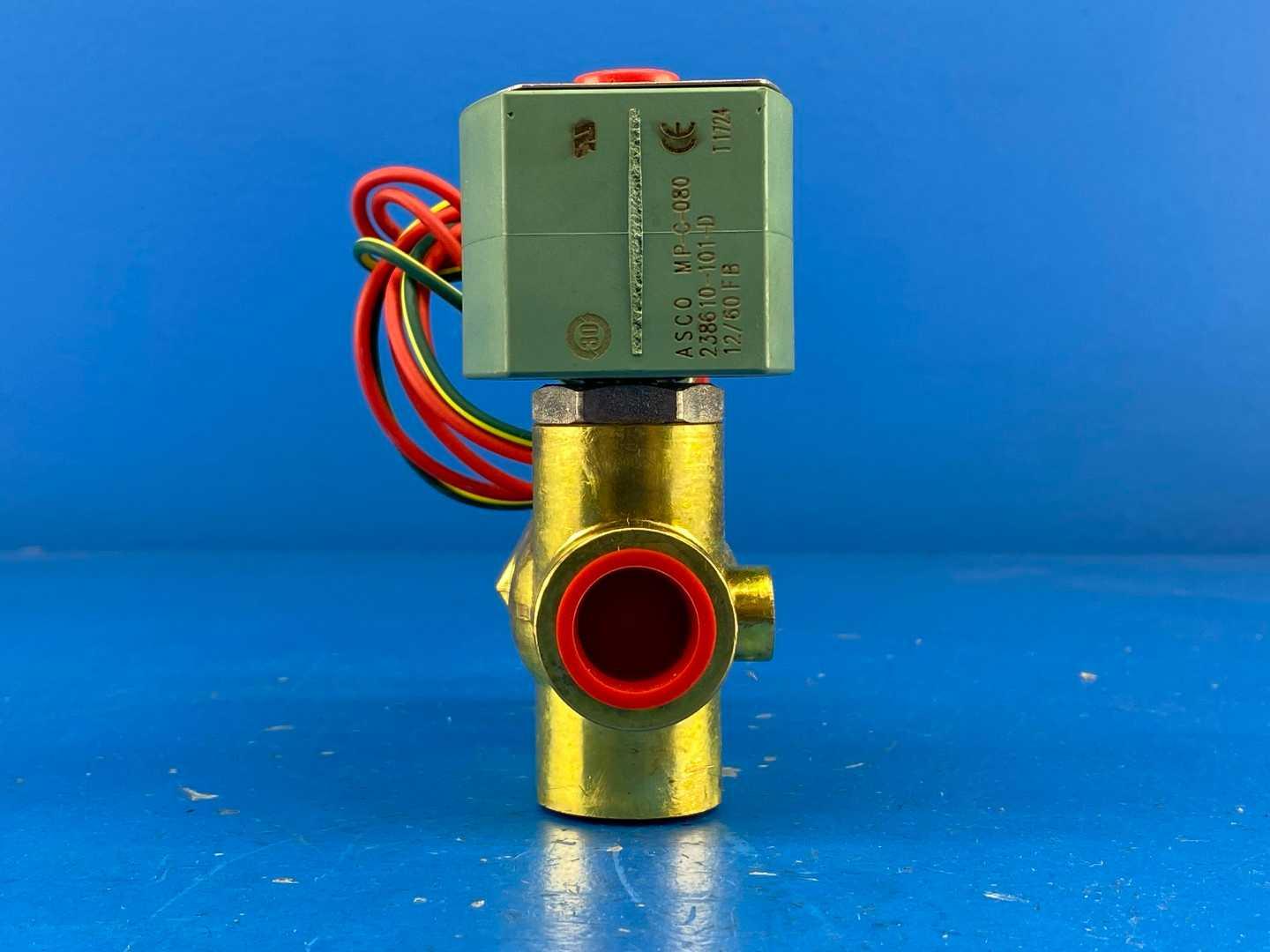

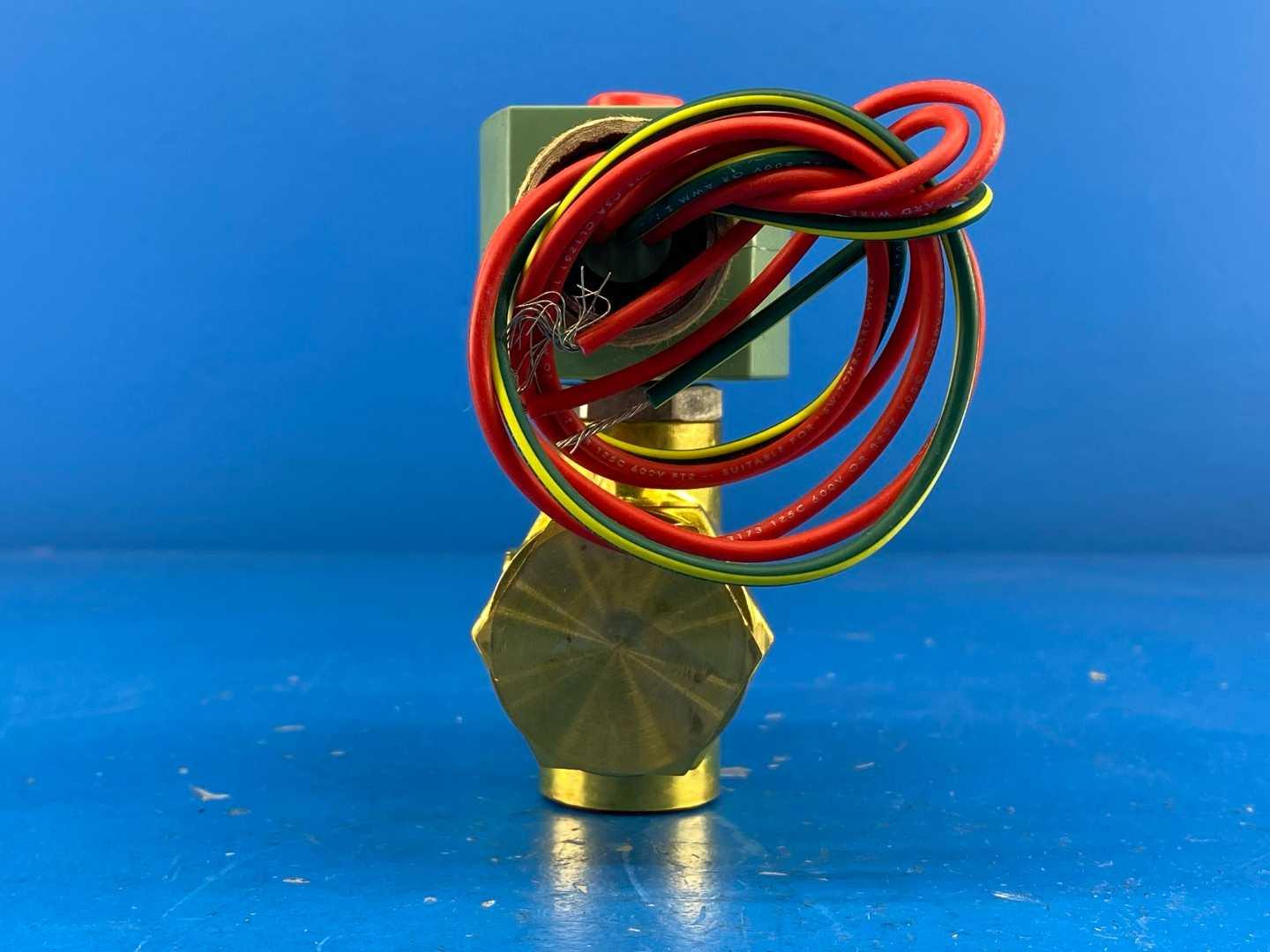

The ASCO Red-Hat 8223G003 is a 2-way, normally closed solenoid valve built for high-pressure service. Unlike a direct-acting valve, where the coil has to lift the sealing disc against full line pressure, this one uses an internally pilot-operated stainless steel piston: the solenoid opens a small pilot passage and line pressure does the work of stroking the main piston. That design is why a 17-watt coil can control up to 1500 PSI through a 3/8" orifice. It requires a minimum 25 PSI differential to actuate, carries a brass body with 1/2" NPT ports and a 3.2 Cv flow factor, and can be mounted in any position.
This is the shutoff valve that sits downstream of a high-pressure pump. The most common application is car wash equipment, where it gates high-pressure water to a wand or arch on command from the bay controller, but the same construction is used on hydrostatic test stands, washdown headers, compressed air and inert gas panels, pump bypass and recirculation legs, and light-oil circuits. Rated 25–1500 PSI on air/inert gas, water, and light oil, with a 200°F maximum fluid temperature and a NEMA 2, 3, 3S, 4 and 4X watertight enclosure. CSA listed. The 8223 series remains in current production — rebuild kit 302315 and replacement coils are available through ASCO's distributor network.
Ships from Del Rio, TX. Same-day shipping on orders placed before 3:00 PM CT.

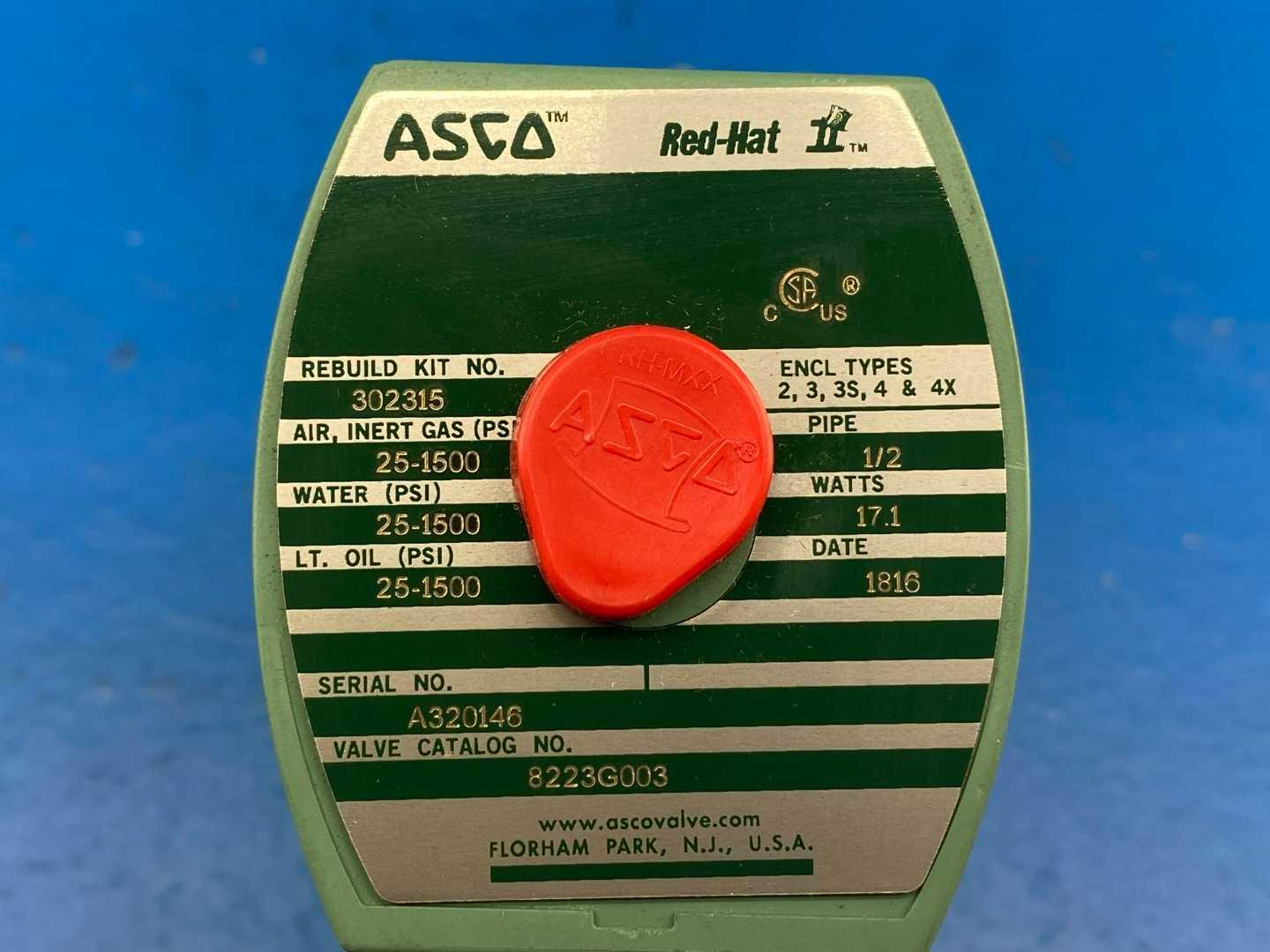

Factory Information
| Field | Value |
|---|---|
| Manufacturer | ASCO Valve, Inc. (Emerson) — Red-Hat II |
| Model | 8223G003 (order string 8223G003AC12/60) |
| Year | 2018 (date code 1816) |
| Serial # | A320146 |
| Type | 2-way / 2-position, normally closed, internally pilot-operated, stainless piston |

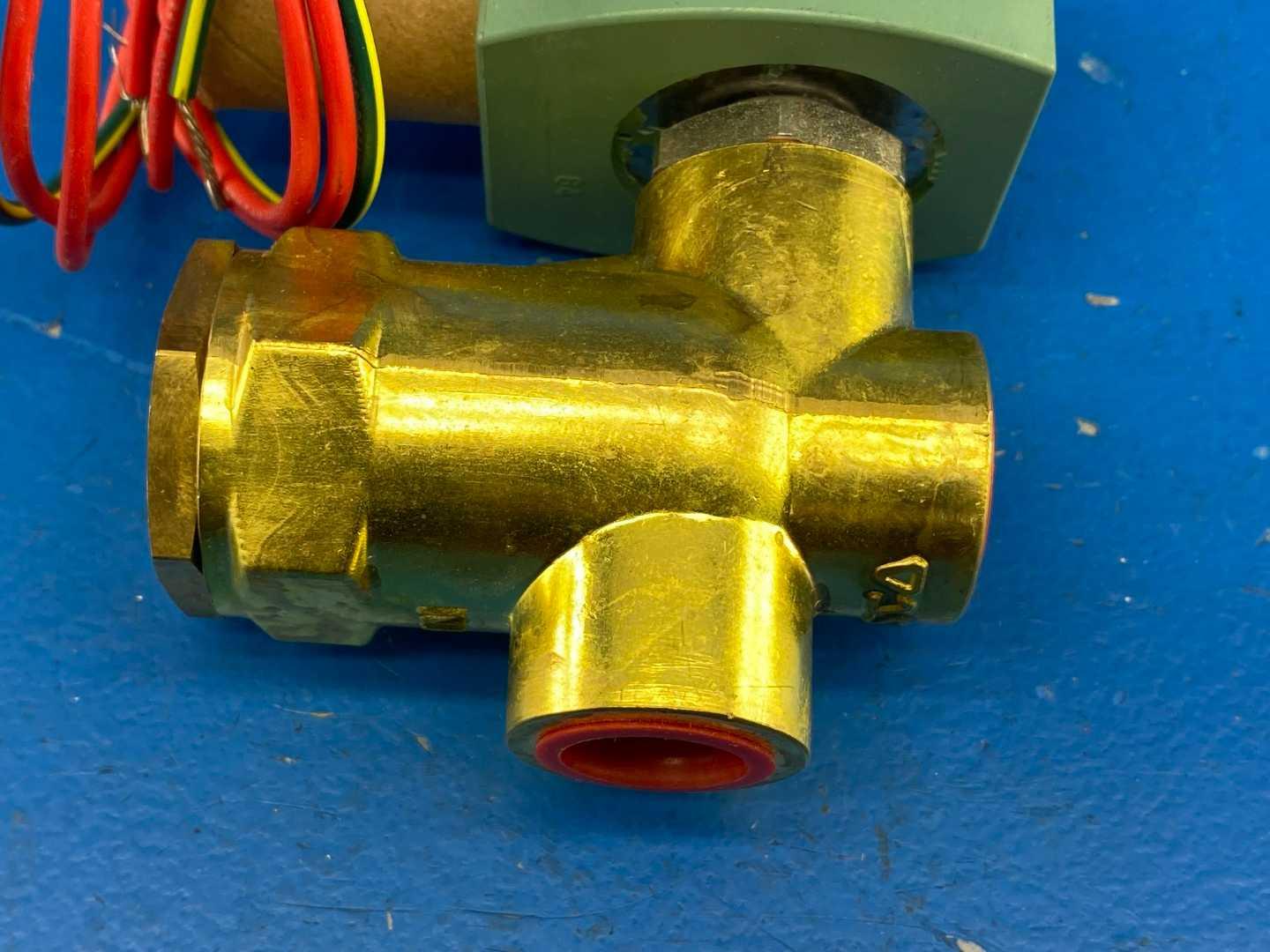

| Pipe size | 1/2" NPT female × female |
| Orifice | 3/8" (10 mm) |
| Capacity | Cv 3.2 / Kv 2.7 m³/h |
| Pressure | 25–1500 PSI — air/inert gas, water, and light oil (nameplate) |
| Voltage | 120 VAC, 60 Hz |

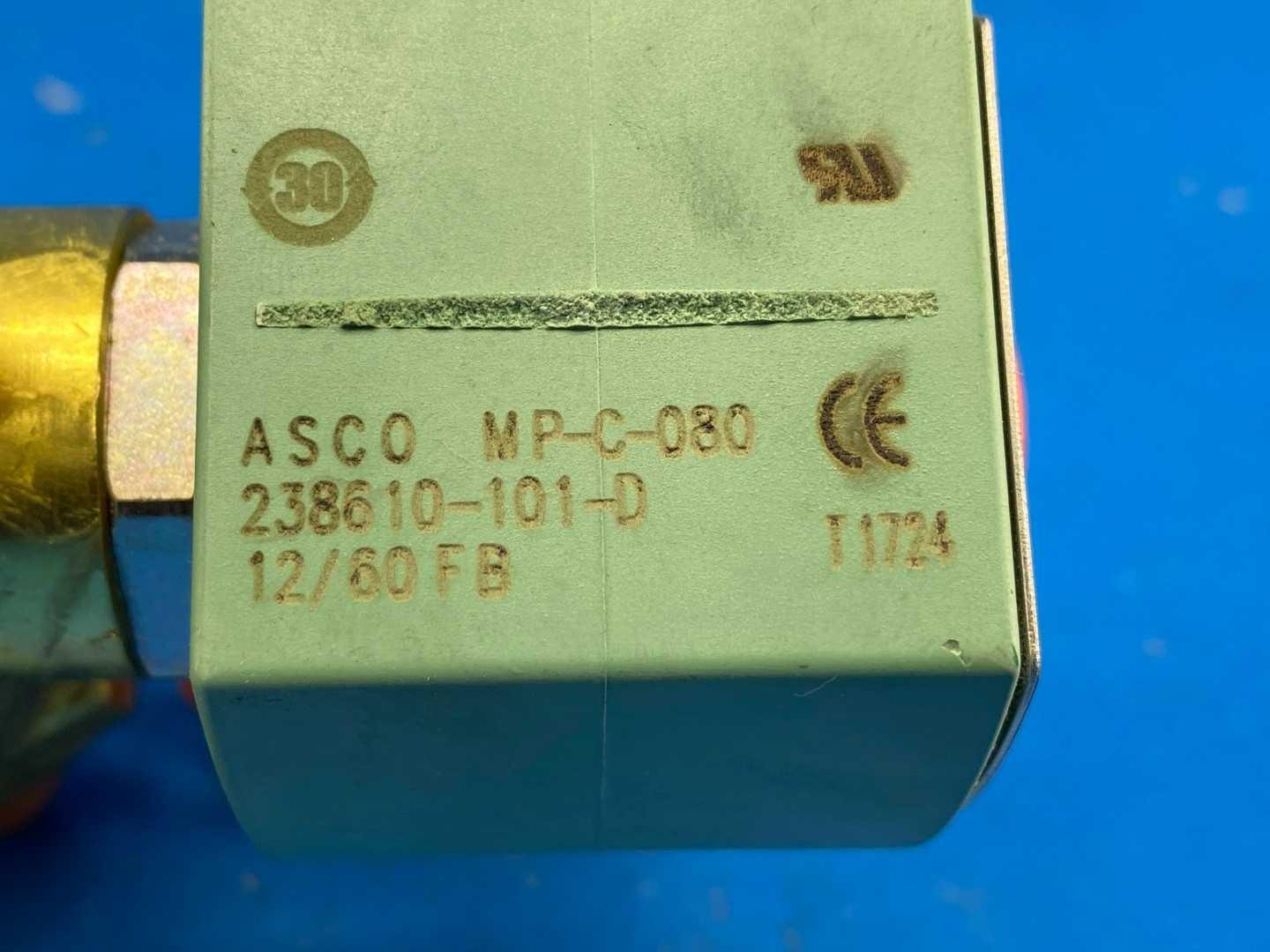

| Coil | ASCO 238610-101-D · MP-C-080 · 12/60 FB · Class F |
| Watts / VA | 17.1 W · 40 VA holding · 70 VA inrush |
| Amps | ≈3.3 A holding / ≈5.8 A inrush (calculated from VA, not nameplate) |
| Phase | Single |
| Body / seals | Brass · NBR, nylon, PTFE · 305/430F/302 stainless internals |
| Max fluid temp | 200°F (93°C) |

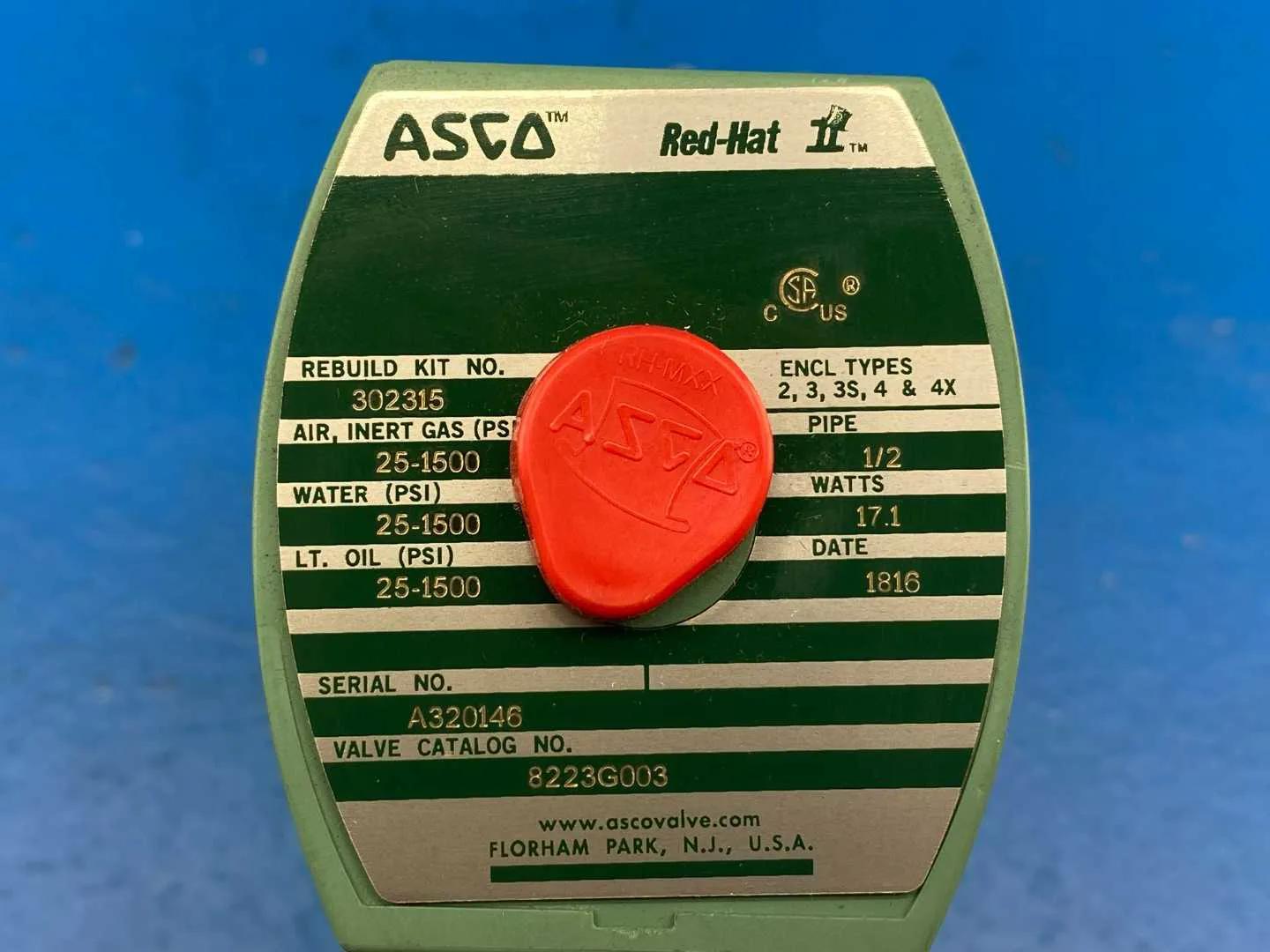

| Enclosure | NEMA 2, 3, 3S, 4, 4X (per nameplate) |
| Approvals | CSA c/us · CE · UL (coil) |
| Rebuild kit | 302315 |
| Dimensions | 4.32" H × 1.95" W × 3.03" L |
| Weight | 2.4 lb |
| Condition | New in box, untested |
