IMI FAS 04-211F-09-20 Direct Acting Solenoid Valve

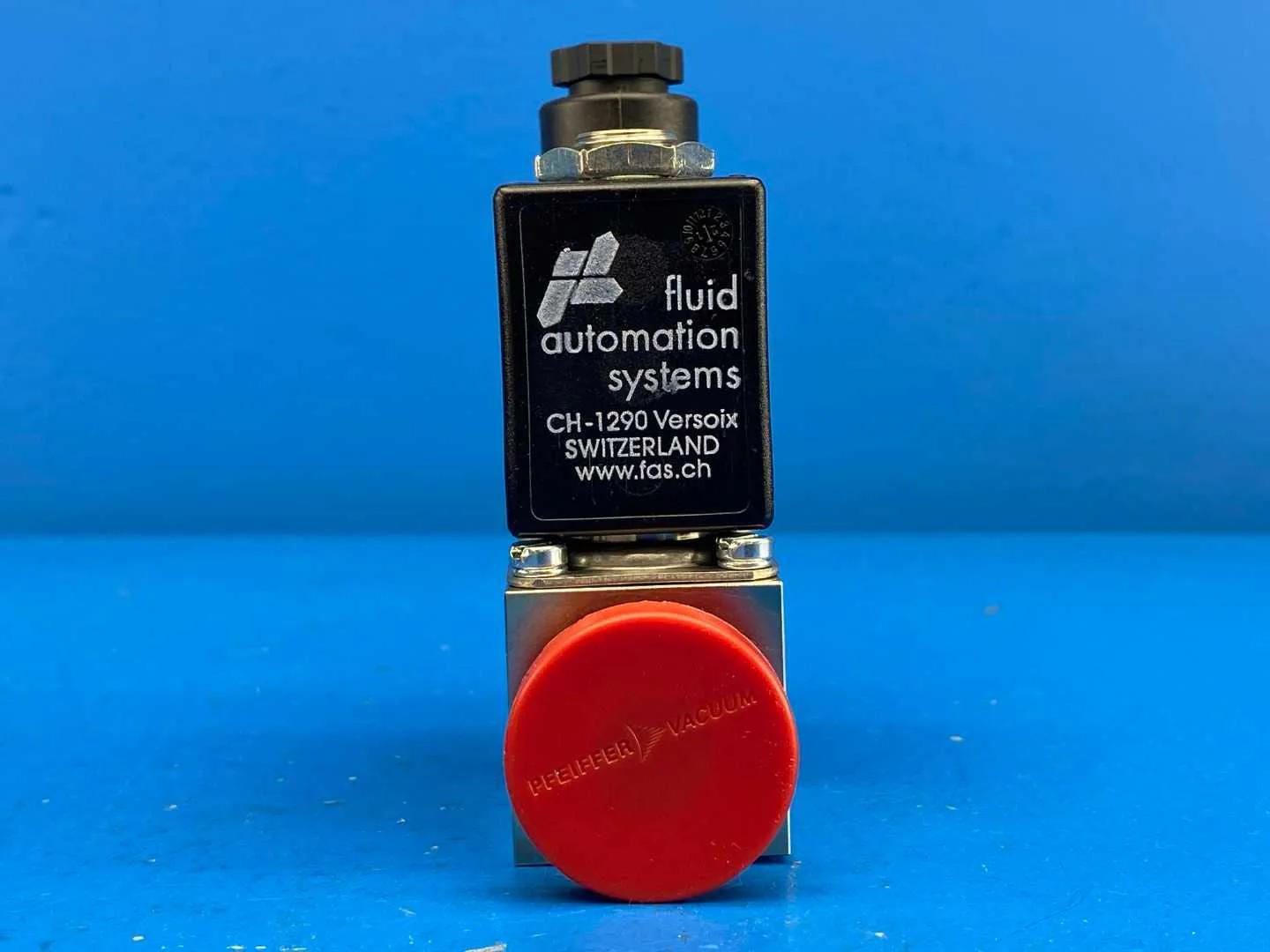

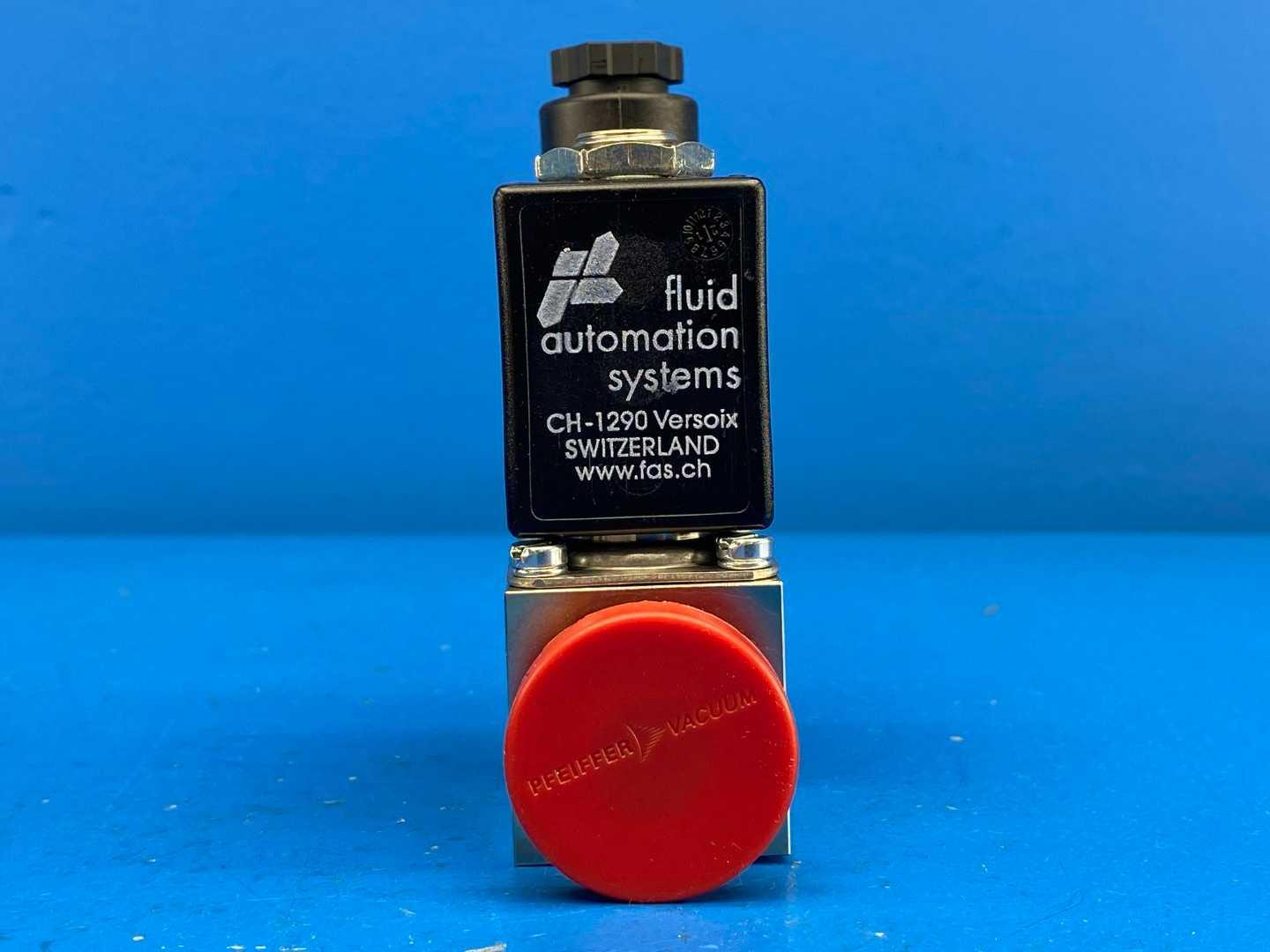

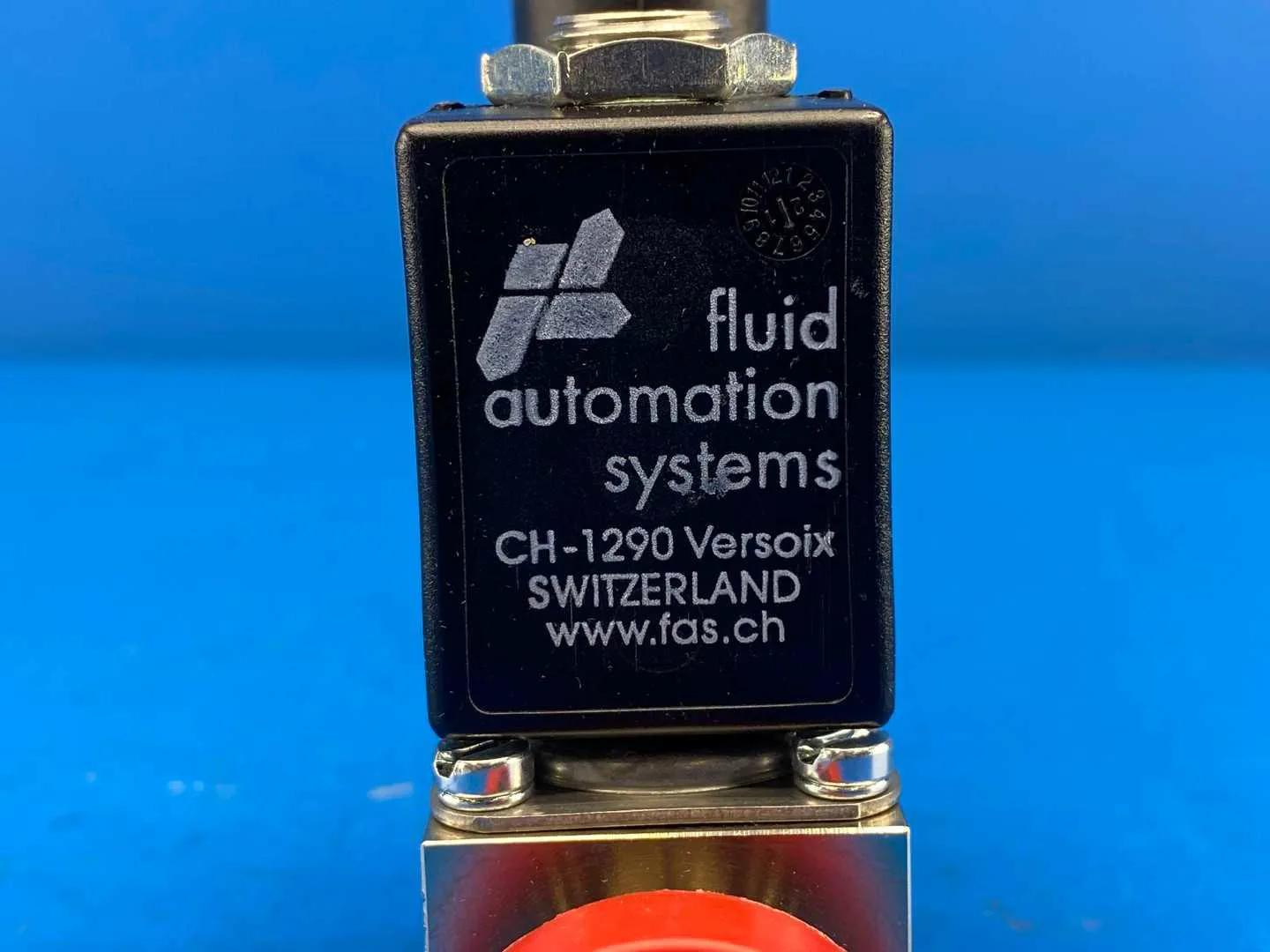

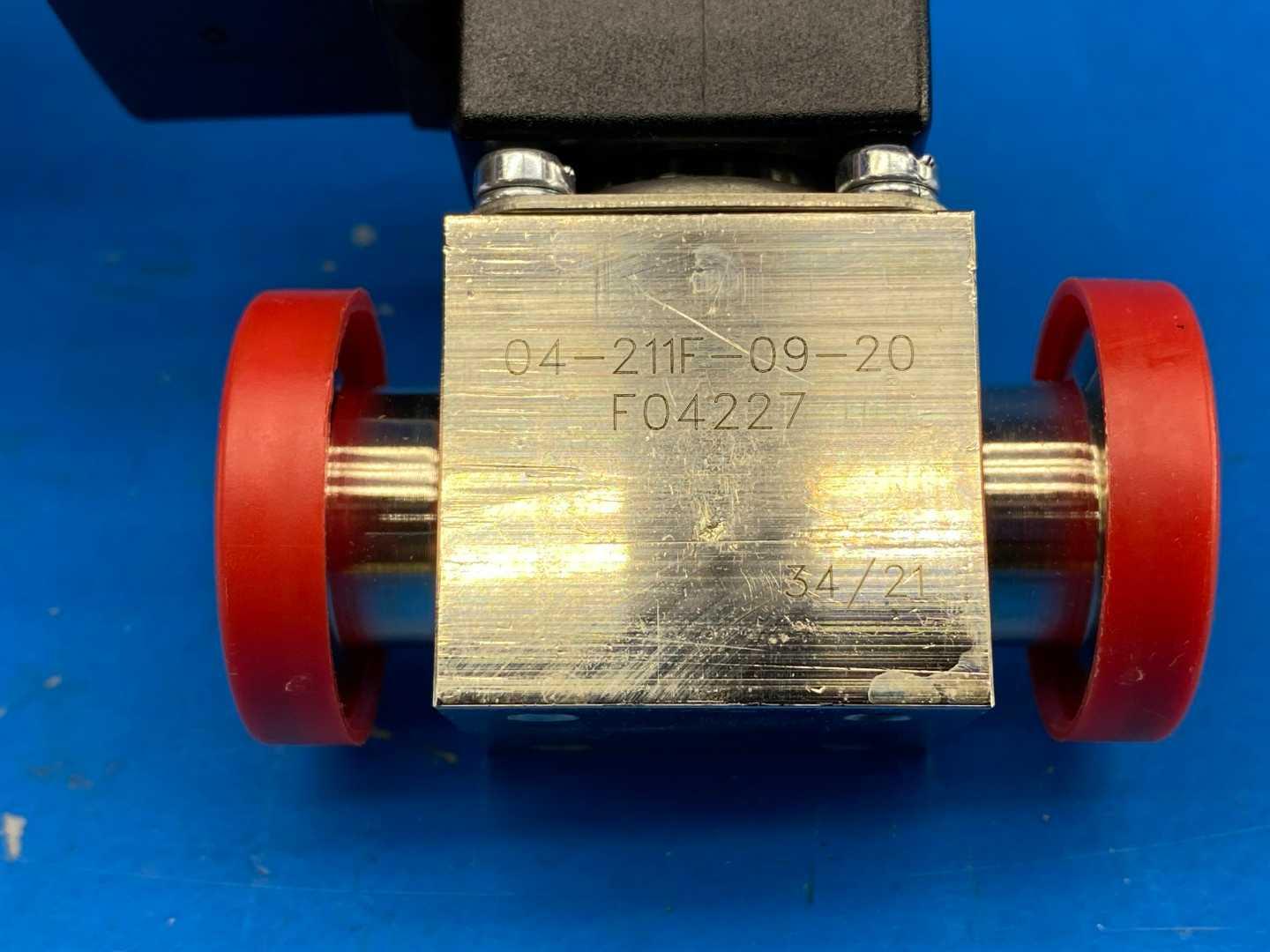

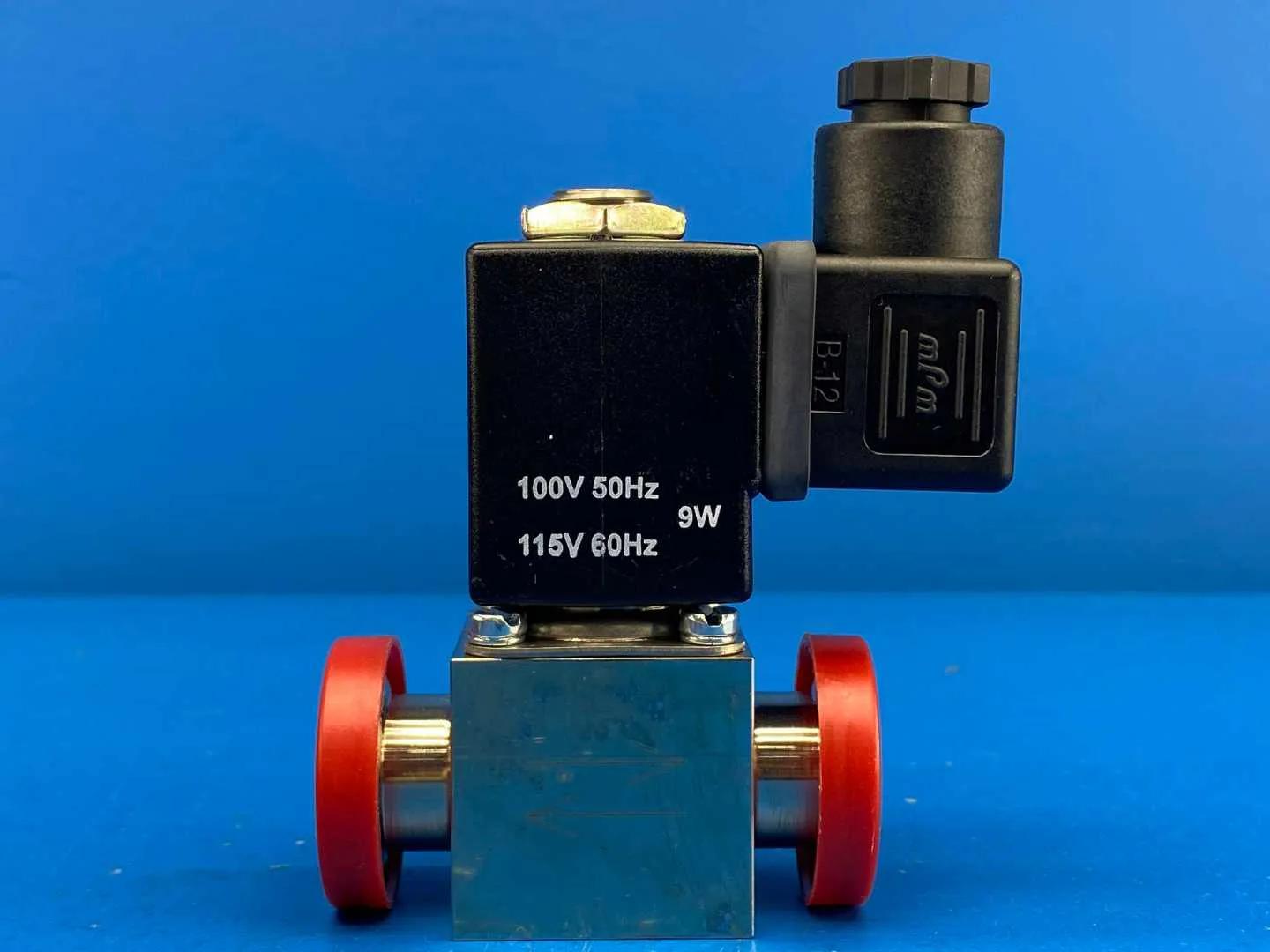

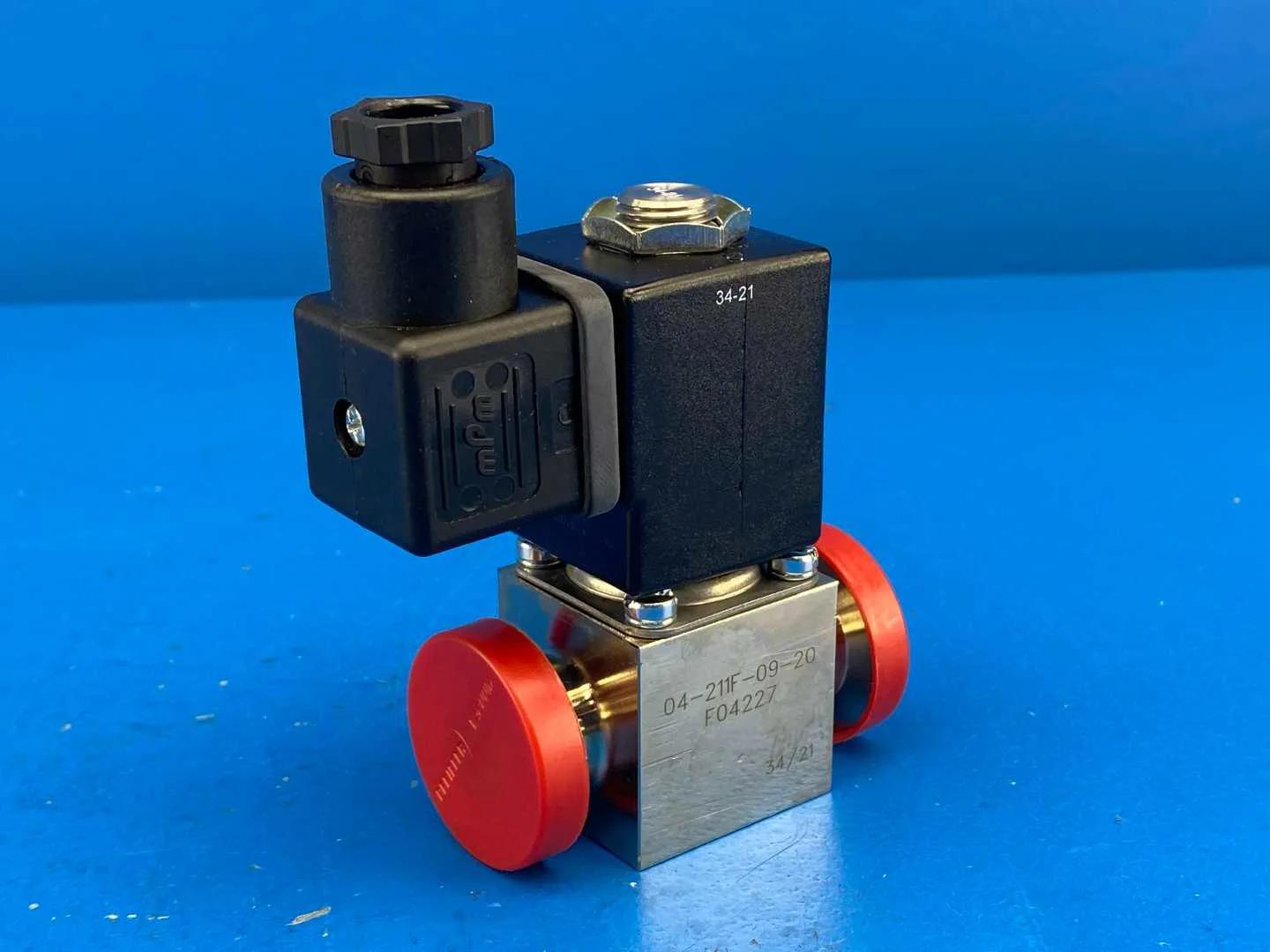

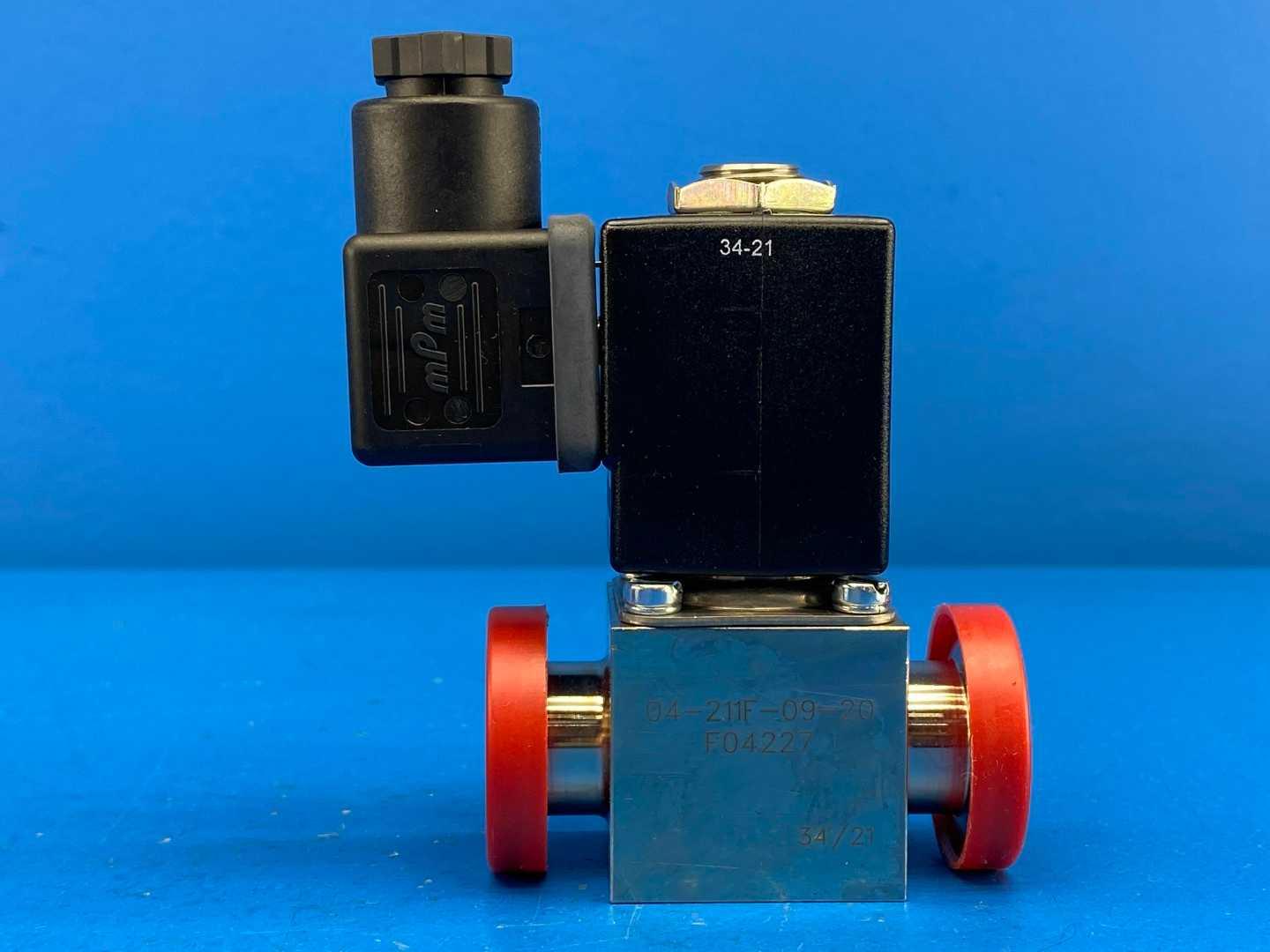

Manufacturer: IMI FAS. The factory label gives the legal entity as Fluid Automation Systems SA / FAS Medic SA, rte de Bossonnens 2, CH-1607 Palezieux, Switzerland. FAS is the fluid control business now within IMI, and its products are also catalogued under IMI Norgren. Article Number: 04-211F-09-20 Serial Number: F04227 Type: direct acting solenoid valve, miniature MARKINGS TRANSCRIBED FROM THIS UNIT Coil Marking: 745 SAA 100-115V Additional Body Marking: 34-21 / 34/21 Coil Style: mPm coil ORIGINAL SUPPLY ROUTE, FROM THE FACTORY BOX LABEL Client: Pfeiffer Vacuum SAS - ADIXEN Order Number (N. commande): 4500863779-PP2 Article Number (N. article): 04-211F-09-20, serial F04227 Customer Reference (Votre reference): 100788 B WHY THAT MATTERS: this is an OEM article built by IMI FAS to a Pfeiffer Vacuum (Adixen) specification, not a general catalogue line. That is why the number does not appear in IMI FAS or Norgren public catalogues. For a buyer it means the valve is a service part for Pfeiffer Vacuum / Adixen vacuum equipment, and the Pfeiffer reference 100788 B is the number most likely to identify it in a service parts list. VOLTAGE: the coil is marked 100-115V. The record carries no separate voltage field value, and the coil marking is the only voltage data present on the unit. UNPUBLISHED / NOT STATED HERE: the valve function and port configuration (2/2 or 3/2, normally open or normally closed), orifice size, port thread or interface, operating pressure range, flow rate, coil power in watts, AC or DC service, seal and body materials, and operating temperature range. IMI FAS publishes no public datasheet for this article number, and the general FAS miniature valve families (Microsol, Chipsol, Flexisol) cover different constructions, so none of their figures has been applied to this item. These should be obtained from IMI FAS or from Pfeiffer Vacuum against the article number and customer reference above. Spec Basis: Valve body marking and factory box label transcribed from this unit's own photographs (IMI FAS, Fluid Automation Systems SA / FAS Medic SA, Palezieux Switzerland, article 04-211F-09-20, serial F04227, coil 745 SAA 100-115V, mPm coil, Pfeiffer Vacuum SAS - ADIXEN order 4500863779-PP2, reference 100788 B). Company identity per IMI's published FAS business information. No specification has been borrowed from a different FAS valve family.
