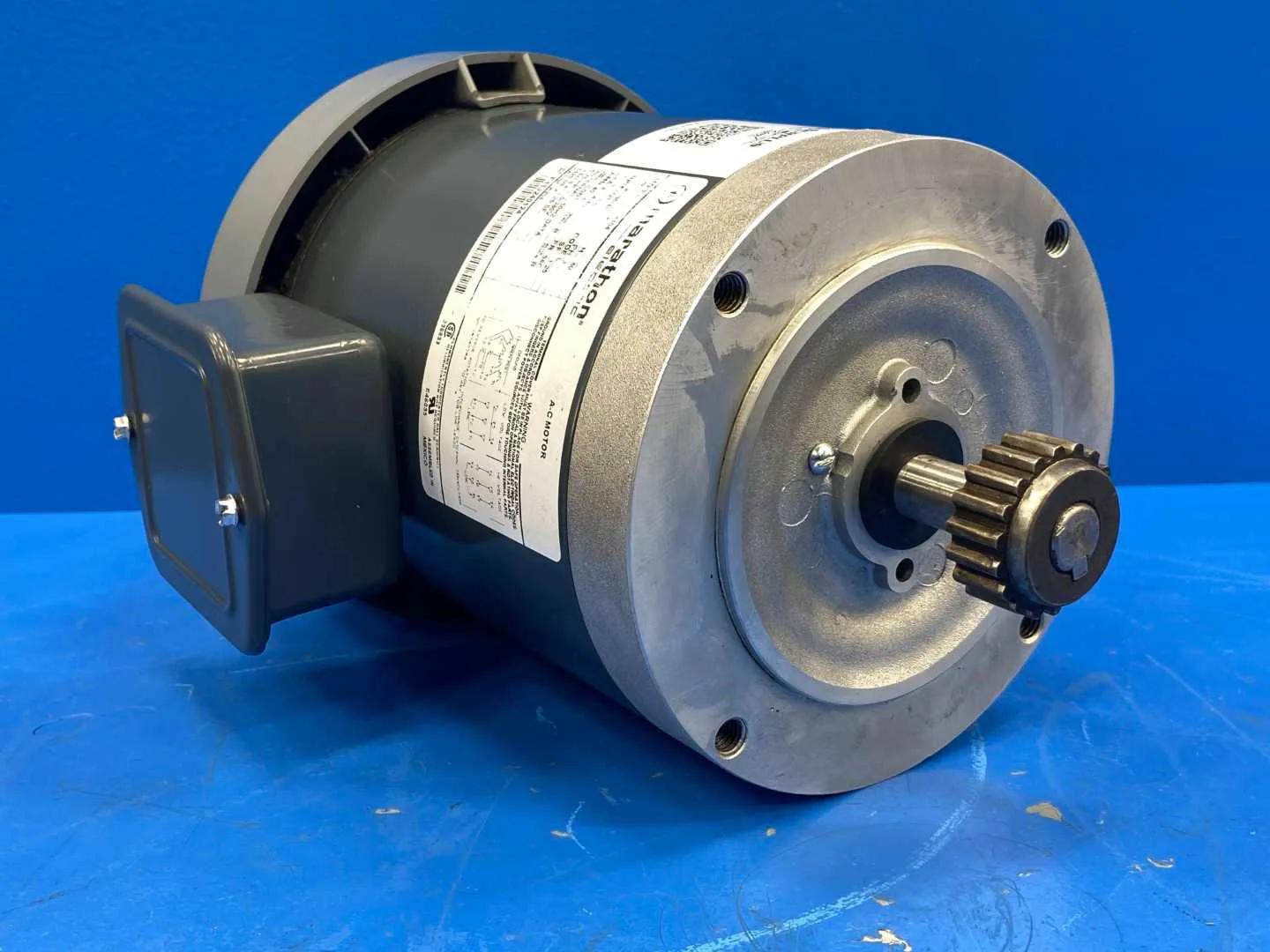

Marathon Electric 5K49MN4104 (K256) General Purpose AC Motor, 1HP, 3-Phase, 1725RPM, 208-230/460V
5K49MN4104 Motor Specifications: HP, RPM, Frame & Voltage
Frame Interchange & Applications for Marathon Electric 5K49MN4104
1 / 11
+11
+11
1 / 11
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | 5K49MN4104 |
| Condition | Used |
| Manufacturer | Marathon Electric |
| Asset Number | KSCU / 667 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 1.6 6x10 CH $3.00 |
Available Qty: 2
$83.00
Basic Information
Asset #
KSCU / 667
Available Quantity
2
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
N/A
Factory Information
- Manufacturer: Marathon Electric (Regal Rexnord)
- Model: 5K49MN4104 (catalogue reference K256)
- Type: General purpose three-phase AC induction motor
- Output: 1 HP (0.75 kW)
- Speed: 1725 RPM (1800 RPM synchronous, 4-pole)
- Voltage: 208-230/460 V, 60 Hz
- Full Load Amps: 3.6-3.8 A
- Phase: 3
- Frame: 56C, C-face footless

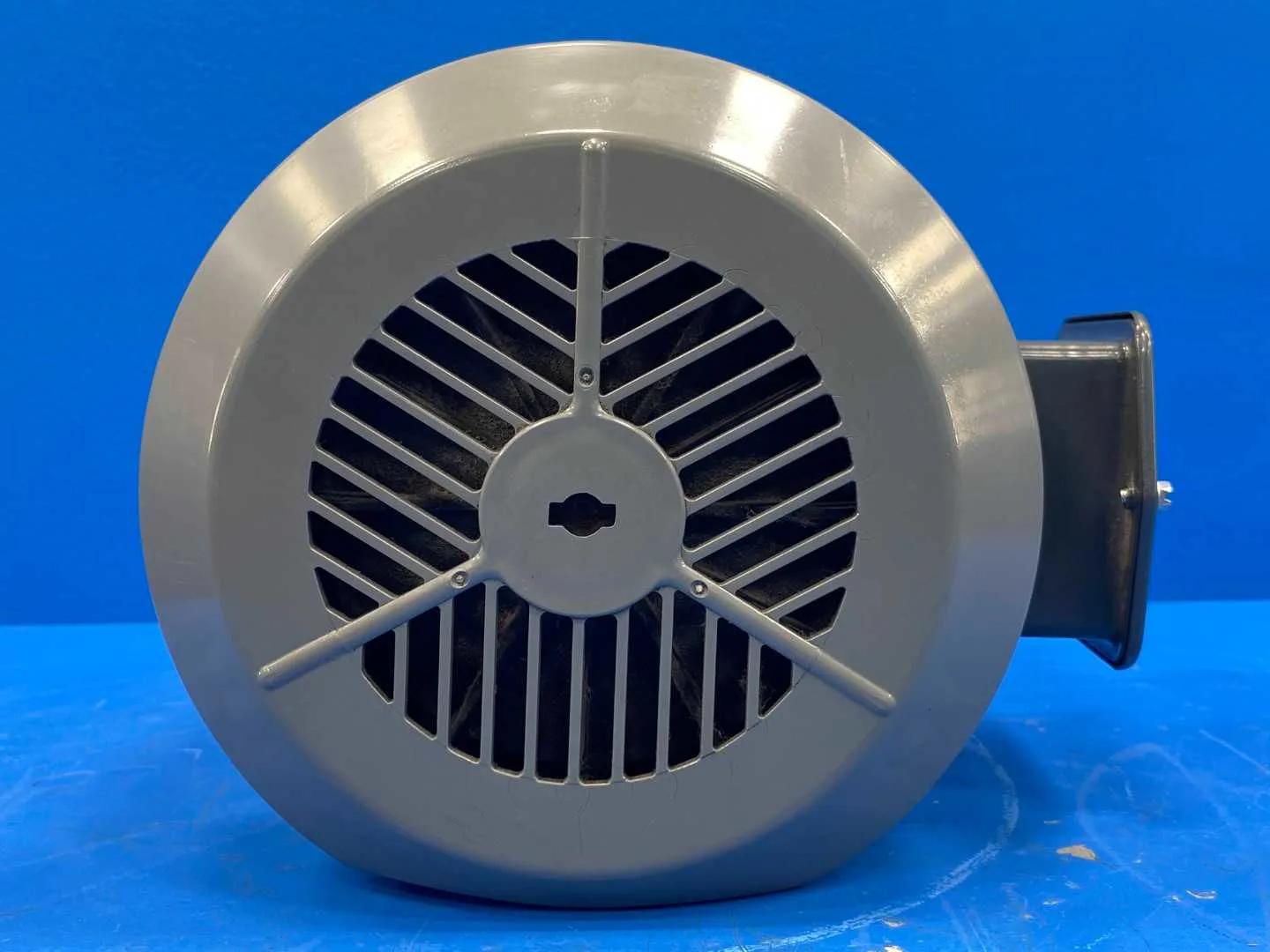

- Enclosure: TEFC (totally enclosed fan cooled)
- Service Factor: 1.25
- Insulation Class: B
- Duty: Continuous
- Ambient Temperature: 40 °C
- Bearings: 6203 drive end and opposite drive end

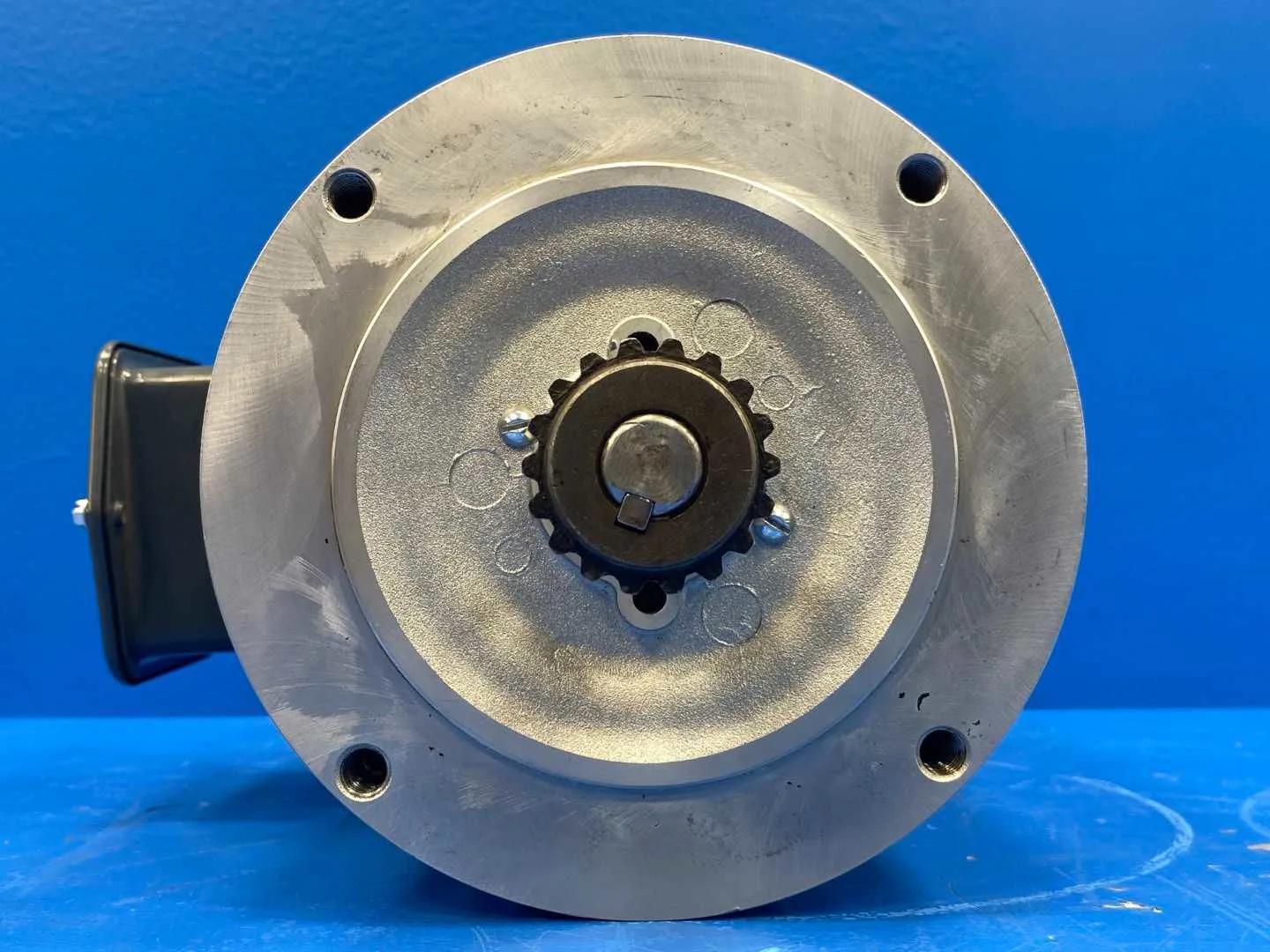

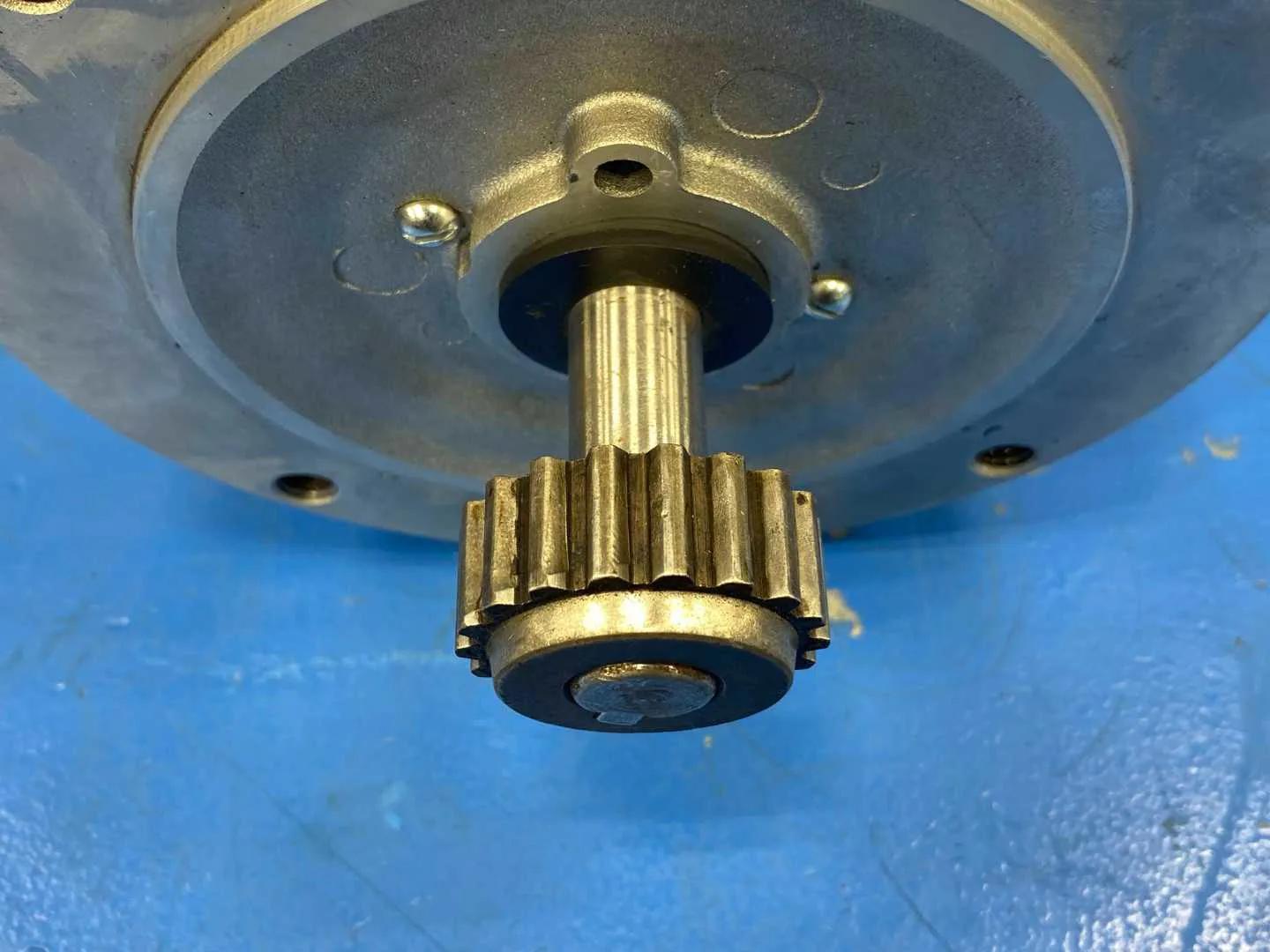

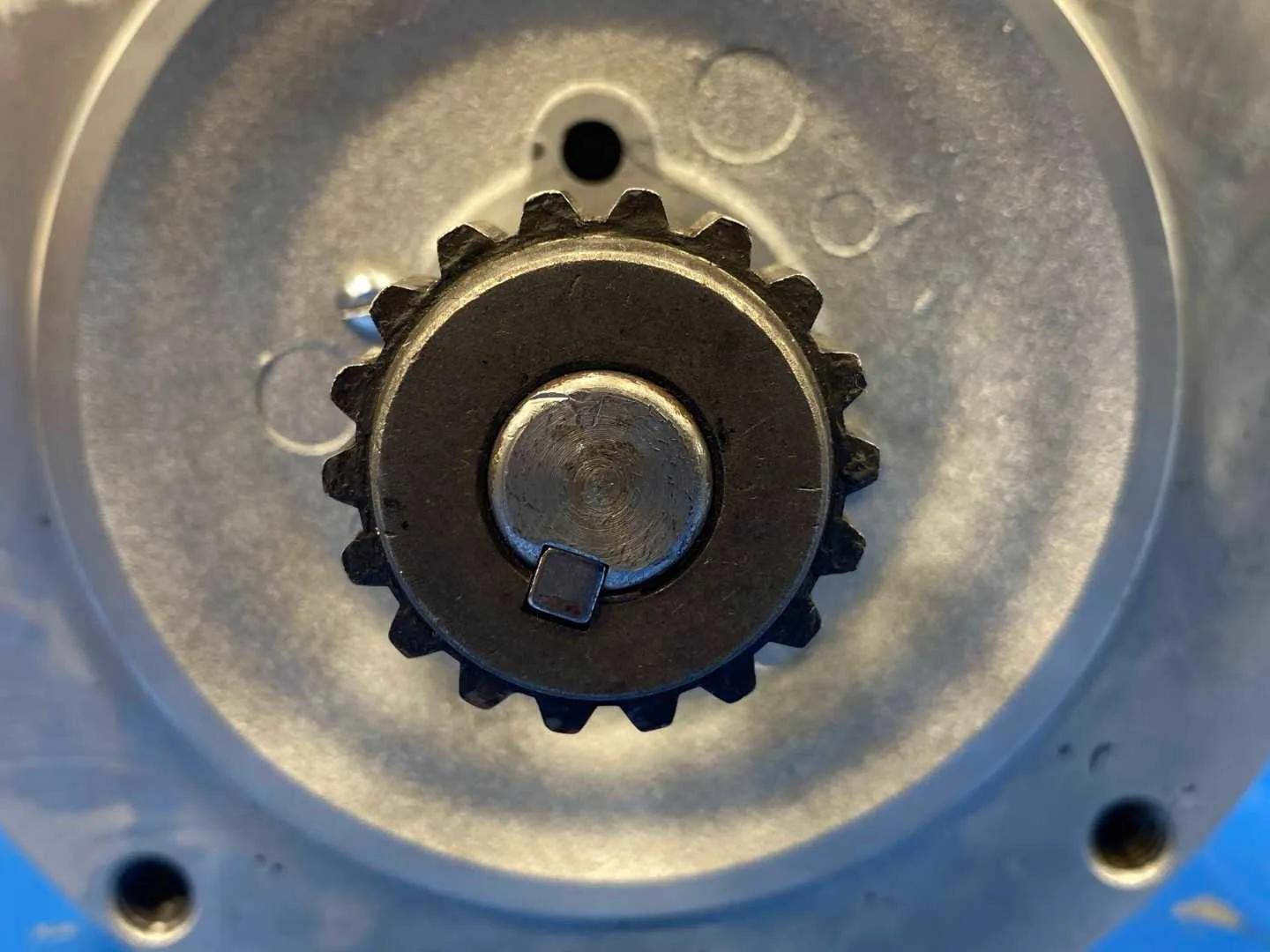

- Shaft Extension: 0.625 in diameter x 1.88 in long, with key
- Rotation: Reversible (CW / CCW)
- Spec Basis: Marathon Electric published motor data via Industrial Motors, Electric Motor Wholesale and Purvis Industries

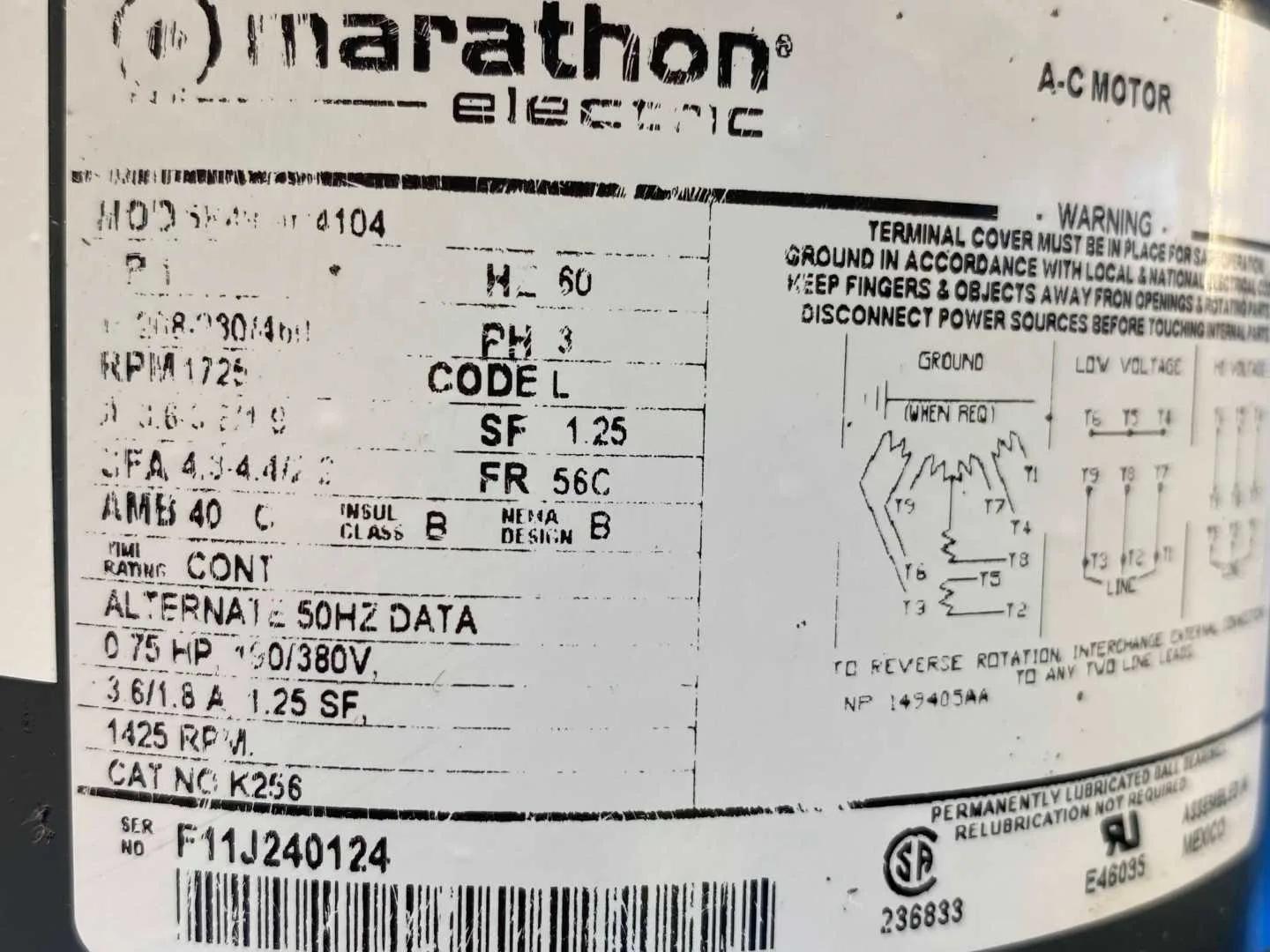

Specifications
Manufacturer
Marathon Electric
Model
5K49MN4104

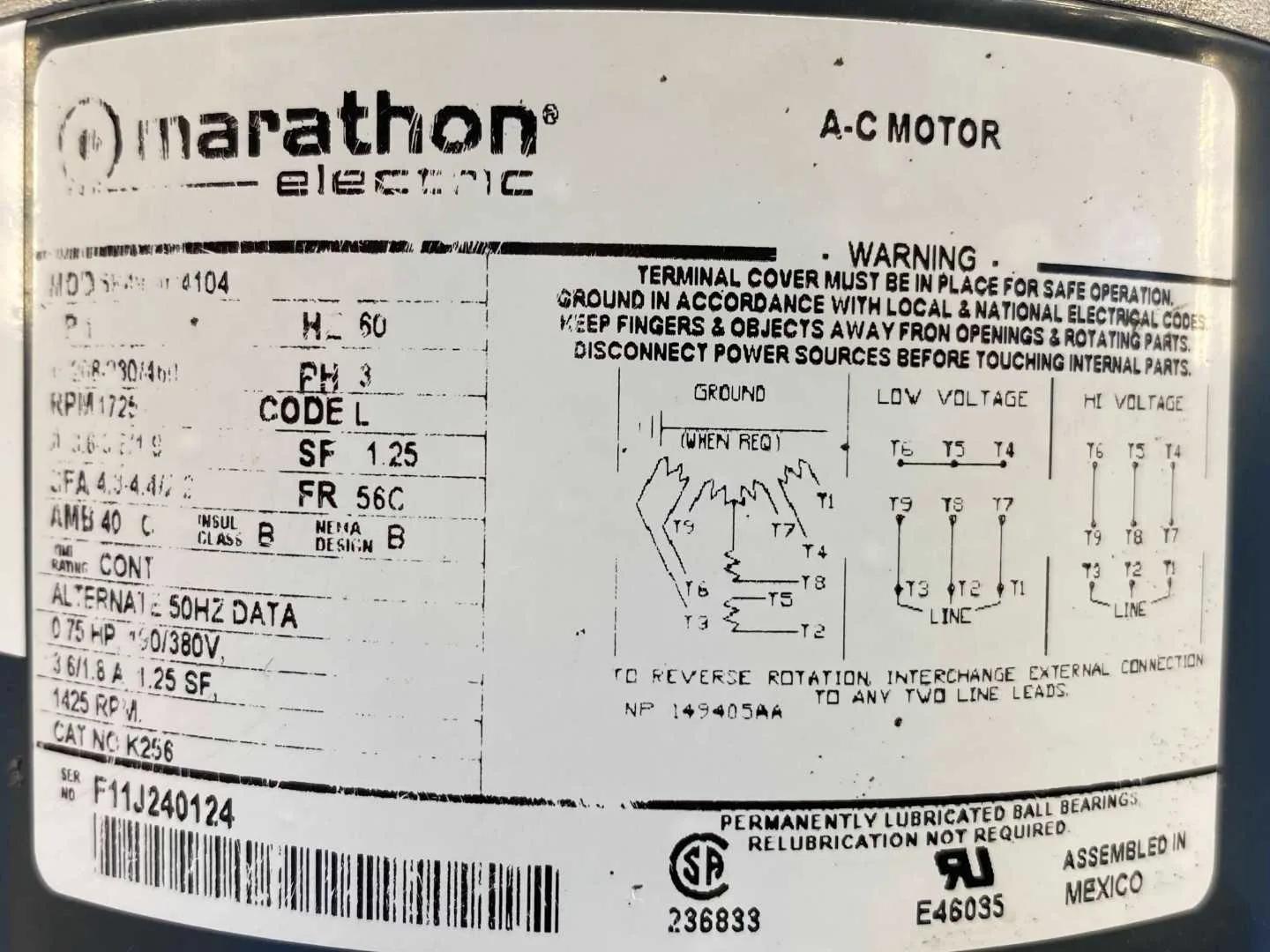

Serial
F11J240124
Year
N/A
HP / AMP / KW / KVA
1HP 60HZ
Amps
3.6-3.8/1.9
Length (Inches)
12
Width (Inches)
10
Height (Inches)
7.5
Phase
3
Estimated Packaging Weight
2
Estimated Total Weight
26
Asset Number
KSCU / 667
Packaging fees
Packaging Cost
1.6 6x10 CH $3.00
