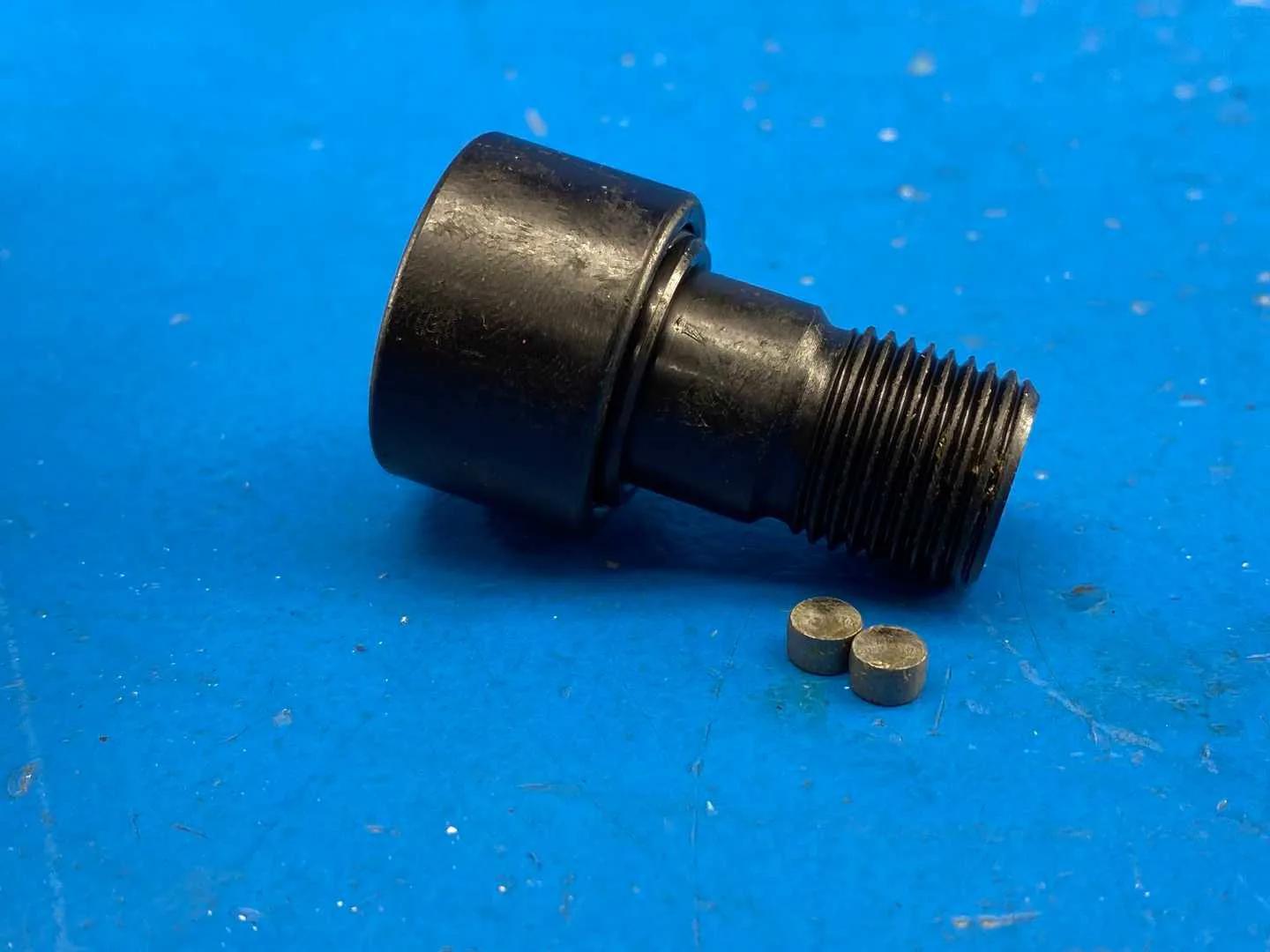

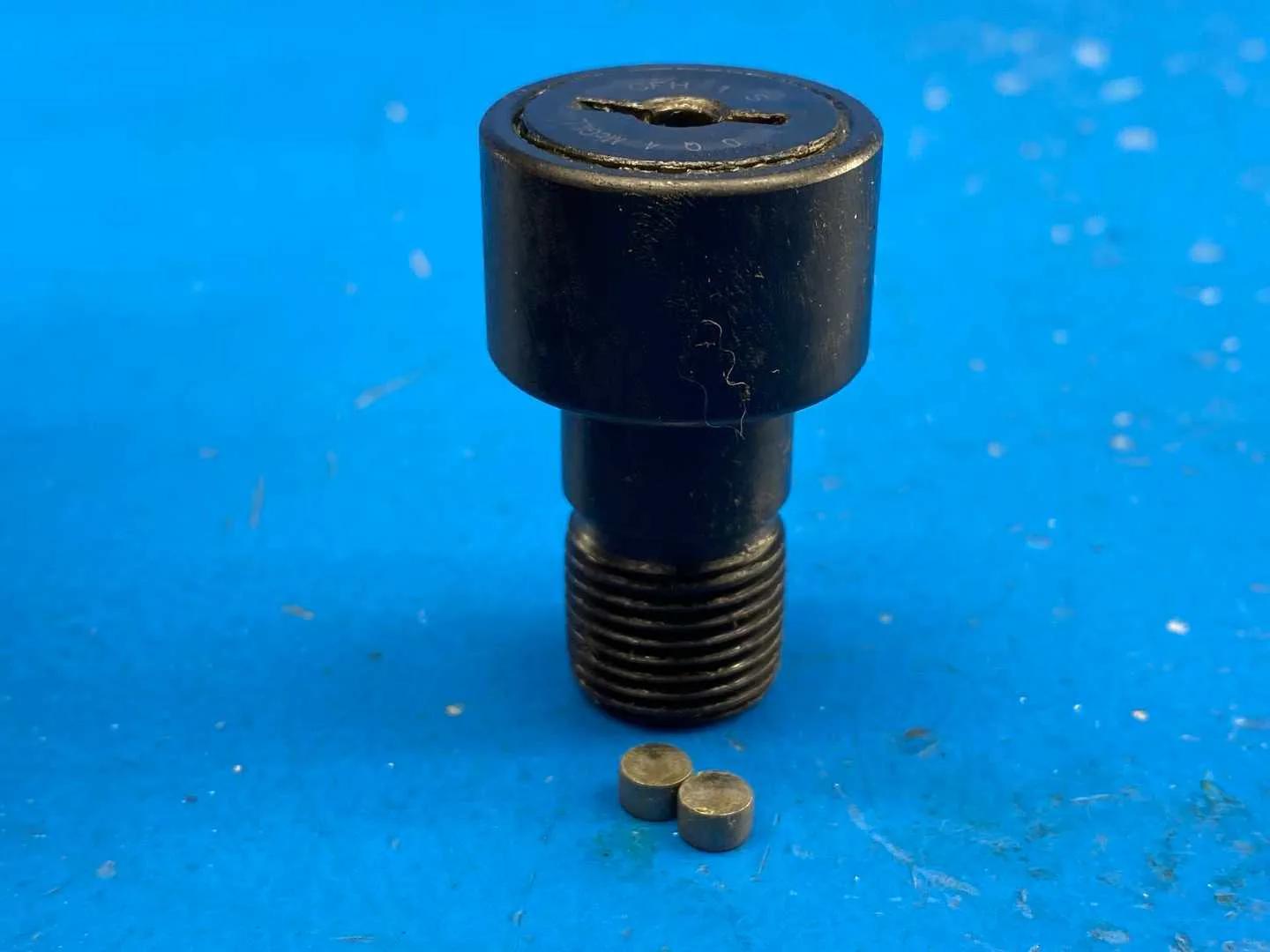

McGill CFH1 S Heavy Stud Cam Follower Bearing, 1" Roller Diameter

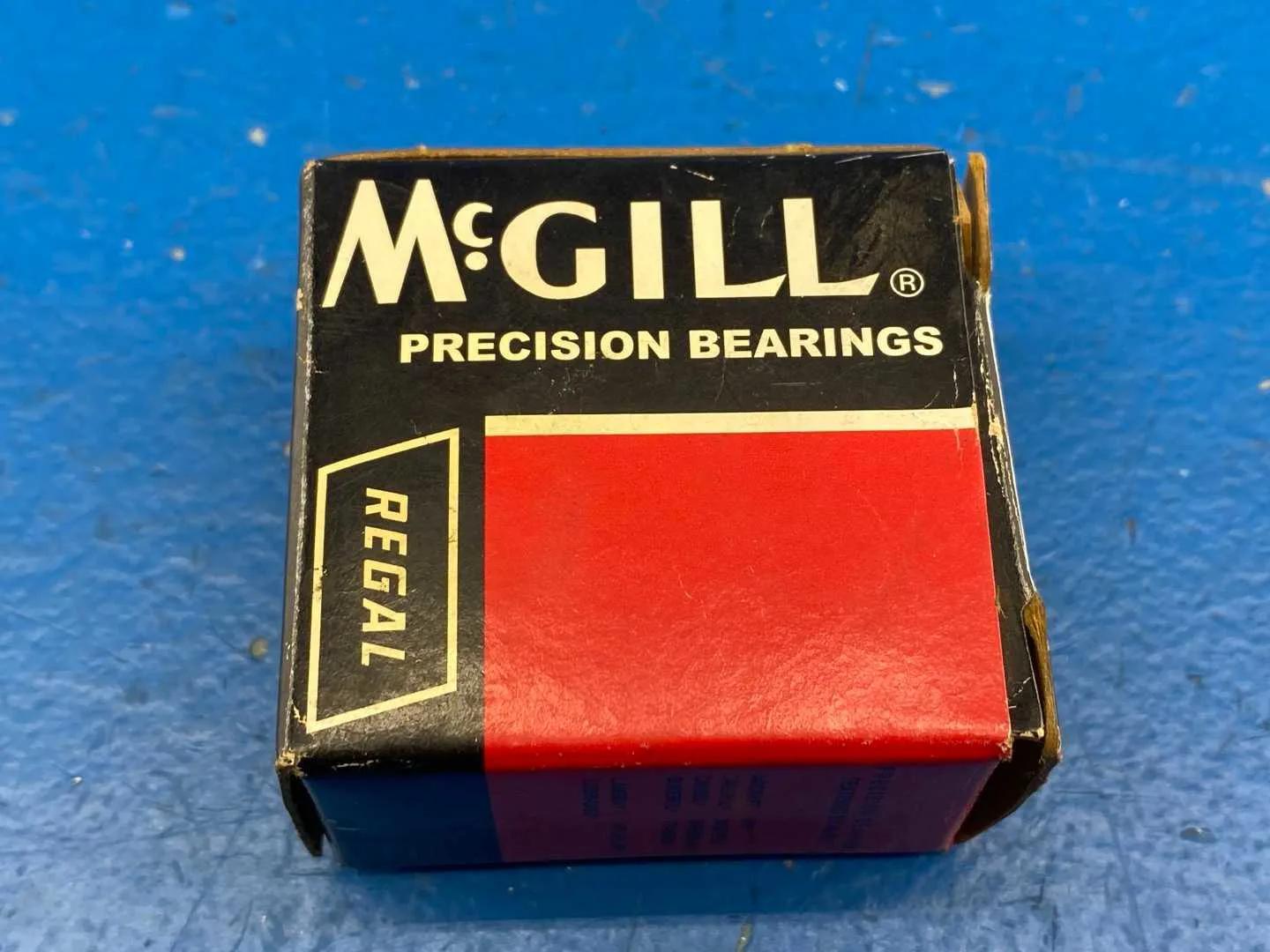

This is a McGill CFH 1 S cam follower, a heavy stud track roller with a 1 inch roller diameter. McGill Precision Bearings, now part of Regal, makes CAMROL cam followers and the package label carries both the McGill and Regal names.

A cam follower is a needle roller bearing built into a thick outer ring and mounted on an integral threaded stud. The stud bolts into a machine frame or lever, and the outer ring rolls along a cam profile, track or guide rail. In the McGill designation, CF is cam follower, H is the heavy stud version with a larger stud for more bending strength, 1 is the roller diameter in inches and S indicates the sealed construction with LUBRI-DISC seals.

Distributor data for this size lists a 5/8 inch wide roller, a 5/8-18 UNF stud 1 inch long, a dynamic load rating of 2,225 pounds and a maximum speed of 4,800 rpm. Maintenance technicians and machine builders use these rollers in packaging machinery, conveyors, indexing and cam mechanisms, printing equipment and material handling guides.

Available from King Surplus inventory in Del Rio, Texas.

• Manufacturer (label): McGill Precision Bearings (Regal)
• Model: CFH 1 S
• Type: Cam follower, heavy stud, sealed (LUBRI-DISC seals)

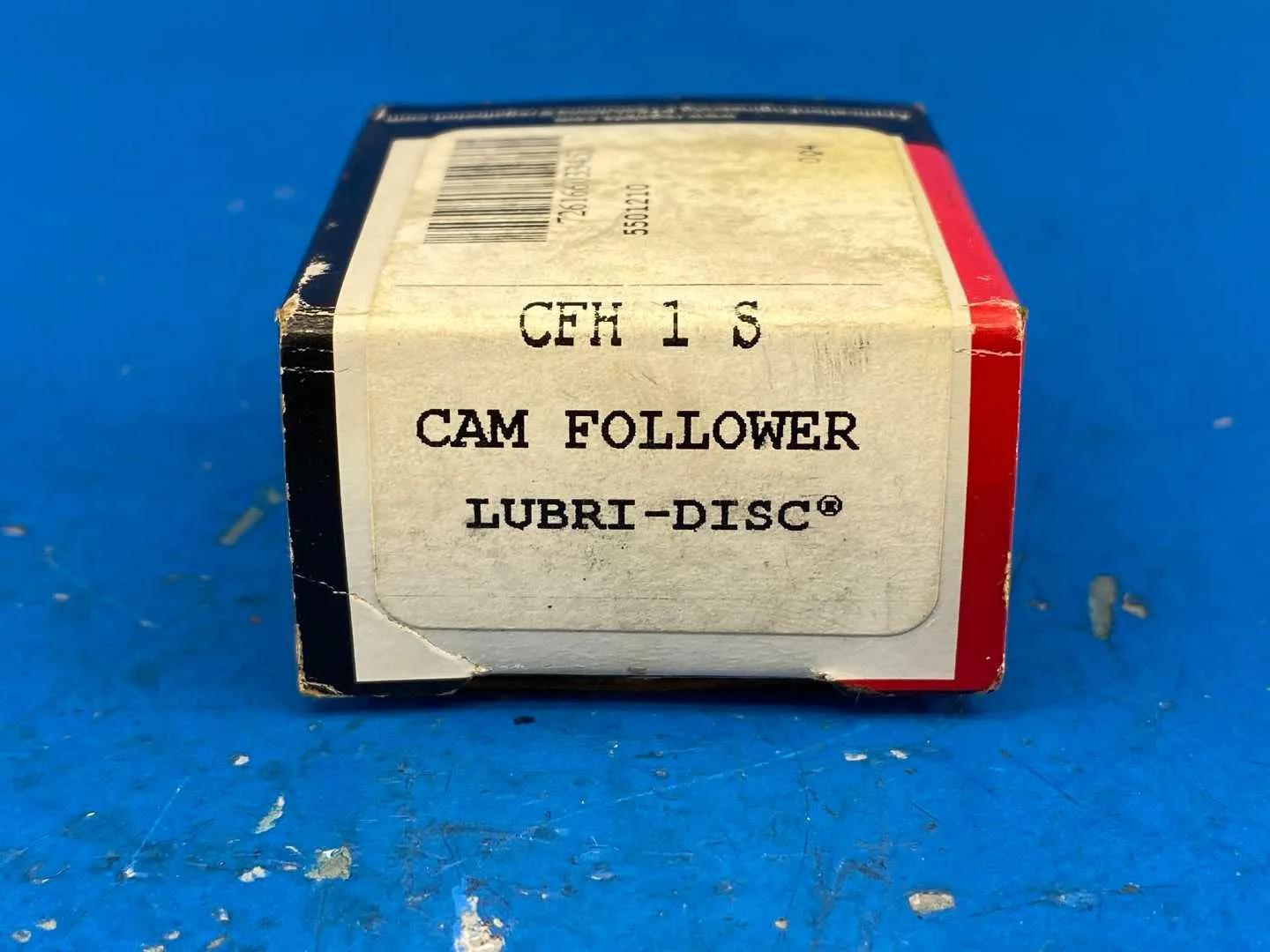

• Label Number: 5501210
• Roller Diameter: 1 in
• Roller Width: 5/8 in
• Roller Profile: Cylindrical
• Stud Diameter: 5/8 in
• Stud Length: 1 in
• Thread: 5/8-18 UNF, 1/2 in thread length

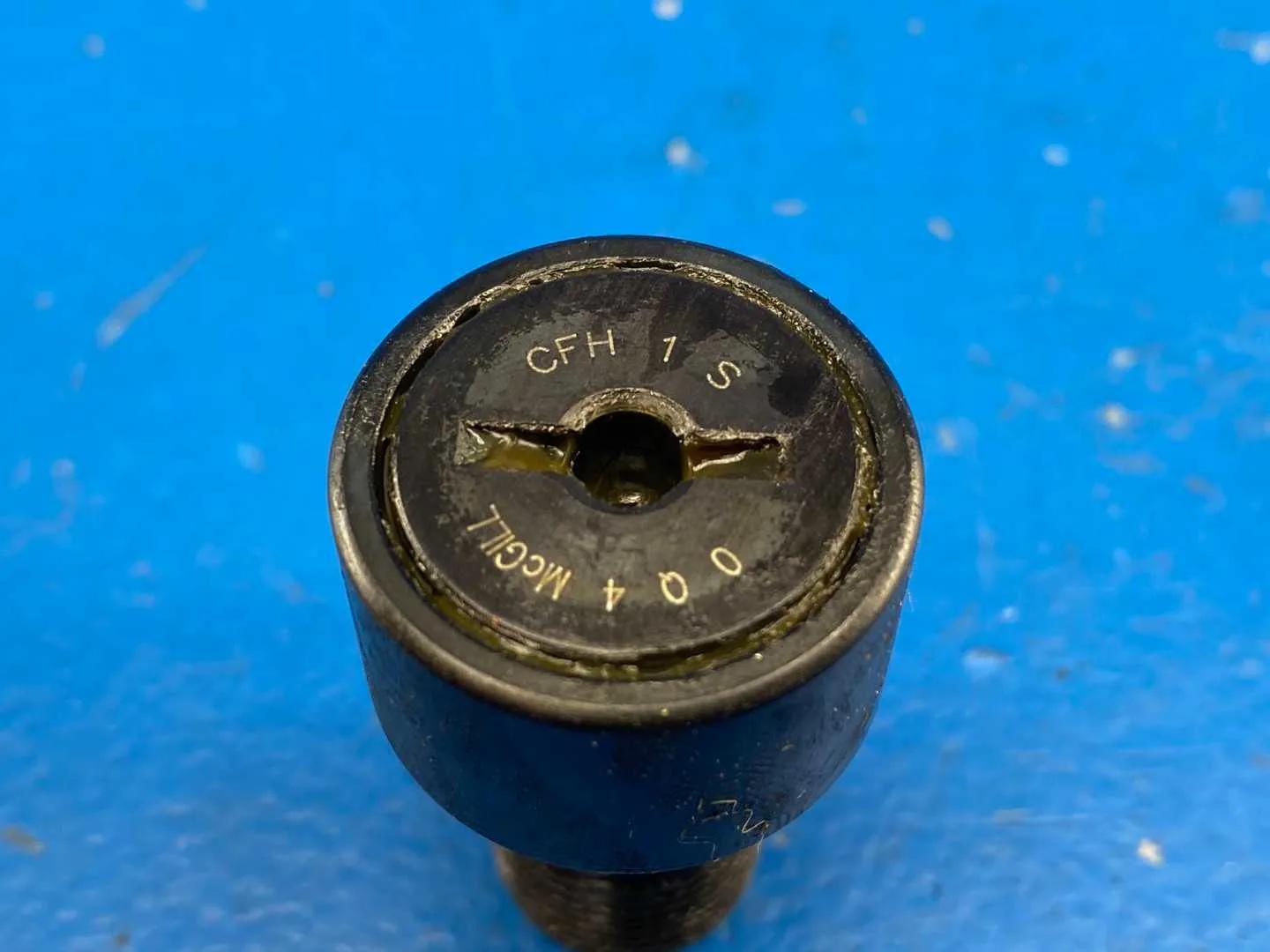

• Drive: Screwdriver slot
• Dynamic Load Rating: 2,225 lb
• Static Load Rating: 5,400 lb
• Maximum Speed: 4,800 rpm
• Temperature Range: -20 to 250 F
• Material / Finish: 52100 bearing steel, black oxide
• Distributor Weight: 0.150 lb
• Spec Basis: package label read from photos; MROSupply McGill CFH 1 S listing (https://www.mrosupply.com/bearings/2251442_cfh-1-s_mcgill-bearing/); MSC Industrial McGill cam follower listing 92611219 (https://www.mscdirect.com/product/details/92611219)
