Mersen SPA130 Operating Shaft, 130 mm, for Pistol-Style Disconnect Switch Handles
SPA130 Handle Specifications: Cross-Section & Length
Disconnect Fitment for Mersen SPA130
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | SPA130 |
| Condition | New |
| Manufacturer | Mersen |
| Asset Number | KSC1230 / 1094 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$9.95
Basic Information
Asset #
KSC1230 / 1094
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

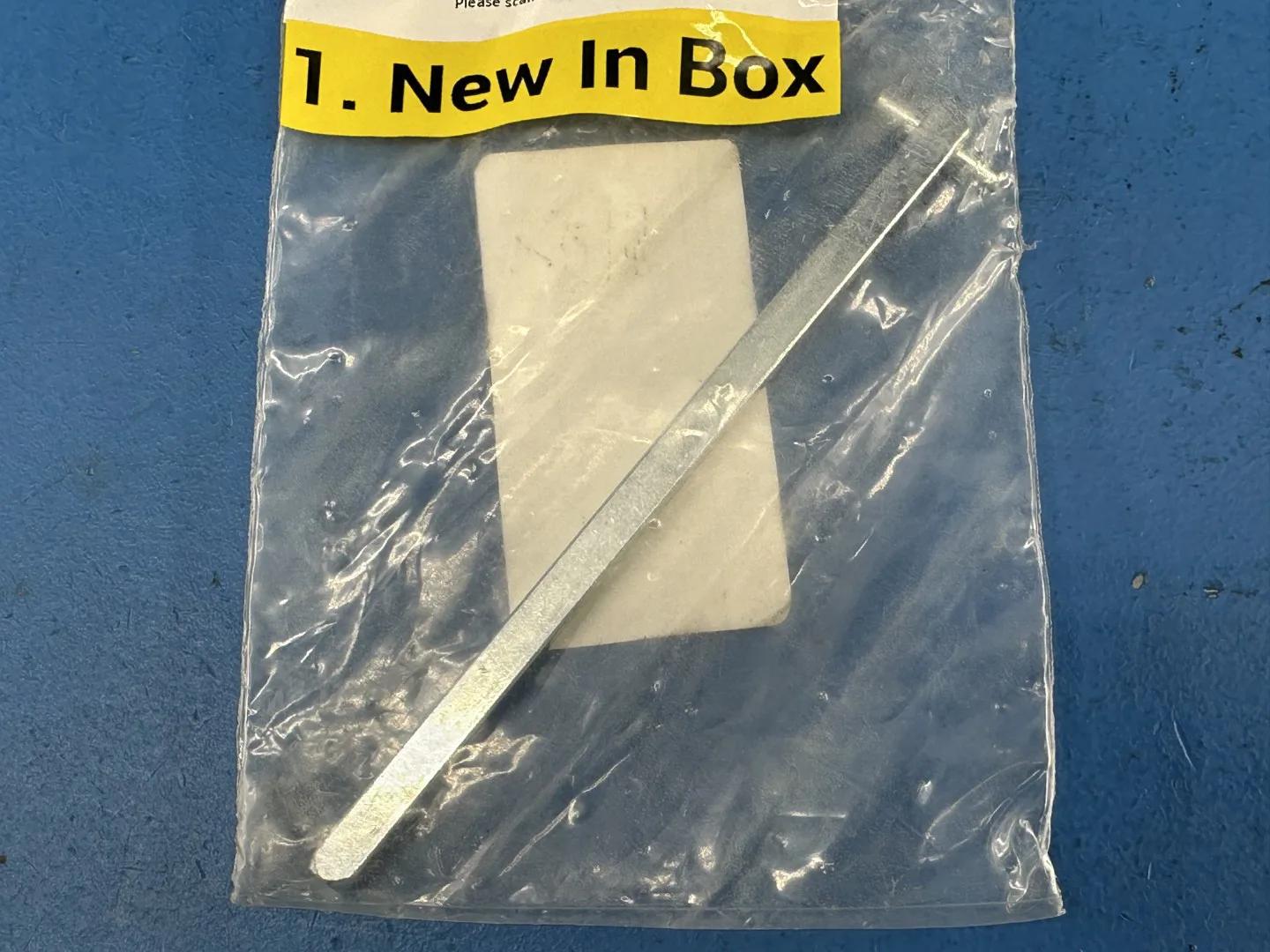

The Mersen SPA130 is a 130 mm (5.1 inch) operating shaft for Mersen pistol style disconnect switch handles. Mersen, formerly Ferraz Shawmut, makes fuses, fuse holders, disconnect switches and other electrical protection products for industrial power distribution.
On an externally operated disconnect, the switch body mounts on the back panel of an enclosure while the handle mounts on the enclosure door. The shaft links the two, carrying the rotation of the handle through to the switch mechanism so the operator can open and close the circuit without opening the door. Mersen shaft part numbers give the length in millimeters, so SPA130 is the 130 mm size, with SPA210, SPA290, SPA360 and SPA430 available for deeper enclosures. Mersen's datasheets pair the SPA shafts with its pistol handles, HB and HR styles in 45, 65 and 80 sizes, NEMA 4 and 4X versions, and the HM65X stainless steel handle, on its UL 508 front operated disconnect switches and UL 98 non-fusible disconnect switches.
Panel builders, OEM machine builders and plant electricians order the shaft to match enclosure depth when installing or replacing a door operated disconnect.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

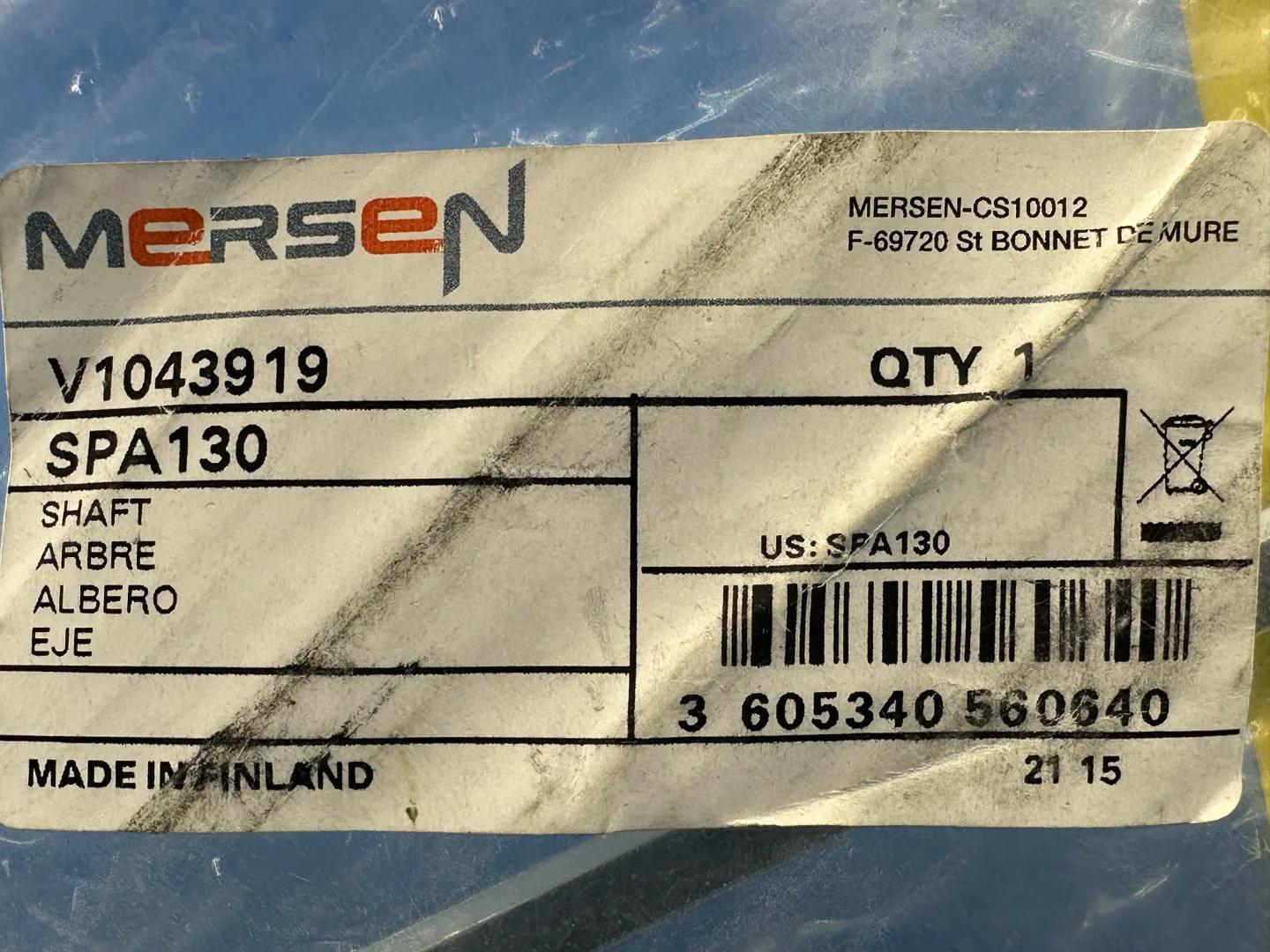

- Manufacturer: Mersen (label; Mersen-CS10012, F-69720 St Bonnet de Mure)
- Part No.: SPA130 (label)
- Description: Operating shaft for Mersen pistol style external handles (label: SHAFT / ARBRE / ALBERO / EJE)
- Shaft Length: 130 mm (5.1 in); Mersen shaft codes give length in mm
- Used With Handles: Pistol style HB45, HR45, HB65, HR65, HB80, HR80 and NEMA 4/4X versions; HM65X NEMA 4X stainless steel
- Switch Families: Mersen UL 508 front operated disconnect switches (M163, M253, M403, M633, M803, 20 to 80 A) and UL 98 non-fusible disconnect switches
- Other Lengths in Series: SPA210, SPA290, SPA360, SPA430
- Published Weight: 0.2 lb (Factorymation)
- Label Code: V1043919
- Country of Manufacture: Made in Finland (label)
- Spec Basis: package label photo; Mersen UL 508 Non-Fusible Disconnect Switches datasheet https://us.mersen.com/sites/default/files/medias/PIM/files/DS-UL508-Non-Fusible-Disconnect-Switches-Mersen.pdf; Mersen UL 98 Non-Fusible Disconnect Switches datasheet https://www.mersen.com/sites/default/files/medias/PIM/files/DS-UL98-Non-Fusible-Disconnect-Switches-Mersen.pdf; Factorymation SPA130 https://www.factorymation.com/SPA130
Specifications
Mersen
SPA130
N/A
N/A
N/A
N/A
1
1
6
N/A
2
3
KSC1230 / 1094
Packaging fees
1.6 6x10 CH $3.00
