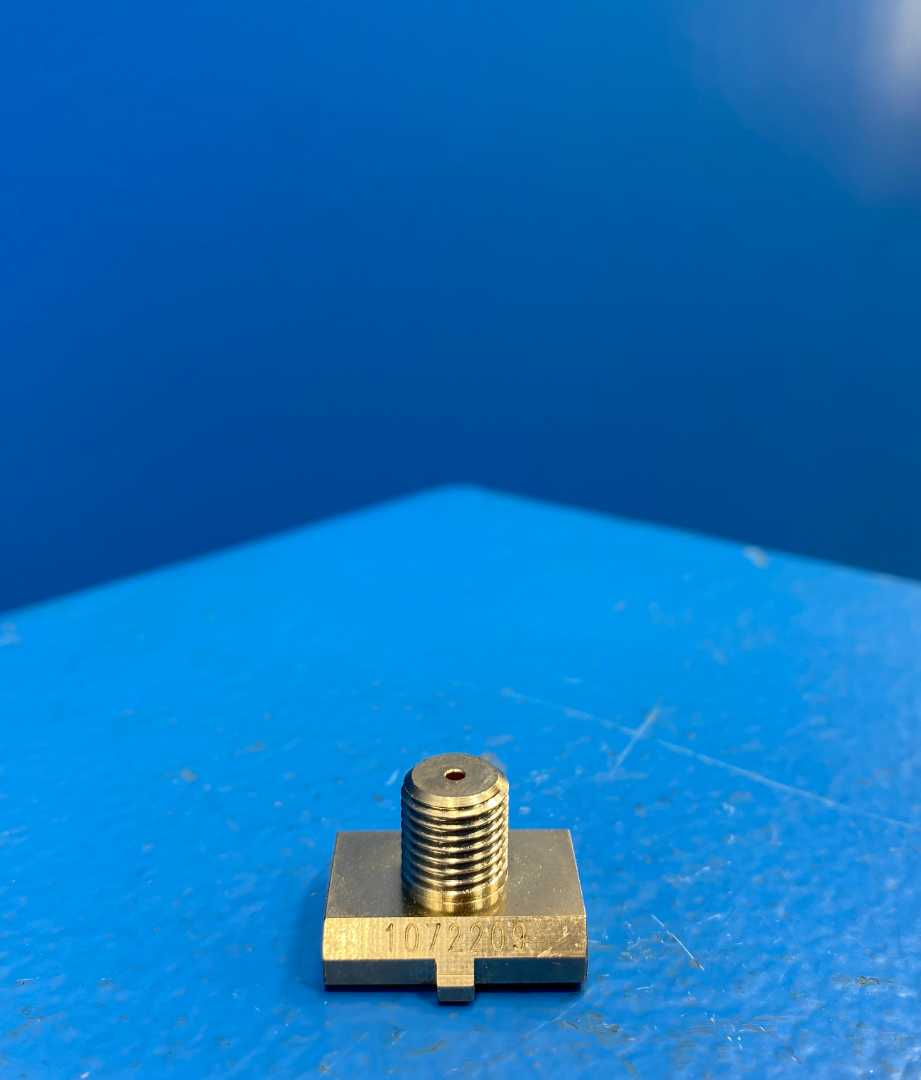

Nordson UM22 Adapter Nozzle

The Nordson Adapter Nozzle UM22 is a specialized component used in the adhesive dispensing industry. It is designed to facilitate precise application of adhesives in various manufacturing processes. Nordson Corporation, founded in 1954, has been a leader in dispensing technology, providing solutions for packaging, assembly, and manufacturing. The UM22 nozzle is tailored for use in conjunction with Nordson adhesive dispensing systems, ensuring efficient and effective adhesive application. The primary purpose of the UM22 nozzle is to deliver adhesives with accuracy, allowing for consistent bead thickness and minimizing waste. This is crucial in industries such as automotive, electronics, and consumer goods, where precision is critical to product quality. One of the unique features of the UM22 is its compatibility with a variety of adhesive materials, ranging from low to high viscosity. Additionally, it is engineered for easy installation and maintenance, making it user-friendly for production environments. The nozzle also boasts innovative design elements that help prevent clogging and enhance the overall performance of the adhesive application process.

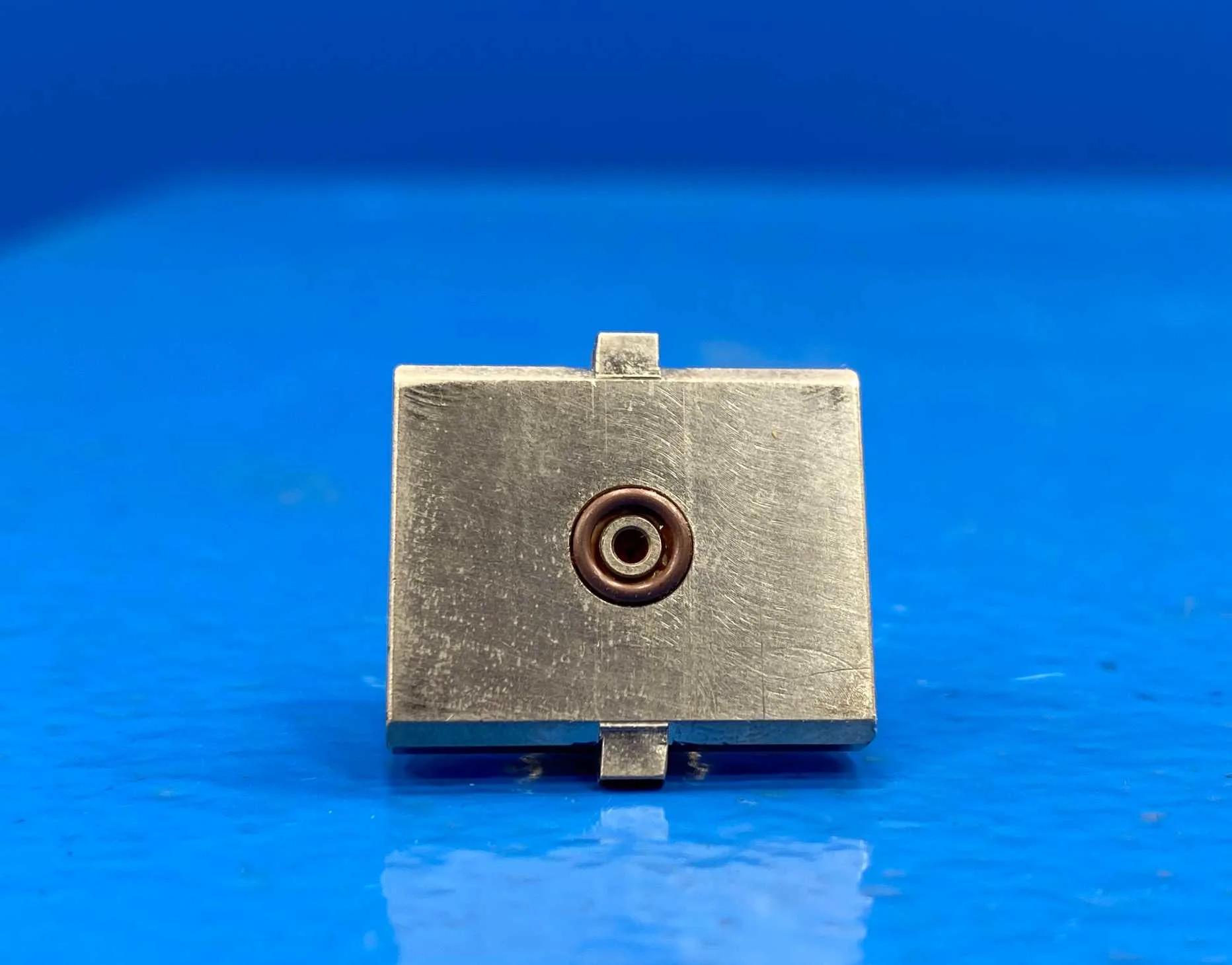

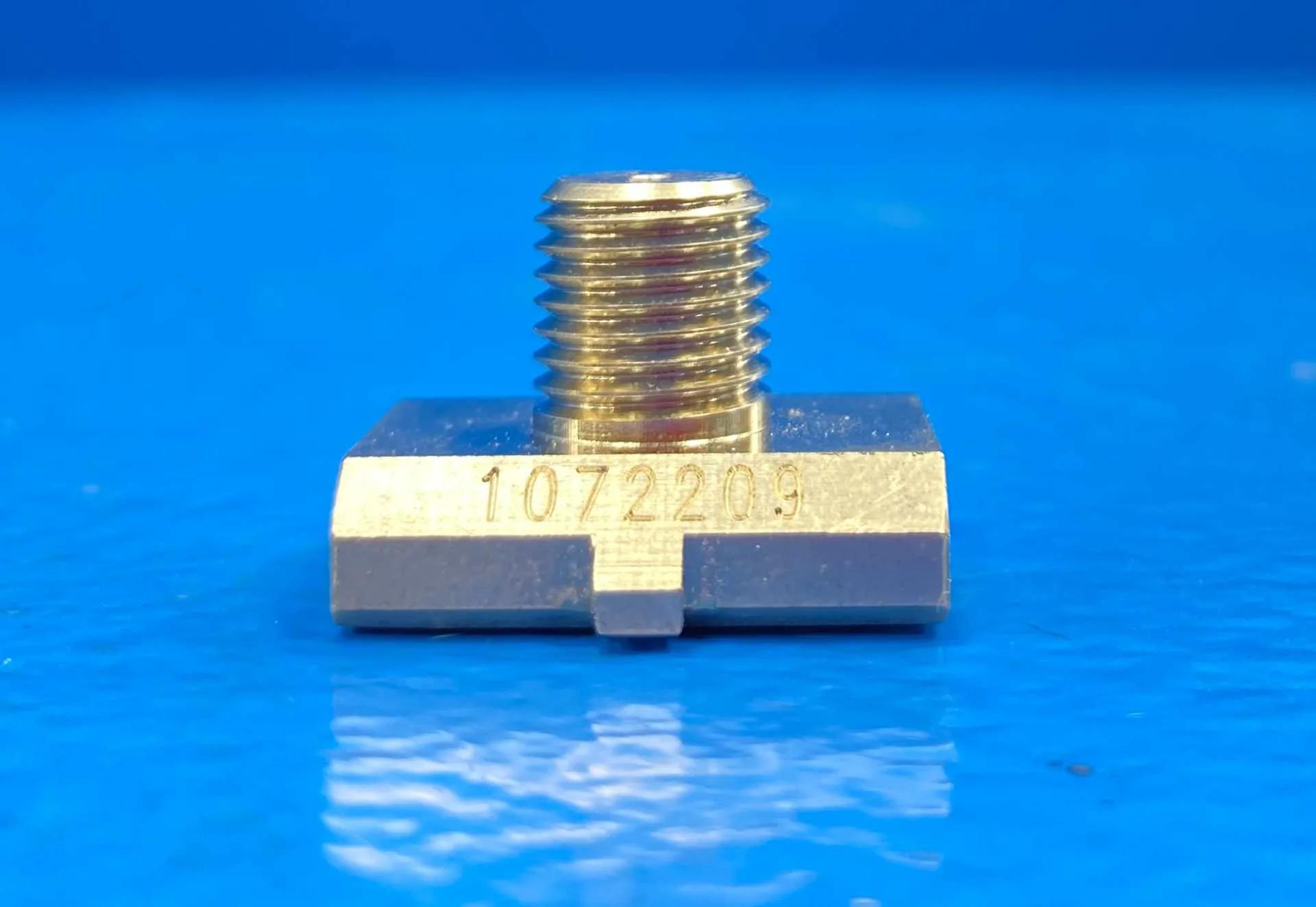

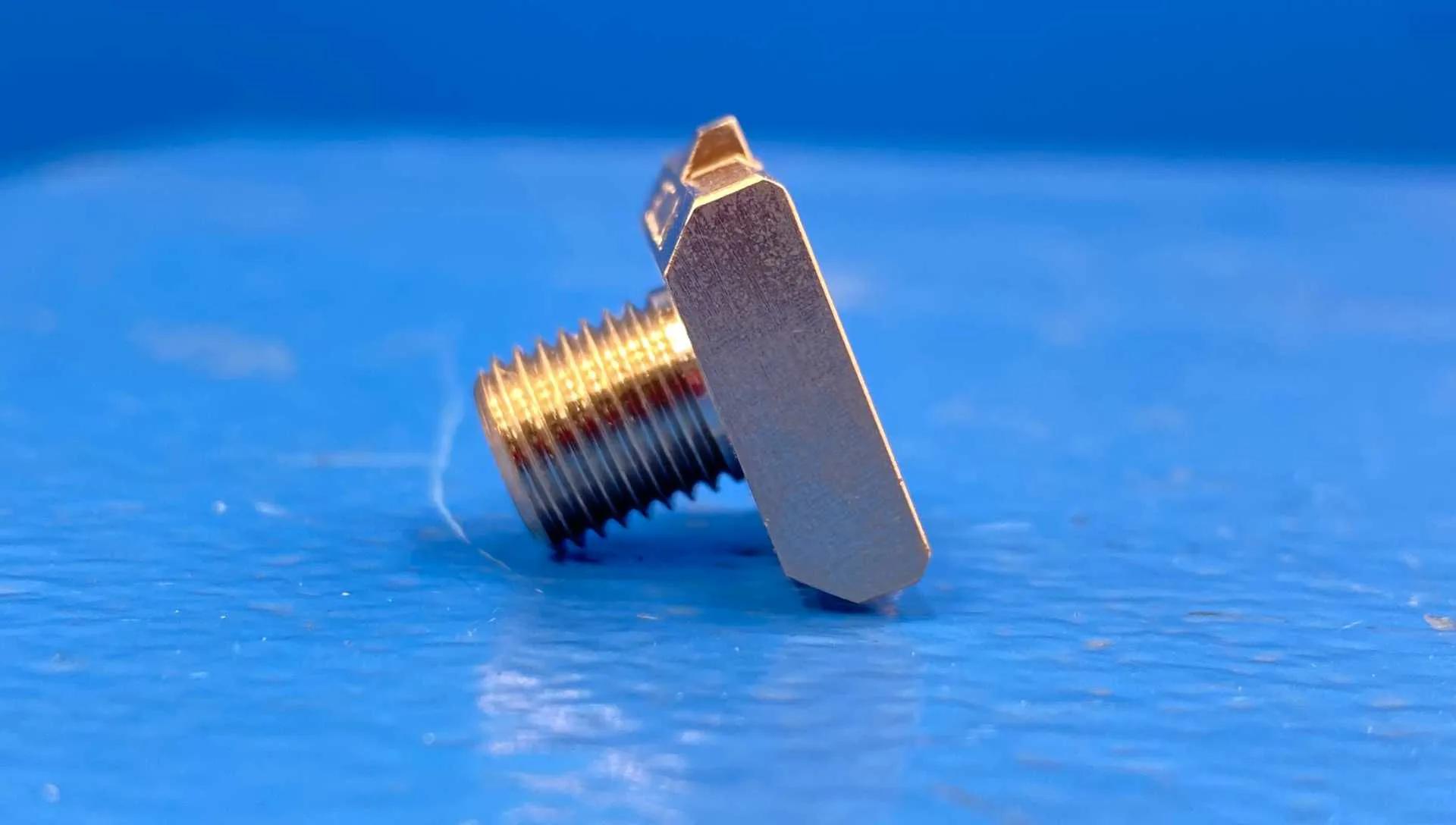

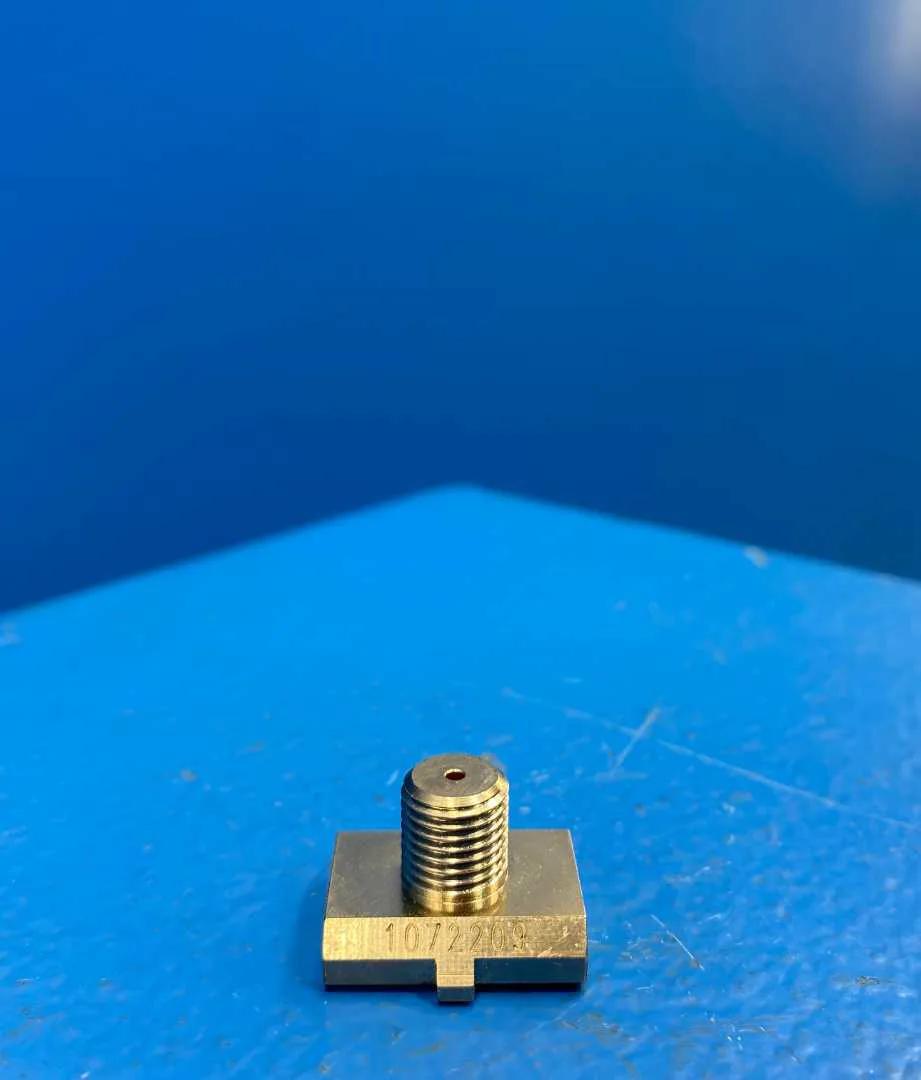

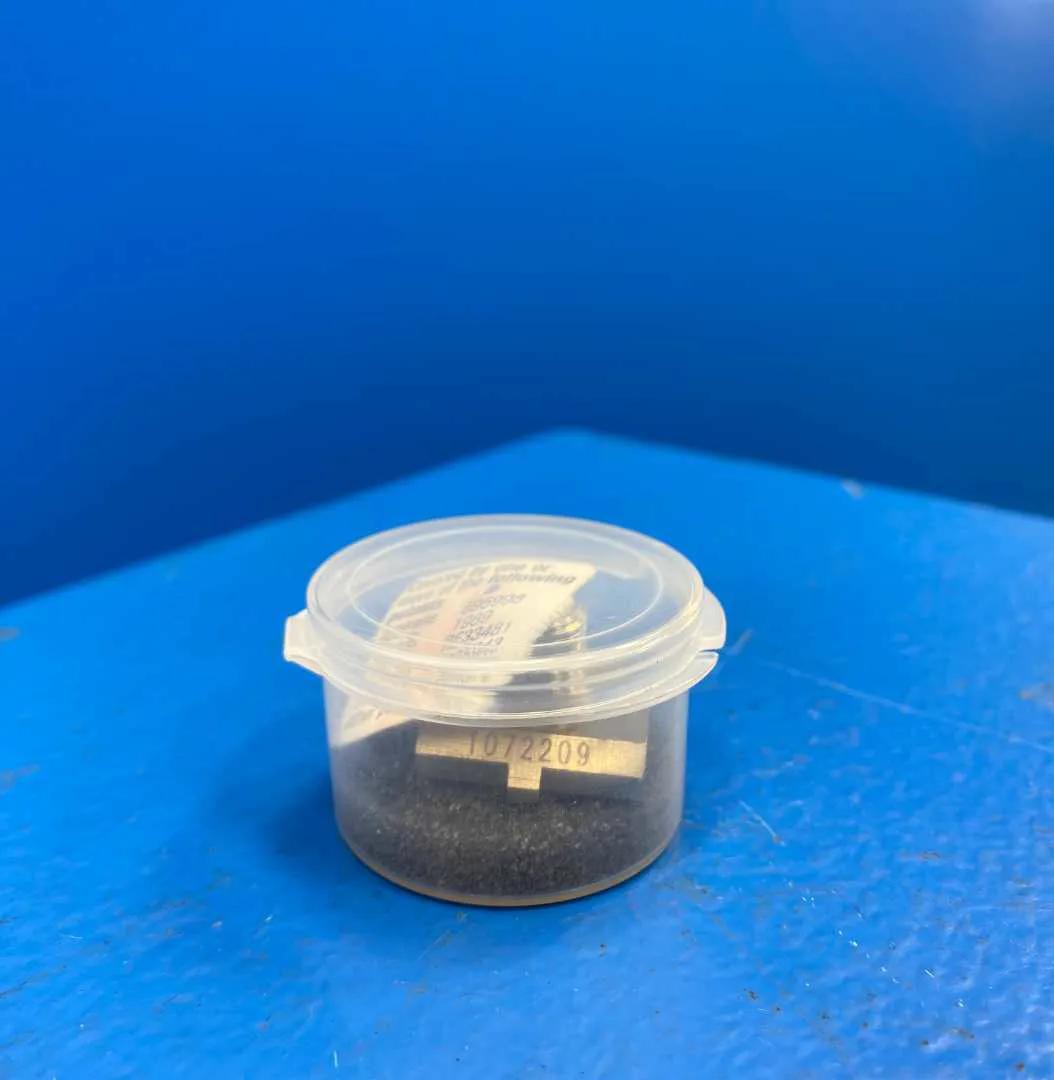

Manufacturer: Nordson Corporation Part Number: 1072209 Factory Description (verbatim from the Nordson package label): ADAPTER, NOZZLE, UM22/25 TO BEAD Country of Manufacture (as labelled): MADE IN USA WHAT IT IS: a nozzle adapter that lets a Nordson Universal UM22 or UM25 hot melt adhesive dispensing module accept a bead nozzle. The adapter is the interface between the module body and the nozzle, so the module and the nozzle must both be within the range the adapter is built for. Per the label this one covers the UM22 and UM25 module sizes. HOST MODULE CONTEXT, PER NORDSON PUBLISHED PRODUCT INFORMATION: the Universal UM22 is a pneumatically actuated 22 millimetre wide hot melt adhesive module that dispenses adhesive patterns using Nordson's valve technology. The Universal module range accepts a number of Nordson dispensing technologies including Summit, CF, Signature, SureWrap and MiniBead nozzles. ORDERING REFERENCE ON THE LABEL: 1-800-NORDSON, www.enordson.com UNPUBLISHED / NOT STATED HERE: the adapter's thread form and size, its bore or orifice dimensions, overall dimensions, material and any temperature or pressure limit. Nordson does not publish a datasheet for this individual adapter part number, and no figure has been taken from a third party. The correct nozzle and module pairing should be confirmed against Nordson's parts documentation for the specific UM22 or UM25 module it is going on. Spec Basis: Nordson factory package label transcribed from this item's own photographs (Part # 1072209, Desc: ADAPTER,NOZZLE,UM22/25 TO BEAD, MADE IN: USA). Host module description from Nordson's published Universal Modules product information for the UM22. No dimensional or material figure has been invented or taken from a reseller.
