TB Wood's Sure-Flex Plus 6E EPDM Two-Piece Split Coupling Sleeve with Retaining Ring, Size 6
6E Coupling Specifications & Dimensions
Interchange & Hub Compatibility for the 6E
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | 6E |
| Condition | New |
| Manufacturer | TB Wood's |
| Asset Number | KSC1290 / 1871 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$19.95
Basic Information
Asset #
KSC1290 / 1871
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

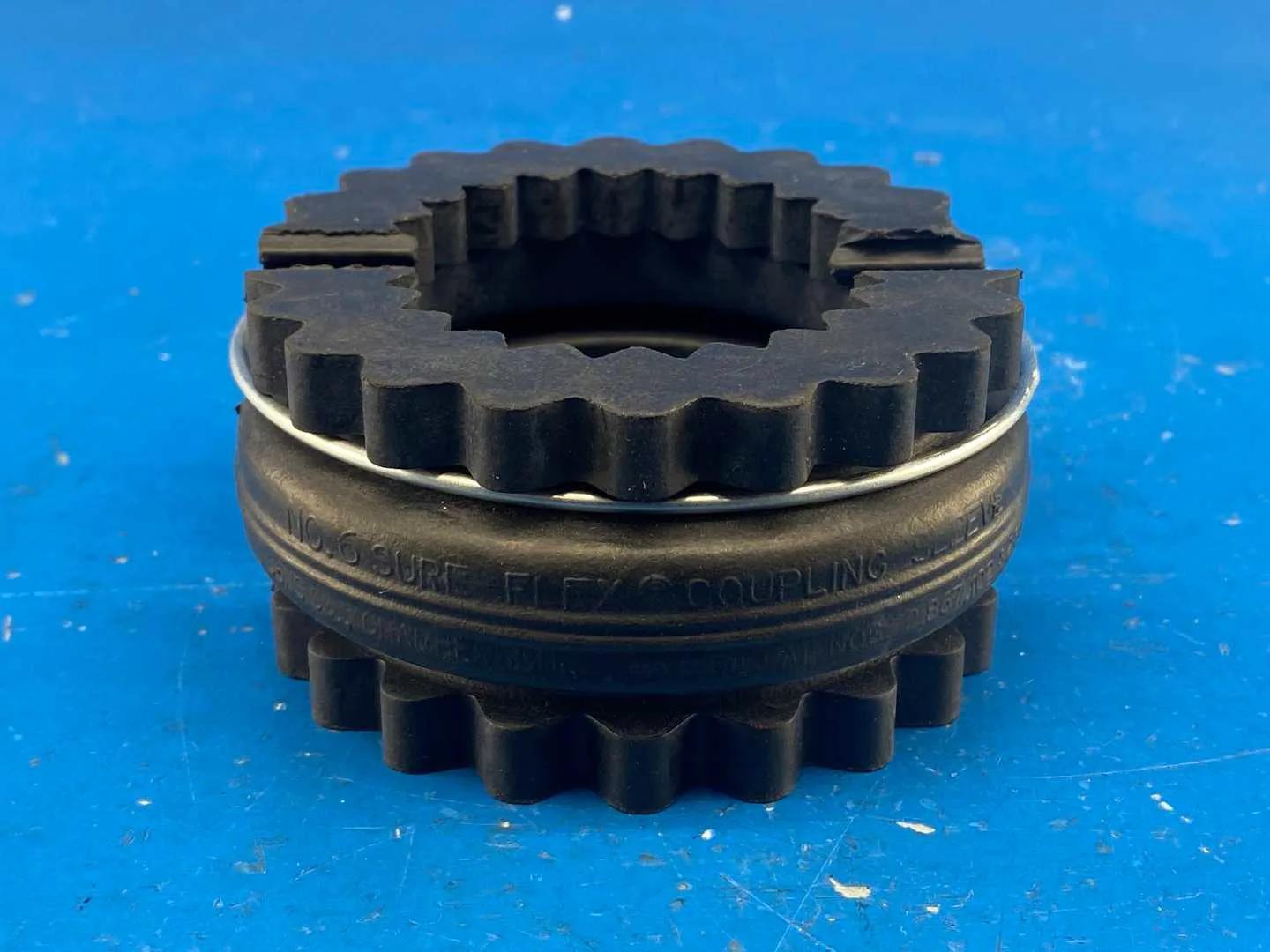

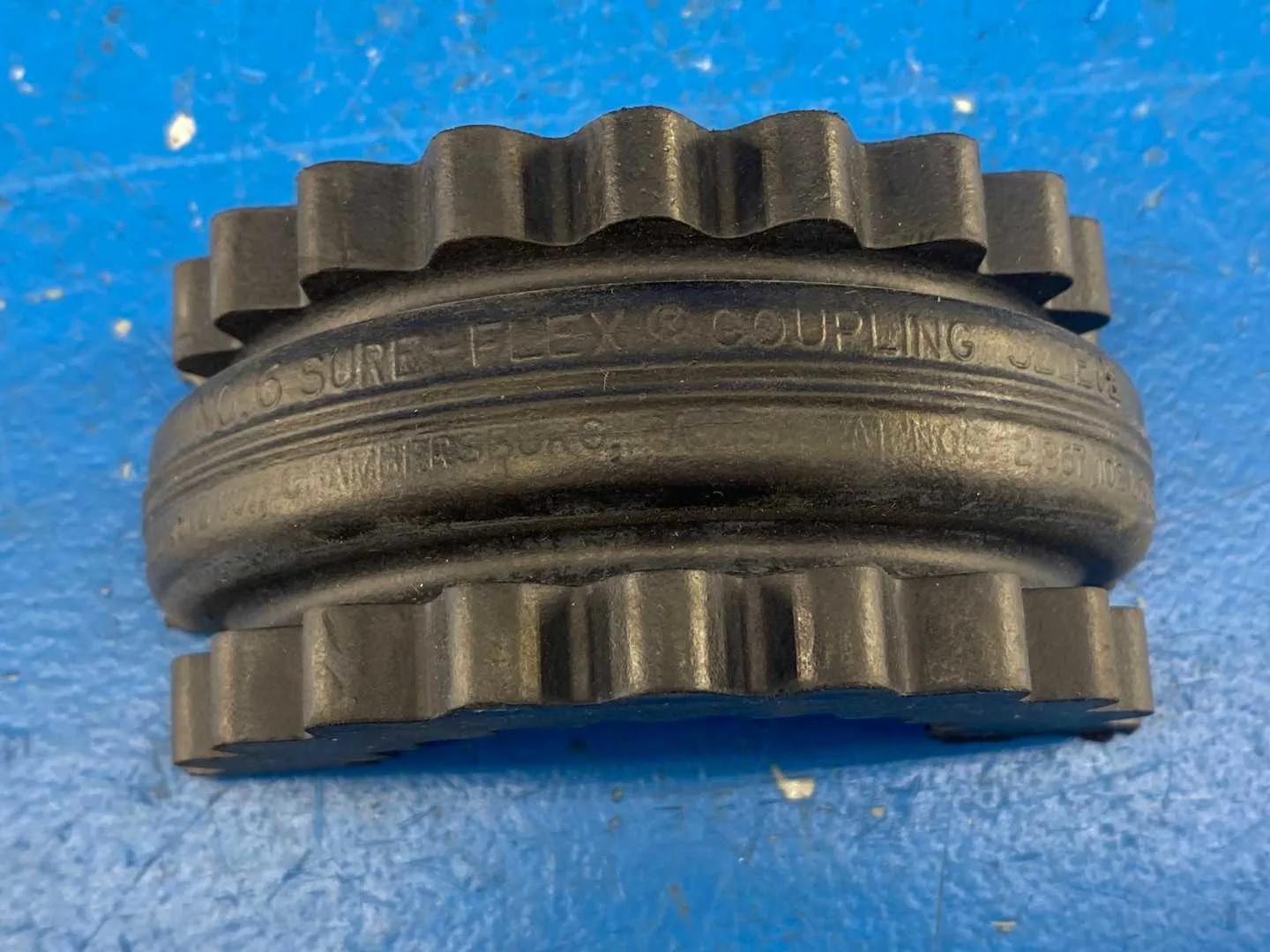

This is a TB Wood's Sure-Flex Plus No. 6 EPDM coupling sleeve, the flexible insert that sits between two Sure-Flex flanges to join a motor shaft to a driven shaft such as a pump, fan, compressor or gearbox. The molded teeth of the sleeve lock into the flange teeth, and the rubber flexes in four ways to absorb shock, vibration, angular and parallel misalignment and end float without lubrication.

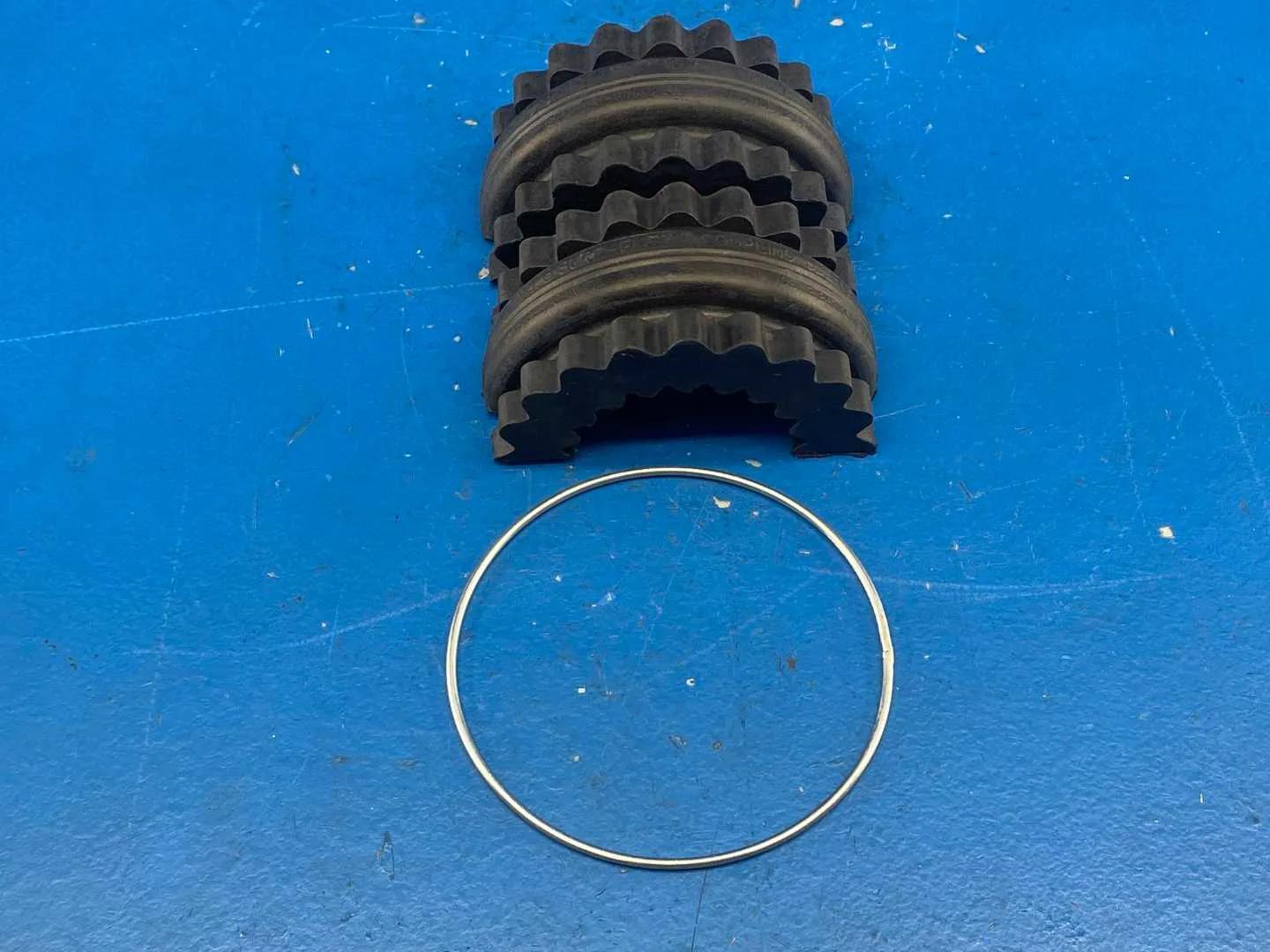

In the Sure-Flex numbering, the leading 6 is the coupling size. Size 6 EPDM sleeves are rated at 585 in-lb of torque and a maximum of 6,000 RPM, with an outside diameter of 3-3/4 inches and an operating range of -30 F to +275 F. TB Wood's offers the sleeve as a solid one-piece (J), a one-piece split (JES) and a two-piece split with retaining ring (E); split versions can be changed without moving the connected equipment. Size 6 EPDM sleeves fit TB Wood's size 6 Sure-Flex flanges.
Maintenance mechanics and millwrights stock these sleeves as a routine wear part for pump and HVAC drive couplings.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: TB Wood's (Altra Industrial Motion)
- Product Line: Sure-Flex Plus
- Component: No. 6 coupling sleeve (elastomeric insert)
- Coupling Size: 6
- Material: EPDM
- Rated Torque: 585 in-lb
- Maximum Speed: 6,000 RPM
- HP per 100 RPM: 0.93
- Outside Diameter: 3-3/4 in
- Temperature Range: -30 F to +275 F
- Maximum Misalignment: 1 degree angular, 0.015 in parallel
- Country of Manufacture: USA (box label)
- FLAG for review: box label partly obscured; sleeve style (6J solid, 6JES one-piece split, 6E two-piece split) not confirmed from photos, ratings above are common to size 6 EPDM sleeves

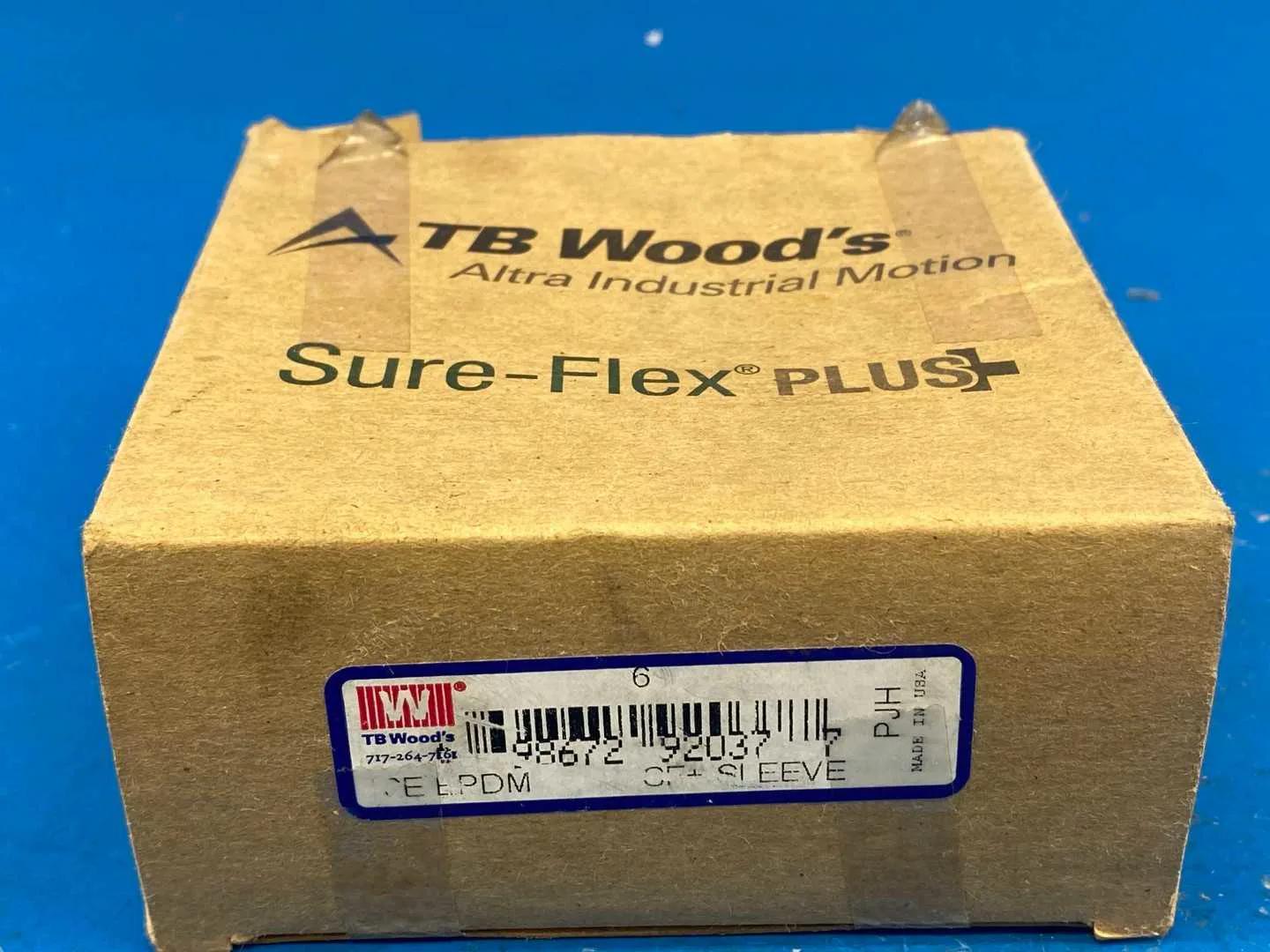

- Spec Basis: box label photo (TB Wood's, Sure-Flex PLUS, NO.6 SURE-FLEX COUPLING SLEEVE, EPDM, MADE IN USA); HVH Industrial https://hvhindustrial.com/product/8715; Gaddis 6E page https://www.gaddisny.com/6e-flex-sleeve-insert-epdm-split-w-ring; MRO Supply 6J https://www.mrosupply.com/shaft-couplings-and-collars/336834_6j_tb-woods/
Specifications
TB Wood's
6E
N/A
N/A
N/A
N/A
4
4
2
N/A
0.2
0.73
KSC1290 / 1871
Packaging fees
1.6 6x10 CH $3.00
