Thomson 8115-448-009 Flange R-1504 Ball Nut Mounting Flange
Thomson Industries 8115-448-009 Mount Specifications: Frame & Holes
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | 8115-448-009 |
| Condition | New |
| Manufacturer | Thomson Industries |
| Asset Number | KSC1290 / 2130 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$89.95
Basic Information
Asset #
KSC1290 / 2130
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

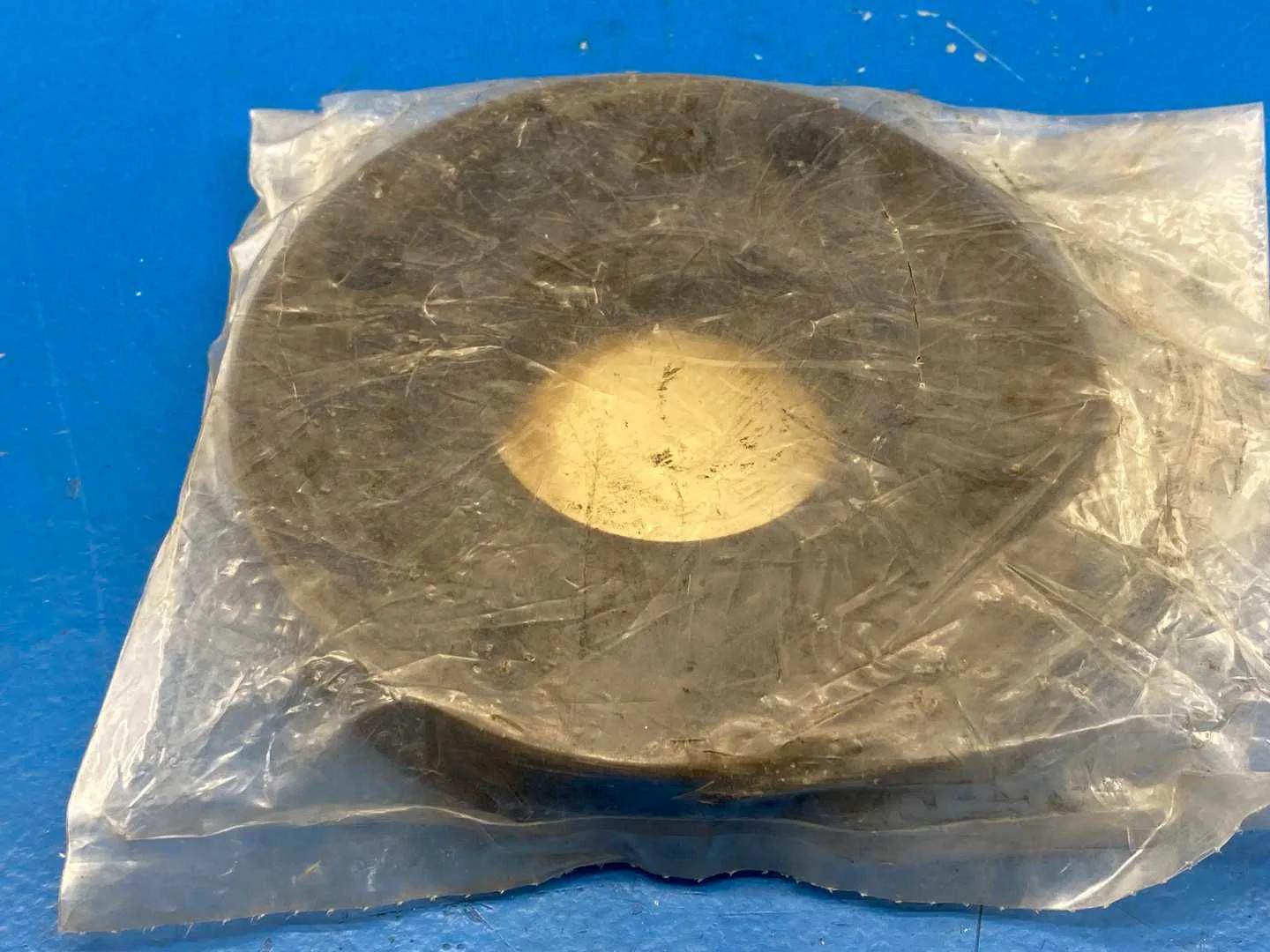

This is a Thomson ball nut flange, part number 8115-448-009, labeled Flange R-1504. A ball nut flange threads onto the mounting thread of a ball screw nut and gives it a flat, bolted face, so the nut can be fastened to a carriage, table or load square and concentric to the screw.
Distributor data lists the flange with a 1.967-18 thread in steel, for Thomson precision rolled ball screws. The R-1504 designation on the label refers to the Thomson ball screw series the flange serves, a 1-1/2 inch diameter screw series. Thomson lists ball nuts in the same 8115-448 part family, such as the 1.500 x 0.250 inch nut 8115-448-085, with a matching 1.967-18 mounting thread.
Machine builders and maintenance technicians use these flanges when assembling or repairing linear actuators, positioning tables, lifts, presses and other machinery driven by ball screws. Buying the flange by the Thomson part number keeps the thread and bolt pattern matched to the original nut.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information

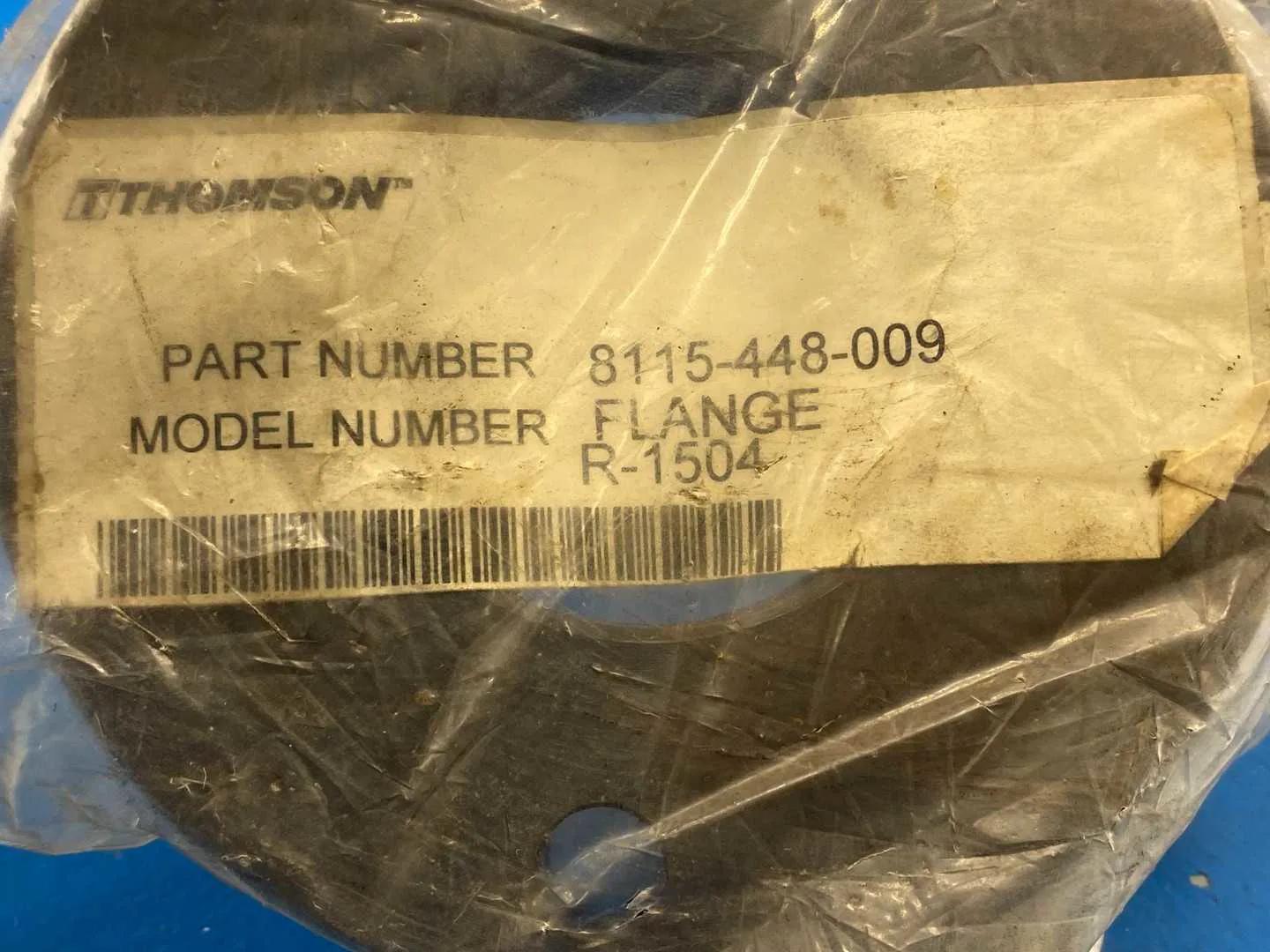

- Manufacturer (label): Thomson
- Description (label): Flange R-1504
- Part Number (label): 8115-448-009
- Type: Ball nut mounting flange
- Thread: 1.967-18 (distributor listing)
- Material: Steel (distributor listing)
- For Use With: Thomson precision rolled ball screw ball nuts; label series R-1504 (1-1/2 in diameter screw series)
- Related Thomson Part: ball nut 8115-448-085 is listed by Thomson as 1.500 x 0.250 in with a 1.967-18 UNS-2A mounting thread
- Spec Basis: package label read from photos; Eastern Industrial Automation listing Thomson 8115-448-009 (https://www.easternia.com/thomson-8115-448-009); Thomson product listing titles for 8115-448-085 and 8115-448-084 (https://www.thomsonlinear.com/en/product/8115-448-085). Flange outline dimensions not published in an accessible source and left out
Specifications
Thomson Industries
8115-448-009
N/A
N/A
N/A
N/A
5
5
1
N/A
0.2
2.86
KSC1290 / 2130
