Thomson TWN16OPN Super Ball Bushing Twin Pillow Block, 1 in Bore, Open, Self-Aligning, Adjustable
TWN16OPN Bearing Specifications: Bore, OD & Width
Interchange & Applications for Thomson Industries TWN16OPN
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | TWN16OPN |
| Condition | New |
| Manufacturer | Thomson Industries |
| Asset Number | KSC1290 / 718 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$199.90
Basic Information
Asset #
KSC1290 / 718
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description
Thomson TWN16OPN Super Ball Bushing bearing in a twin pillow block housing: 1.000 inch shaft size, open style, self-aligning and adjustable, for use with 1 inch Class L shafting in continuously supported applications. Overall 6.000 inches wide, 3.250 inches long, 2.000 inches high, with a 1.187 inch shaft centre height. Dynamic load capacity 1,560 lbf, maximum operating temperature +185 F.
Thomson invented the linear ball bushing, and the Super series uses a single ball-conforming groove that carries roughly three times the load of a conventional linear bearing. The twin pillow block puts two bearings in one housing, which doubles the moment capacity and lets a single block carry a load that would otherwise need two separate supports.
The open style is cut away along its length so the block can ride a supported rail, where the shaft is backed by a rail support along its full span. That is what allows long travels without shaft deflection on cutting tables, gantries, packaging machines and custom automation.

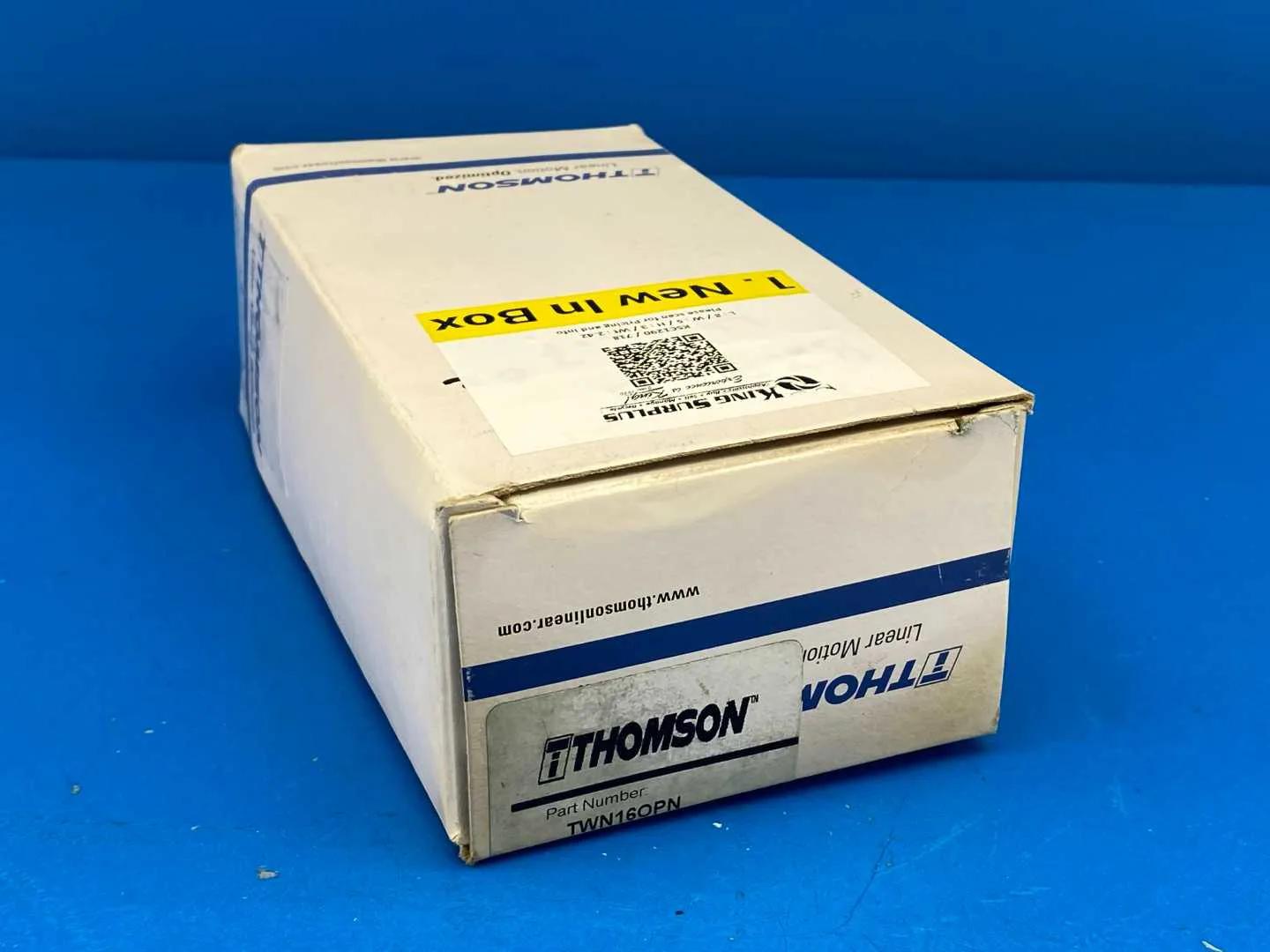

New in box.
New surplus, available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Thomson (Altra Industrial Motion)
- Model: TWN16OPN
- Type: Super Ball Bushing bearing, twin pillow block
- Shaft Size: 1.000 in
- Style: Open (for continuously supported rail)
- Features: Self-aligning, adjustable
- Overall Width: 6.000 in
- Overall Length: 3.250 in
- Overall Height: 2.000 in
- Shaft Centre Height: 1.187 in
- Dynamic Load Capacity: 1,560 lbf
- Maximum Operating Temperature: +185 F
- Shafting: Use with 1 in diameter Class L shaft
- Retainers / Sleeves: Engineered polymer
- Weight: 2 lb
- Spec Basis: Thomson Linear published product data (thomsonlinear.com TWN16OPN) and MROSupply catalogue listing
Specifications
Thomson Industries
TWN16OPN
N/A
N/A
N/A
N/A
8
5
3
N/A
0
2.425
KSC1290 / 718
Packaging fees
1.6 6x10 CH $3.00
