Vickers DG4V-3-2N-M-U-H7-60 Solenoid Valve

The Vickers DG4V-3-2N-M-U-H7-60 solenoid valve is a component primarily used in hydraulic systems. Developed by Vickers, a well-known name in fluid power technology, this valve offers reliable control of hydraulic flow. The valve is designed to manage the direction and flow of hydraulic fluid, making it essential for various industrial applications such as construction, manufacturing, and automotive industries. One of the unique features of this solenoid valve is its ability to operate in high-pressure environments, with a robust design that ensures longevity and durability. Its modular design allows for easy installation and maintenance, making it a popular choice among engineers and technicians. This valve is particularly notable for its efficiency, helping to optimize system performance while minimizing energy consumption. The Vickers DG4V-3-2N-M-U-H7-60 also includes multiple configurations, enabling seamless integration into existing systems and enhancing operational flexibility. The advanced sealing technology used in this valve reduces the chance of leakage, ensuring system integrity and reliability. Overall, this solenoid valve exemplifies the high standards of engineering and innovation associated with Vickers products, catering to the ever-evolving demands of hydraulic system design.

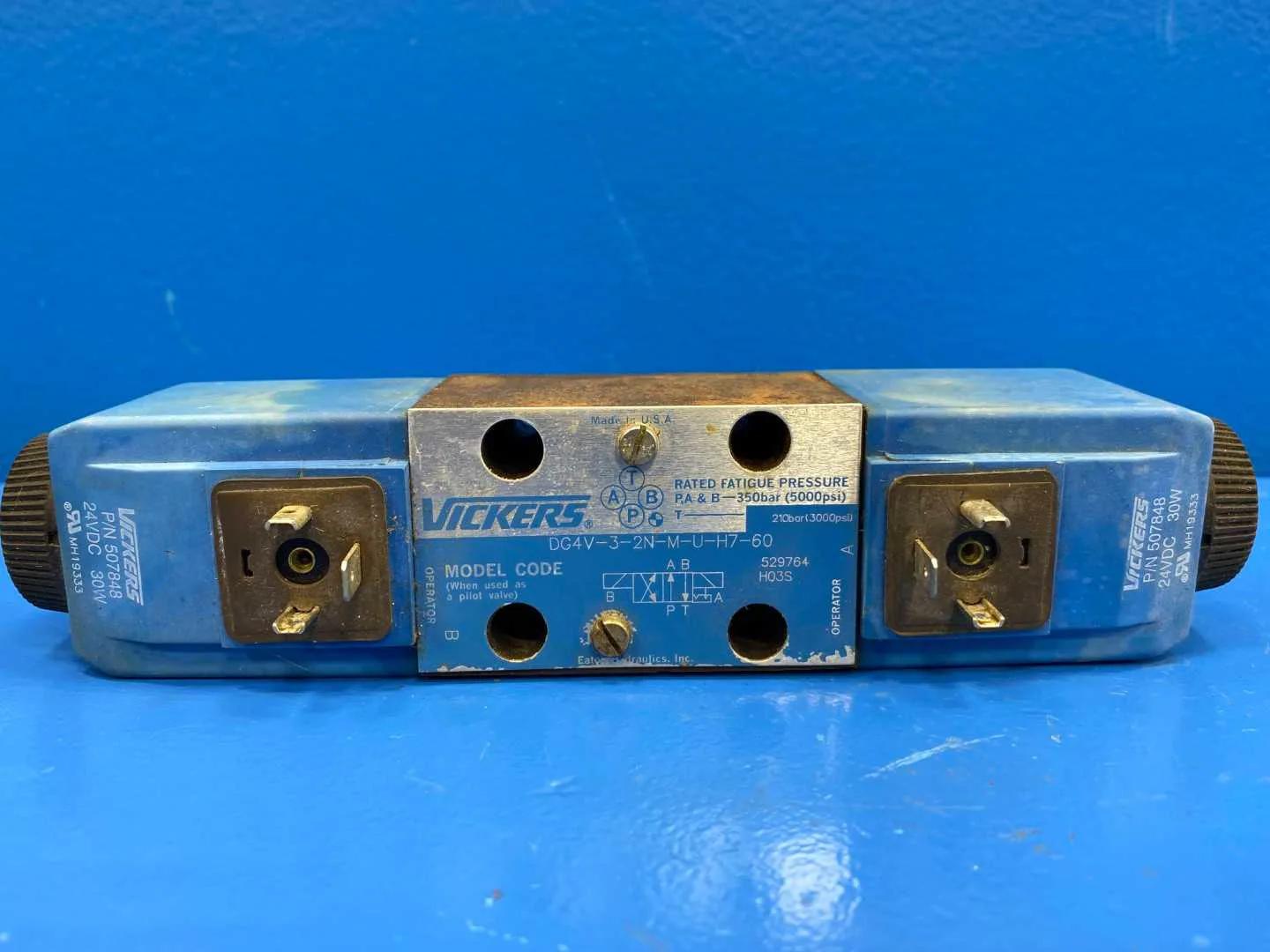

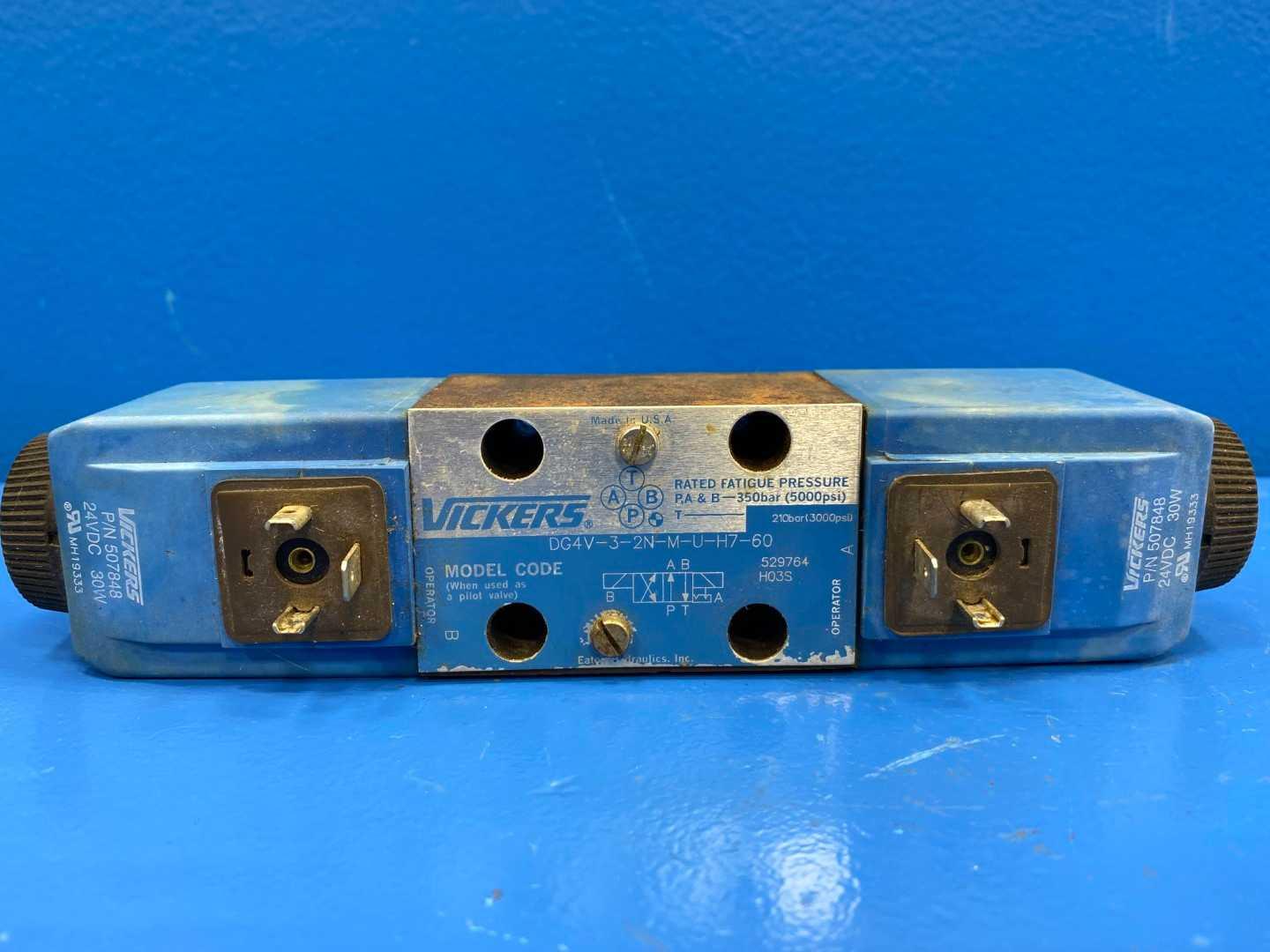

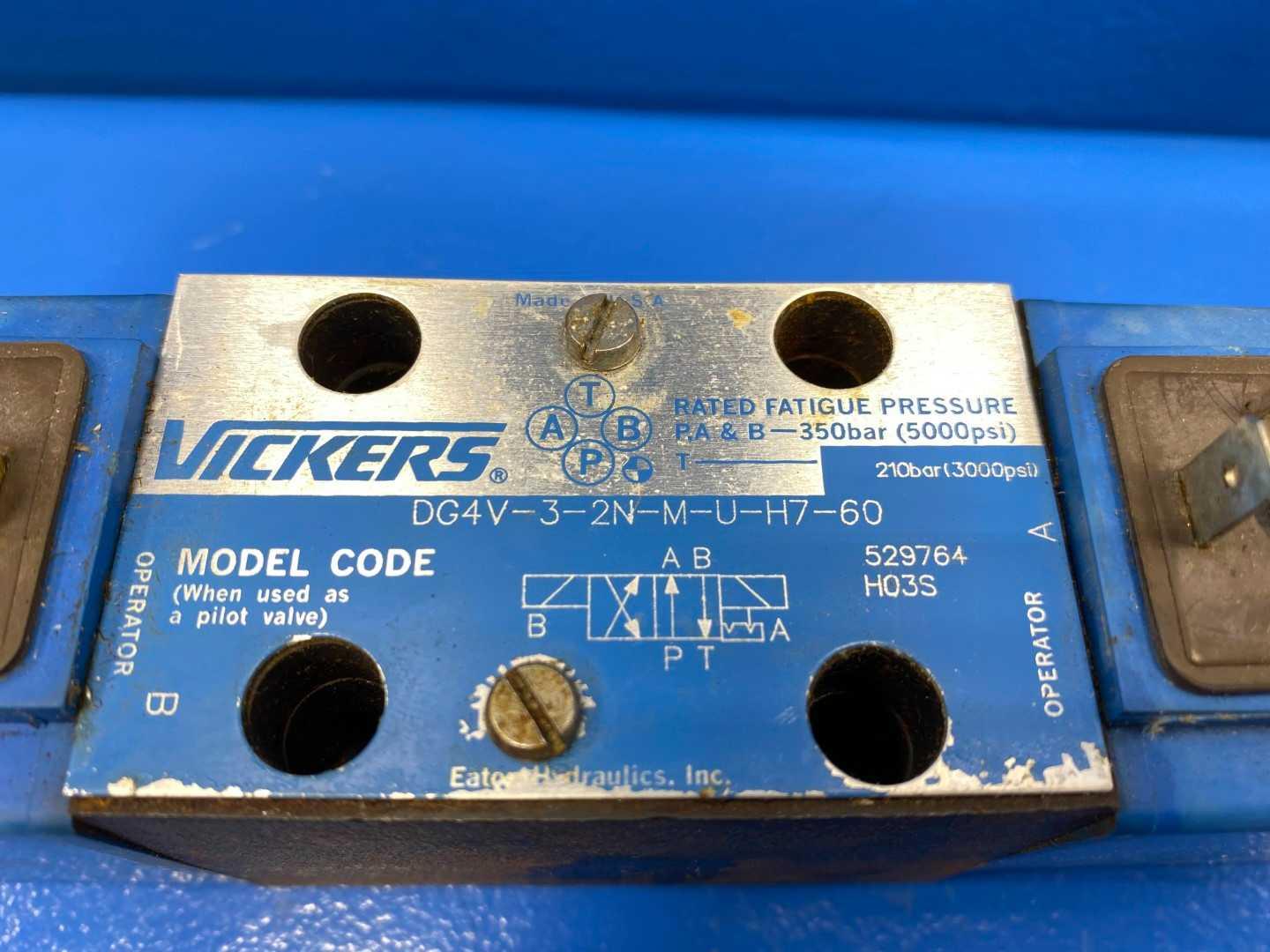

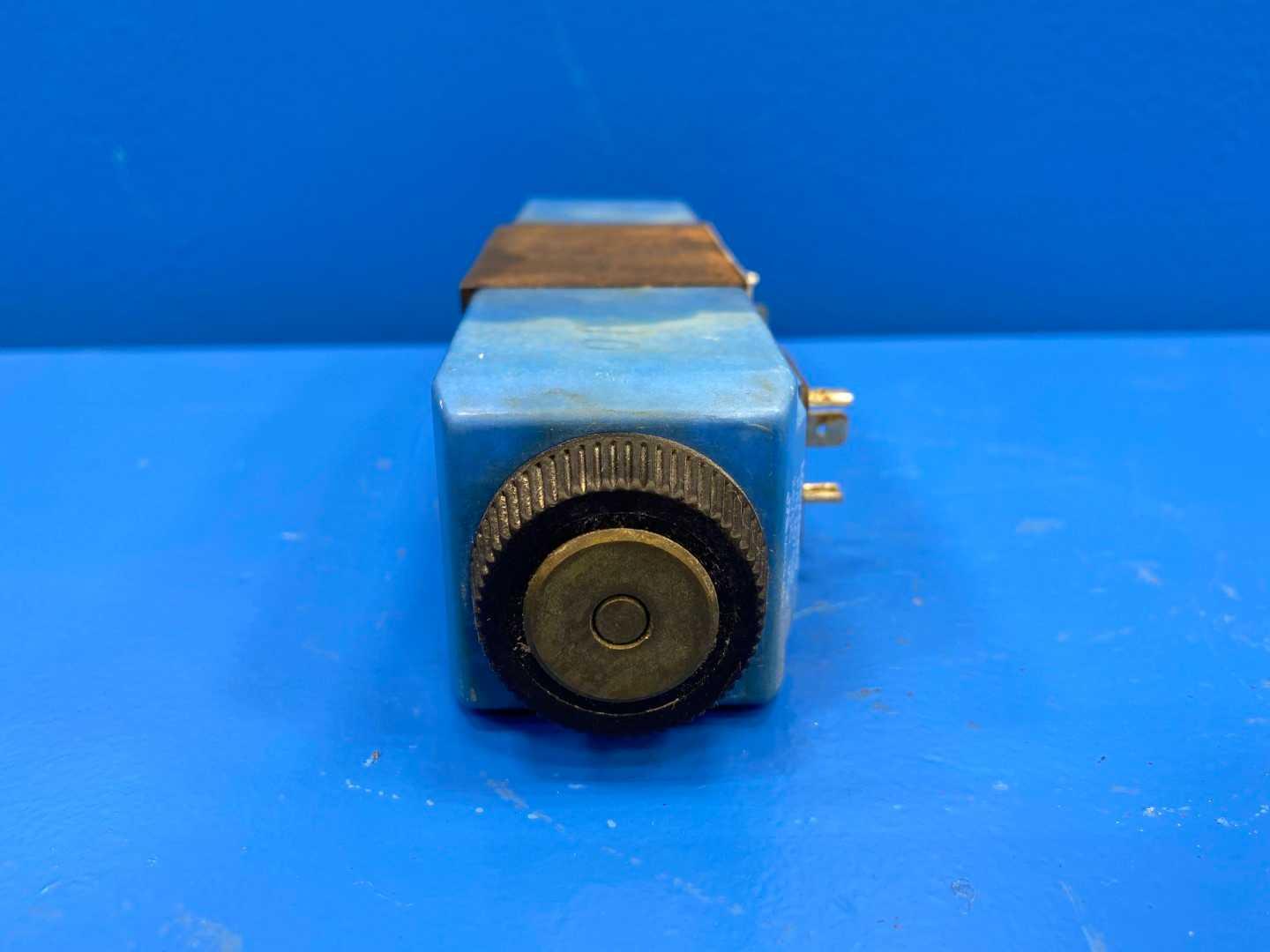

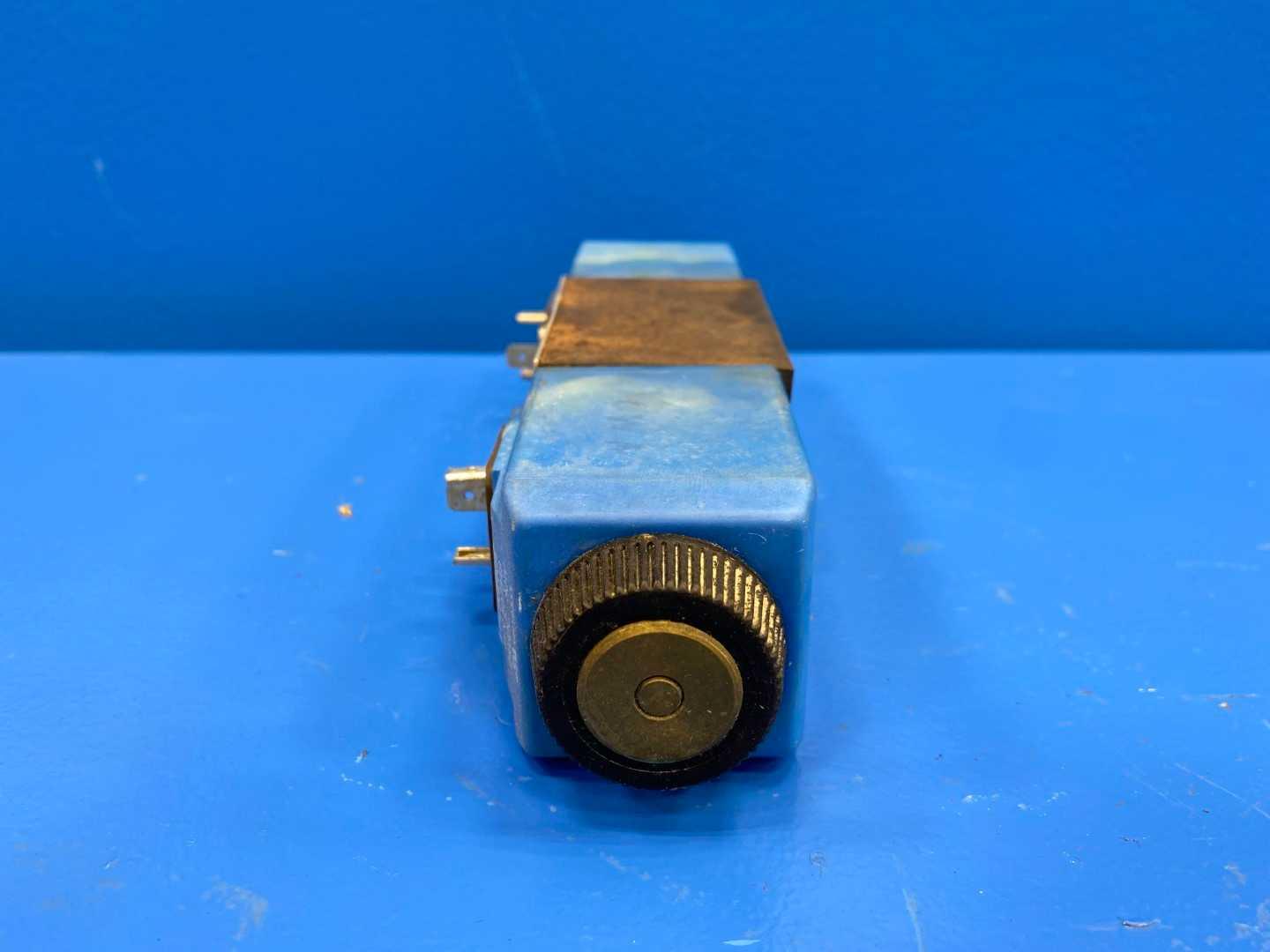

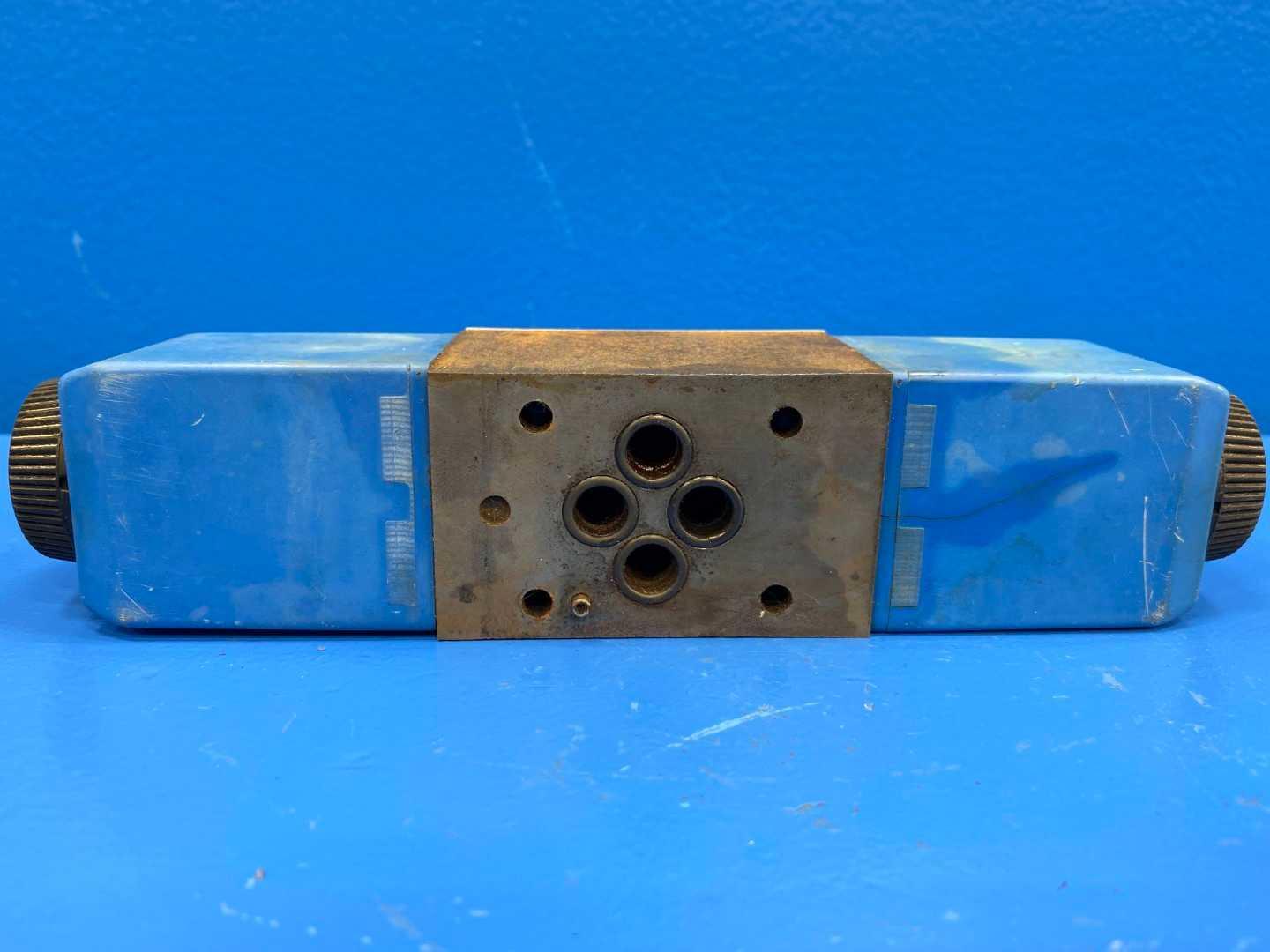

Manufacturer: Vickers, a hydraulics brand built by Eaton and now carried by Danfoss following its acquisition of Eaton's hydraulics business. Model: DG4V-3-2N-M-U-H7-60 Type: Solenoid operated hydraulic directional control valve, ISO 4401 size 03 (also known as D03 / CETOP 3 / NG6) MODEL CODE DECODED, PER EATON'S OWN MODEL CODE TABLE Seal Type (blank prefix): Viton, the standard seal for this series DG4V: solenoid operated directional valve. 4 = solenoid operated; V = 350 bar (5000 psi) pressure rating on P, A and B ports 3: ISO 4401 size 03 interface Performance (blank): High performance Spool Type 2: spool type 2 Spool Spring Arrangement N: no-spring, detented Manual Override (blank): plain override(s) in the solenoid end(s) only M: electrical options and features designator U: coil type ISO 4400 / DIN 43650 connector H: coil rating 24V DC 7: tank pressure rating, 207 bar (3000 psi) for DC high performance DG4V-3 models 60: basic design number CAUTION ON THE SUFFIX: reseller descriptions of this part number frequently decode "H7" as a spool type. Per Eaton's published model code table that is incorrect. H is the coil rating (24V DC) and 7 is the tank pressure rating. The spool designation in this part number is "2N". OPERATING DATA, DG4V-3 HIGH PERFORMANCE SERIES Pressure Limit, P, A and B Ports: 350 bar (5075 psi) Pressure Limit, T Port: 210 bar (3045 psi) per the series operating data table; the "7" tank rating digit in this model code is defined as 207 bar (3000 psi) for DC high performance models Flow: series published up to 80 l/min (21 USgpm) at 350 bar (5000 psi) for high performance models. Actual limit for spool type 2 is set by the published performance curves. Minimum Pressure Loss Across the Valve: 2.5 bar at 30 l/min Relative Duty Factor: continuous, ED = 100% Degree of Protection: IEC 144 class IP65 with ISO 4400 coils and the plug fitted correctly Coil Winding Insulation: Class H Coil Encapsulation: Class F Minimum Permissible Voltage: 90% of rated Typical DC Response Time: energizing 60 ms, de-energizing 40 ms. Catalogue reference figures measured on a "2C" spool at 20 l/min (5.3 USgpm) and 175 bar (2537 psi), not on spool type 2. Mounting: valve mounting face conforms to ISO 4401 size 03 and is compatible with the related international standards Endurance: series fatigue life tested over 20 million cycles UNPUBLISHED / NOT STATED HERE: the flow limit specific to spool type 2, which is read from the published performance curves rather than given as a single figure; and the valve's serial number, which is not recorded on this item. Spec Basis: Eaton Vickers catalogue "Solenoid Operated Directional Valve DG4V-3-60", publication E-VLVI-SS001-E1, August 2015 - model code table (pages B-2 and B-3), General Description feature list, and the Operating Data table. Every digit above is taken from that table rather than from a reseller listing.
