Victaulic Style 741 8" (219.1mm) Vic-Flange Adapter Gasket, Fits Styles 741, 743, 744
741-8 Gasket Specifications: Size & Pressure Rating
Flange Fitment for Victaulic 741-8
| Description | Details |
|---|---|
| Available Quantity | 8 |
| Model | 741-8 |
| Condition | New |
| Manufacturer | Victaulic |
| Asset Number | KSC1290 / 1631 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$39.95
Basic Information
Asset #
KSC1290 / 1631
Available Quantity
8
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

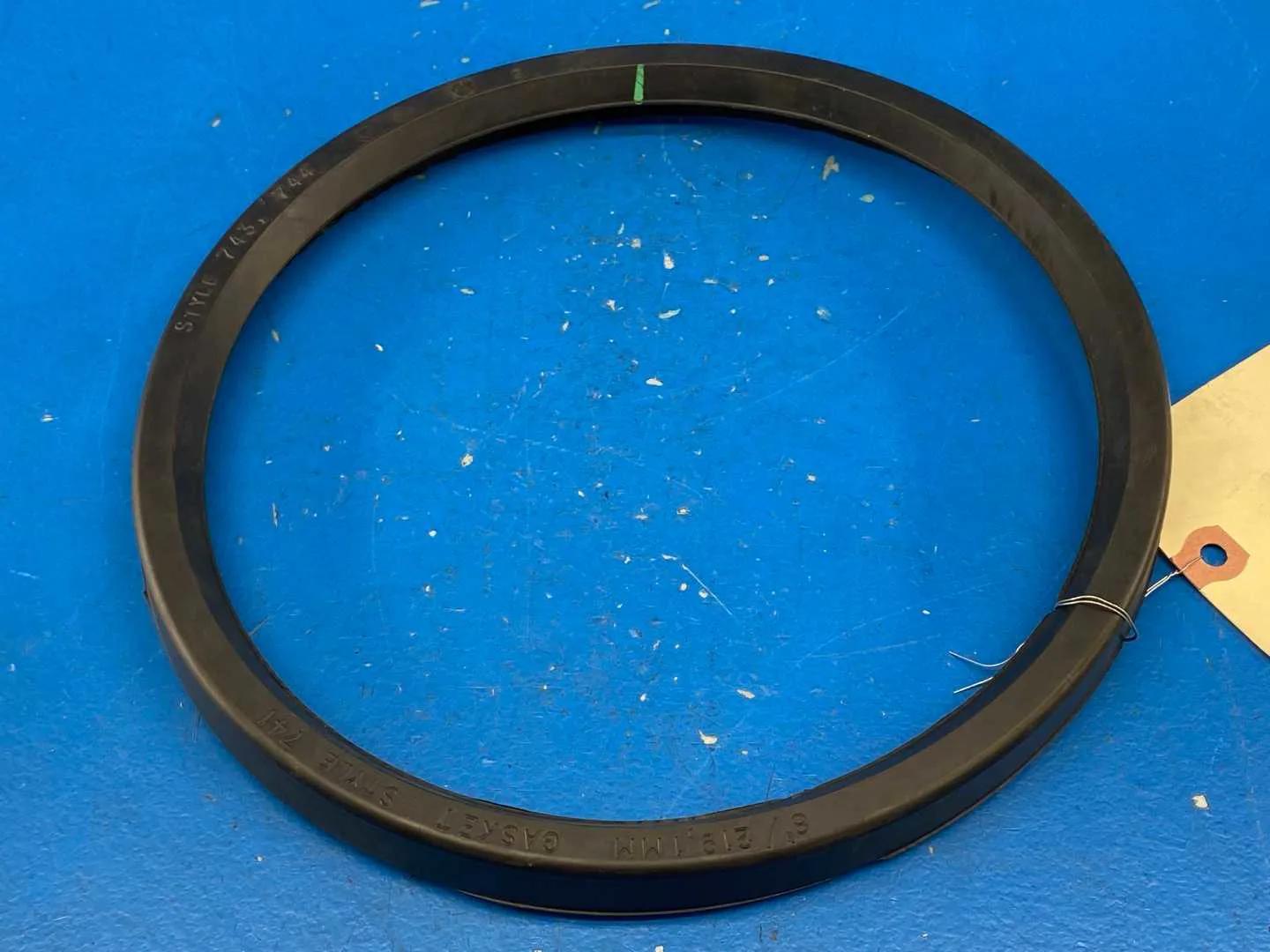

This is a Victaulic replacement gasket for 8 in (DN200) Vic-Flange adapters, molded with the marking 8" / 219,1MM GASKET STYLE 741 and STYLE 743, 744. The 219.1 mm figure is the outside diameter of 8 in steel pipe, 8.625 in.
A Vic-Flange adapter joins grooved end pipe to a flanged valve, pump, strainer or piping component. The adapter housing engages the pipe groove on one side and bolts to the mating flange on the other, and this gasket forms the seal between the pipe end, the adapter and the flange face. Victaulic rates the Style 741 adapter from full vacuum to 300 psi and the heavier Style 743 to 720 psi. Victaulic offers these gaskets in Grade E EPDM, color coded with a green stripe, for hot and cold water and many dilute chemical services, and Grade T Nitrile, with an orange stripe, for oil related services, so buyers should confirm the grade needed for their service.
Fire protection contractors, mechanical contractors and facility maintenance crews keep these gaskets on hand for fire sprinkler, HVAC chilled and condenser water, and plant water systems when a flange connection is opened for service.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer (per record): Victaulic
- Product: replacement gasket for Vic-Flange adapter

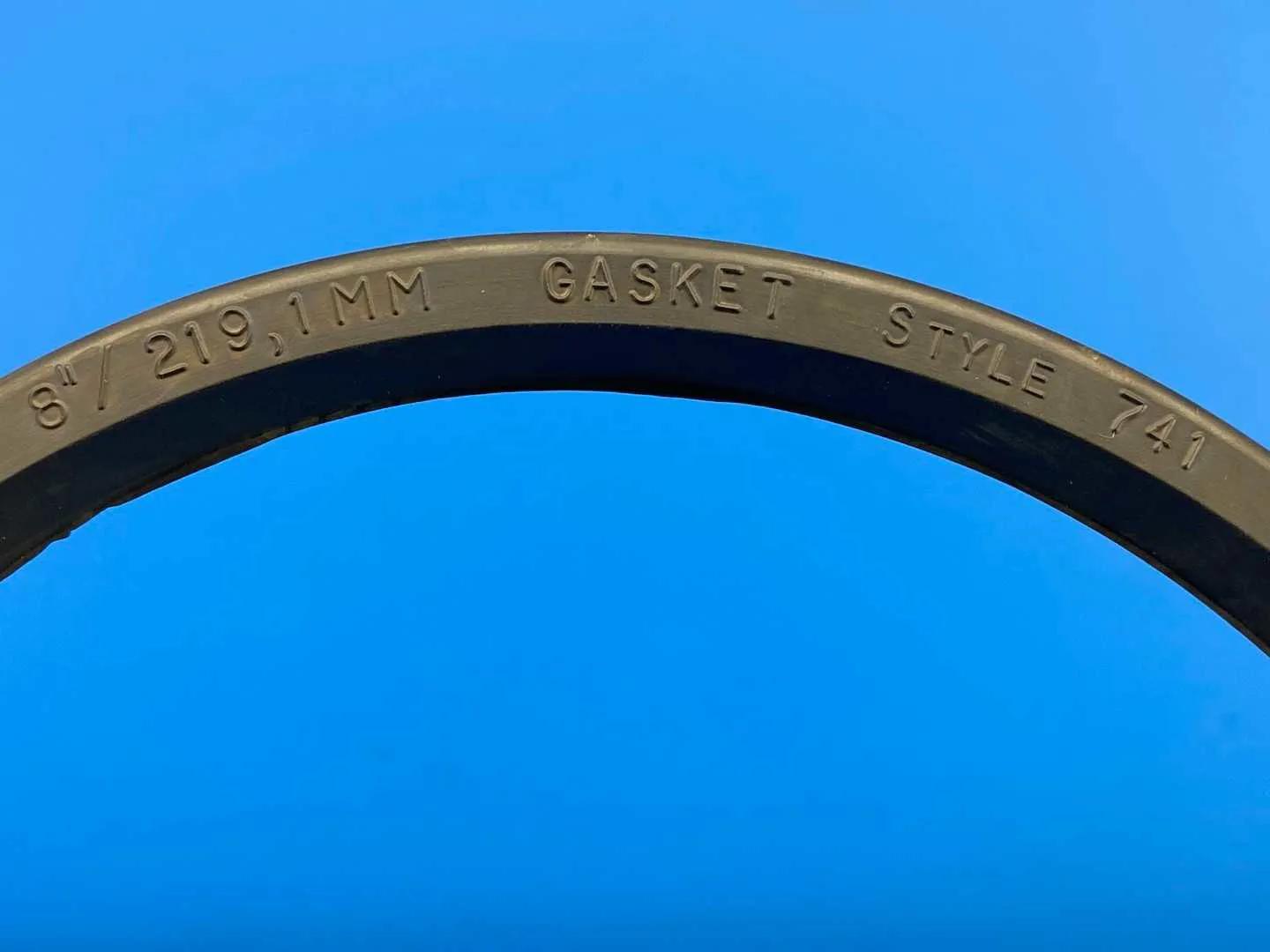

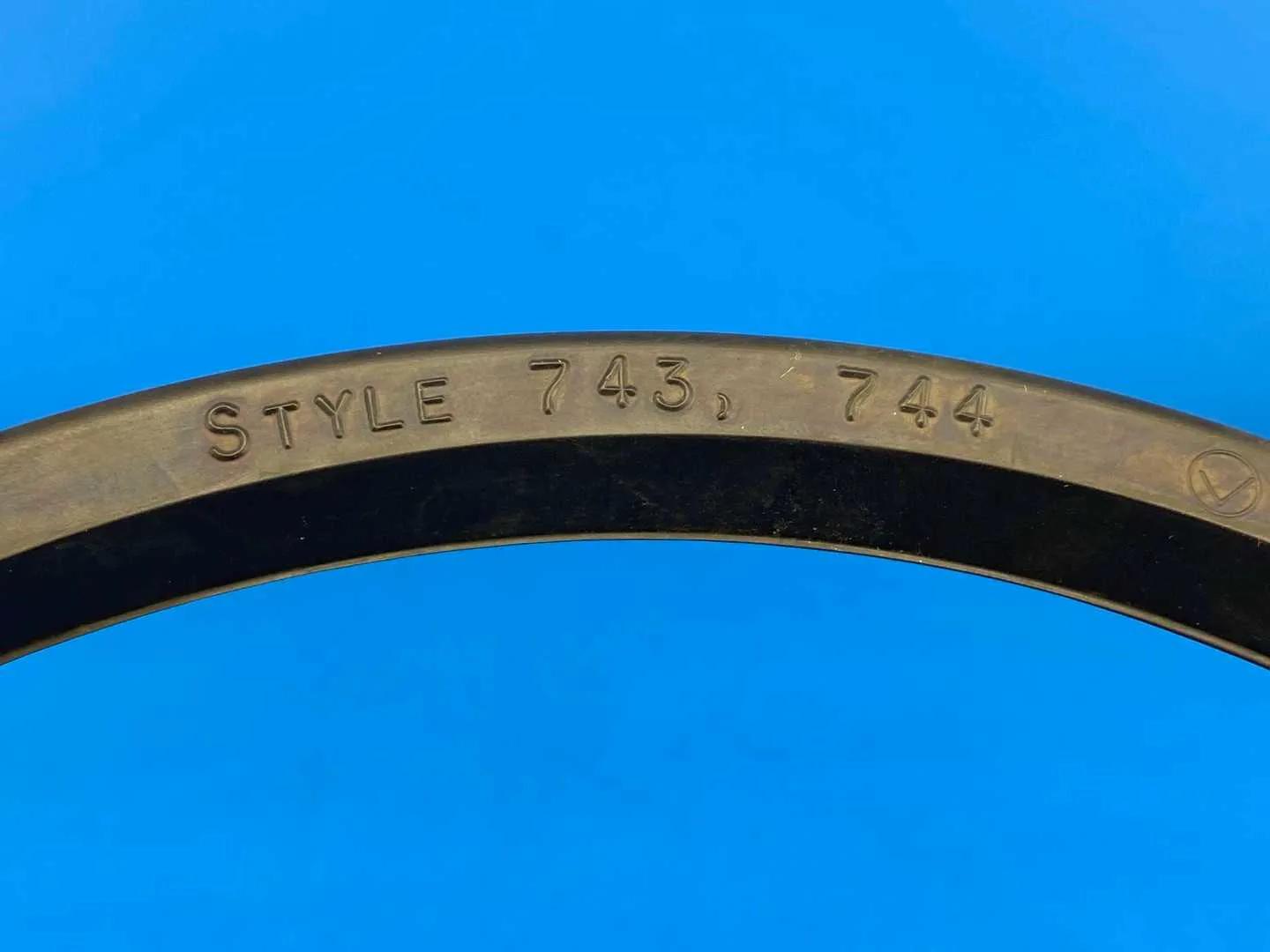

- Gasket Marking (molded): 8" / 219,1MM GASKET STYLE 741, STYLE 743, 744
- Nominal Size: 8 in / DN200
- Pipe Outside Diameter, 8 in size: 8.625 in (219.1 mm)
- Fits (per marking): Victaulic Style 741, 743 and 744 flange adapters
- Style 741 Pressure Rating: full vacuum to 300 psi / 2068 kPa / 21 bar
- Style 743 Pressure Rating: full vacuum to 720 psi / 4964 kPa / 50 bar
- Victaulic Gasket Grades for Style 741/743: Grade E EPDM (green stripe, -30 to 230 F) or Grade T Nitrile (orange stripe, 20 to 180 F); grade of this gasket not confirmed from photos
- Spec Basis: nameplate photo (molded gasket marking); Victaulic Publication 06.06 Vic-Flange Adapters Styles 741 and 743 Rev AA https://assets.victaulic.com/assets/uploads/literature/06.06.pdf
Specifications
Victaulic
741-8
N/A
N/A
N/A
N/A
10
10
1
N/A
2
2.27
KSC1290 / 1631
Packaging fees
1.6 6x10 CH $3.00
