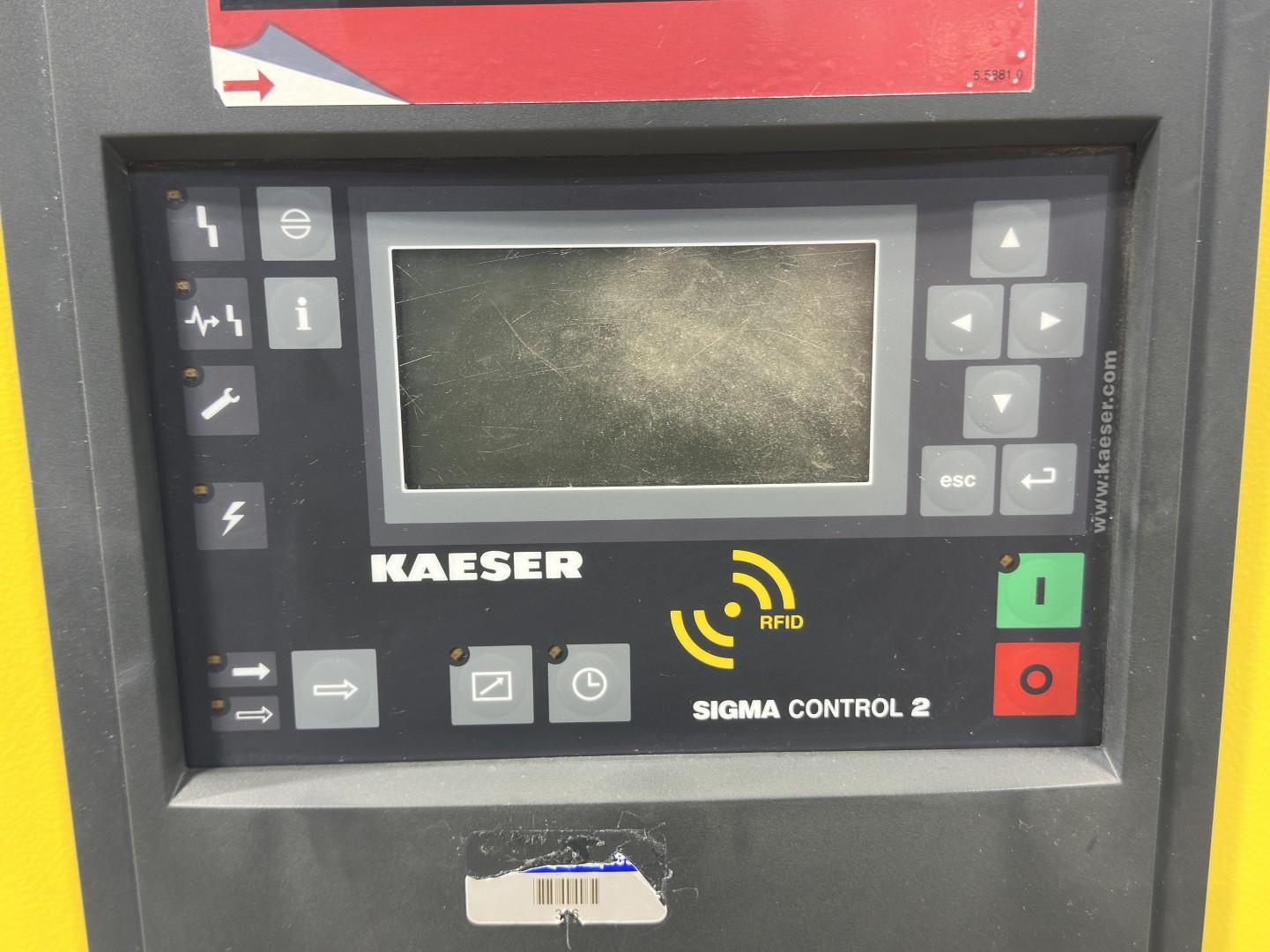

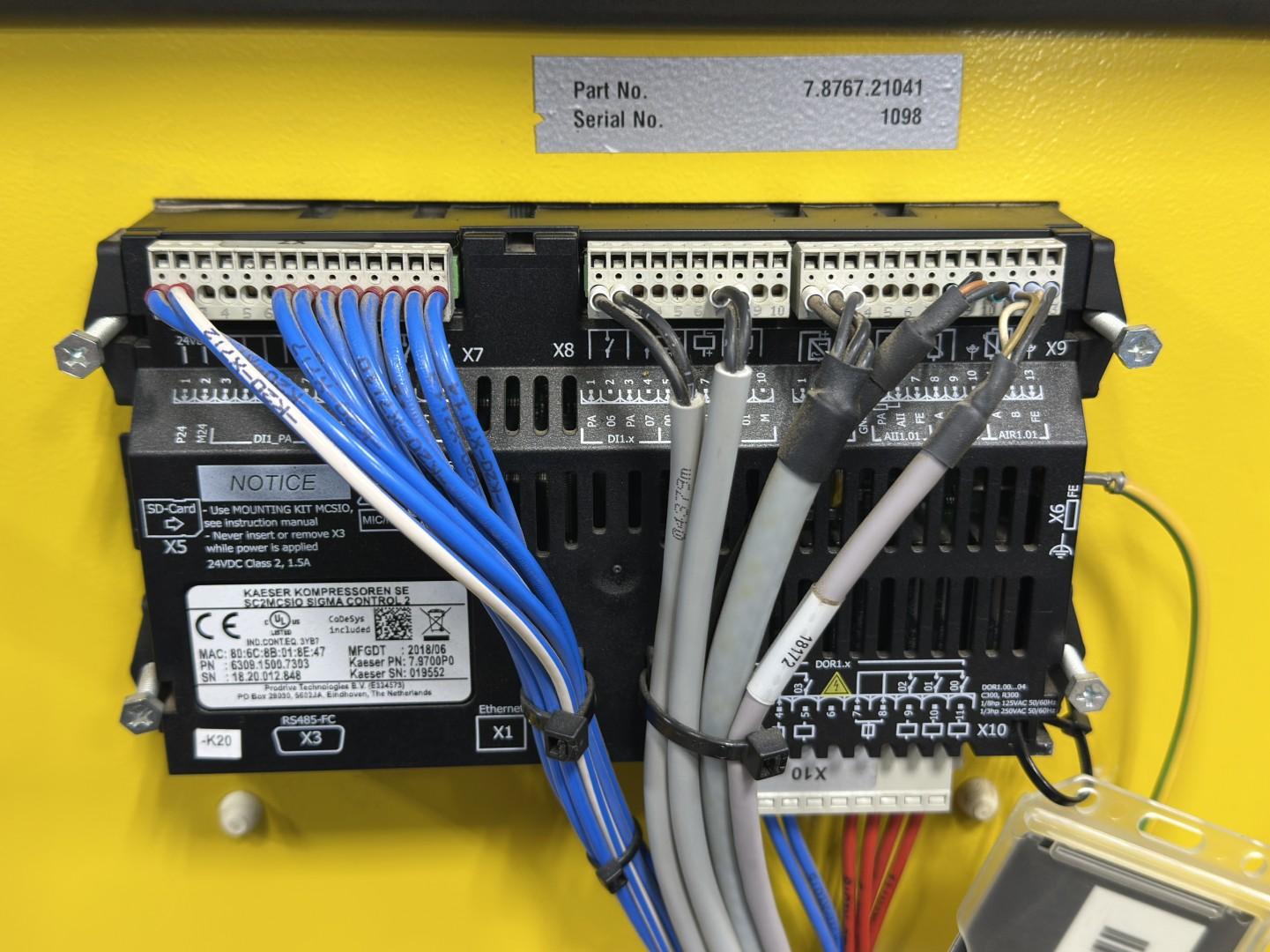

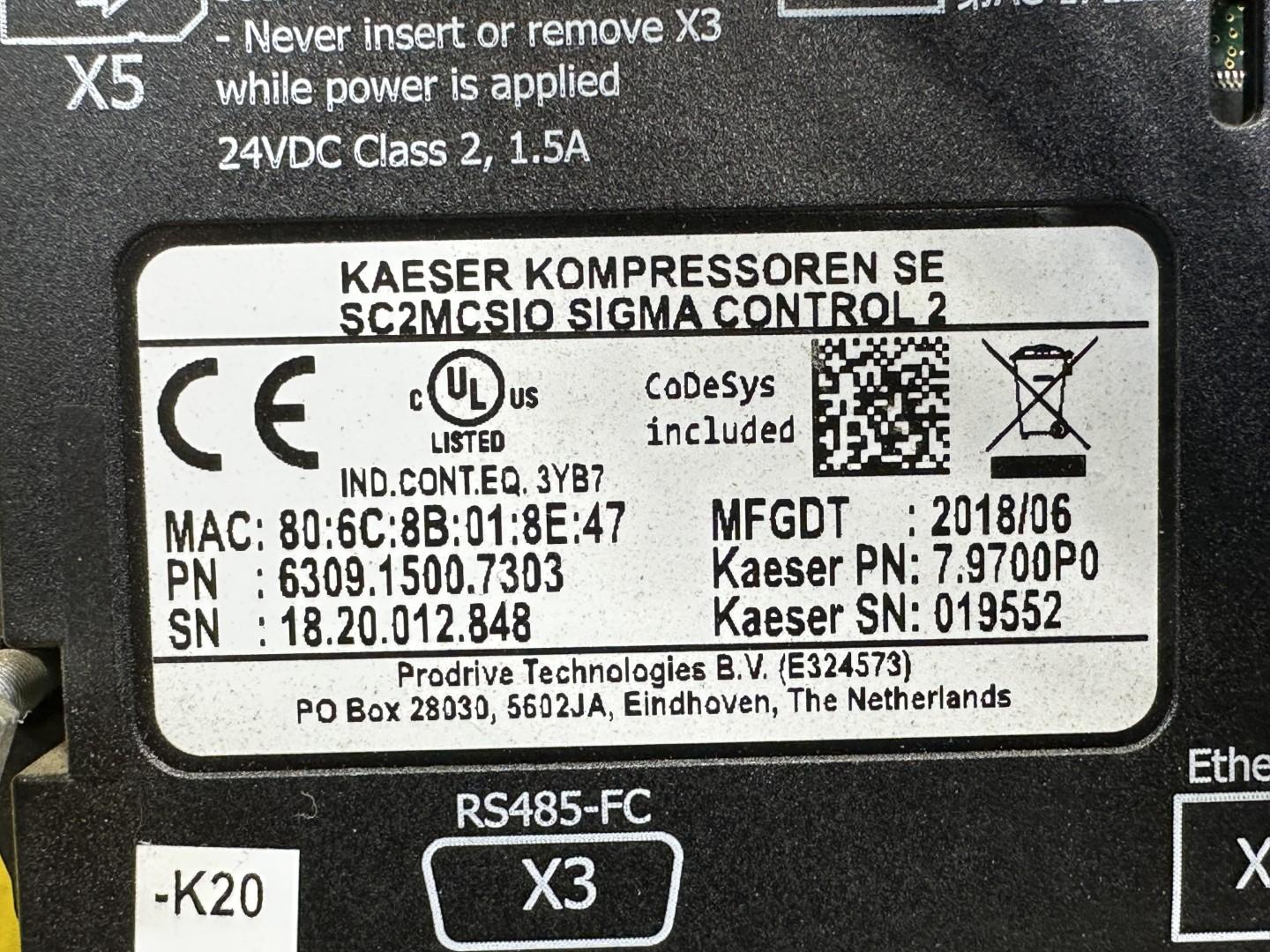

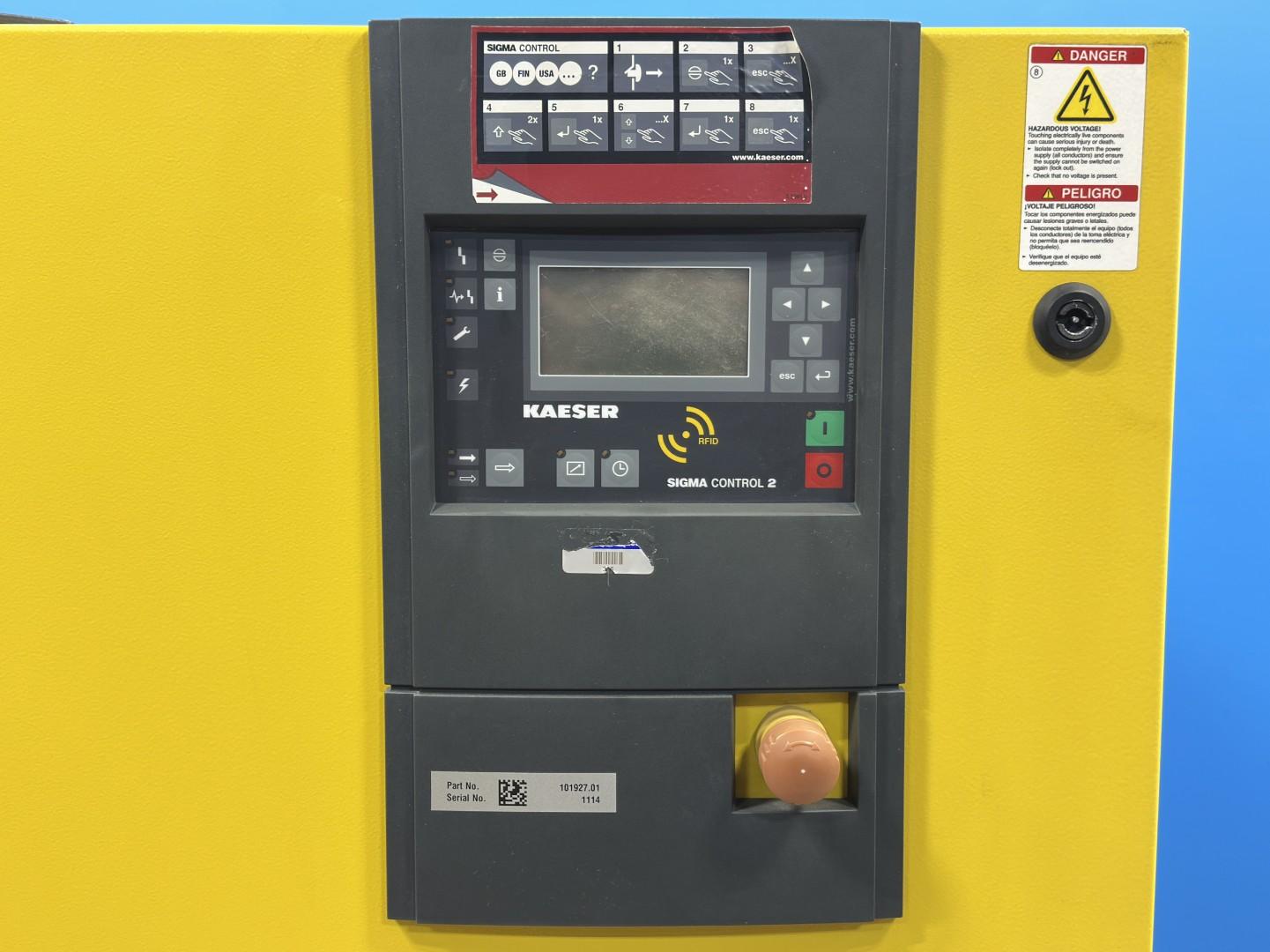

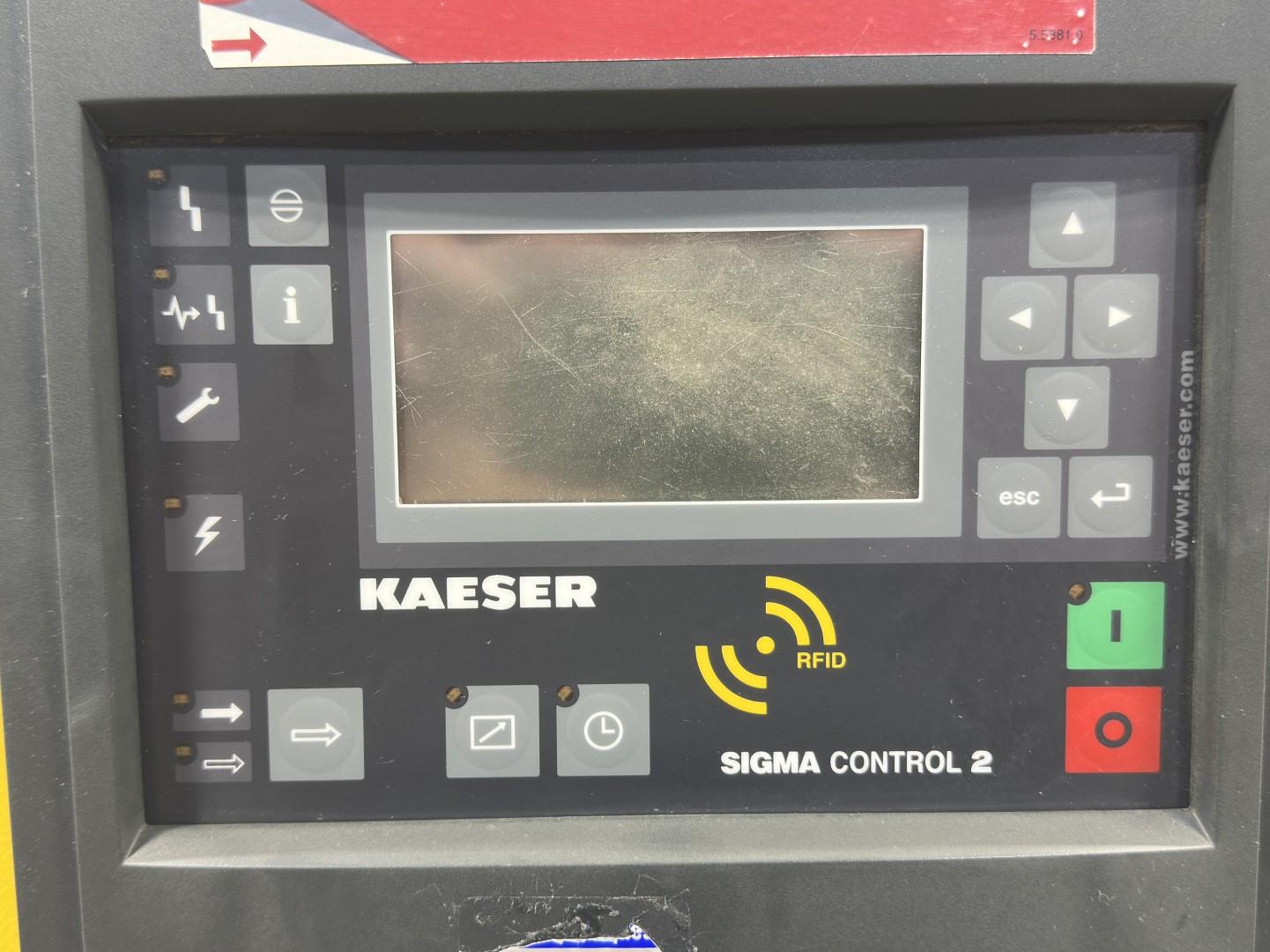

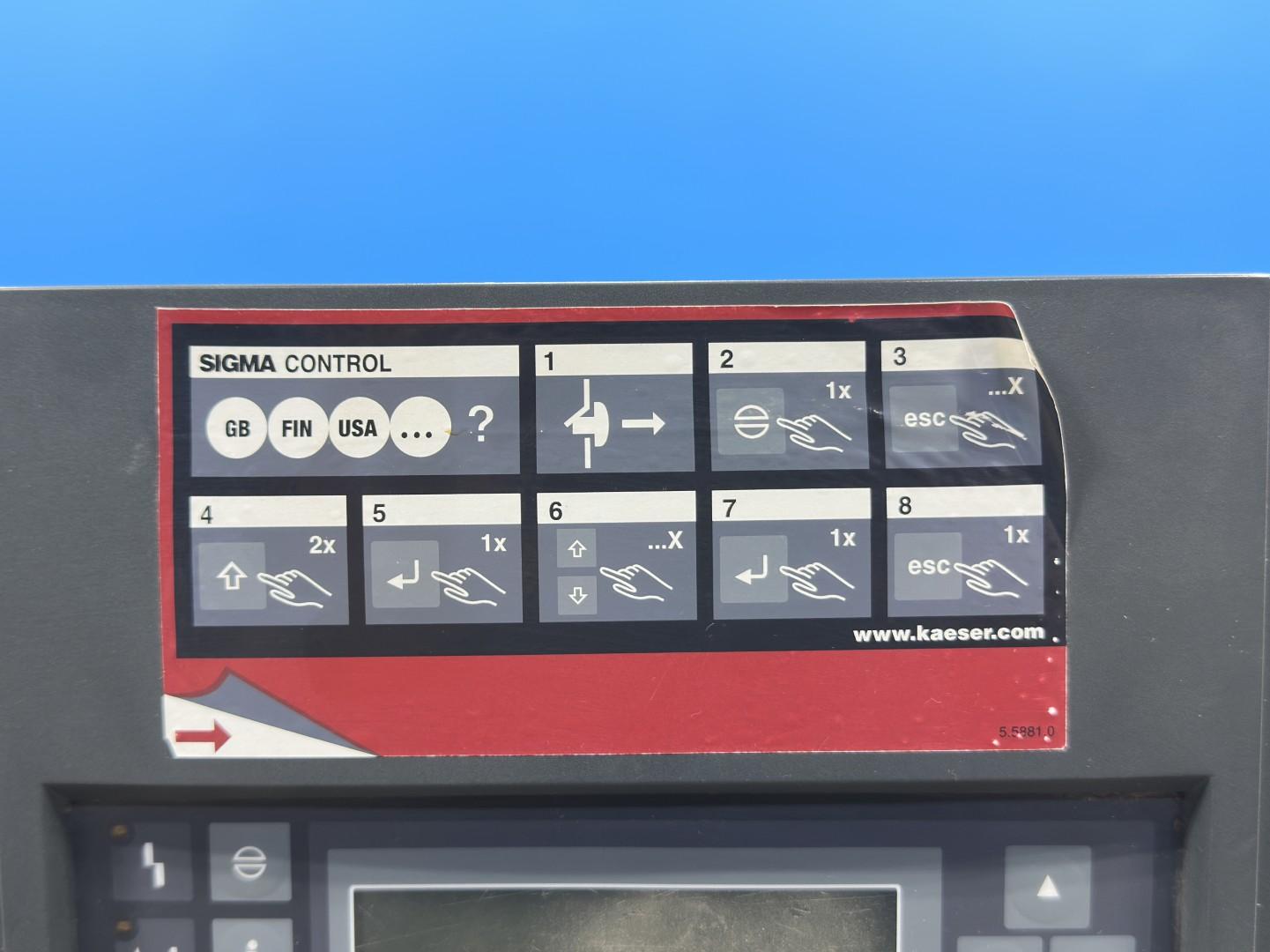

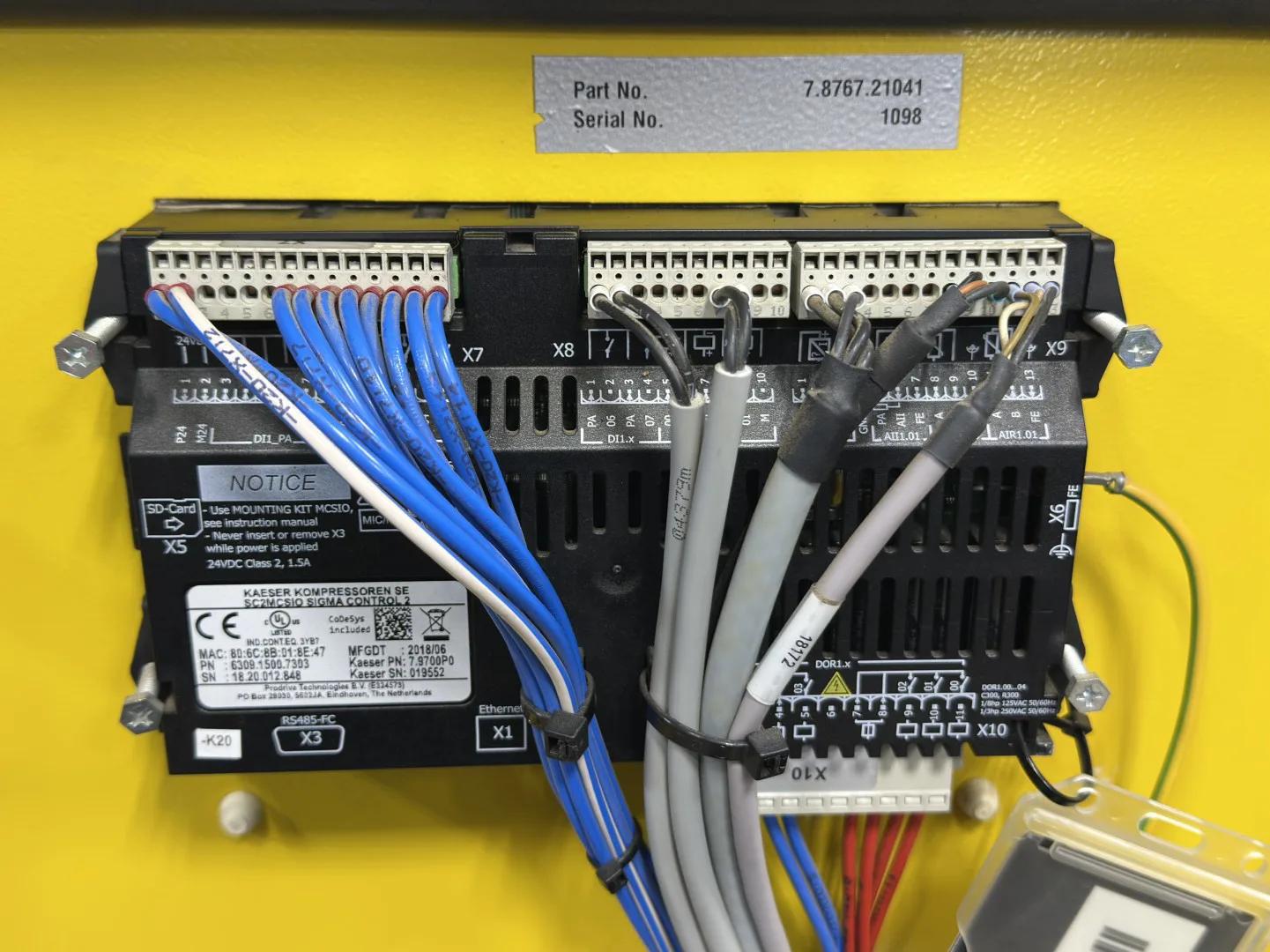

20 HP Rotary Screw Air Compressor, Kaeser Compressors AS 20 T w/ Sigma Control 2
AS 20 T Compressor Specifications: HP, CFM & Tank
Shop Applications & What's Included
1 / 81
+81
+81
1 / 81
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | AS 20 T |
| Condition | Used |
| Manufacturer | Kaeser Kompressoren SE |
| Asset Number | KSC1379 / 009 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 3.1 Oak Pallet $45 |
Available Qty: 1
$8,950.00
Basic Information
Asset #
KSC1379 / 009
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

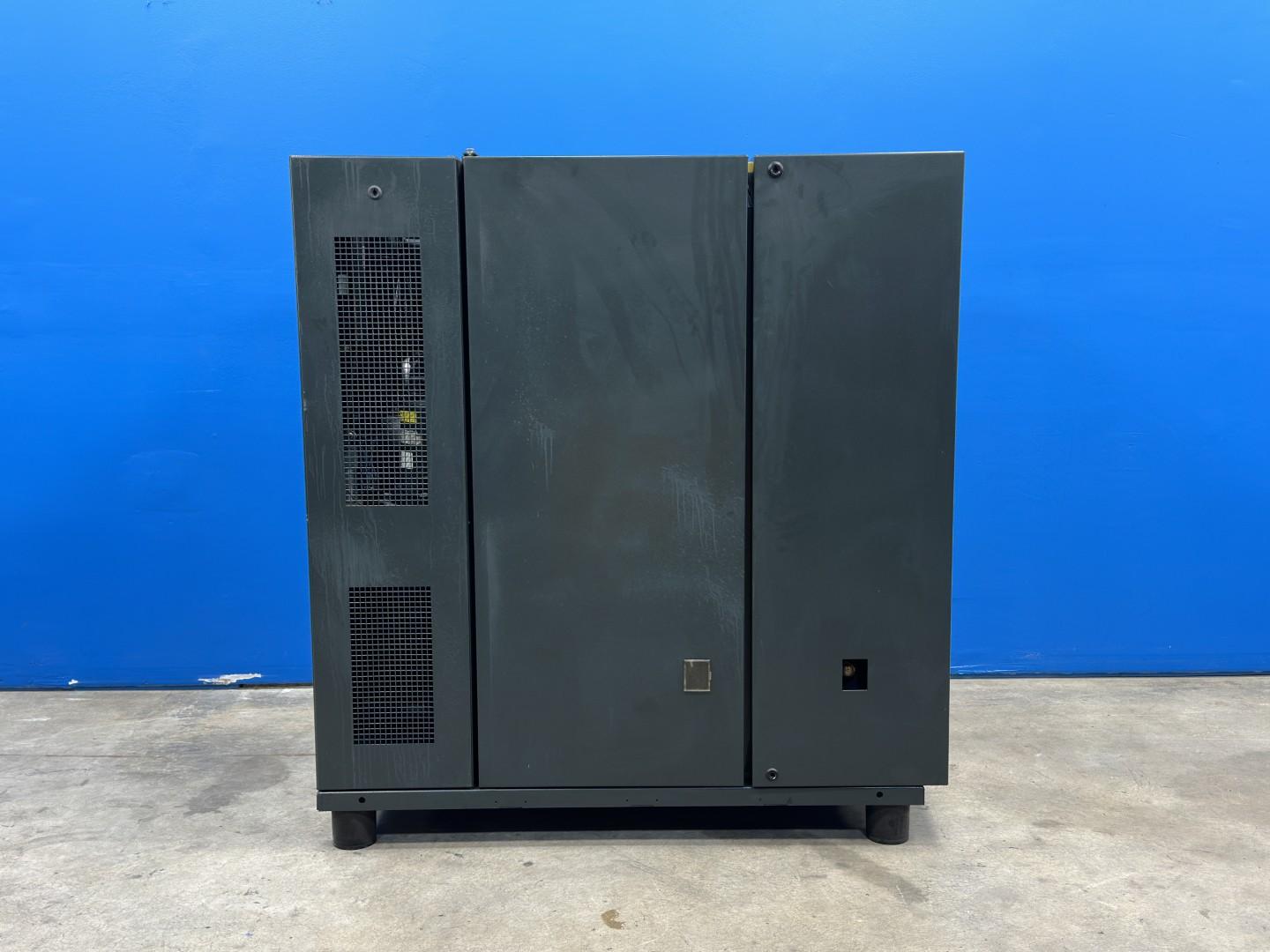

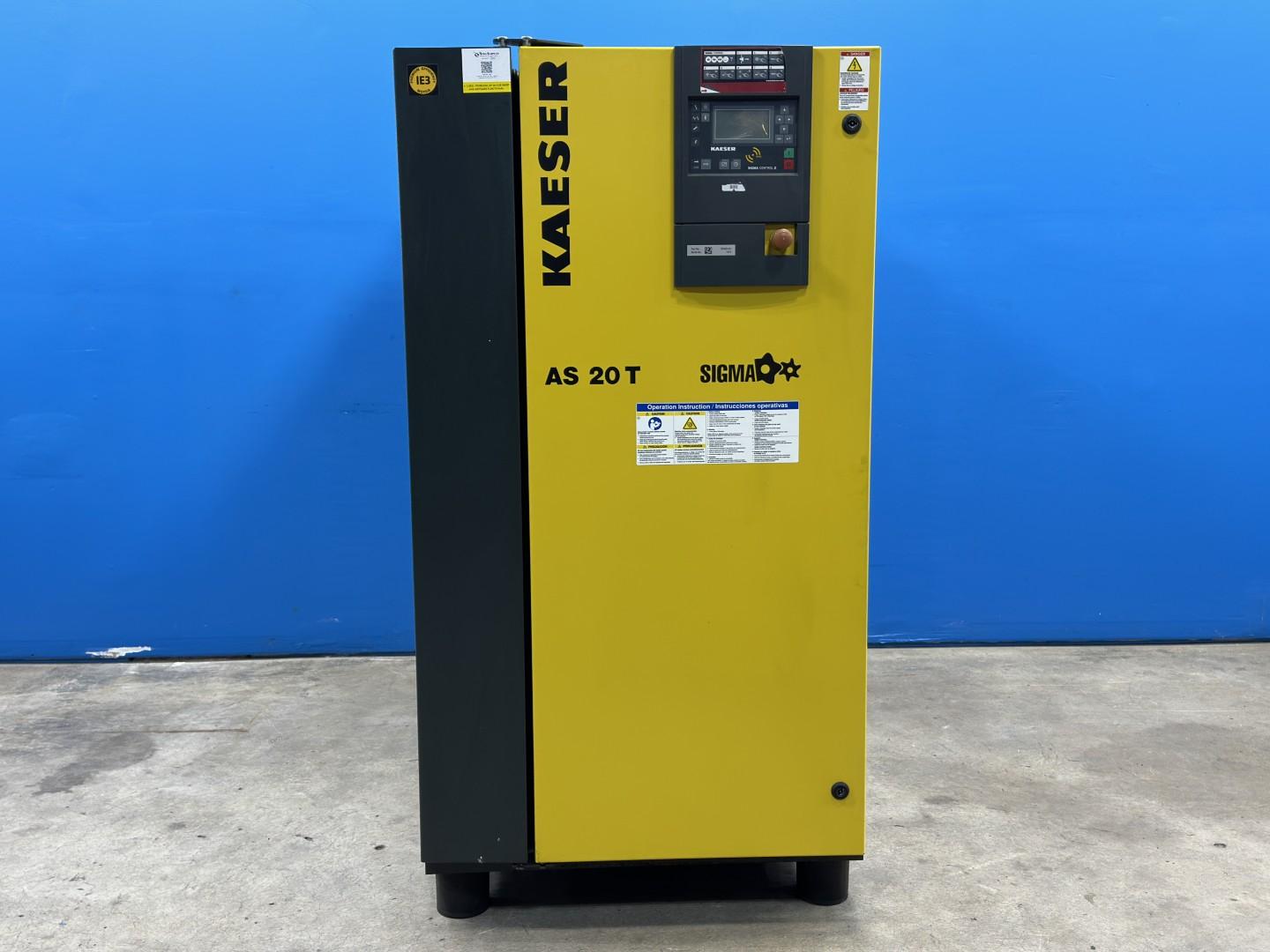

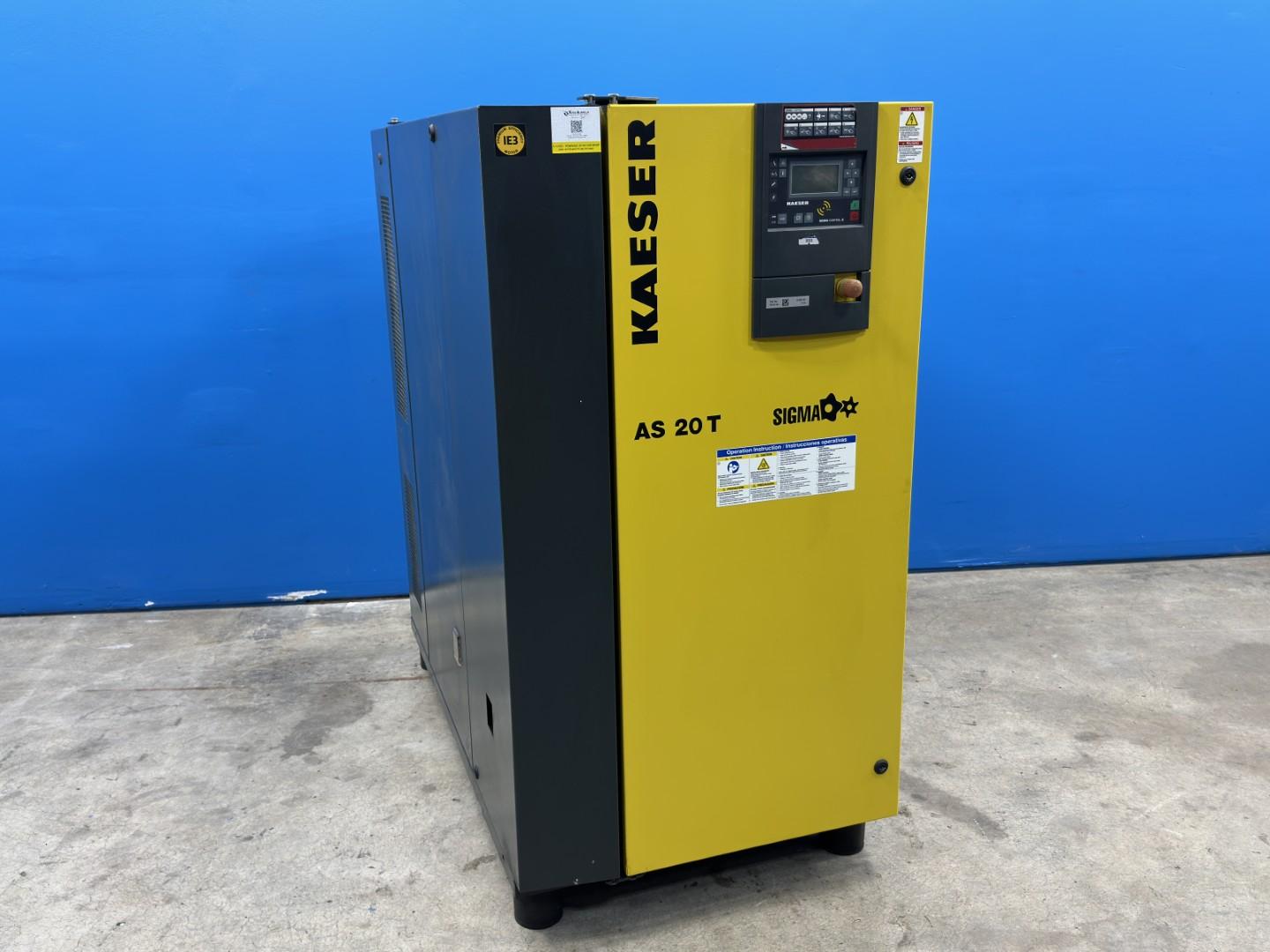

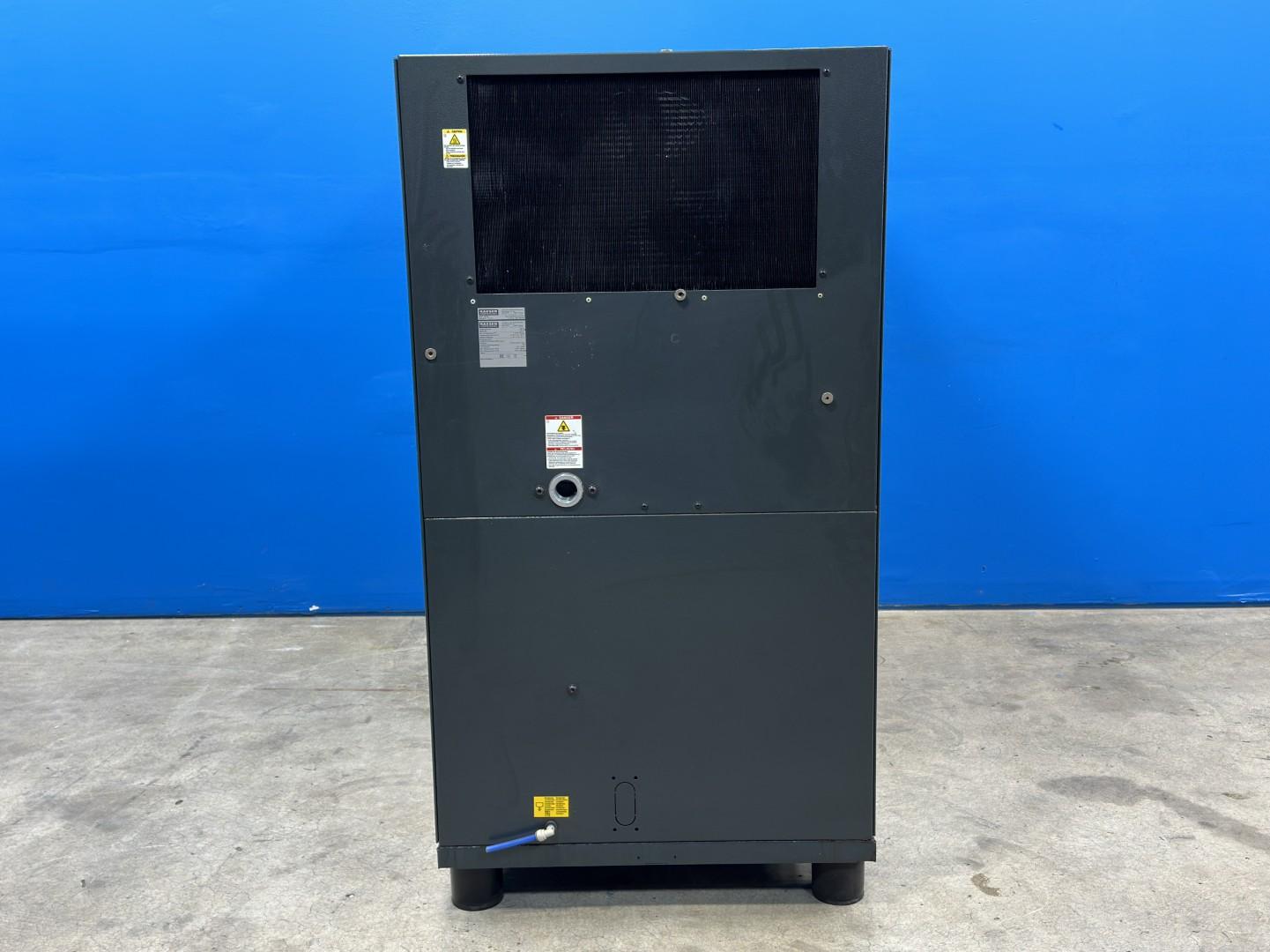

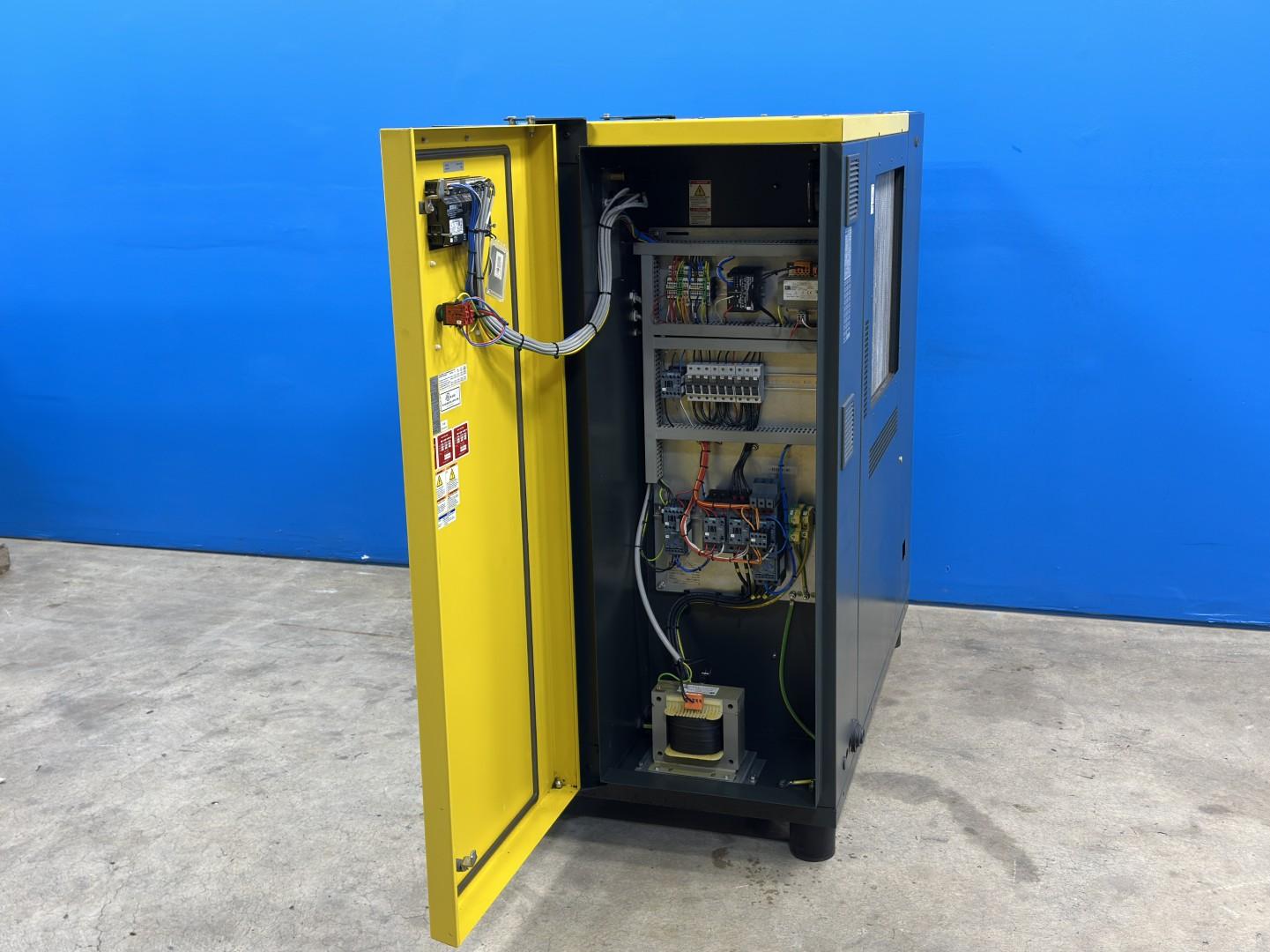

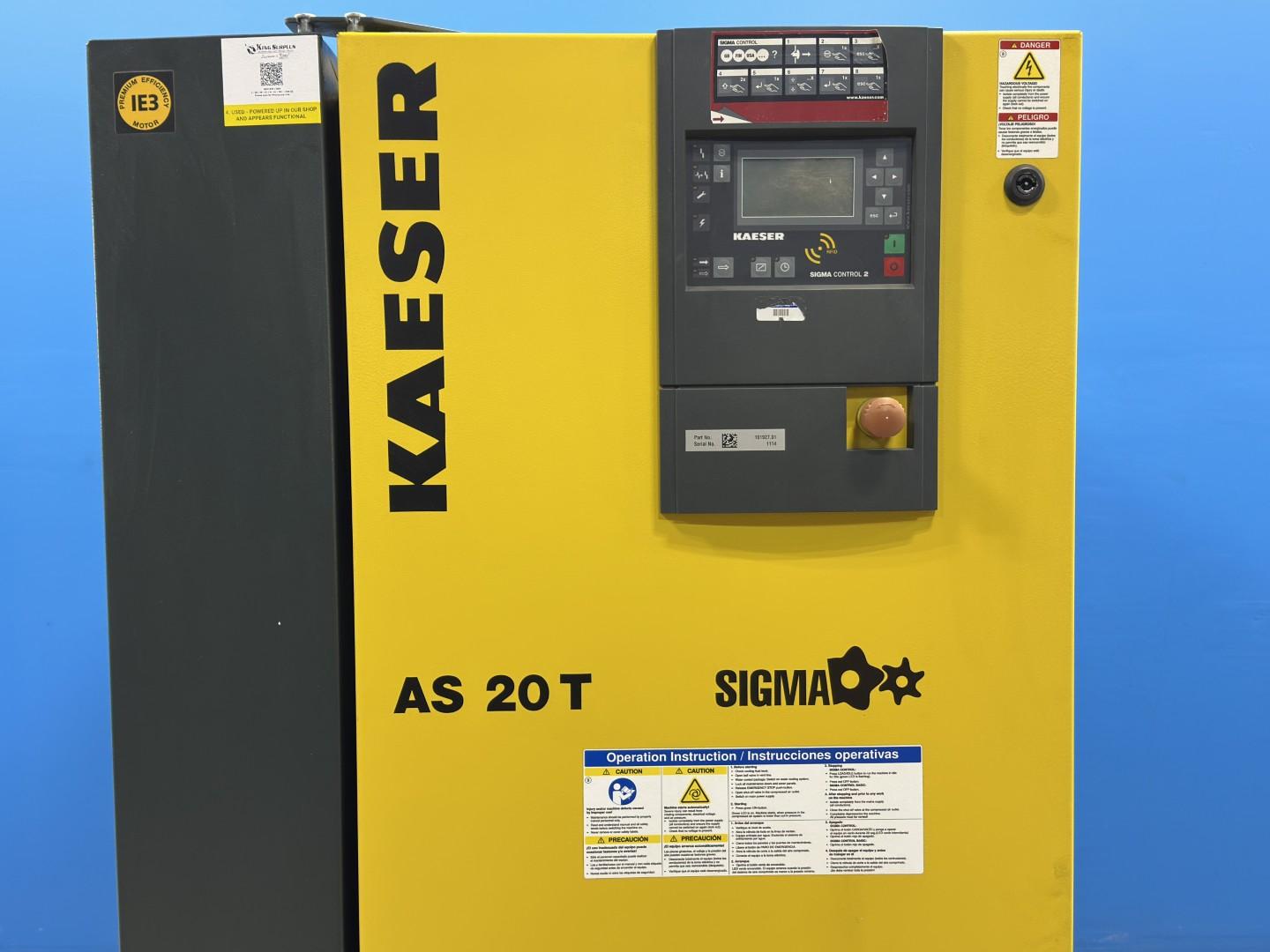

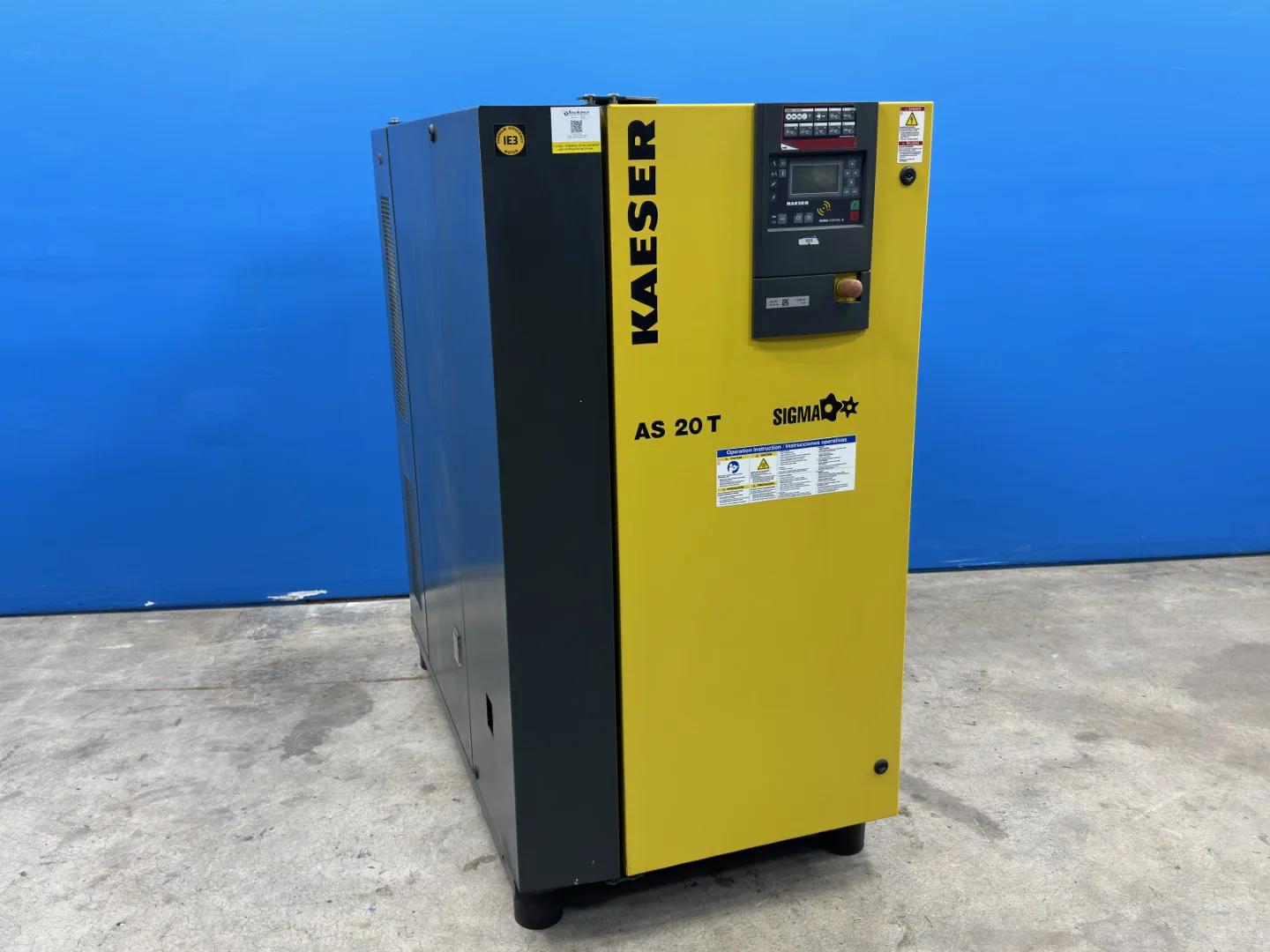

The Kaeser Aircenter AS 20 T is a 20 HP (15 kW) rotary screw air compressor supplied as a complete, all-in-one package. The airend, drive motor, integrated refrigerated dryer, and receiver tank are mounted and pre-plumbed on a single frame, so the unit needs only power and a service air connection to run. It produces 99 cfm at 125 psig on 3-phase power and is field-configurable for 208, 230, or 460 volts at 60 Hz.

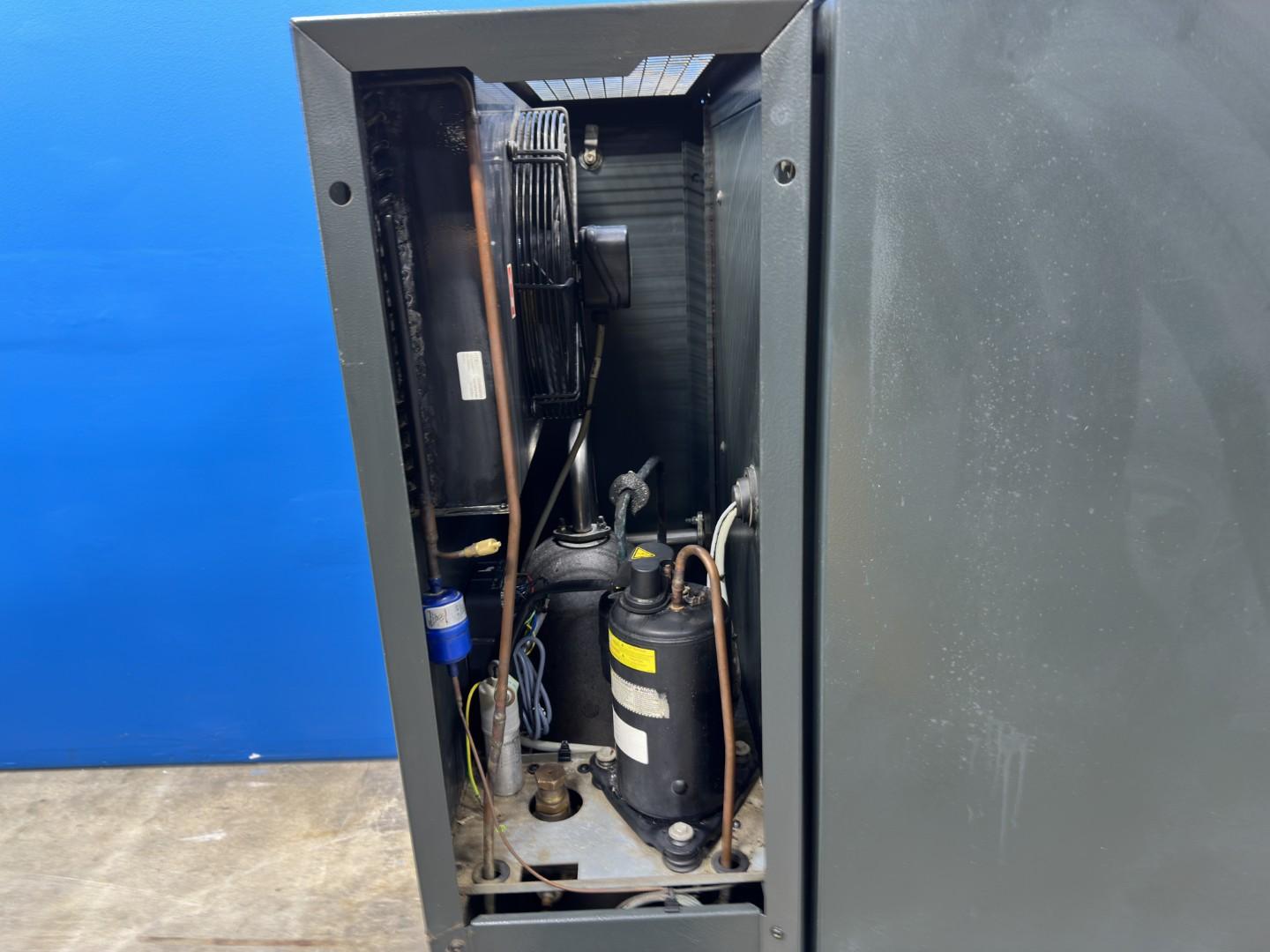

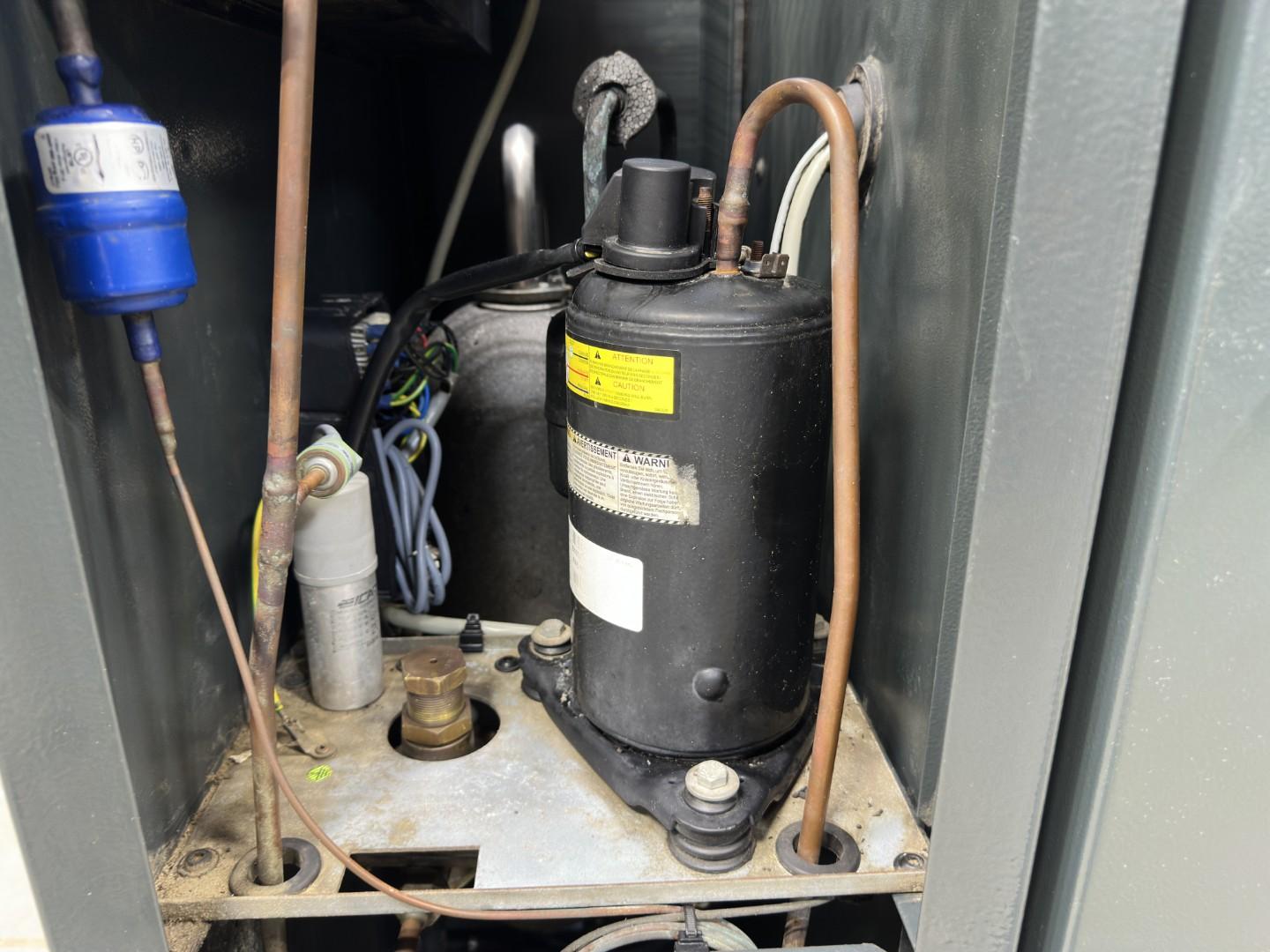

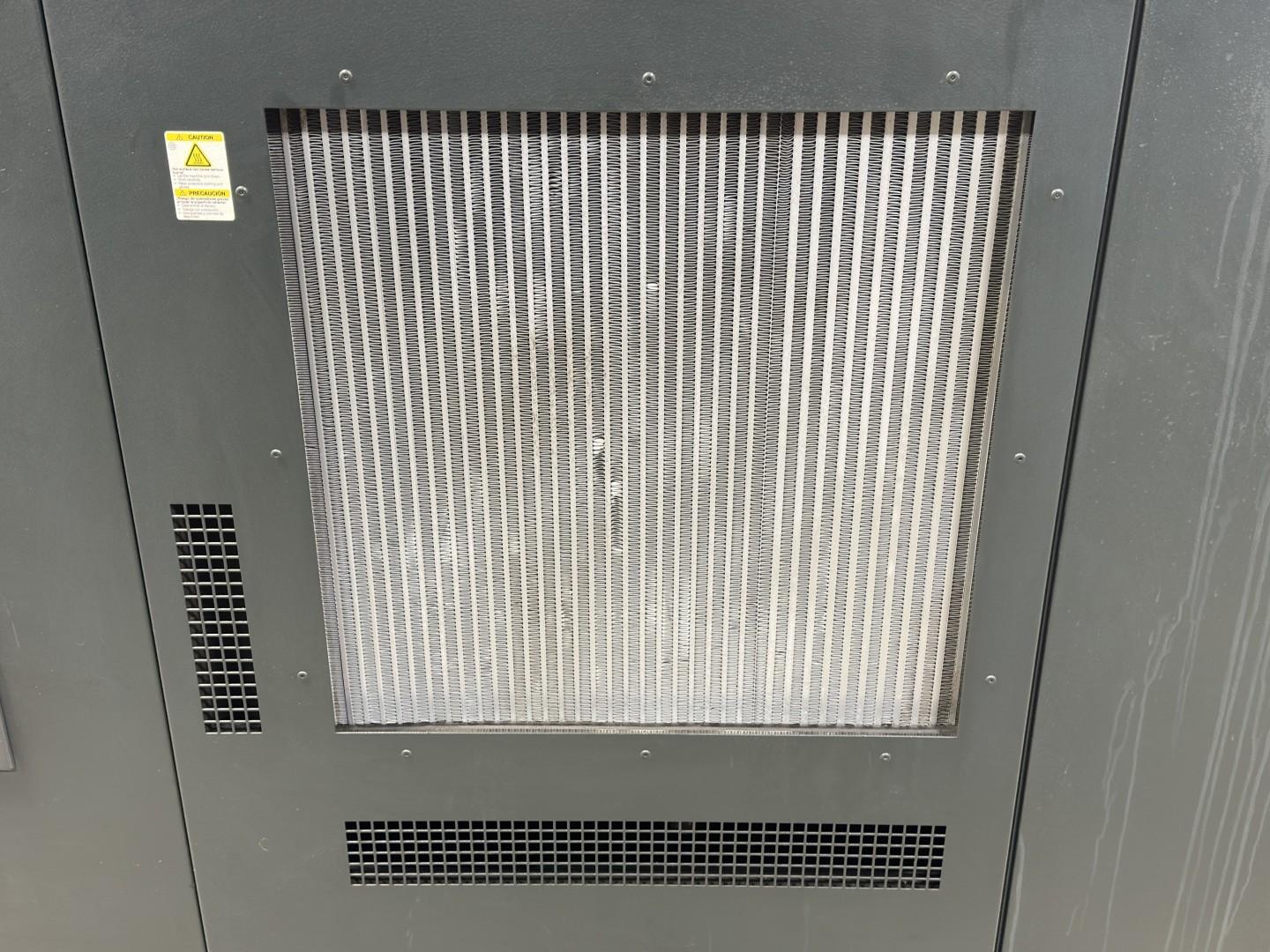

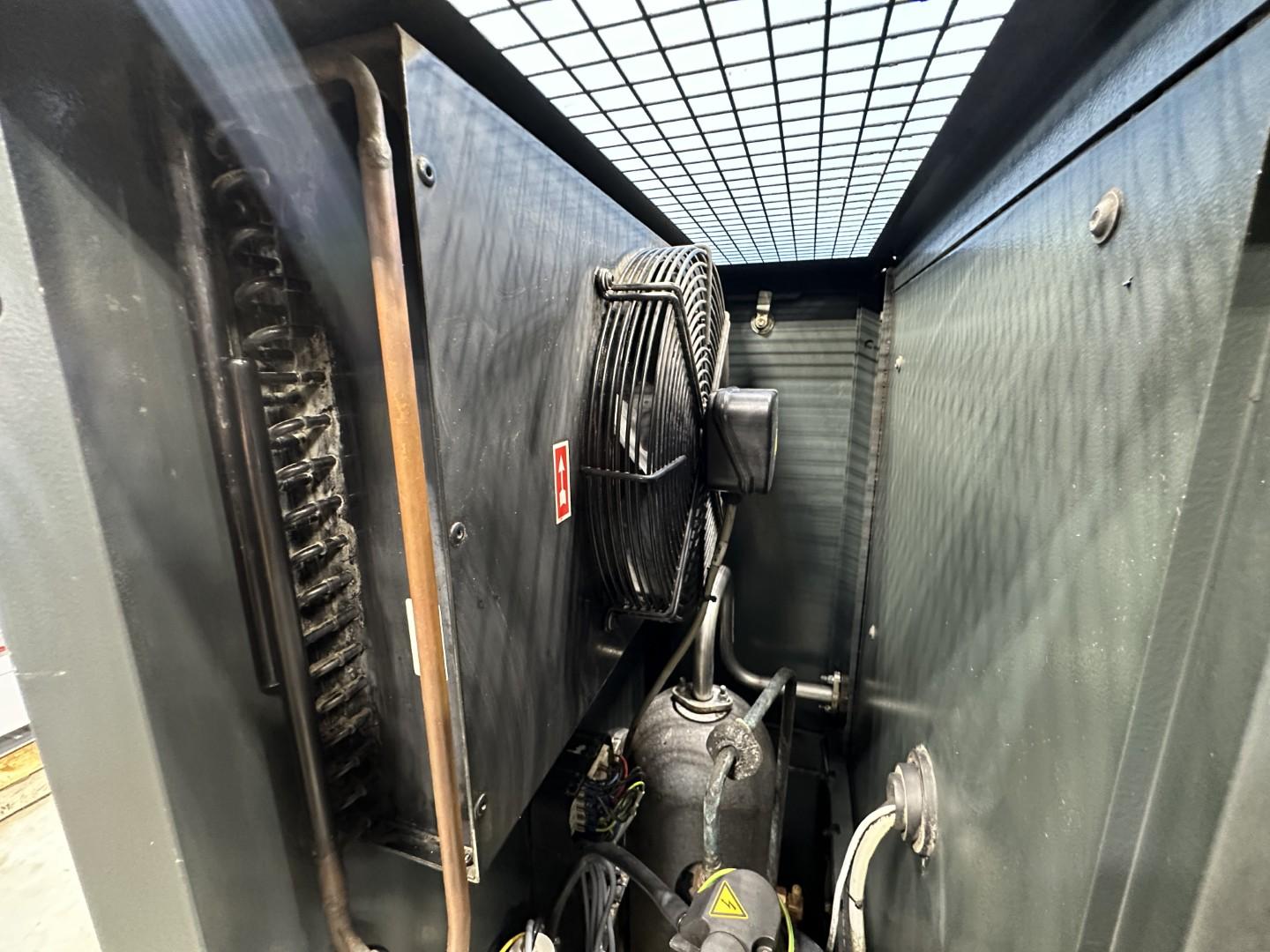

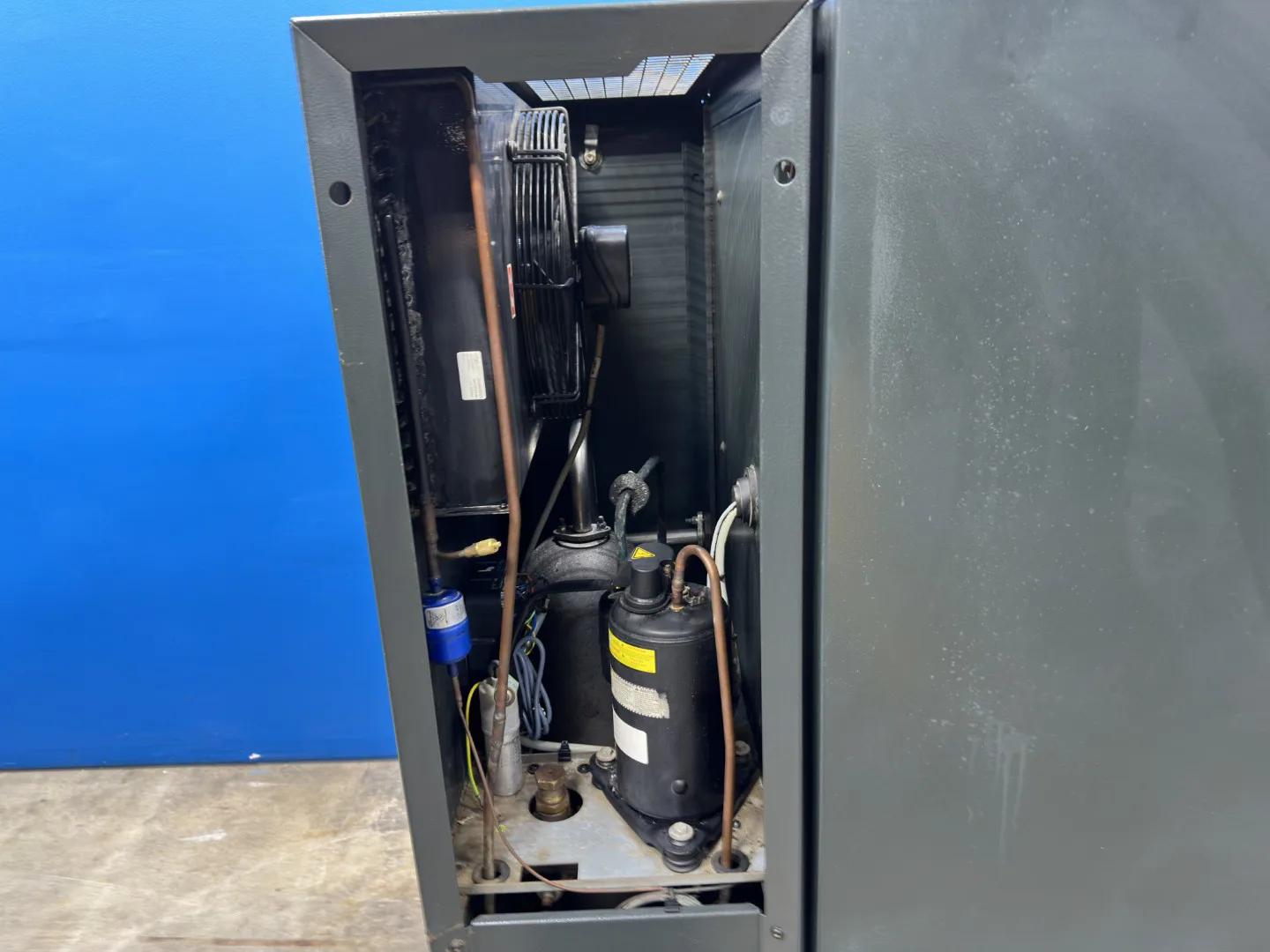

Kaeser is a German compressed-air manufacturer, and the Aircenter line is built to minimize installation labor: compressor, dryer, and storage are combined in one enclosure rather than assembled from separate components on site. The integrated refrigerated dryer removes moisture from the compressed air before it reaches downstream equipment, which protects pneumatic tools, actuators, and finish work from water carryover.
A screw unit of this size fits machine shops, automotive and body/paint shops, woodworking operations, packaging lines, and light manufacturing floors running continuous-duty air demand. The rotary screw design delivers steady, low-pulsation output and handles sustained loads better than a comparable reciprocating compressor.
This 2018 unit (Part No. 101927.01, Serial No. 1114) was powered up in our shop and appeared to be functional.
- 20 HP (15 kW), 99 cfm at 125 psig
- Tri-voltage 208 / 230 / 460 V, 3-phase, 60 Hz

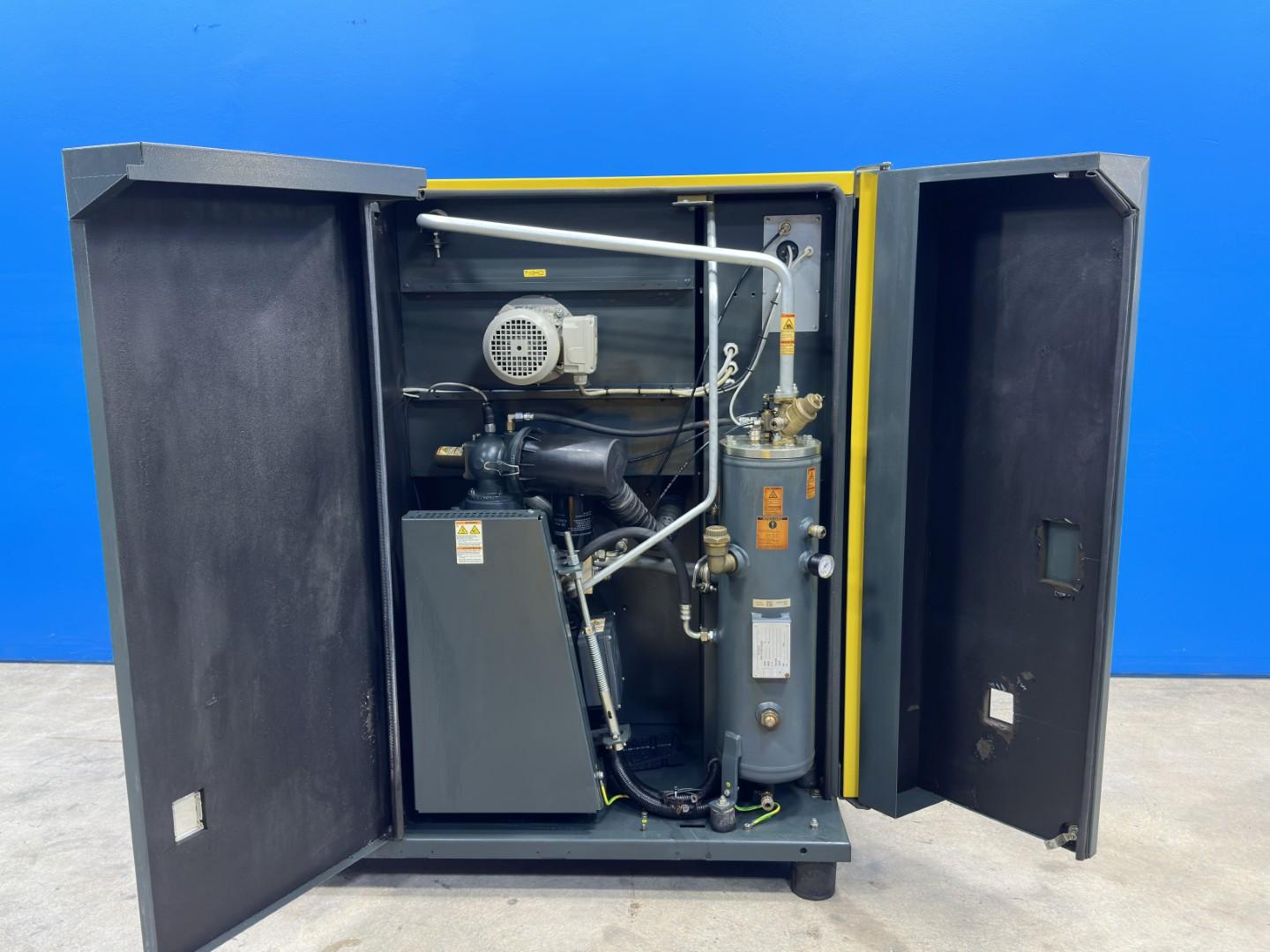

- Integrated refrigerated dryer and receiver tank (Aircenter package)

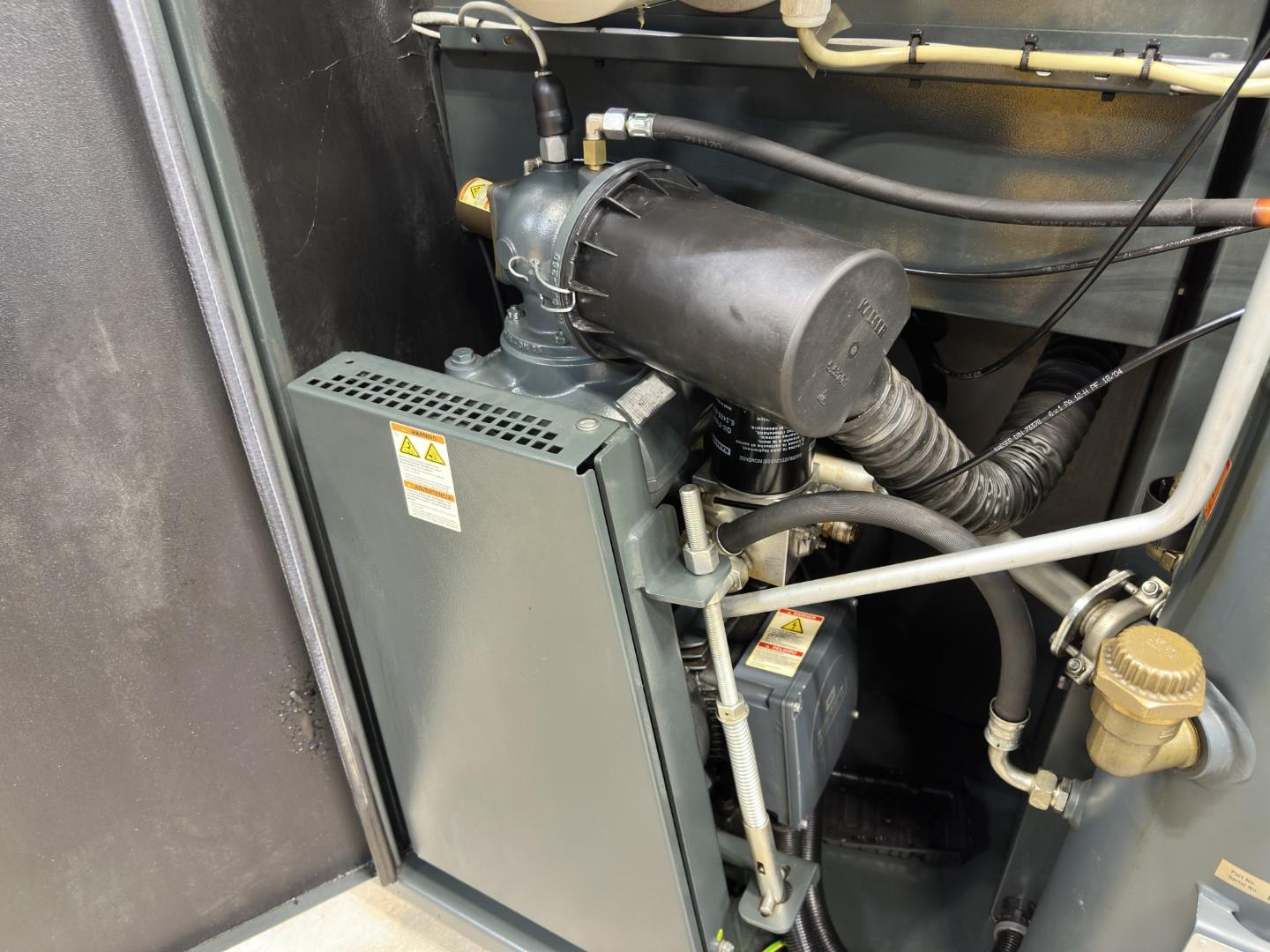

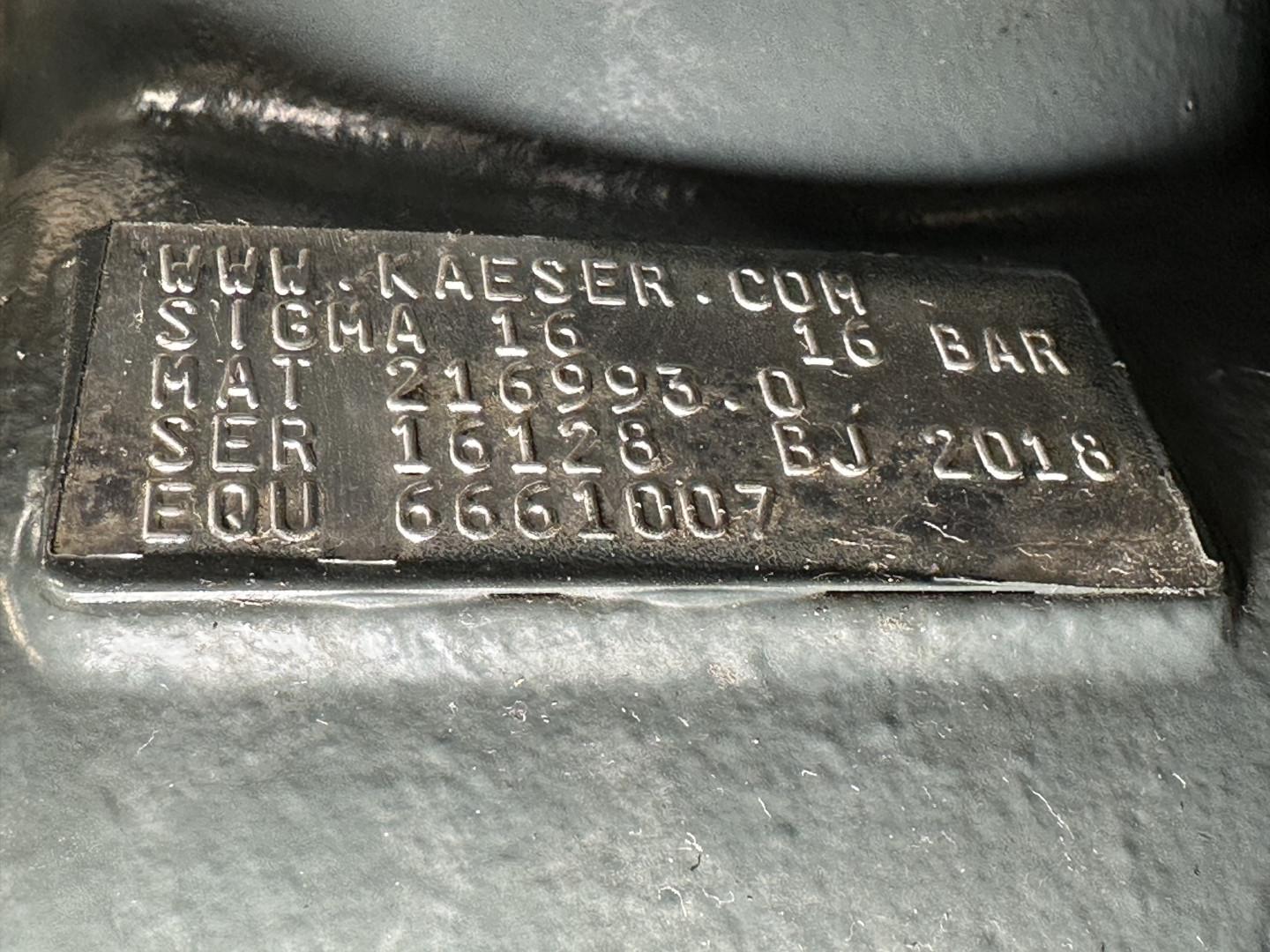

- Sigma Profile rotary screw airend, Type 1 enclosure
Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.

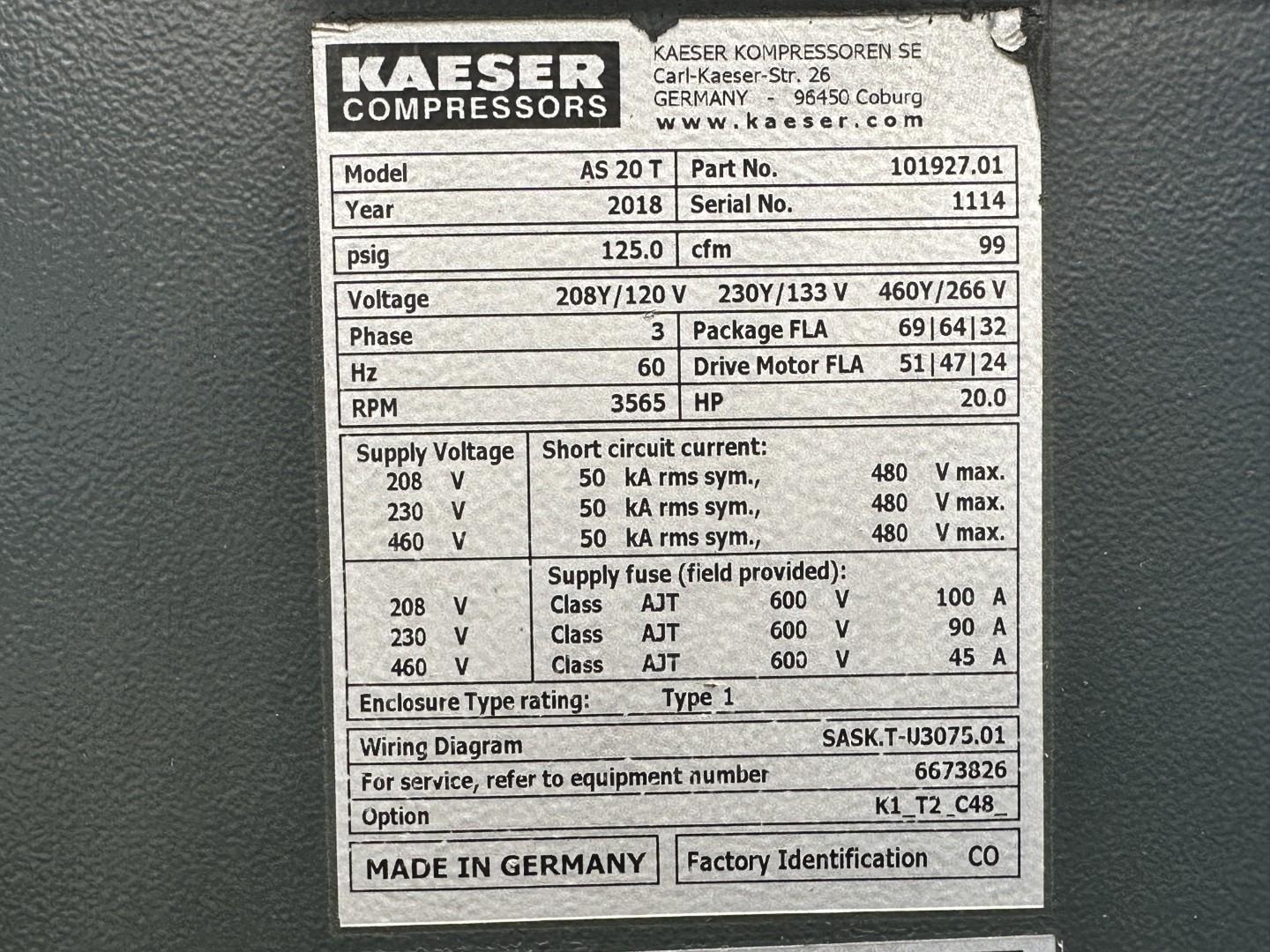

Factory Information
| Field | Value |
|---|---|
| Manufacturer | Kaeser Kompressoren SE — Coburg, Germany |
| Model | AS 20 T |
| Part No. | 101927.01 |
| Serial No. | 1114 |
| Year | 2018 |
| Origin | Made in Germany |
| Factory ID | CO |
| Rated Power | 20.0 HP (15 kW) |
| Max Pressure | 125.0 psig |
| Air Delivery | 99 cfm |
| Motor Speed | 3565 RPM |
| Frequency | 60 Hz |
| Phase | 3 |
| Voltage | 208Y/120 V · 230Y/133 V · 460Y/266 V (tri-voltage) |
| Package FLA | 69 A / 64 A / 32 A (208 / 230 / 460 V) |

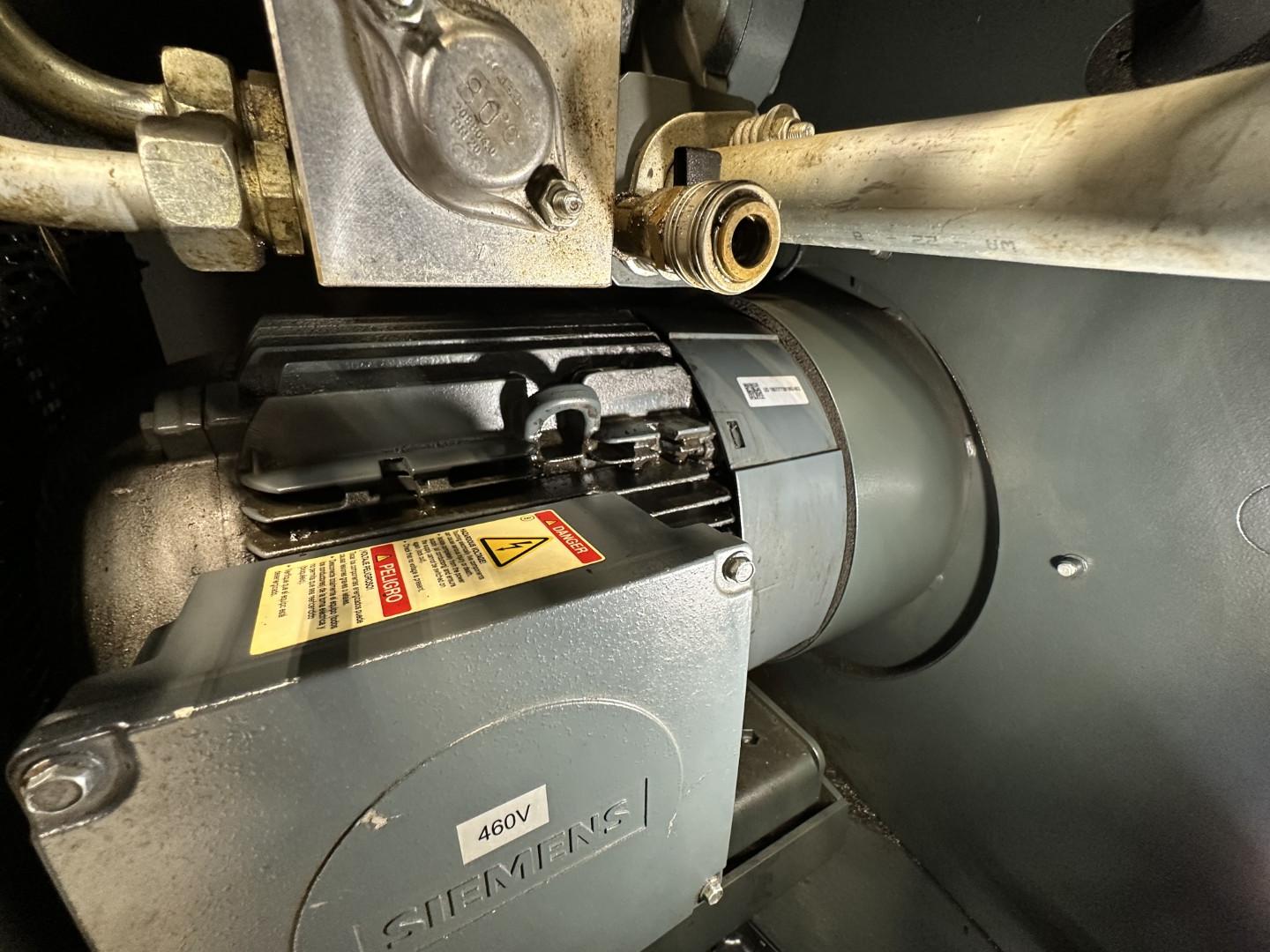

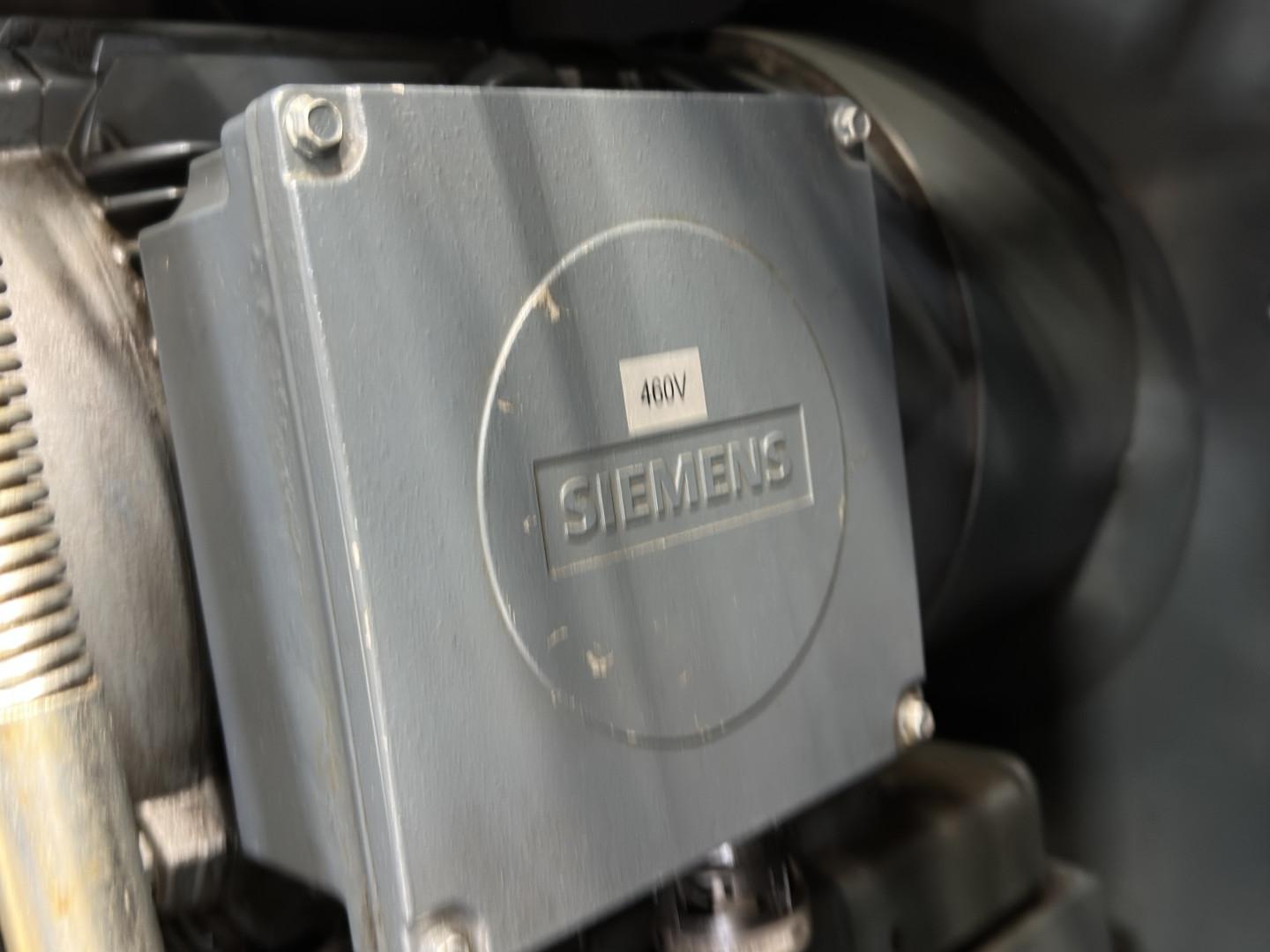

| Drive Motor FLA | 51 A / 47 A / 24 A (208 / 230 / 460 V) |

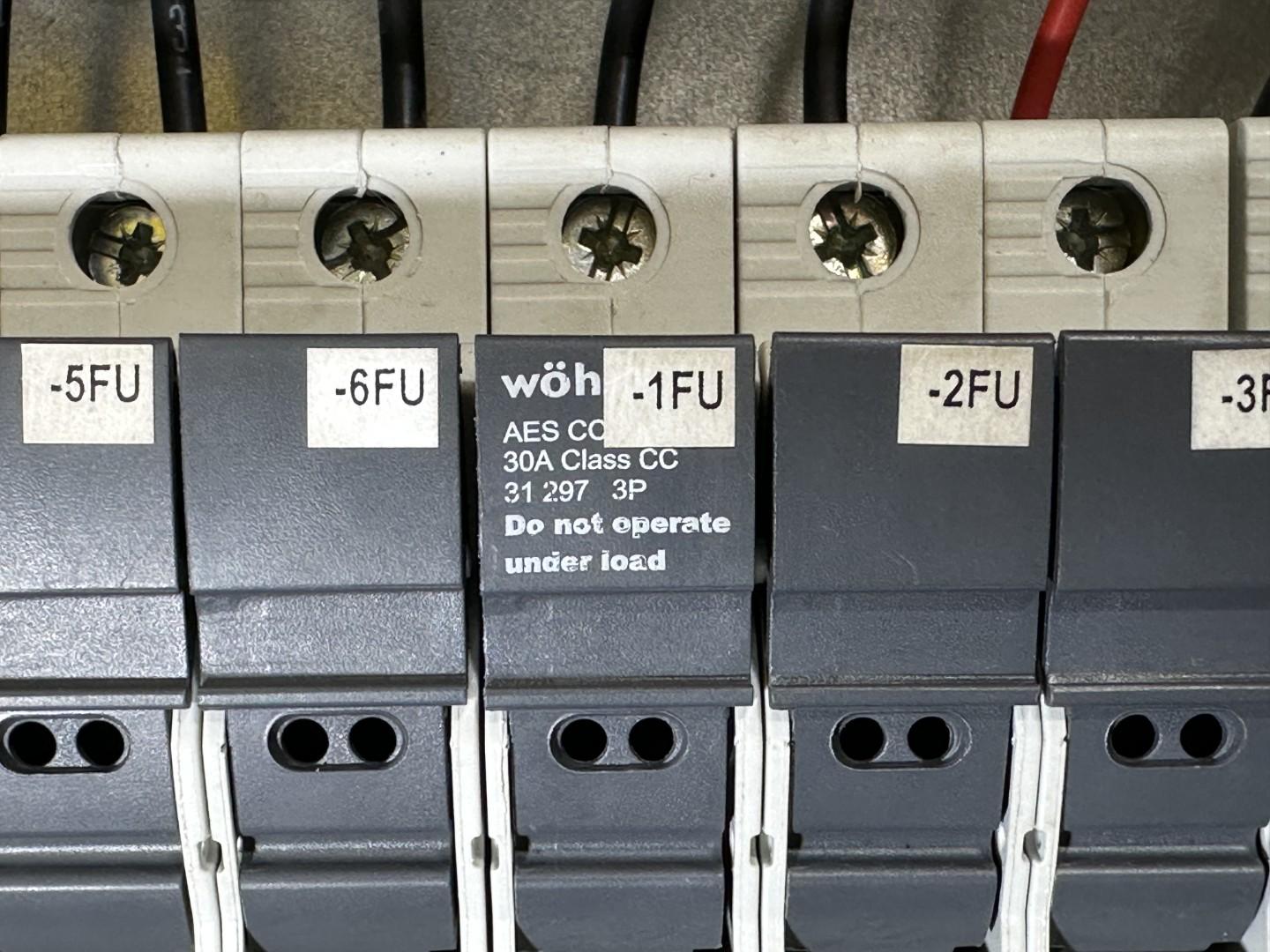

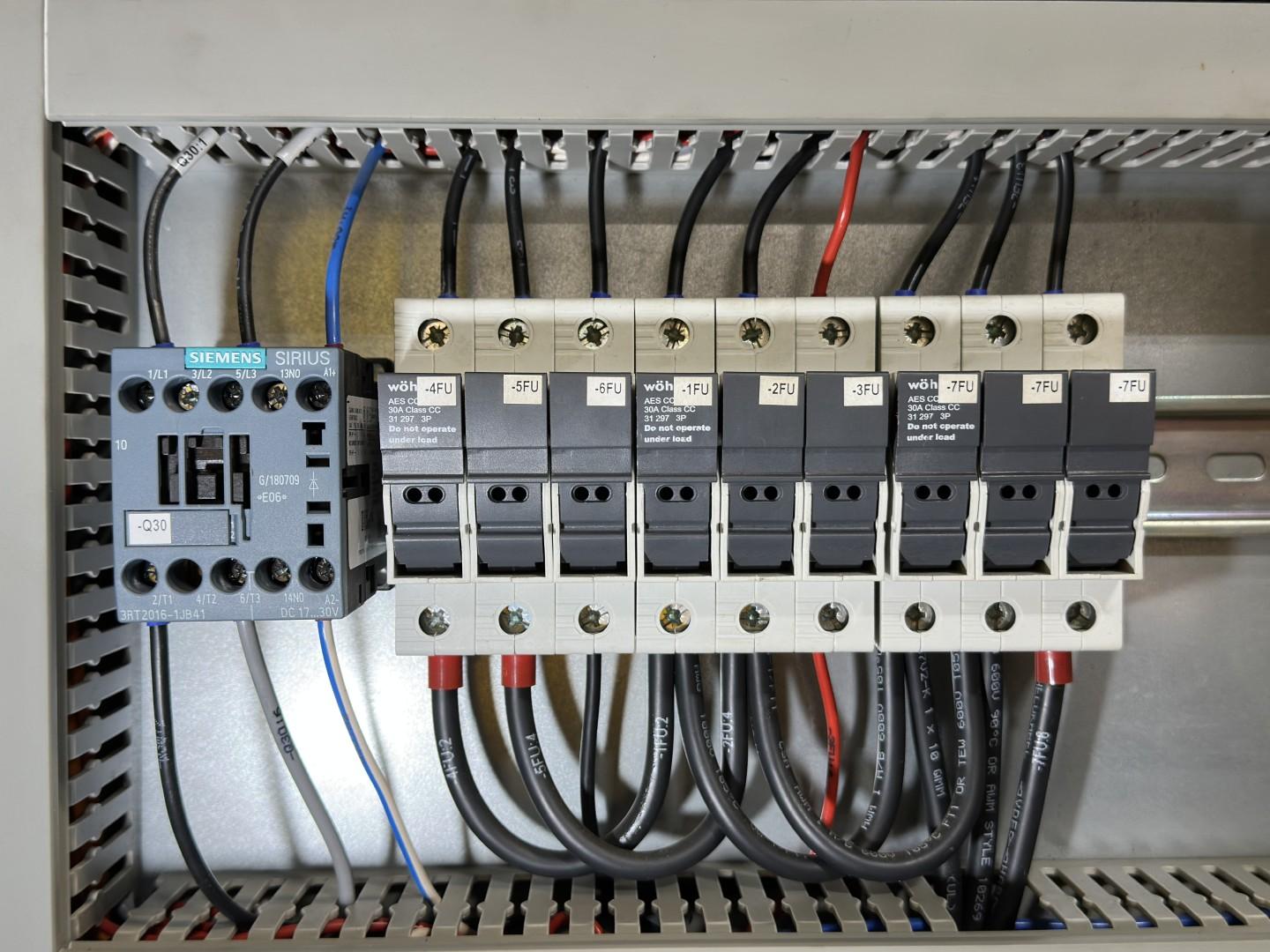

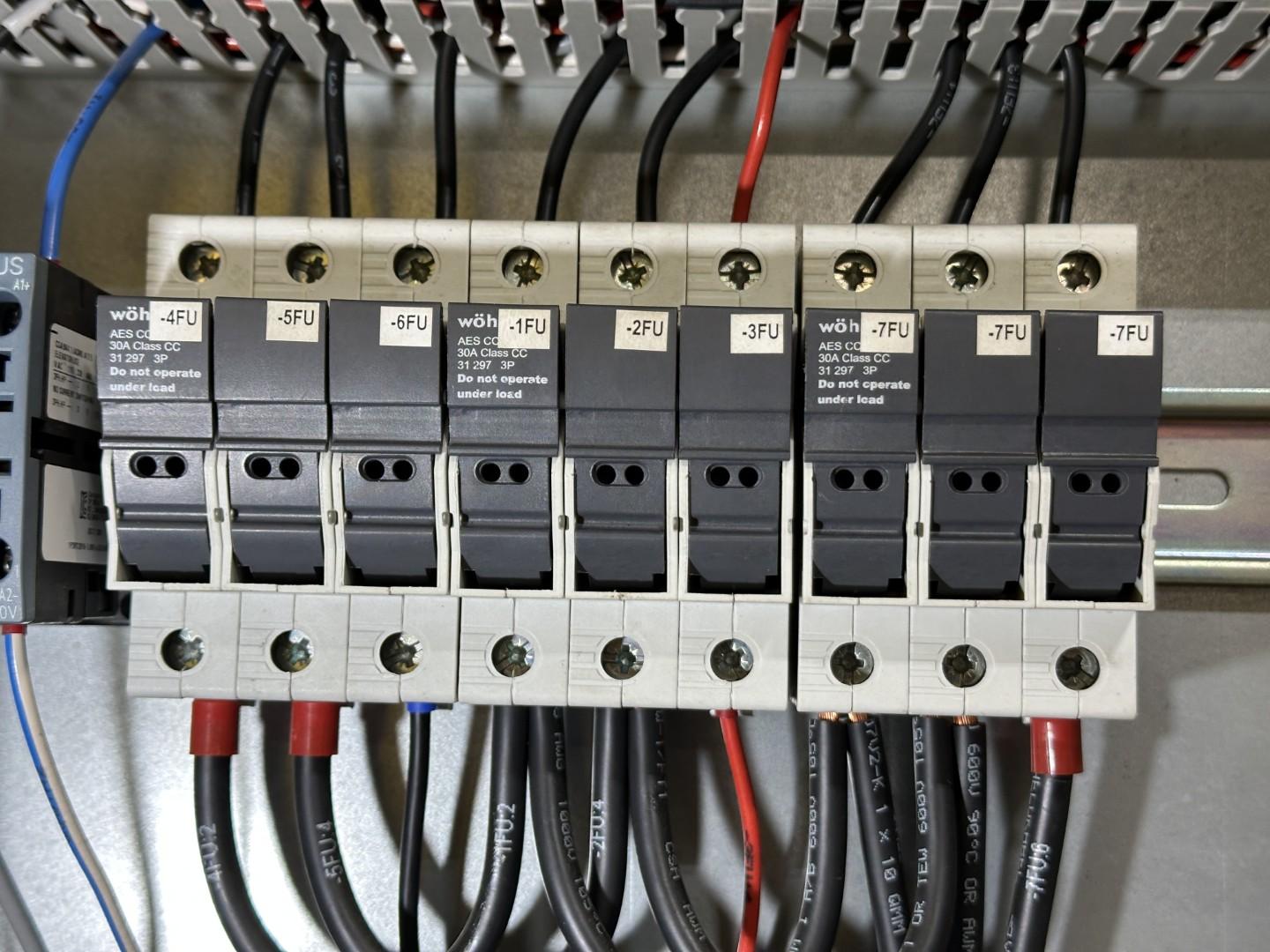

| Supply Fuse (AJT 600V) | 100 A / 90 A / 45 A (208 / 230 / 460 V) |
| Short-Circuit Rating | 50 kA rms sym., 480 V max |
| Enclosure Rating | Type 1 |
| Wiring Diagram | SASK.T-U3075.01 |
| Service Equip. No. | 6673826 |
| Option Code | K1_T2_C48_ |
Specifications
Manufacturer
Kaeser Kompressoren SE
Model
AS 20 T
Serial
1114
Year
2018
HP / AMP / KW / KVA
20 HP (15 kW)
Amps
69/64/32A
Length (Inches)
58
Width (Inches)
32
Height (Inches)
61
Phase
3 Phase
Estimated Packaging Weight
45
Estimated Total Weight
1403
Asset Number
KSC1379 / 009
Packaging fees
Packaging Cost
3.1 Oak Pallet $45
