2500 PSI Hydraulic Accumulator Repairable Piston Type Tobul Accumulators 6.7A25-40-6216, S/D BUNA-N -20 to+200 6-3/4" Shell Diameter

2500 PSI Hydraulic Accumulator Repairable Piston Type Tobul Accumulators 6.7A25-40-6216, S/D BUNA-N -20 to+200 6-3/4" Shell Diameter

2500 PSI Hydraulic Accumulator Repairable Piston Type Tobul Accumulators 6.7A25-40-6216, S/D BUNA-N -20 to+200 6-3/4" Shell Diameter

2500 PSI Hydraulic Accumulator Repairable Piston Type Tobul Accumulators 6.7A25-40-6216, S/D BUNA-N -20 to+200 6-3/4" Shell Diameter

Product image 1
1 / 13
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 13
+13
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 13
+13
Product image 1
1 / 13
DescriptionDetails
Available Quantity6
Model6.7A25-40-6216
ConditionUsed
ManufacturerN/A
Asset NumberKSC1023 / 001 / 5
Guarantee or ASIS3. UNKNOWN: Asset may or may not be in good condition ASIS
Inspections - Yellow Tag5.3 Used: ASIS
Packaging Cost3.2 Machinery Skid $100
Available Qty: 6
$599.95
Call UsText UsEmail Us
$599.95
Call Us

Asset #

KSC1023 / 001 / 5

Available Quantity

6

Inspections - Yellow Tag

5.3 Used: ASIS

Condition

Used

Guarantee or ASIS

3. UNKNOWN: Asset may or may not be in good condition ASIS

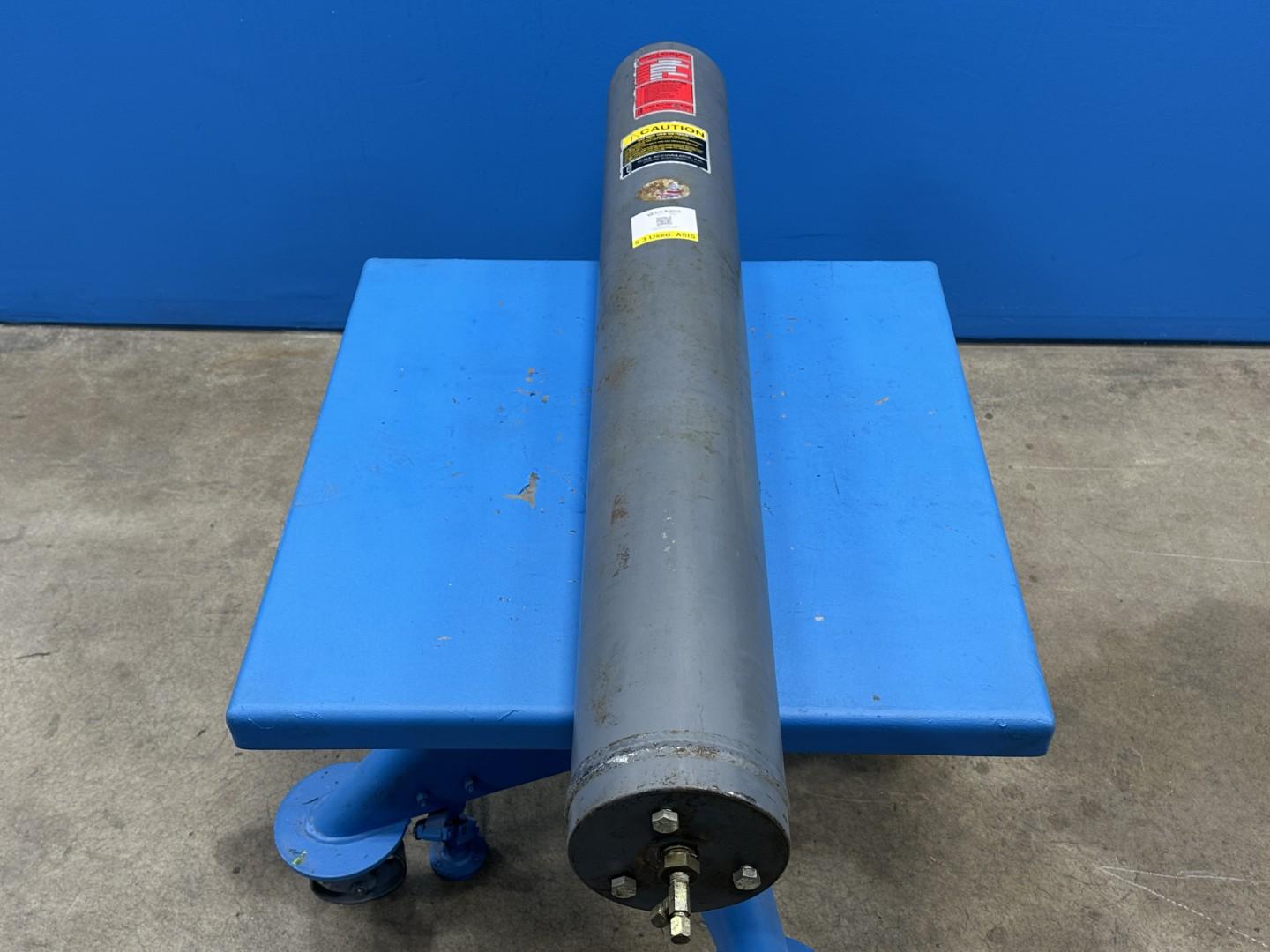

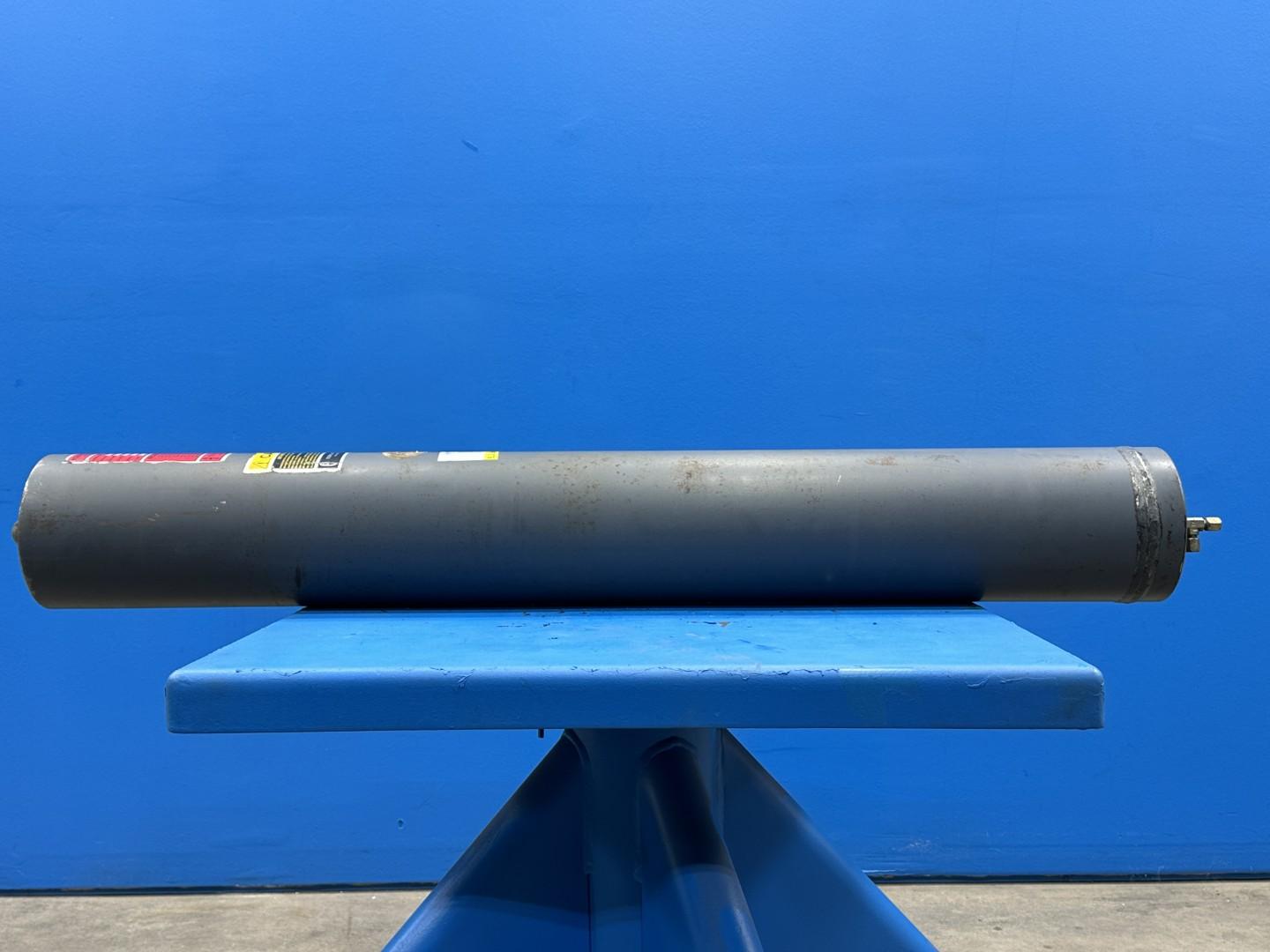

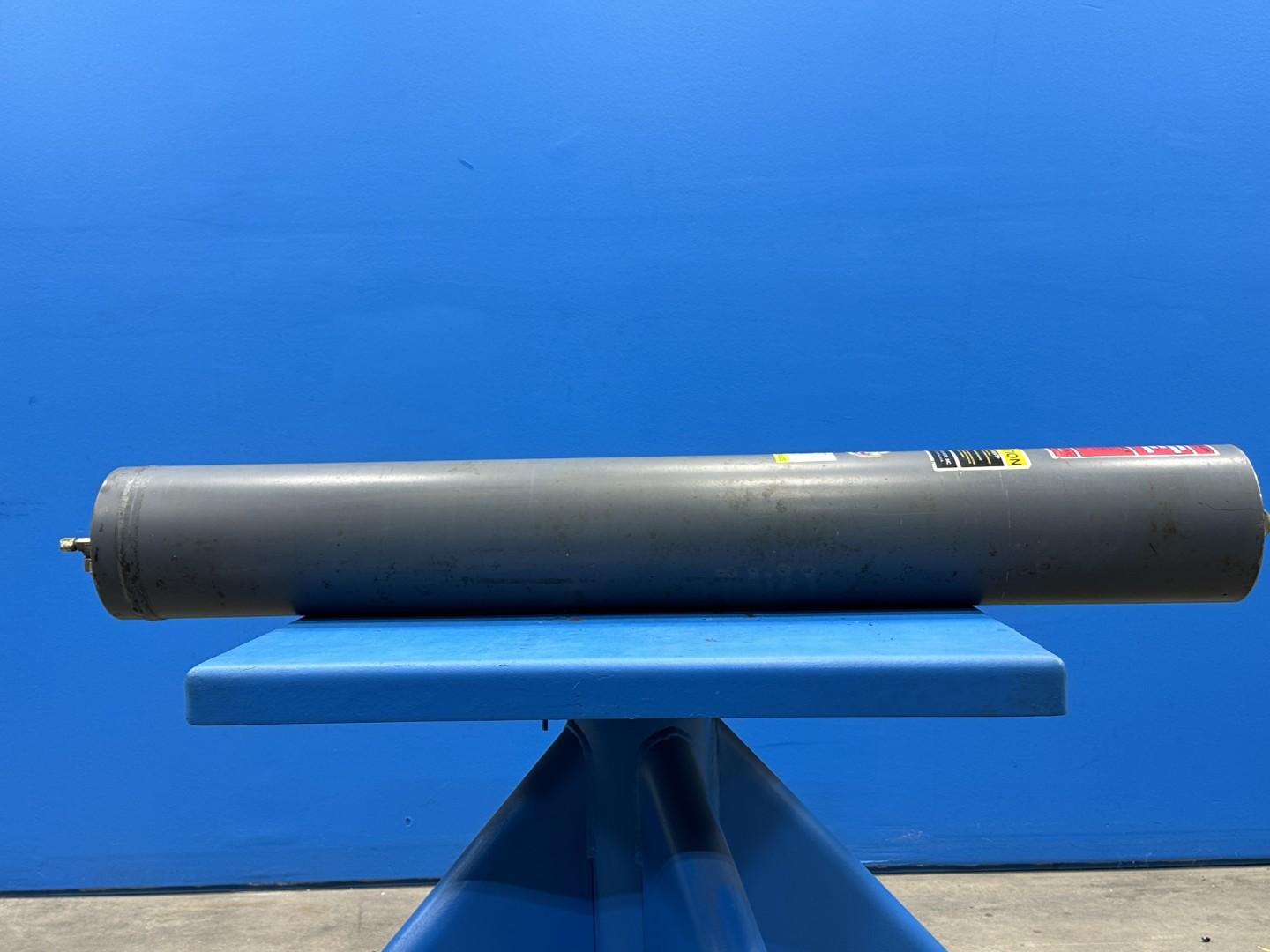

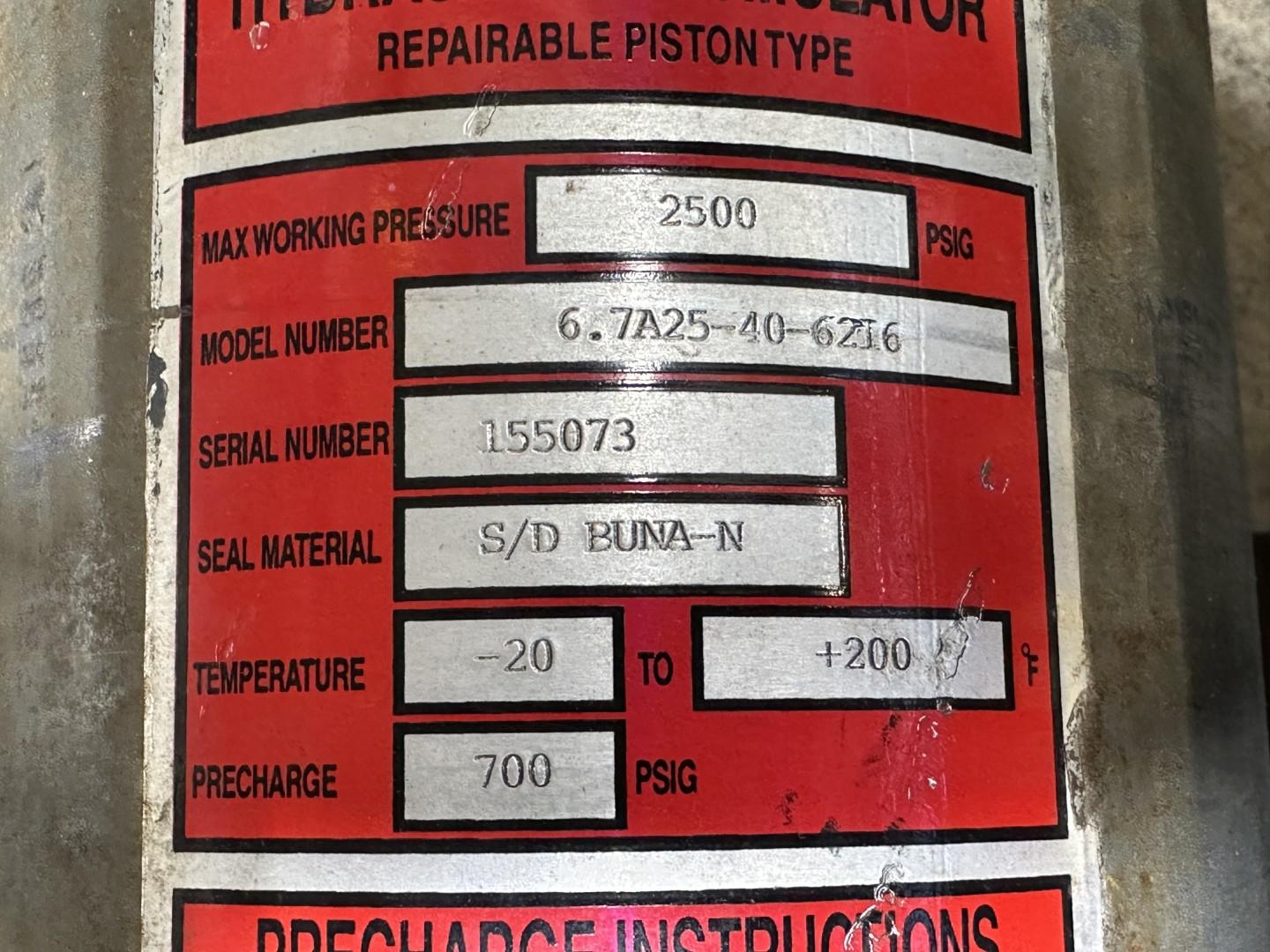

The Tobul 067A25-40-6216 is a hydro-pneumatic, piston-type hydraulic accumulator rated for 2500 PSI maximum working pressure, built by Tobul Accumulator, Inc. (now operating under Freudenberg/FST). Piston accumulators store energy in compressed nitrogen acting against a low-inertia aluminum piston that separates the gas charge from the hydraulic fluid, allowing the unit to supplement pump delivery, absorb pump pulsations, cushion hydraulic shock, and maintain system pressure during demand spikes or power loss. Tobul's piston design is used in over 90% of accumulator applications and serves industries including oil and gas, power generation, chemical processing, pulp and paper, basic metals, and mobile and aviation ground support equipment.

The model code breaks down as follows: 067 is the 6-3/4 inch (6.75 in) nominal shell diameter, A denotes both heads threaded which is Tobul's repairable (rebuildable) construction (versus "AL" fully welded or "AT" partially welded), and 25 is the 2500 PSI maximum working pressure class. The -40 segment is the fluid capacity/length designator for this family, and the -6216 suffix specifies the port and configuration build. The "BUNA-N" and "-20 to +200" callouts in the listing identify the standard Nitrile seal compound and its operating temperature window in degrees Fahrenheit, which is Tobul's catalog-standard service range for Buna/Nitrile seals.

SpecificationValue
ManufacturerTobul Accumulator, Inc. (Freudenberg/FST)
Model067A25-40-6216
Ordering Code067A25-40-6216 (alt. format 6.7A25-40-6216)
TypeHydro-pneumatic piston-type accumulator, repairable
Seal materialBuna-N (Nitrile)
Operating temperature-20 to +200°F (-28 to 93°C)
PistonLow-inertia aluminum, balanced

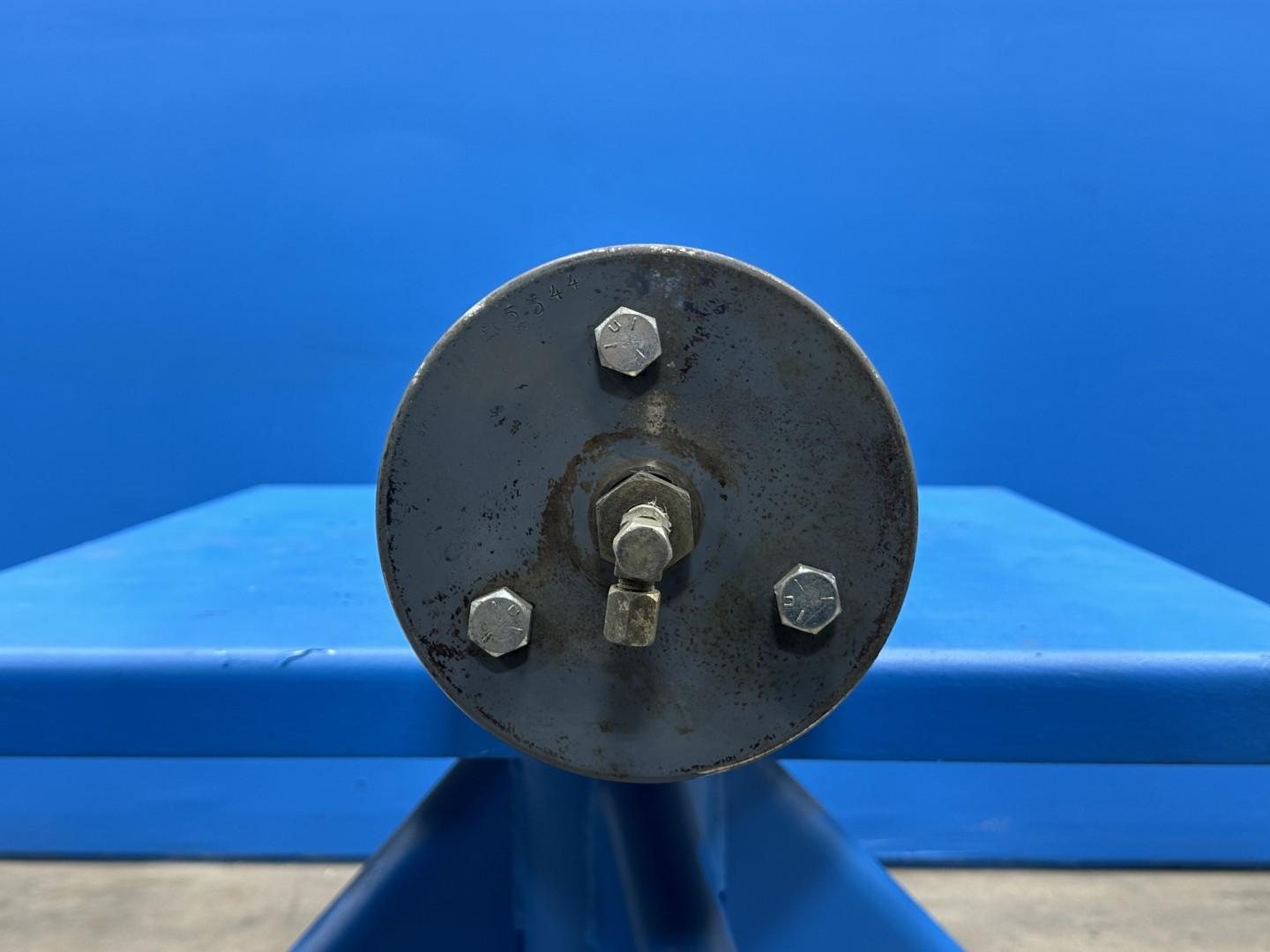

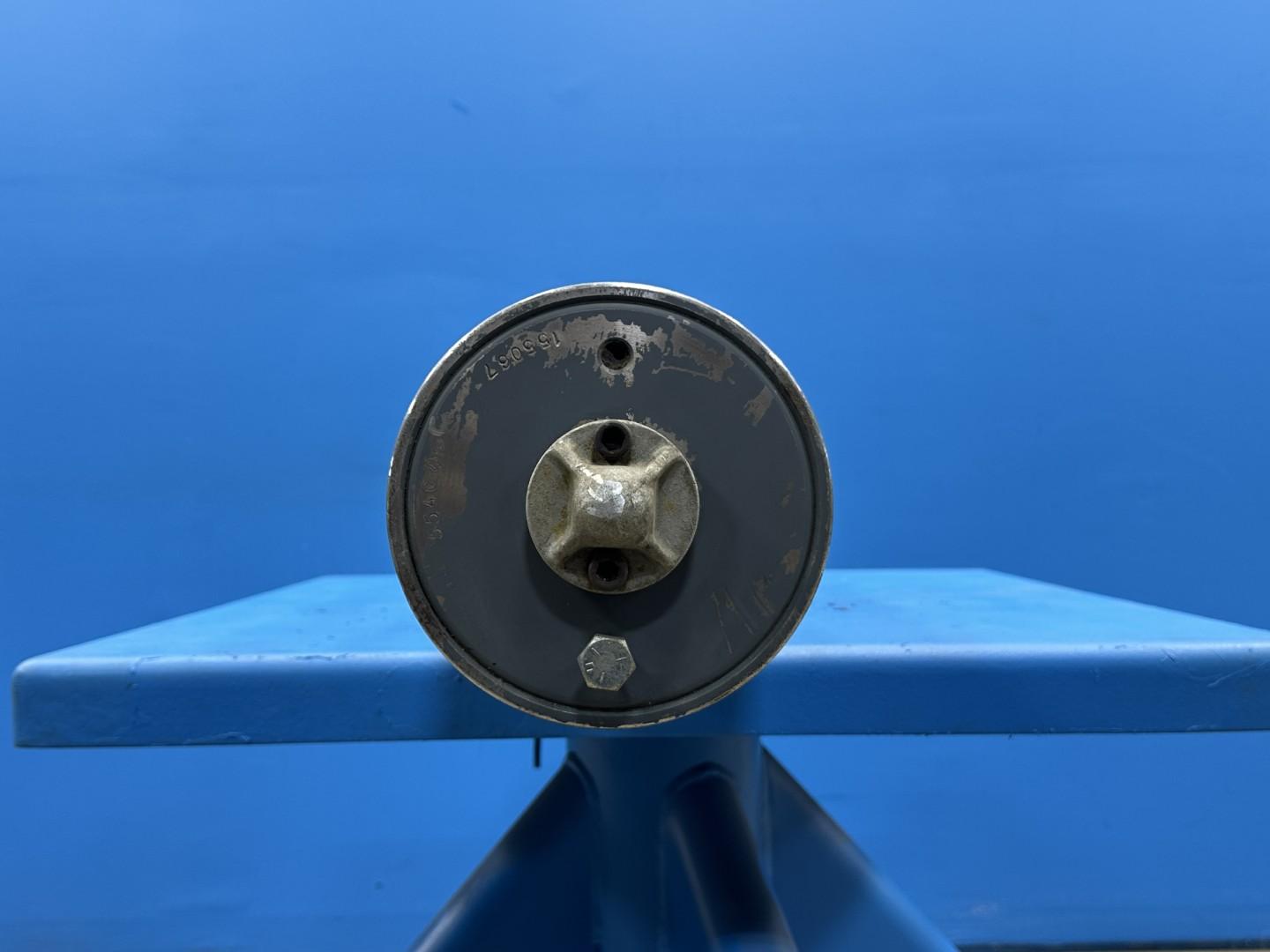

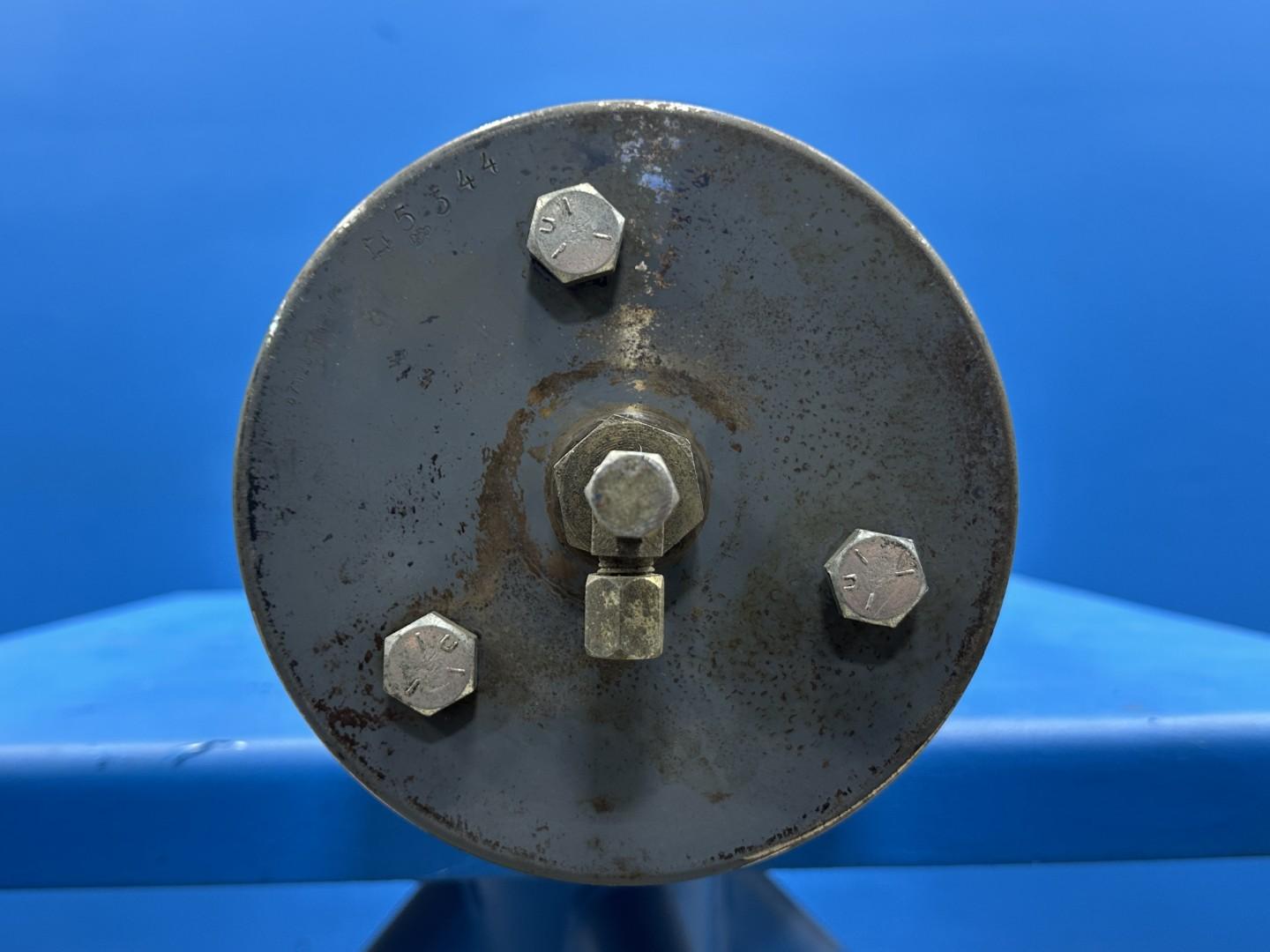

ConstructionBoth heads threaded (field-repairable, rebuildable)
Mounting orientationVertical, fluid port down (recommended)
Maximum working pressure2500 PSI (172 bar)
Maximum proof/test pressure3750 PSI (259 bar), 150% of working pressure
CertificationsASME, National Board, DNV, CE, ABS, Lloyd's and others available on request

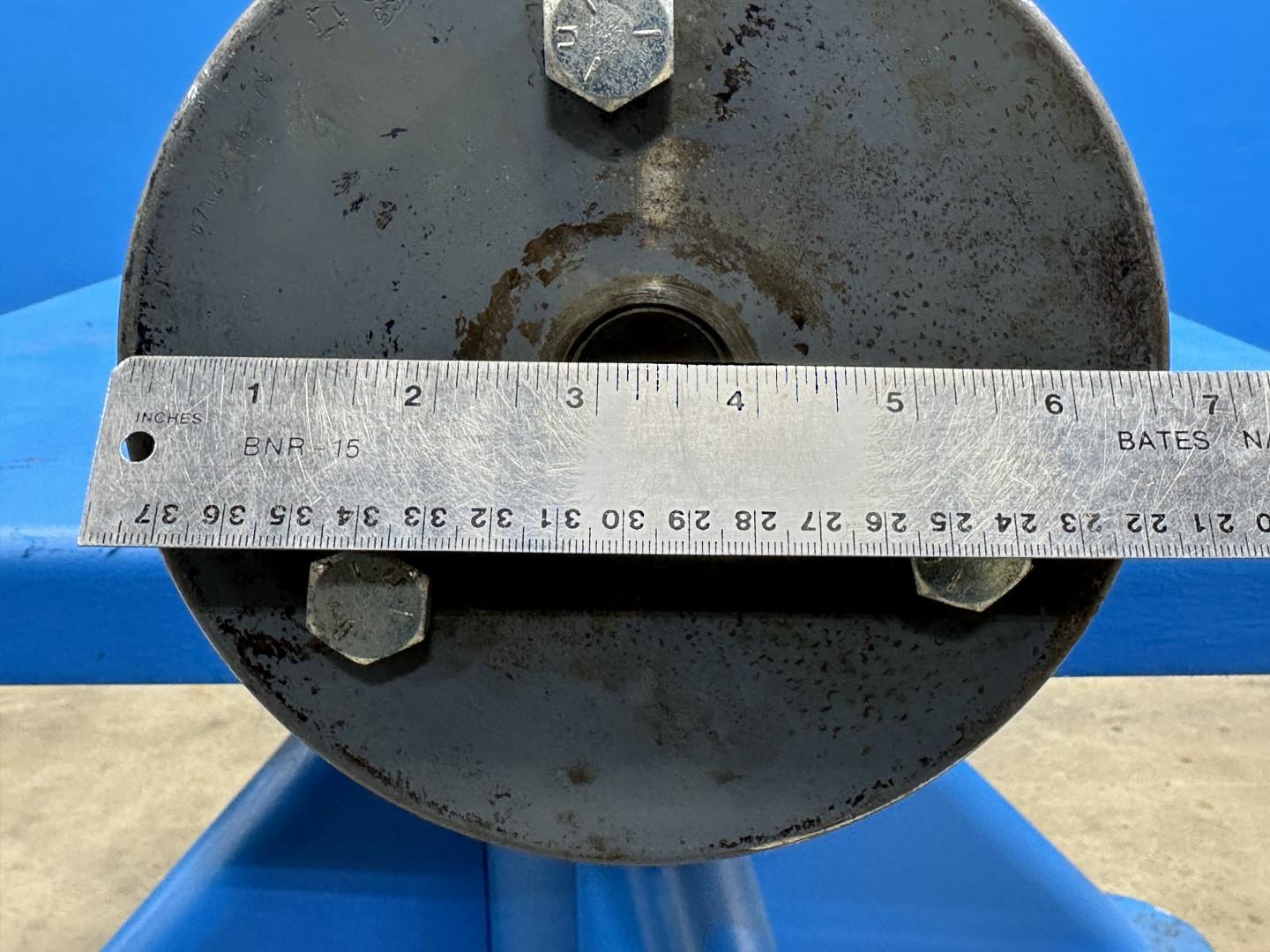

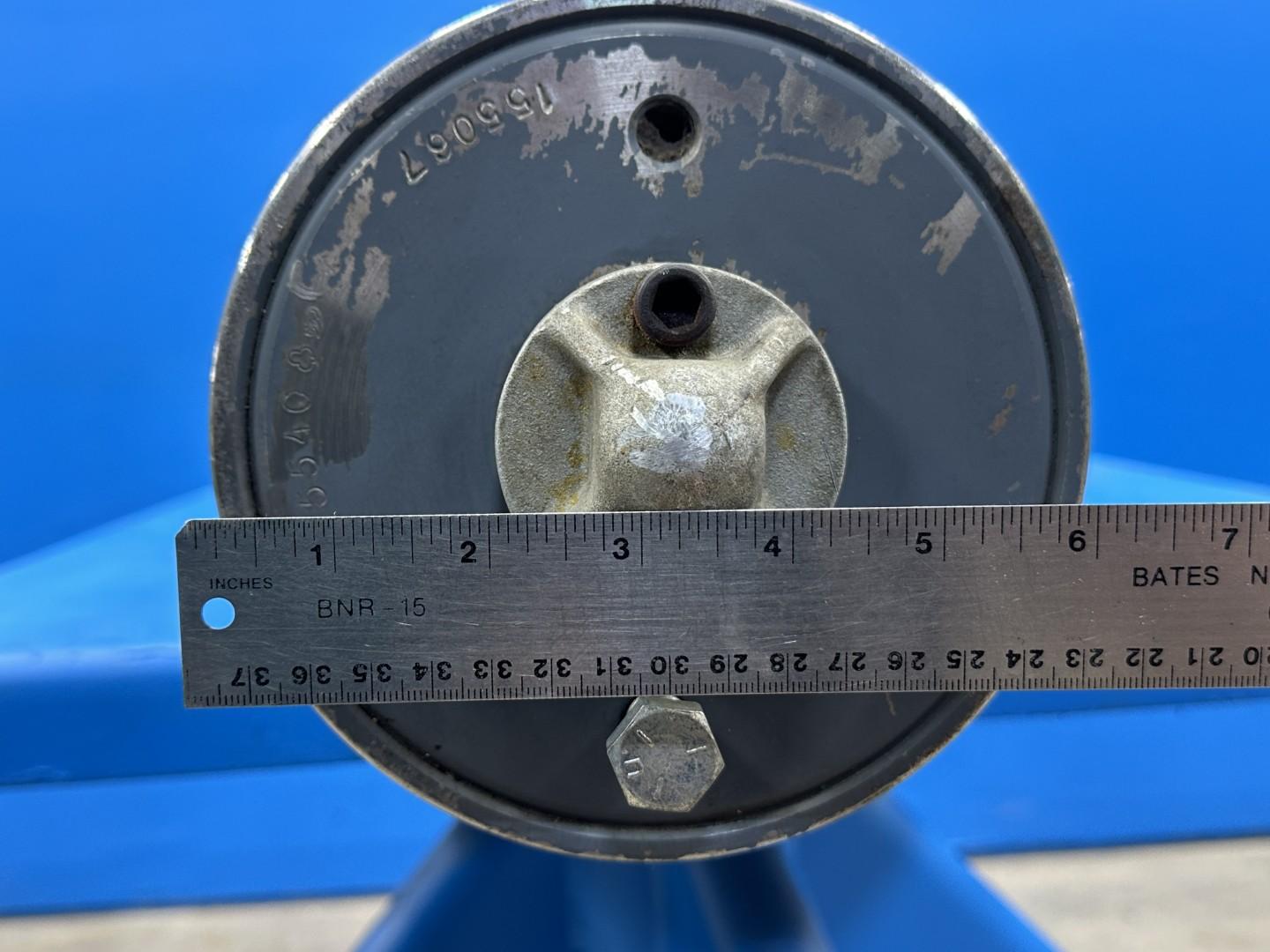

Shell diameter6-3/4 in (171 mm)
Manufacturer

N/A

Model

6.7A25-40-6216

Serial

155073

Year

N/A

HP / AMP / KW / KVA

N/A

Amps

N/A

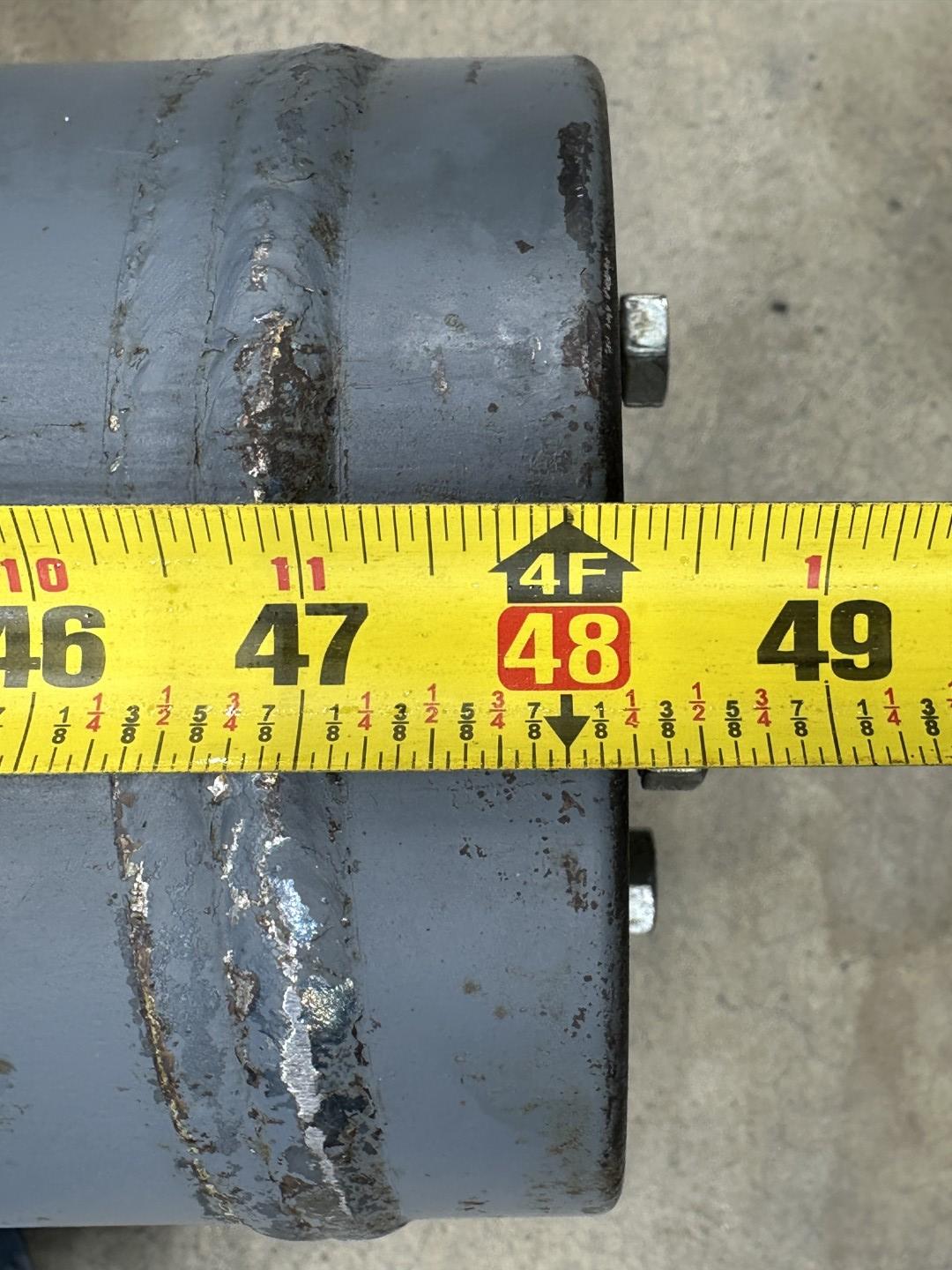

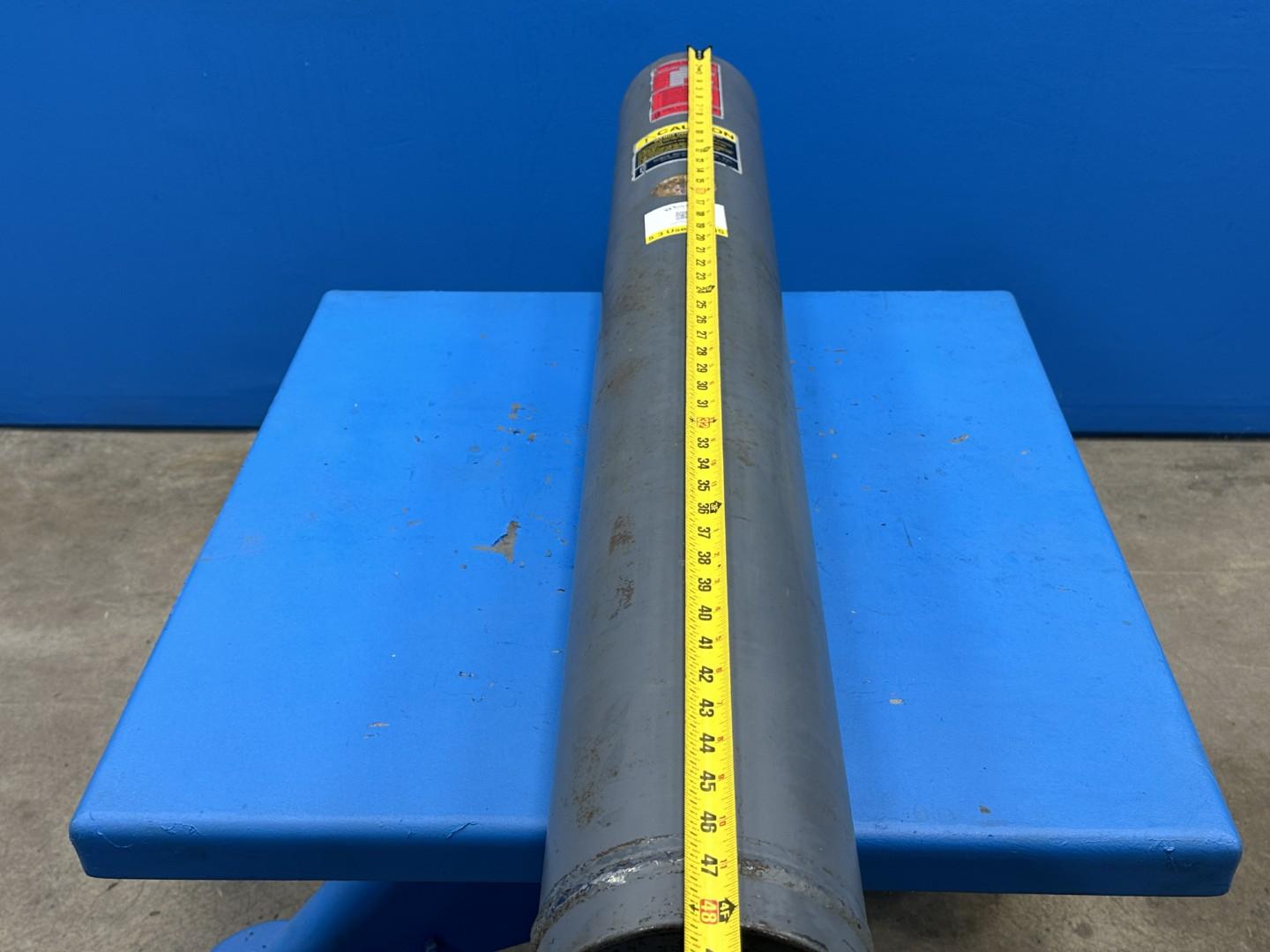

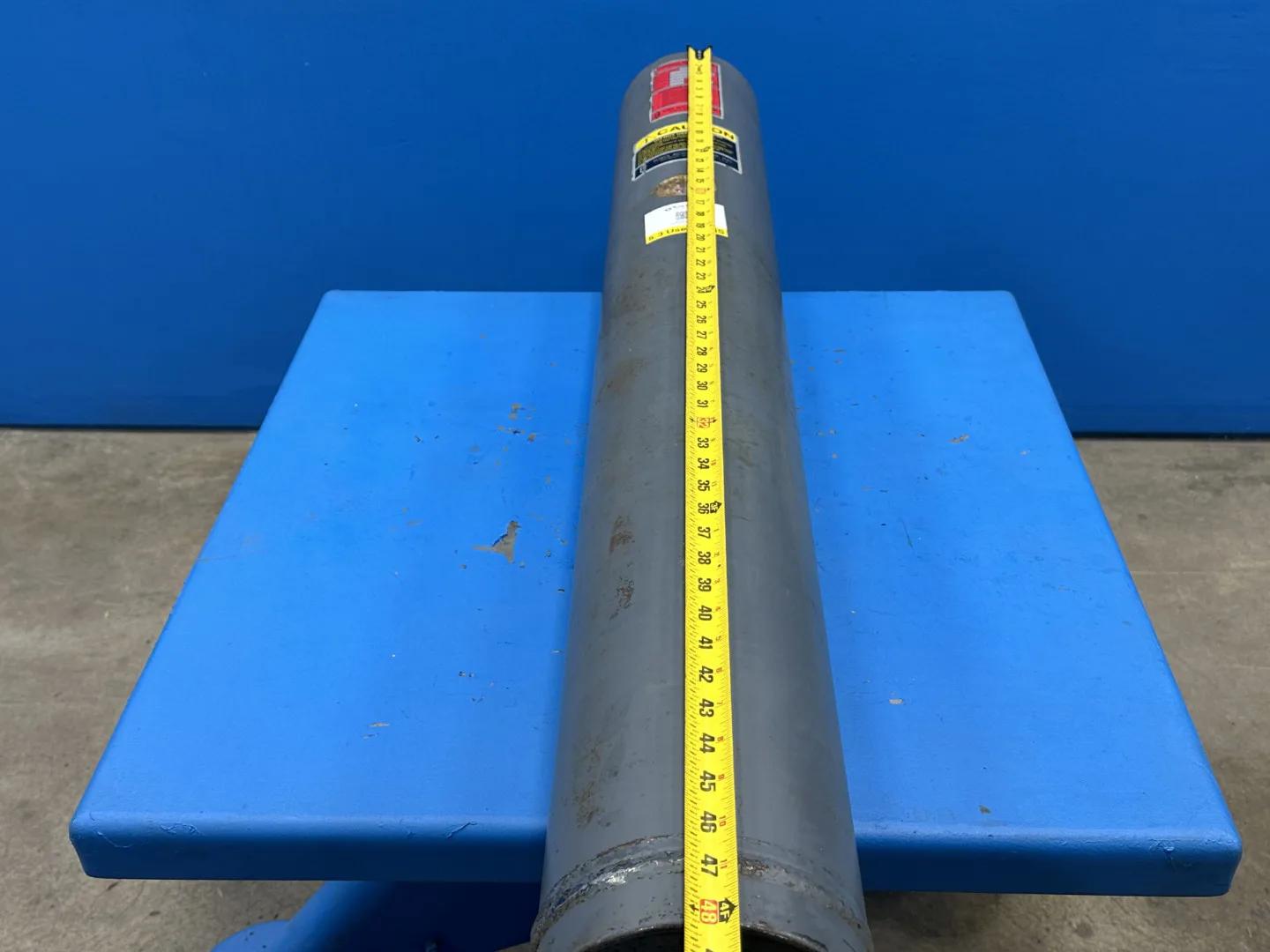

Length (Inches)

7

Width (Inches)

54

Height (Inches)

7

Phase

N/A

Estimated Packaging Weight

100

Estimated Total Weight

242

Asset Number

KSC1023 / 001 / 5

Packaging Cost

3.2 Machinery Skid $100

Appraised Value

$599.95
