Baldor Reliance CDP3320 DC Motor, 33-2024Z102, 1/3 HP, 1750 RPM, 90VDC, 56C Frame, TENV
CDP3320 Motor Specifications: HP, RPM, Frame & Voltage
Frame Interchange & Applications for Baldor CDP3320
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | CDP3320 |
| Condition | Used |
| Manufacturer | Baldor |
| Asset Number | KSC1290 / 2053 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 5. Used: Unit looks good to us |
| Packaging Cost | 1.1 Cardboard $10 |
$129.95
Basic Information
Asset #
KSC1290 / 2053
Available Quantity
1
Inspections - Yellow Tag
5. Used: Unit looks good to us
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

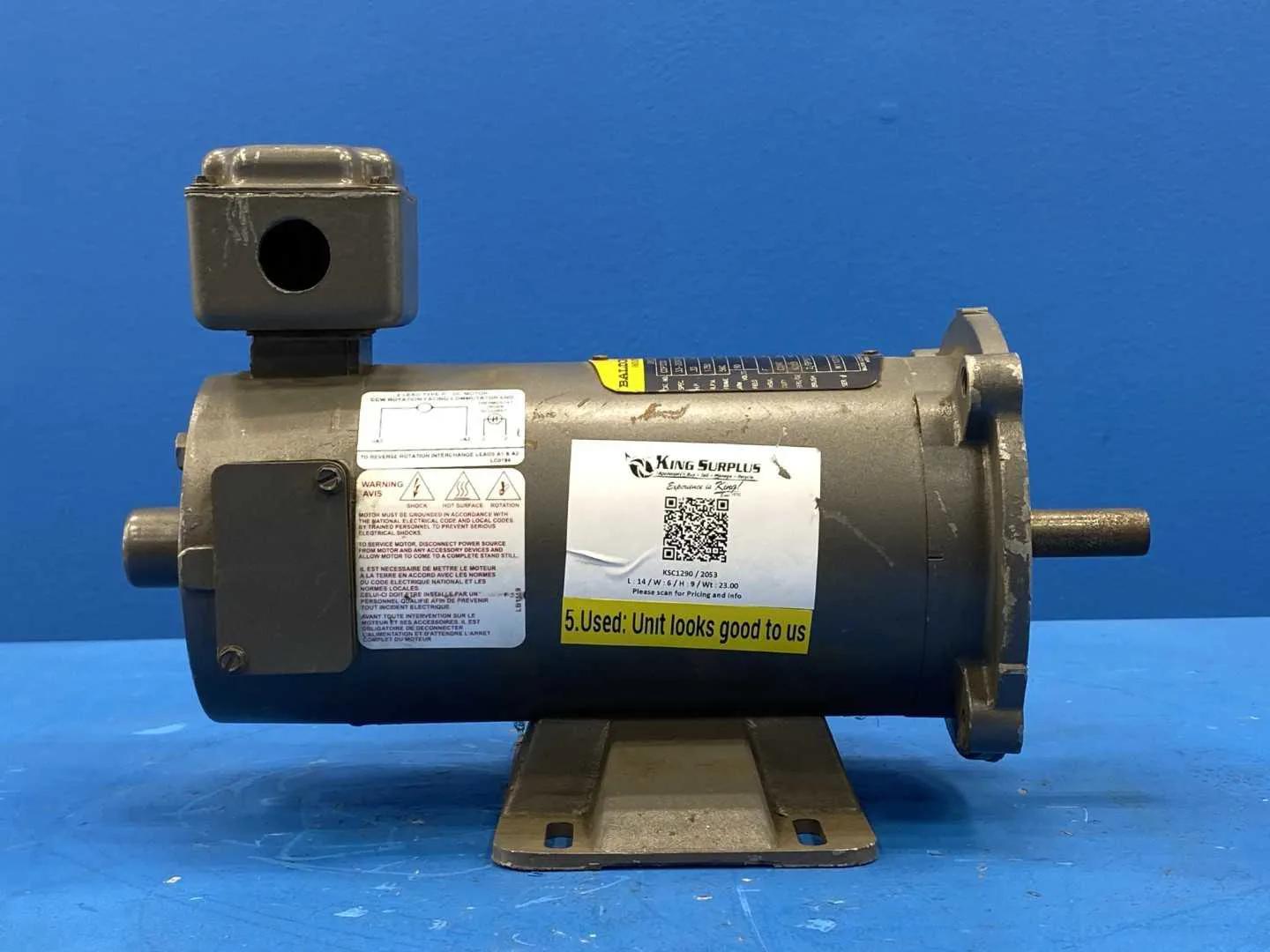

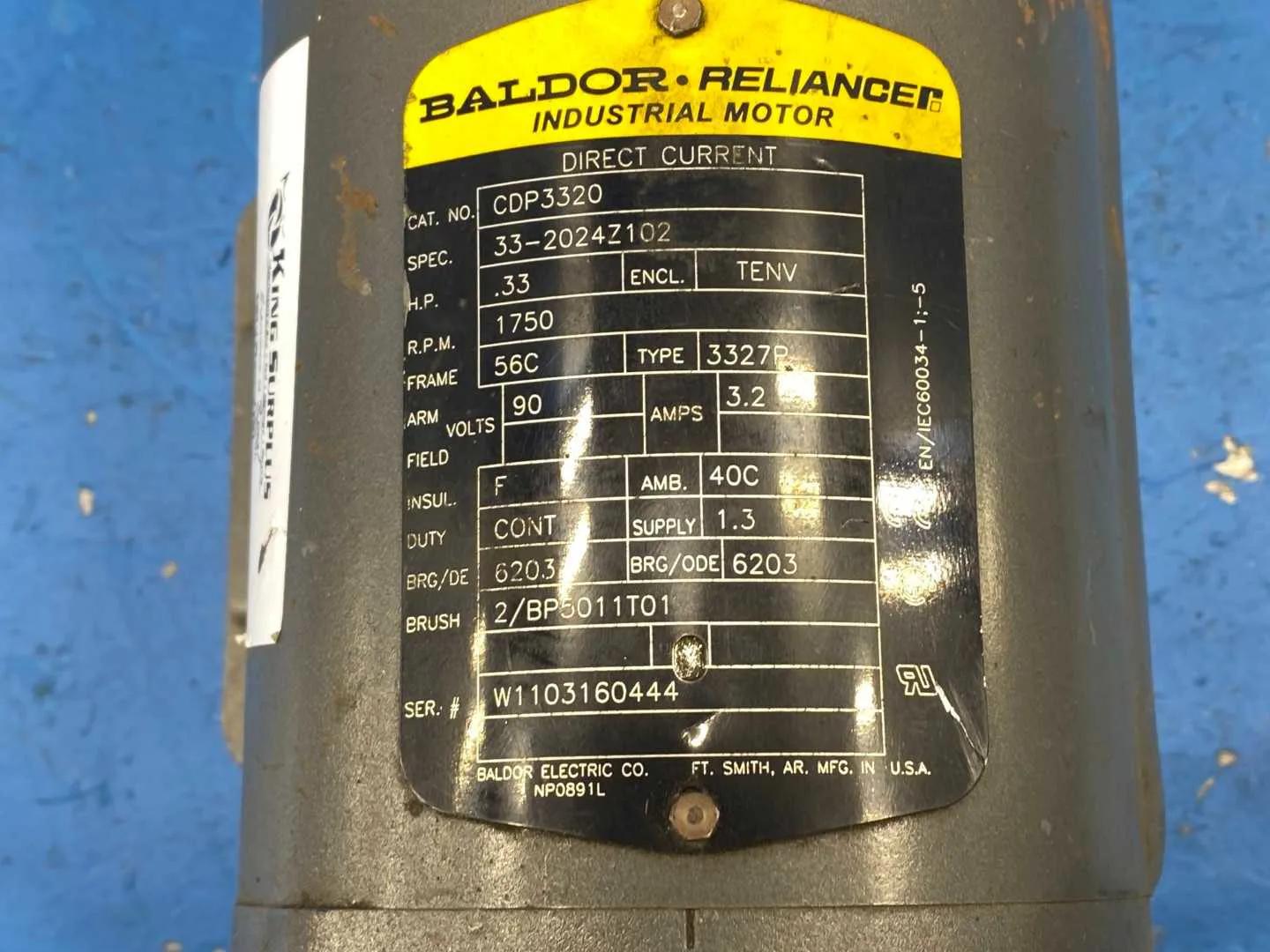

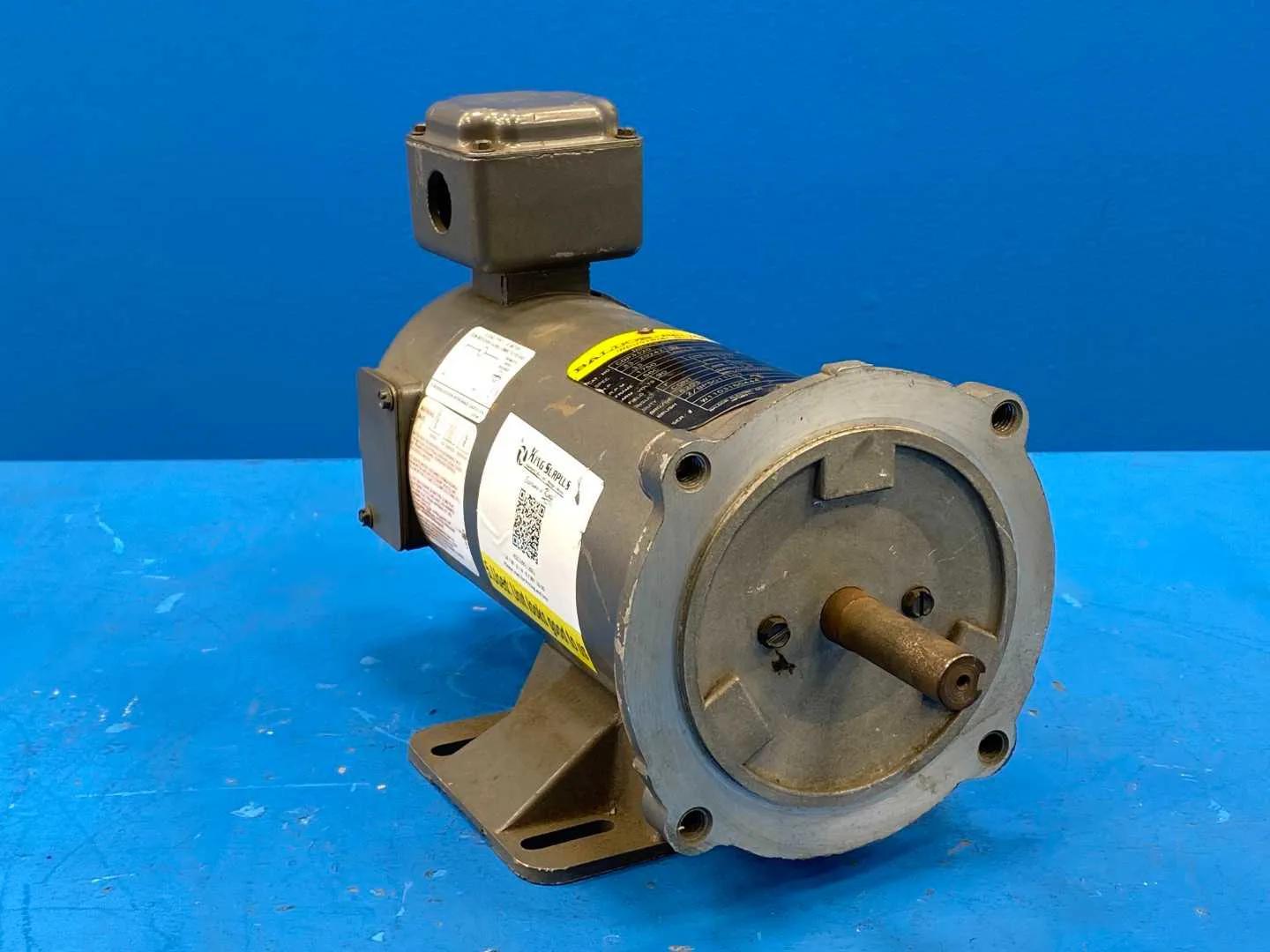

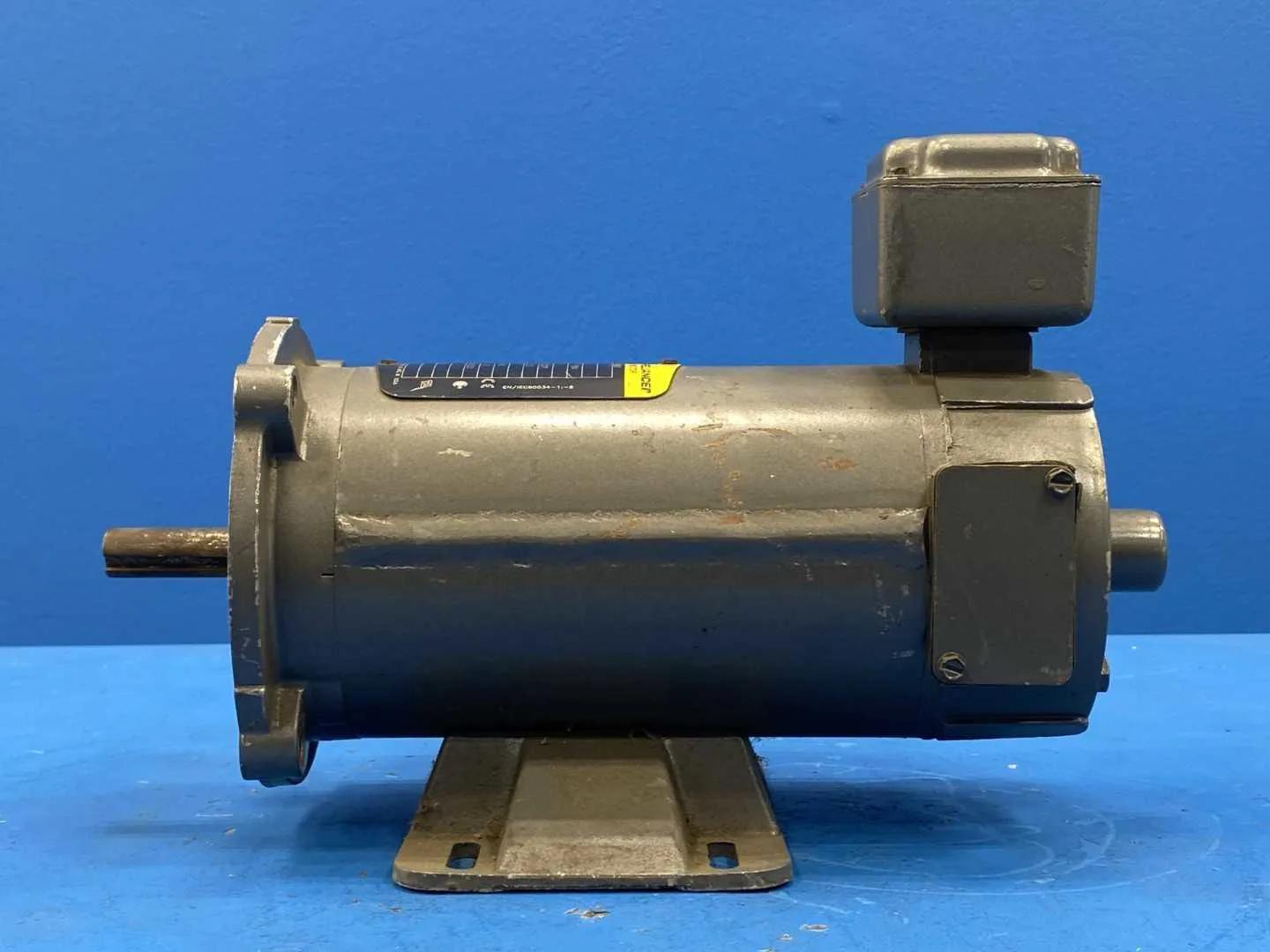

This is a Baldor Reliance CDP3320 permanent magnet DC motor, spec number 33-2024Z102, type 3327P, built by Baldor Electric Co. in Fort Smith, Arkansas. The nameplate rates it at .33 HP (1/3 HP), 1750 rpm, 90 volts DC armature and 3.2 amps, in a 56C frame with a totally enclosed non ventilated (TENV) enclosure, Class F insulation and continuous duty.
Permanent magnet DC motors deliver high starting torque and smooth, adjustable speed when run from an SCR or PWM DC drive, so they are used on conveyors, pumps, mixers, packaging machines, feeders and other equipment where the operator needs to vary speed. The 90 VDC armature rating matches the output of common single phase SCR drives supplied from 115 VAC line power; the motor cannot be connected straight to AC power.

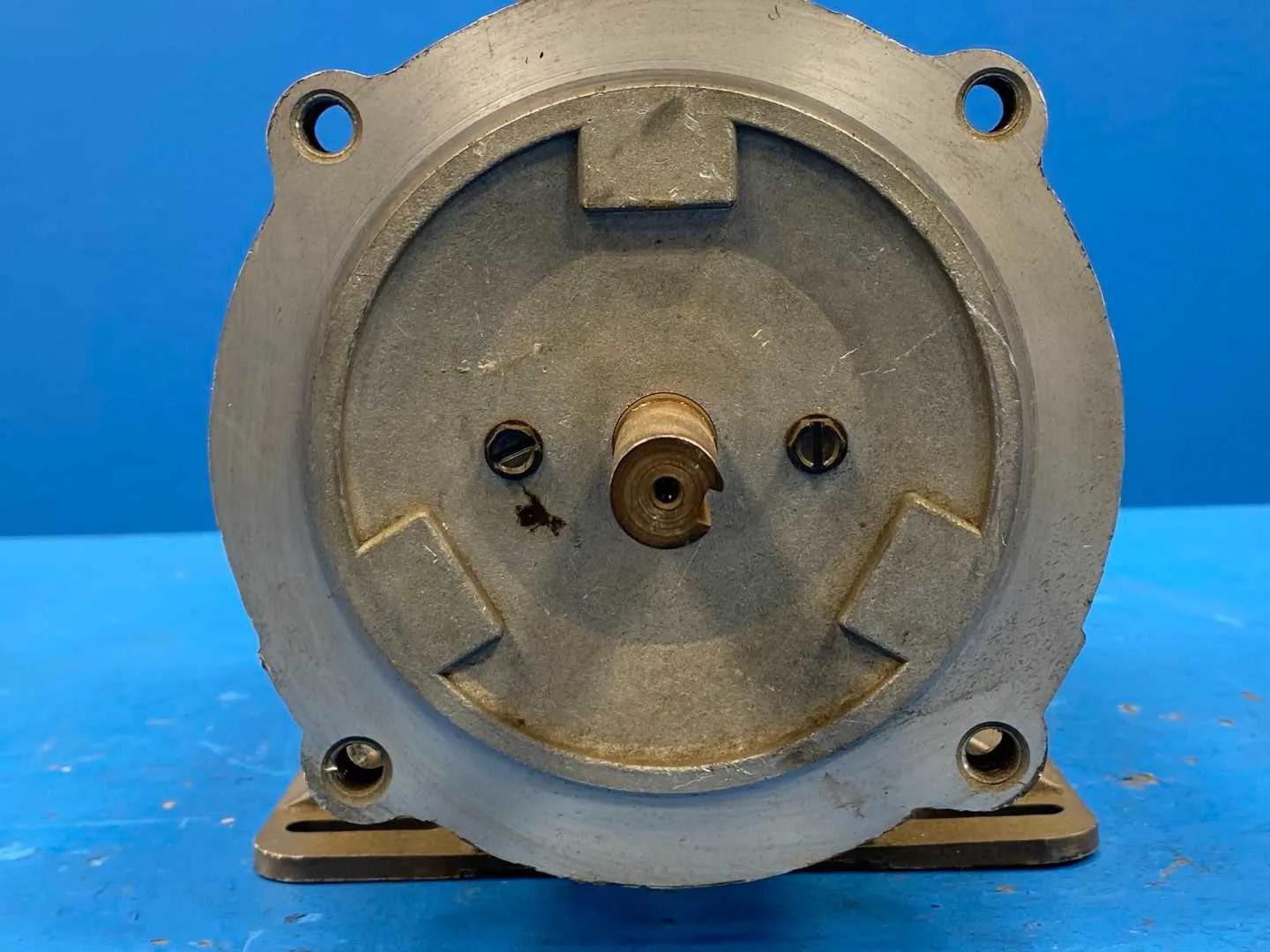

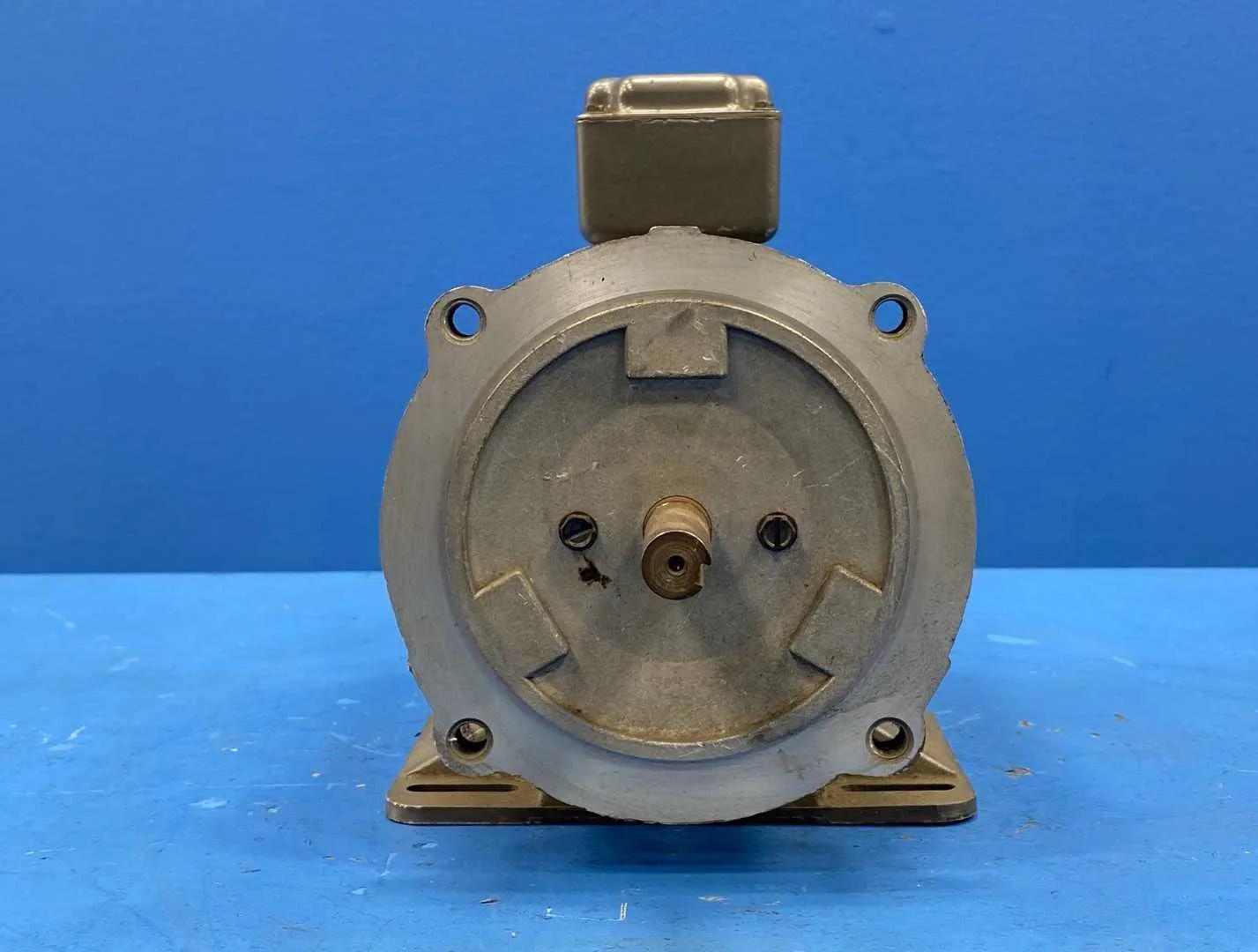

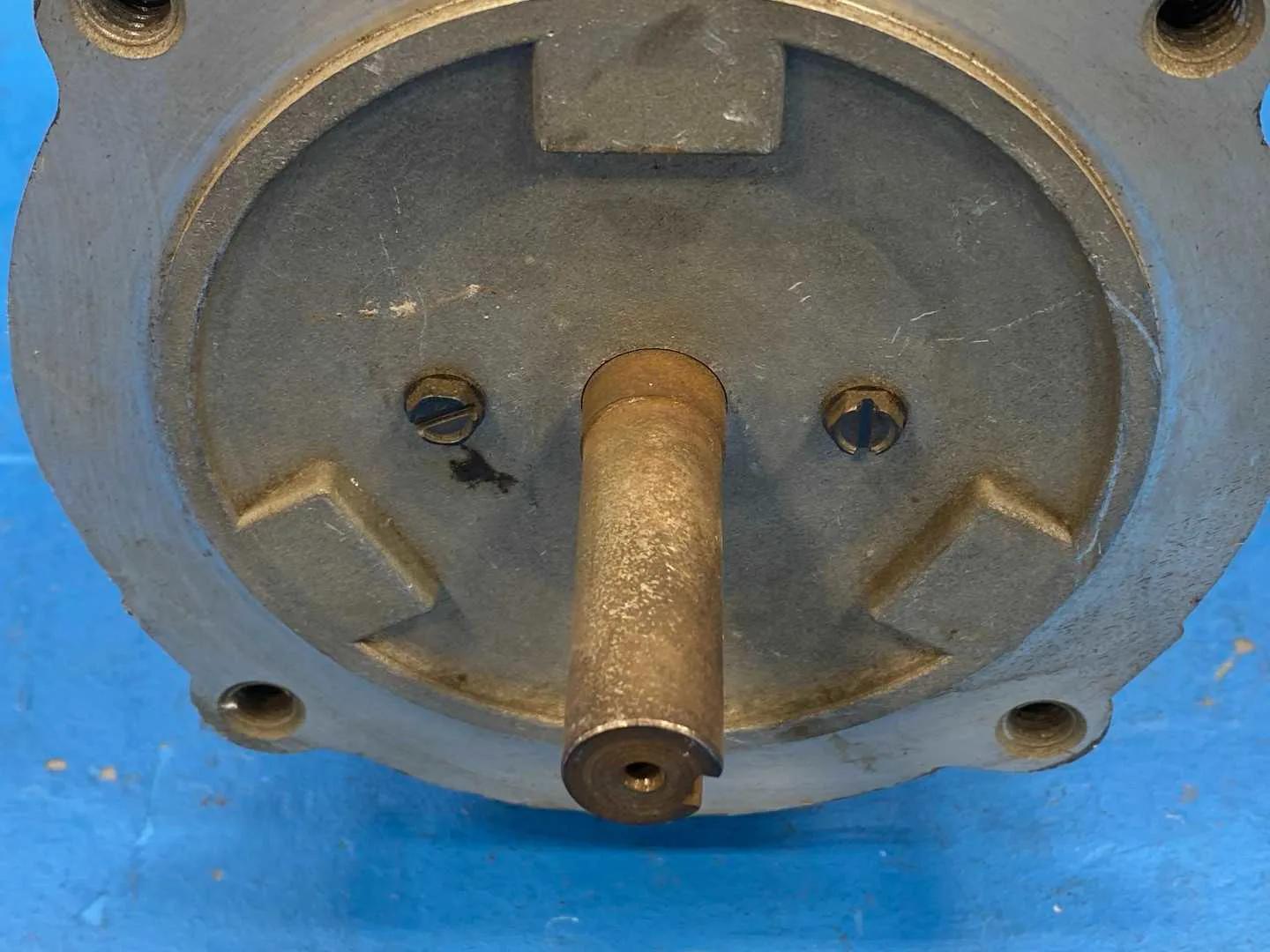

The 56C frame is the NEMA C face standard, so the motor bolts directly to C face gear reducers, pumps and couplings, and the CDP catalog number identifies a general purpose DC motor with a C face and a base. Maintenance technicians and OEM equipment builders use the CDP3320 as a direct replacement.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Catalog number: CDP3320
- Spec number: 33-2024Z102
- Type: 3327P, permanent magnet DC motor
- Horsepower: .33 HP (1/3 HP, fractional)
- Base speed: 1750 RPM
- Armature voltage: 90 VDC
- Current: 3.2 A
- Frame: 56C (C face with base)
- Enclosure: TENV
- Insulation class: F
- Ambient: 40 C
- Duty: Continuous
- Bearings: 6203 drive end, 6203 opposite drive end
- Brush: 2/BP5011T01
- Shaft diameter: 0.625 in (distributor listing)
- Standards marked: EN/IEC 60034-1; -5
- Manufacturer: Baldor Electric Co., Ft. Smith, AR, Mfg. in U.S.A. (nameplate)
- Spec Basis: nameplate photo; https://industrialmotors.com/baldor-electric-cdp3320-1-3-hp-1750-rpm-56c-fr-90-vdc-tenv-pm-c-face-with-base-dc-motor.html; https://www.baldwinsupply.com/itemdetail/CDP3320%20BALDOR; https://emotorpro.com/products/baldor_cdp3320. FLAG for review: title reads 33 HP / 1550 RPM, nameplate reads .33 HP / 1750 RPM
Specifications
Baldor
CDP3320
W1103160444
N/A
Fractional (Enter in Description)
3.2
14
6
9
N/A
4
27
KSC1290 / 2053
