Continental 2G-130 SAE 100R1AT Hydraulic Hose Assembly, 2000 PSI W.P., MSHA Approved, Female Swivel Ends
2G-130 Specifications: Pressure Rating, Size & Ends
Hydraulic System Fitment for Continental 2G-130
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | 2G-130 |
| Condition | New |
| Manufacturer | Continental |
| Asset Number | KSC1290 / 2195 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$24.95
Basic Information
Asset #
KSC1290 / 2195
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

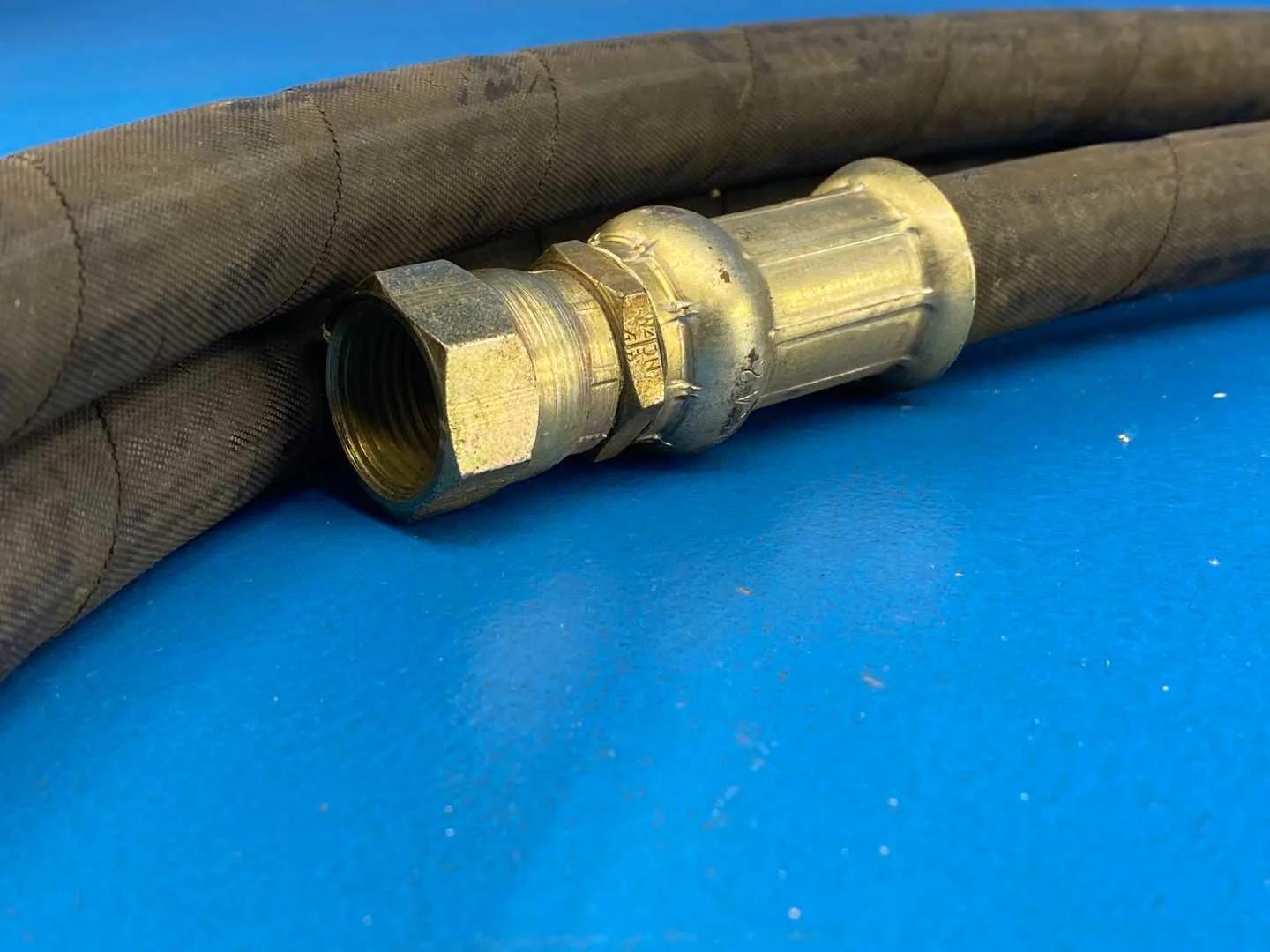

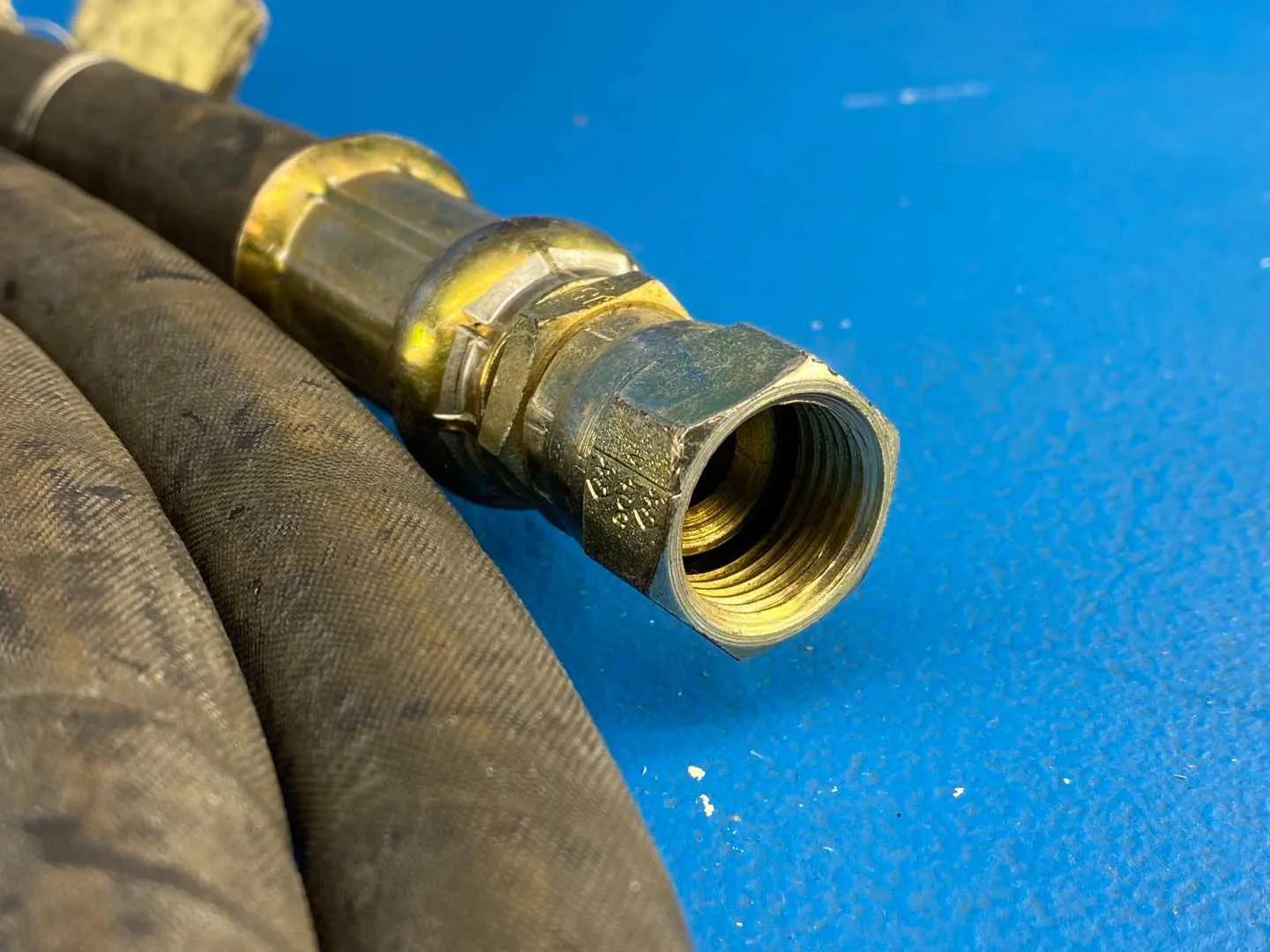

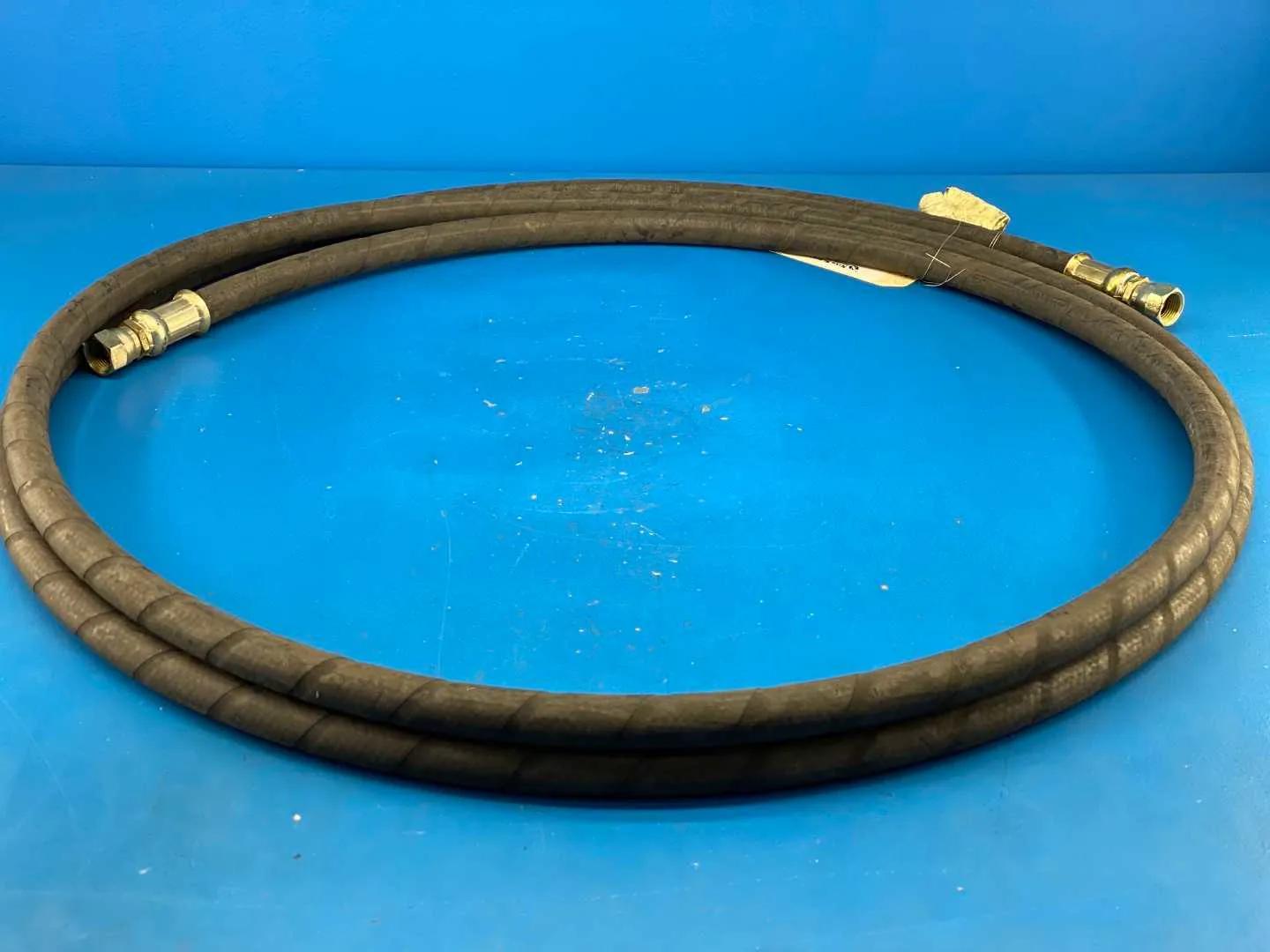

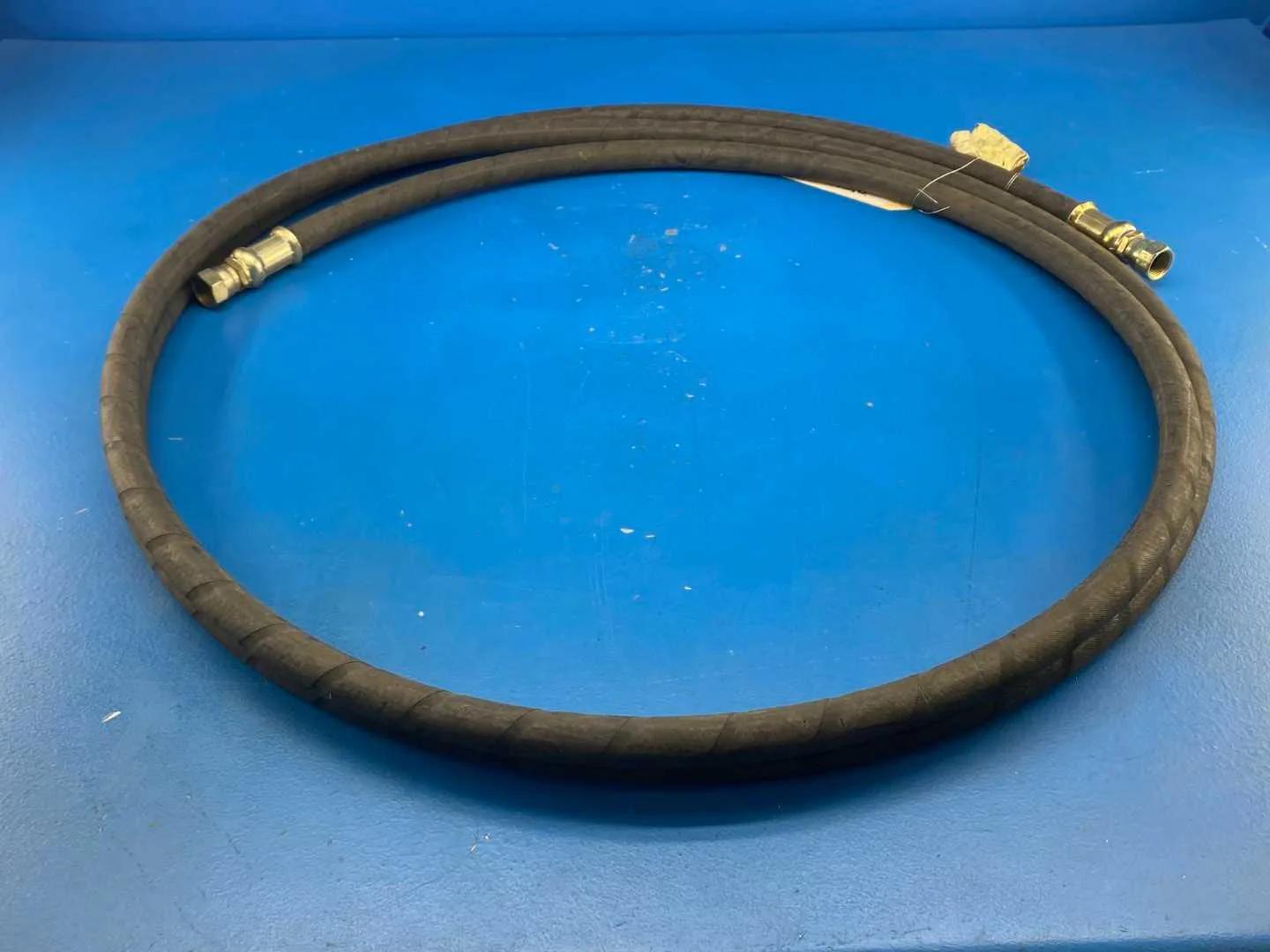

This is a hydraulic hose assembly built with SAE 100R1AT hose, marked on its layline with a 2000 psi maximum working pressure and MSHA acceptance number 2G-130. It is fitted with metal end fittings for connection into a hydraulic circuit.
SAE 100R1AT is the single wire braid hydraulic hose grade defined in SAE J517. It has an oil resistant synthetic rubber tube, one braid of high tensile steel wire, and an abrasion and weather resistant rubber cover. The AT designation means the thinner cover does not have to be skived before fittings are attached. The allowed working pressure falls as hose size rises, and the 2000 psi rating on this hose is set by its size.
An MSHA acceptance number shows that the hose cover passed the Mine Safety and Health Administration flame resistance test, which is required for hydraulic hose used in underground mining equipment. R1AT hose is used for medium pressure lines, pilot and return lines on mobile equipment, agricultural and construction machinery, plant hydraulics and power units, with petroleum based hydraulic fluids.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Hydraulic hose assembly
- Hose Standard: SAE 100R1AT (layline)
- Maximum Working Pressure: 2000 psi (layline)
- MSHA Acceptance Number: 2G-130 (layline, flame resistant cover acceptance for mining use)
- Reinforcement: Single high tensile steel wire braid (SAE 100R1AT construction)
- Tube: Oil resistant synthetic rubber (SAE 100R1AT construction)
- Cover: Abrasion and weather resistant synthetic rubber (SAE 100R1AT construction)
- FLAG for review: manufacturer name not visible on the hose layline; 2G-130 is an MSHA acceptance number, not a Continental model number

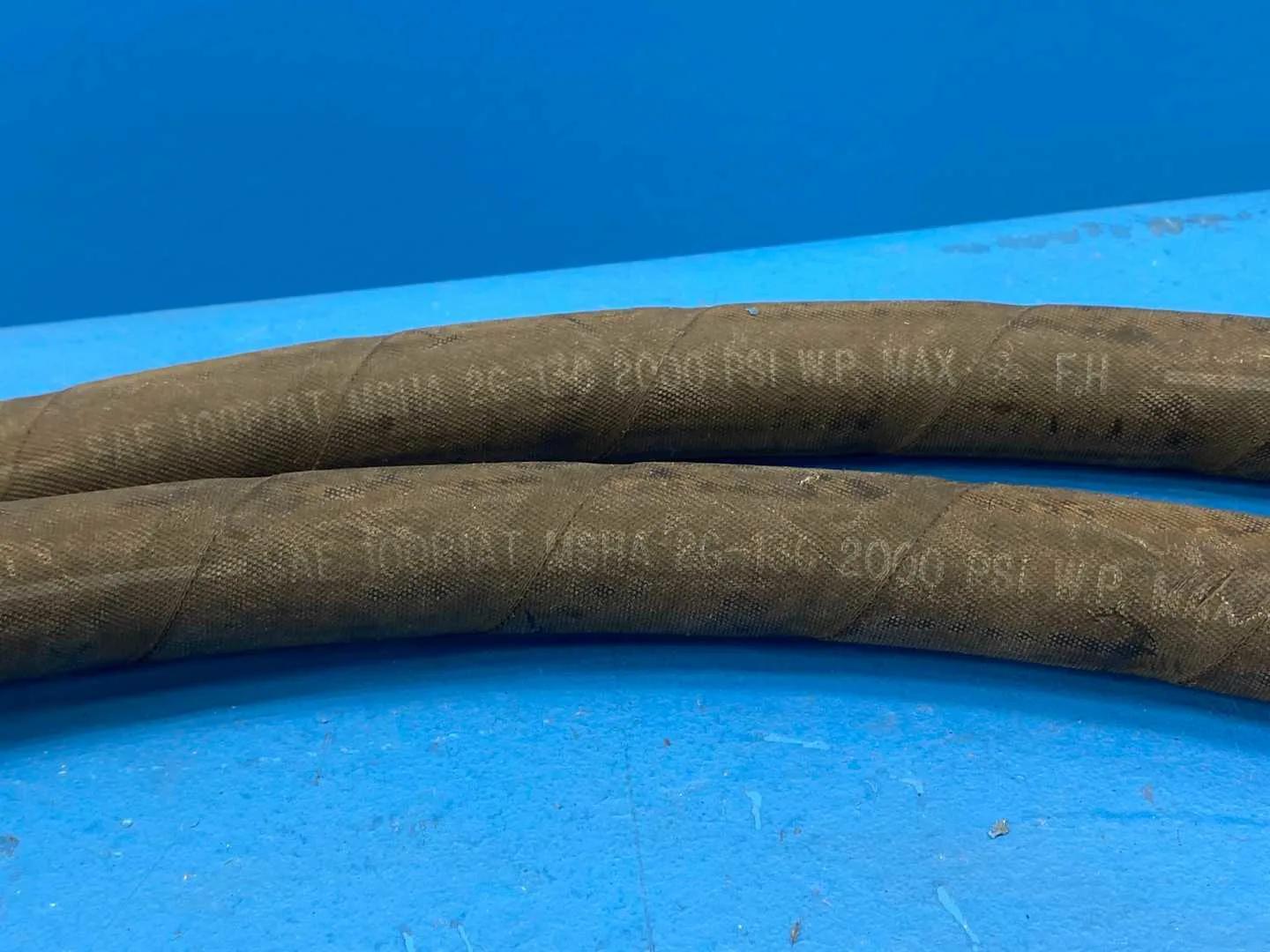

- Spec Basis: hose layline photo (SAE 100R1AT MSHA 2G-130 2000 PSI W.P. MAX FH); SAE 100R1AT construction per Discount Hydraulic Hose R1AT page (discounthydraulichose.com/sae-100r1at-hydraulic-hose.html)
Specifications
Continental
2G-130
N/A
N/A
N/A
N/A
20
19
2
N/A
0.2
5.2
KSC1290 / 2195
Packaging fees
1.6 6x10 CH $3.00
