Conveyor Components AD Bin Aerator Pad, 1/8 NPT Air Inlet
Conveyor Components AD Specifications & Fitment
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 8 |
| Model | AD |
| Condition | New |
| Manufacturer | Conveyor Components |
| Asset Number | KSC1290 / 1921 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$19.95
Basic Information
Asset #
KSC1290 / 1921
Available Quantity
8
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
The Conveyor Components Company Model AD is a bin aerator, also called an aeration pad, used to keep dry, finely ground bulk materials flowing out of bins, hoppers and chutes. Conveyor Components Company of Croswell, Michigan builds the AD, and this unit carries U.S. patent 3829022 on its plate.

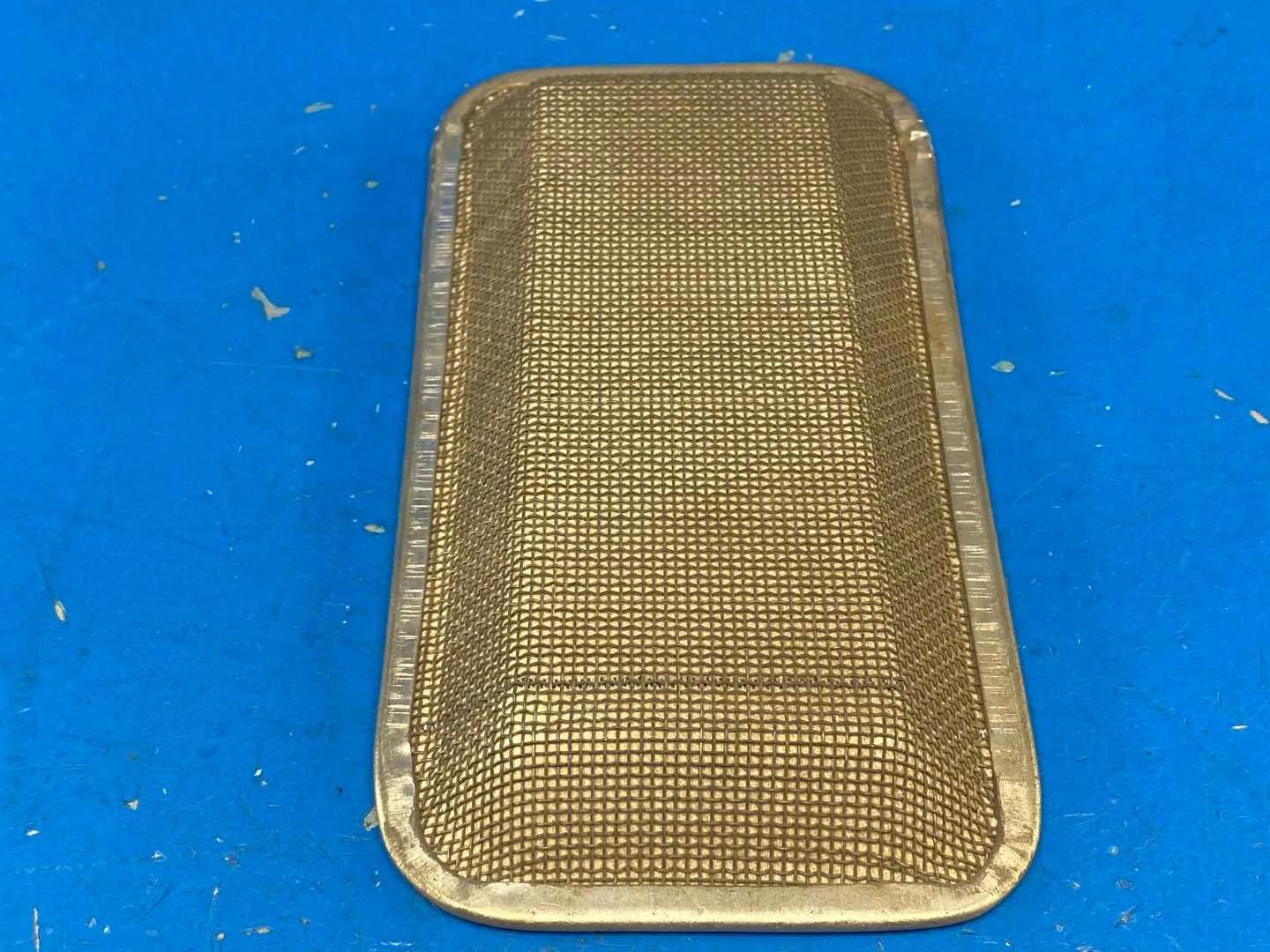

Fine powders tend to compact in storage, which causes bridging and rat-holing at the discharge. The AD introduces low pressure air through a diffuser backed by steel mesh, restoring the material's ability to flow evenly on a first in, first out basis. Internal stiffeners protect the air compartment from being crushed by the weight of material or by someone stepping on it. The pad mounts inside the bin through a 7/16 inch hole using a 1/8 inch NPT tank nipple and lock nut, and each aerator typically uses about 6.5 cfm at 3 psi from a low pressure blower or regulated plant air.
Cement plants, lime and fly ash handlers, flour mills, feed and grain operations, and chemical and pigment processors install these pads on sloping bin walls, usually in rows on 12 or 15 inch centers near the outlet.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Model AD Bin Aerator (aeration pad)

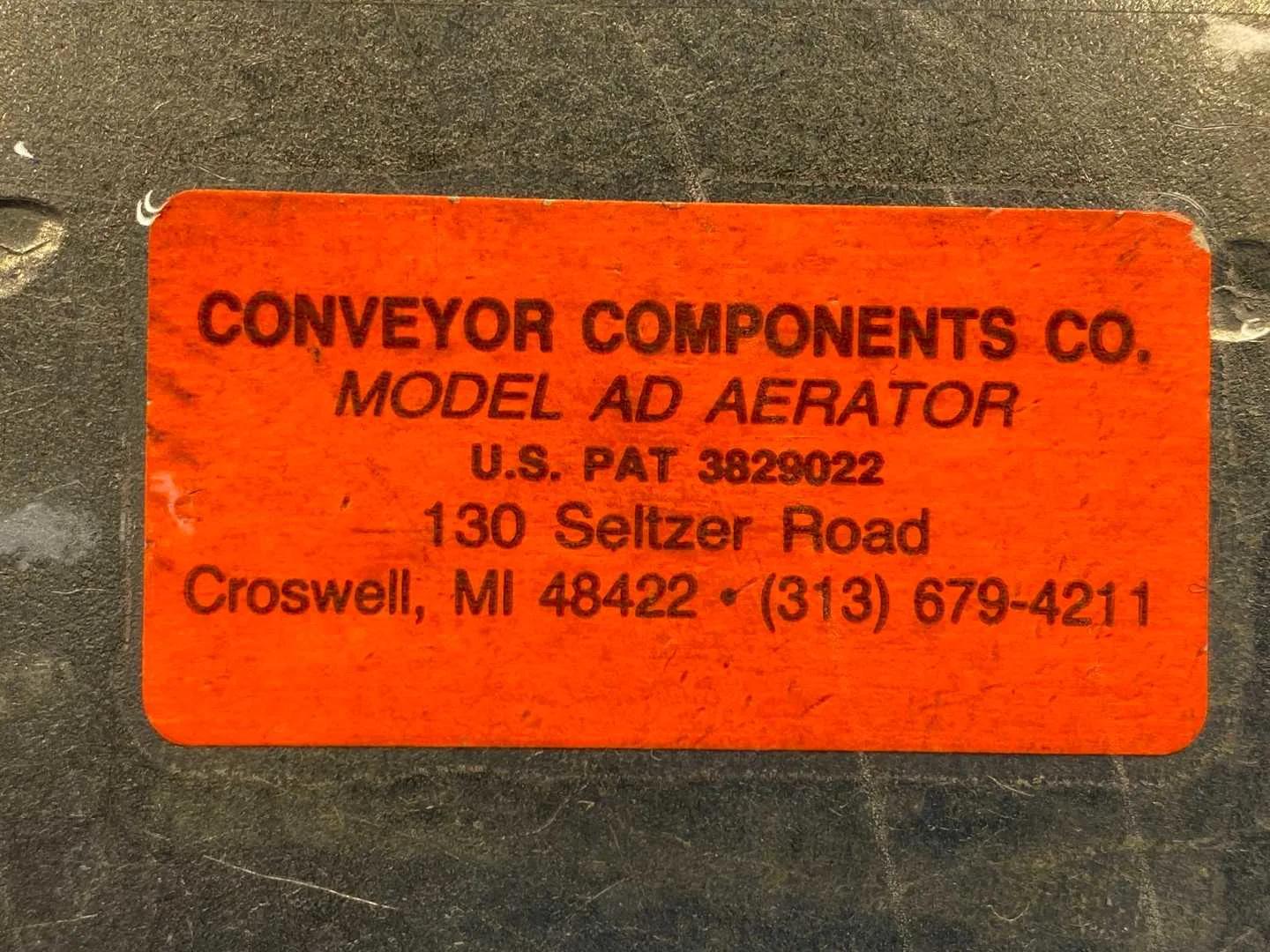

- Nameplate: CONVEYOR COMPONENTS CO., AD AERATOR, U.S. PAT 3829022, 130 Seltzer Road, Croswell, MI 48422
- Catalog Variants: AD-C zinc plated steel body, galvanized steel mesh, cotton diffuser; AD-F same with fiberglass diffuser; AD-SSC Type 316 stainless body and mesh, cotton diffuser; AD-SSF Type 316 stainless, fiberglass diffuser (variant of this unit not marked)
- Fiberglass Diffuser Use: Typically used when temperatures exceed 200 F

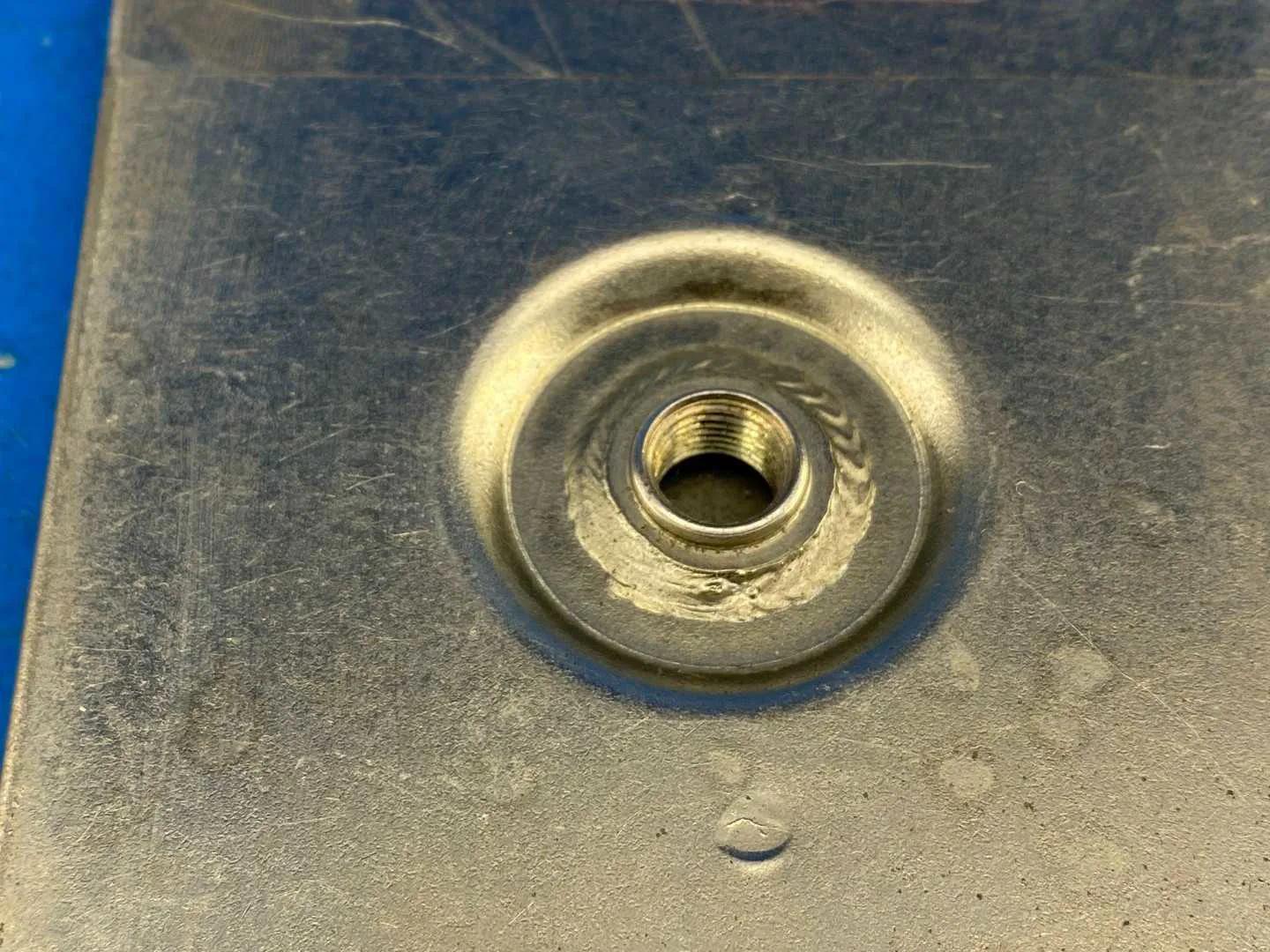

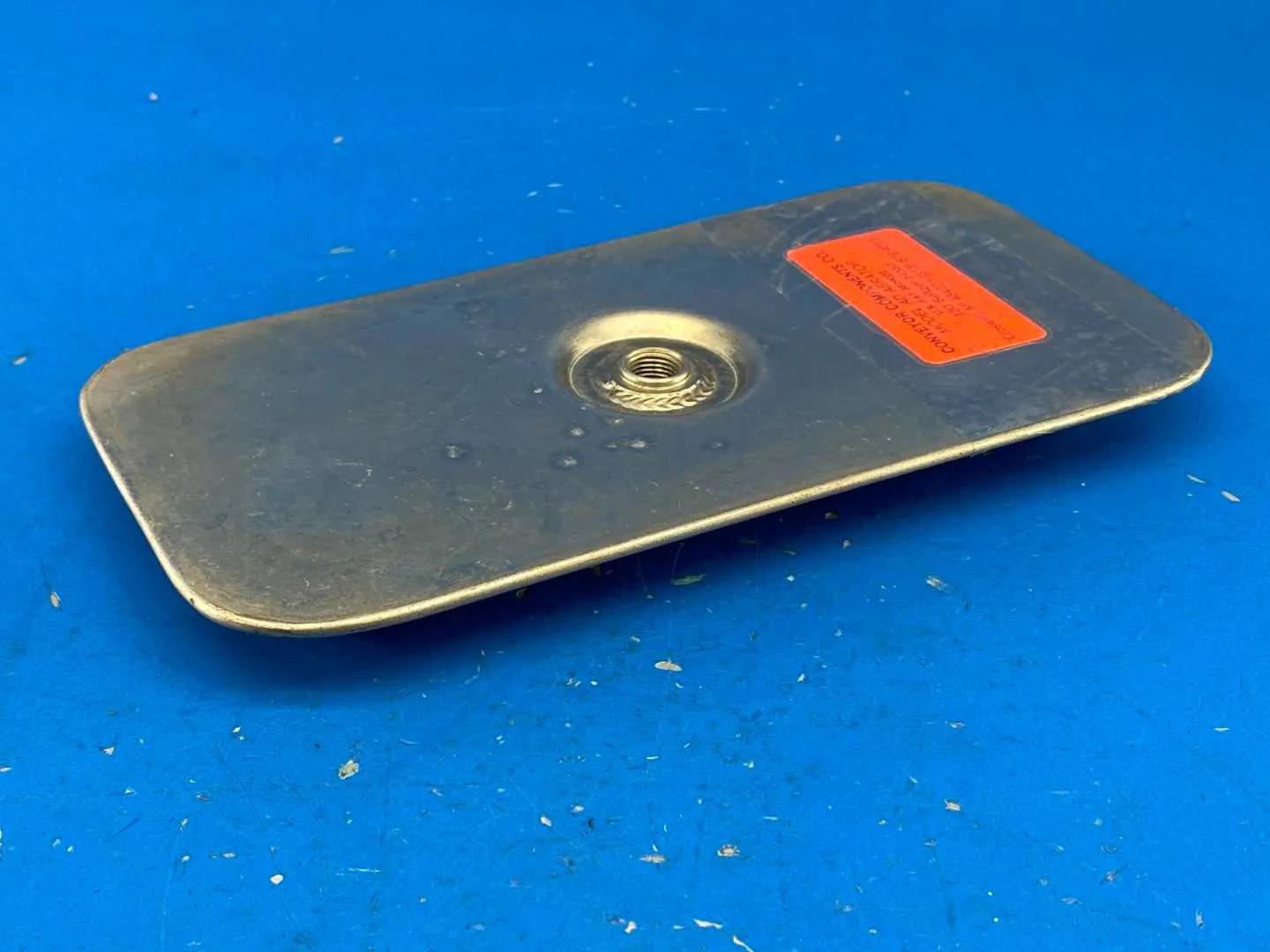

- Air Connection: 1/8 in NPT x 2 in tank nipple with lock nut, spacer washers and rubber gasket
- Mounting Hole: 7/16 in hole in bin wall (optional AD-K external kit uses 2-5/8 x 6-3/8 in cutout)
- Catalog Dimensions: 7-1/2 in (190 mm) long x 3-3/4 in (95 mm) wide
- Air Consumption: 6.5 cfm per aerator at 3 psi recommended for most applications (4.2 cfm at 1 psi to 7.6 cfm at 5 psi)
- Air Supply: Clean, dry air at 3 to 5 psi
- Catalog Shipping Weight: 0.7 lb
- Best Suited Materials: 60 mesh or finer, 3% or less moisture
- Spec Basis: nameplate photo; Conveyor Components Company Master Catalog, Model AD Bin Aerator pp. 30-31 https://documents.conveyorcomponents.com/files/CCC%20MASTER%20CATALOG%20AD.pdf; product page https://www.conveyorcomponents.com/product/model-ad/
