Hitachi TFO-K 0.4 kW 4-Pole 3-Phase Induction Motor, 200/220V, 1700 RPM, Brother OEM
TFO-K 71-1325 Motor Specifications: Voltage & Phase
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | TFO-K 71-1325 |
| Condition | Used |
| Manufacturer | Hitachi |
| Asset Number | KSCU / 72 / 7 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost | 1.1 Cardboard $10 |
$154.95
Basic Information
Asset #
KSCU / 72 / 7
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

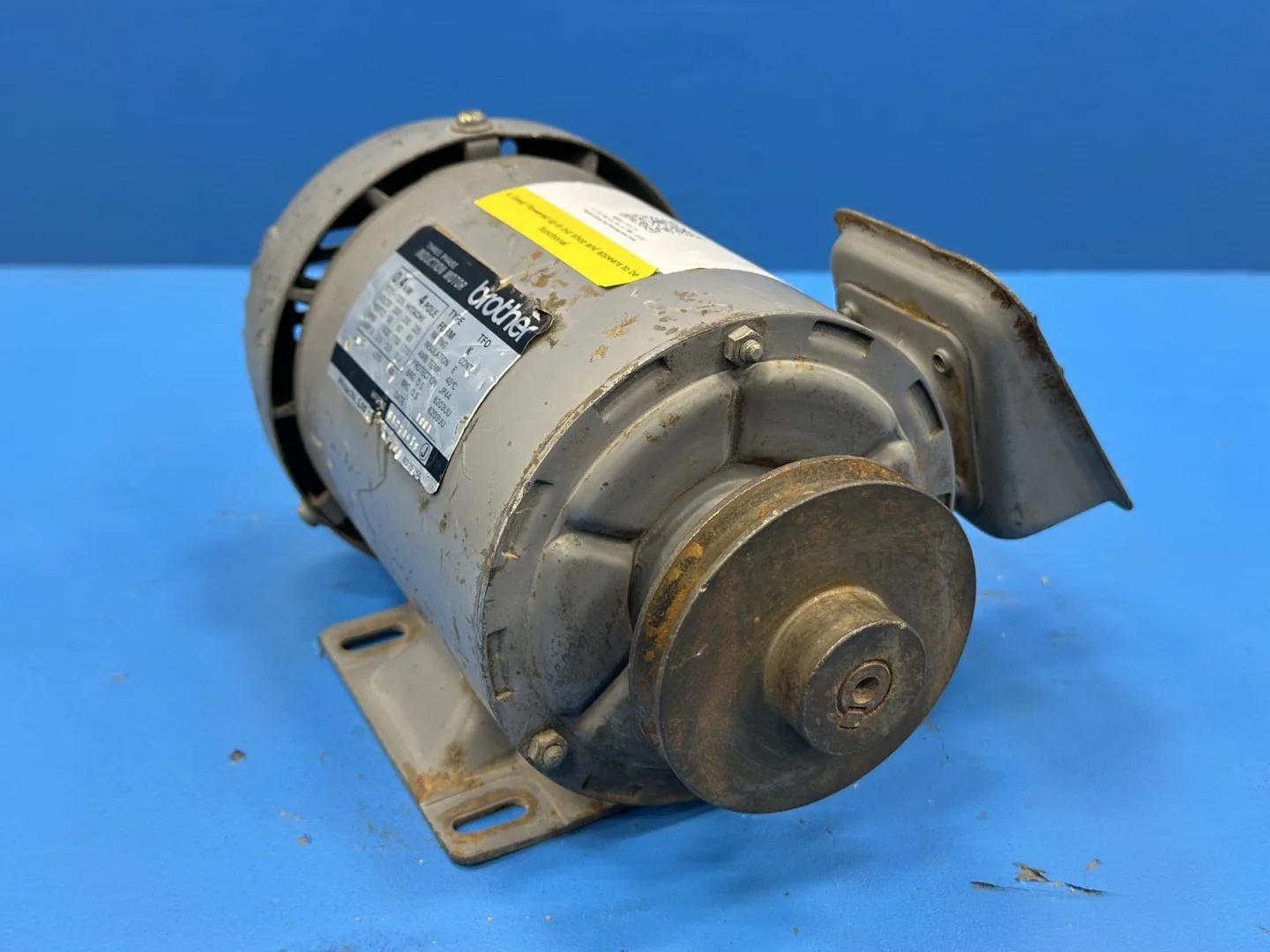

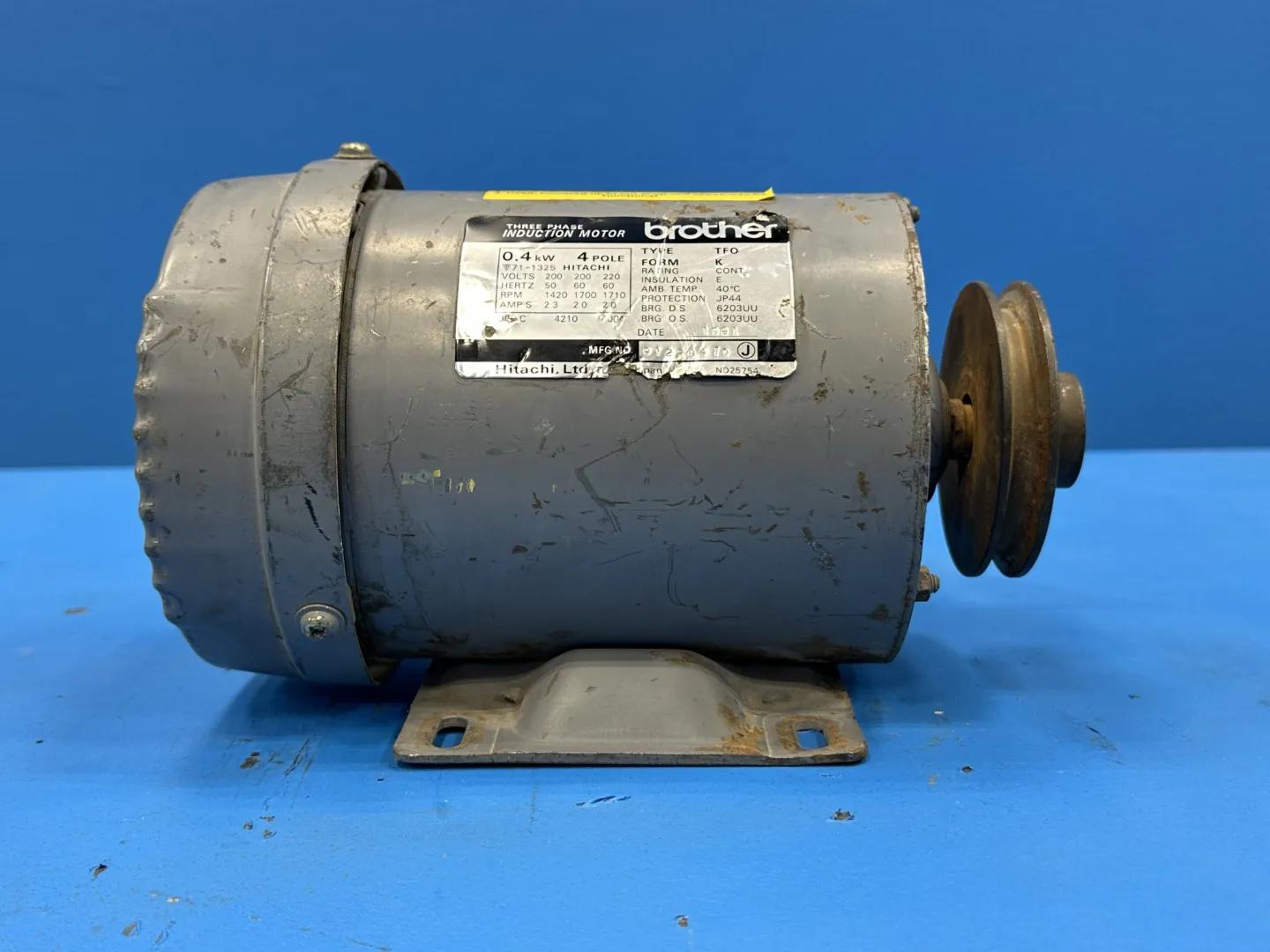

This is a Hitachi TFO-K series three phase induction motor, type code 71-1325, dated 1991 and carried on the record as serial number 91279479. The record lists it as a 0.4 kW motor, about 1/2 HP, rated 220 volts, three phase and 2.0 amps.
Hitachi builds the TFO series of general purpose induction motors. A squirrel cage induction motor of this size runs at a nearly constant speed set by its pole count and supply frequency, and it needs no brushes or routine electrical maintenance beyond bearing service. Motors in the 0.4 kW class drive coolant pumps, lubrication pumps, chip conveyors, small fans and auxiliary axes on machine tools and industrial equipment.
The record associates this motor with Brother equipment. Machine repair shops and maintenance technicians use a matching Hitachi motor to restore an original drive with the same mounting and electrical characteristics. Buyers should confirm the frame, shaft and mounting dimensions, pole count and supply frequency against the motor being replaced.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer (nameplate): Hitachi, Ltd., Japan
- OEM Label (nameplate): brother
- Motor Type (nameplate): Three phase induction motor
- Type / Form (nameplate): TFO / K
- Type Code (nameplate): 71-1325 HITACHI
- Output (nameplate): 0.4 kW
- Poles (nameplate): 4
- Volts (nameplate): 200 / 200 / 220 V
- Hertz (nameplate): 50 / 60 / 60 Hz
- RPM (nameplate): 1420 / 1700 / 1710
- Amps (nameplate): 2.3 / 2.0 / 2.0 A
- JIS Standard (nameplate): C 4210, C 4004
- Rating (nameplate): CONT.
- Insulation Class (nameplate): E
- Ambient Temperature (nameplate): 40 C
- Protection (nameplate): JP44
- Bearing, Drive Side (nameplate): 6203UU
- Bearing, Opposite Side (nameplate): 6203UU
- Date (nameplate): 1991
- MFG. No. (nameplate): 91279479
- Plate Code (nameplate): ND25754

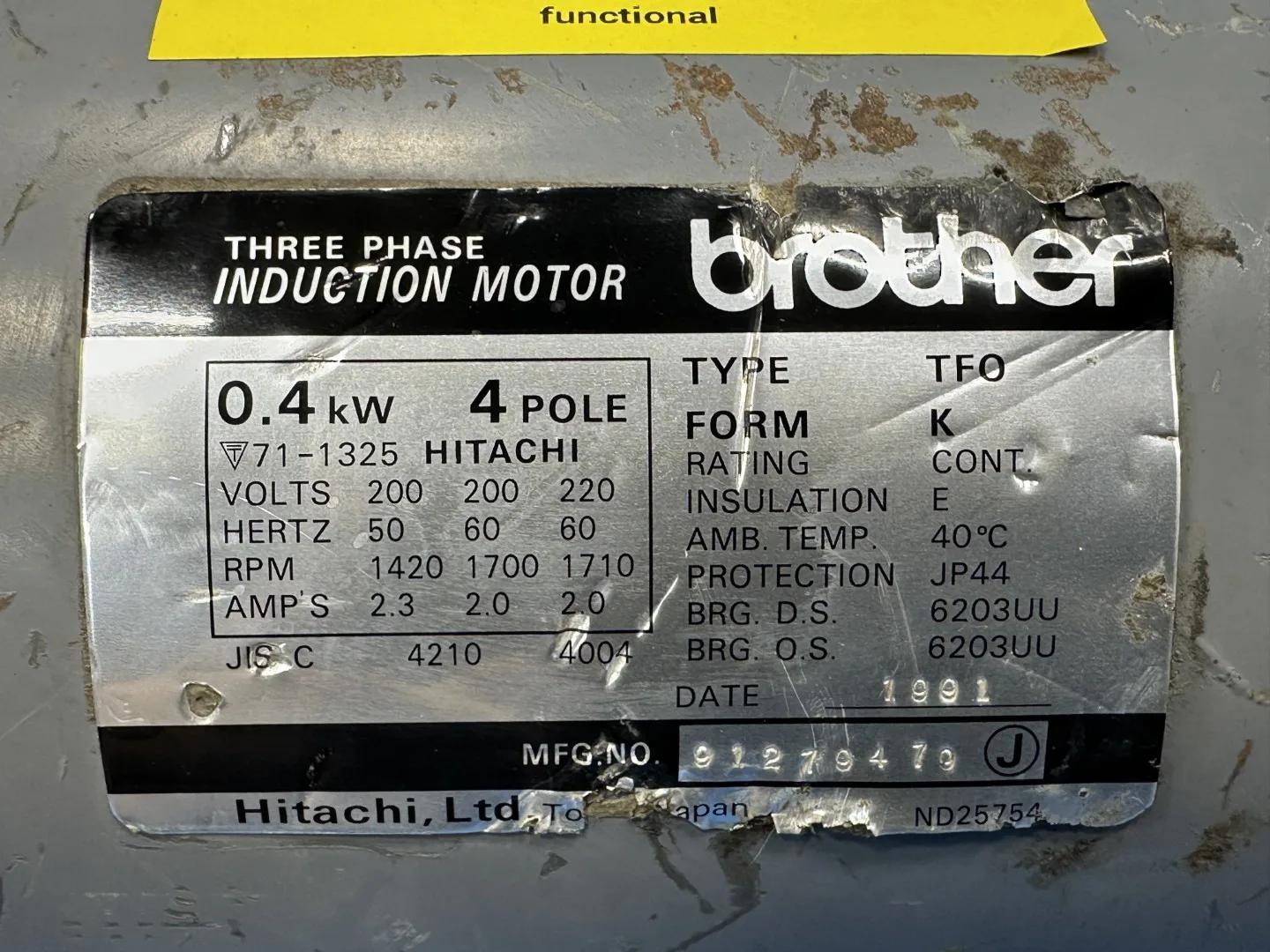

- Spec Basis: nameplate photos (close-up nameplate photo and side view photo of the brother / Hitachi plate); no Hitachi datasheet retrieved for 71-1325
Specifications
Hitachi
TFO-K 71-1325
91279479
1991
Fractional (Enter in Description)
2.0
10
8
6
3
4
22
KSCU / 72 / 7
