JM Performance Products JM31114BHT CAT40 High Torque Retention Knob, 5/8-11 UNC, 90 Degree, ANSI MOD / JMTBA
JM Performance Products JM31114BHT Specifications & Fitment
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | JM31114BHT |
| Condition | New |
| Manufacturer | JM Performance Products |
| Asset Number | KSC1290 / 2087 |
| Guarantee or ASIS | 1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H. |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$24.95
Basic Information
Asset #
KSC1290 / 2087
Available Quantity
2
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
1. HIGH CONFIDENCE ITEM: We will offer a 100% 14 Day money back less S&H.
Item Description

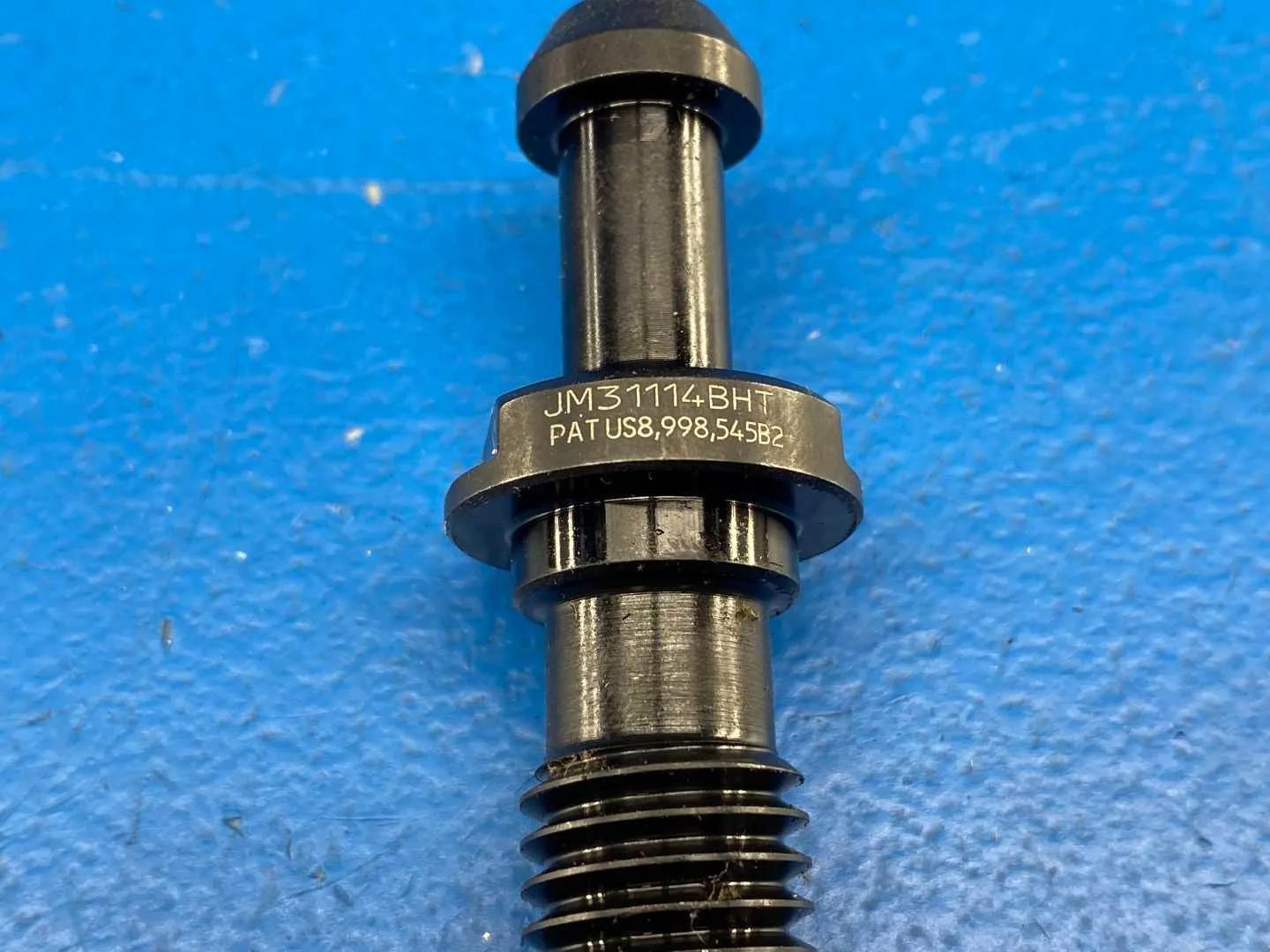

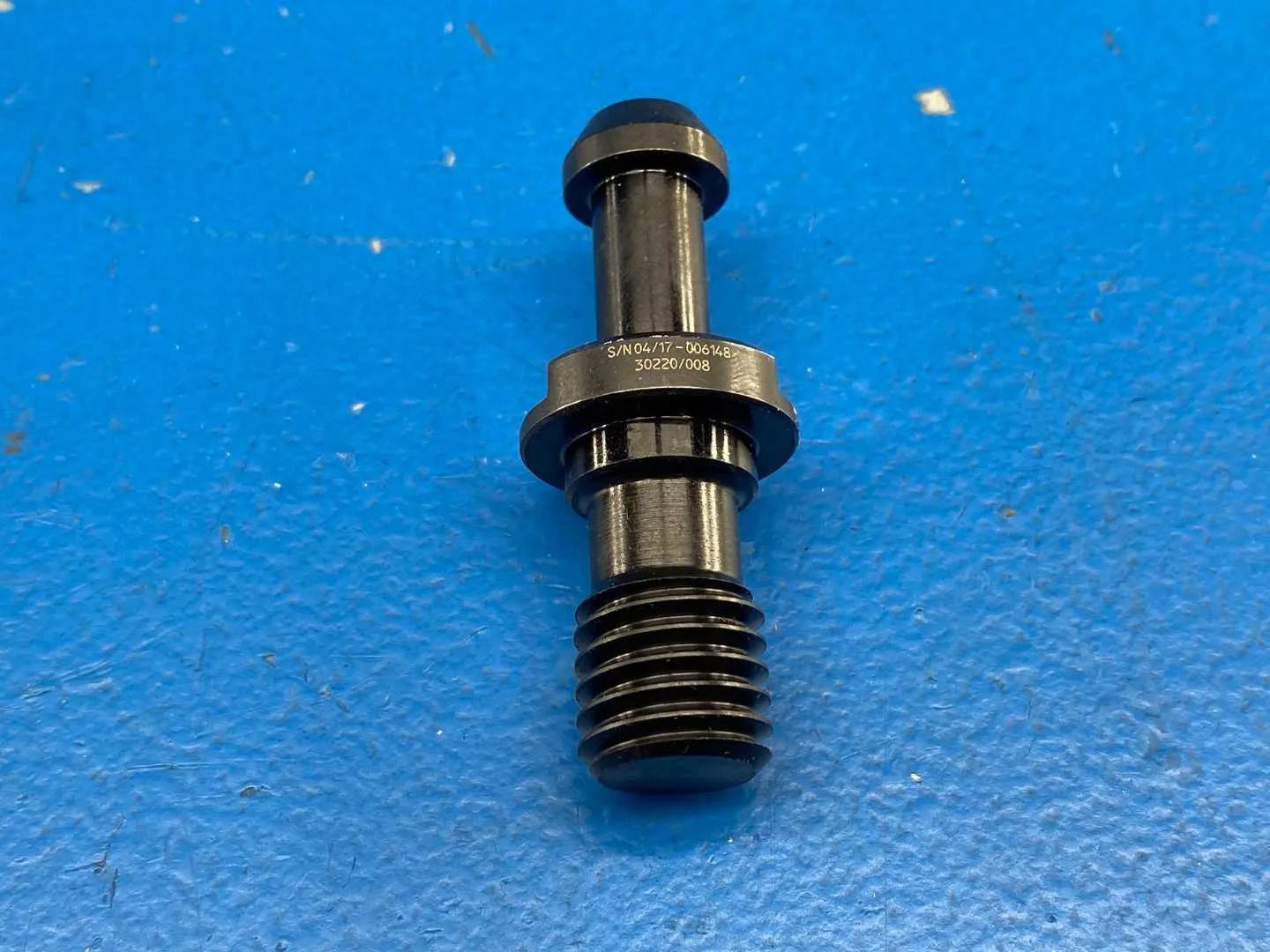

The JM Performance Products JM31114BHT is a CAT40 retention knob, also called a pull stud, with a 5/8-11 UNC thread and a 90 degree head angle. A retention knob threads into the back of a V-flange toolholder, and the machine spindle drawbar grips the knob to pull the holder firmly into the spindle taper.
The HT suffix marks JM's patented High Torque design (US Patent 8,998,545). High Torque knobs engage the lowest threads in the toolholder and relieve the area beneath the pilot, which JM states reduces toolholder distortion, chatter and tool wear. The label marks it for the ANSI modified / JMTBA 40 taper profile used on many CNC machining centers.
JM Performance Products now lists the JM31114BHT as obsolete, with the JM31114BHS and high strength JM31114BHTHS as current replacements, so this part suits shops keeping their existing JM31114BHT knob sets matched. Buyers should confirm the knob dimensions and angle against their machine manufacturer's drawbar specification before use.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Product: Retention knob (pull stud), High Torque design
- Taper: CAT40 (JM 31114 series)
- Standard: ANSI MOD / JMTBA (label)
- Thread: 5/8-11 UNC (label)
- Head Angle: 90 degree (label)

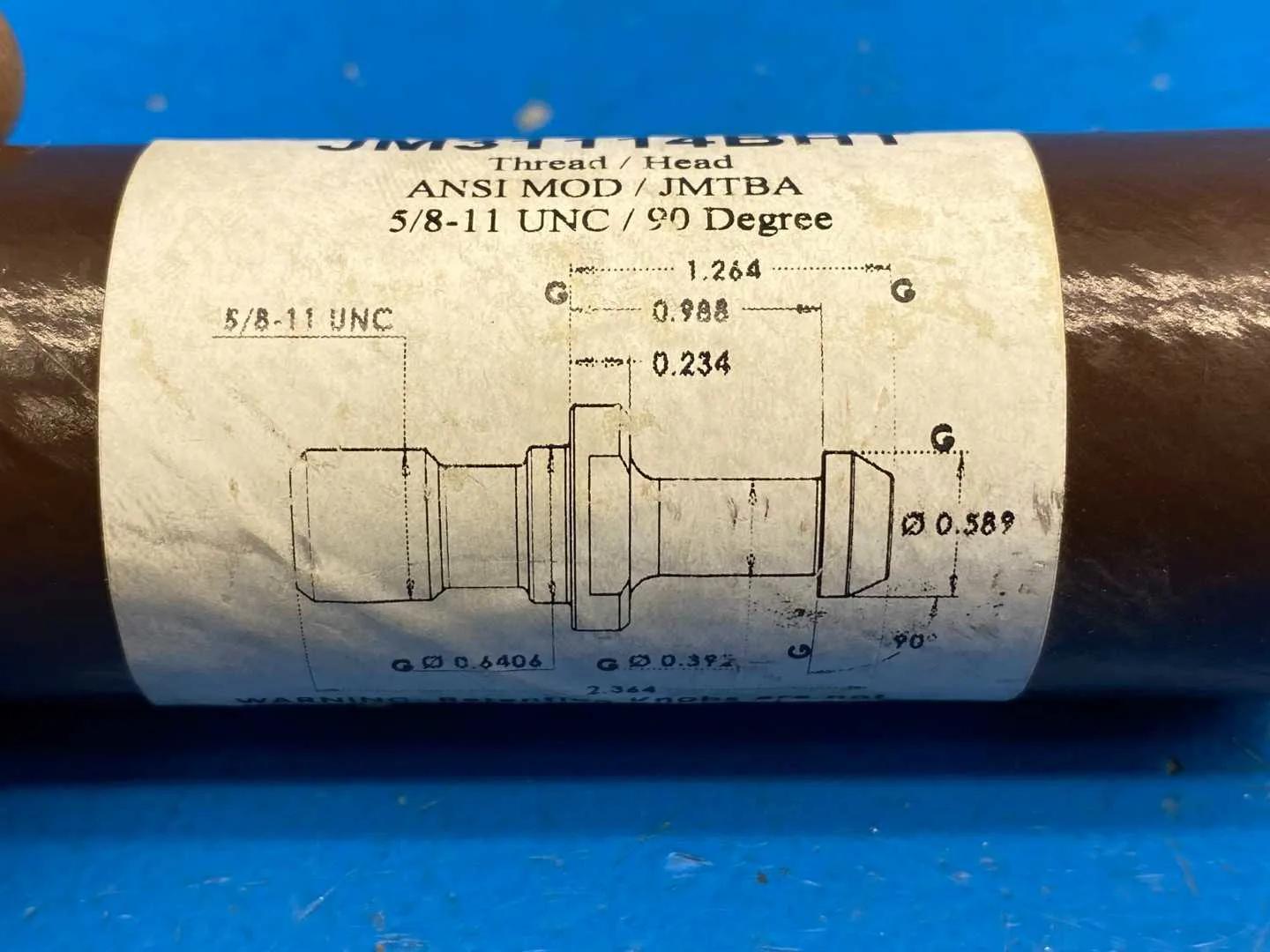

- Label Dimensions: 1.264 in, 0.988 in, 0.234 in, overall 2.364 in
- Label Diameters: 0.6406 in pilot, 0.392 in neck, 0.589 in knob
- Patent: US 8,998,545 B2 (label)
- Catalog Status: JM31114BHT listed obsolete, replaced by JM31114BHS or JM31114BHTHS
- Spec Basis: package label photo (JM31114BHT, ANSI MOD / JMTBA, 5/8-11 UNC / 90 Degree, 1.264 / 0.988 / 0.234, G 0.6406 / G 0.392 / G 0.589, 2.364, PAT US8,998,545B2, distributor Travers Tool Co.); JM Performance Products JM31114B catalog page (jmperformanceproducts.com/catalog/jm31114b-45109); Modern Machine Shop article on JM High Torque retention knobs
