JM Performance Products JM75022HTHS CAT40 Retention Knob, 5/8-11 UNC, 15 Degree
JM Performance Products JM75022HTHS Specifications & Fitment
Condition & What's Included
| Description | Details |
|---|---|
| Available Quantity | 5 |
| Model | JM75022HTHS |
| Condition | New |
| Manufacturer | JM Performance Products |
| Asset Number | KSC1290 / 2086 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$29.95
Basic Information
Asset #
KSC1290 / 2086
Available Quantity
5
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

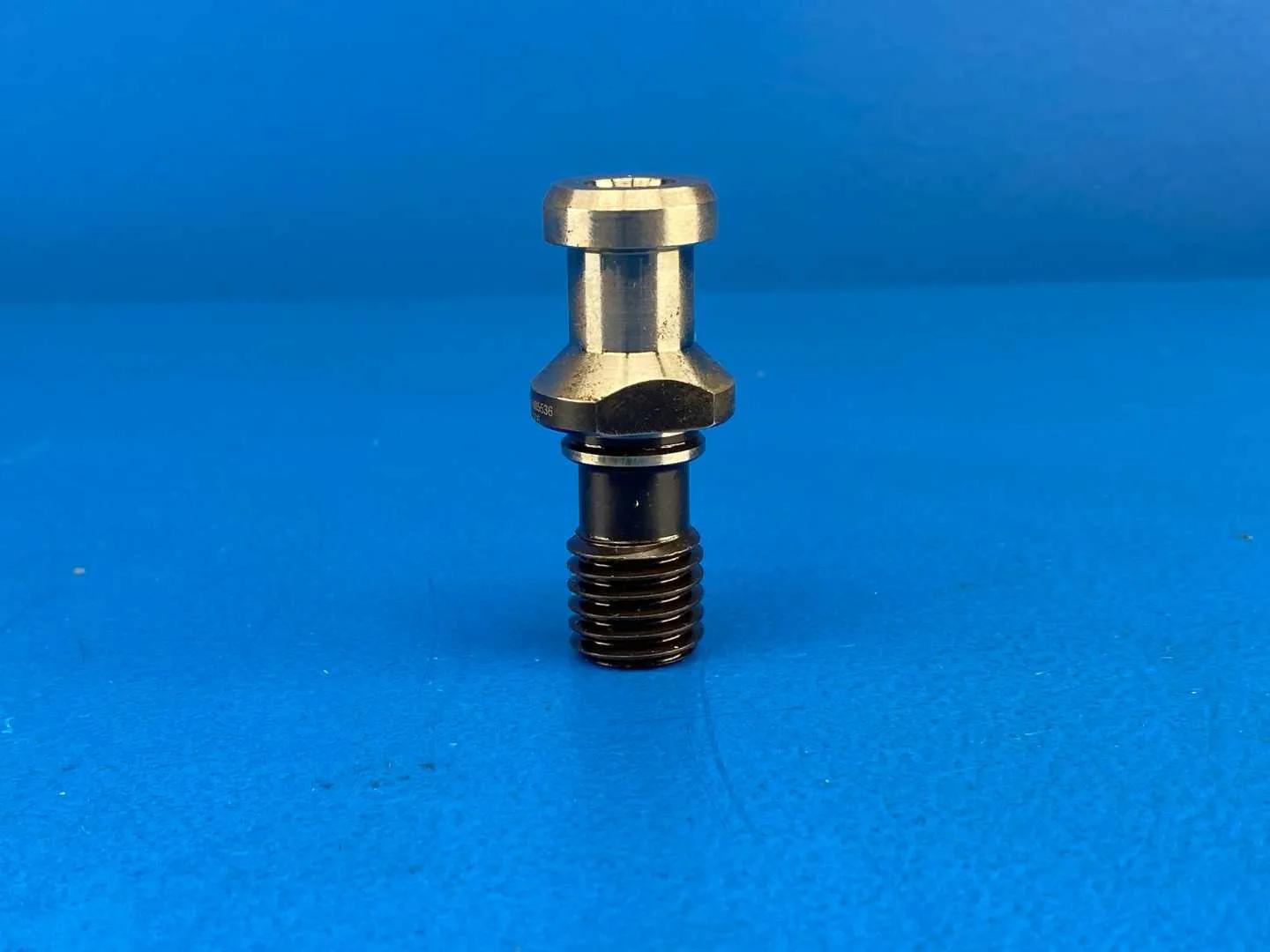

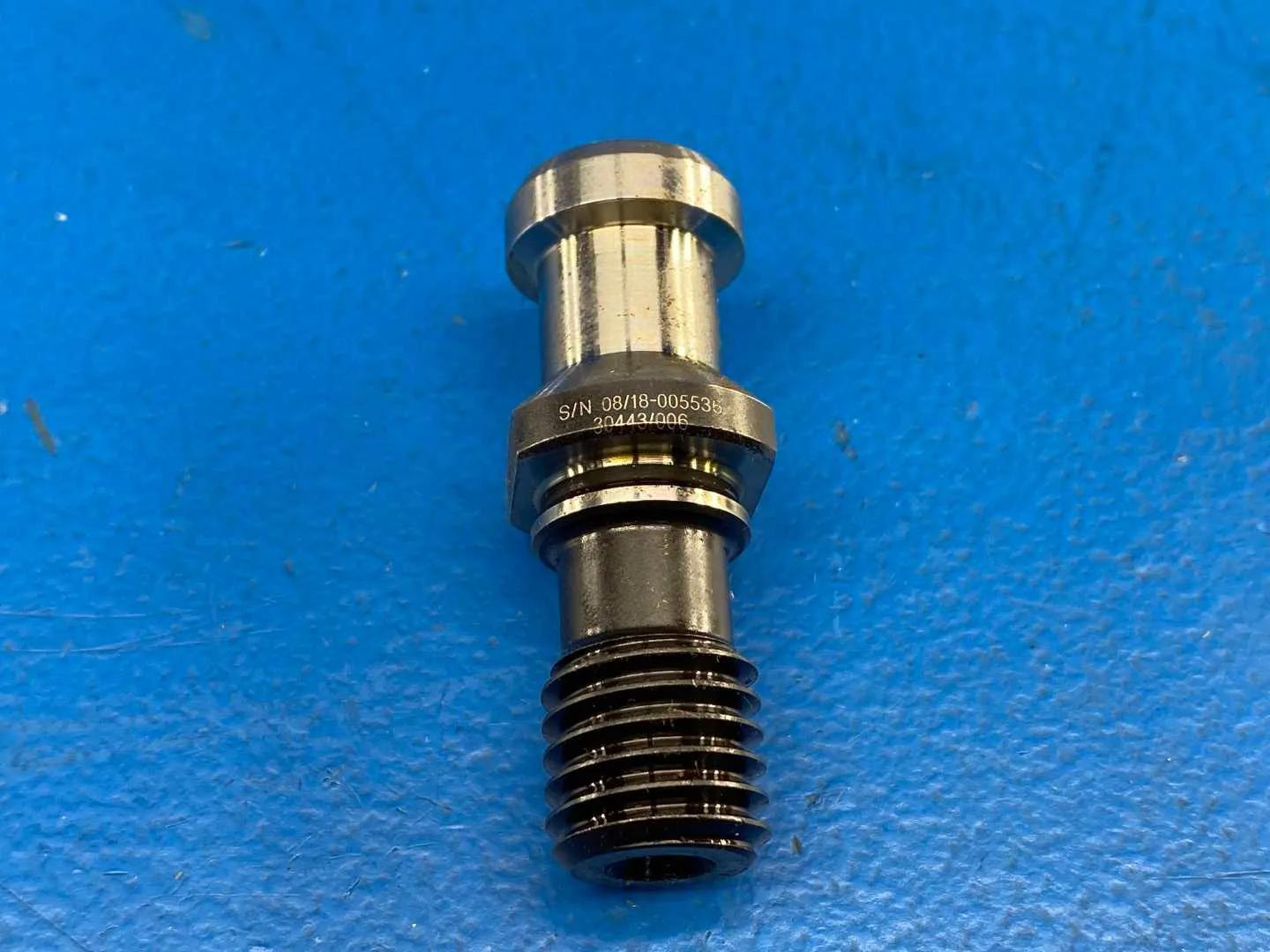

This is a JM Performance Products JM75022HTHS retention knob for CAT40 toolholders with a 5/8-11 UNC thread and a 15 degree knob angle. A retention knob, also called a pull stud, threads into the back of a taper toolholder so the CNC machine spindle drawbar can grip it and pull the holder tight into the spindle taper.
JM Performance Products makes retention knobs in the United States. Its High Torque design uses the lowest available threads in the toolholder and has a relief beneath the pilot. According to JM, standard knobs can expand and distort the toolholder taper, which reduces spindle contact and leads to chatter, poor runout and shorter tool life. In the part number, HT marks the High Torque design, and JM lists the HTHS version, made from 9310H steel, as the replacement for the obsolete JM75022 and JM75022HT knobs.
This knob is coolant through and uses S-15 and P-9 O-rings. JM lists Mori Seiki among the machine builders for this pattern. Retention knobs are not interchangeable, so machinists and CNC maintenance staff should match thread, angle and dimensions to the machine manufacturer specification before use.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Taper: CAT40 (JM catalog)
- Style: High Torque retention knob, coolant through
- Thread: 5/8-11 UNC (label photo)
- Knob angle: 15 degree (label photo)
- Standard: ANSI MOD / DIN +O (label photo)
- O-rings: S-15 thread side, P-9 knob side (label photo)

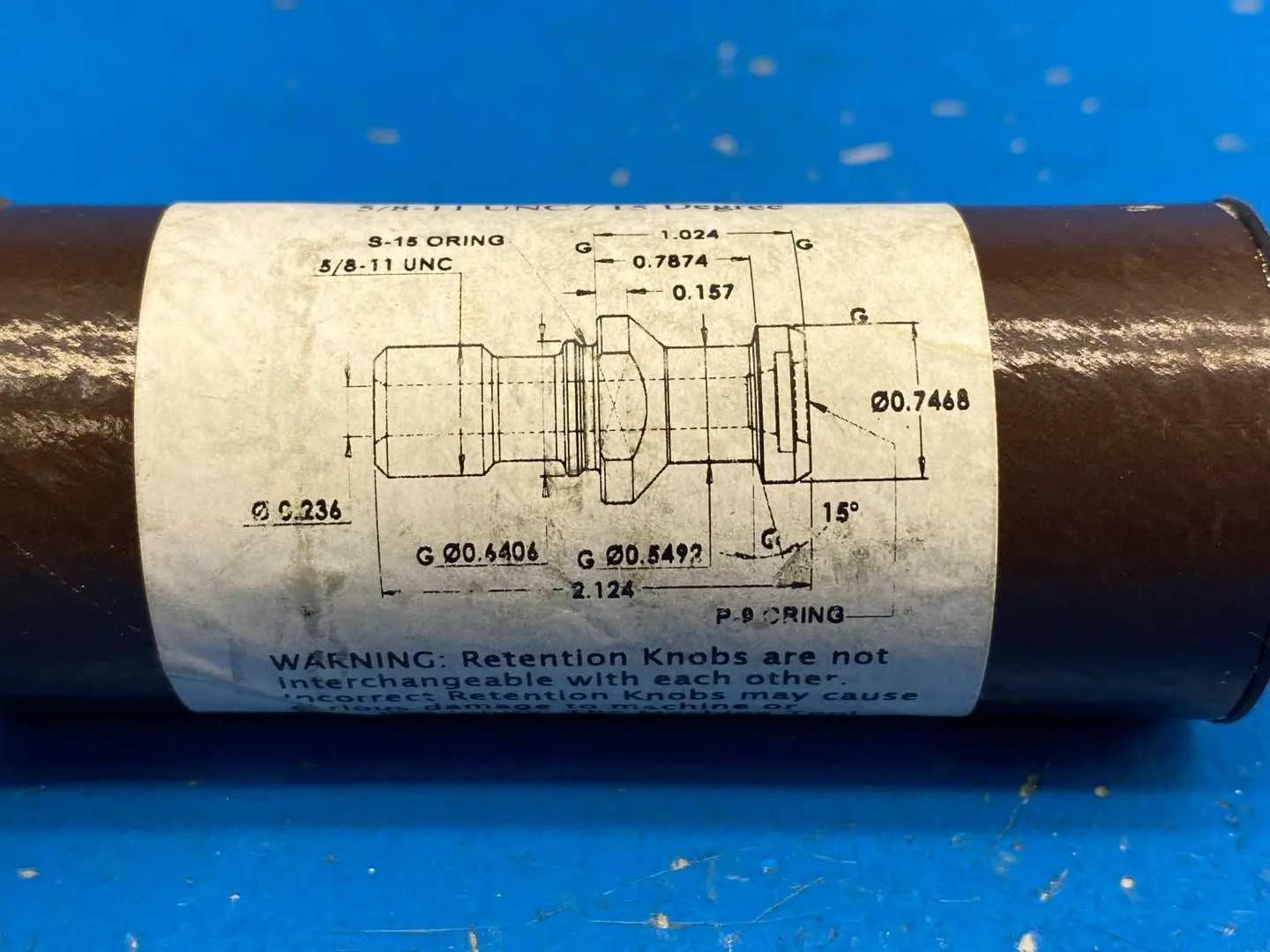

- Knob diameter: 0.7468 in; pilot diameter 0.6406 in; neck diameter 0.5493 in; hole diameter 0.236 in (label photo)
- L1 length: 0.7874 in; L2 length: 1.024 in; flange thickness 0.157 in (label photo)
- Overall dimension shown on label: 2.124 in (label photo)
- Material: 9310H steel (JM catalog, JM75022HS / JM75022HTHS page)
- Replaces: JM75022 and JM75022HT (both listed obsolete by JM)

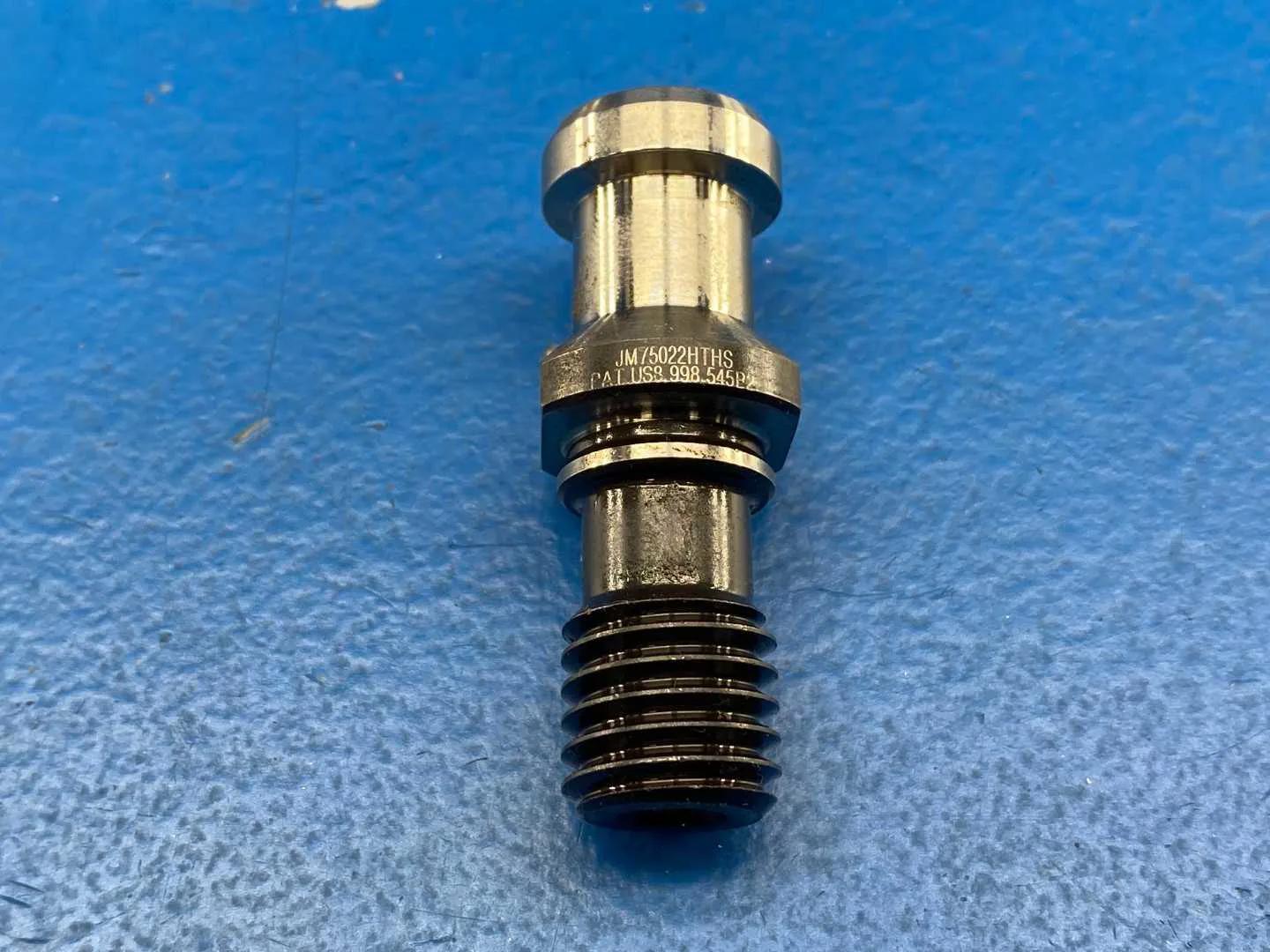

- Label patent reference: US8.998.545B2 (label photo)
- Spec Basis: label photo (sold through Travers Tool Co.); JM Performance Products catalog pages https://www.jmperformanceproducts.com/catalog/jm75022hs-56042 and https://www.jmperformanceproducts.com/catalog/jm75022ht-56071. JM lists Mori Seiki as a machine builder for this knob and warns knobs are not interchangeable.
