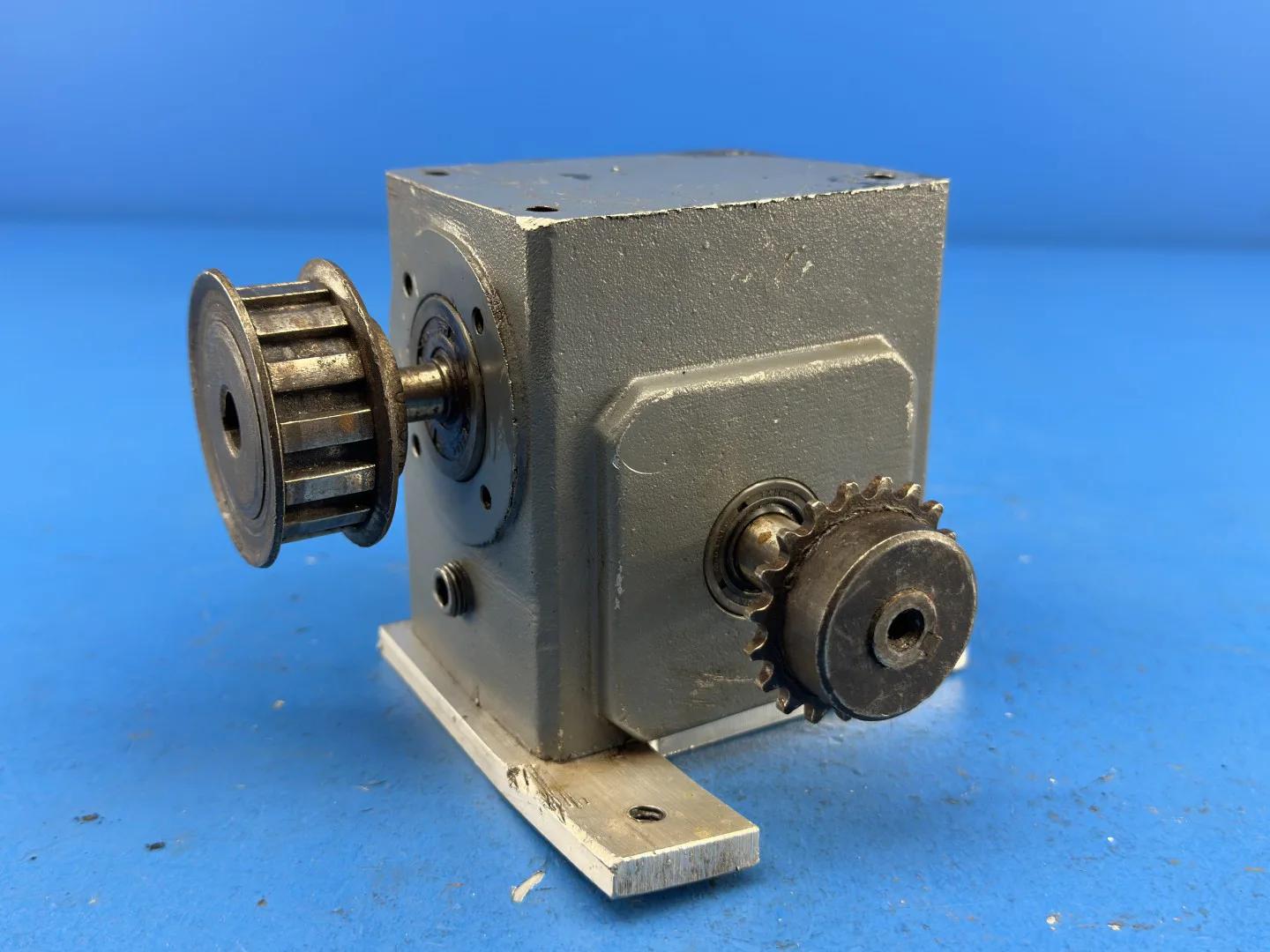

Morse XA0005 Right Angle Speed Reducer, 30:1 Ratio, 0.14 HP Input, 120 Output Torque

This is a Morse speed reducer, part number XA0005, built by Morse Industrial Corp., a division of Emerson Power Transmission, at its Denver, Colorado operation. The nameplate rates it at a 30:1 reduction ratio with a 0.14 horsepower input rating and an output torque rating of 120.

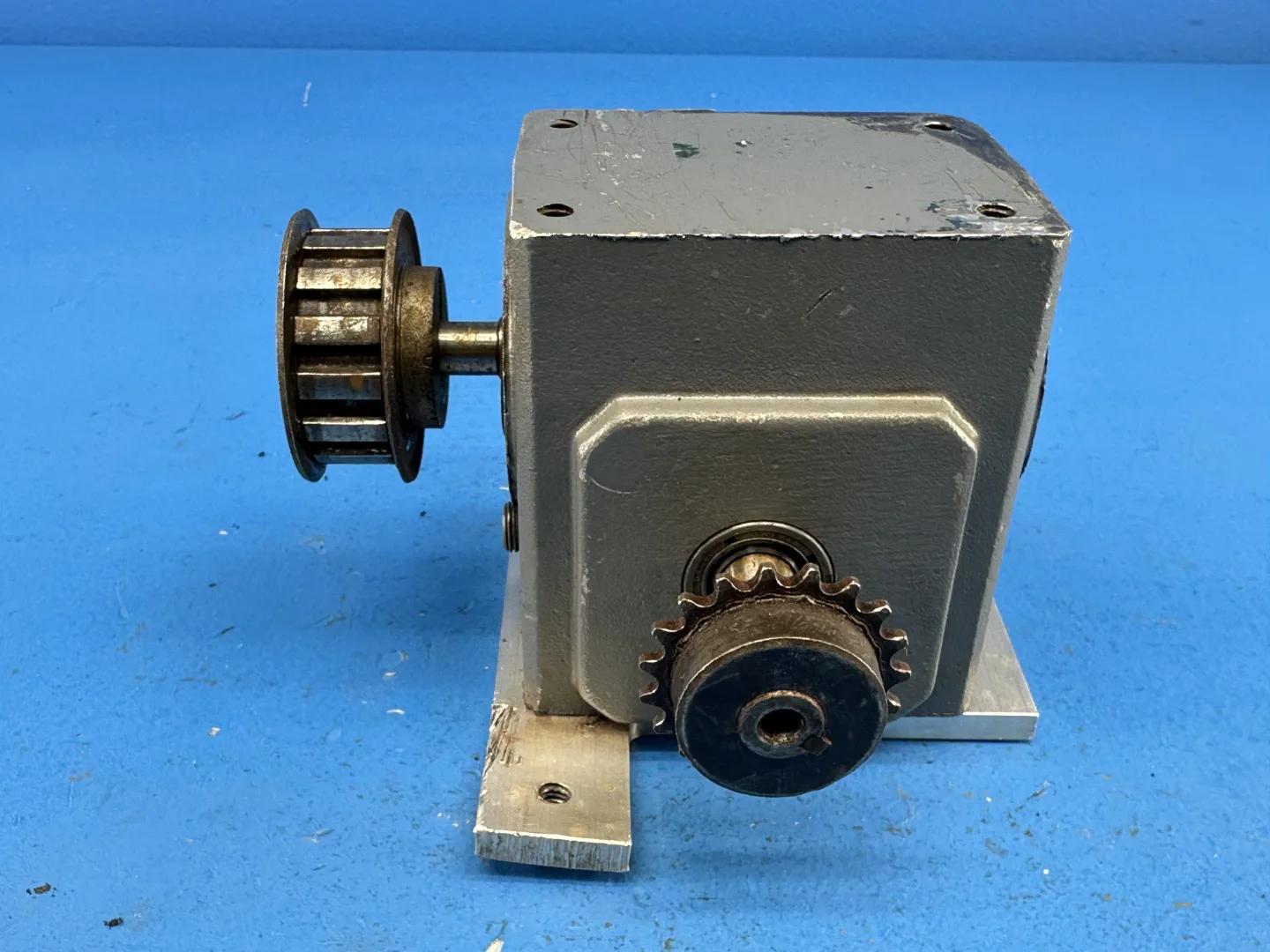

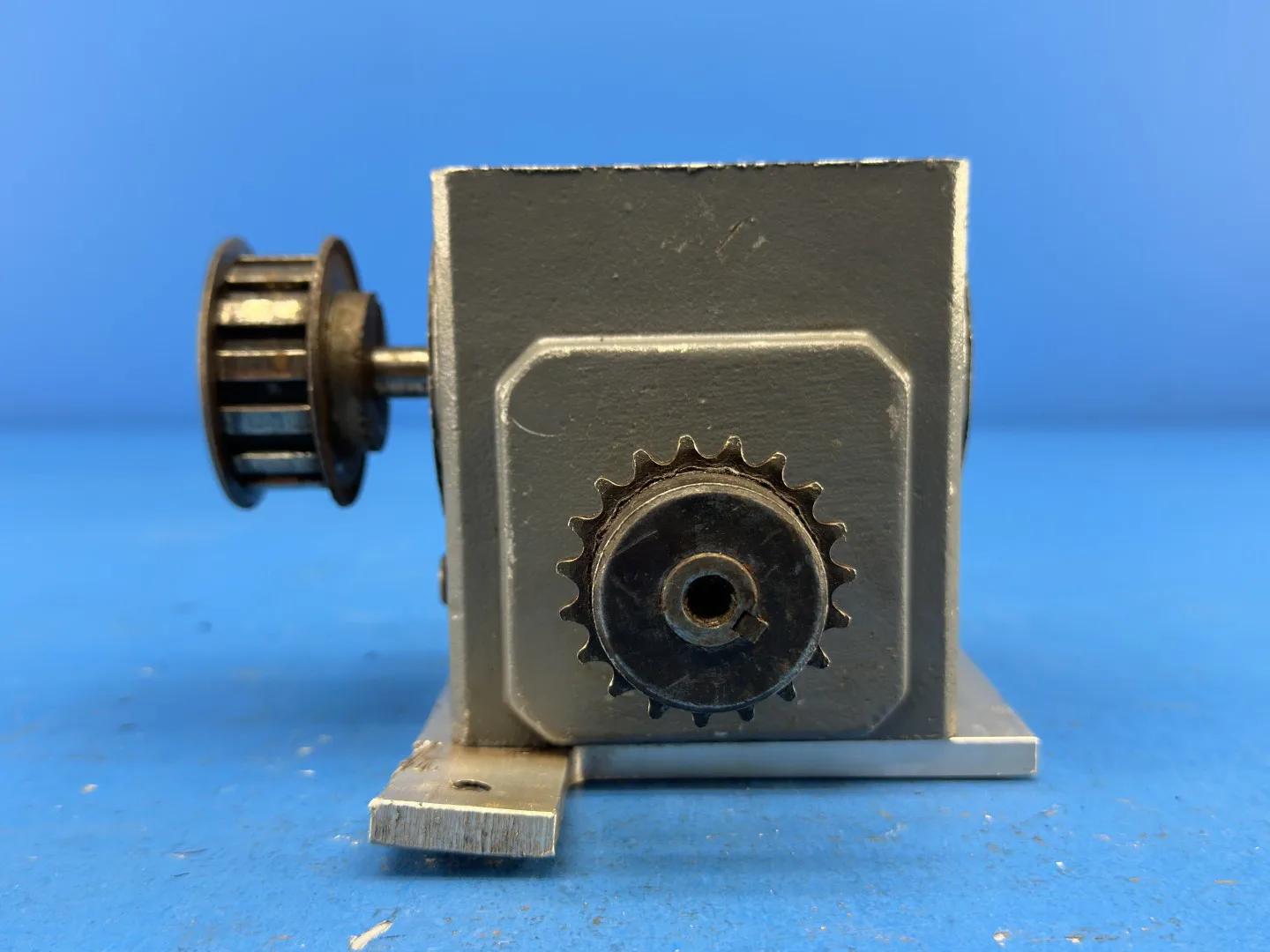

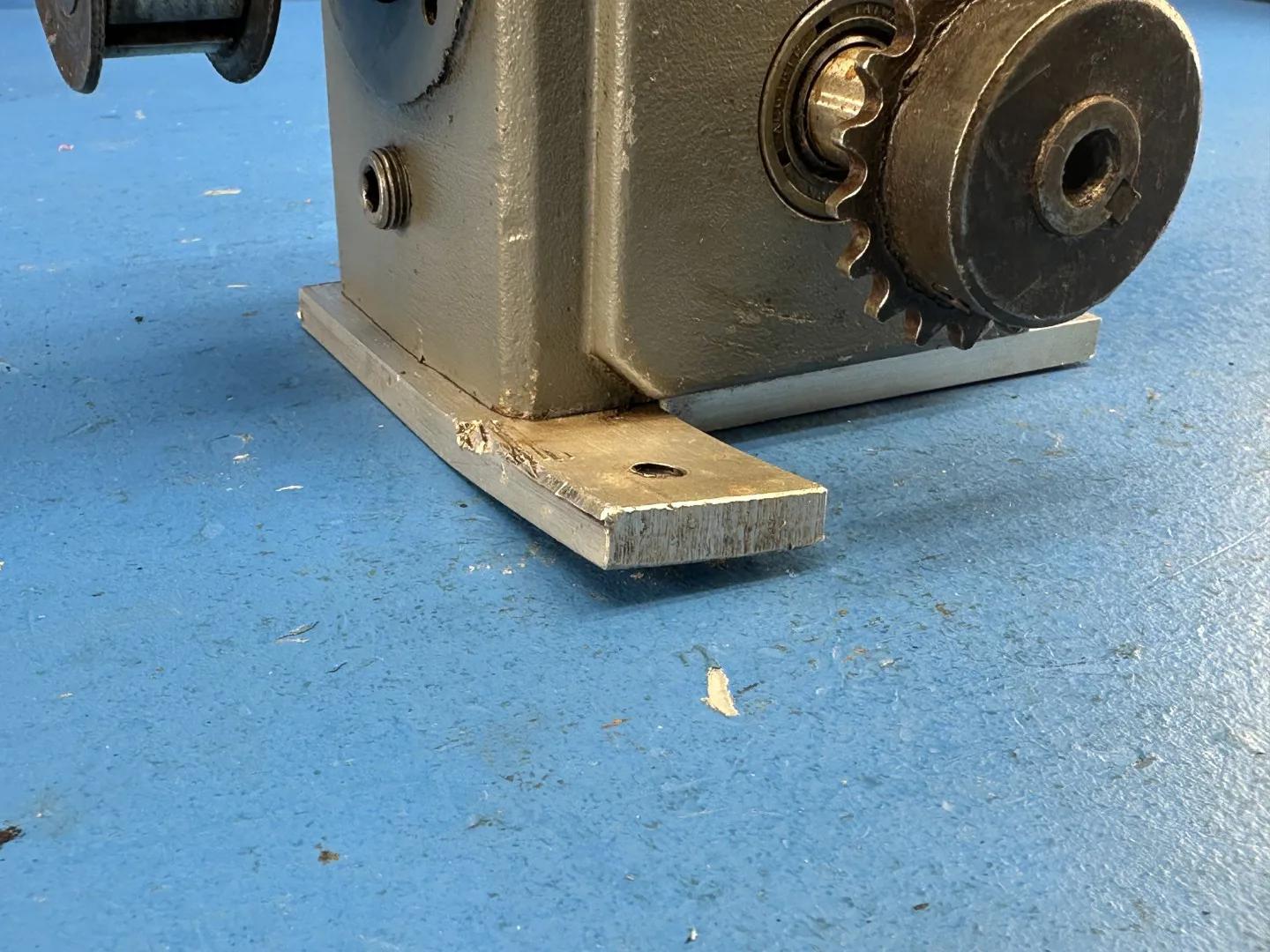

A gear reducer lowers the speed of a motor or line shaft and multiplies torque at the output shaft. At 30:1, an input turning at 1750 rpm delivers about 58 rpm at the output. This unit is fitted with sprockets on its input and output shafts for chain drive power transmission.

The XA prefix does not appear in the standard Morse Raider worm gear catalog, so buyers should match the part number, ratio, shaft sizes and mounting to the unit being replaced. Small fractional horsepower reducers of this size are used on conveyors, packaging and food processing equipment, feeders, mixers, door and gate operators, and other light duty machinery.

Available from King Surplus inventory in Del Rio, Texas.

• Product: Speed reducer (gear reducer)
• Model / Part Number: XA0005 (nameplate)
• Ratio: 30:1 (nameplate)
• Input Horsepower Rating: 0.14 HP (nameplate)
• Output Torque Rating: 120 (nameplate, units not stated; Morse catalogs rate output torque in lb-in)
• Nameplate Maker: Morse Industrial Corp., Emerson Power Transmission Corp., Denver, Colorado
• Nameplate Serial / Codes: G85362/X09F, 93B260708001

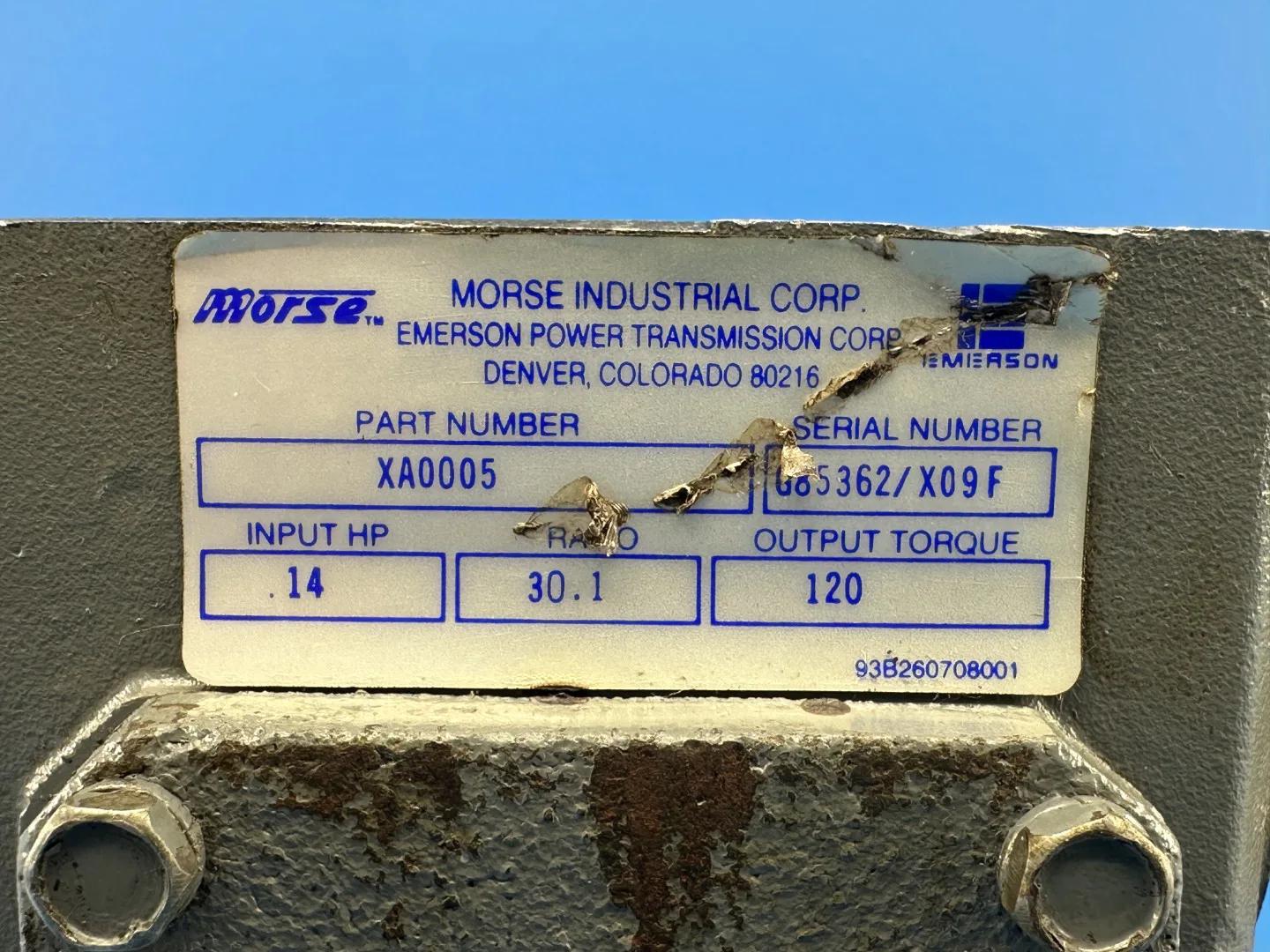

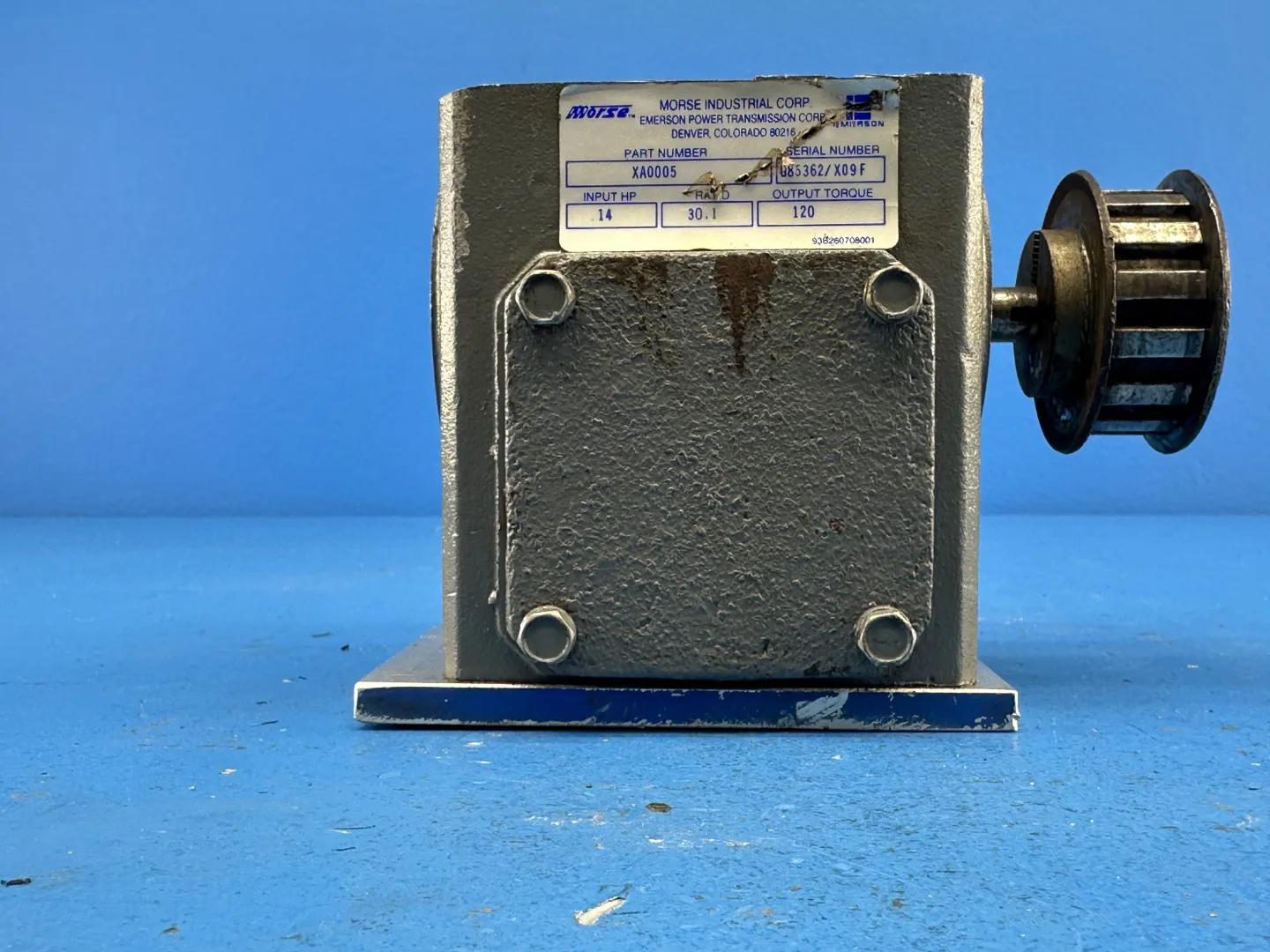

• Spec Basis: nameplate photo (MORSE INDUSTRIAL CORP. / EMERSON POWER TRANSMISSION CORP., DENVER, COLORADO 80216, XA0005, RATIO 30.1, .14 HP, OUTPUT TORQUE 120, G85362/X09F, 93B260708001); XA0005 not listed in the Morse Raider worm gear reducer catalog and no published data found
