Omark Taper-Lok TLD2040BR4-4 Drill Reamer, HSS Threaded Shank, Aircraft Tooling, NSN 5133-00-113-5159
TLD2040BR4-4 Reamer Specifications: Diameter, Flutes & Shank
Material & Machining Applications for Omark Industries TLD2040BR4-4
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | TLD2040BR4-4 |
| Condition | New |
| Manufacturer | Omark Industries |
| Asset Number | KSC877 / 379 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1. New in Box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$24.95
Basic Information
Asset #
KSC877 / 379
Available Quantity
1
Inspections - Yellow Tag
1. New in Box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description
Omark Industries Taper-Lok drill reamer, part number TLD2040BR4-4, high-speed steel with a threaded shank, carried under NSN 5133-00-113-5159. Omark's Precision Fastening subsidiary built the Taper-Lok tooling line, and the shank is stamped TLD2040 BR-4-4 with lot 597483-4, revision L.
A combination drill-and-ream tool cuts and finishes in one pass the precise tapered hole a Taper-Lok interference-fit fastener requires. Taper-Lok is a real aerospace fastening system: the tapered pin seats into a matched tapered hole under interference, and the joint's fatigue life depends on the bore being held to tolerance with a smooth finish - which is the reamer's entire job.
Aircraft structural assembly and MRO shops working to Taper-Lok callouts buy these by part number, since the tool and the fastener are a matched system.
New in box with the original wrapper label intact; clean cutting flutes, no rust or wear. New surplus, available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Manufacturer: Omark Industries, Precision Fastening subsidiary

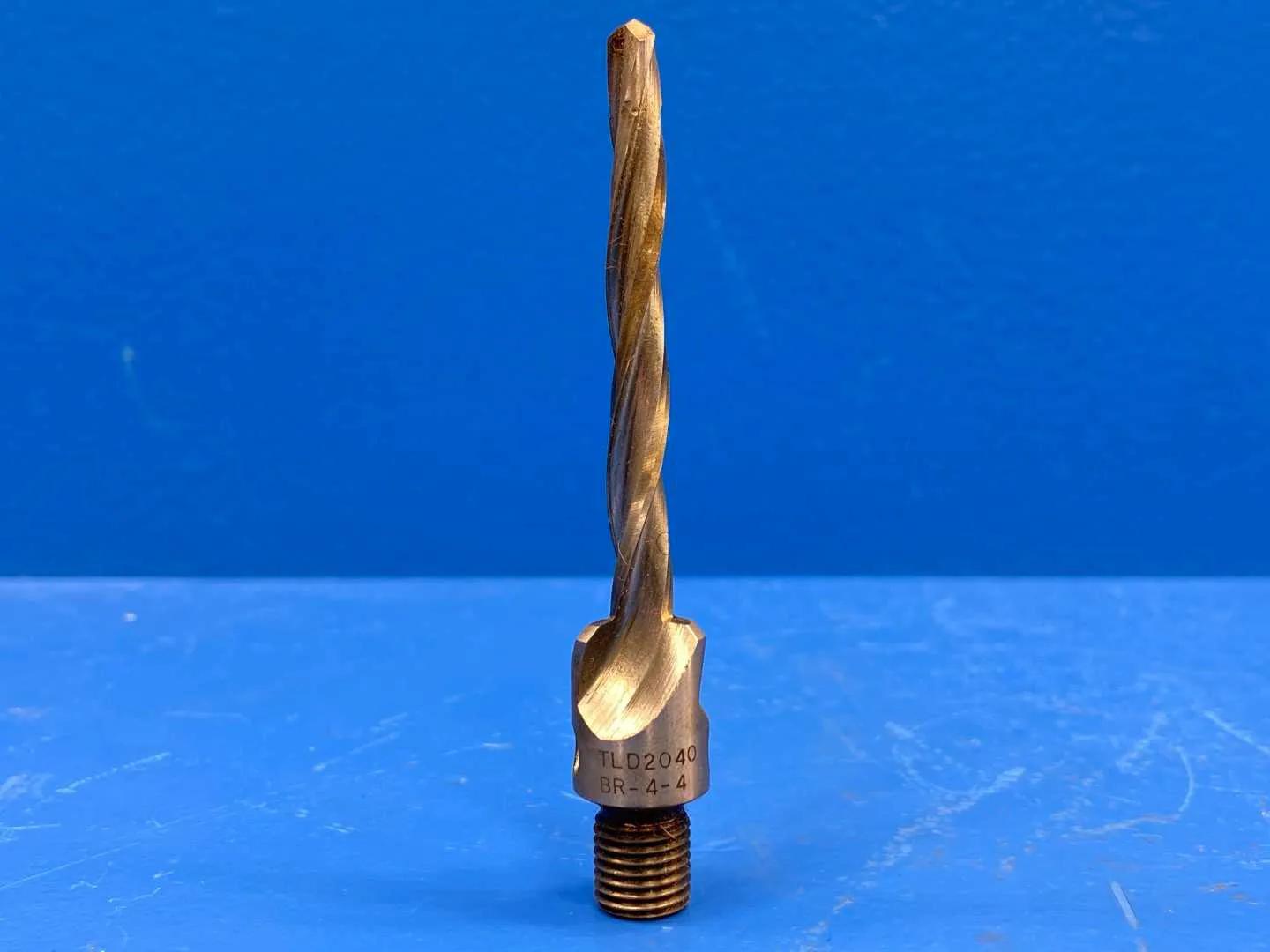

- Part Number: TLD2040BR4-4. The shank and sleeve are stamped TLD2040 BR-4-4.
- Lot No: 597483-4
- Revision: "L"

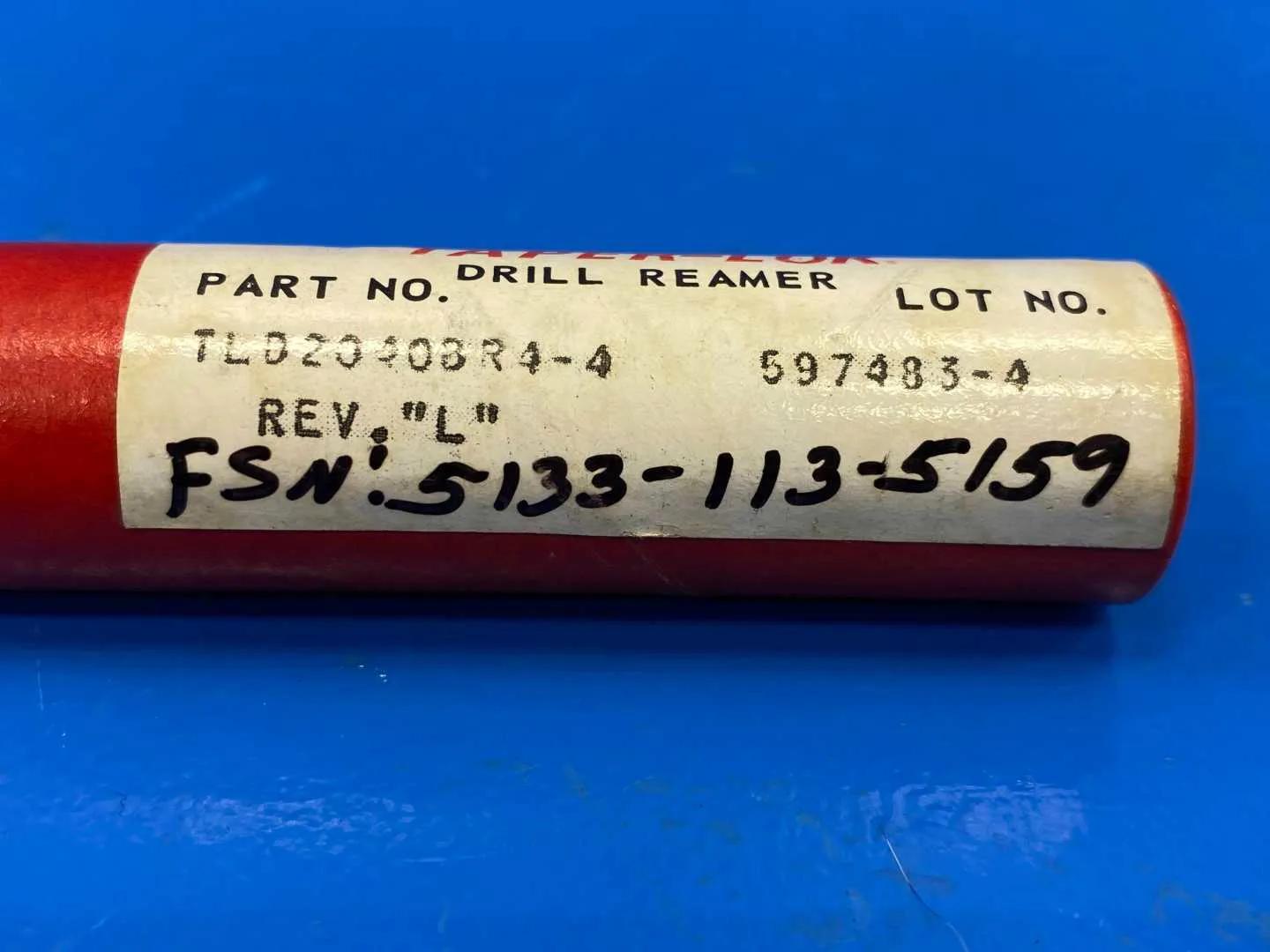

- Stock number: the label reads FSN 5133-113-5159. The modern NSN form of that number is 5133-00-113-5159.
- Type: Taper-Lok drill reamer, as printed on the label

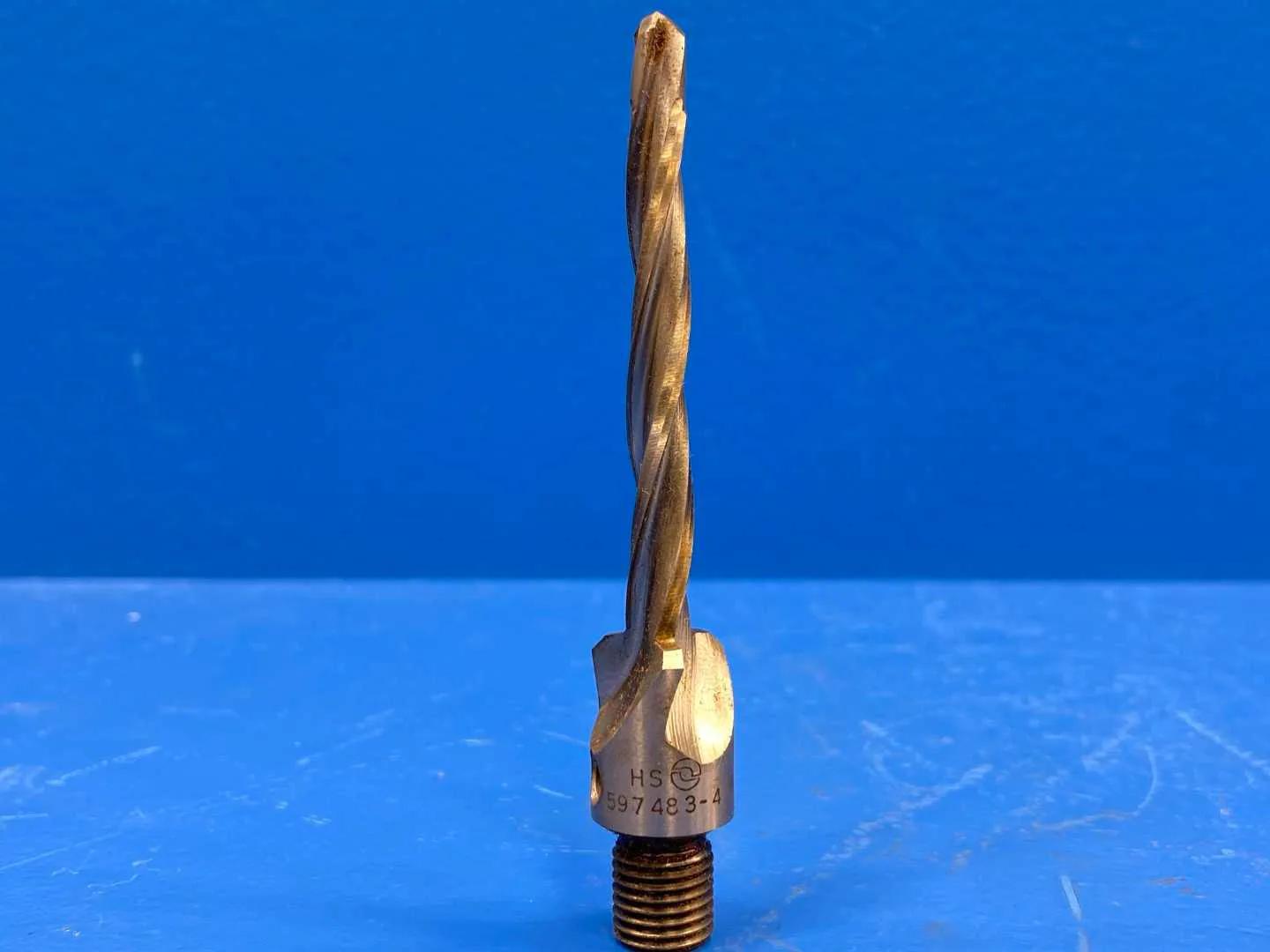

- Material: high-speed steel, read from the "HS" prefix in the "HS 597483-4" marking. The label does not spell out the grade.
- Shank: threaded, as shown in the photographs
- Cutting diameter, pilot diameter, overall length, flute count and taper rate are not printed on the label or the sleeve, and none is stated here.
- Factory dimensions and factory net weight are not printed on the label and are not stated here.

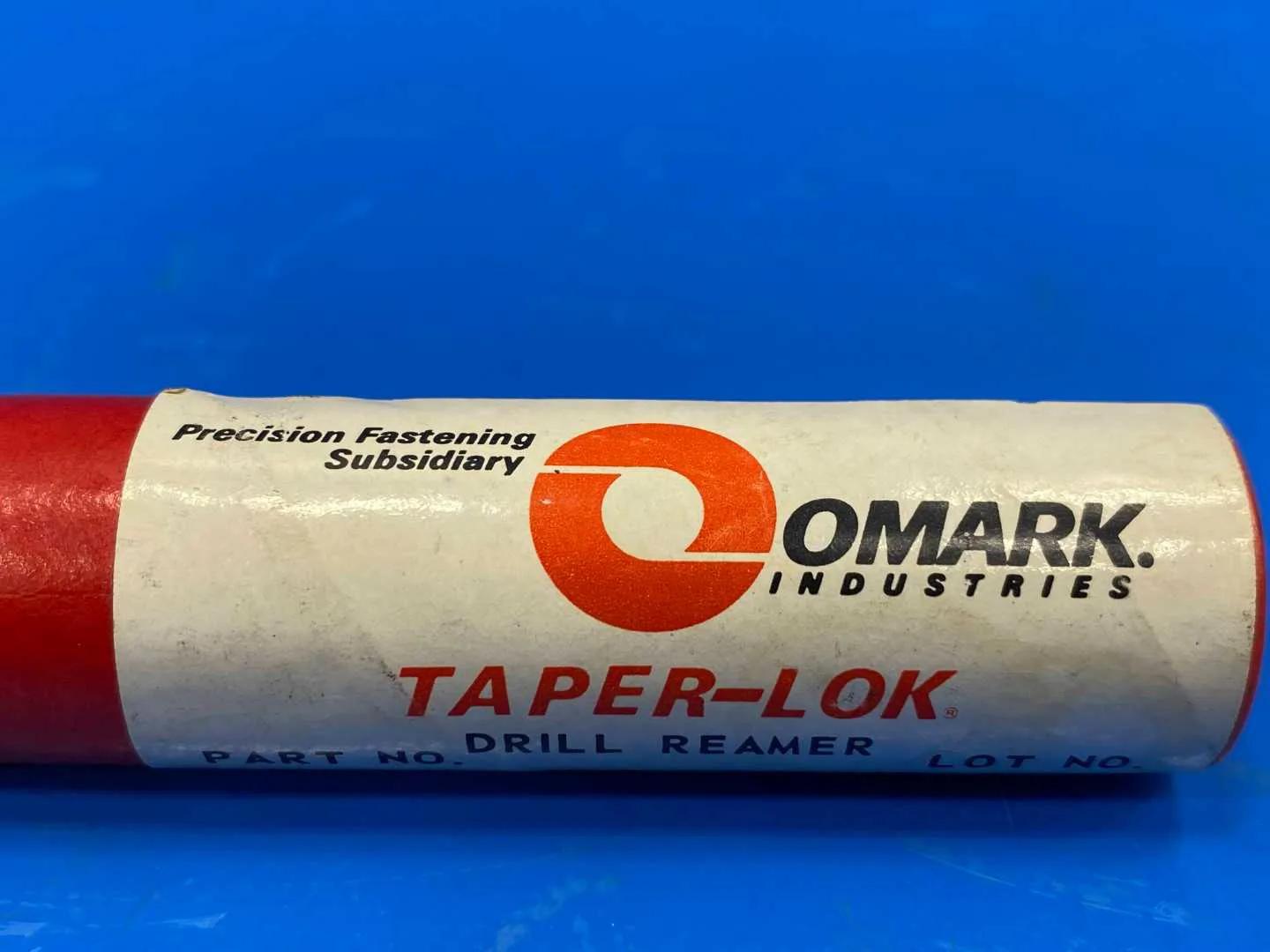

Spec Basis: Verified 2026-09-16 against this tool's own label and shank photographs (Omark Taper-Lok sleeve label, KSC record 6586), which read verbatim "OMARK INDUSTRIES / Precision Fastening Subsidiary / TAPER-LOK / DRILL REAMER / 597483-4 / REV. 'L' / FSN: 5133-113-5159 / TLD2040 BR-4-4 / HS 597483-4", cross-checked against Manufacturer (FID 56), Model (FID 57) and Serial (FID 58). Every specification above appears on that label. The prior entry's "Dimensions: 1 x 1 x 4 in" and "Weight: 1 lb" were a copy of our own shipping measurements (FIDs 77, 78, 79, 80), not factory specifications, and have been rewritten.
Specifications
Omark Industries
TLD2040BR4-4
597483-4 REV L
N/A
N/A
N/A
1
1
4
N/A
0
1
KSC877 / 379
Packaging fees
1.6 6x10 CH $3.00
