Temperature Controller Applied Test Systems Kanthal Super 33 PC-120/240-20 120/240V
Kanthal Super 33 PC-120/240-20 Controller Specifications: Range, Input & Output
Process & Panel Fitment for Applied Test Systems Kanthal Super 33 PC-120/240-20
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | Kanthal Super 33 PC-120/240-20 |
| Condition | Used |
| Manufacturer | Applied Test Systems |
| Asset Number | KSC641 / 119.3 |
| Guarantee or ASIS | ASIS WHEREIS No Returns or Exchanges |
| Inspections - Yellow Tag | 5.3 Used: ASIS |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$189.95
Basic Information
Asset #
KSC641 / 119.3
Available Quantity
1
Inspections - Yellow Tag
5.3 Used: ASIS
Condition
Used
Guarantee or ASIS
ASIS WHEREIS No Returns or Exchanges
Item Description
The Applied Test Systems (ATS) Kanthal Super 33 PC-120/240-20 is a single-phase furnace power controller built to drive Kanthal Super (molybdenum disilicide, MoSi2) high-temperature heating elements. ATS, a Butler, Pennsylvania maker of laboratory and materials-testing furnaces, supplies these PC-series control boxes as the power-regulation stage inside its tube, split, and box furnace systems.

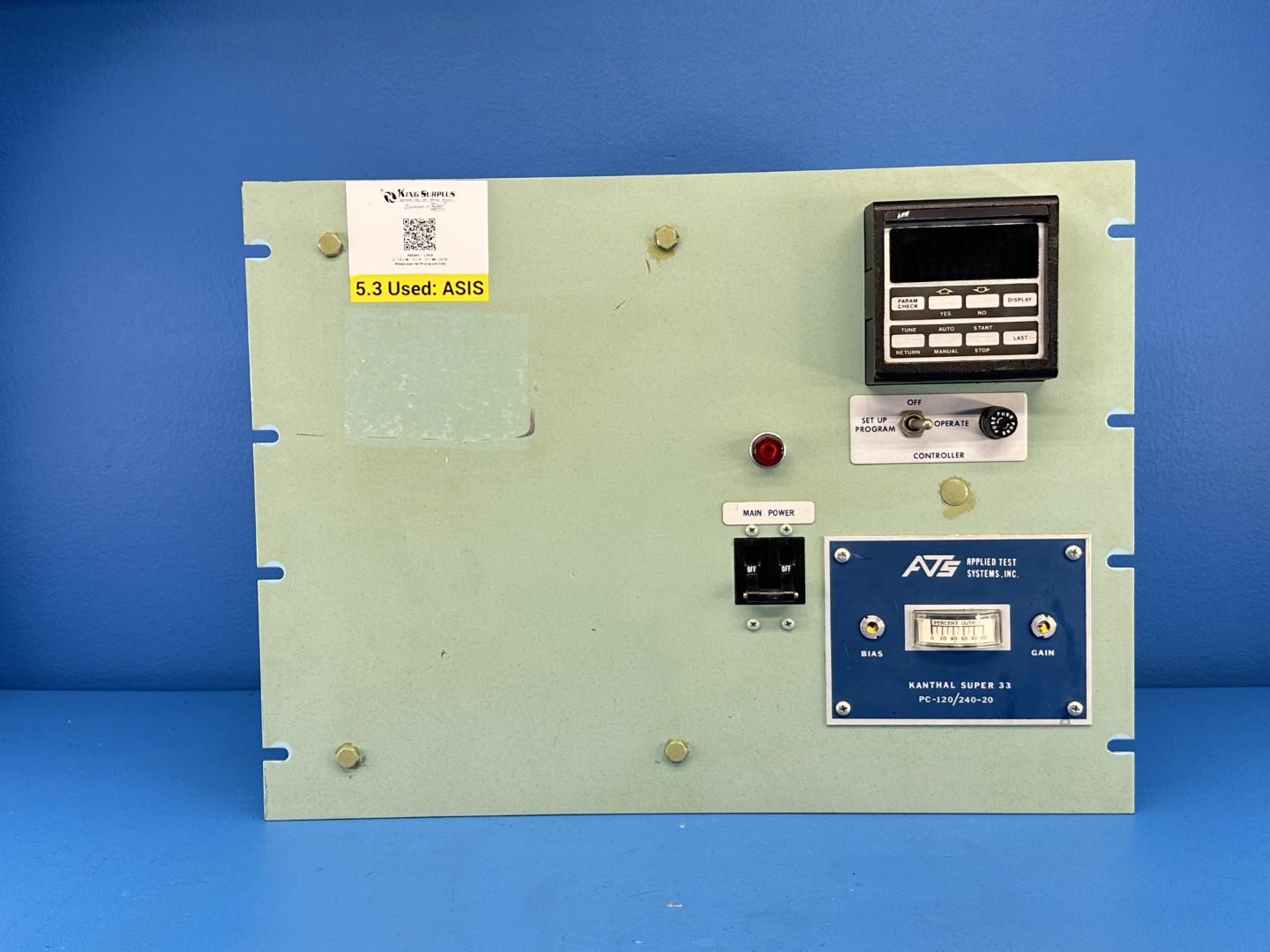

The PC-120/240 designation covers 120/240 VAC operation; the -20 denotes the 20-amp output rating. The unit pairs closed-loop SCR power control with a programmable ramp/soak temperature controller on one chassis. The blue ATS front module carries BIAS and GAIN trim controls plus a PERCENT OUTPUT meter; a separate digital programmer runs the temperature profile through a SET UP PROGRAM / OFF / OPERATE mode selector and a fused MAIN POWER switch. Behind the panel sit the control transformer, SCR power heatsink stacks, fusing, and terminal strips that accept 0-5 VDC and 4-20 mA process signals.
Typical applications include lab and pilot-scale high-temperature furnaces, ceramics and glass sintering, heat-treat and annealing rigs, and MoSi2 element retrofits where the original ATS controller has failed. Buyers are usually furnace OEM service techs, university and materials labs, and maintenance staff sourcing obsolete ATS support. Onboard components: ATS SCR power-control front module (BIAS/GAIN, PERCENT OUTPUT meter); digital ramp/soak temperature programmer; SET UP PROGRAM/OFF/OPERATE mode selector; MAIN POWER rocker switch with dual fuse holders; MAIN POWER indicator lamp; control transformer; two finned SCR power/heatsink stacks; run/filter capacitors; fuse block; relay; 9-position control terminal strip (0-5 VDC, 4-20 mA, 120, 240); wiring harness on a steel base plate.
Sold as-is, surplus from King Surplus inventory in Del Rio, Texas. Same-day shipping on orders before 3:00 PM CT.
Factory Information
| Field | Value |
|---|---|
| Manufacturer | Applied Test Systems, Inc. (ATS) |
| Model | Kanthal Super 33 PC-120/240-20 |
| Type | Furnace SCR power controller with programmable temperature controller |
| Element Compatibility | Kanthal Super (MoSiâ‚‚) heating elements |
| Voltage | 120/240 VAC, single phase |
| Output Rating | 20 A (per ATS PC-series model convention; not stamped on nameplate) |
| Process Control Signals | 0-5 VDC and 4-20 mA inputs |
| Power Control | Closed-loop SCR (BIAS / GAIN trim, PERCENT OUTPUT meter) |
| Front Controls | Digital ramp/soak programmer, SET UP PROGRAM / OFF / OPERATE selector, fused MAIN POWER switch |
| Dimensions | 14 in L × 19 in W × 10 in H |
| Weight | 20 lb |
| Country of Origin | USA |
| Condition | Used, AS-IS, untested (yellow tag 5.3) |
| Application | Lab / pilot-scale high-temp furnaces (sintering, heat-treat, annealing, MoSiâ‚‚ retrofit) |
All components on this unit (from the four photos + studio set):

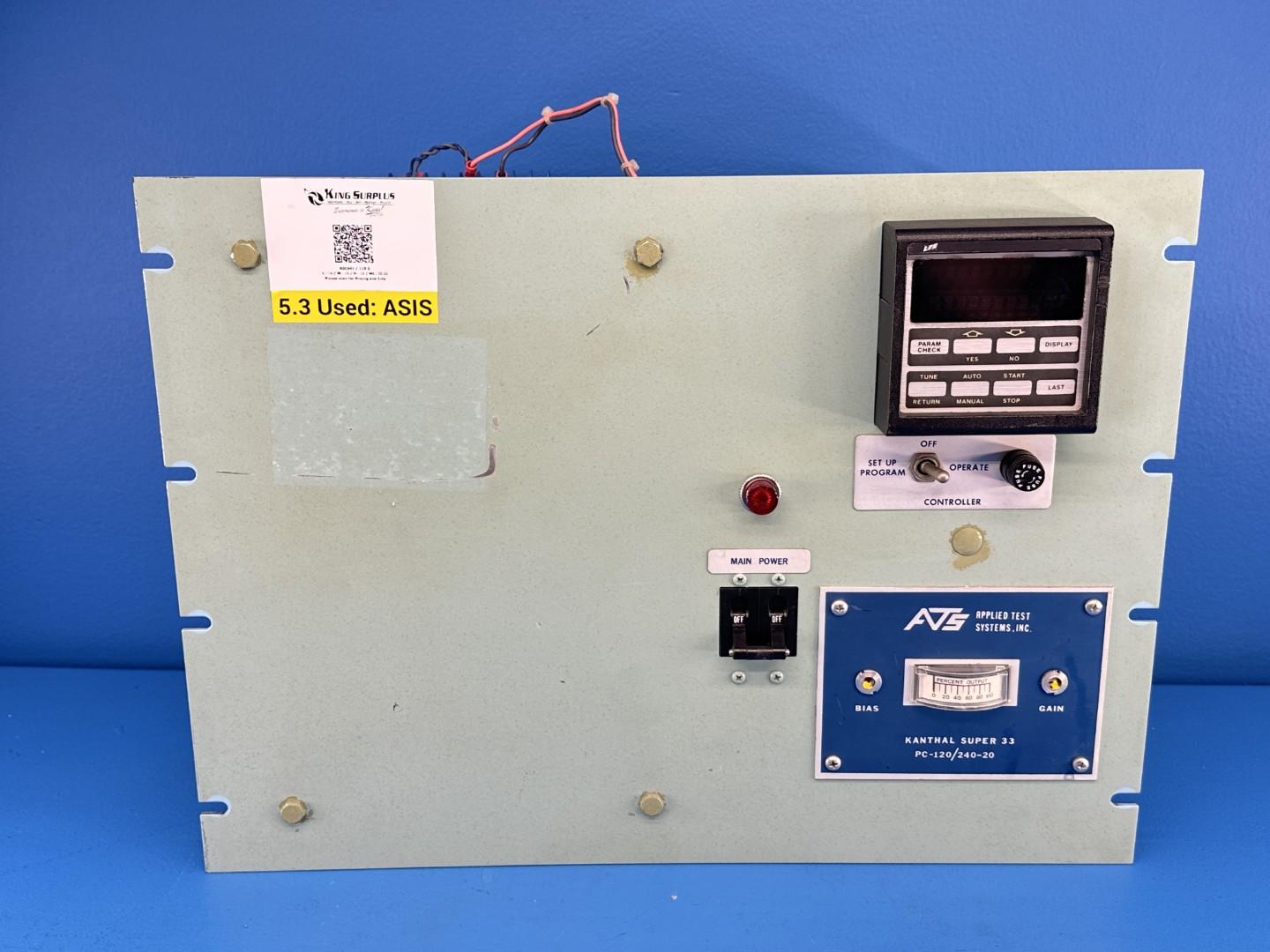

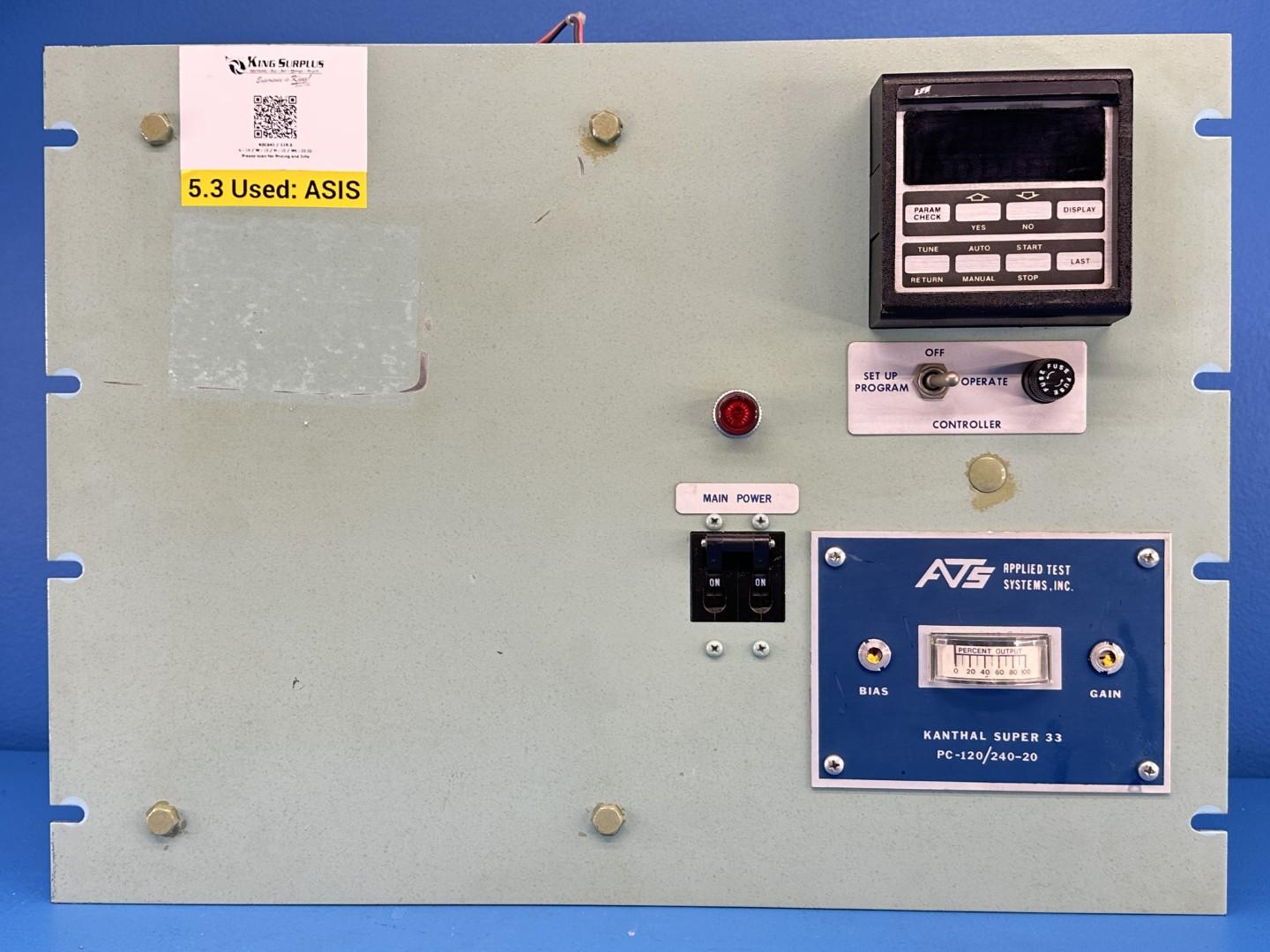

Front panel / controls

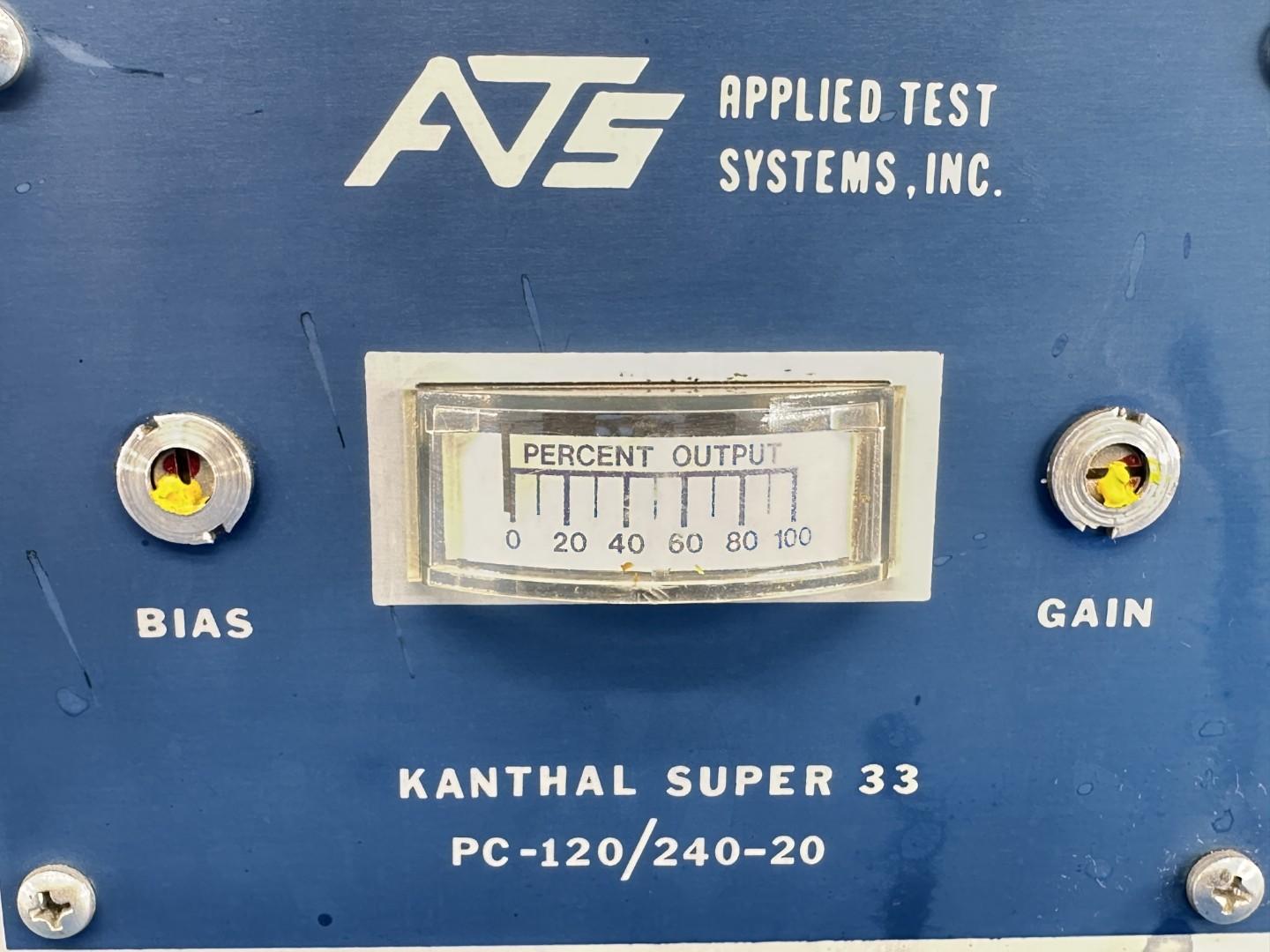

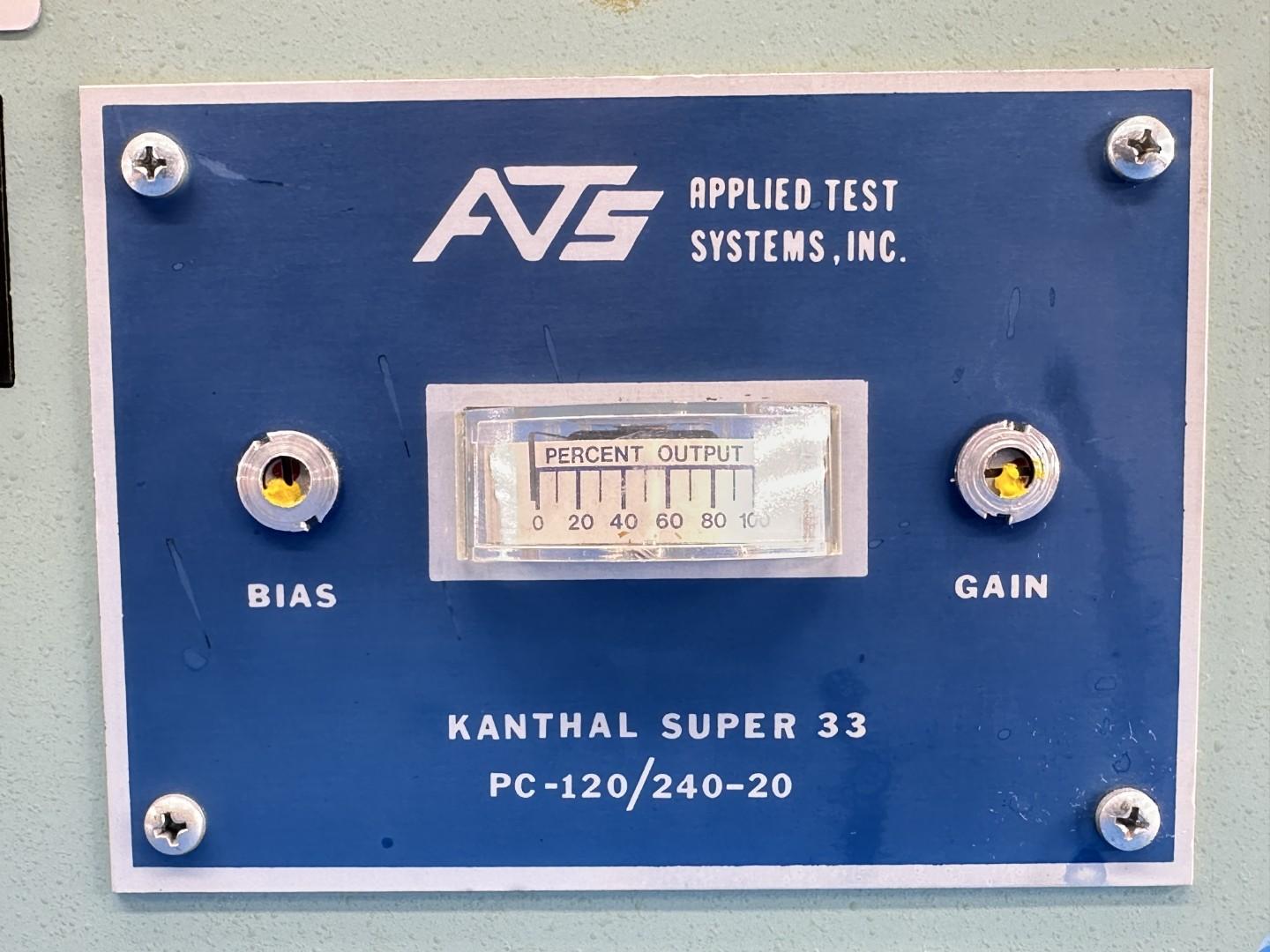

- ATS SCR power-control front module — BIAS + GAIN trim, PERCENT OUTPUT analog meter

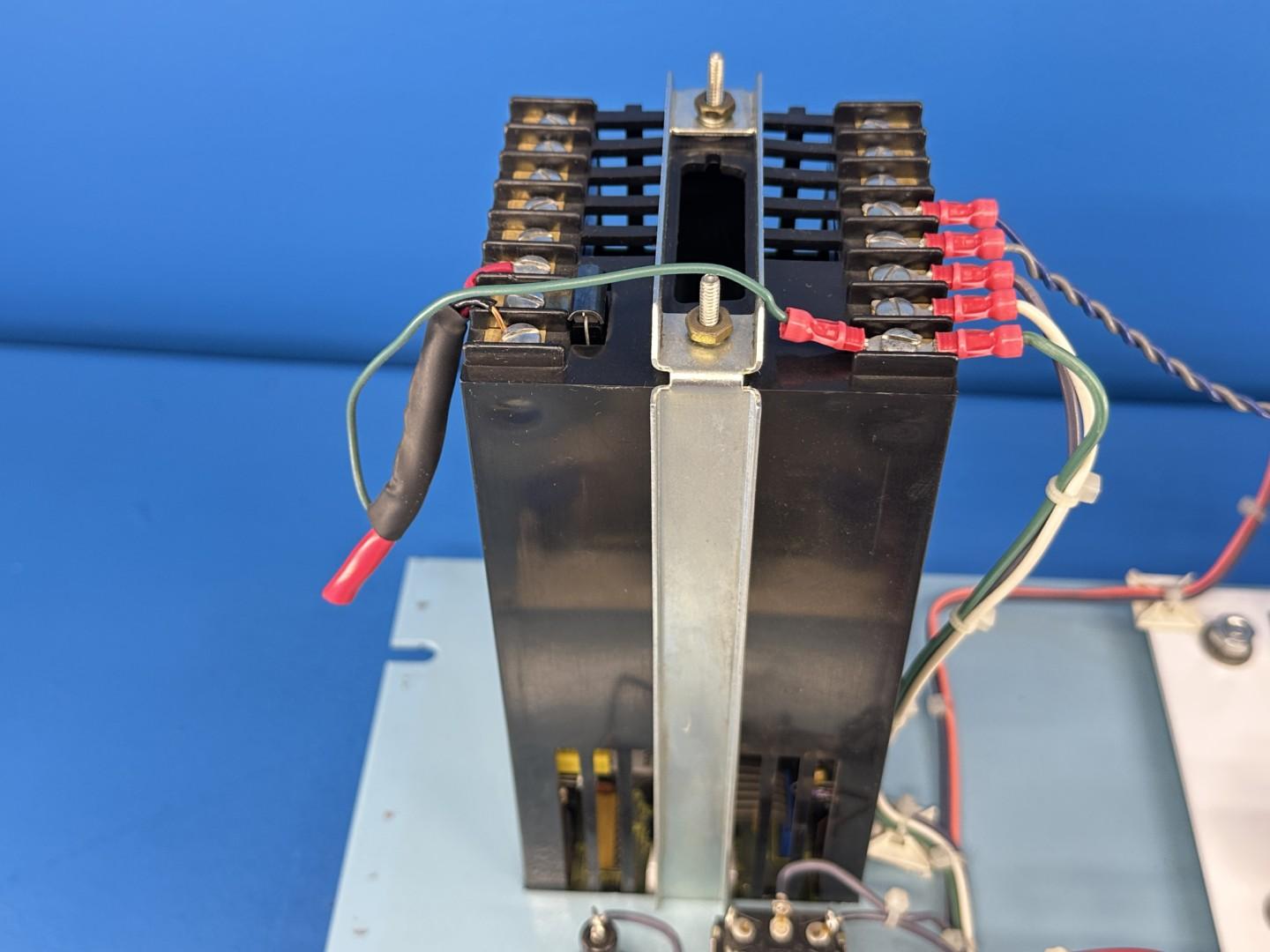

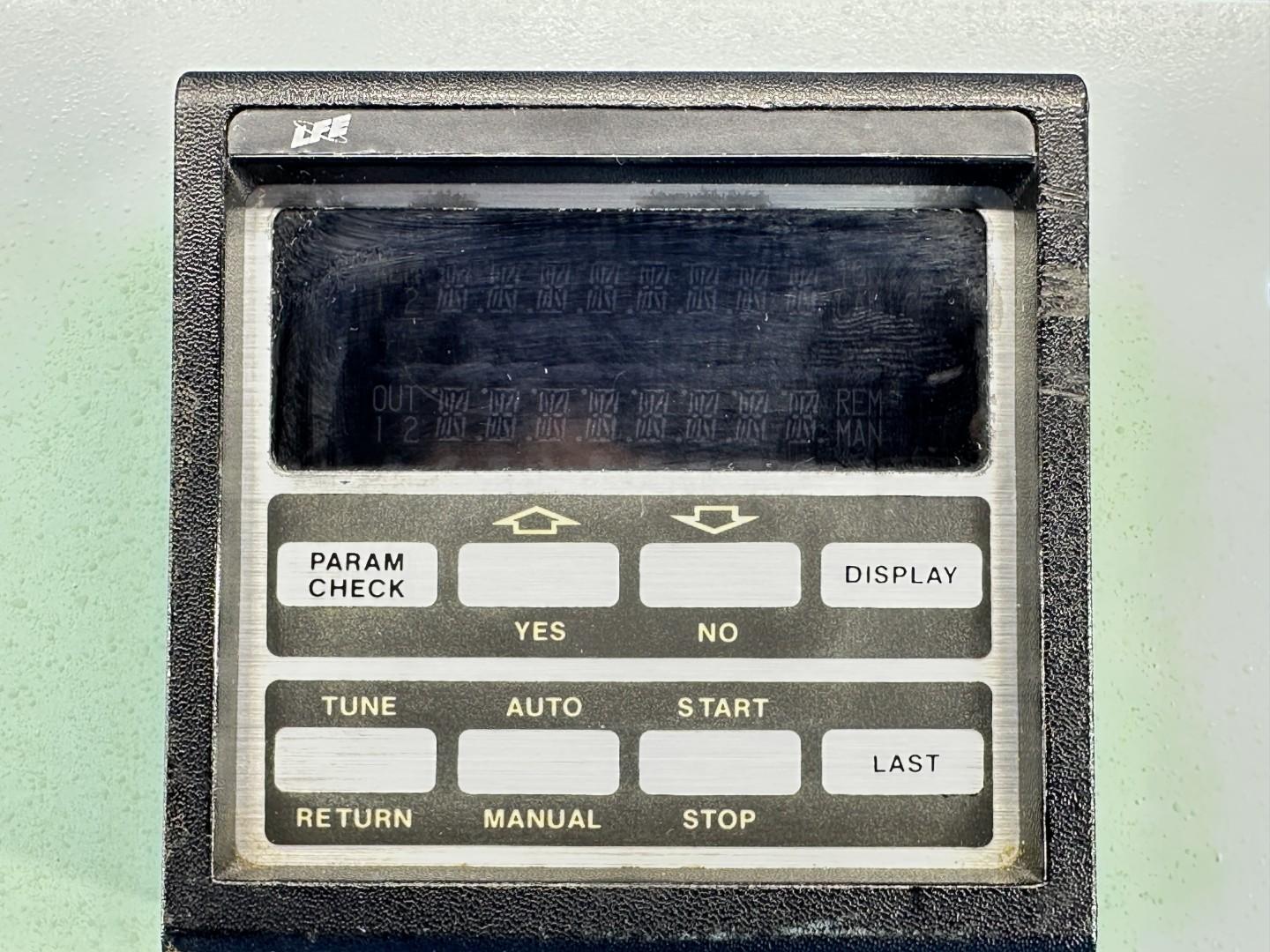

- Digital ramp/soak temperature programmer (PARAM / DISPLAY / TIME / AUTO / START / MANUAL / STOP keys)

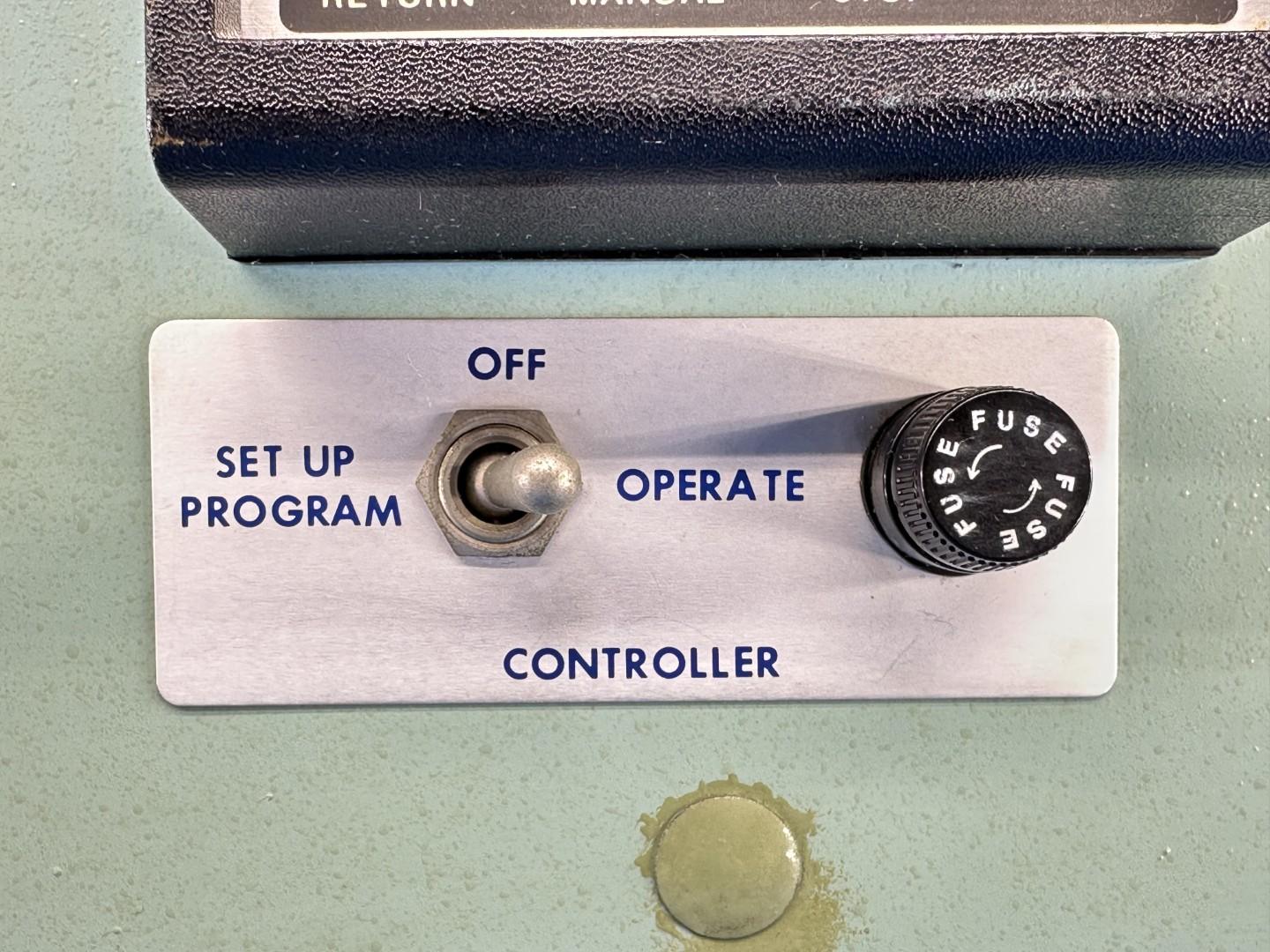

- SET UP PROGRAM / OFF / OPERATE rotary mode selector (CONTROLLER)

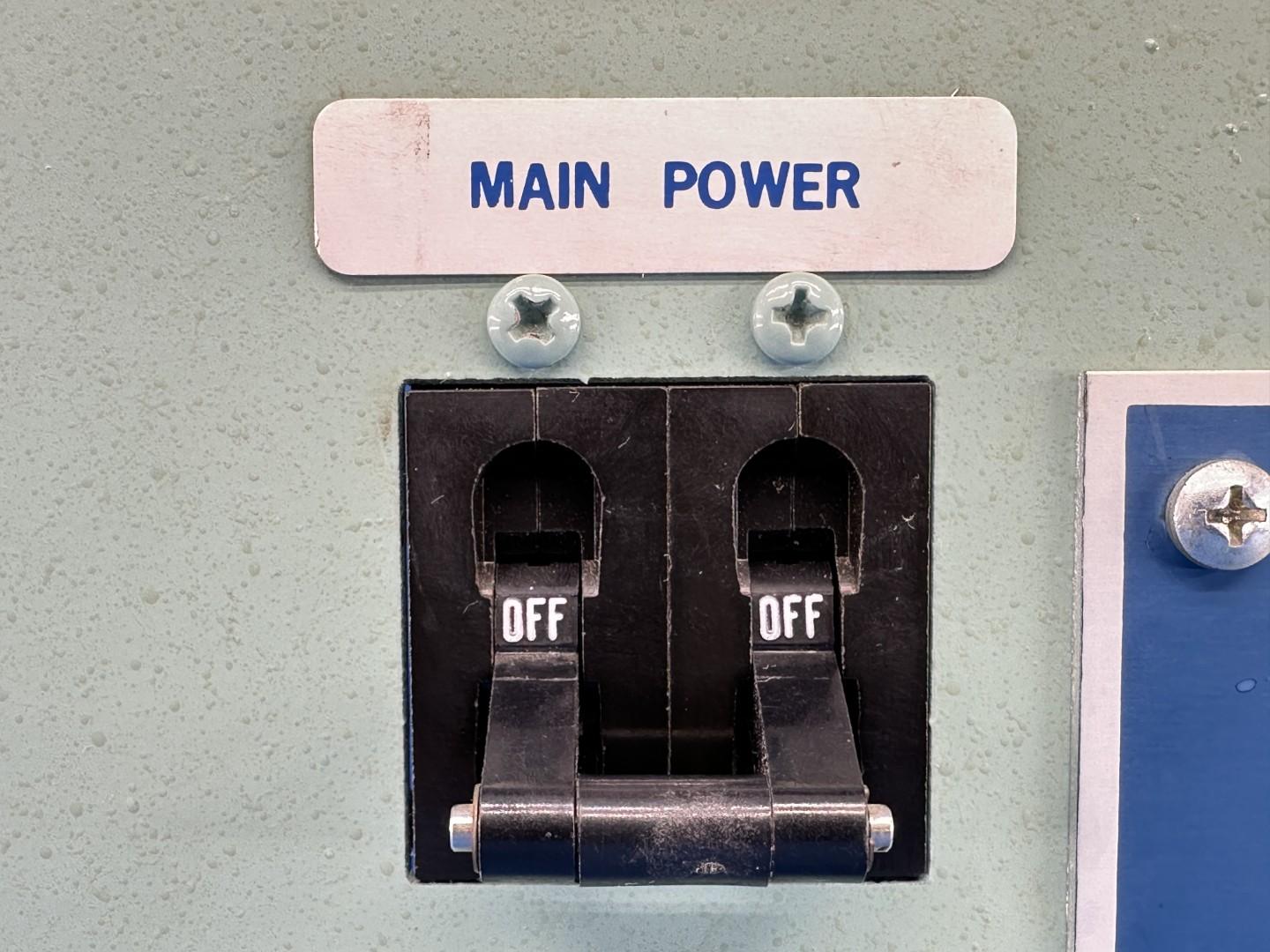

- MAIN POWER rocker switch with dual fuse holders

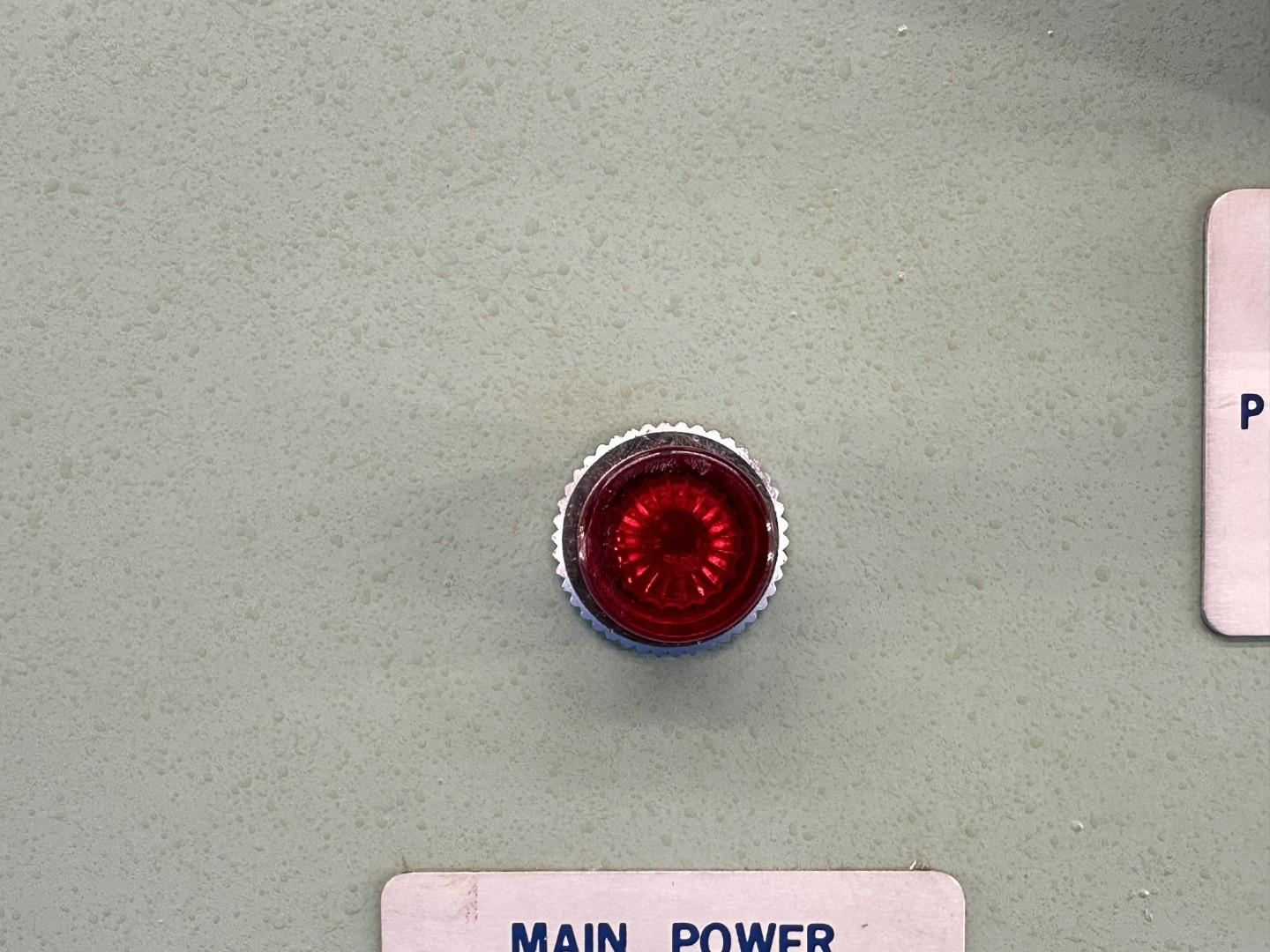

- MAIN POWER red indicator lamp

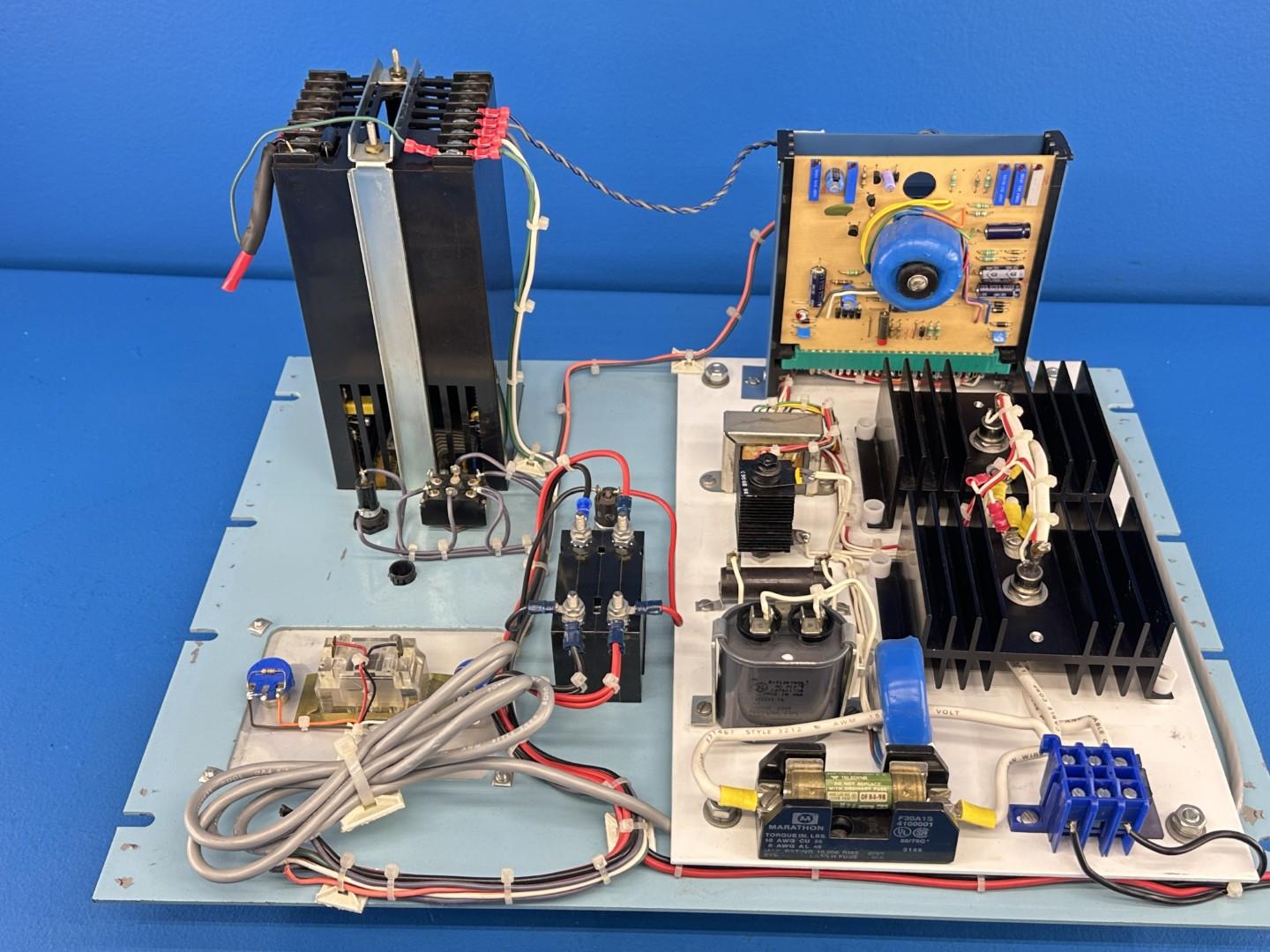

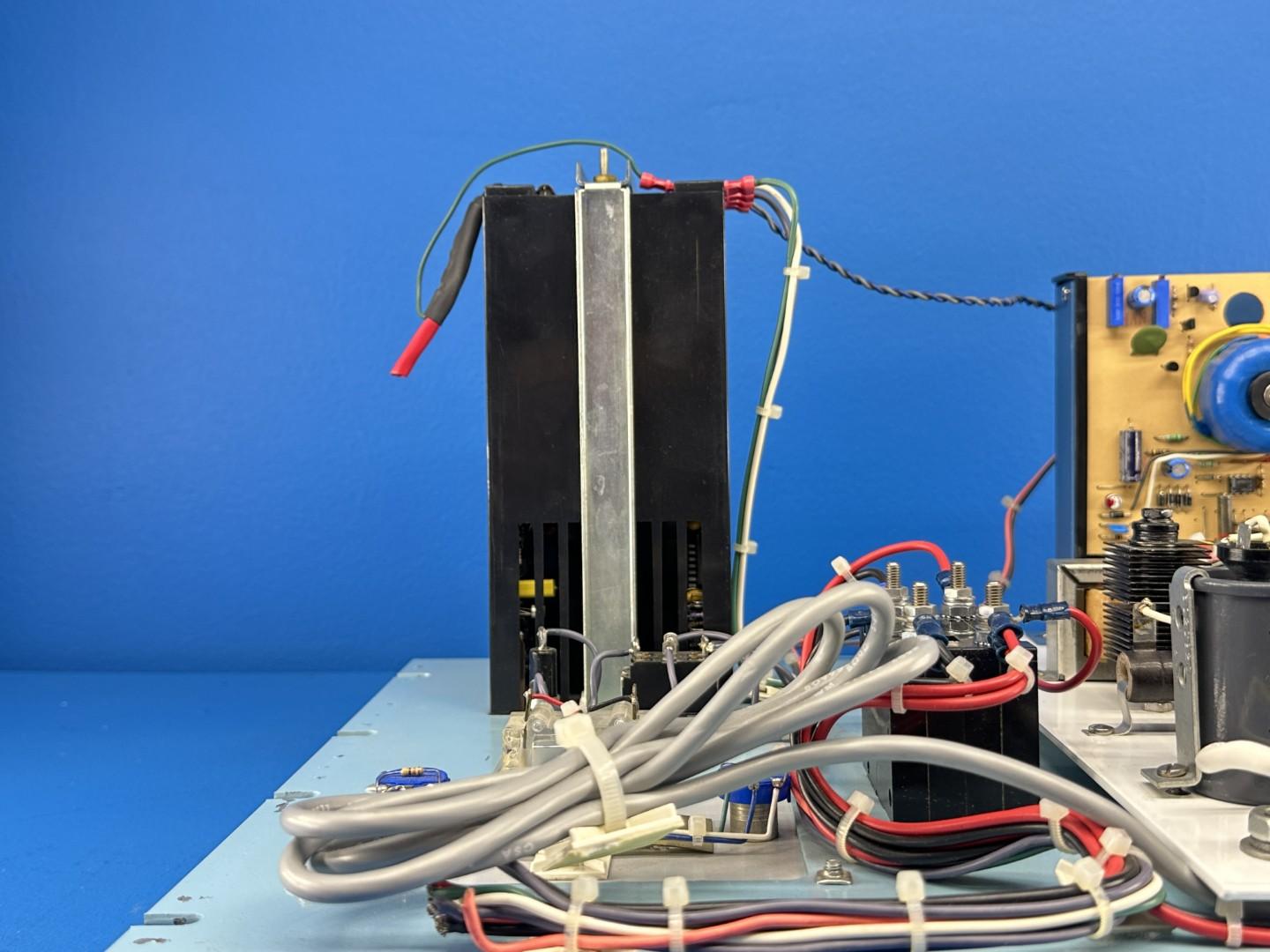

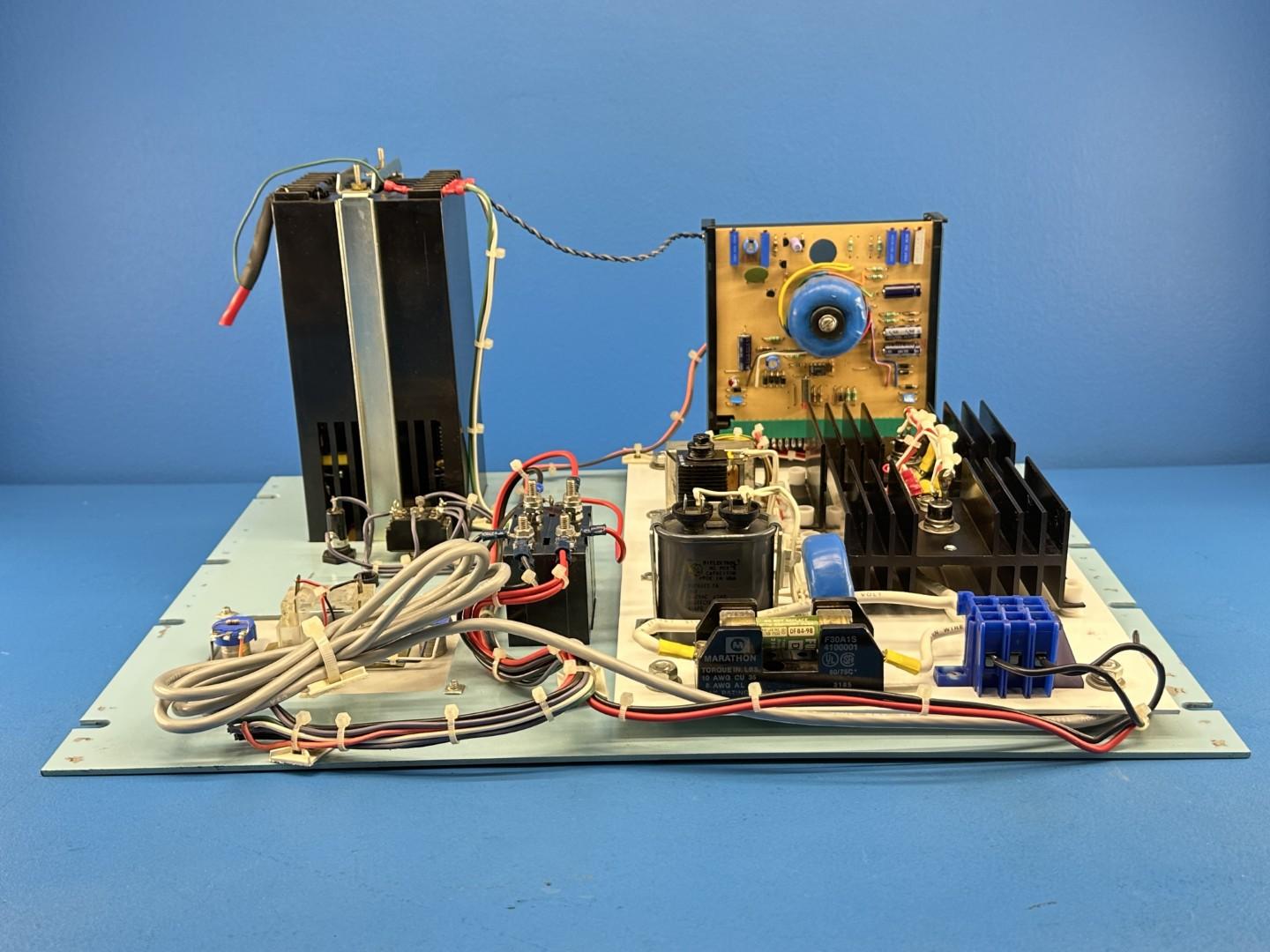

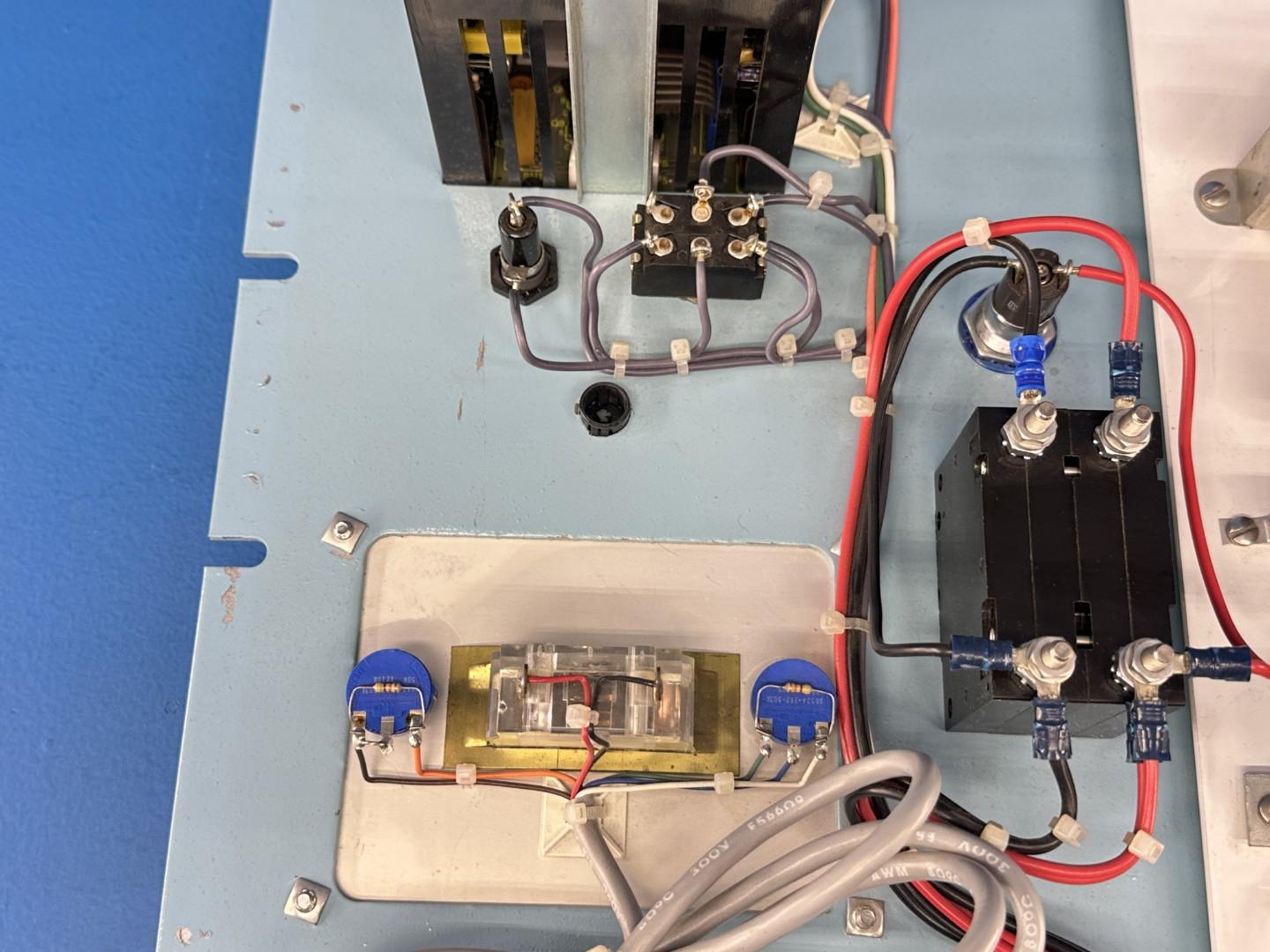

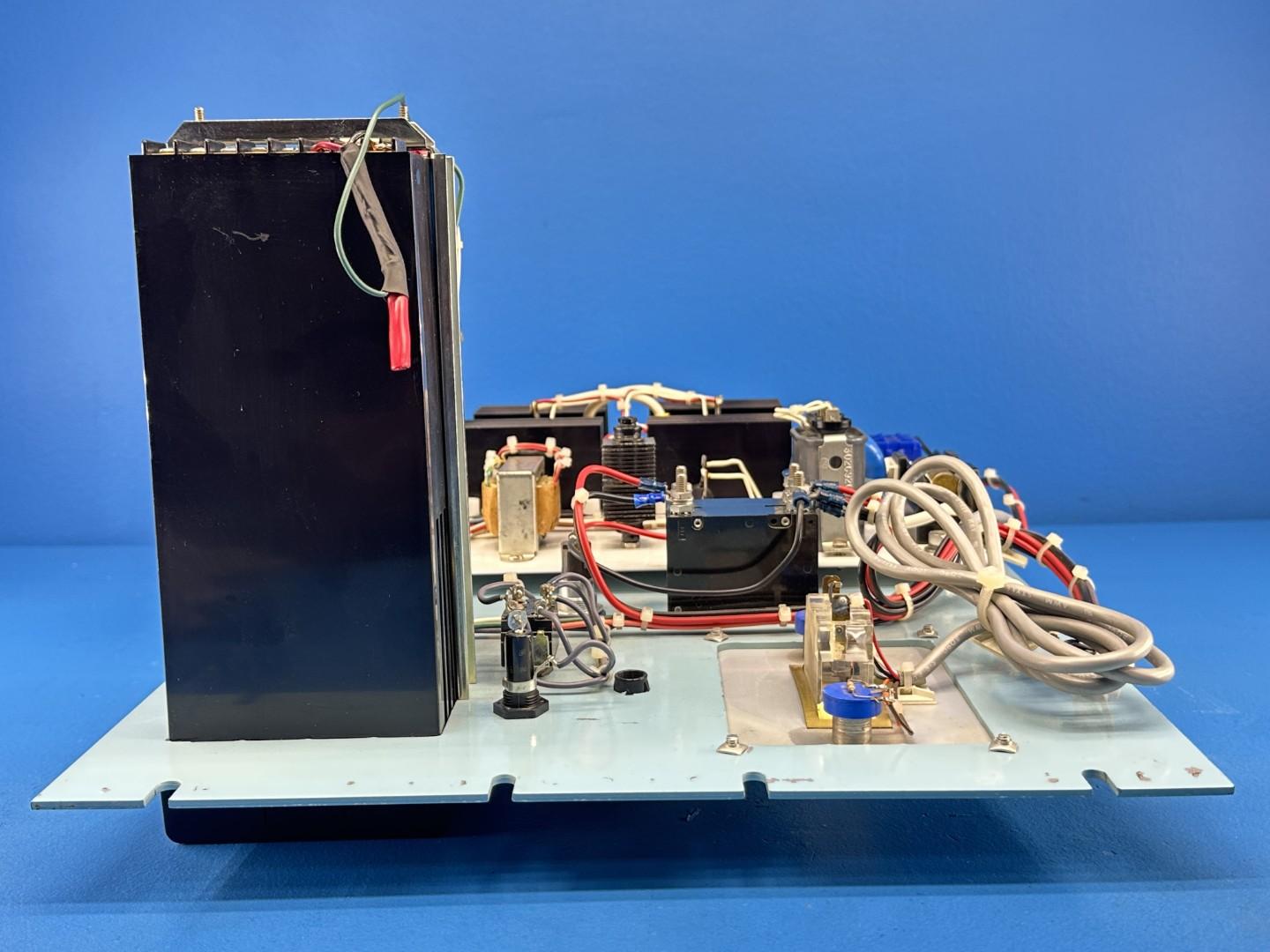

Internal power / control components

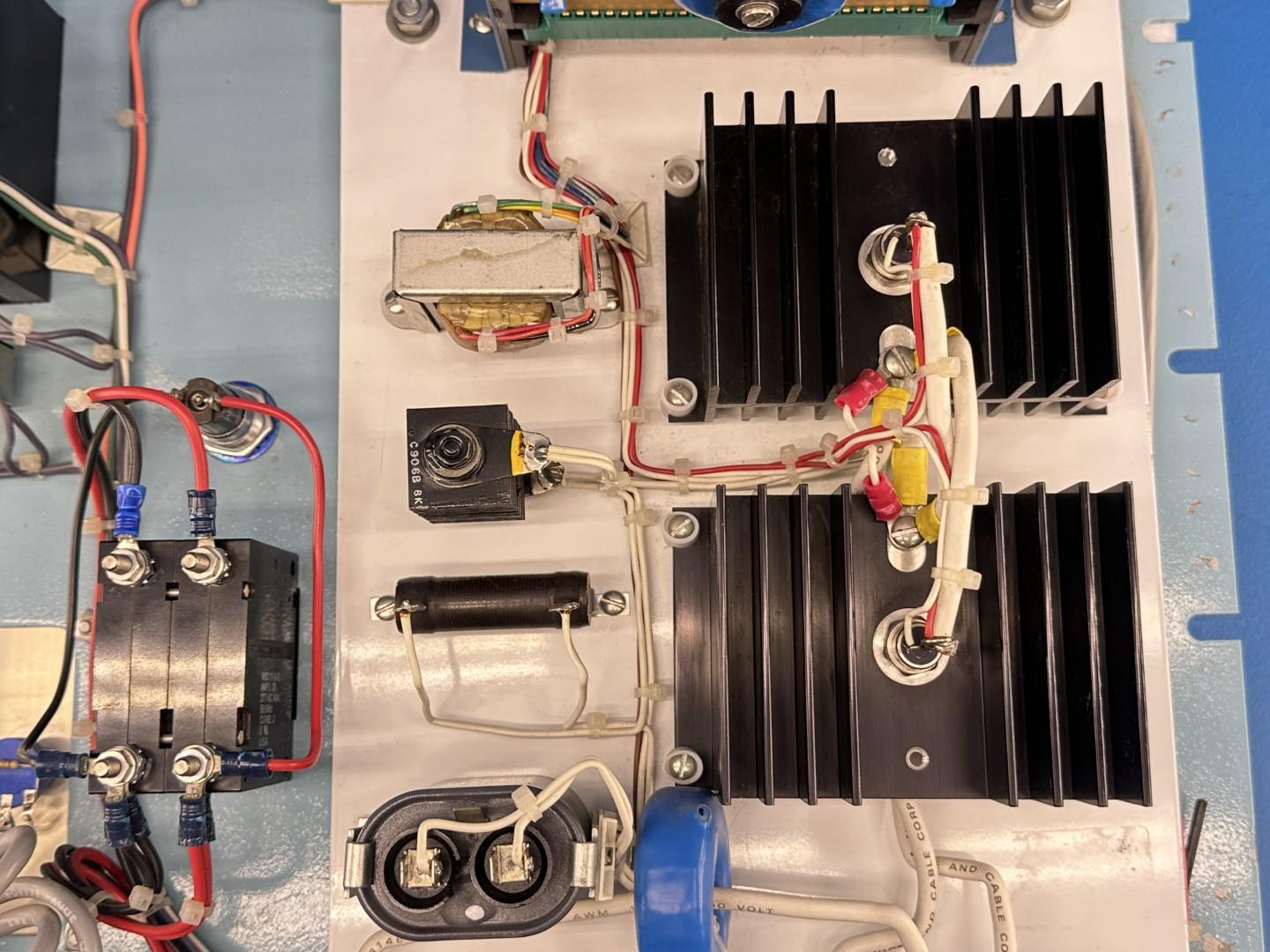

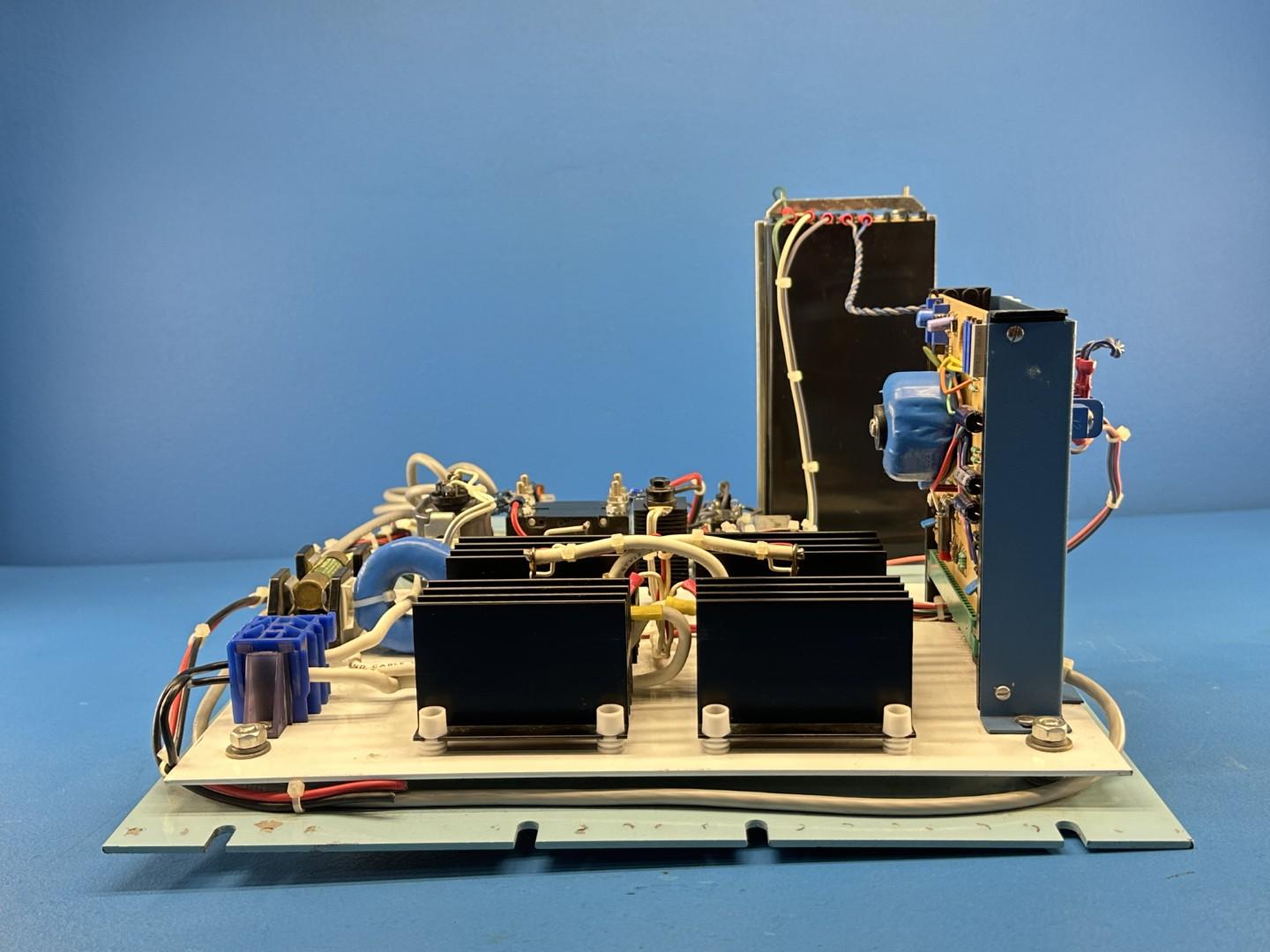

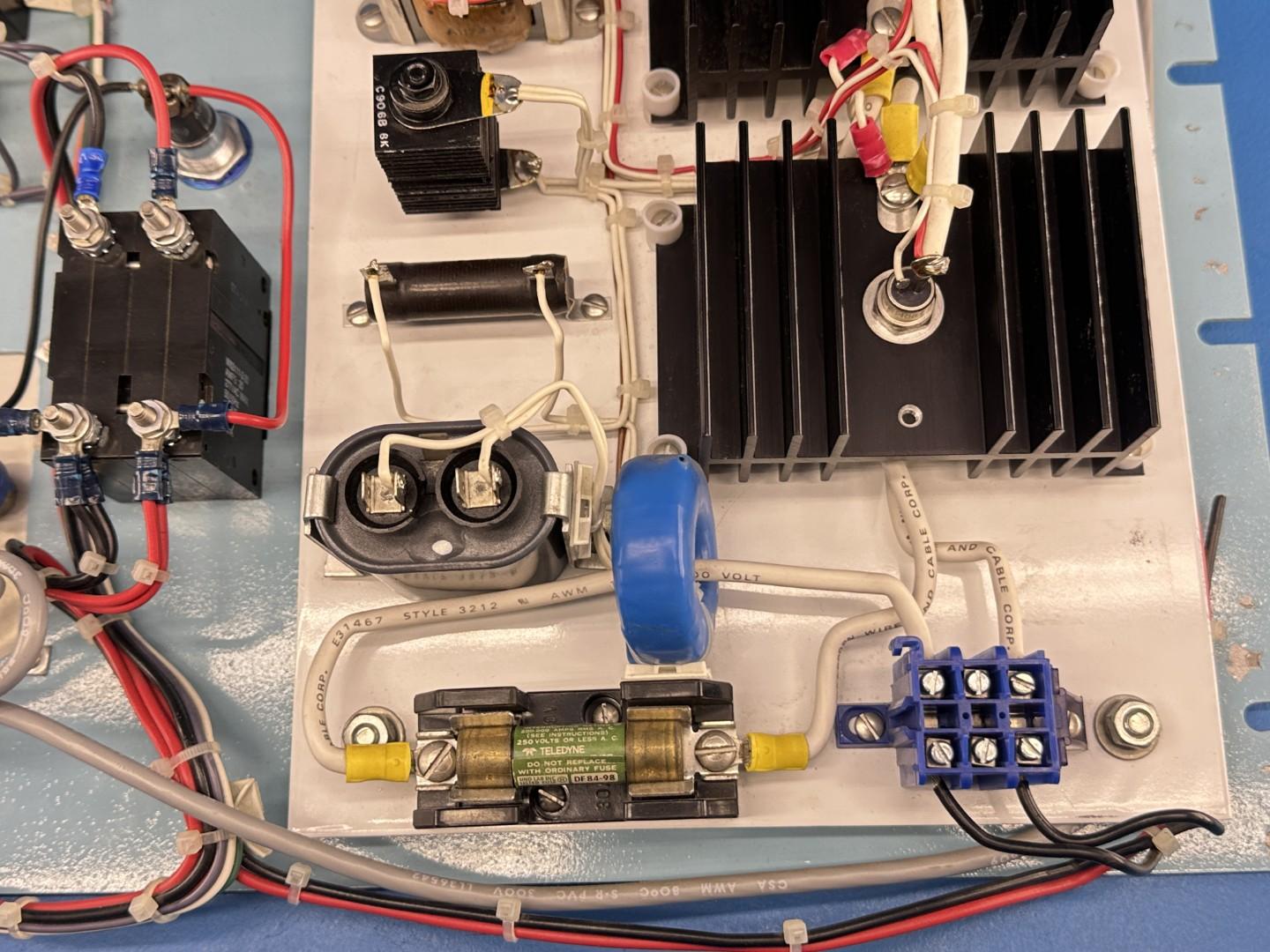

- Two finned SCR power / heatsink stacks (proportional power-output stage)
- Control transformer
- Run / filter capacitors (black cylindrical + blue)
- Fuse block with fuses
- Relay

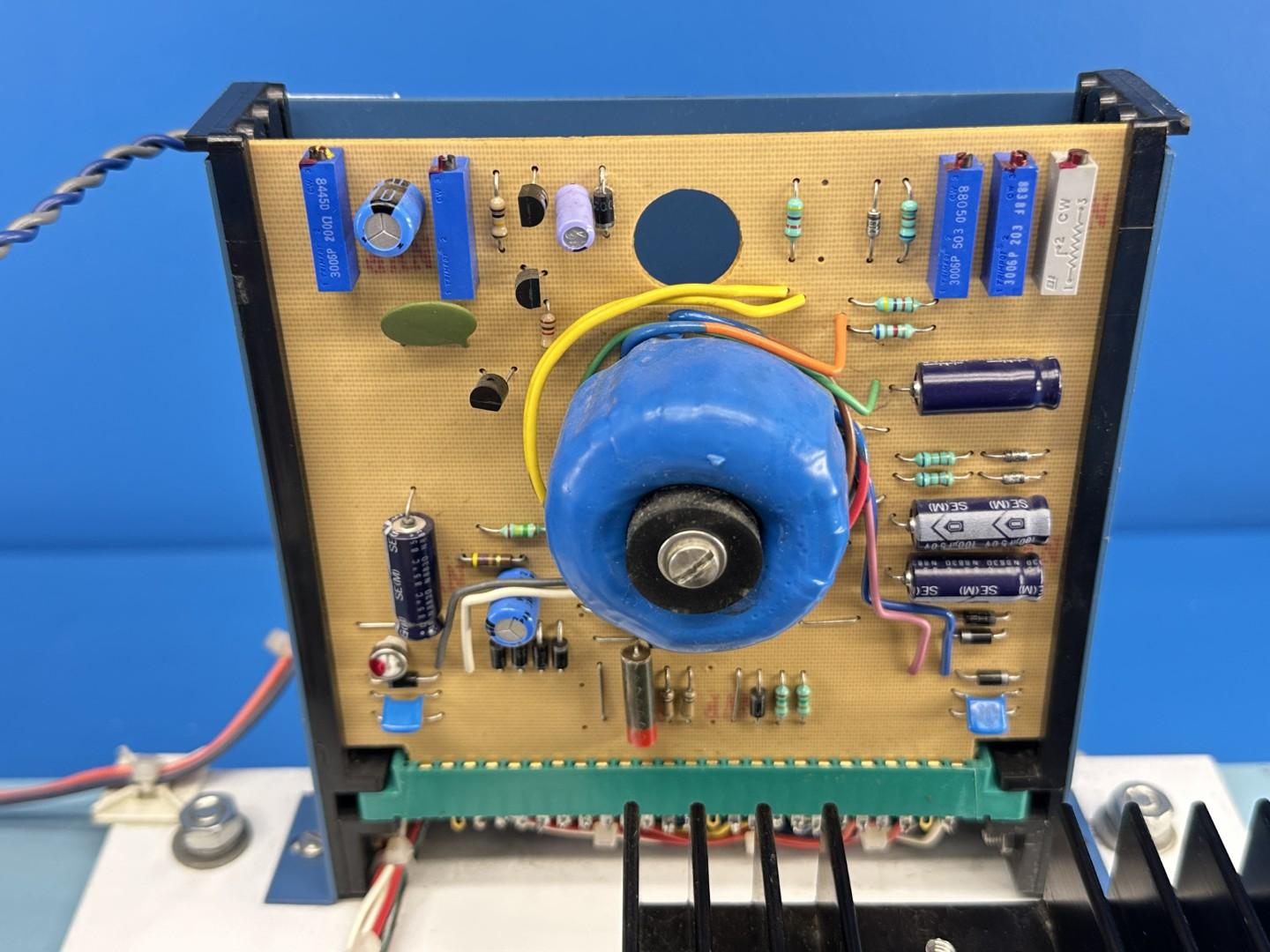

- Control PCB (programmer board with onboard transformer and trim pots)

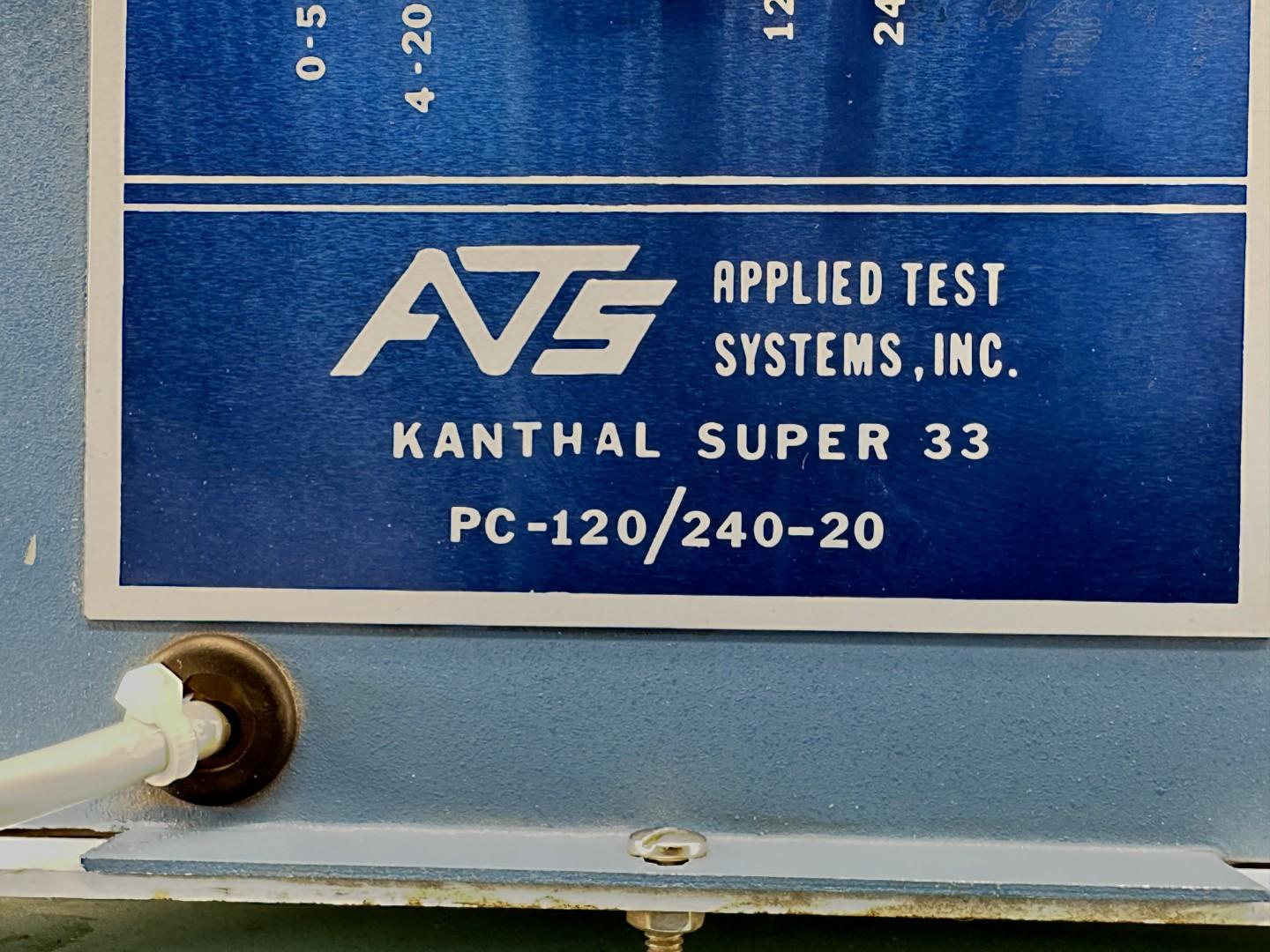

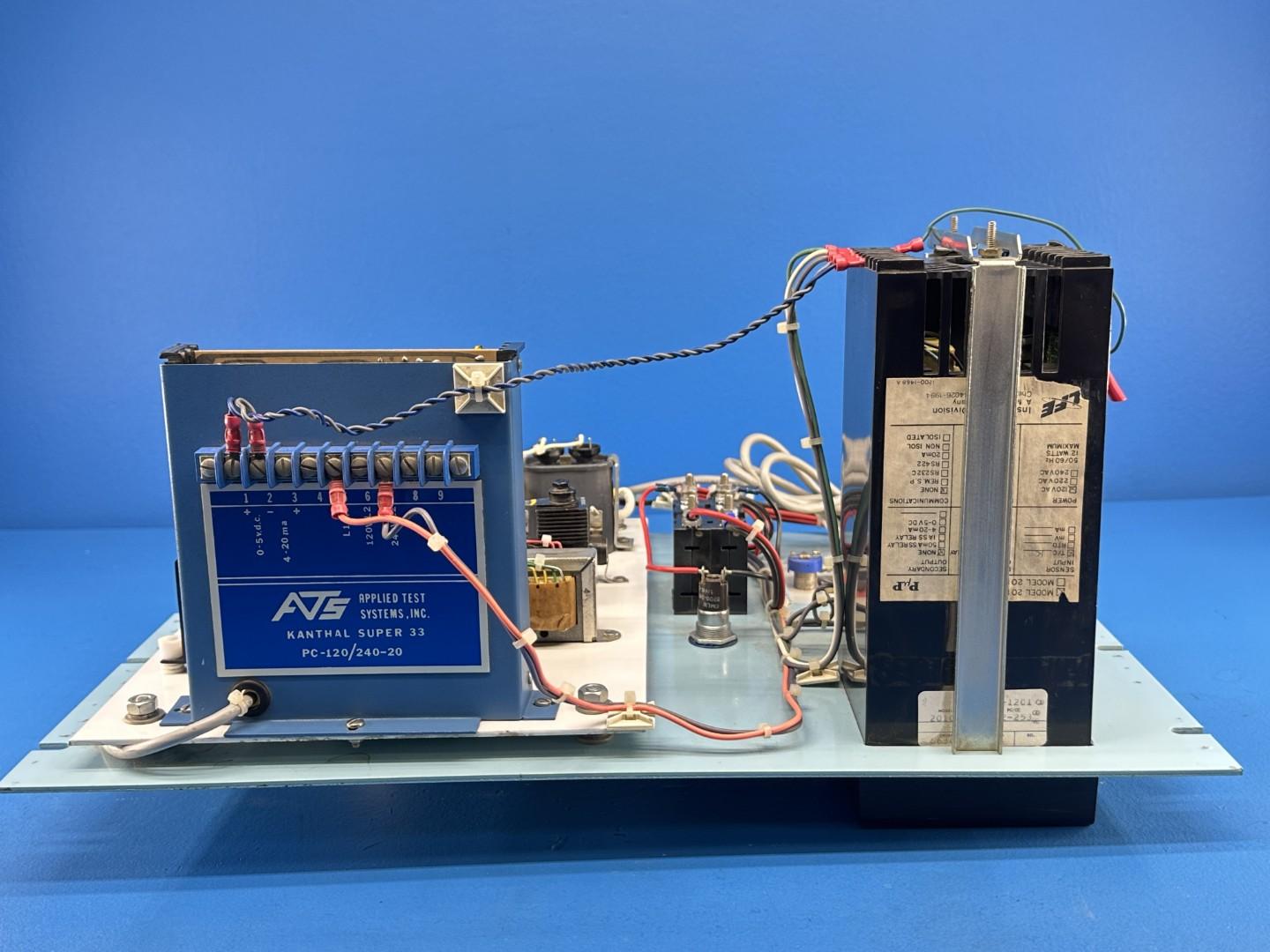

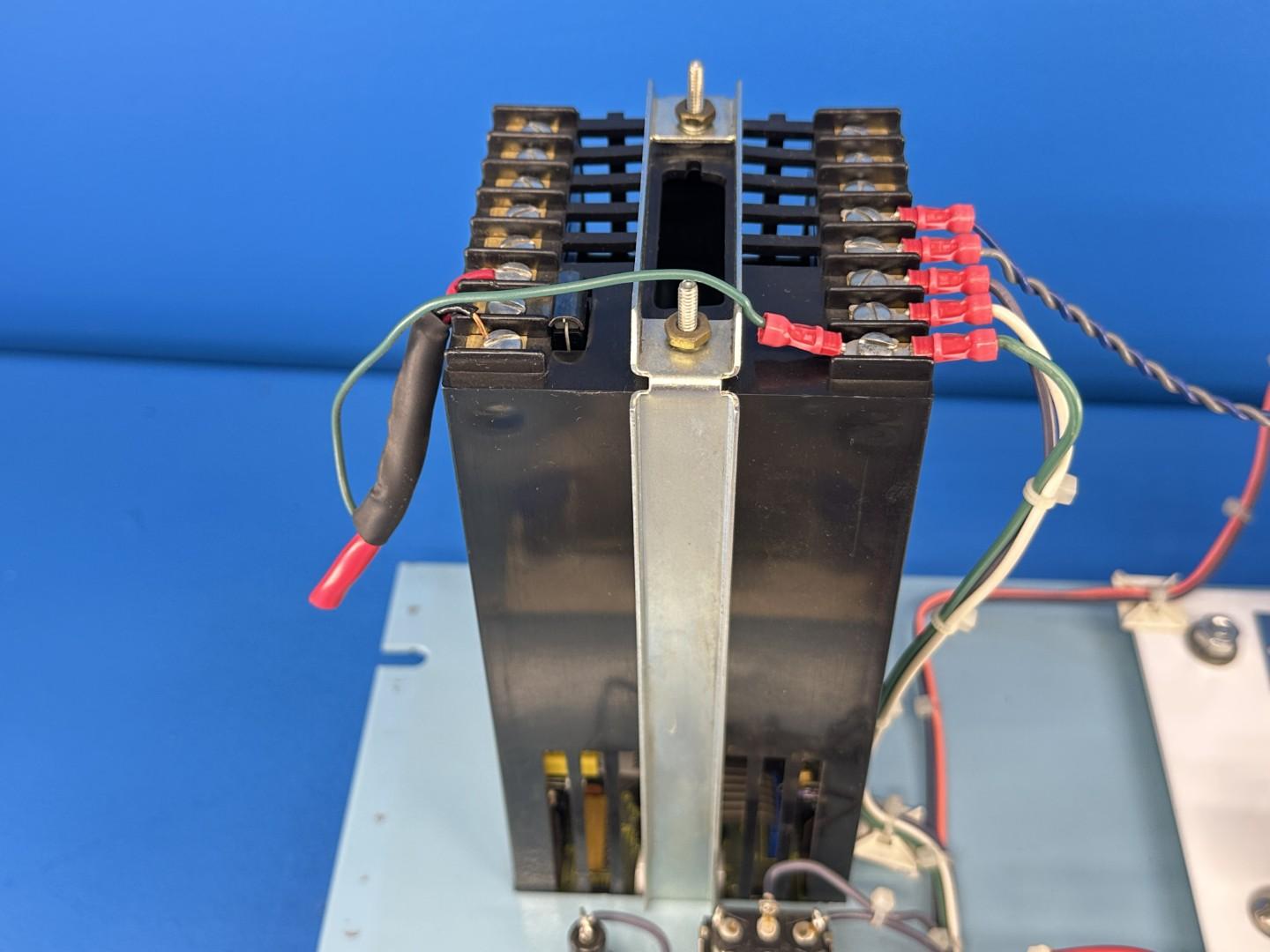

- 9-position ATS control terminal strip — marked 0-5 VDC, 4-20 mA, 120, 240
- Blue power terminal block

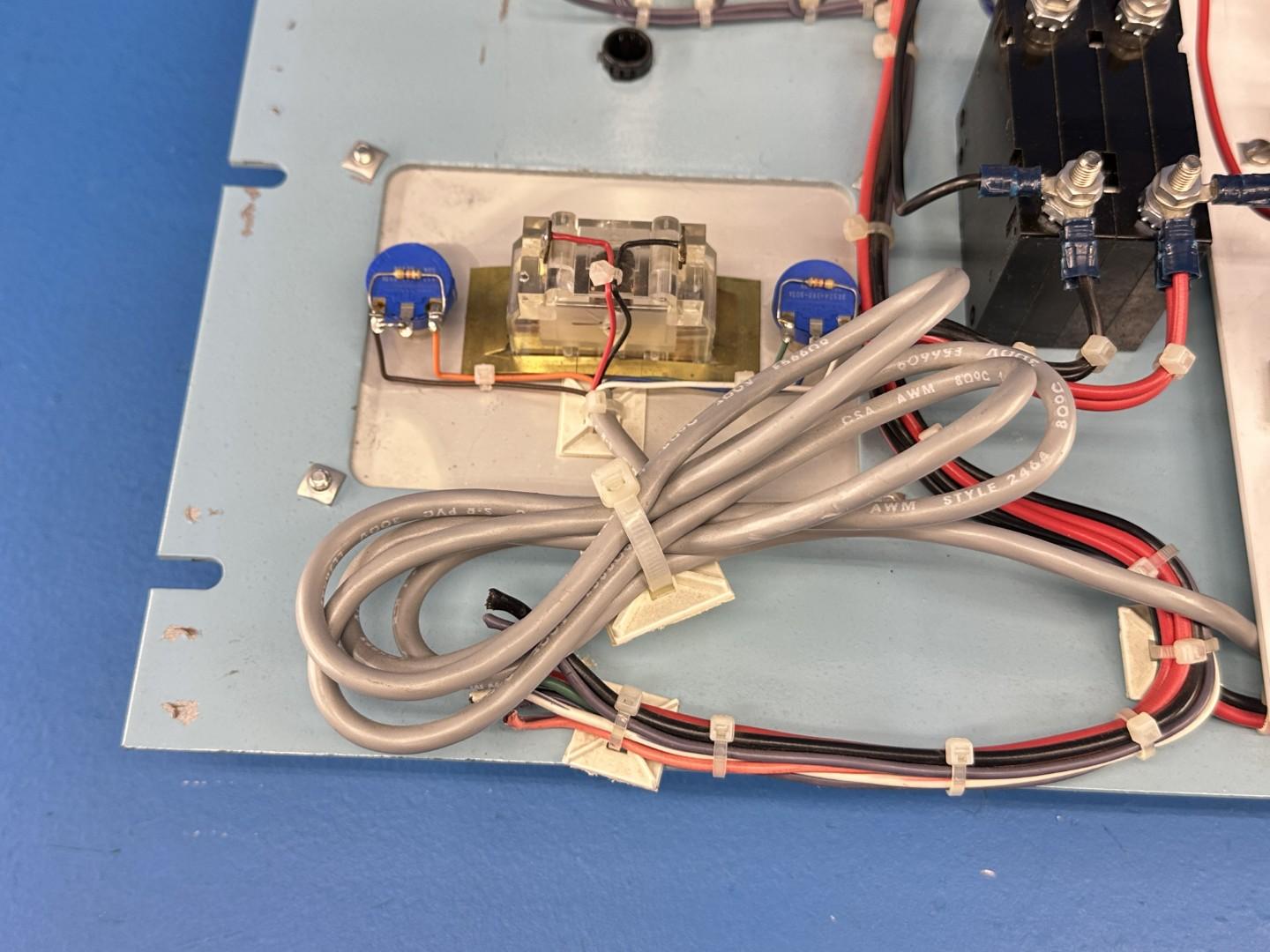

- Wiring harness (spade connectors, cable ties) on a steel base plate
Specifications
Applied Test Systems
Kanthal Super 33 PC-120/240-20
N/A
N/A
N/A
20
14
19
10
1
5
25
KSC641 / 119.3
Packaging fees
1.6 6x10 CH $3.00
