Colson 6" x 2" Rubber on Cast Iron Caster Wheel with Grease Fitting
Caster Specifications: Wheel Size, Material & Mounting
Load Capacity & Applications for This Caster
| Description | Details |
|---|---|
| Available Quantity | 2 |
| Model | 5.0006.64 |
| Condition | New |
| Manufacturer | Colson Caster |
| Asset Number | KSC1290 / 2066 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 1.1 Appears Unused no box |
| Packaging Cost | 1.6 6x10 CH $3.00 |
$19.95
Basic Information
Asset #
KSC1290 / 2066
Available Quantity
2
Inspections - Yellow Tag
1.1 Appears Unused no box
Condition
New
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

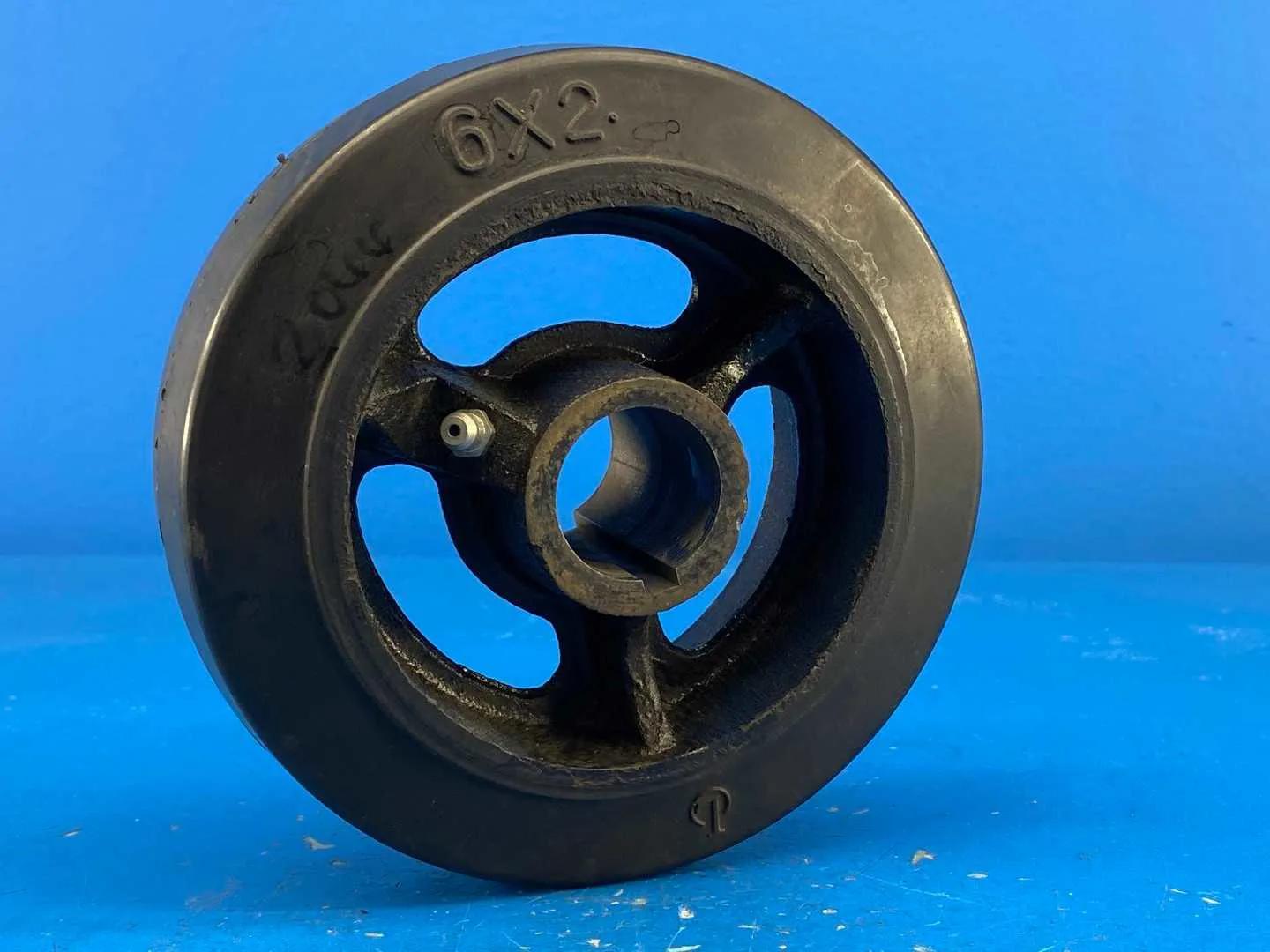

This is a 6 x 2 inch rubber tread caster wheel on a cast hub, listed on the record as Colson part 5.00006.64. In the Colson catalog the 5.00006.64 family is the 6 inch diameter, 2 inch wide Moldon Rubber wheel, with the final digits of the full number (641.7 or 649.7) choosing a Delrin or roller bearing.
Colson describes Moldon rubber as rubber bonded to a cast iron core, giving a wheel that runs quietly and absorbs shock and vibration to protect equipment and cargo. The catalog rates the 6 x 2 size at 450 pounds per wheel, with a 70 Shore A tread, a 2-3/16 inch hub length and a 1/2 inch bore spanner bushing, for use from -45 F to +160 F.
Wheels in this size fit 2 inch tread width caster rigs on carts, dollies, hand trucks, racks and light industrial equipment. Material handling buyers and maintenance departments order replacement wheels by diameter, tread width, hub length and axle bore so that the wheel fits the existing caster yoke and axle. The wheel carries a molded 6X2 size mark.
Available from King Surplus inventory in Del Rio, Texas.
Factory Information
- Record Part Number: 5.00006.64 (incomplete; Colson catalog numbers in this family are 5.00006.641.7 Delrin bearing and 5.00006.649.7 roller bearing)
- Wheel Type: Moldon rubber bonded to a cast iron core (Colson 5.00006.64x family)
- Wheel Diameter: 6 in
- Tread Width: 2 in
- Capacity: 450 lbs each
- Bearing Bore: 3/4 in; less-bearing bore 1-3/16 in
- Hub Length: 2-3/16 in
- Spanner Bushing: 1/2 in bore x 2-7/16 in length
- Tread Hardness: 70 (+/-5) Shore A
- Temperature Range: -45 F to +160 F
- Core Finish: Black painted cast iron
- Catalog Weight: 5-5/8 lbs

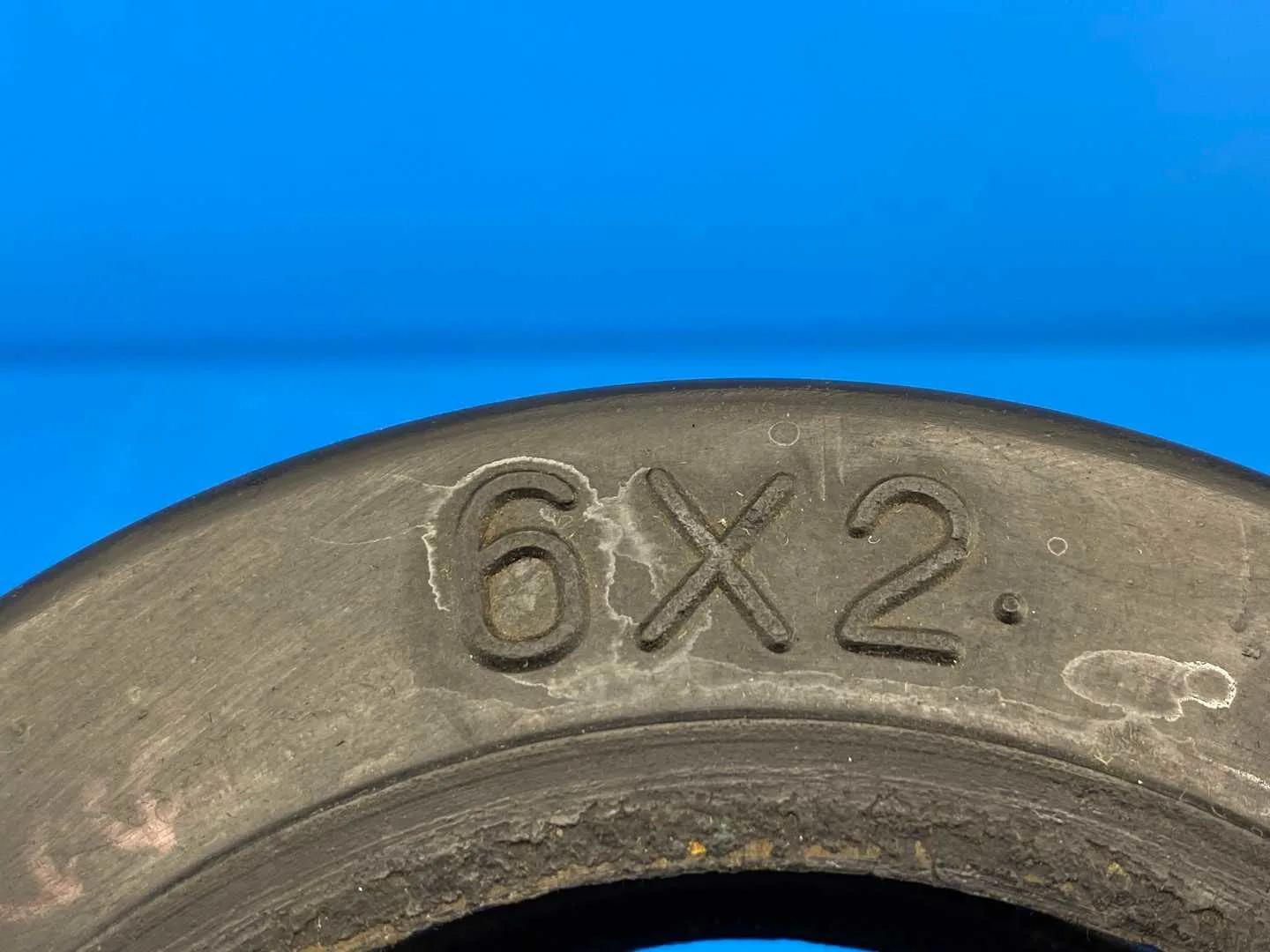

- Molded Marking (photo): 6X2

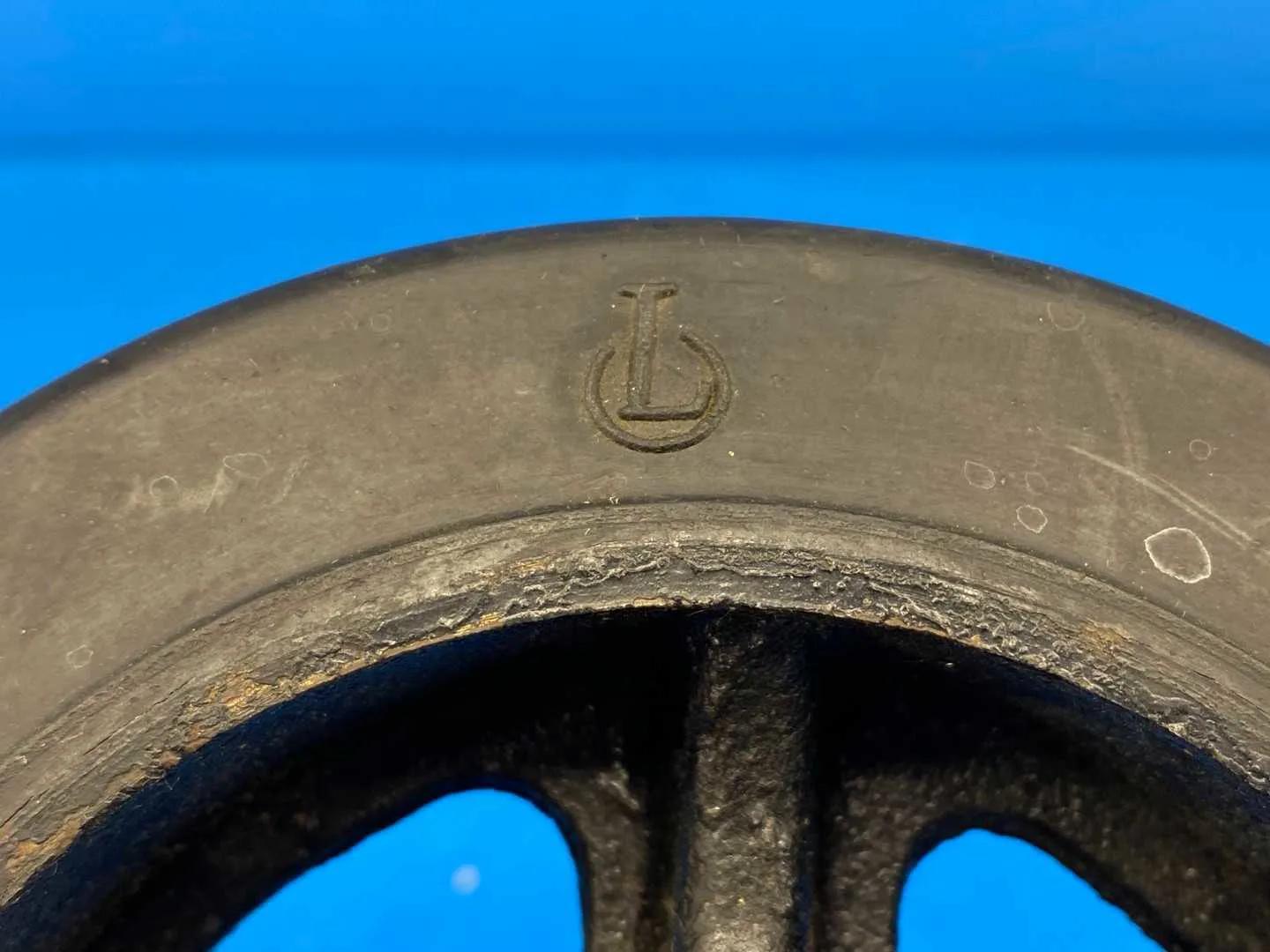

- FLAG for review: photos show only 6X2 and an embossed L-in-circle logo; no Colson name or part number is visible on the wheel, and the bearing digit is missing from the record part number
- Spec Basis: Colson Caster 2020 catalog, Wheels section, Moldon Rubber Cast Iron Wheels table (https://resources.colsongroup.com/colson/pdfs/series/ColsonCatalog2020_R3_Wheels.pdf); photos
Specifications
Colson Caster
5.0006.64
N/A
N/A
N/A
N/A
6
6
2
N/A
2
6
KSC1290 / 2066
Packaging fees
1.6 6x10 CH $3.00
