2020, 42 Stage Horizontal High Pressure Multi-Stage Pump DXP Pumpworks HP-Plus HP 675-9000 w/ 500 HP Toshiba Motor 460V 541 Amps
HP 675-9000 Pump Specifications: Flow, Head & Power
Service Applications & Fitment for Pump Works HP 675-9000
| Description | Details |
|---|---|
| Available Quantity | 1 |
| Model | HP 675-9000 |
| Condition | Used |
| Manufacturer | Pump Works |
| Asset Number | KSC1364 / 6212 |
| Guarantee or ASIS | 2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return |
| Inspections - Yellow Tag | 4. Used: Powered up in our shop and appears to be functional |
| Packaging Cost |
$57,999.95
$57,999.95
Basic Information
Asset #
KSC1364 / 6212
Available Quantity
1
Inspections - Yellow Tag
4. Used: Powered up in our shop and appears to be functional
Condition
Used
Guarantee or ASIS
2. WE GUARANTY OUR WORKMANSHIP & OUR WORD ONLY: 14 Day return
Item Description

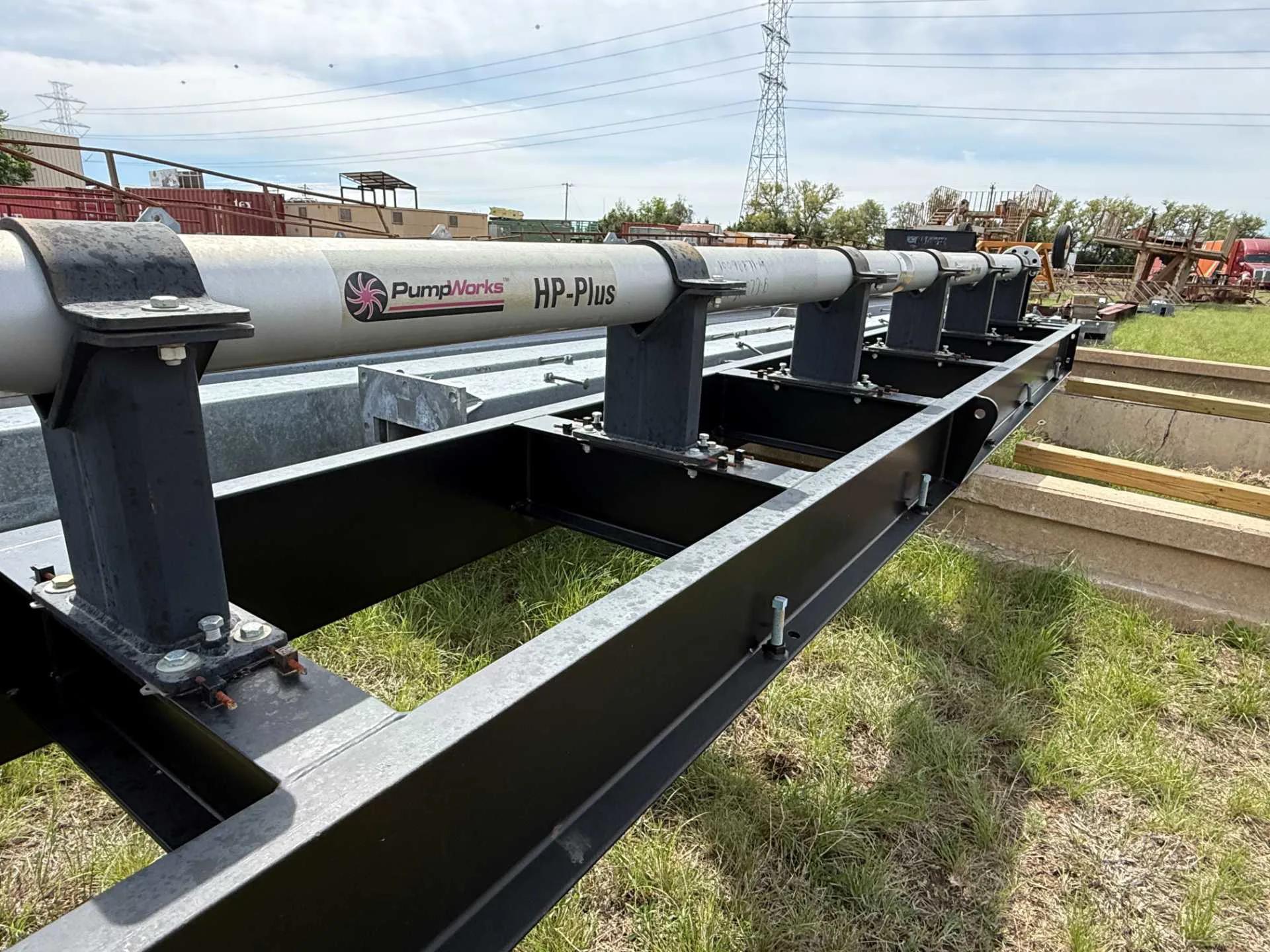

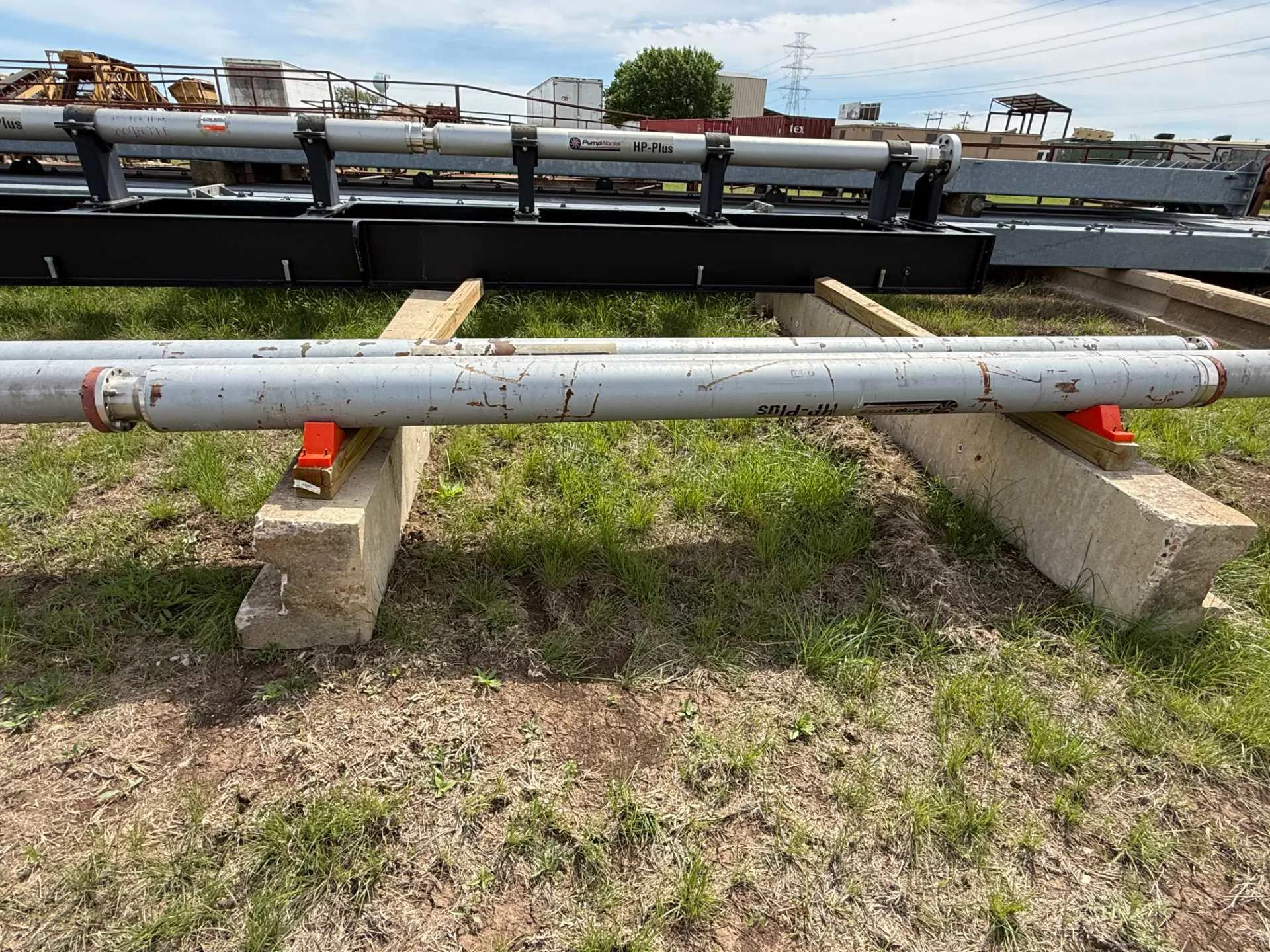

DXP PumpWorks builds the HP Plus as a horizontal, high-pressure multi-stage centrifugal pump for continuous-duty service in oilfield and energy applications. This unit, Model HP 675-9000, carries 42 stages and a maximum allowable working pressure of 2,220 PSI at 200°F, placing it at the high-head end of the HP Plus range. PumpWorks, a DXP company, engineers and tests the HP Plus line in the USA to API standards, with a Ni-Resist staging design built in compression for handling aggressive fluids.

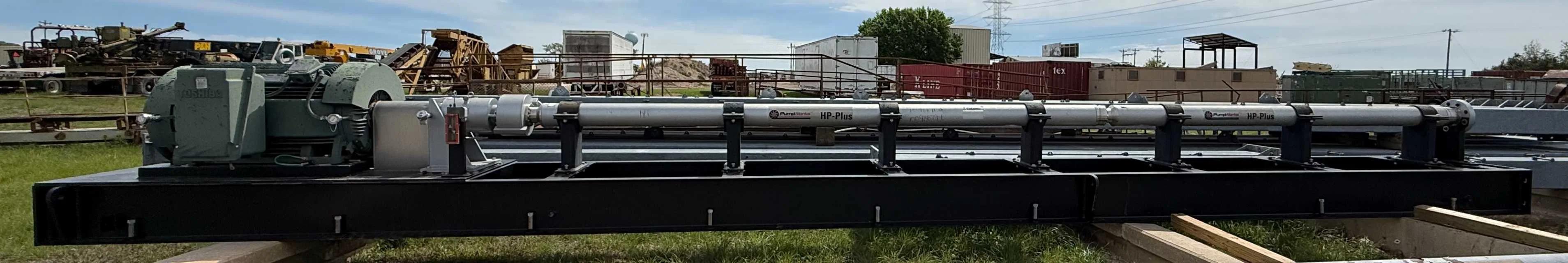

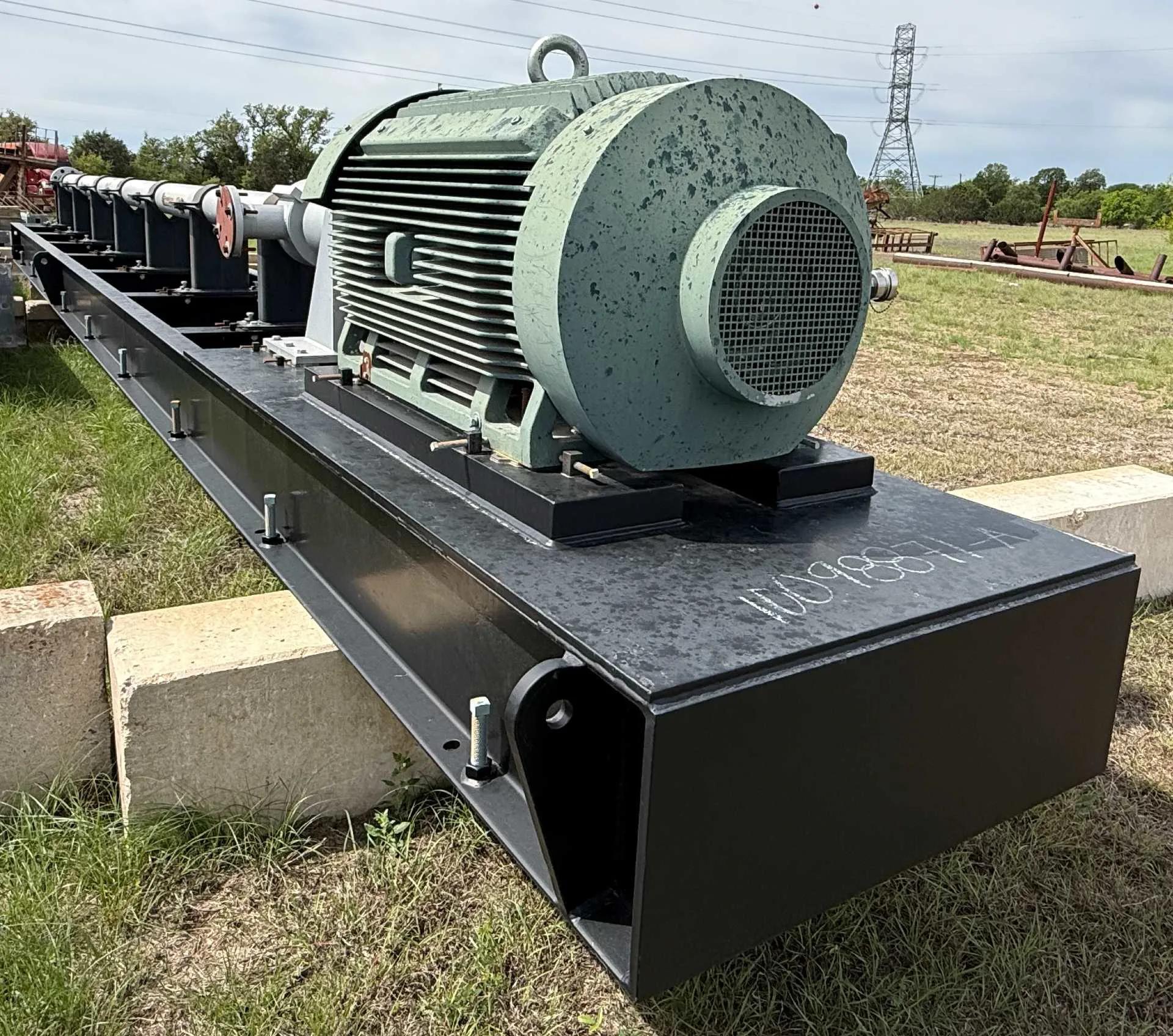

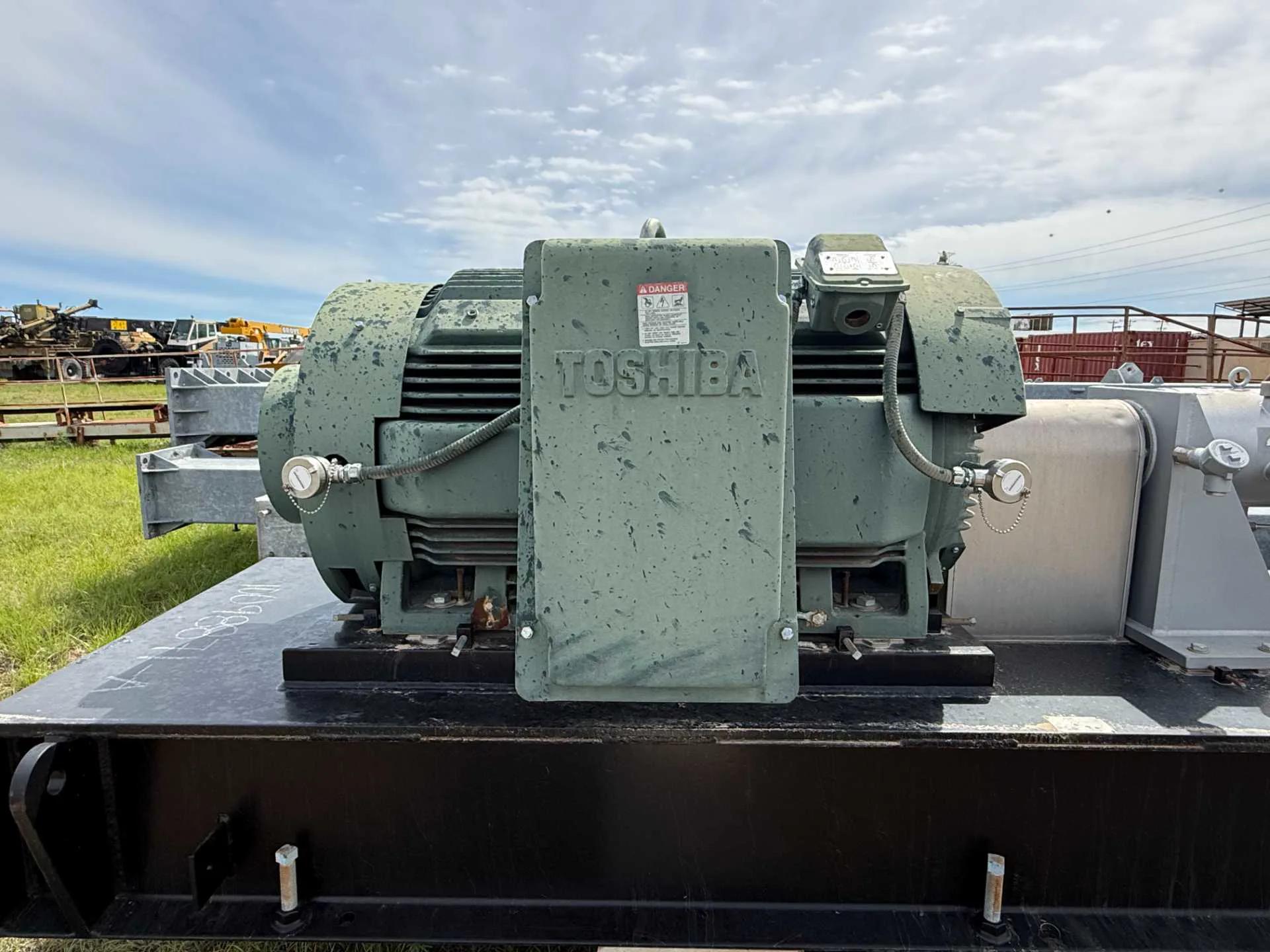

The pump is skid-mounted on a common baseplate with its driver, a Toshiba EQPIII Global SD electric motor rated 500 HP, 460V, 3-phase, 3,570 RPM in a TEFC NEMA Premium enclosure carrying a Class I, Division 2 hazardous-area rating. The motor nameplate is dated April 2020.
Pumps in this class serve saltwater disposal, produced-water and water injection, water flooding, pipeline boosting, and mine dewatering, where high discharge pressure and stable flow are needed across long run cycles. The multi-stage configuration generates pressure that single-stage units cannot, and the skid base lets the unit be set, leveled, and piped as one package.
This unit is offered as surplus; pump and motor nameplate data are documented in the listing photos. Sold as-is, surplus from the King Surplus yard in Comfort, Texas. Freight and rigging quoted on request.
Factory Information

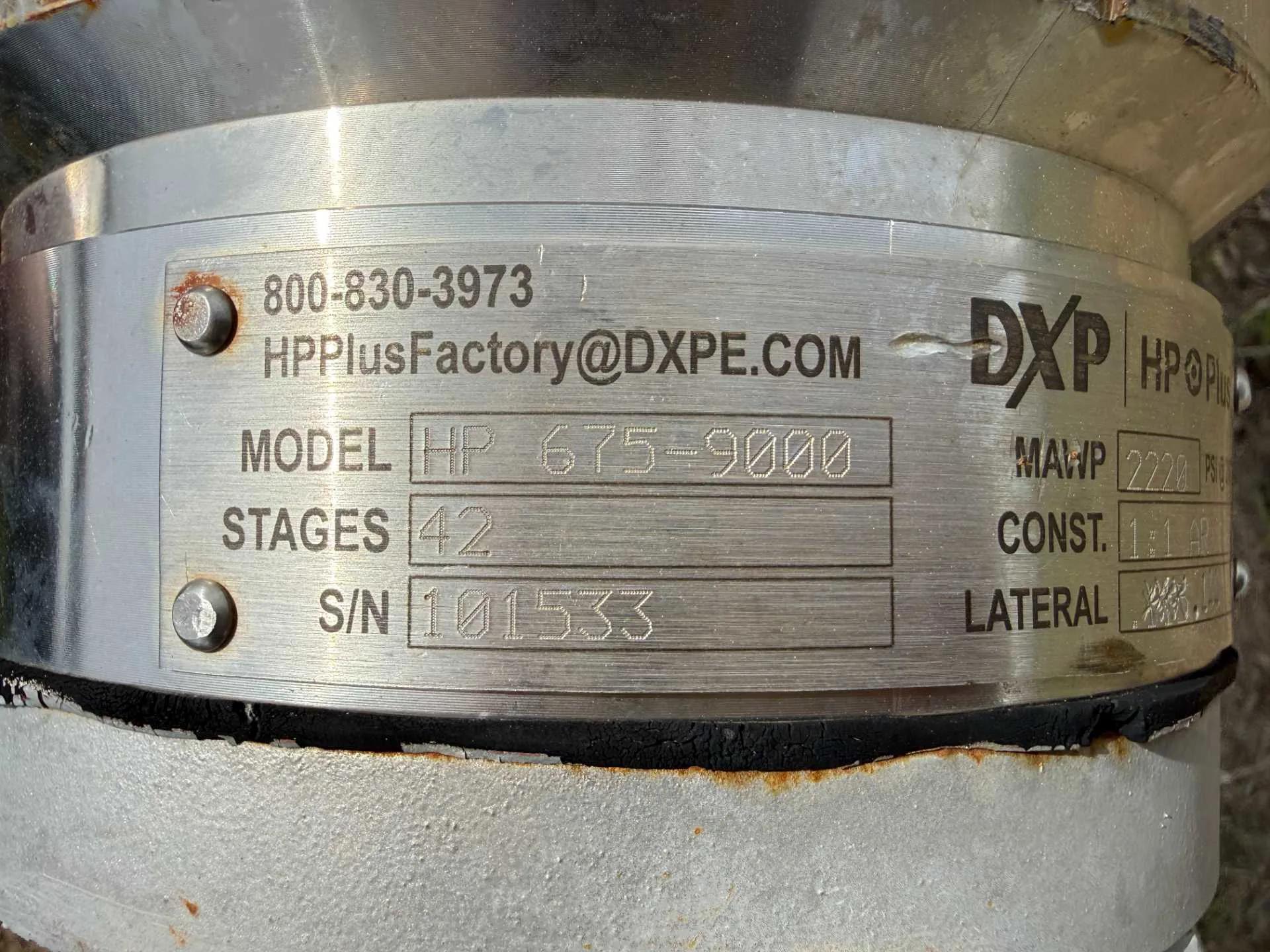

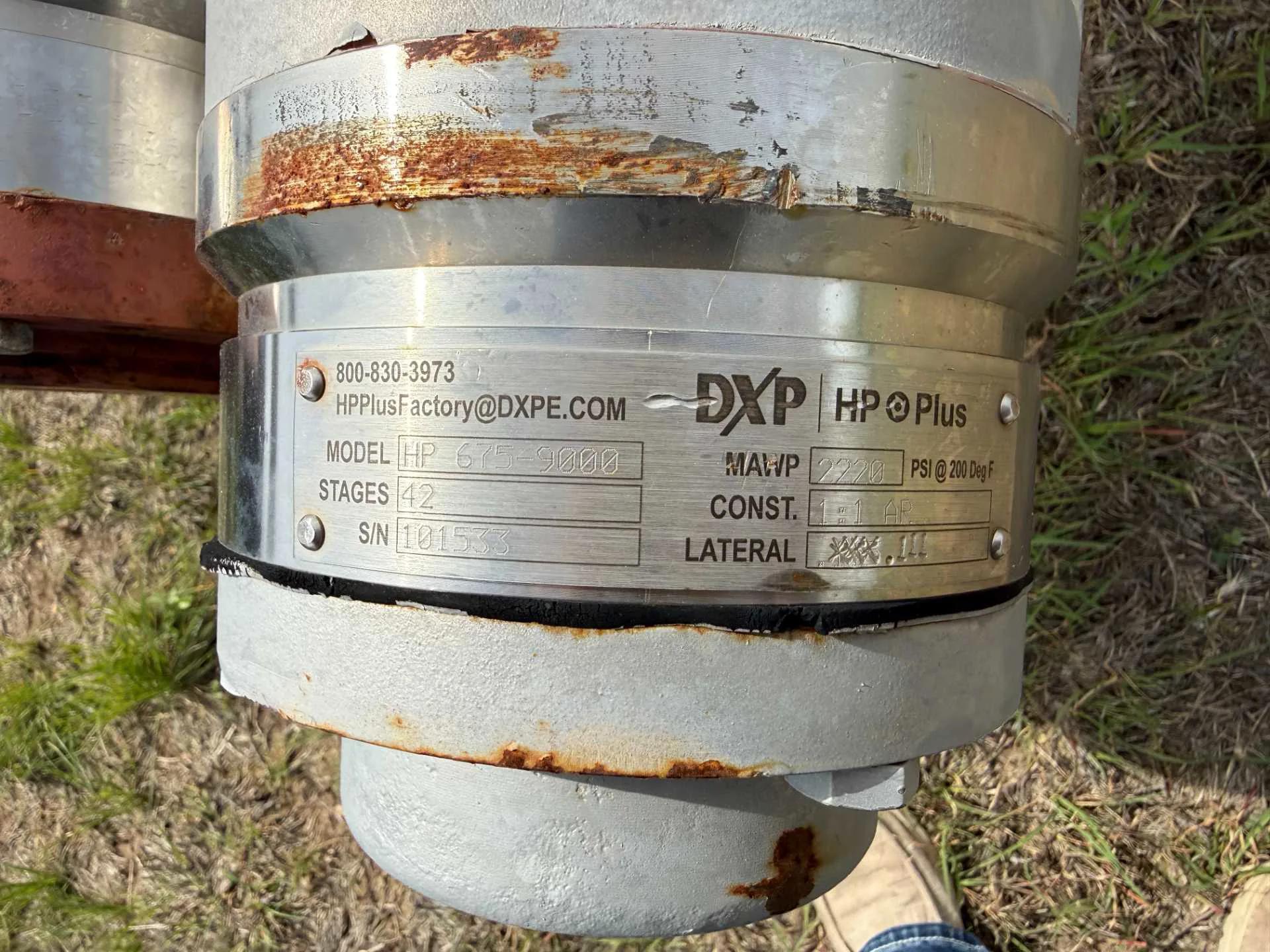

Manufacturer: DXP / PumpWorks (HP Plus line)
Model: HP 675-9000
Type: Horizontal multi-stage centrifugal pump (API)
Stages: 42
Pump Serial No.: 101533

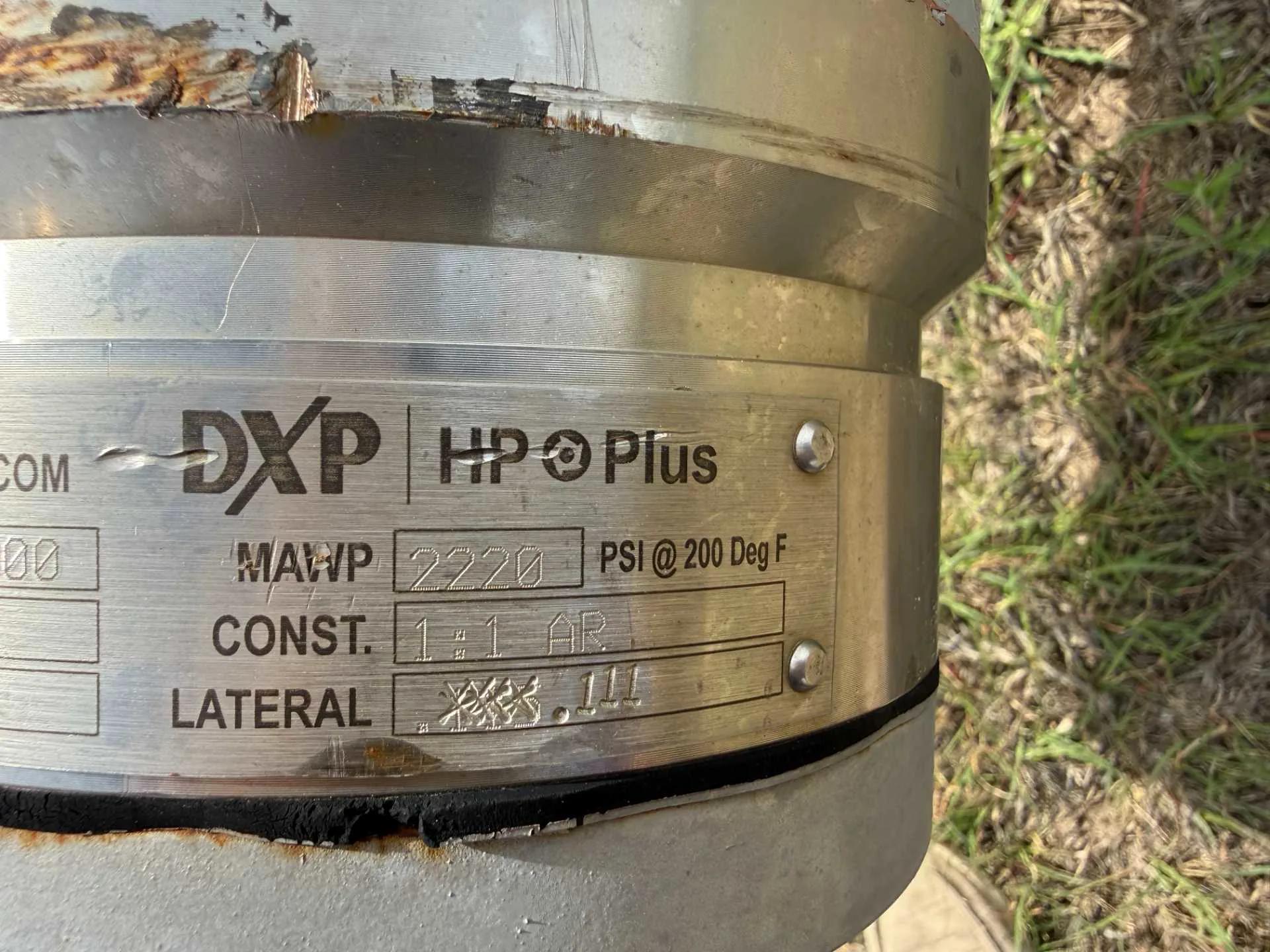

MAWP: 2,220 PSI @ 200°F
Build Year: 2020

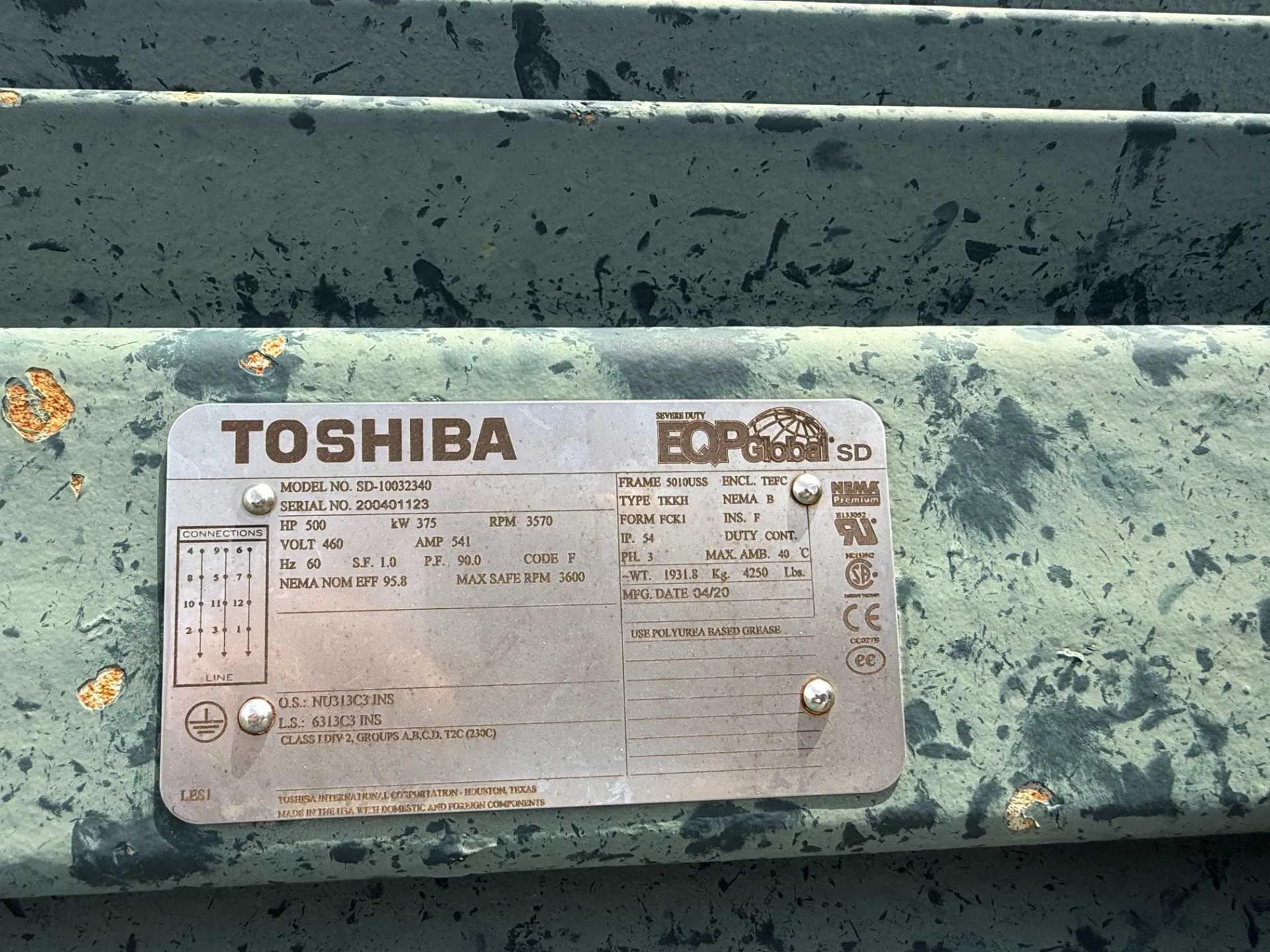

Driver: Toshiba EQPIII Global SD electric motor
Motor Model / Serial: SD-10032340 / 200401123
Motor Power: 500 HP (375 kW)
Motor Electrical: 460V, 3-phase, 60 Hz, 541 A
Motor Speed: 3,570 RPM (2-pole)
Motor Enclosure / Efficiency: TEFC, NEMA Premium, 95.8%, S.F. 1.0
Hazardous Area Rating: Class I, Div 2, Groups A/B/C/D, T2C
Motor Frame / Type: 5010USS / TKKH
Motor Weight: approx. 4,250 lb

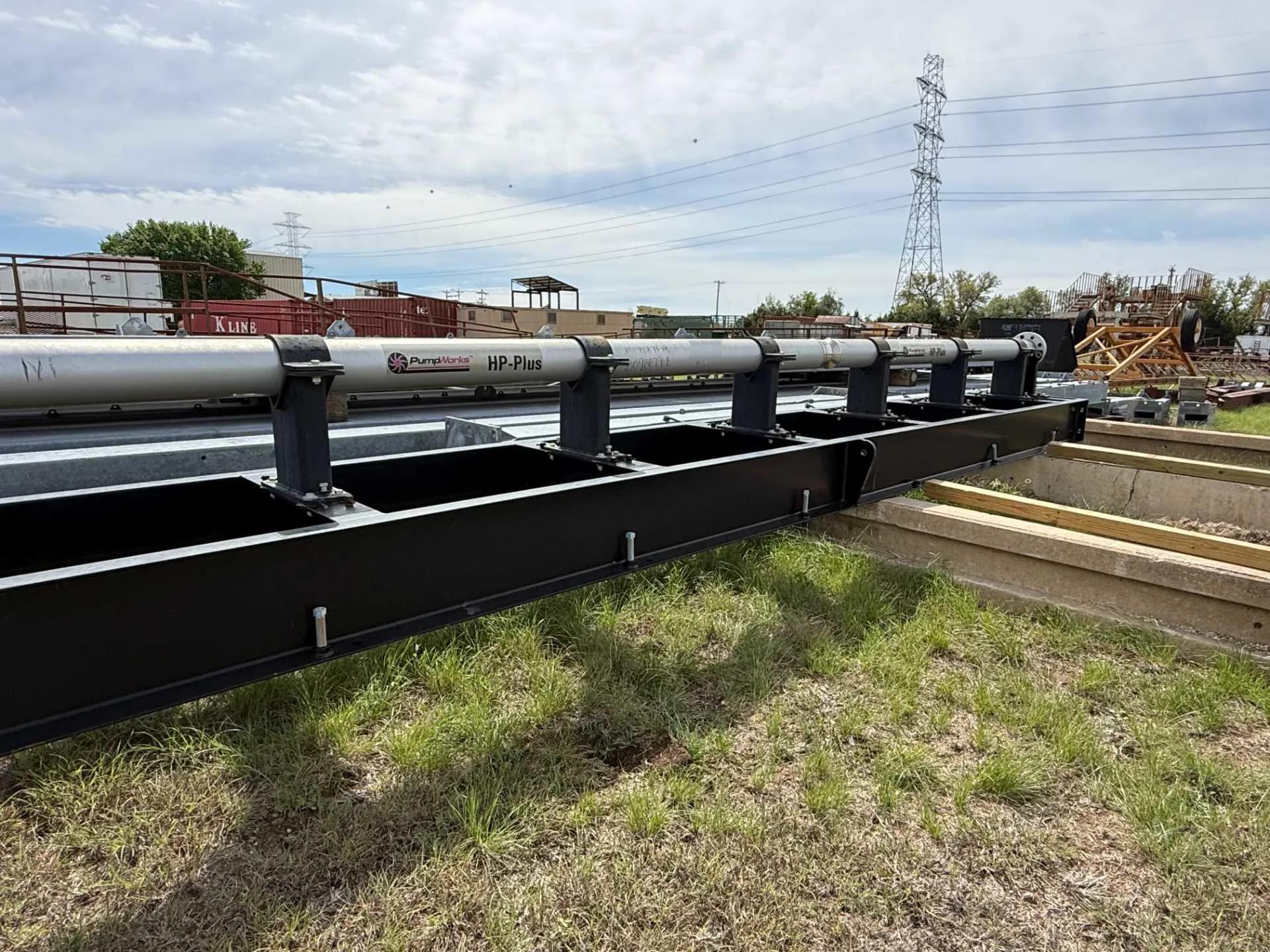

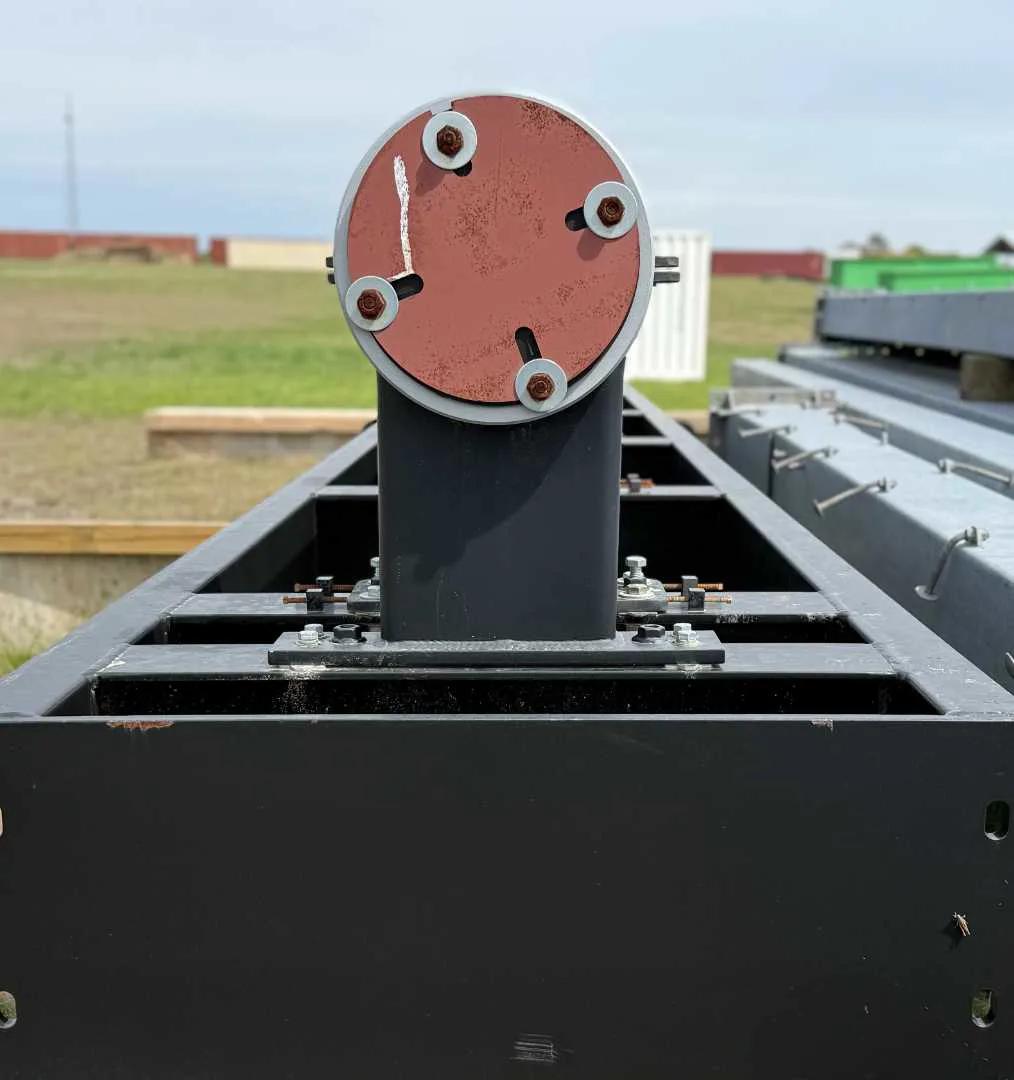

Configuration: Pump and motor skid-mounted on common baseplate
Country of Origin: Pump - USA; Motor - Japan
HP Plus Line Capability: 350-45,000 BPD (10-1,300 GPM), developed head to 9,930 ft / 4,300 PSI, housing to 6,000 PSI, to 1,500 HP
Condition: Surplus, sold as-is
Specifications
Pump Works
HP 675-9000
101533
2020
500
541
N/A
N/A
N/A
3
N/A
0
KSC1364 / 6212
Packaging fees
N/A
